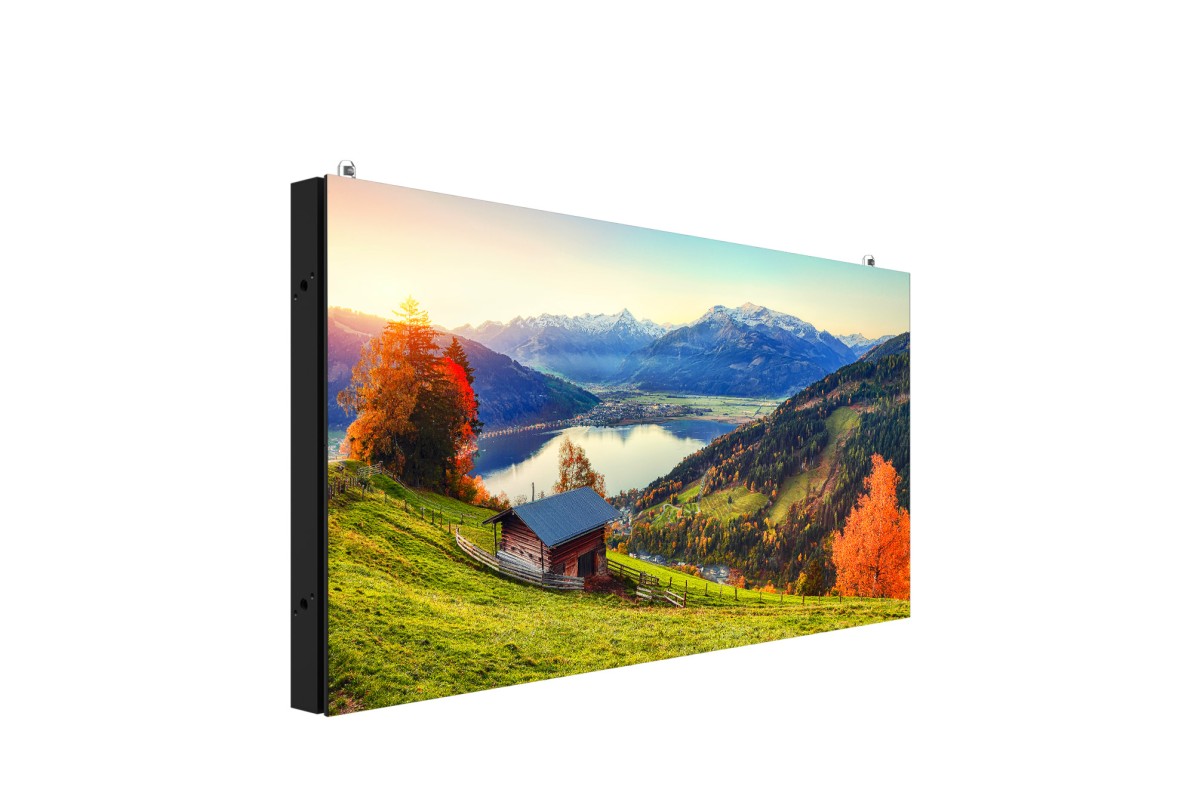

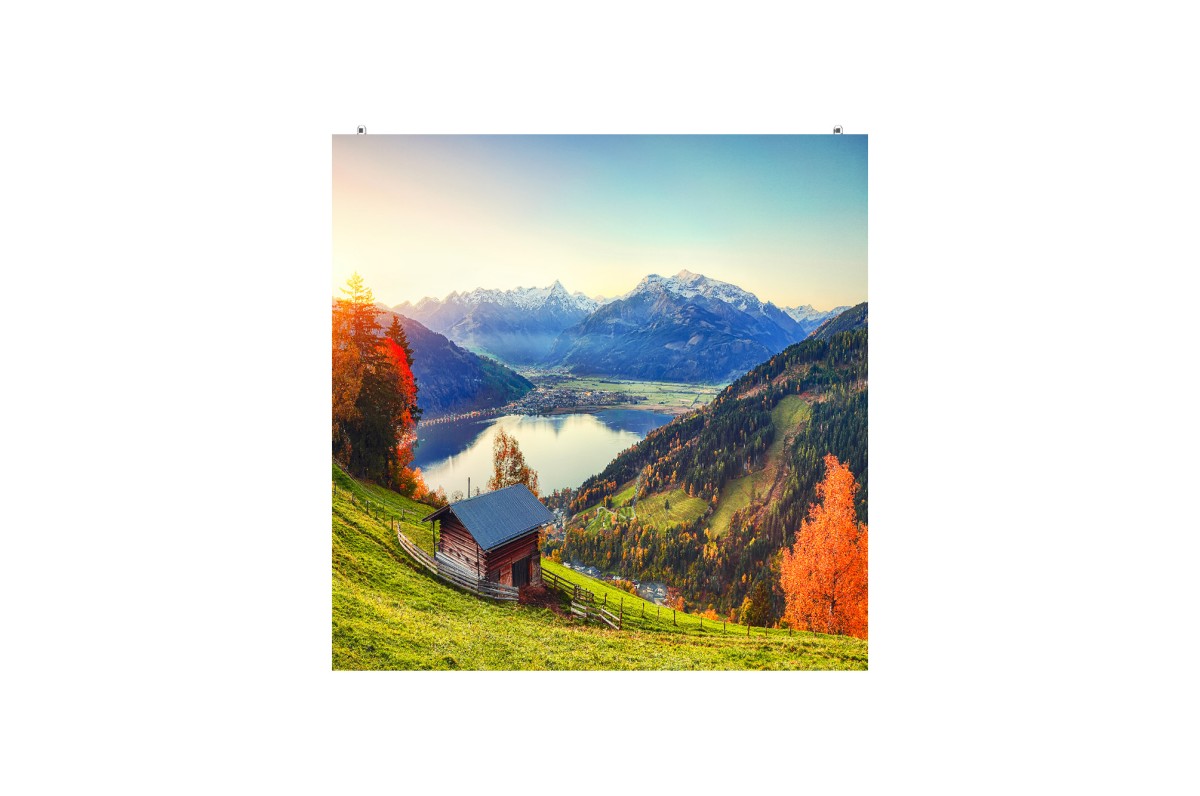

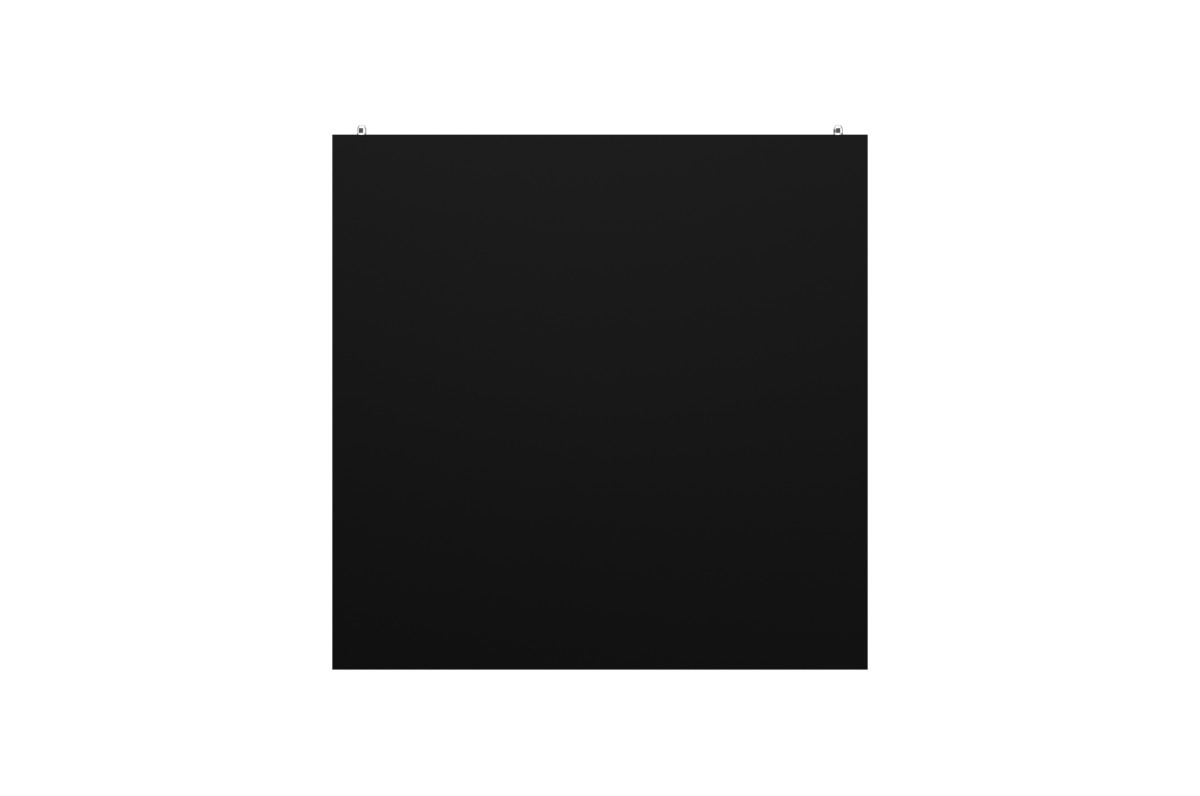

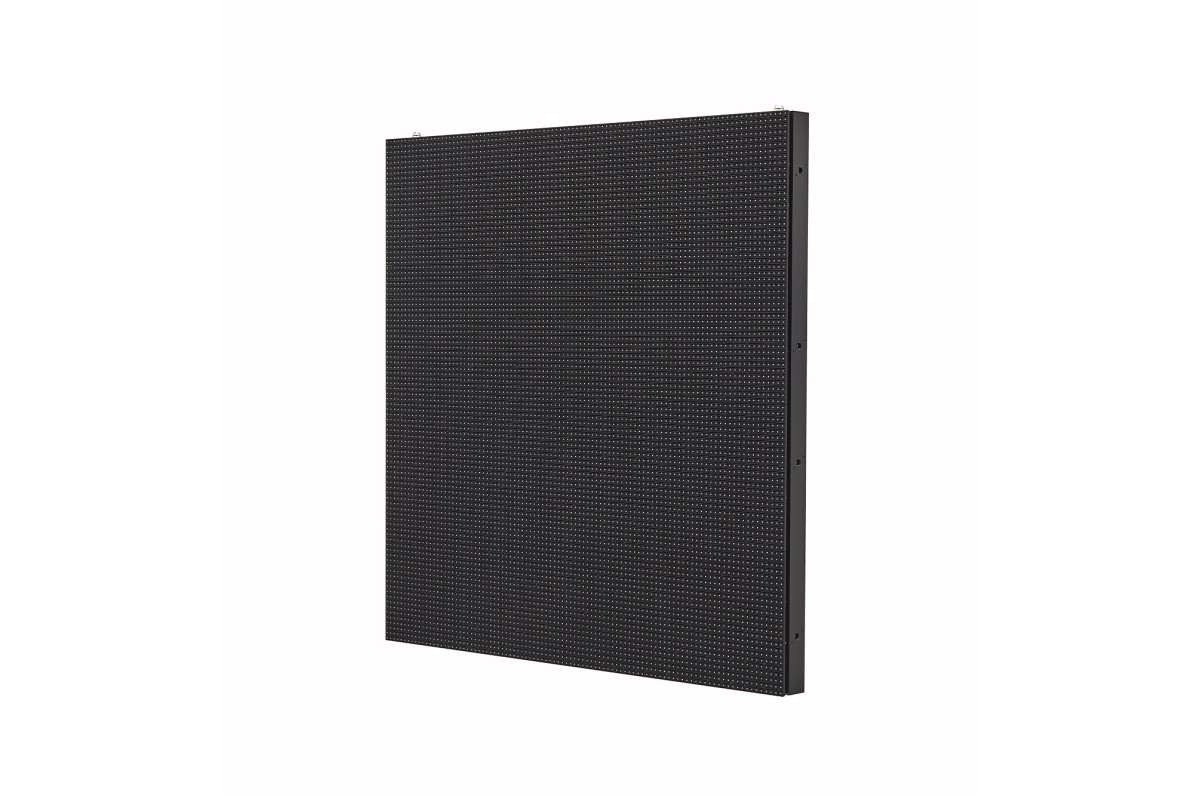

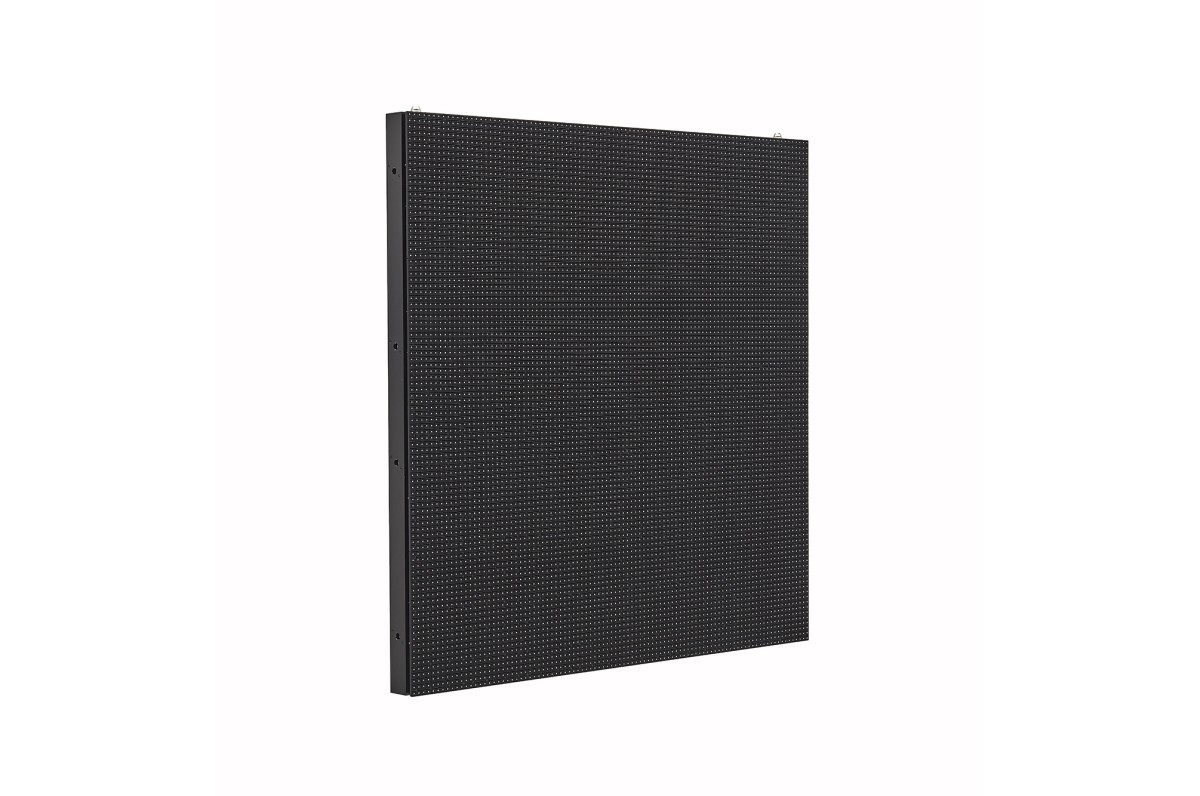

LG GSCD069 LED 6.94 Pixel Pitch Ultra Light Series
Product code:- Pixel Pitch: 6.94mm
- Brightness: 5,000 cd/m²
- Lightweight Design
- IP65 Weatherproof Design
- 90º Corner Option Available
Description

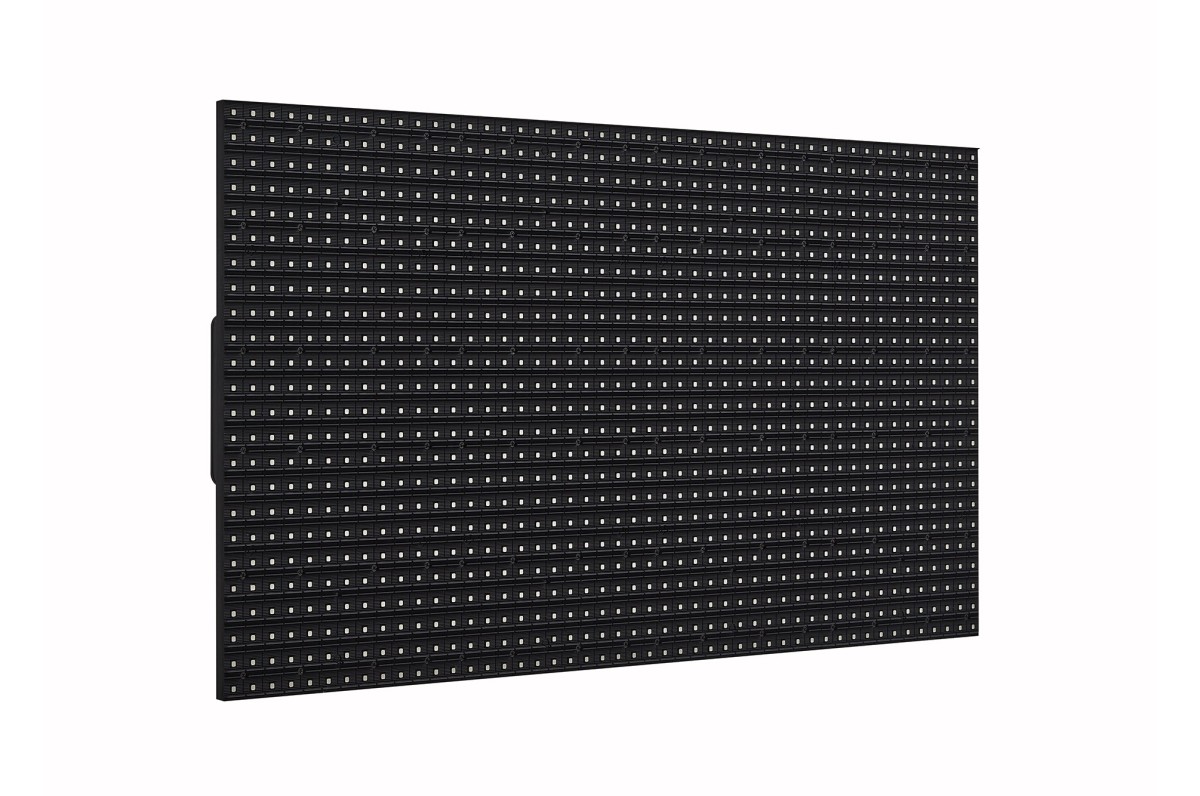

Physical Parameter
| Pixel Configuration | 3 in 1 SMD 1921 |
|---|---|
| Pixel Pitch (mm) | 6.94 |
| Module Resolution (W x H) | 72 × 36 |
| Module Dimensions (W x H, mm) | 500 × 250 |
| Weight per Module (kg) | 1.30 |
| No. of Modules per Cabinet (W × H) | 2 × 4 / 2 × 2 (Half-sized) |
| Cabinet Resolution (W × H) | 144 × 144 / 144 × 72 (Half-sized) |
| Cabinet Dimensions (W × H × D, mm) | 1,000 × 1,000 × 84.4 mm / 1,000 × 500 × 84.4 mm (Half-sized) |
| Cabinet Surface Area (m²) | 1.000 / 0.500 (Half-sized) |
| Weight per Square Meter (kg/m²) | 18.5 / 20.8 (Half-sized) |
| Weight per Cabinet (kg/cabinet) | 18.5 / 10.4 (Half-sized) |
| Physical Pixel Density (pixels/m²) | 20,736 |
| Flatness of Cabinet | ±0.5 mm |

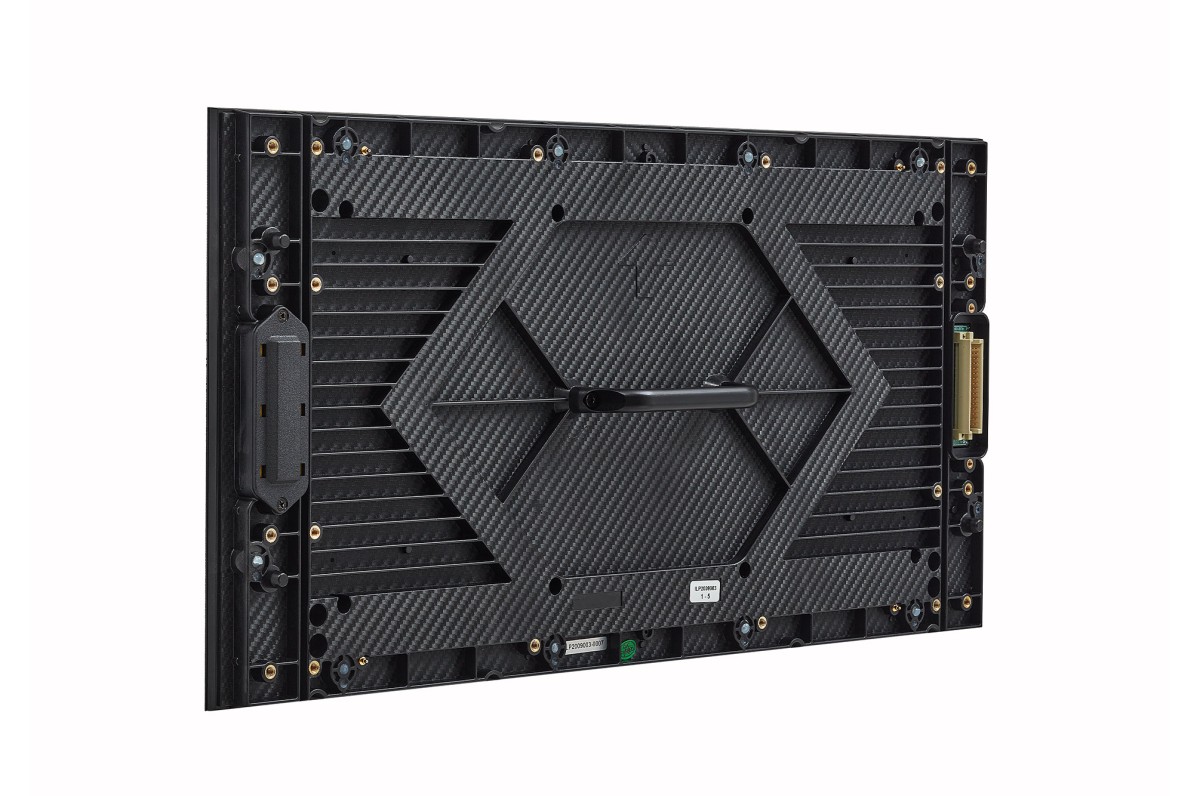

| Cabinet Material | Aluminum Profile |
| Service Access | Front or Rear (One Option Only) |
Additional information
Optical Parameter
| Max. Brightness (After Calibration) | 5,000 |
|---|---|
| Color Temperature | 3,200 - 9,300 |
| Visual Viewing Angle (Horizontal/Vertical) | 160 / 134 |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003CxCy |
| Contrast Ratio | 6,000 |
| Processing Depth (bit) | 16 |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 680 / 340 (Half-sized) |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 226 / 114 (Half-sized) |
| Power Consumption (W/m², Max.) | 680 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | -30°C to +50°C |
| Operating Humidity | 10-99%RH |
| IP rating Front / Rear | IP65 / IP65 |
Controller (CVCA)
| Connectivity - Input | HDMI (HDCP 2.2), DP (HDCP 2.2, HDCP 1.4), OPS, USB 2.0 |
|---|---|
| Connectivity - Output | Gigabit Ethernet × 16, RS-232C In/Out (4 Pin Phone-jack) |
| Connectivity - Control | RJ45 In (LAN) |
| Video - Resolution | 3,840 × 2,160 @ 60Hz |
| Video - Format | RGB / YCbCr4:4:4 / YCbCr4:2:2 |
| Feature | 8 GB (System 4 GB + Available 3.6 GB), Temperature Sensor, Local Key Operation, Signal Redundancy, HDR10 |
| Software - Platform | webOS 4.0 w / Open API Support |
| Software - Setup and Maintenance | LG LED Assistant |
| Software - Content Management | LG SuperSign CMS |
| Software - Cloud Monitoring | LG ConnectedCare |
| Physical Specs - Dimensions (W × H × D, mm) | 443 × 63 × 307.5 → EIA Standard Rack (2U) |
| Physical Specs - Weight (kg) | 4.9 |
| Power Specs - Power Supply (V) | AC 100-240 V, 50/60 Hz |
| Power Specs - Power Type | Built-in Power |
| Power Specs - Power Consumption (W) | 50 (Max.) |
| Environmental Conditions - Operation Temperature | 0°C to 40°C |
| Environmental Conditions - Operation Humidity | 10% to 80% |
| Certifications - Safety | IEC 60950-1 / EN 60950-1 / UL 60950-1 |
| Certifications - EMC | FCC Class "A" / CE / KC |
