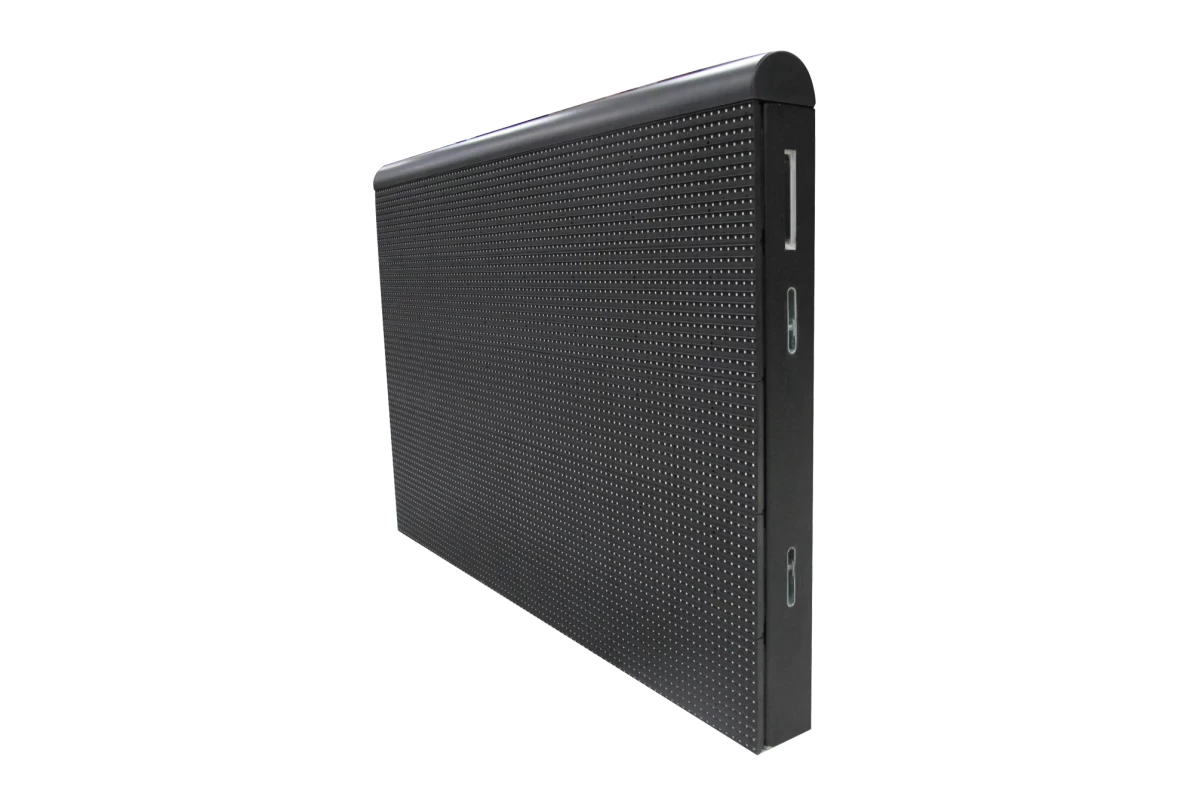

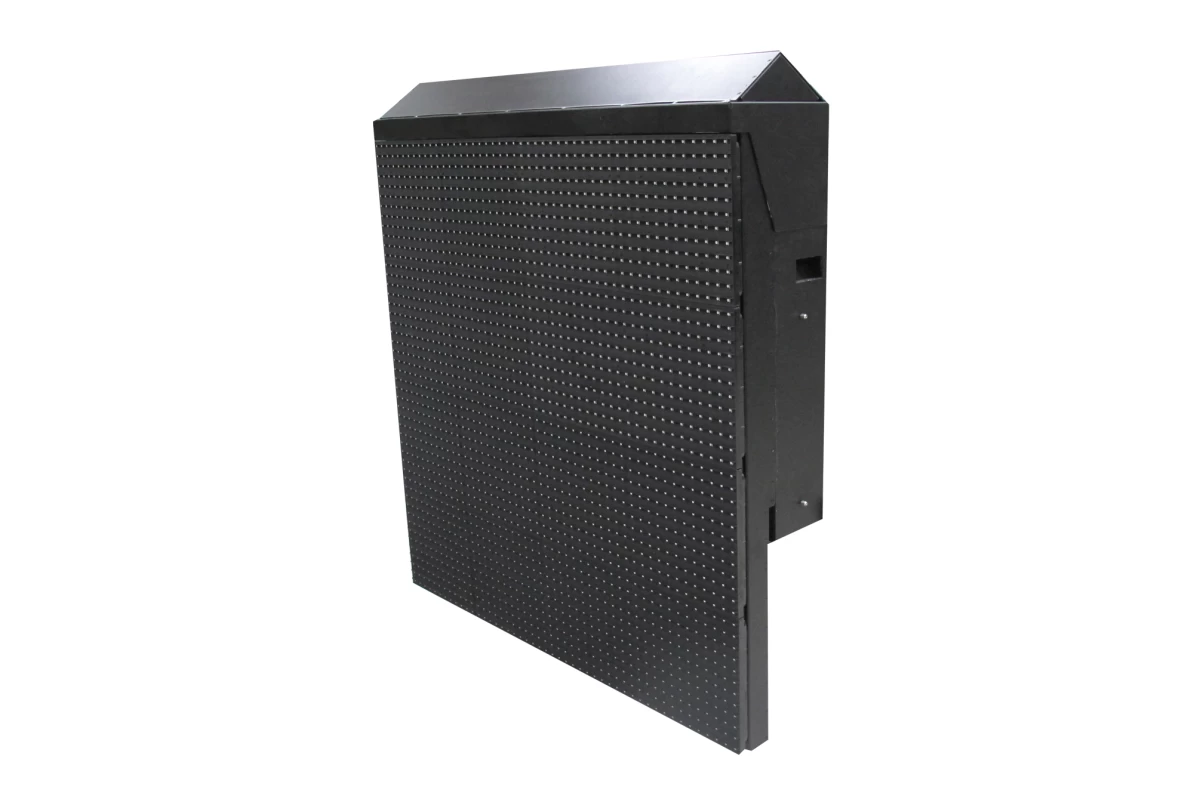

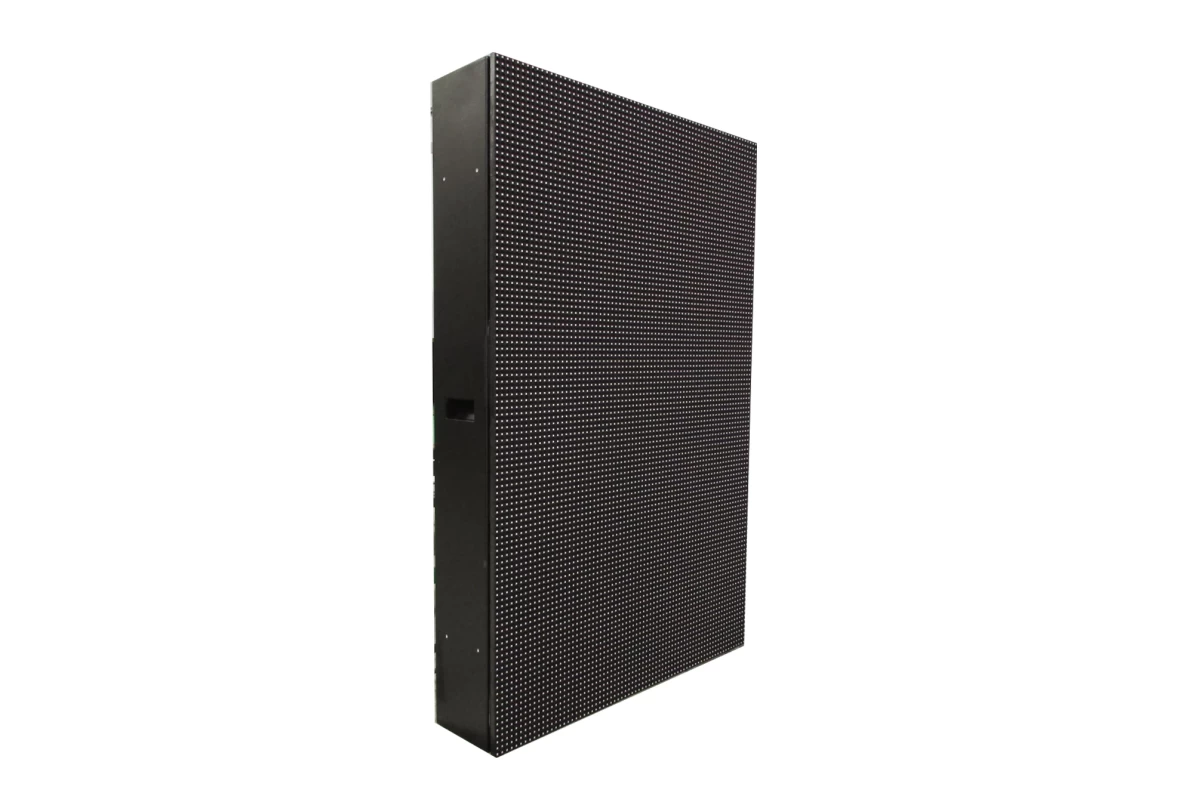

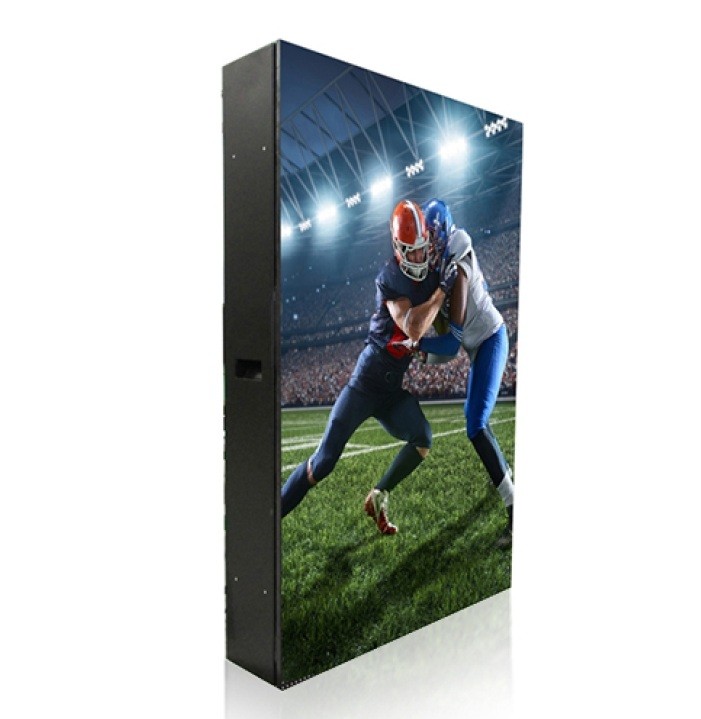

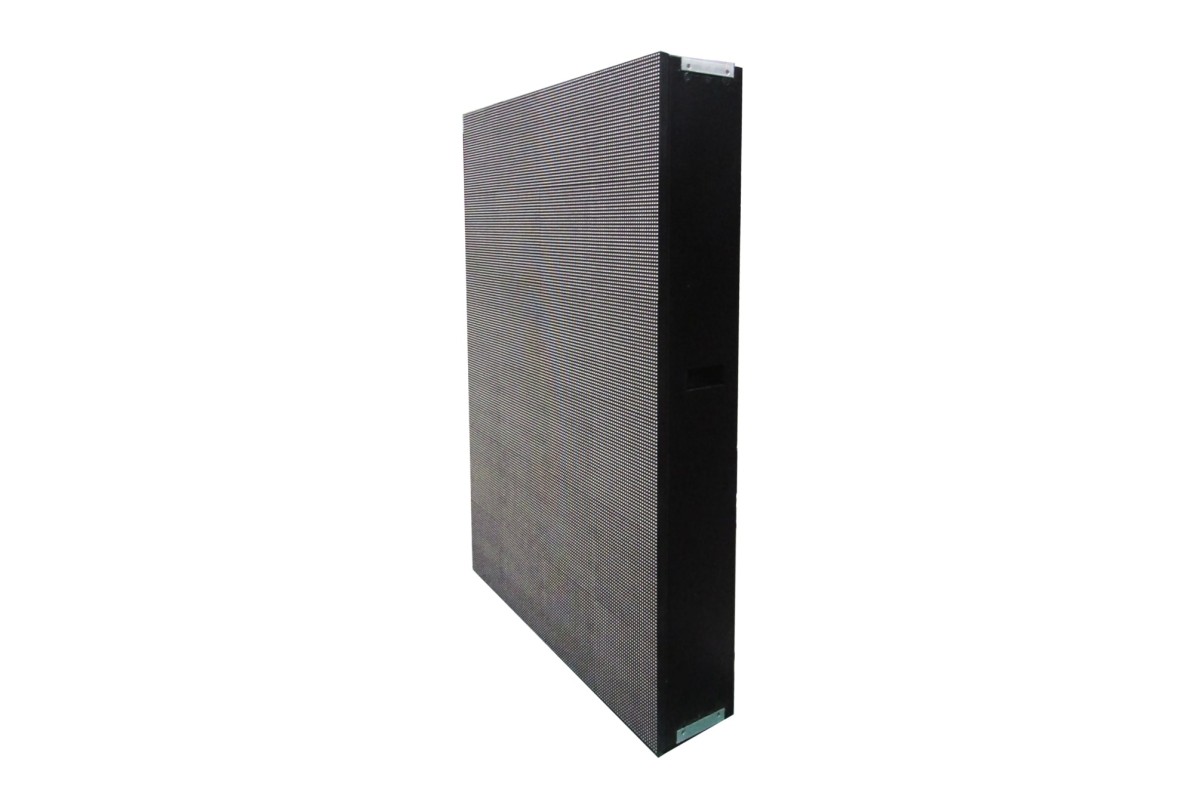

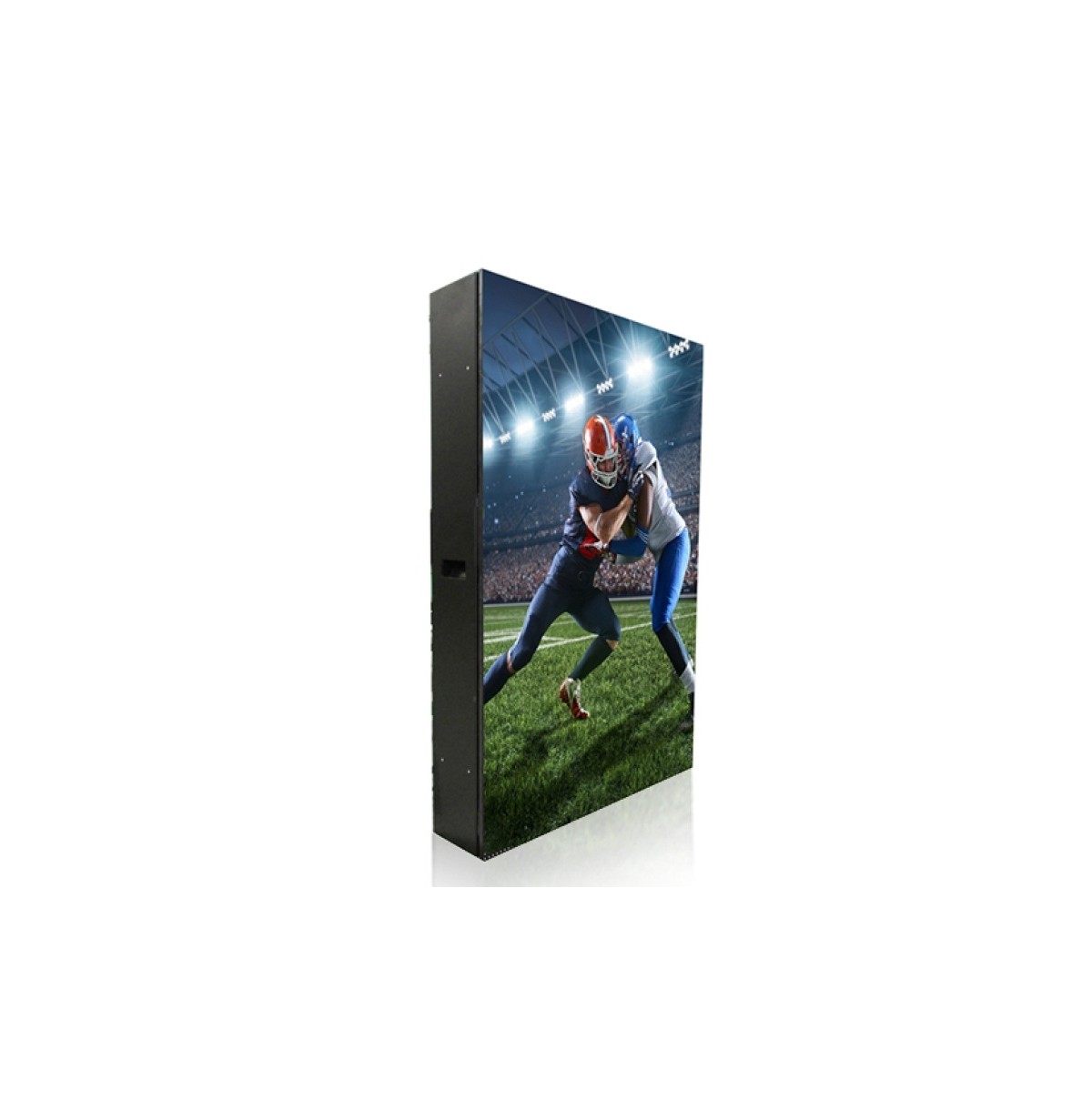

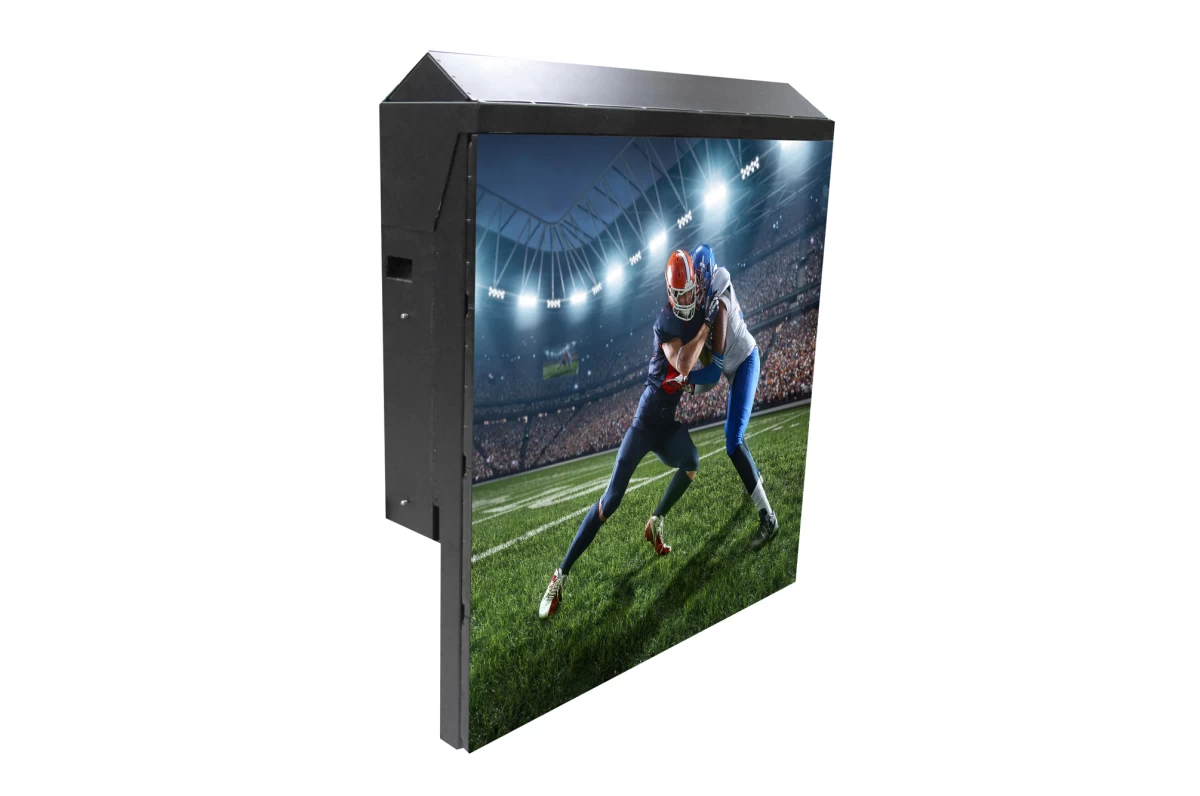

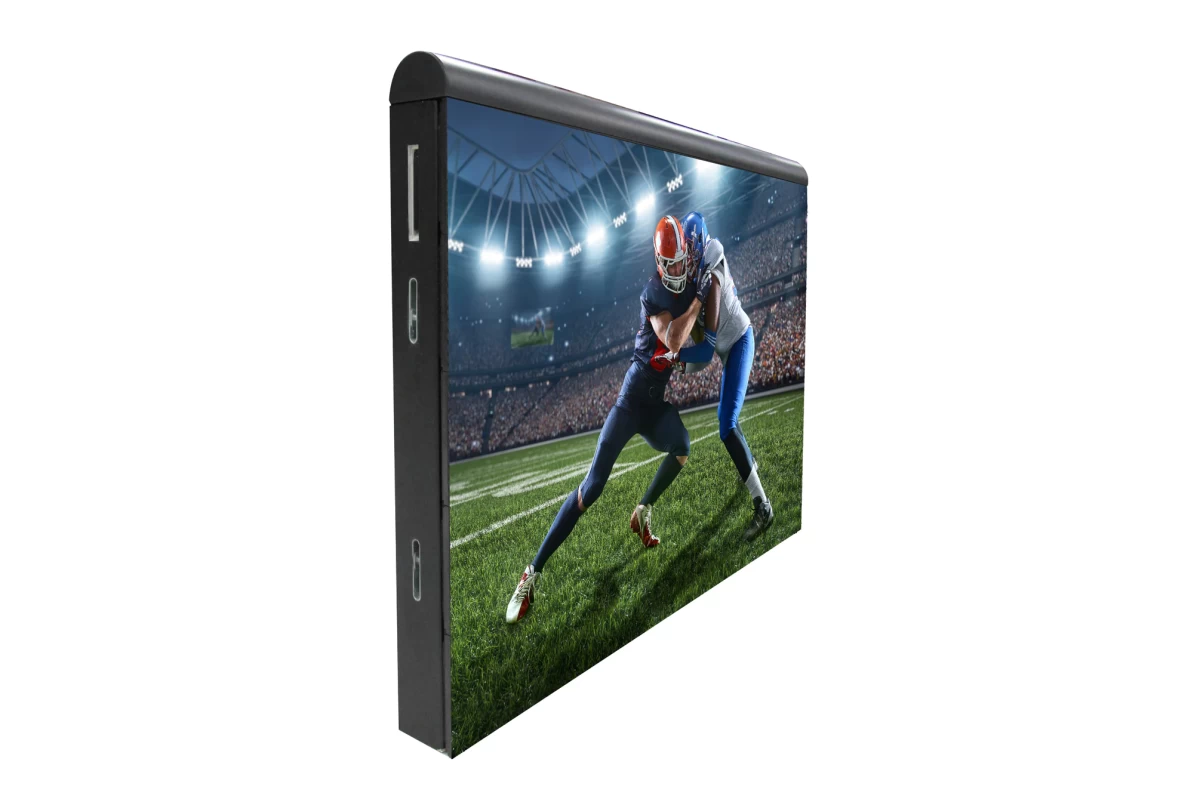

LG LBS100 LED 10.667 Pixel Pitch Stadium Series (LBS100DA1D / LBS100DA3D / LBS100DA4D)
Product code:LG's LBS Stadium series comes in various formats for different types of stadiums and outdoor venue applications. It provides robust performance. LG will revolutionize the way you conduct business.
SEND AN ENQUIRYDescription
OPTICAL PARAMETER
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch(mm) | 10.667 |
| Unit Case Resolution (WxH) | 144x144 |
| Unit Case Dimensions (WxHxD, mm) | 1536x1536x222 |
| Weight per Unit Case / Square Meter (kg) | 104.0/44.1 |
| Service access | Front and Rear |
| Min. Brightness (After Calibration, cd/m²) | 6,000 |
| Color Temperature | 3500-8500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160/145 |
| Brightness Uniformity | 97％ |
| Color Uniformity | ±0.05Cx,Cy |
| Contrast Ratio | 3,000 |
| Processing Depth (bit) | 16 |
Additional information
| Power Consumption (W/Unit, Avg./Max.) | LBS100DA1D: 616/1540, LBS100DA3D: 580/1450, LBS100DA4D: 712/1780 |
| Power Consumption (W/m², Max.) | LBS100DA1D: 653, LBS100DA3D: 615, LBS100DA4D: 754 |
| Power Supply (V) | 100 to 240 |
| Refresh Rate (Hz) | 4,000 |
| Lifetime (Duration of Half Brightness in Hours) | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90％RH |
| IP rating Front / Rear | IP65/IP54 |
