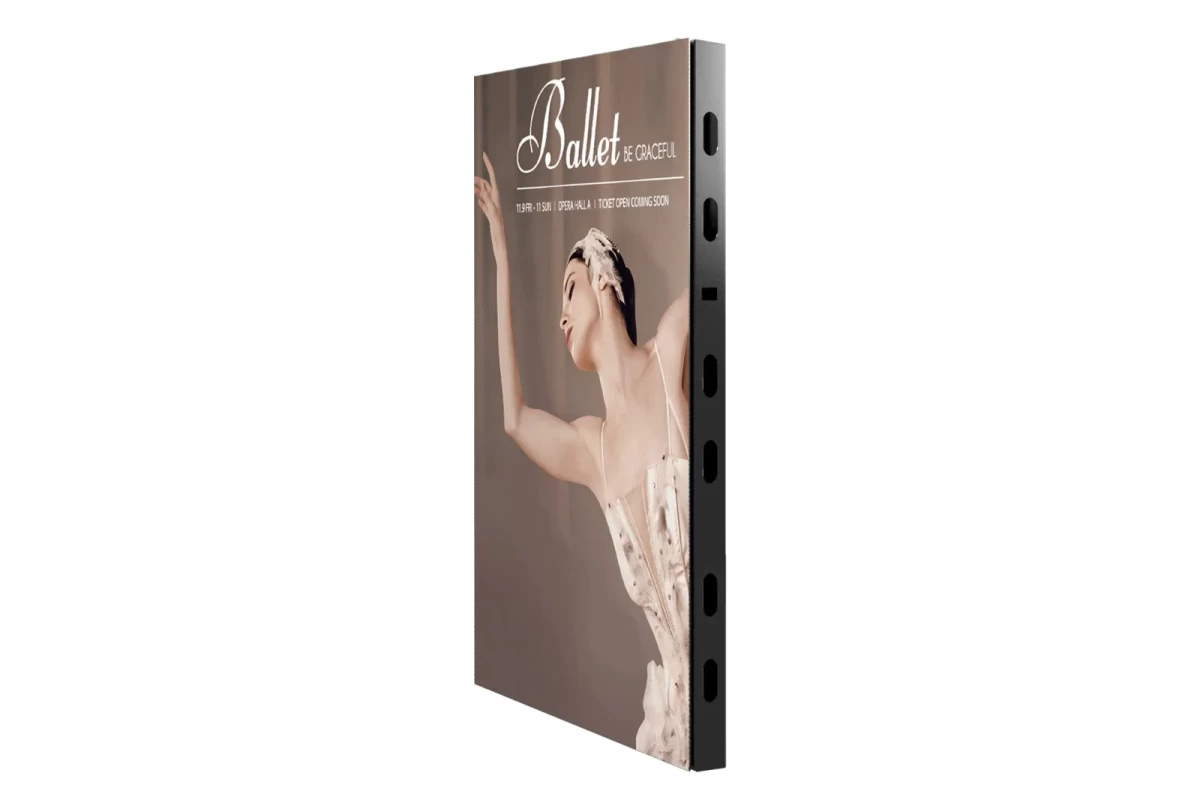

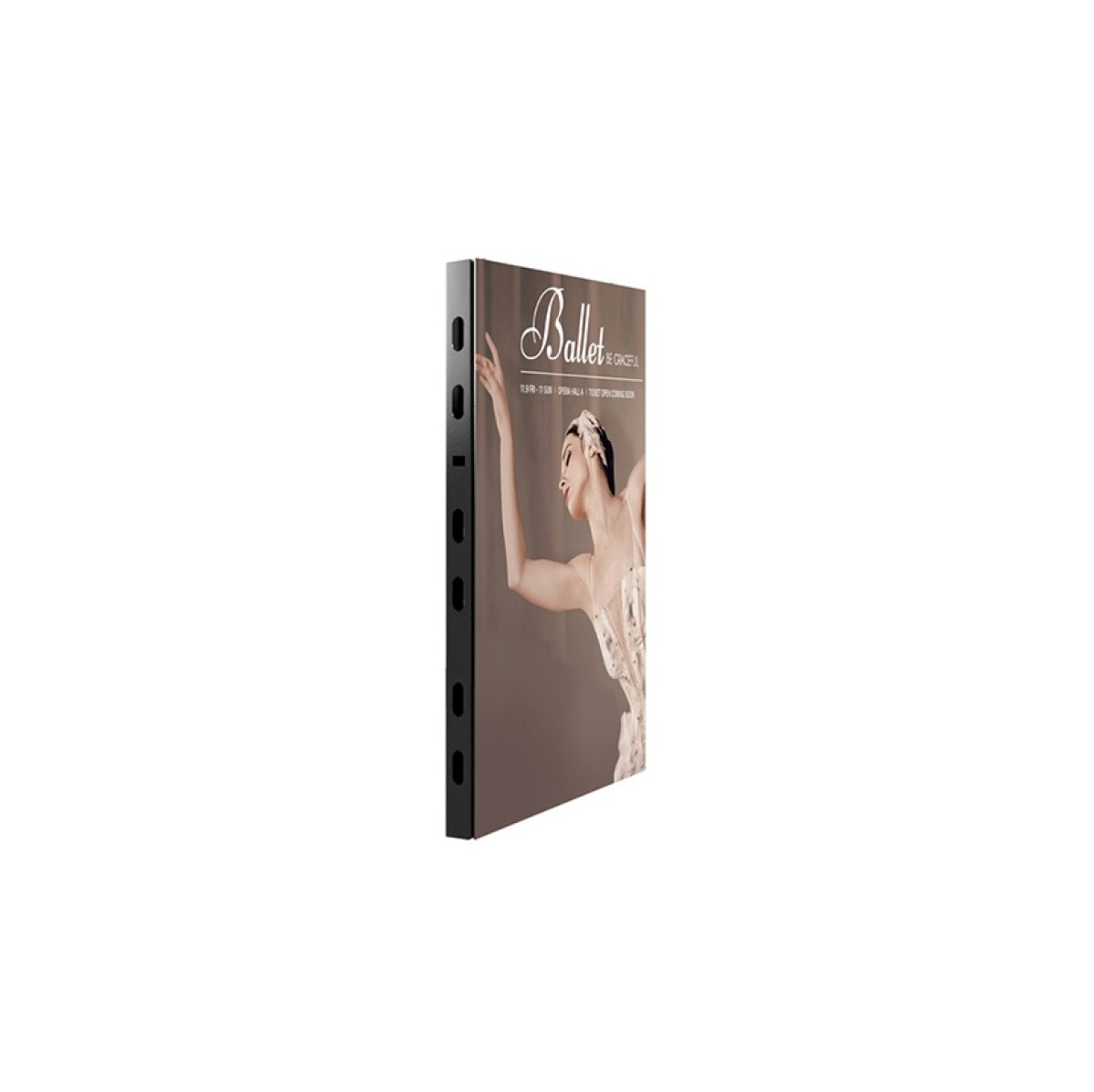

LG LBS100DA3-V LED 10.00 Pixel Pitch Premium Slim Series
Product code:- Pixel pitch: 10.00mm
- Brightness: 6,000cd/m²
- EXTRAORDINARY VISIBILITY
- 16 bit color processing

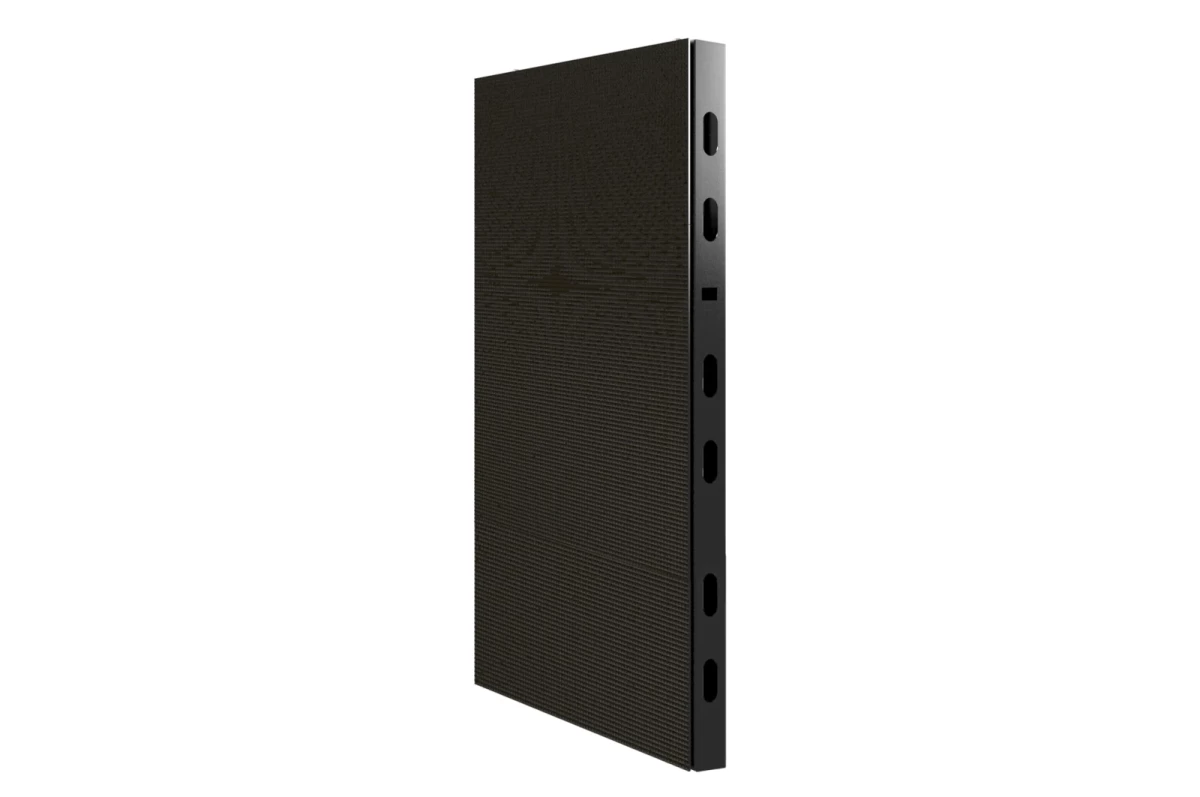

- Thin and light design
- Waterproof and reliable design
Description
PHYSICAL PARAMETER
| Pixel Configuration | 3 in 1 |
| Pixel Pitch (mm) | 10.00 |
| Module Resolution (W x H) | 40×40 |
| Module Dimensions (W x H, mm) | 400×400 |
| Weight per Module (kg) | 0.56 |
| No. of Modules per Cabinet (W × H) | 2×4 |
| Cabinet Resolution (W × H) | 80×160 |

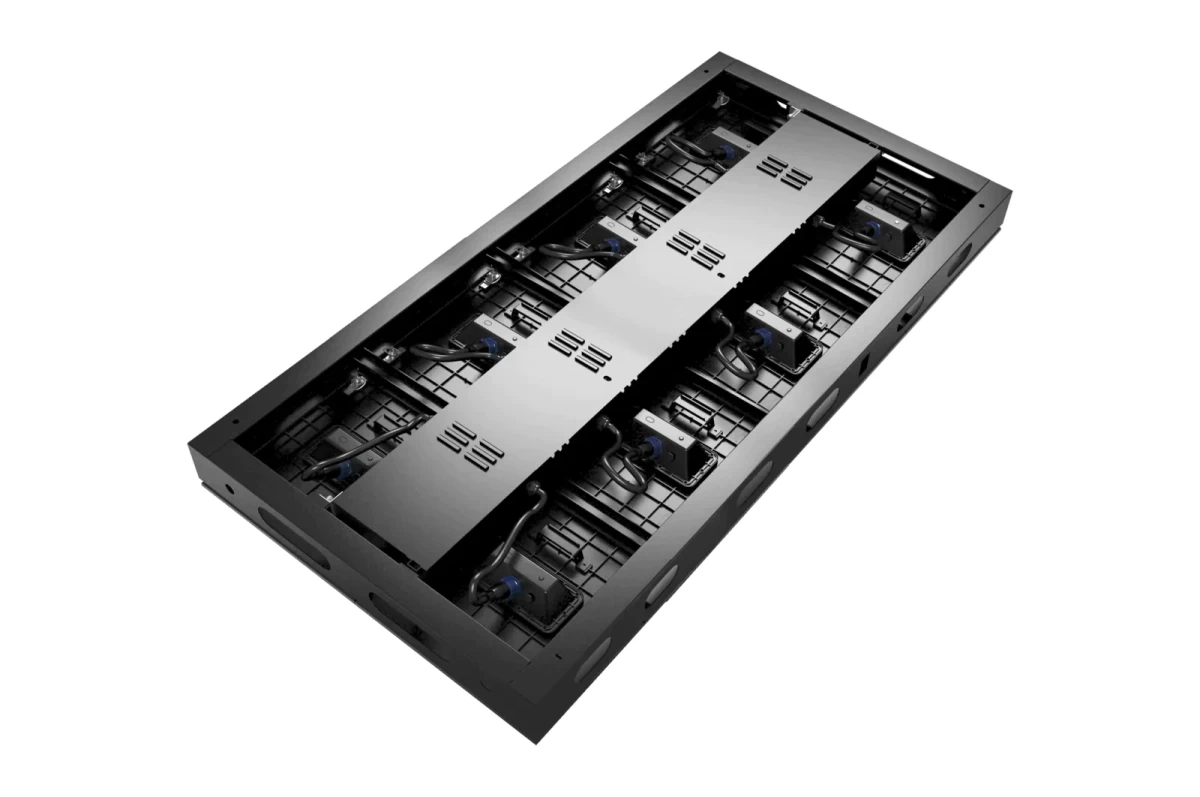

| Cabinet Dimensions (W × H × D, mm) | 800×1600×143.5 |
| Cabinet Surface Area (m²) | 1.28 |
| Weight per Square Meter (kg/m²) | 31 |
| Weight per Cabinet (kg/cabinet) | 40 |
| Physical Pixel Density (pixels/m²) | 10000 |
| Flatness of Cabinet | ±1.0mm |
| Cabinet Material | aluminum film |

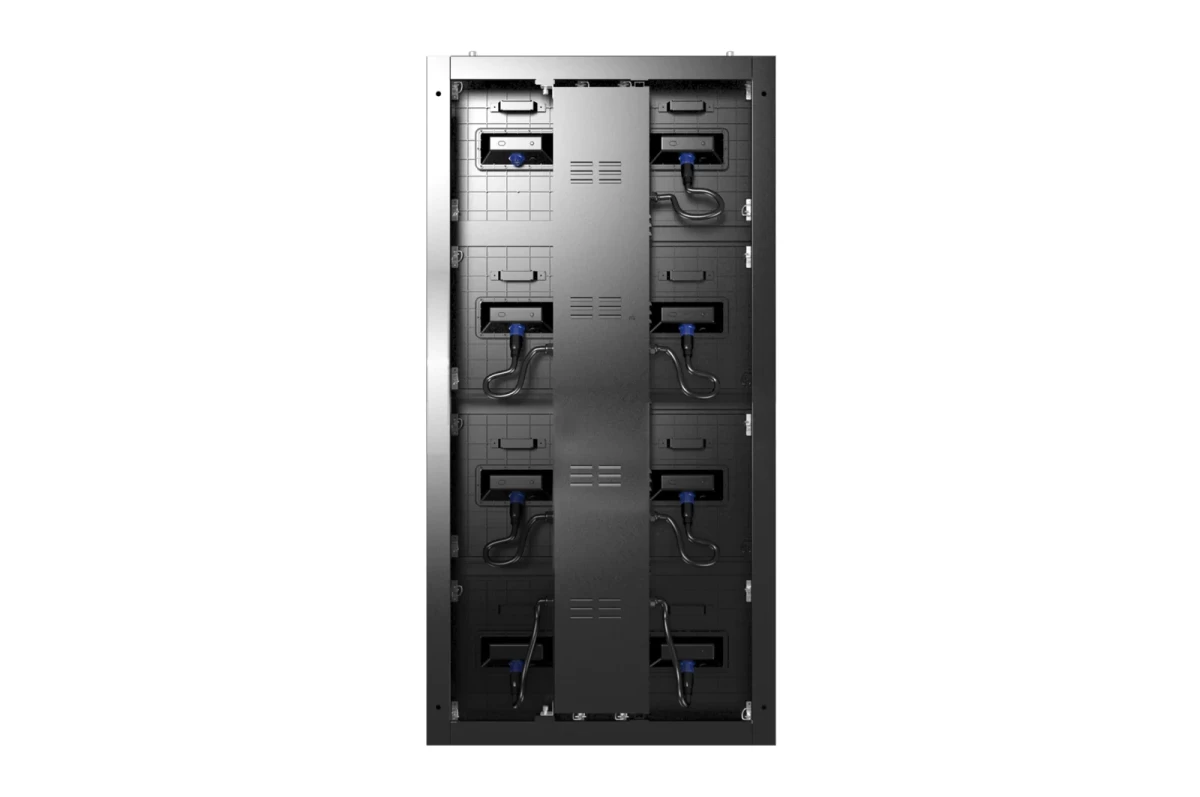

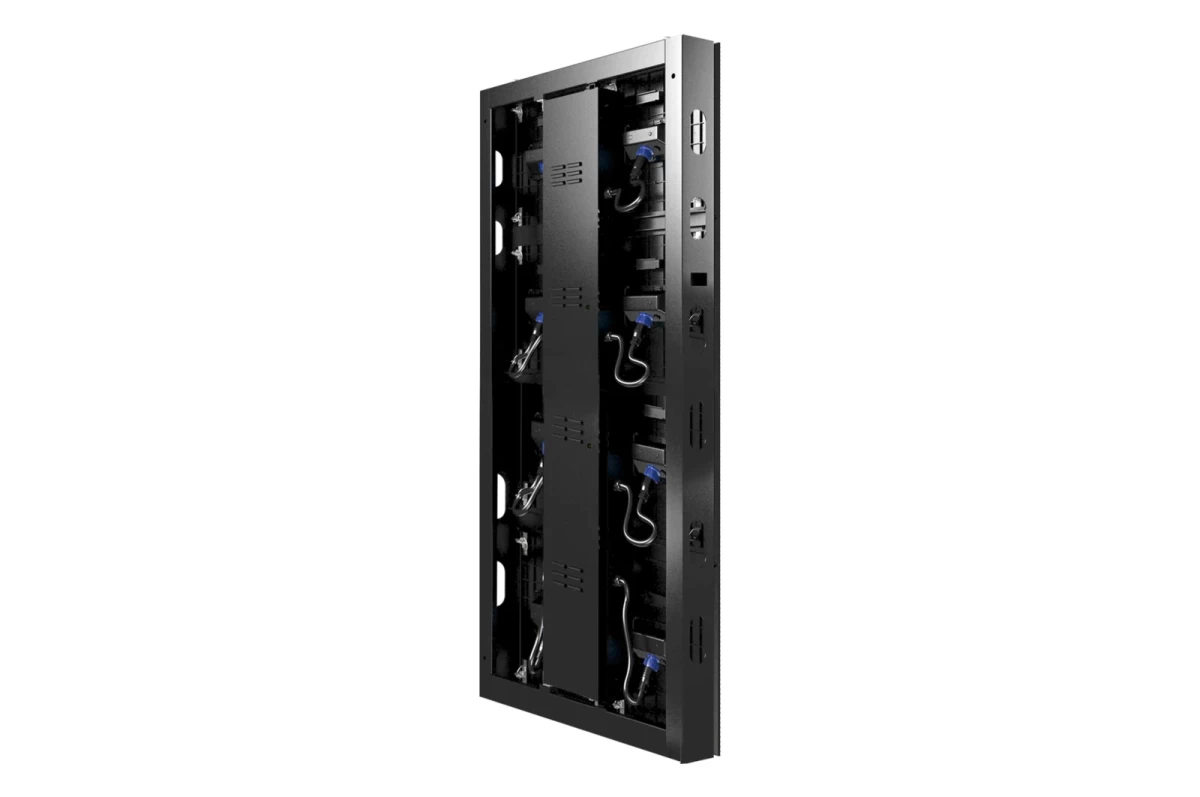

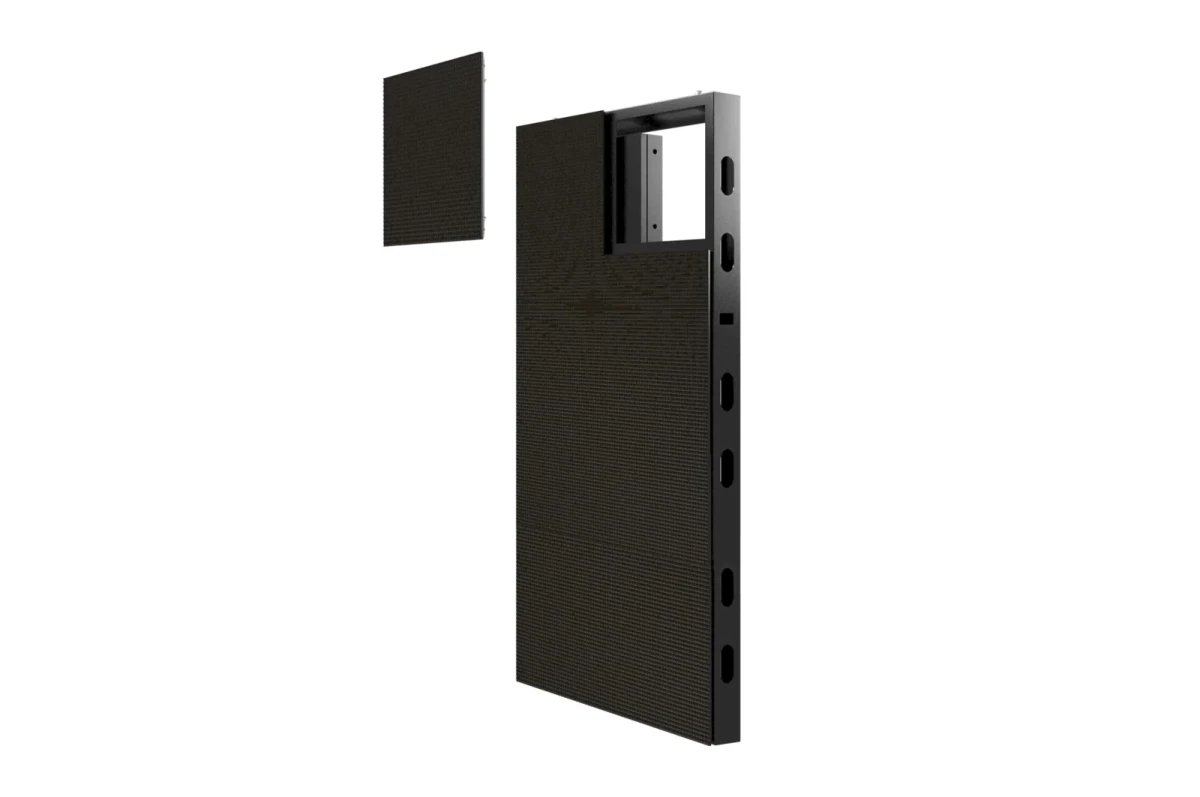

| Service Access | Front or Rear |
Additional information
Optical Parameter
| Max. Brightness (After Calibration) | 6000 |
|---|---|
| Color Temperature | 3500 ~ 8500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160 x 115 |
| Color Uniformity | ±0.05Cx,Cy |
| Contrast Ratio | 3000 |
| Processing Depth (bit) | 16 |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 920 |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 368 |
| Power Consumption (W/m², Max.) | 719 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 4000 |
Operation Conditions
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | -30° to +50° |
| Operating Humidity | < 90% RH |
| IP rating Front / Rear | IP66 / IP66 |
CERTIFICATION
| Certification | CE,FCC,ETL |
ENVIRONMENT
| Environment | RoHS/REACH |
CONTROLLER
| Controller | LCLH001 |
