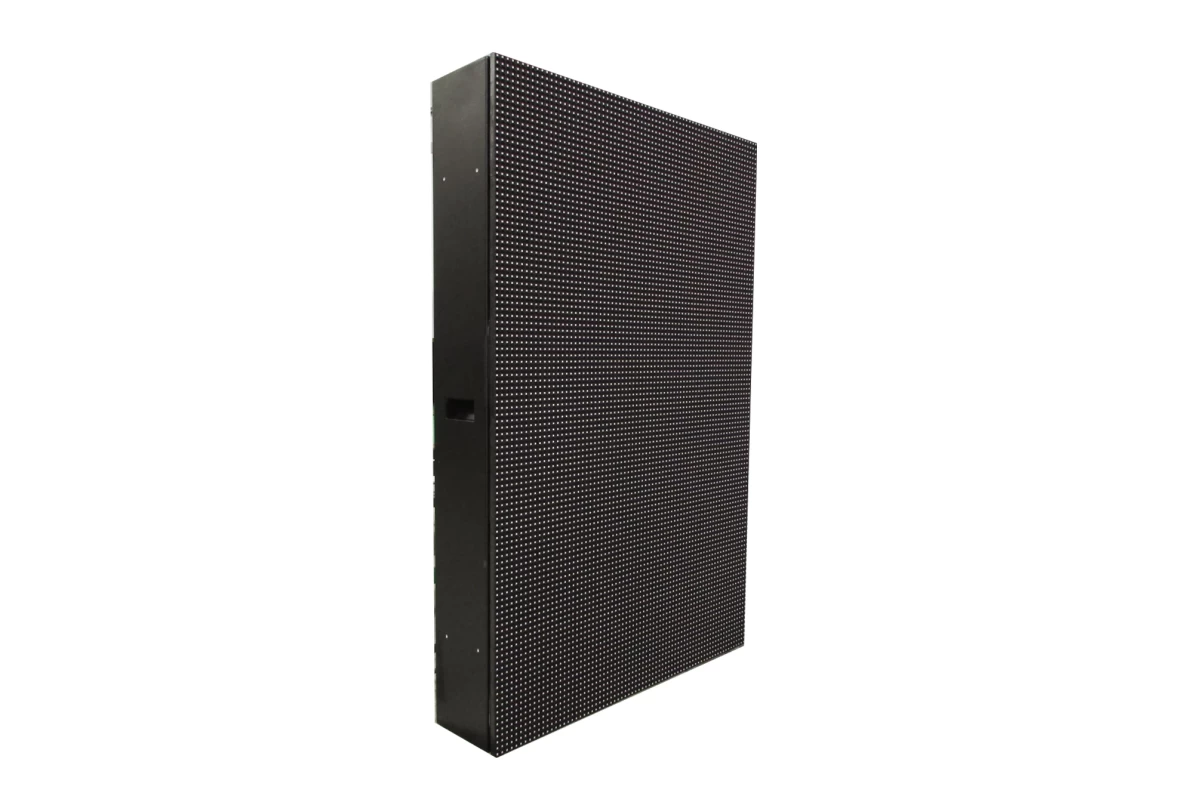

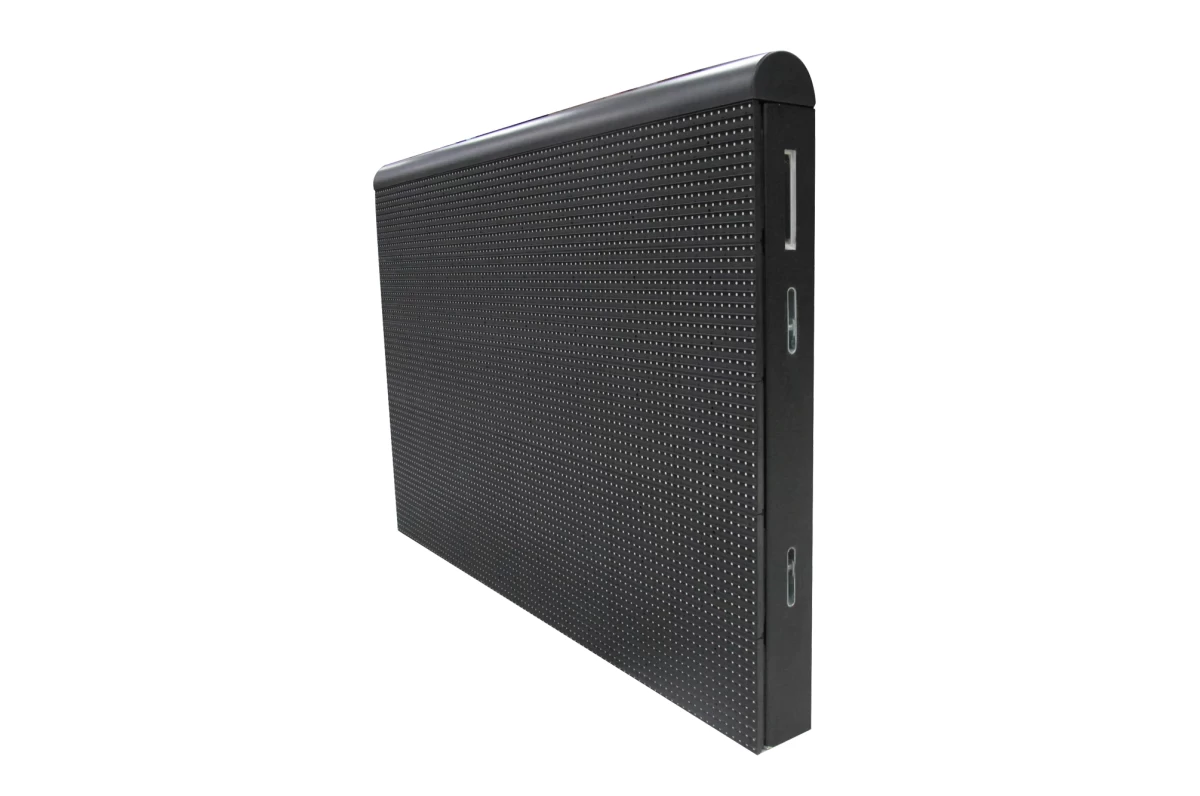

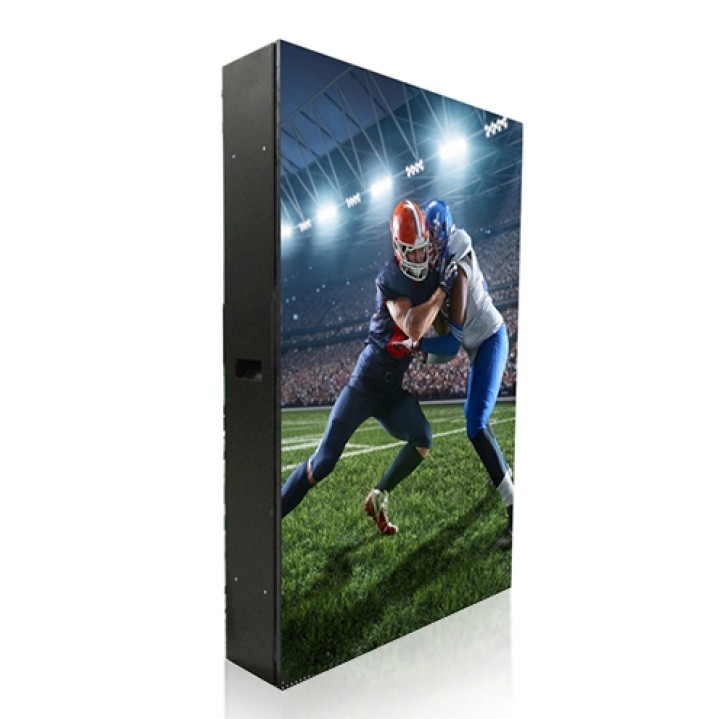

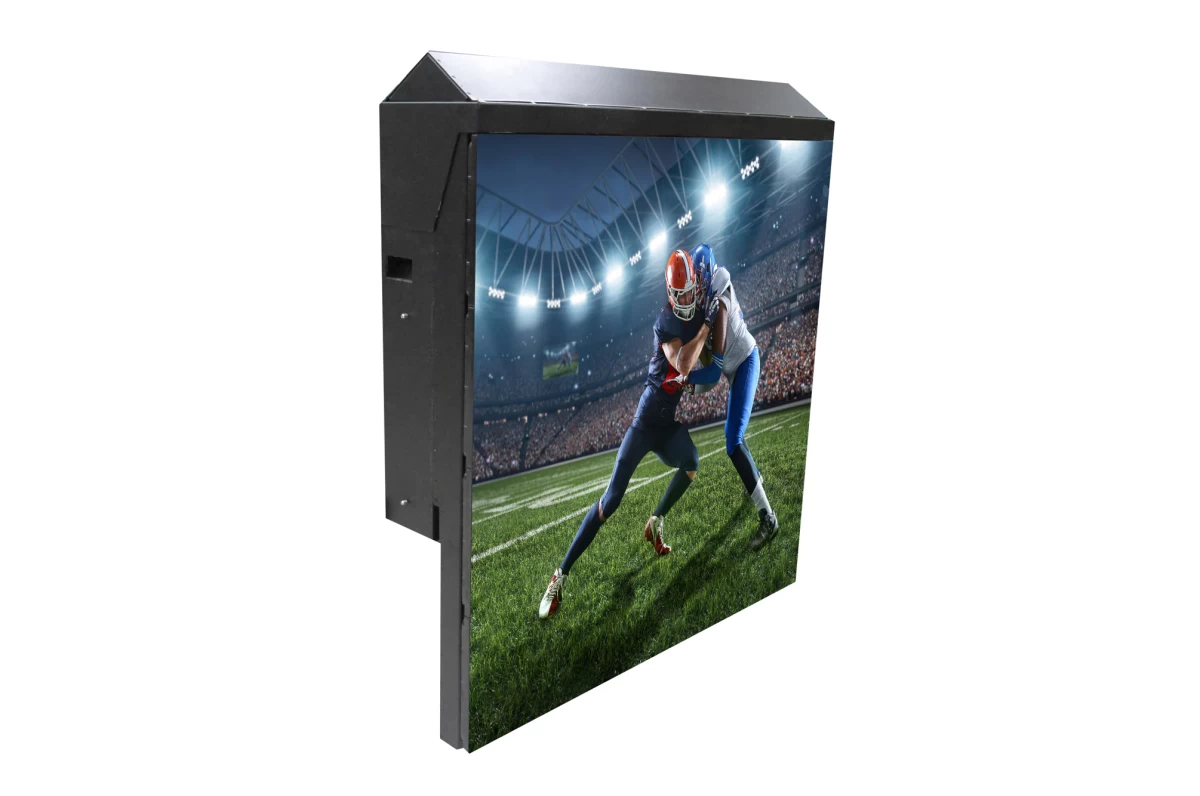

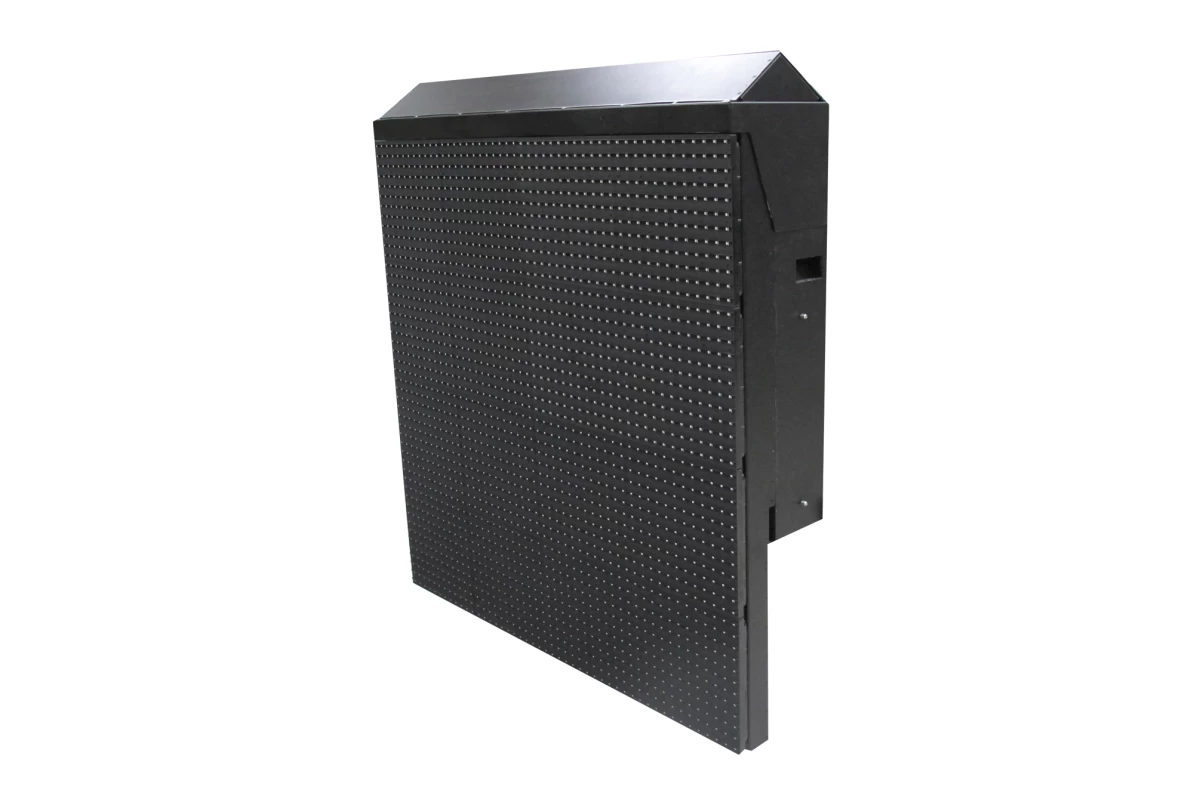

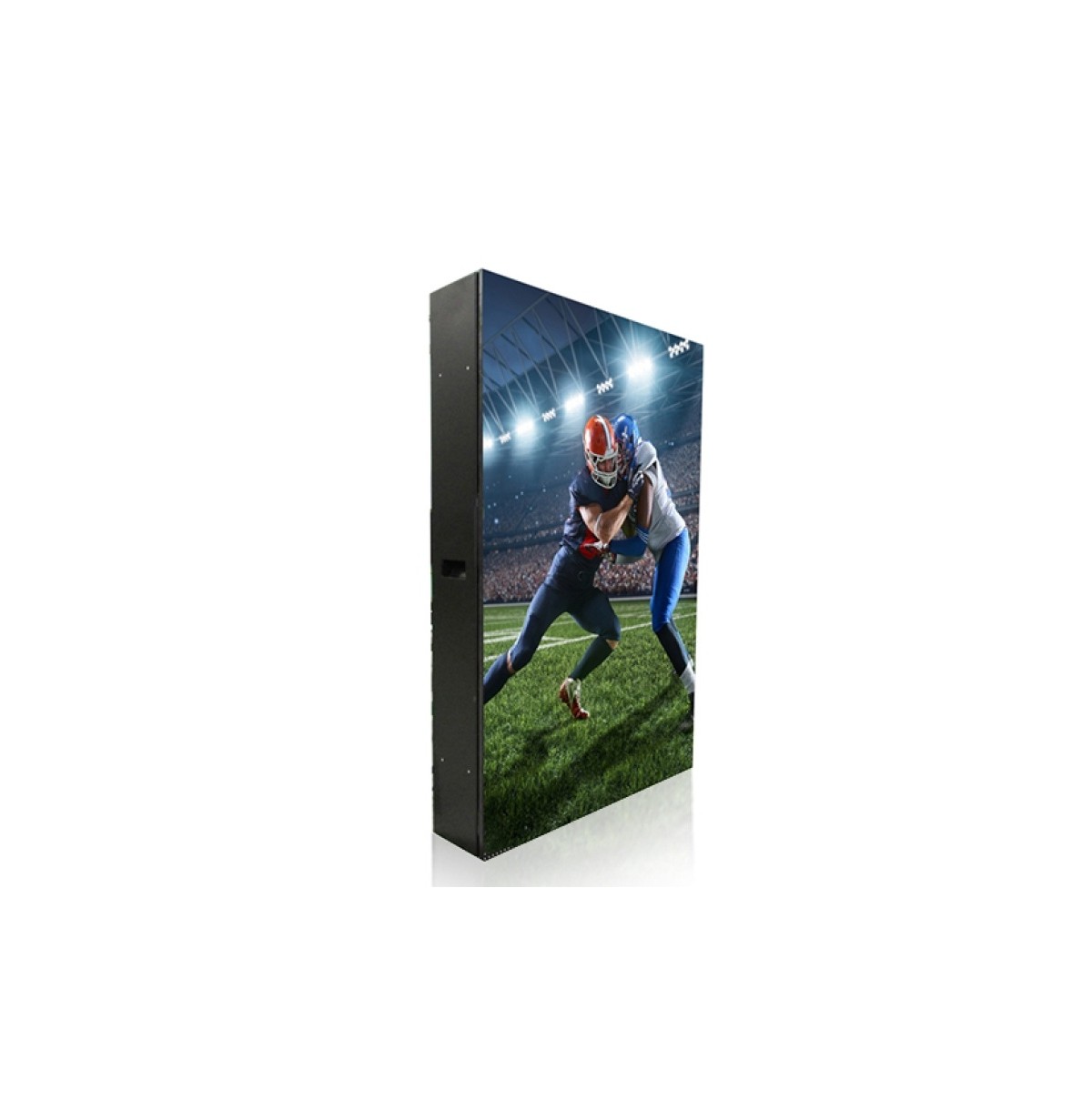

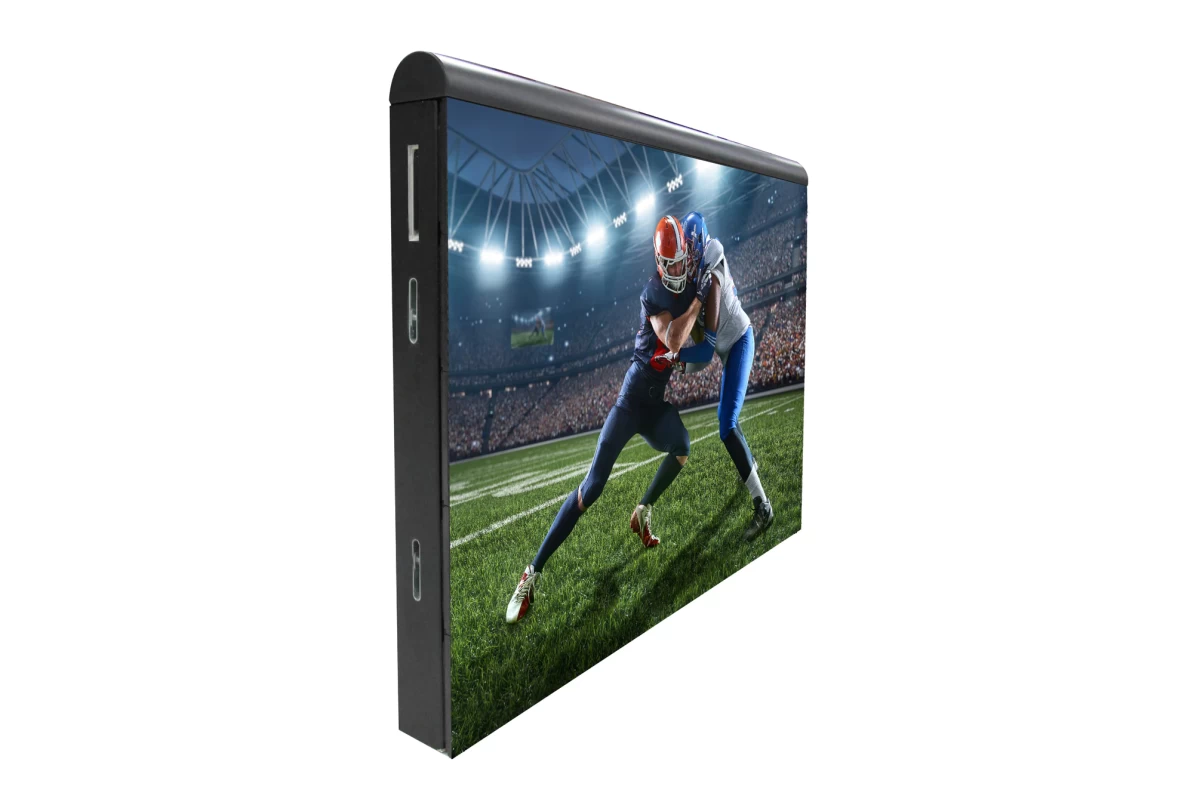

LG LBS060 LED 6.00 Pixel Pitch Stadium Series (LBS060DA1D / LBS060DA3D / LBS060DA4D)

Product code: LBS060DA1D / LBS060DA3D / LBS060DA4D

LG's LBS Stadium series comes in various formats for different types of stadiums and outdoor venue applications. It provides robust performance. LG will revolutionize the way you conduct business.

SEND AN ENQUIRY

Description

OPTICAL PARAMETER

Pixel Configuration3 in 1 SMD
Pixel Pitch(mm)6.00
Unit Case Resolution (WxH)192x128
Unit Case Dimensions (WxHxD, mm)1152x768x217
Weight per Unit Case / Square Meter (kg)42.0/47.5
Service accessFront* or Rear (One Option Only)
Min. Brightness (After Calibration, cd/m²)6,000
Color Temperature3500-8500
Visual Viewing Angle (Horizontal/Vertical)160/135
Brightness Uniformity97%
Color Uniformity±0.05Cx,Cy
Contrast Ratio3,000
Processing Depth (bit)16

Additional information

Power Consumption (W/Unit, Avg./Max.)LBS060DA1D: 240/600, LBS060DA3D: 232/580, LBS060DA4D: 288/660
Power Consumption (W/m², Max.)LBS060DA1D: 678, LBS060DA3D: 656, LBS060DA4D: 746
Power Supply (V)100 to 240
Refresh Rate (Hz)4,000
Lifetime (Duration of Half Brightness in Hours)100,000
Operating Temperature(°C) / Humidity-20° to 50°/< 90%RH
IP rating Front / Rear IP65/IP54
