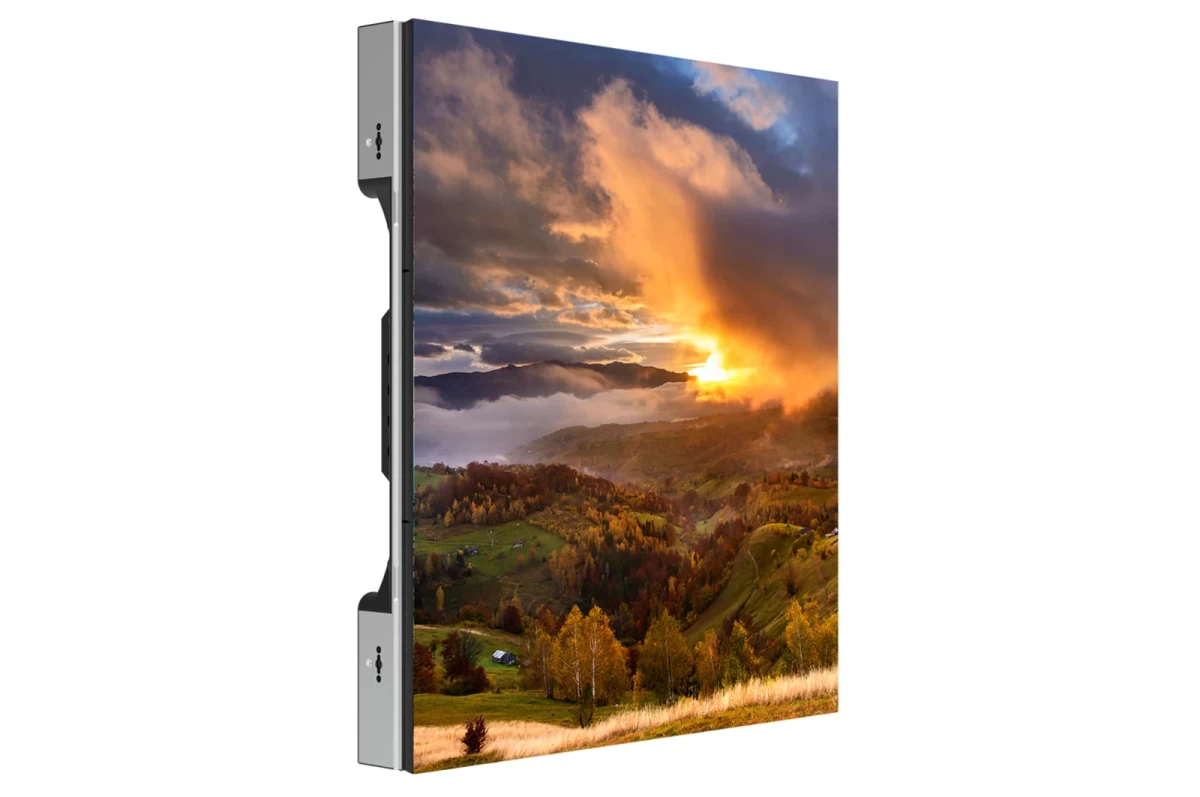

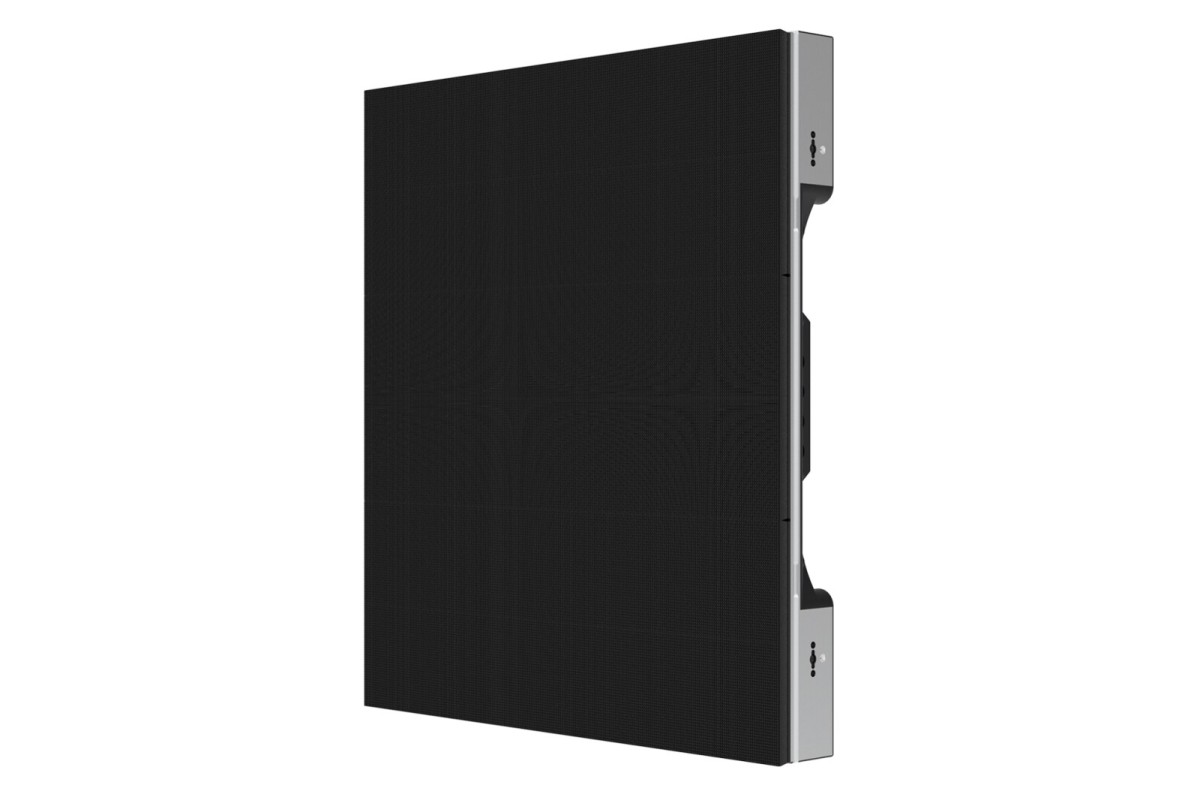

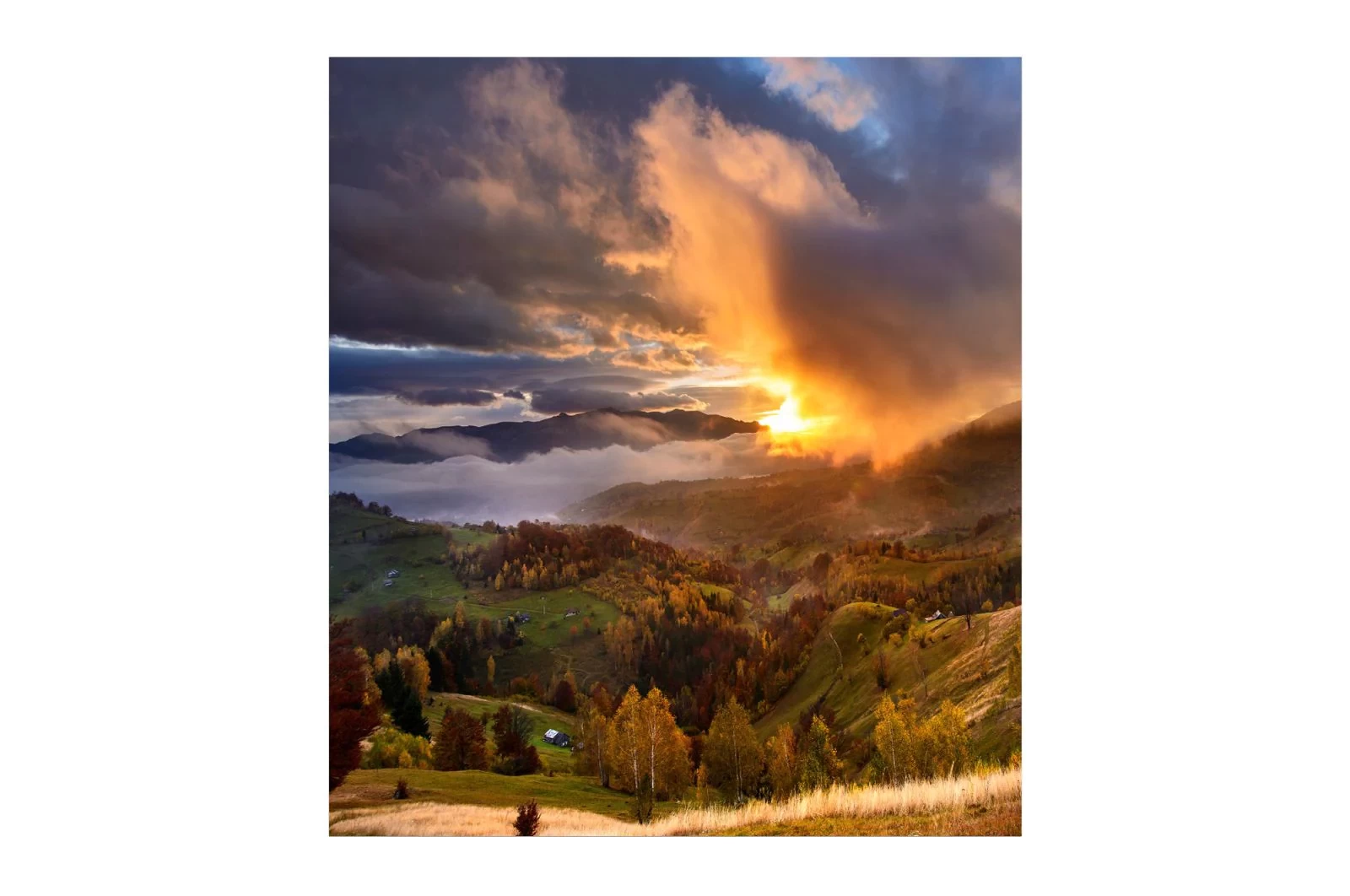

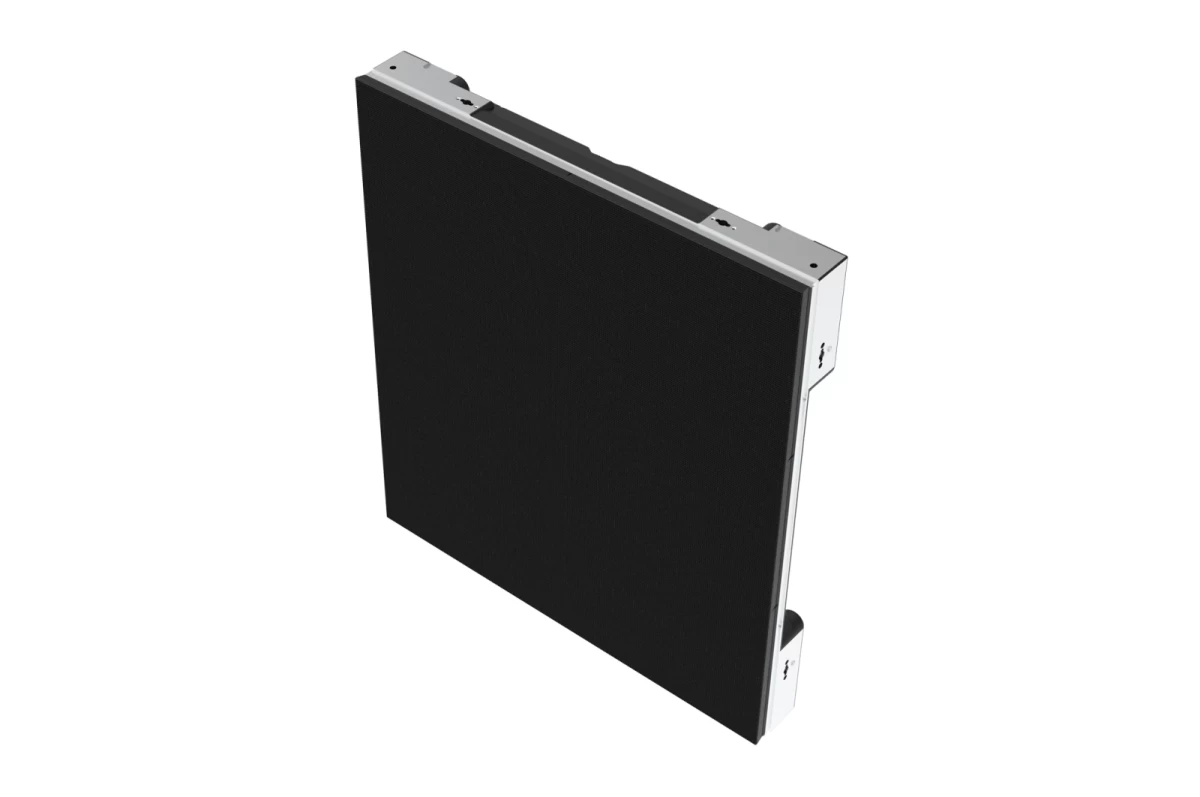

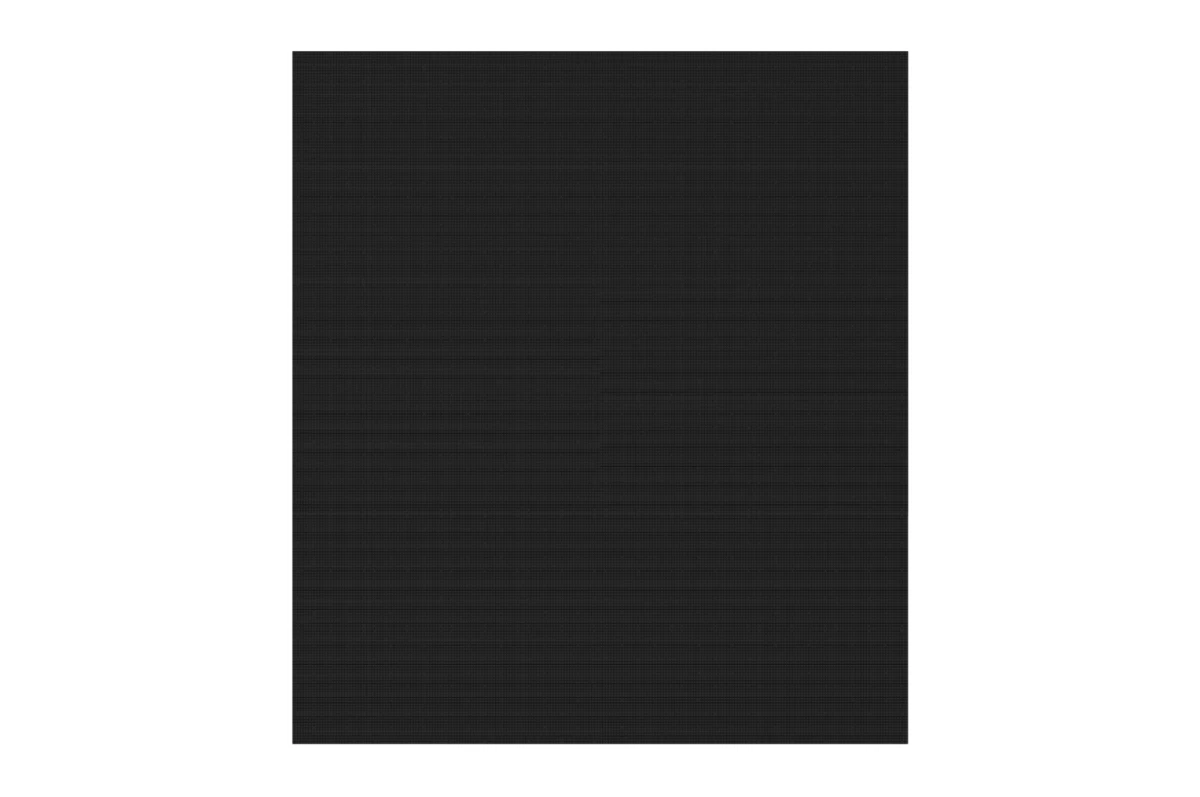

LG GSCC066-GN LED 6.66 Pixel Pitch Essential Series
Product code:- Pixel Pitch: 6.66mm
- Brightness: 5,000 cd/m²
- Fast Assembly and Easy Maintenance
Description
PHYSICAL PARAMETER
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch (mm) | 6.66 |
| Module Resolution (W x H) | 48 × 36 |
| Module Dimensions (W x H, mm) | 320 × 240 |
| Weight per Module (kg) | 1.30 |
| No. of Modules per Cabinet (W × H) | 2 × 3 |
| Cabinet Resolution (W × H) | 96 × 108 |
| Cabinet Dimensions (W × H × D, mm) | 640 × 720 × 90 |
| Cabinet Surface Area (m²) | 0.461 |
| Weight per Square Meter (kg/m²) | 36.9 |
| Weight per Cabinet (kg/cabinet) | 17.0 |
| Physical Pixel Density (pixels/m²) | 22,500 |
| Flatness of Cabinet | ±0.5mm |
| Cabinet Material | Die Casting Aluminum |

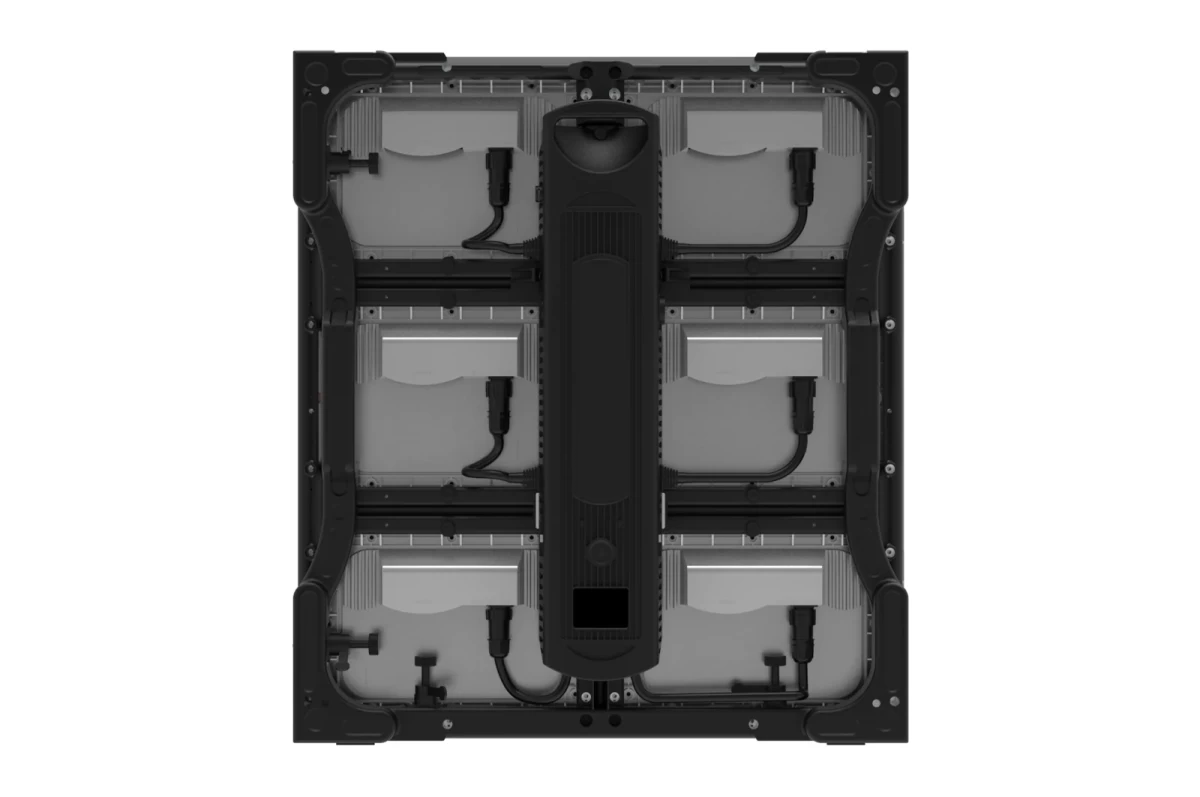

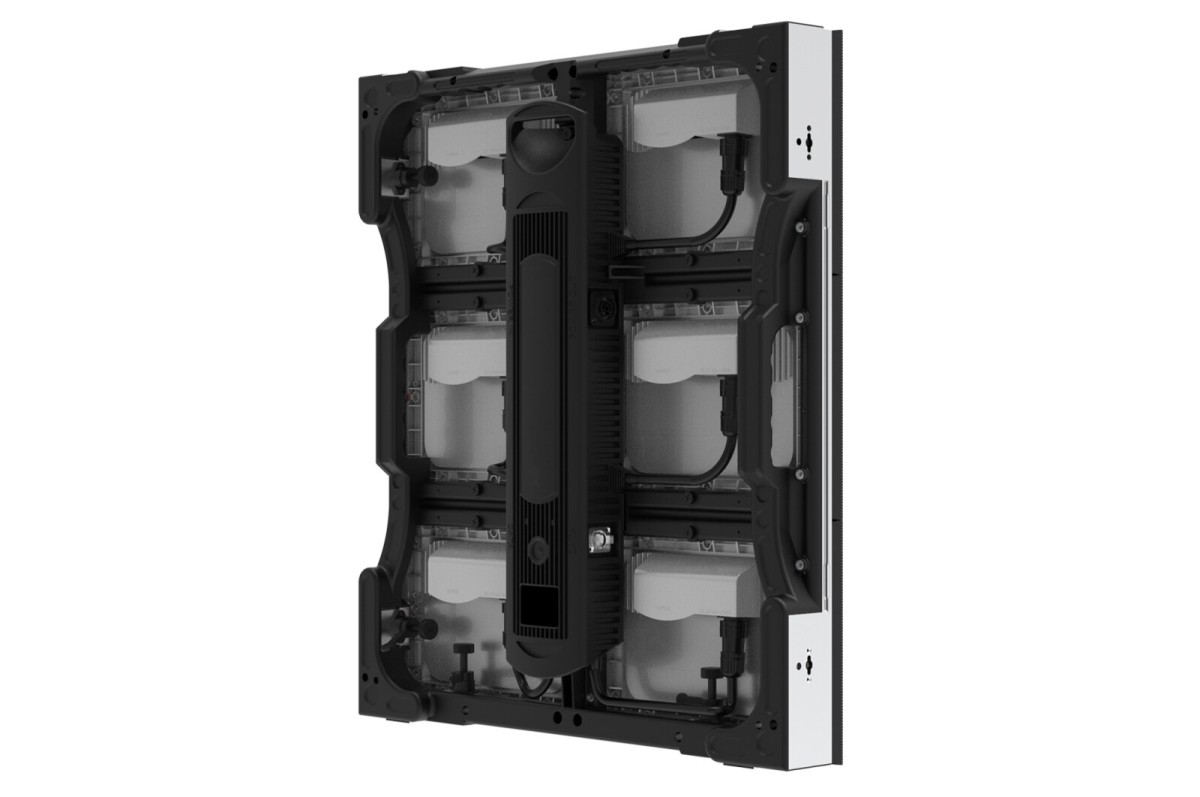

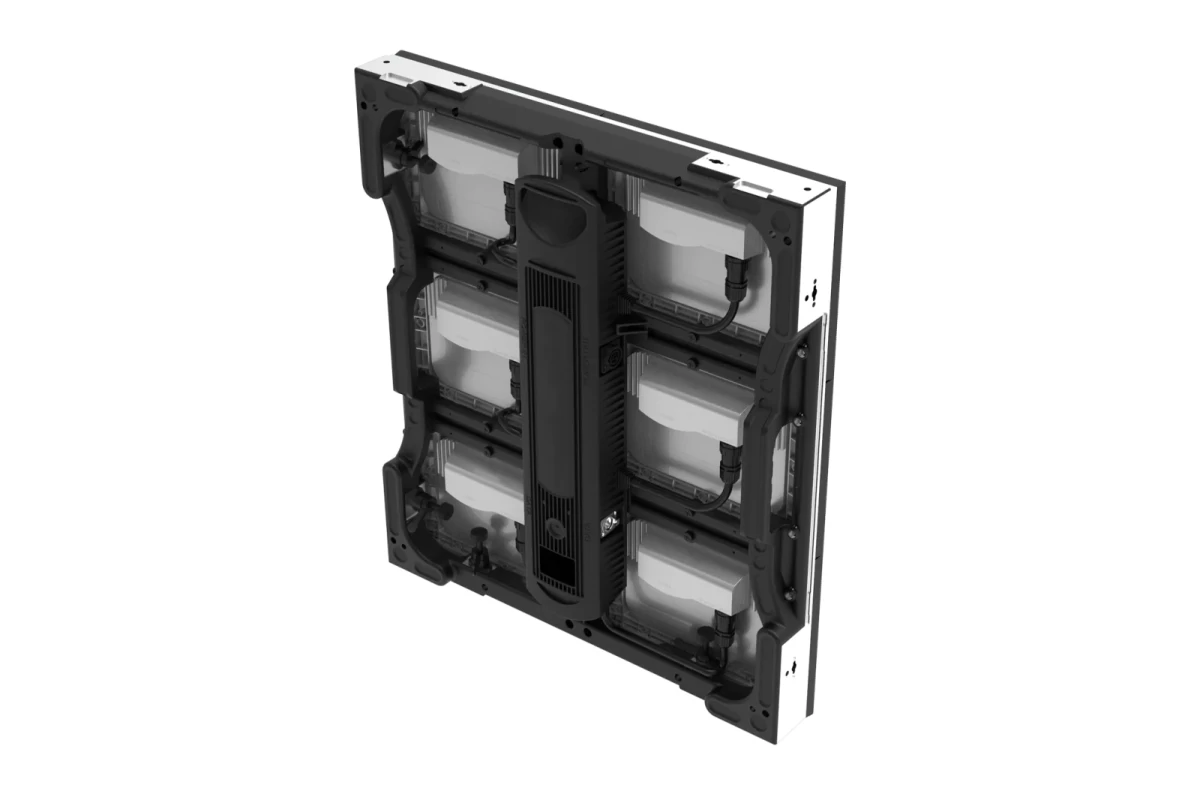

| Service Access | Front or Rear (select one only) |
Additional information
Optical Parameter
| Brightness | 5,000 nit |
|---|---|
| Color Temperature | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160 × 120 |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003 Cx,Cy |
| Contrast Ratio | 5,000 |
| Processing Depth (bit) | 14 |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 330 |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 110 |
| Power Consumption (W/m², Max.) | 720 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | -20°C to +50°C |
| Operating Humidity | 10-99% RH |
| IP rating | IP65 |
CERTIFICATION
| Certification | IEC 60950-1 / EN 60950-1 / UL 60950-1, FCC Class A / CE / KC |
ENVIRONMENT
| Environment | RoHS |
