Amber LED Wall UV-TK2 Series Outdoor Rental

Product code: UV-TK2

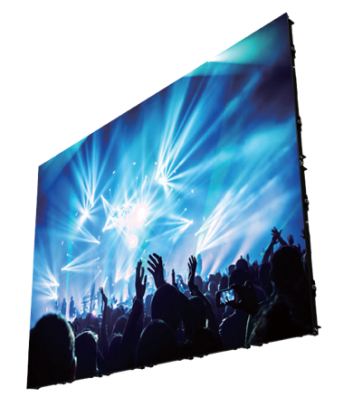

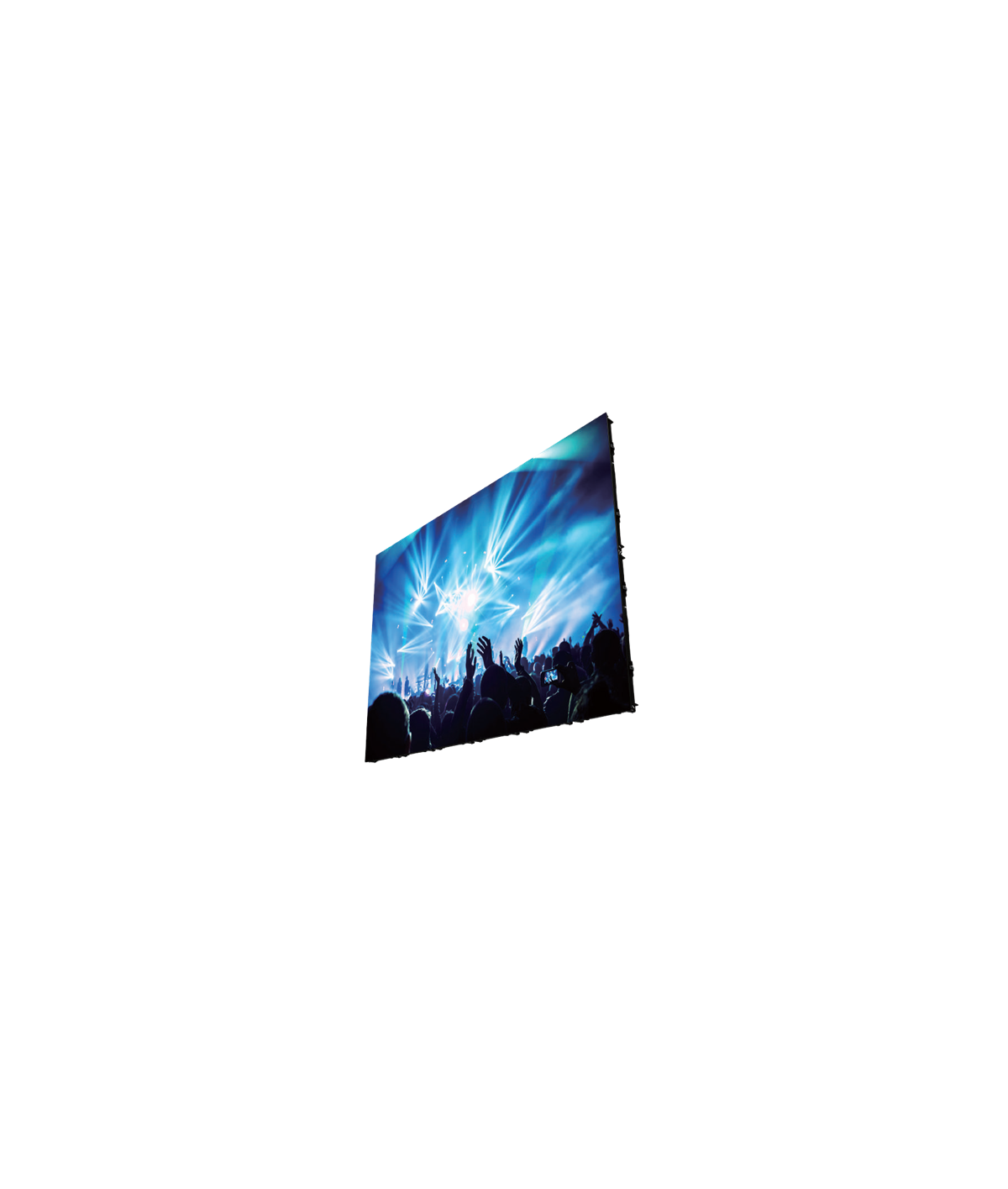

Stunning Visual Performance
Ultralight and Robust
One-man Handling, Install Quickly
Easy Maintenance
Universal Module, Power&Frame
Satisfying Your Creativity

SEND AN ENQUIRY

Description

The First Outdoor 2.9mm

Inheriting the robust and reliable performance from the classic Tekken series, Tekken II further extends its pixel pitches to 2.6, 2.9 and 3.9mm, suitable for indoor and outdoor rental application. As the first product to feature outdoor 2.9mm pixel pitch at 500*1,000mm cabinet on the market, it also stands out by adding a few superior features, such as the ultralight 11.9kg cabinet, one-man handling and front or rear access.

  • Stunning Visual Performance
  • Ultralight and Robust
  • One-man Handling, Install Quickly
  • Easy Maintenance
  • Satisfying Your Creativity
  • Universal Module, Power Box & Frame

High Contrast Ratio

SMD1515 for 2.6mm model, to ensure much higher contrast ratio than SMD 2020 which is most commonly used on the market.

High Refresh Rate

3840hz refresh rate for high dynamic range pictures.

Astonishing Flatness

CNC machined magnesium alloy cabinet, to achieve a high level of precision.

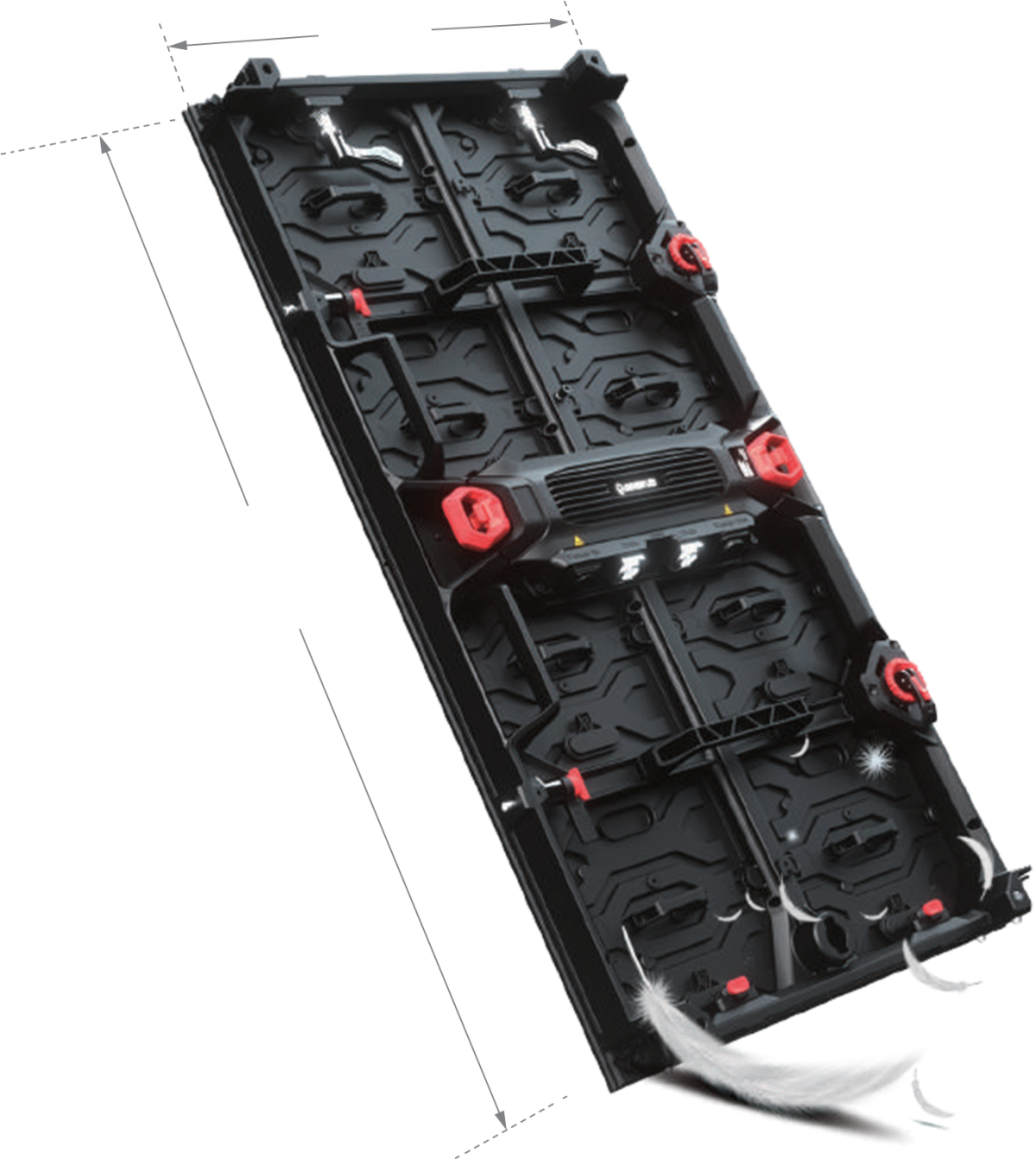

Ultralight and Robust

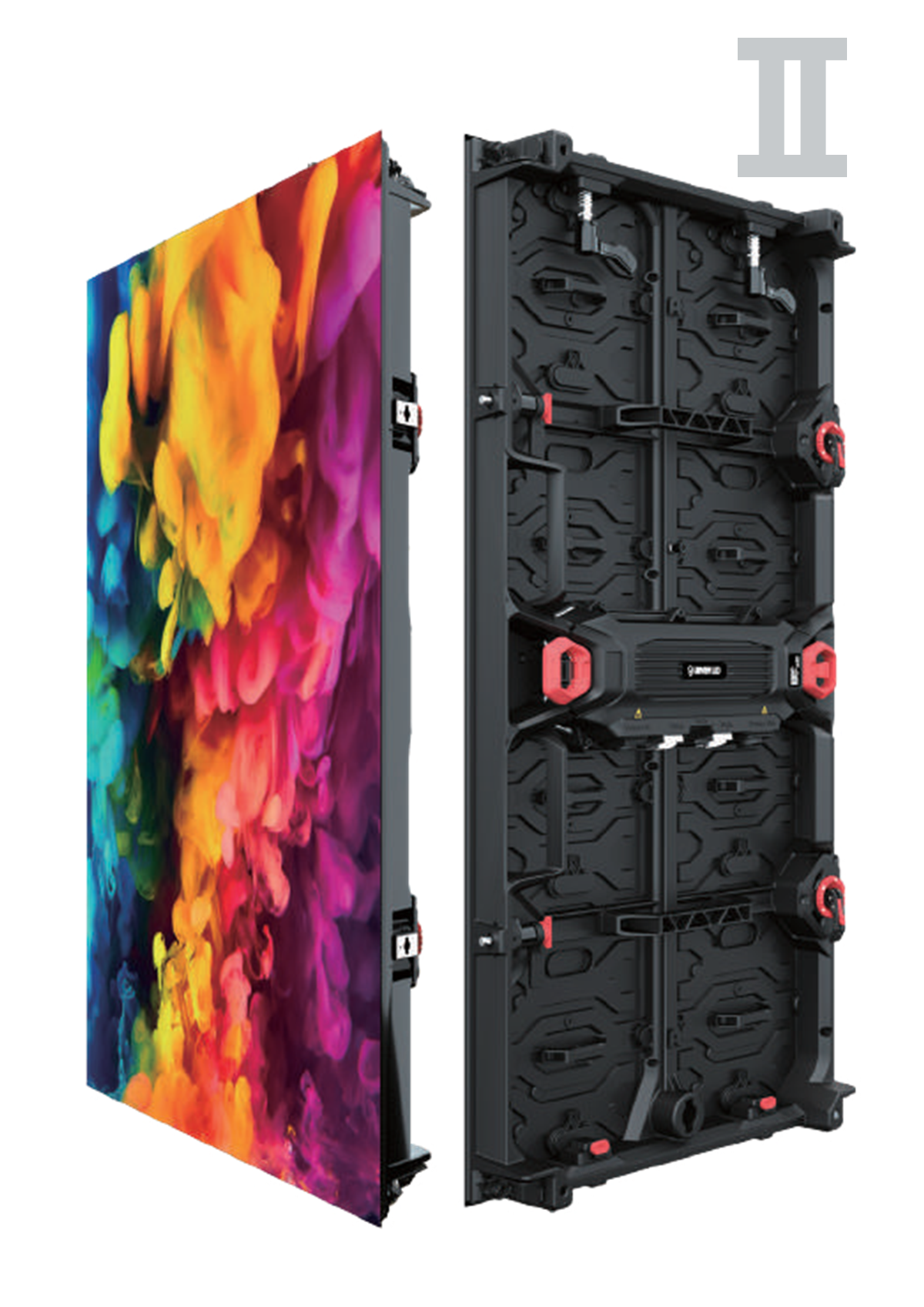

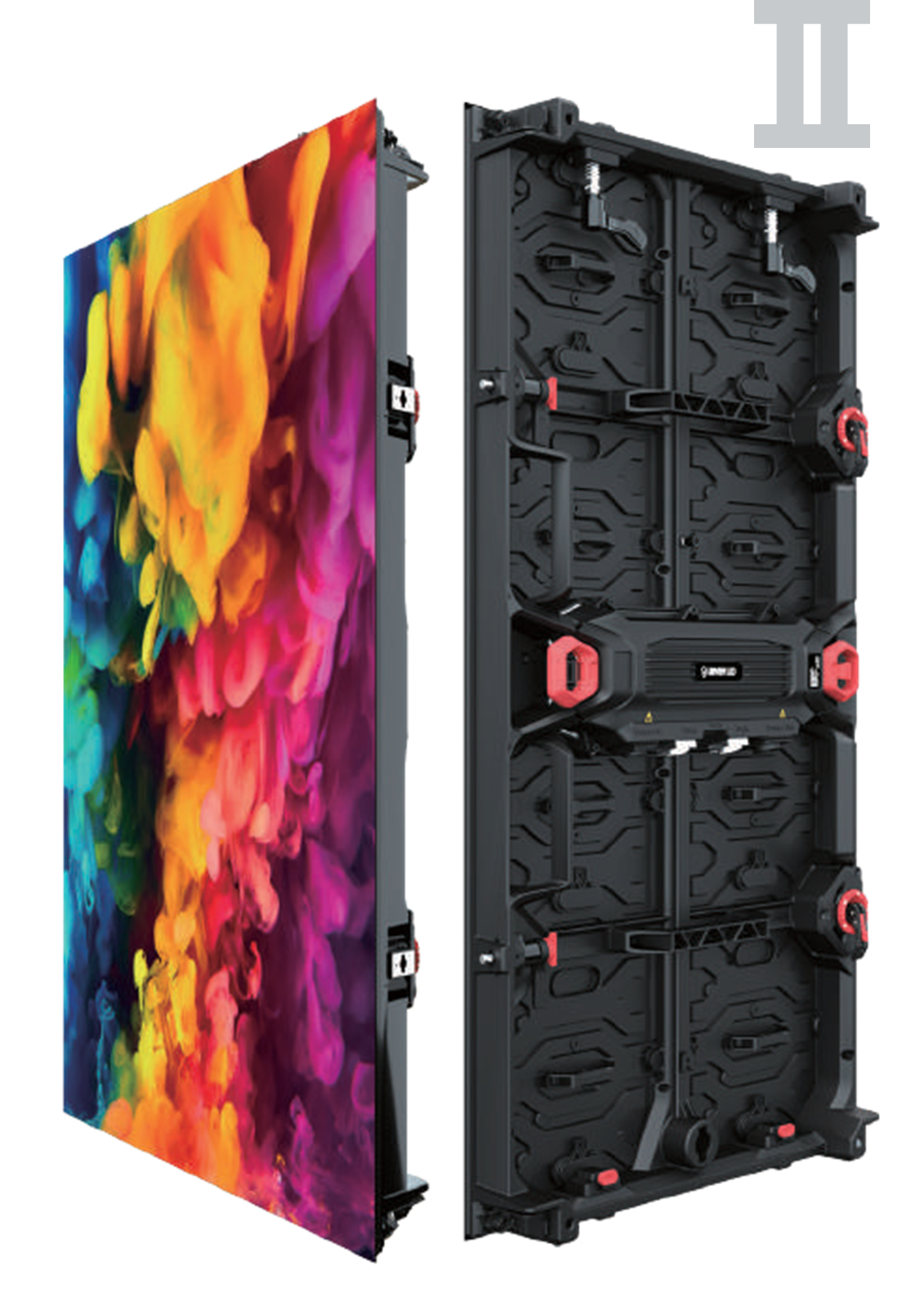

Made from die-cast Magnesium Alloy, the 500*1,000mm cabinet weighs 11.9kg ONLY and the frame design also ensures a strong structure.

With the lightweight cabinet and patented auto-lock design, one person can easily handle, install and dismantle.

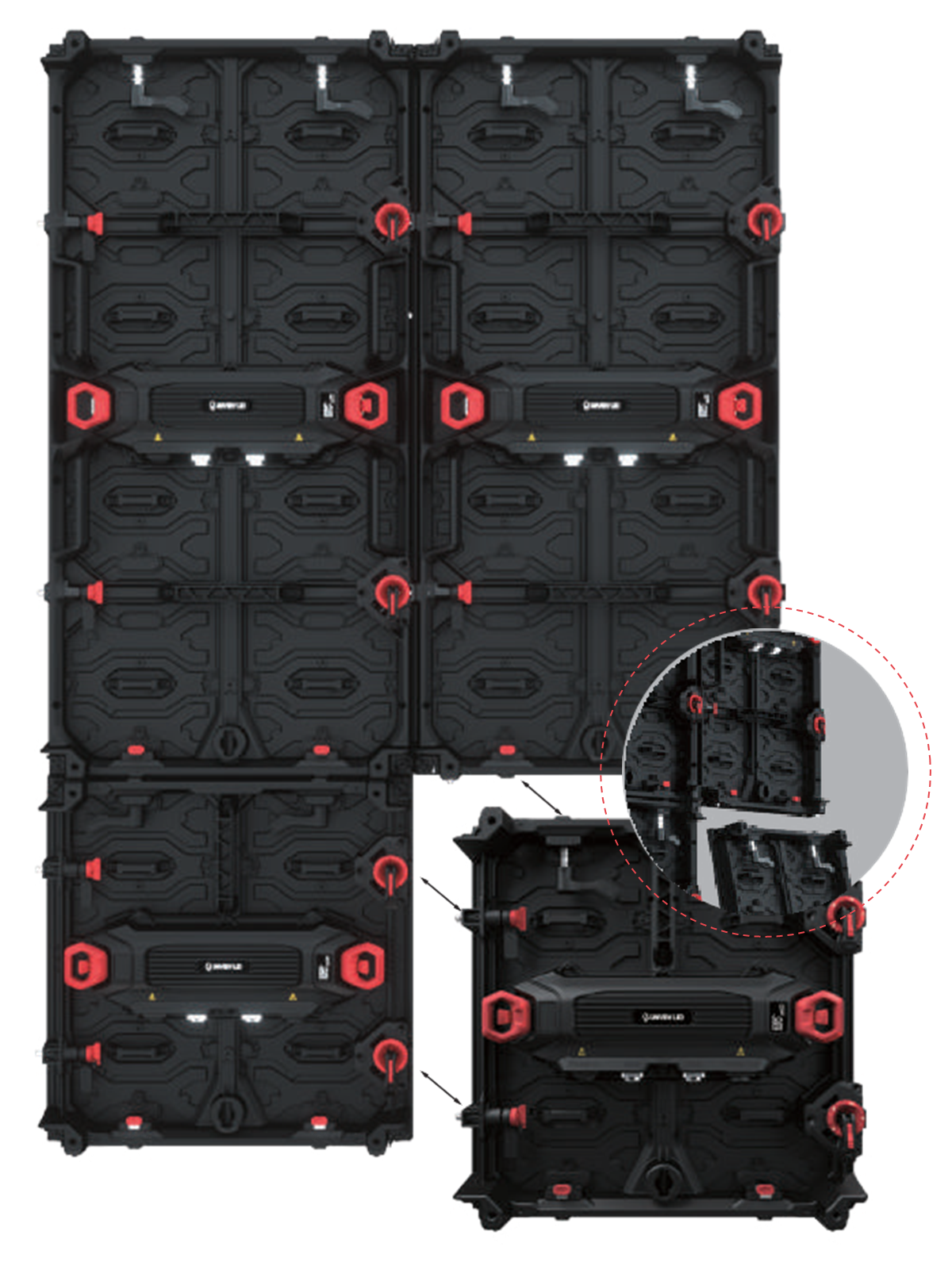

Vertical connection can be finished with only two steps, pushing the top lock up and turning the handle to the left.

Front or Rear Installation and Maintenance. Step design on the cabinet, for easy handling, dismantling and maintenance.

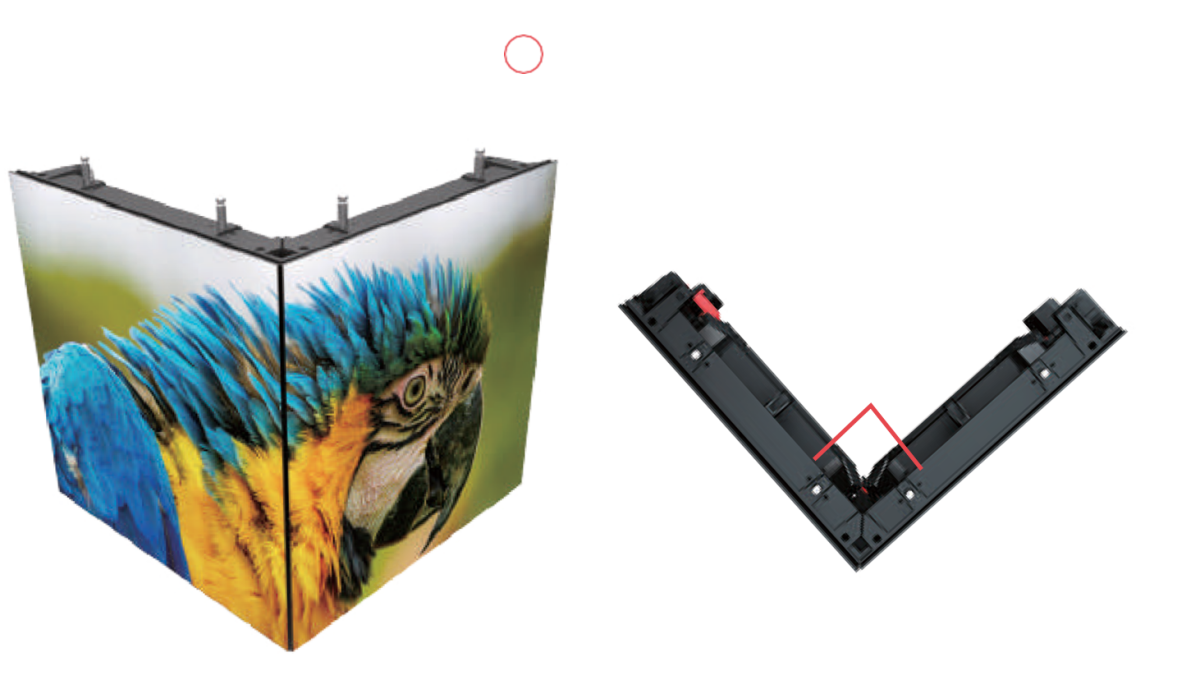

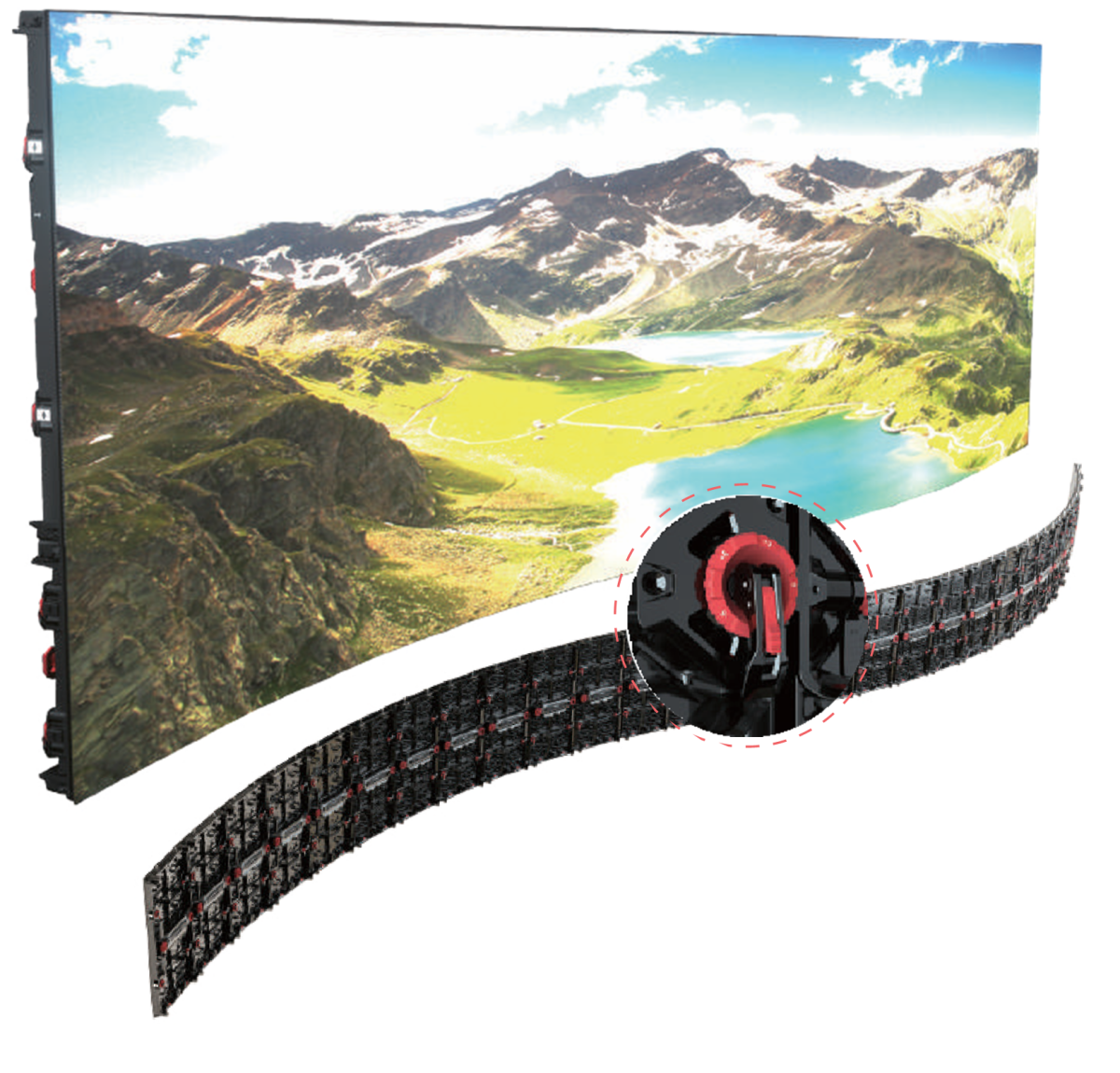

Tekken II series can be a flat screen, a curved screen or a corner screen. And the patented curvable lock design ensures a reliable and precise curve, with a safety knob to avoid mis-operation.


It can seamlessly curve at five angles: ±6°,±3°,0°.

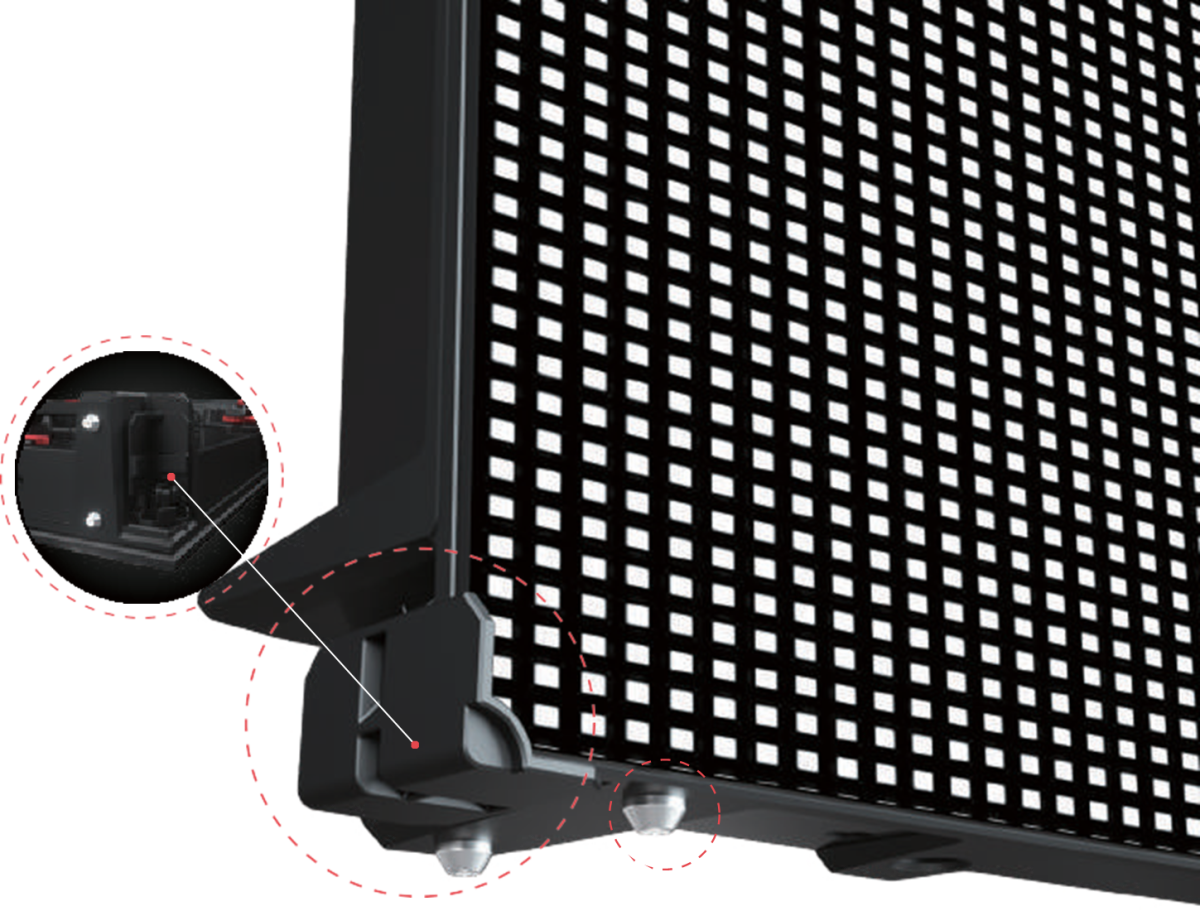

Multiple LED Protections

  • Reinforced Soldering Pad
  • Landing Protection Design
  • Corner Protectors

Additional information

Indoor

Outdoor

Model

TKⅡ2.6

TKⅡ2.9

TKⅡ3.9

TKⅡ2.9

TKⅡ3.9

Pixel Pitch (mm)

2.604

2.976

3.906

2.976

3.906

LED Configuration

SMD1515(Black)

SMD2020(Black)

SMD1516 (White)

SMD1516/SMD1921 (White)

Adjustable Brightness (cd/m² )

1,000

4,500-5,500

Module Size (WxH mm)

250x500

Module Resolution

96x192

84x168

64x128

84x168

64x128

Refresh Rate (Hz)

≥3840

Viewing Angle (H/V)

140°/140°

Grayscale (Bit)

≥14

Cabinet Size (WxHxD mm)

500×500x90/ 500x1,000x90

Cabinet Weight (kg/panel)

8.1/11.9

Power Consumption (Max/Avg W/m2)

600/200

720/240
