Amber LED Wall UV-AQ Series Outdoor Fixed
Product code:- Super Lightweight & Slim
- High Brightness but Low Power Consumption
- Corner Installation
- Round Corner Installation
- Curved Installation
- Front and Rear Access
Description

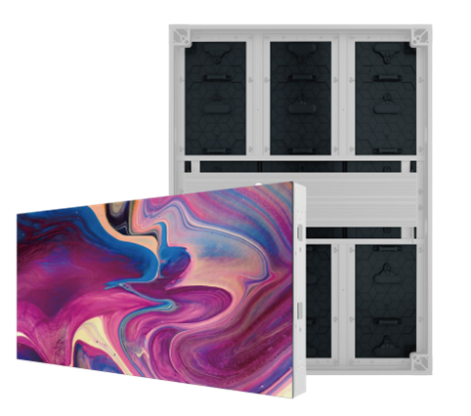

AQ Series is an optimal solution for outdoor fixed display， offering 5 pitch options: 3.9mm, 4.8mm, 6.9mm, 8.3mm and 10.4mm. AQ Series is designed with superior performance. IP65 protection allows it to withstand adverse weather conditions. Super lightweight helps save costs on transportation and labour costs on installation. High brightness guarantees a clear image even in direct sunlight. This product can be widely used in outdoor entertainment areas to meet your needs.

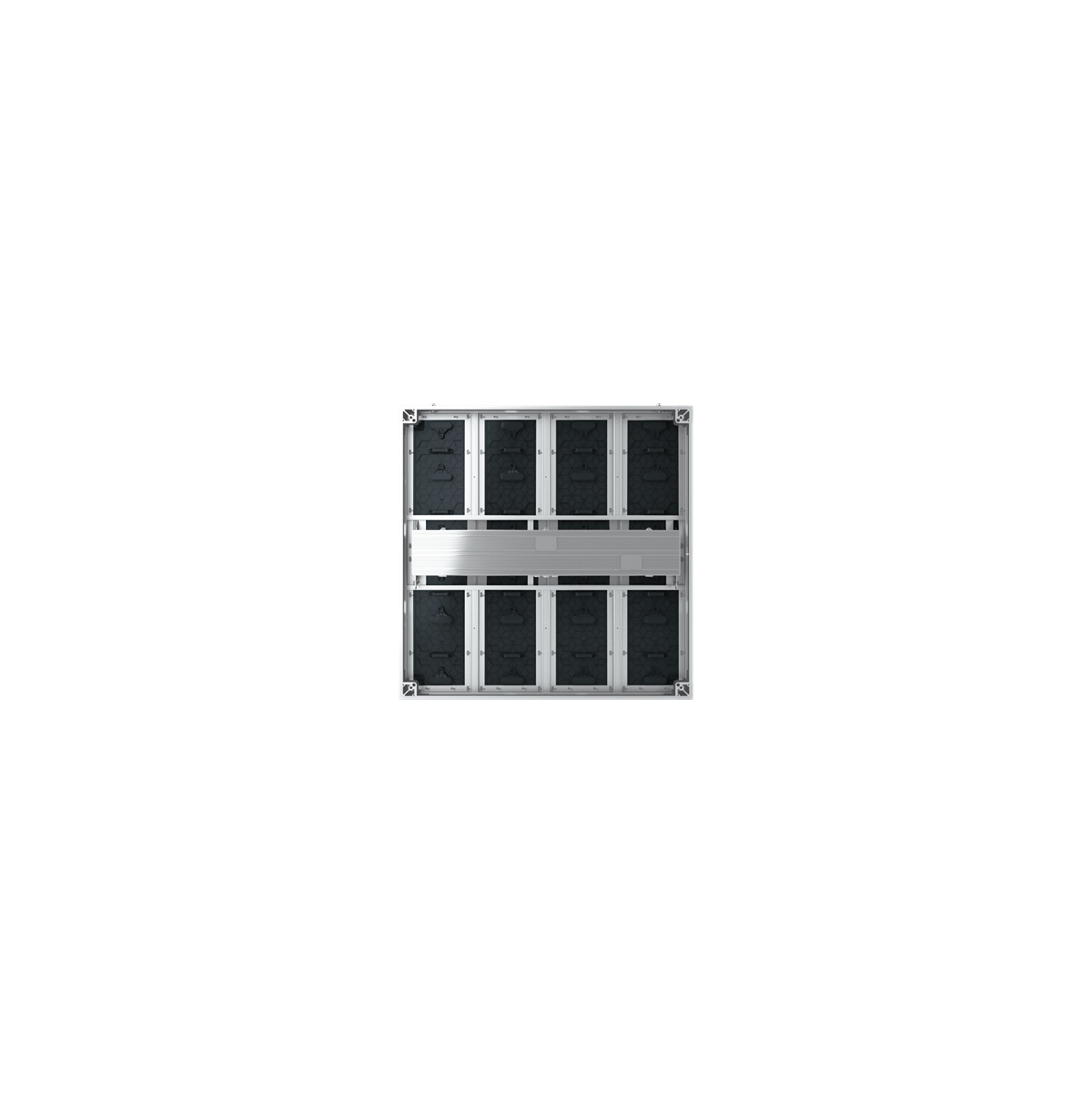

The 1,000x1,000mm cabinet is only 25kg & 85mm depth and can be directly installed against the wall, saving the cost of steel structure and installation.
Four cabinet sizes, 1000*1000, 1,000*500, 750*1000 and 750*500. No matter what screen sizes you want, AQ series is here to figure it out, and perfectly fit your needs.
High Brightness but Low Power Consumption 8,000nits
With high brightness up to 8,000 cd/m²，AQ series can deliver clear and vivid image even in direct sunlight. Besides, AQ series offer energy-efficient solutions so as to drastically lower user’s electric bills every month.
- Corner Installation: AQ series panels can be installed to be both flat and right angle.
- Round Corner Installation : additionally, AQ series offer round corner cabinets, which enables you to build a truly seamless screen and is more aesthetically appealing than sharp edges to viewers.
- Curved Installation : inspire your infinite imagination with a maximum ±5° curve created by AQ module. AQ Curved Cabinets are available in the following sizes: 750*500mm, 750*1000mm,1000*500mm and 1000*1000mm.

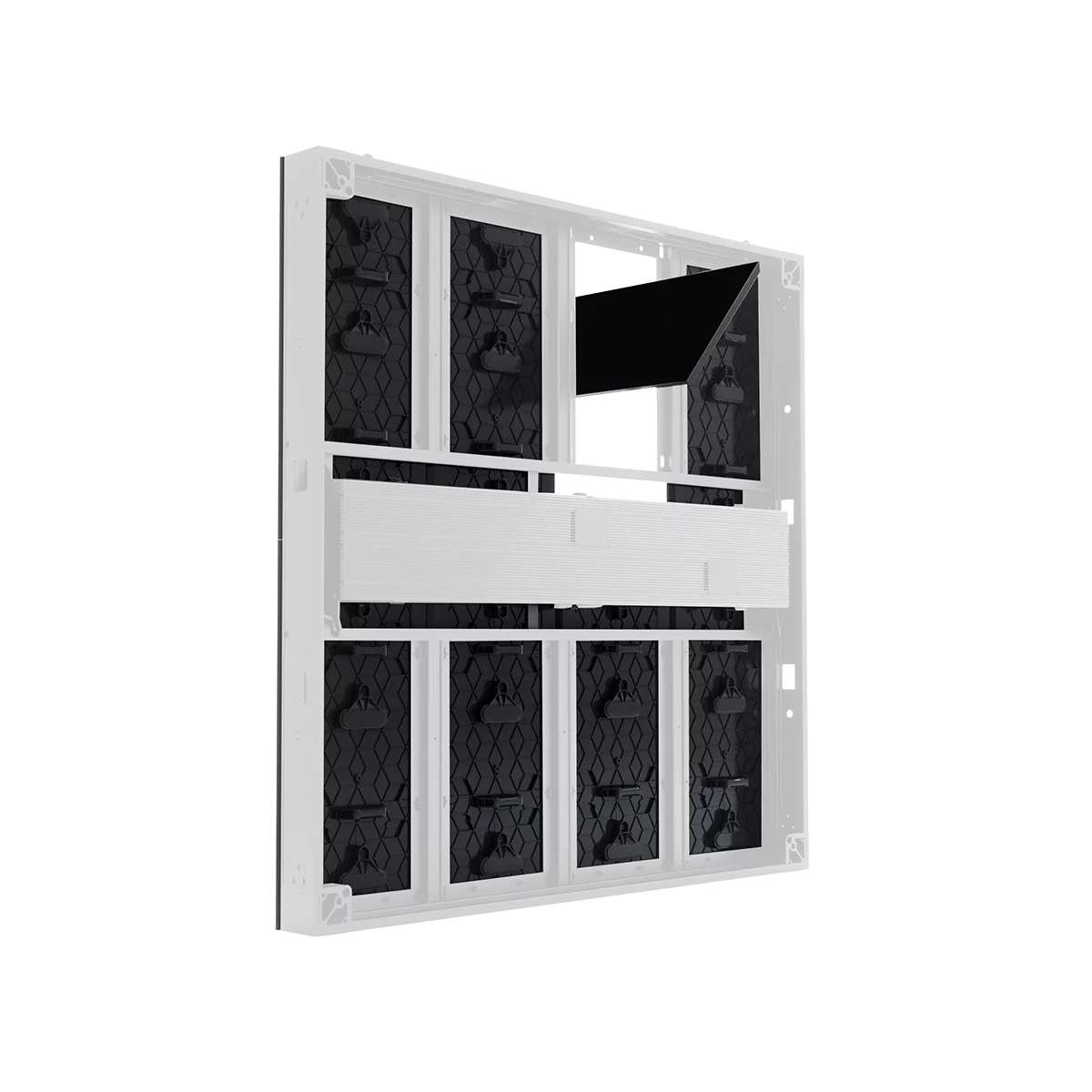

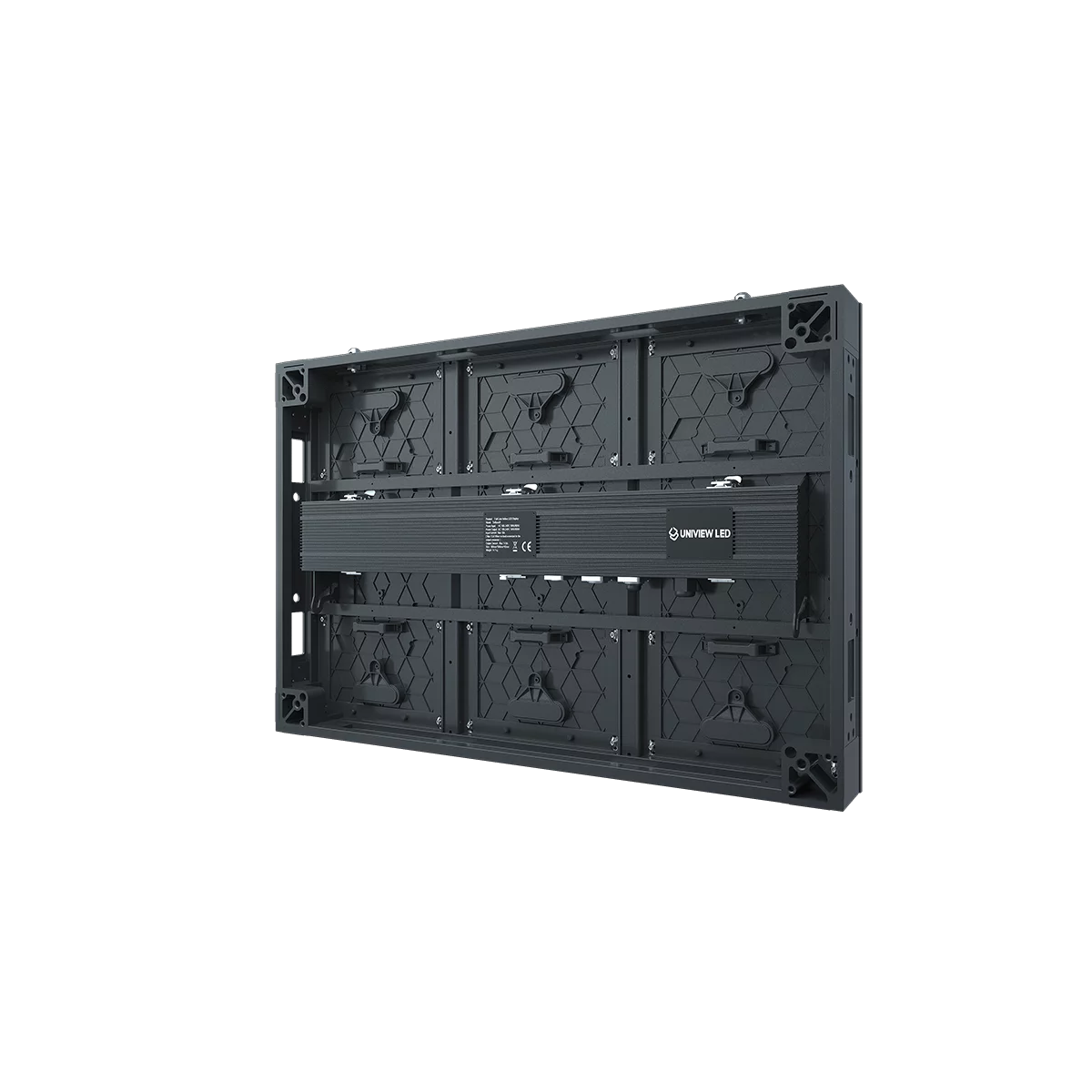

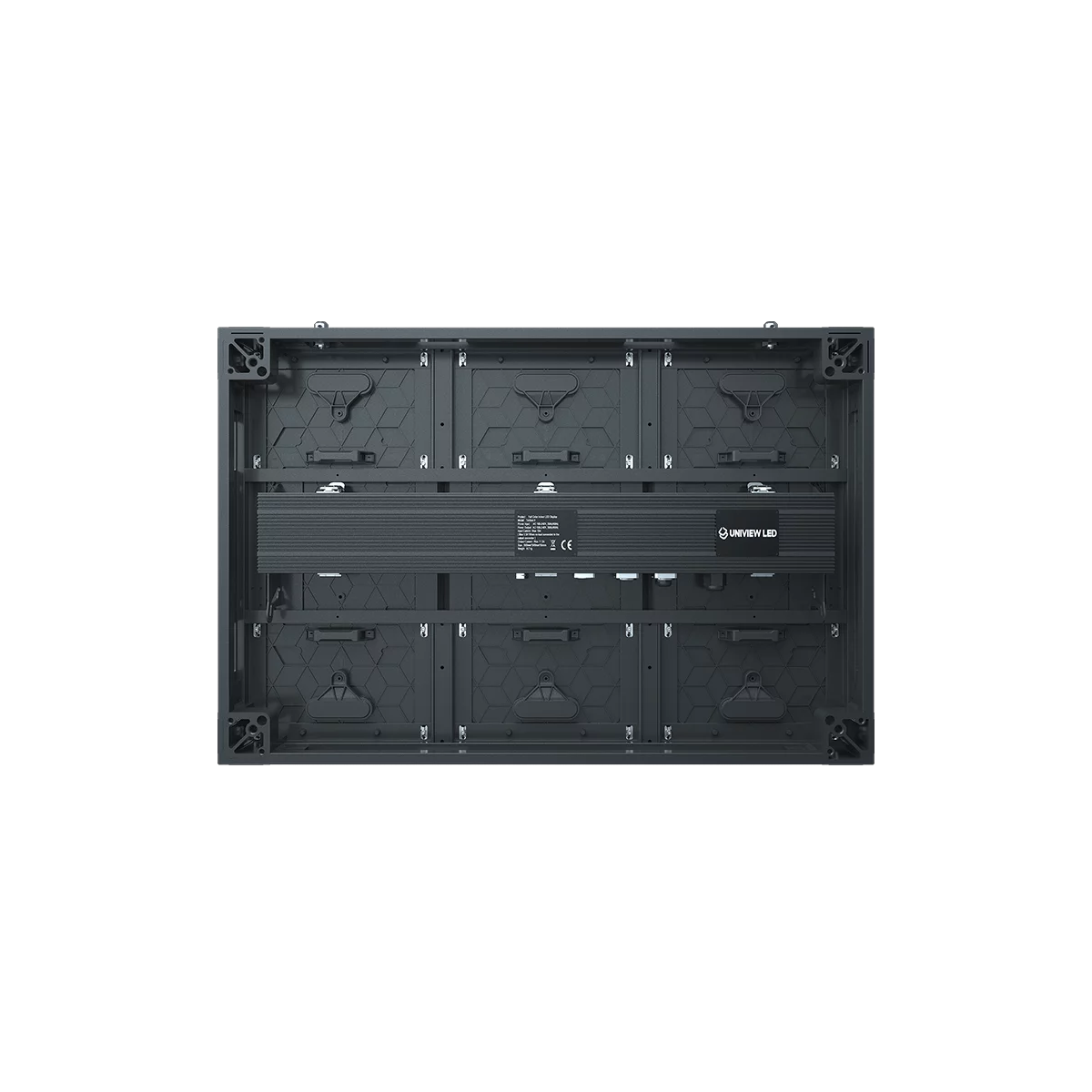

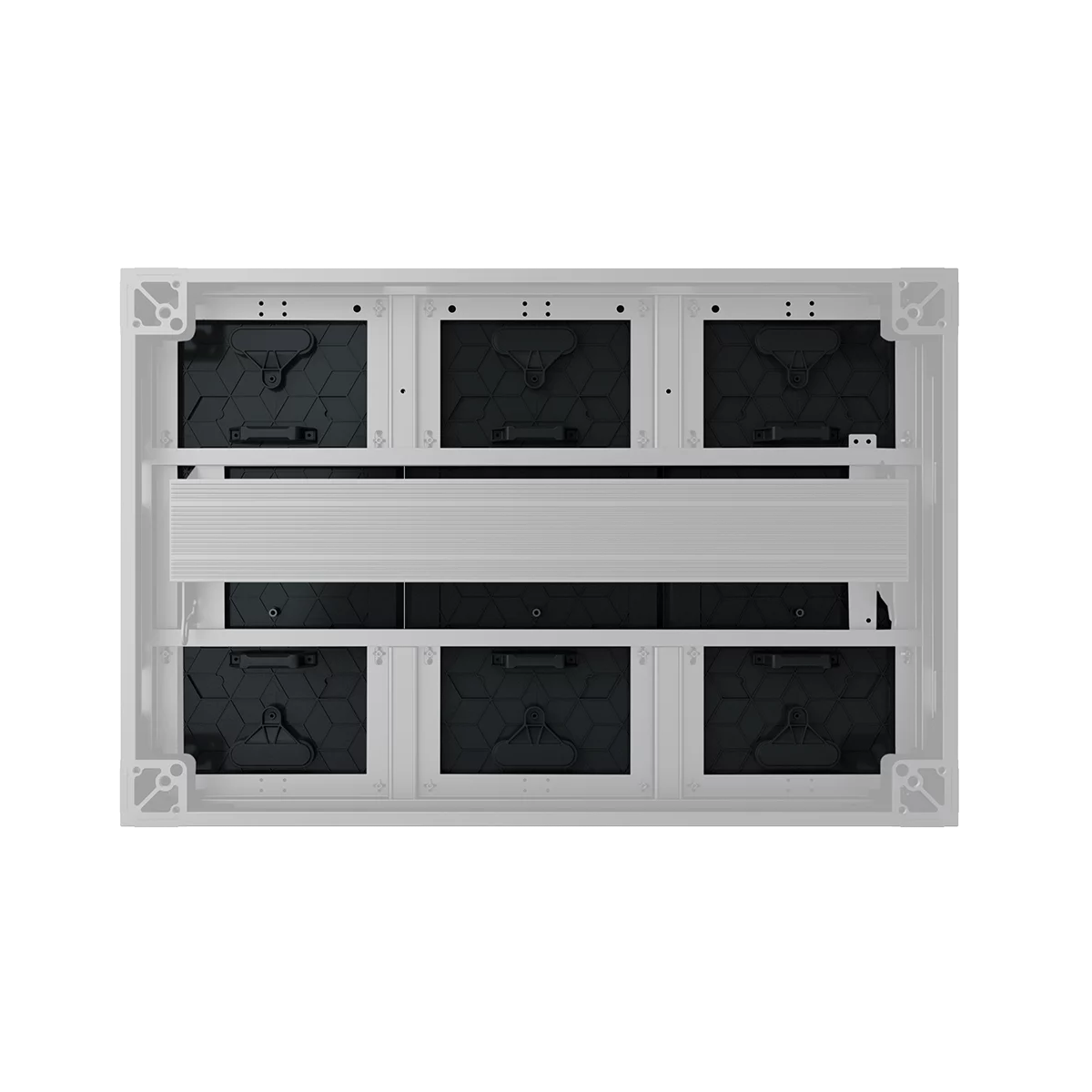

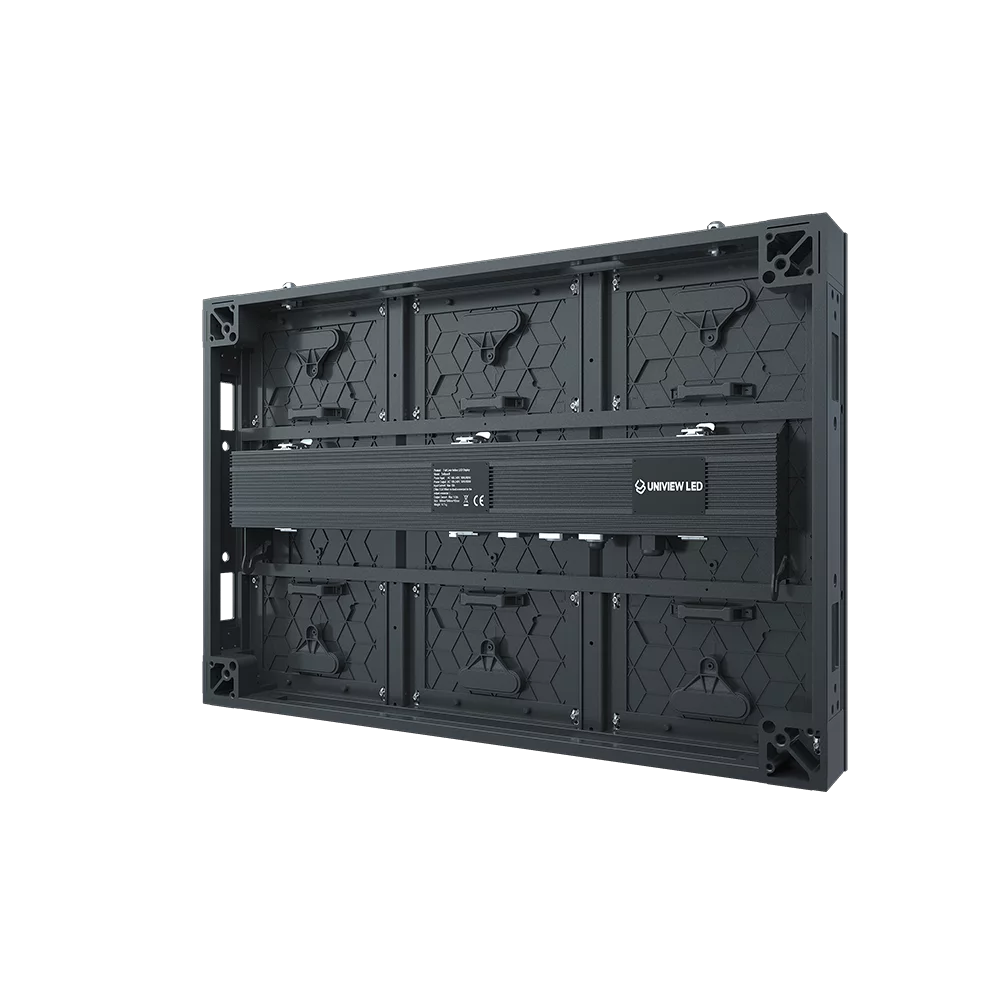

Front and Rear Access

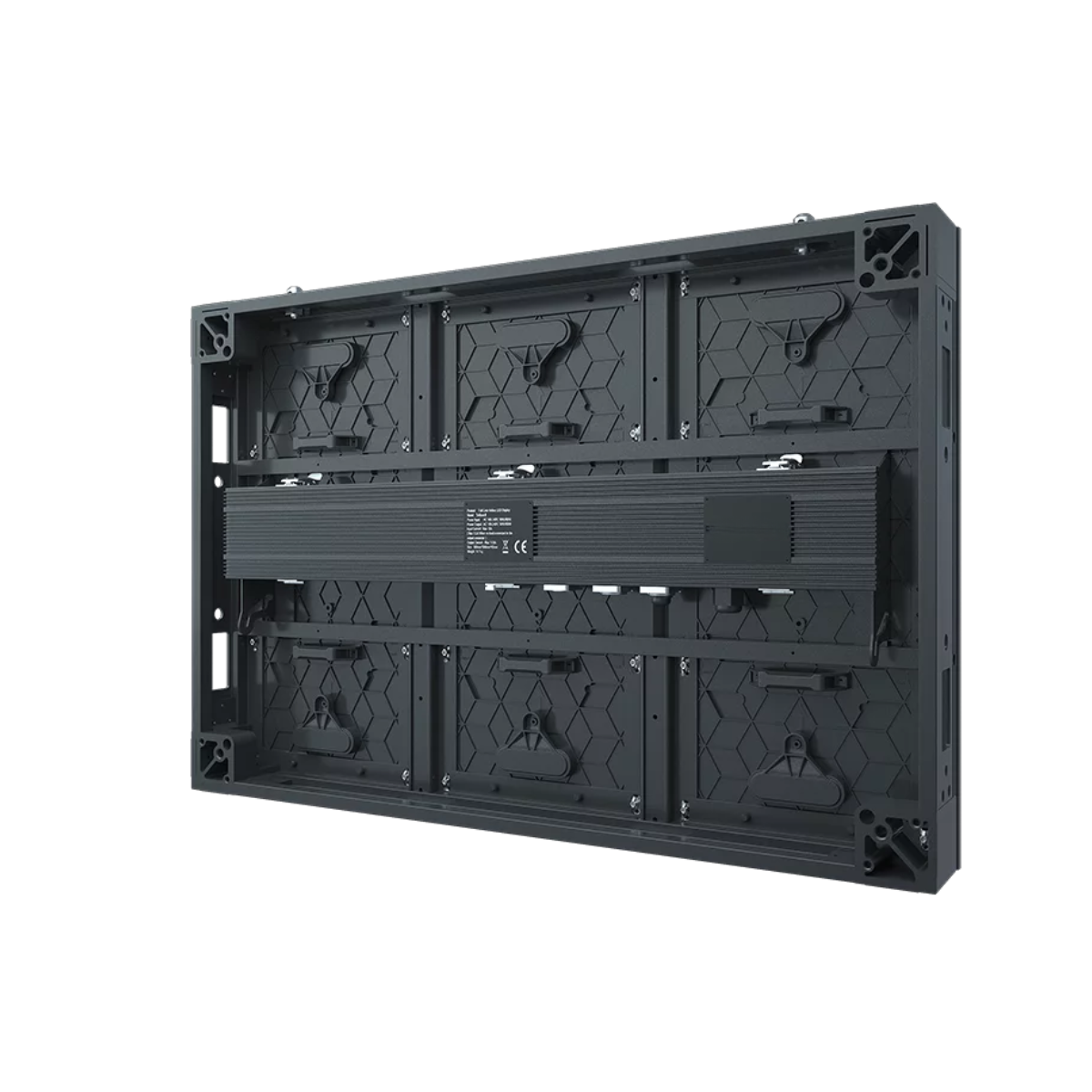

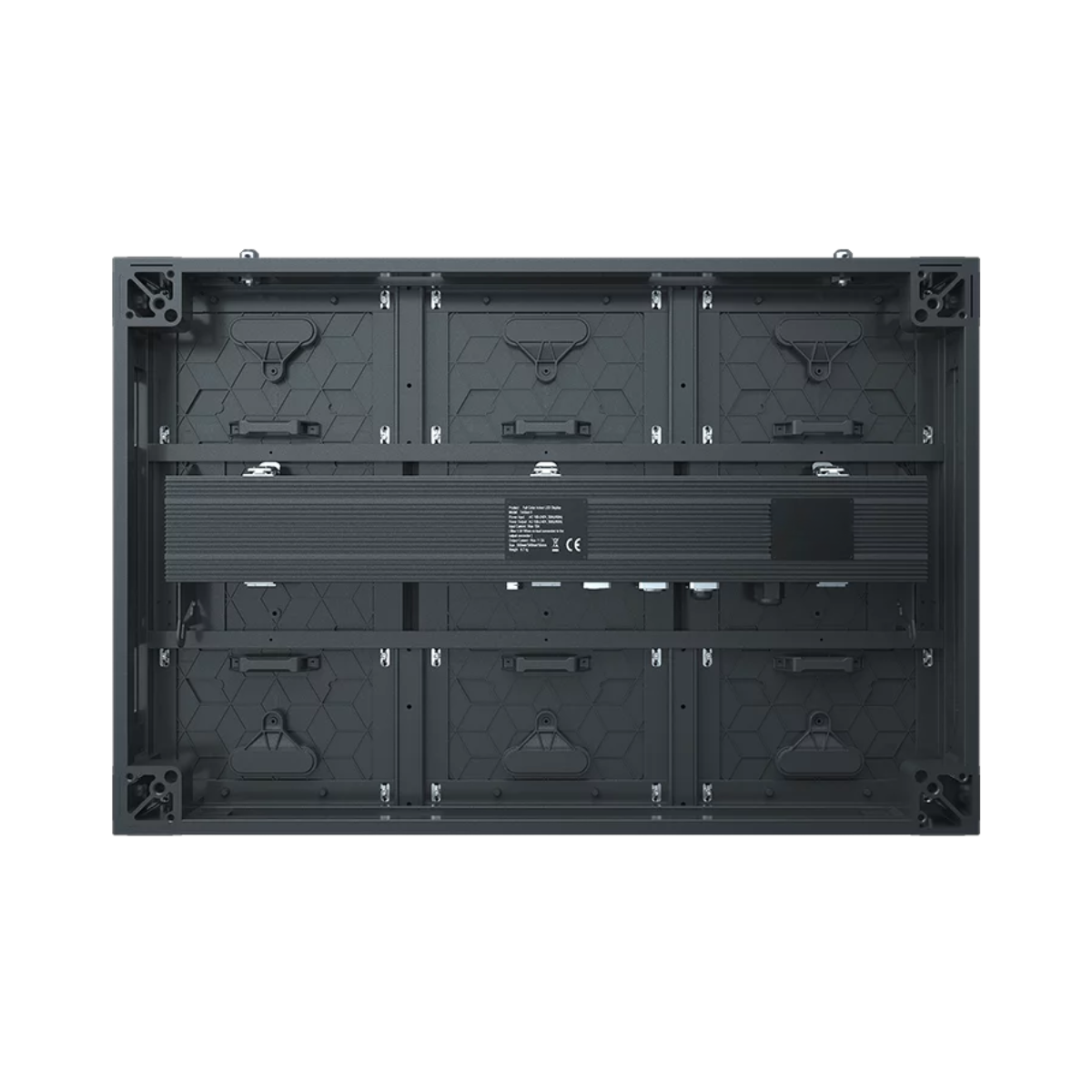

Module and Power Box with Rear and Front Access, Convenient and Efficient.
Additional information
Model |
AQ3.9 |
AQ4.8 |
AQ6.9 |
AQ8.3 |
AQ10.4 |
Pixel Pitch(mm) |
3.906 |
4.808 |
6.944 |
8.333 |
10.417 |
LED Type |
SMD1921 (White) |
SMD2727 (White) |
|||
Module Size(mm*mm) |
250*500 |
||||
Module Resolution(dot*dot) |
64*128 |
52*104 |
36*72 |
30*60 |
24*48 |
Brightness(cd/㎡) |
5000-5500 |
5,500-6,000 |
|||
Cabinet Size(cm*cm) |
100×100×8.35 100×50×8.35 75×100×8.35 75×50×8.35 |
100×100×8.33 100×50×8.33 75×100×8.33 75×50×8.33 |
100×100×8.45 100×50×8.45 75×100×8.45 75×50×8.45 |
100×100×8.49 100×50×8.49 75×100×8.49 75×50×8.49 |
100×100×8.64 100×50×8.64 75×100×8.64 75×50×8.64 |
Cabinet Material |
Aluminum |
||||
Cabinet Weight(kg) |
25 / 14.5 / 19.5 / 11.5 |
||||
Refresh Rate(hz) |
≥1920 |
||||
Contrast |
3,000:1 |
||||
Gray Scale(bit) |
≥14 |
||||
Viewing Angle（H/V)(deg) |
140/140 |
140/120 |
|||
Max Power Consumption(w/㎡) |
700 |
||||
Ave Power Consumption(w/㎡) |
210 |
||||
Input Voltage(v) |
100～240 |
||||
Operating Temperature(℃) |
-20～+50 |
||||
Operating Humidity(rh) |
10%～90% |
||||
Ingress Protection（Front/Rear) |
IP65/IP54 |
||||
Working Environment |
Outdoor |
||||
Life Span(H) |
100,000 |
||||
