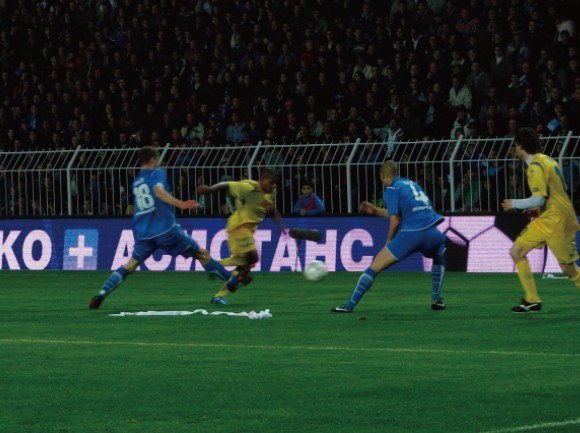

Amber BV-SP Outdoor LED Wall Fixed Install Series
Product code:Stadium Perimeter Sports Display
● FIFA Stadium Standard
● Broad Viewing Angle
● Fast to Install and Dismantle
● High Refresh Rate for Live Camera
SEND AN ENQUIRYDescription
Outdoor Rated
● IP65 rating for front and rear
● Suitable brightness adjustable for outdoor day and night
● 5500-8000 nits brightness
Superior Electrical Features
● Vivid and brilliant colors
● 16 Bit signal processing, 2500-4000Hz refresh rate
● Built-in data and power redundancy for ultimate reliability
Fast Installation and Easy Maintenance
● Fast lock system design guarantees a quick & easy installation
● Front and rear access
● Fast access to modules, cables, power and data boxes

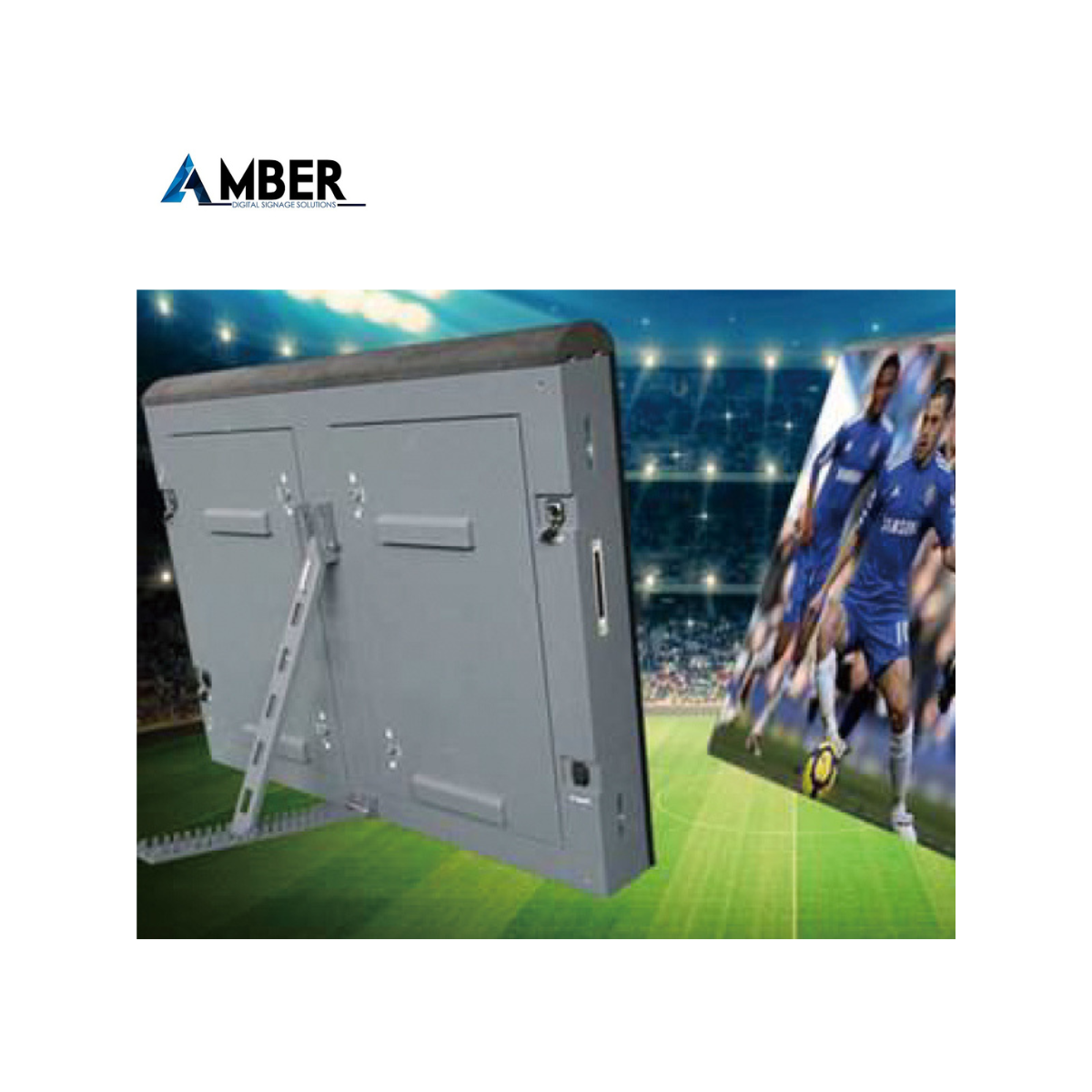

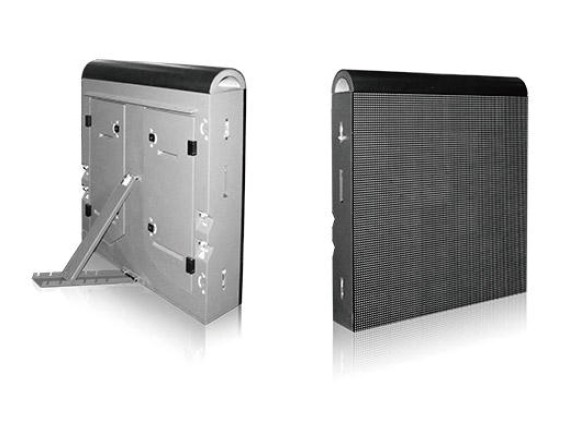

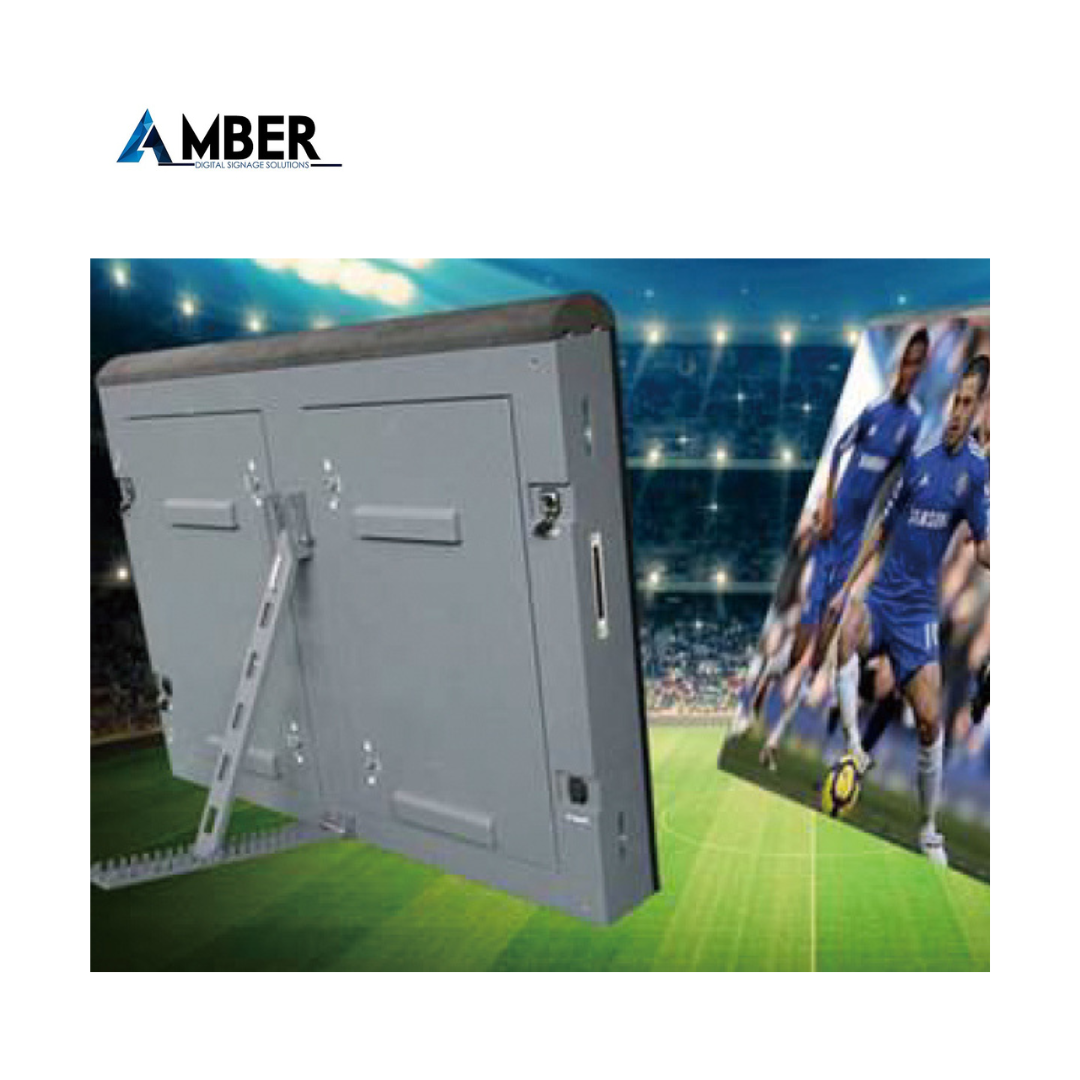

Versatile Dual Purpose Design
● Removing the ground adjustable bracket and protection
foam bumper can be transformed to be a square solid screen
● Available for truss hanging, ground stacking, wall mounting
Additional information
BV-SP-8 | BV-SP-10 | BV-SP-16 |
Physical Pitch | 8mm | 10mm | 16mm |
Pixel Configuration | SMD3535 | SMD3535 | SMD3535 |
Pixel Density | 15625 pixels/m² | 10000 pixels/m² | 3906 pixels/m² |
Module Dimensions (W× H) (mm) | 256X256 | 320X320 | 256X128 |
Panel Dimensions (mm) | 1280X768X187 | 1280X960X187 | 1280X896X187 |
NO.of Modules Per Panel (W × H) | 5X3 | 4X3 | 5X7 |
Physical Resolution of Module (W× H) | 32x32 | 32X32 | 32X8 |
Physical Resolution of Panel (W× H) | 160X96 | 128X96 | 160X56 |
Weight (m²) | 70/50 | 70/50 | 70/50 |
Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
Gray Scale | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 2000:1 | 2000:1 | 2000:1 |
Average Power Consumption | 360W/m² | 360W/m² | 360W/m² |
Max Power Consumption | 900W/m² | 900W/m² | 900W/m² |
Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
Brightness | >6500 nits | >6500 nits | >6500 nits |
Horizontal Viewing Angle | 160° | 160° | 160° |
Vertical Viewing angle | 140° | 140° | 140° |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Servicing | Front / Rear | Front / Rear | Front / Rear |
IP Rating (Front/Rear) | IP65 / IP54 | IP65 / IP54 | IP65 / IP54 |
Operating Temperature | -20~50℃/10~90℃ | -20~50℃/10~90℃ | -20~50℃/10~90℃ |
Storage Temperature | -20~50℃/10~90℃ | -20~50℃/10~90℃ | -20~50℃/10~90℃ |
Scan Method | 1/4 Scan | 1/2 Scan | Static Scan |
