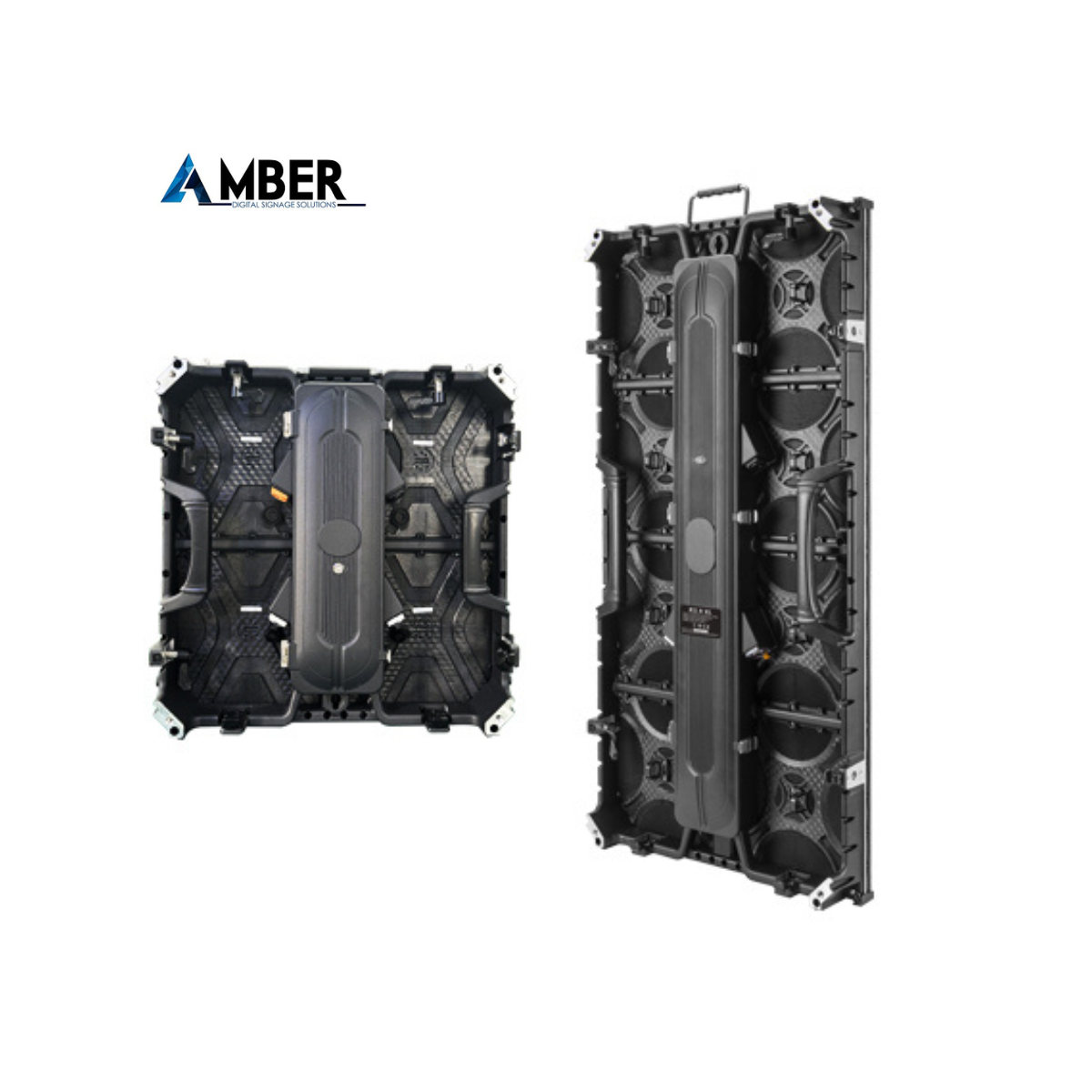

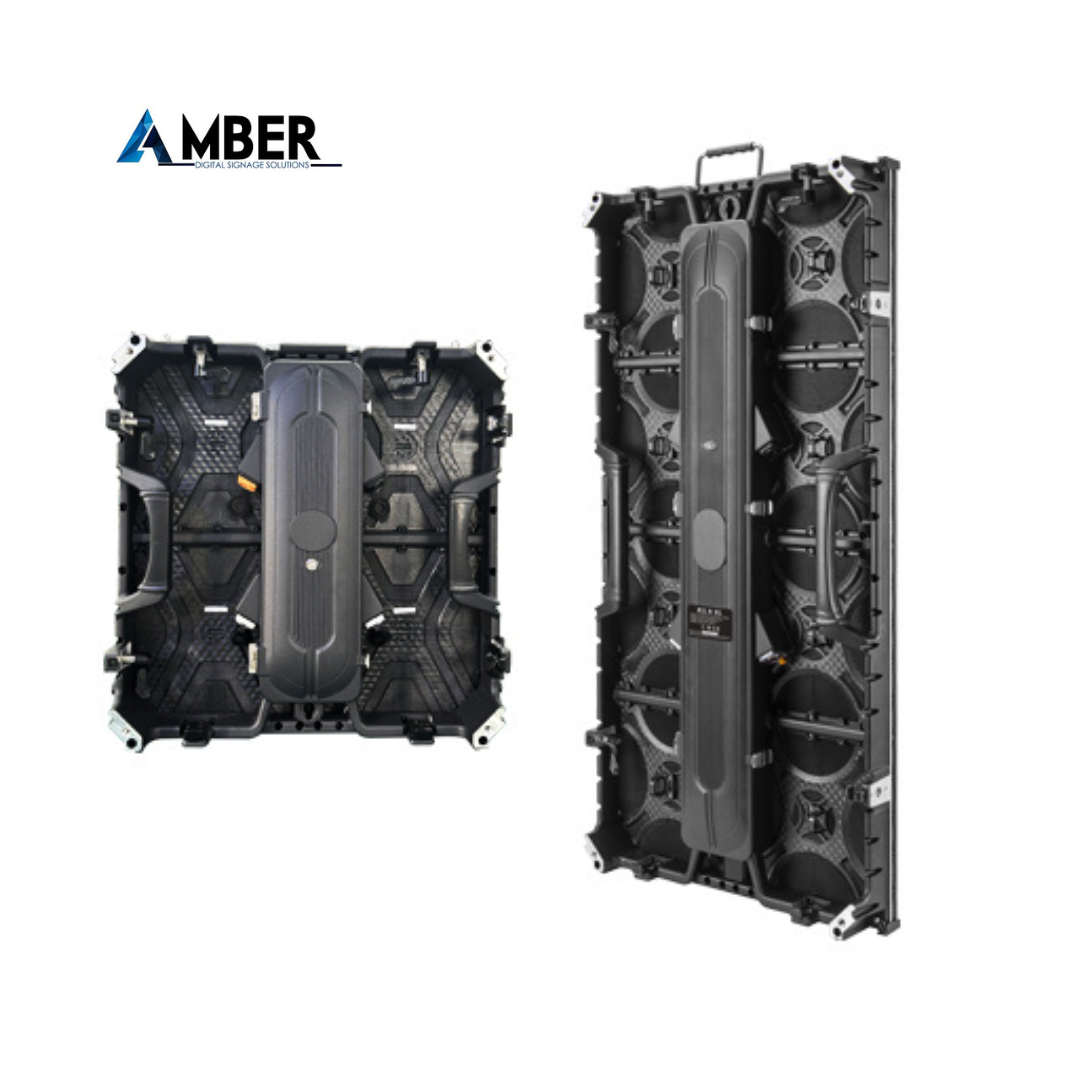

Amber BV-OR-III Outdoor LED Wall Rental Series

Product code: BV-OR-III

Cost Efficient,

Outdoor Rental LED Display

● High Brightness & IP65

● High Refresh Rate & Contrast Ratio

● Fast Assemble and Easy Maintenance

SEND AN ENQUIRY

Description

Slim, Light Weight and Quiet

● 500mm x 500mm or 500mm x 1000mm cabinet

● 78mm thickness, 8kg per cabinet

● Work Quietly

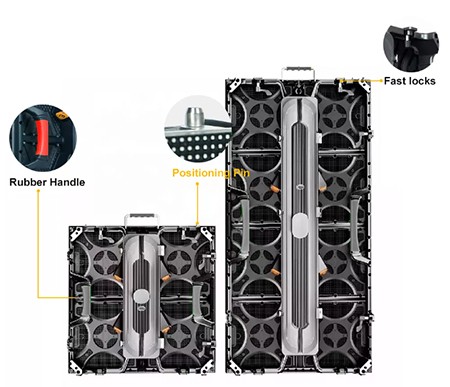

User Friendly and Fast Installation

● Both front or rear accessible

● Fast Lock and handle designed user friendly

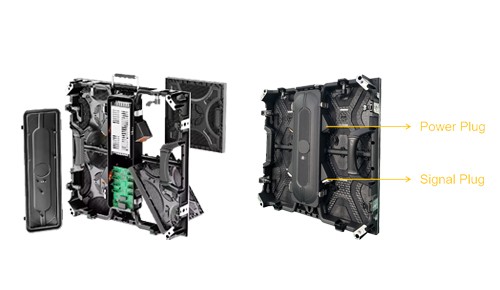

● Slant pocket for easier power & signal plug

● Tools free installation

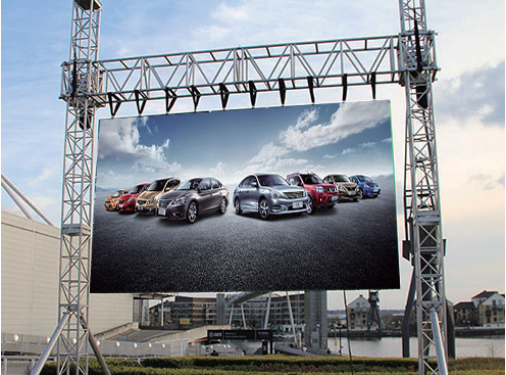

Outdoor Rated

● Outdoor waterproof with IP65

● Brightness adjustable for outdoor day and night

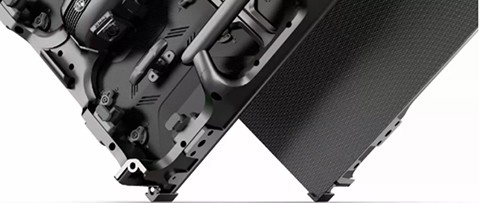

Crash Proof Design

● Corner Protection

● Avoid crashing when packing and assembling

● Easy to stand on ground or table for demonstration

BV-OR-III3

BV-OR-III4

Physical Pitch(mm)	3.91 mm	4.81 mm
Pixel Configuration	SMD 1921	SMD 2525 / 2727
Pixel Density	65，536 pixels/m²	43，264 pixels/m²
Module Dimensions (W × H) (mm)	250x250	250x250
Panel Dimensions (mm)	500x500x80 500x1000x80	500x500x80 500x1000x80
No. of Modules Per Panel (W × H)	2x2/2x4	2x2/4
Physical Resolution of Module (W x H)	64 × 64	52 × 52
Physical Resolution of Panel (W x H)	128 × 128 128 × 256	104 × 104 104 × 208
Panel Material	Die-casting Aluminum	Die-casting Aluminum
Single Cabinet Weight	8 / 15 kg/panel	8 / 15 kg/panel
Gray Scale	16 bit	16 bit
Colours	281 trillion	281 trillion
Contrast Ratio	4,000:1	4,000:1
Average Power Consumption	400 W / ㎡	320 W / ㎡
Max Power Consumption	800 W / ㎡	780 W / ㎡
Operating Temp/Humidity	-20°-60℃ 10%-60%	-20°-60℃ 10%-60%
Storage Temp/Humidity	-30°-60℃ 10%-60%	-30°-60℃ 10%-60%
Refresh Rate	>1,920 Hz	>1,920 Hz
Brightness	≥4,0000nits	≥4,000nits
Horizontal Viewing Angle	160°	160°
Vertical Viewing Angle	140°	140°
Expected Lifetime	100,000 Hrs	100,000 Hrs
Max Stacking	20/10	20/10
Max Hanging	20/10	20/10
Servicing	Front / Rear	Front / Rear
IP Rating(Front/Rear)	IP65/IP54	IP65/IP54
Scan Method	1/16 Scan	1/13 Scan
