Amber BV-OR-II Outdoor LED Wall Rental Series
Product code:High Brightness, High Definition,
Outdoor Rental LED Display
● Slim and Large Format Cabinet
● Ideal for Touring Application
● High Definition outdoor Display
● Curvilinear, Concave, Convex

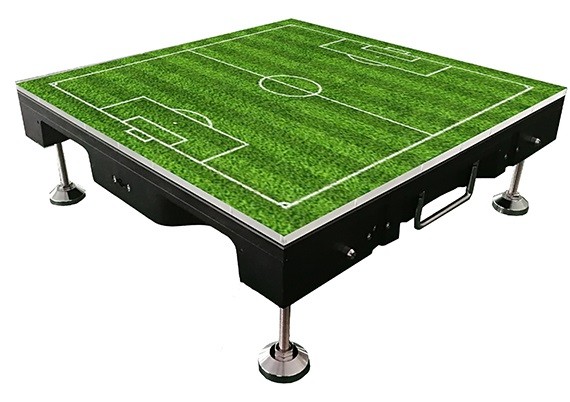

● Floor Screen Available
SEND AN ENQUIRYDescription
Outdoor Rated
● IP65 rating waterproof
● Tight bin selection for LED wavelengthSuitable brightness adjustable for outdoor day and night
● Deep black levels, contrast ratio 4000:1
User Friendly and Fast installation

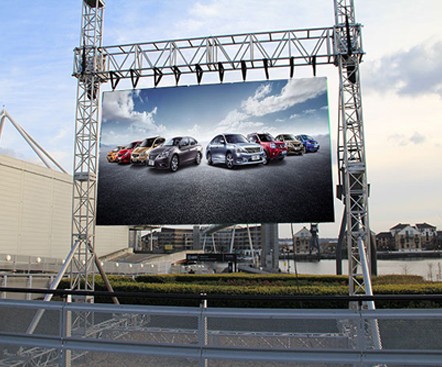

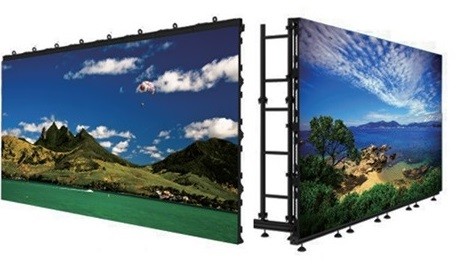

● Truss hanging and ground support both available
● Fast Lock and handle designed user friendly
● Front and rear access
● Tools free installation
Slim, Light Weight and Quiet

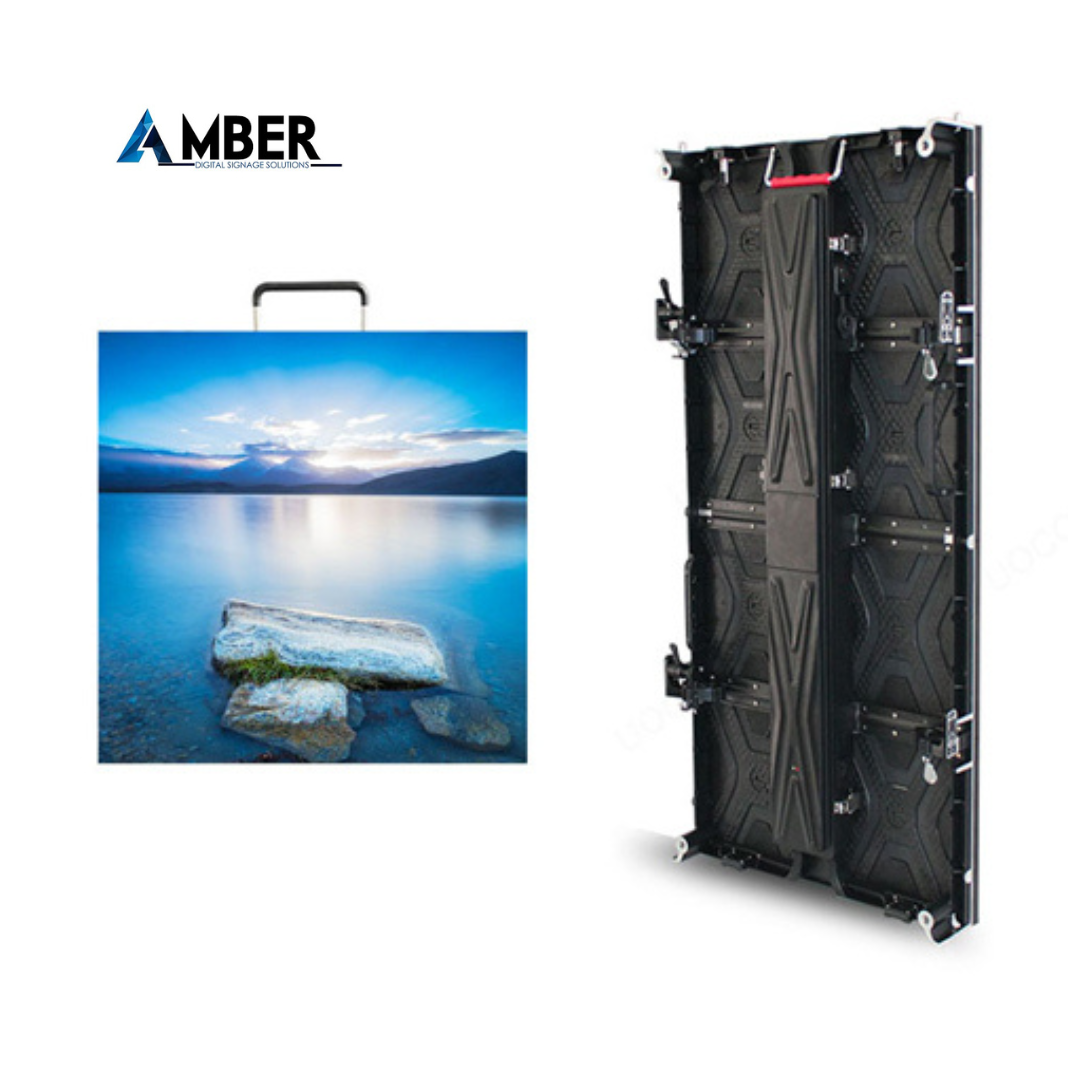

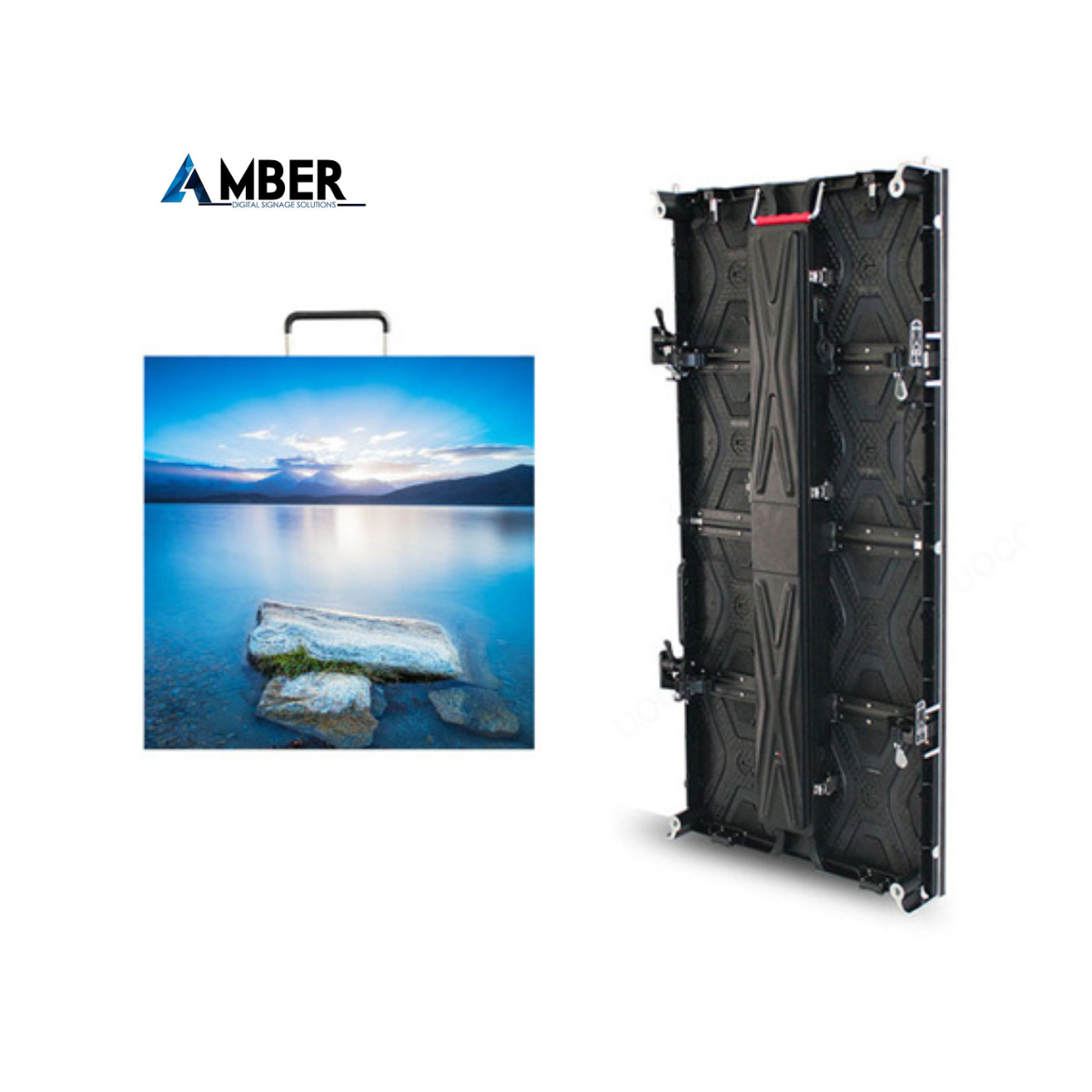

● 500mmx500mm or 500mmx1000mm cabinet
● 80mm thickness, 7 KG per cabinet
● Fanless design
● 1 person job

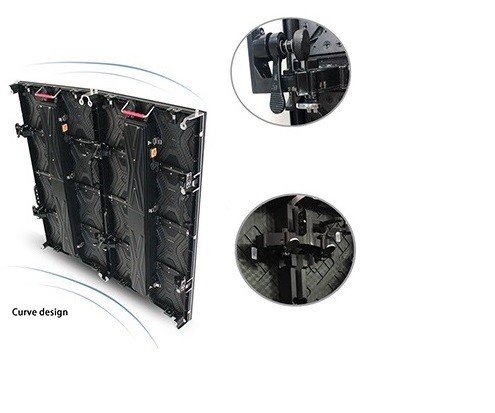

Smart Concave and Convex
● Both 500mmx500mm and 500mmx1000mm cabinets are
arc-able
● 0°-10° concave and convex degree
Additional information
BV-OR-II2 | BV-OR-II3 | BV-OR-II4 | BV-OR-II5 |
Physical Pitch(mm) | 2.97 mm | 3.91 mm | 4.81 mm | 5.95 mm |
Pixel Configuration | SMD 1921 | SMD 1921 | SMD 2525 / 2727 | SMD 2525/2727 |
Pixel Density | 112，896 pixels/m² | 65，536 pixels/m² | 43，264 pixels/m² | 28,224 pixels/m² |
Module Dimensions (W × H) (mm) | 250x250 | 250x250 | 250x250 | 250x250 |
Panel Dimensions (mm) | 500x500x80 500x1000x80 | 500x500x80 500x1000x80 | 500x500x80 500x1000x80 | 500x500x80 500x1000x80 |
No. of Modules Per Panel (W × H) | 2x2/2x4 | 2*2/2*4 | 2*2/2*4 | 2*2/2*4 |
Physical Resolution of Module (W x H) | 84 × 84 | 64 × 64 | 52 × 52 | 42 × 42 |
Physical Resolution of Panel (W x H) | 168 × 168 168 × 336 | 128 × 128 128 × 256 | 104 × 104 104 × 208 | 84 × 84 84 × 168 |
Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
Single Cabinet Weight | 9 / 15 kg/panel | 9 / 15 kg/panel | 9 / 15 kg/panel | 9 / 15 kg/panel |
Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
Average Power Consumption | 400 W / ㎡ | 400 W / ㎡ | 320 W / ㎡ | 310 W / ㎡ |
Max Power Consumption | 800 W / ㎡ | 800 W / ㎡ | 780 W / ㎡ | 750 W / ㎡ |
Operating Temp/Humidity | -20°-60℃ 10%-60% | -20°-60℃ 10%-60% | -20°-60℃ 10%-60% | -20°-60℃ 10%-60% |
Storage Temp/Humidity | -30°-60℃ 10%-60% | -30°-60℃ 10%-60% | -30°-60℃ 10%-60% | -30°-60℃ 10%-60% |
Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Brightness | ≥4,000nits | -20°-60℃/10%-60% | ≥6,000nits | ≥6,000nits |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
Vertical Viewing Angle | 140° | 140° | 140° | 140° |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
IP Rating(Front/Rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
Scan Method | 1/16 Scan | 1/16 Scan | 1/13 Scan | 1/7 Scan |
