Amber BV-OR-I Outdoor LED Walls Rental Series
Product code:Strength and Beauty,
Outdoor Rental LED Display
● TUV Certificated and Reddot Awarded

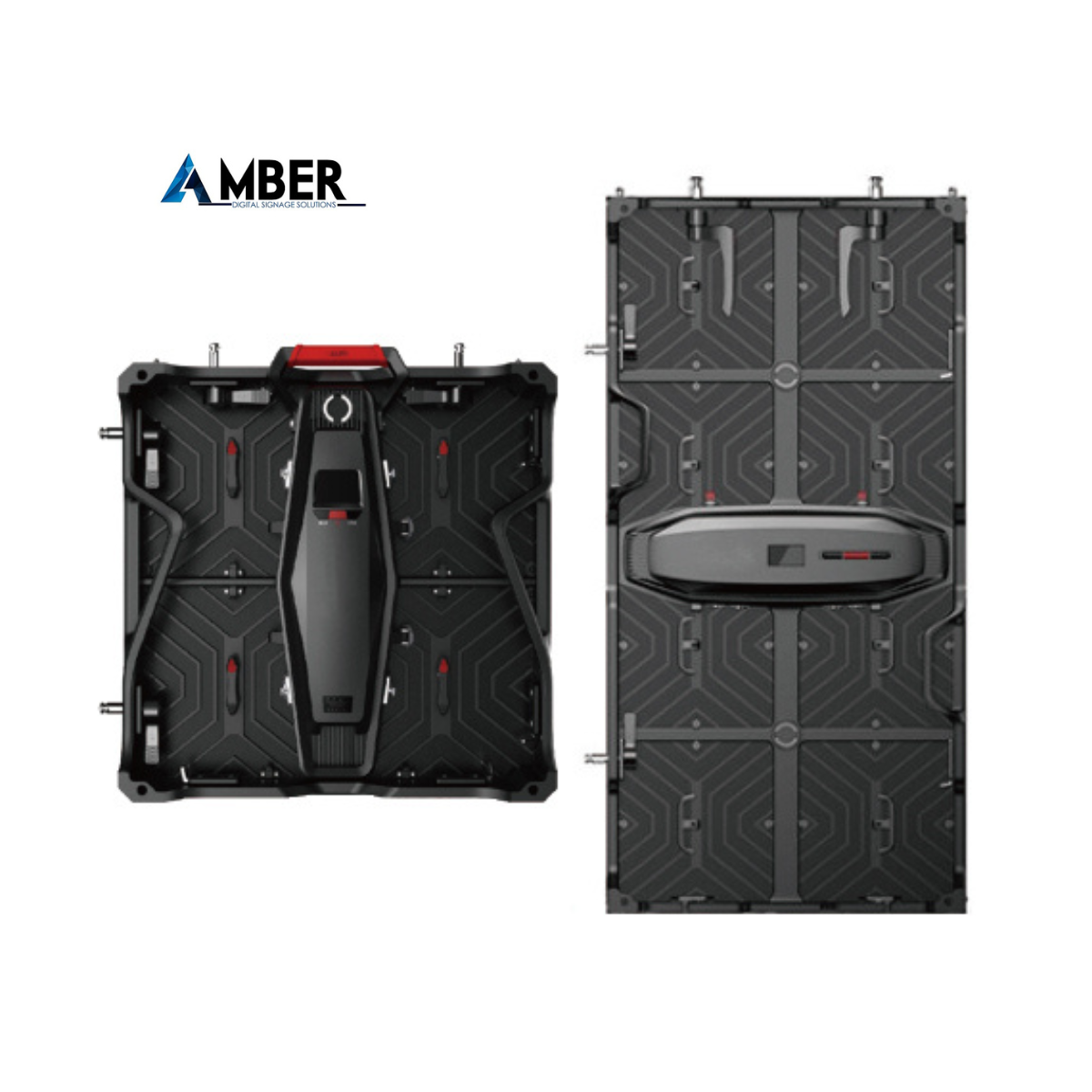

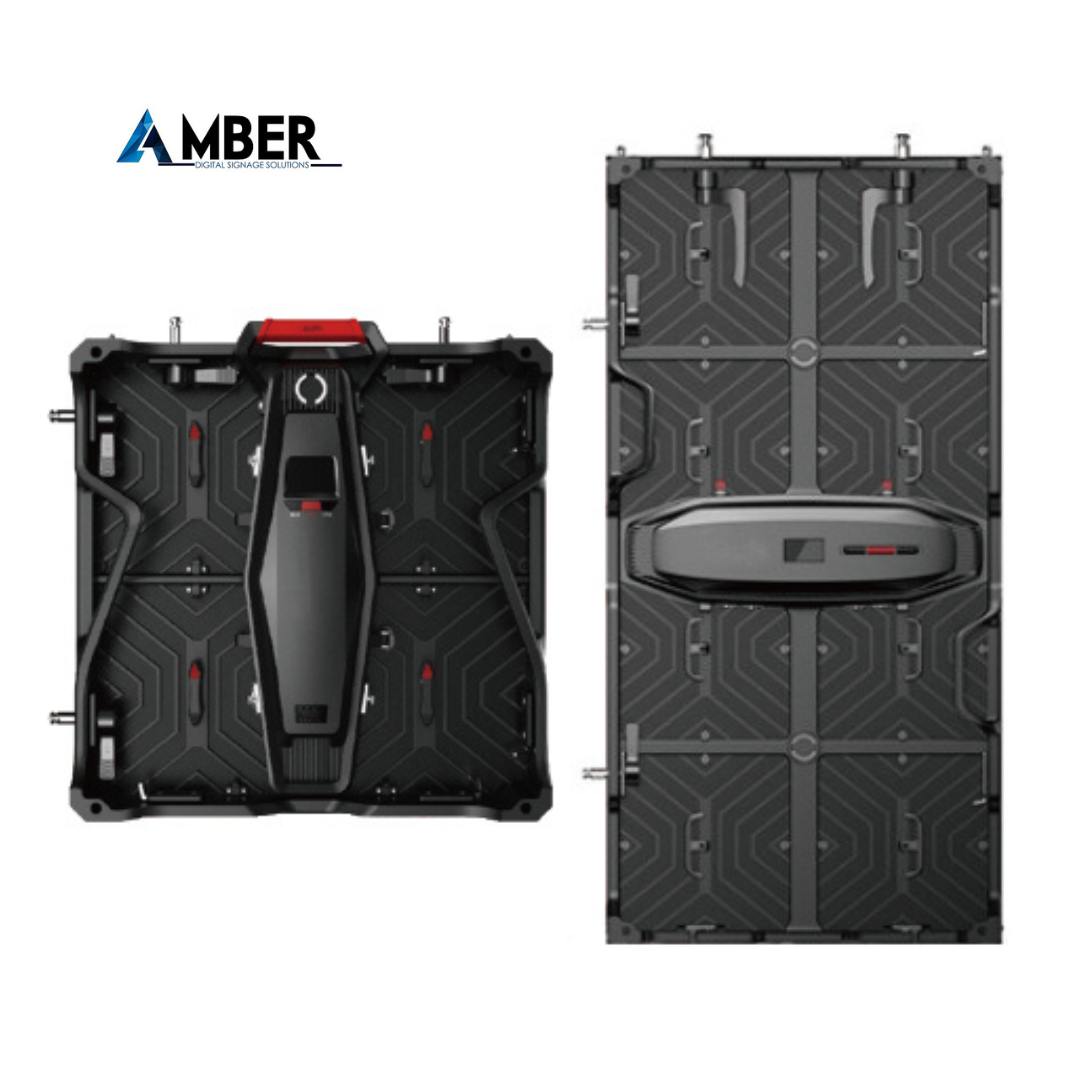

● Cabinet 500mmx500mm or 500mmx1000mm
● Curvilinear, Concave, Convex
● Front and Rear Access
SEND AN ENQUIRYDescription
Outdoor Rated
● Outdoor Waterproof with IP65
● Suitable brightness adjustable for outdoor day and night
● Deep black levels, contrast ratio 4000:1
Fast Installation and Easy Maintenance
● Truss hanging and ground support both available

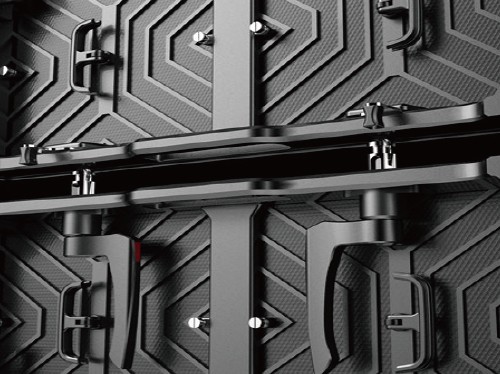

● Cable-less between modules
● Front and rear access
● Tools free installation
Slim, Light Weight and Quiet

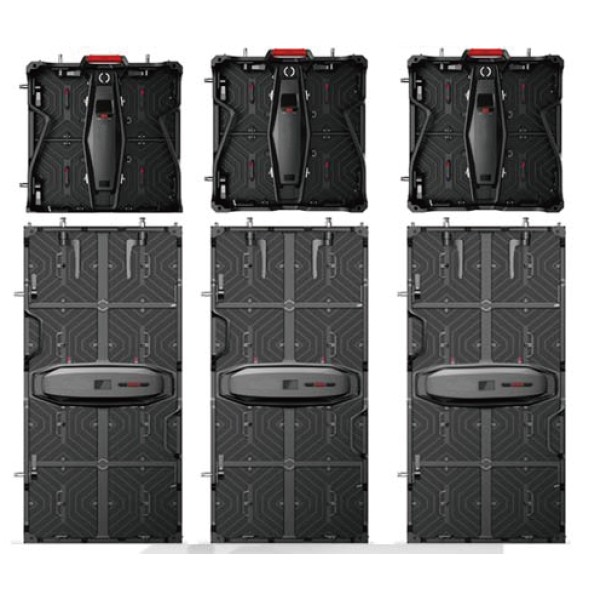

● 500mmx500mm or 500mmx1000mm options
● 80mm thickness
● Fanless design
Superior Electrical Features
● Dual signal backup port

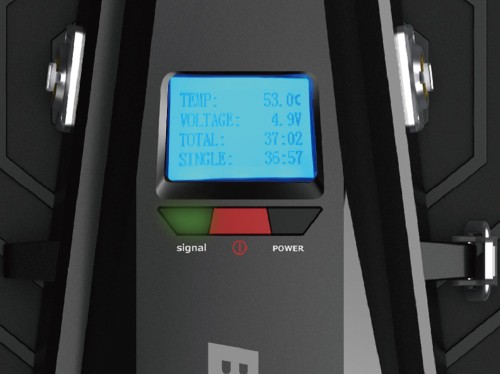

● UI LCD monitoring display indicates the status
Additional information
BV-OR-I3 | BV-OR-I4 | BV-OR-I5 | BV-OR-I6 |
Physical Pitch | 3.91mm | 4.81 mm | 5.95mm | 6.25 mm |
Pixel Configuration | SMD 1921 | SMD 2525 | SMD 2525 | SMD 2727 |
Pixel Density | 65536 pixels/m² | 43264 pixels/m² | 28224pixels/m² | 25600 pixels/m² |
Module Dimensions (W × H) (mm) | 250 × 250 250×500 | 250 × 250 250×500 | 250 × 250 250×500 | 250 × 250 250×500 |
Panel Dimensions (mm) | 500 × 500 × 80 500 × 1000 × 80 | 500 × 500 × 80 500 × 1000 × 80 | 500 × 500 × 80 500 × 1000 × 80 | 500 × 500 × 80 500 × 1000 × 80 |
NO .of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 |
Physical Resolution of Module (W × H) | 64×64 64×128 | 52×52 52×104 | 42×42 42×84 | 40×40 40×80 |
Physical Resolution of Panel (W × H) | 128×128 128×256 | 104×104 104×208 | 84×84 84×168 | 80×80 80×160 |
Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
Single Cabinet Weight | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel |
Gray Scale | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 4,000: 1 | 4,000: 1 | 4,000: 1 | 4,000: 1 |
Average Power Consumption | 75 /150 W/m² | 75 /150 W/m² | 75 /150 W/m² | 75 /150 W/m² |
Max Power Consumption | 225 /550 W/m² | 225 /550 W/m²l | 225 /550 W/m² | 225 /550 W/m² |
Operating Temp/Humidity | -20ºC - 60ºC 10% - 60% | -20ºC - 60ºC 10% - 60% | -20ºC - 60ºC 10% - 60% | -20ºC - 60ºC 10% - 60% |
Storage Temp/Humidity | -30ºC - 60ºC 10% - 60% | -30ºC - 60ºC 10% - 60% | -30ºC - 60ºC 10% - 60% | -30ºC - 60ºC 10% - 60% |
Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
Brightness | >5000 nits | >5000 nits | >5000 nits | >5000 nits |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
Vertical Viewing angle | 140° | 140° | 140° | 140° |
Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 |
Scan Method | 1/16 Scan | 1/13 Scan | 1/7 Scan | 1/10 Scan |
