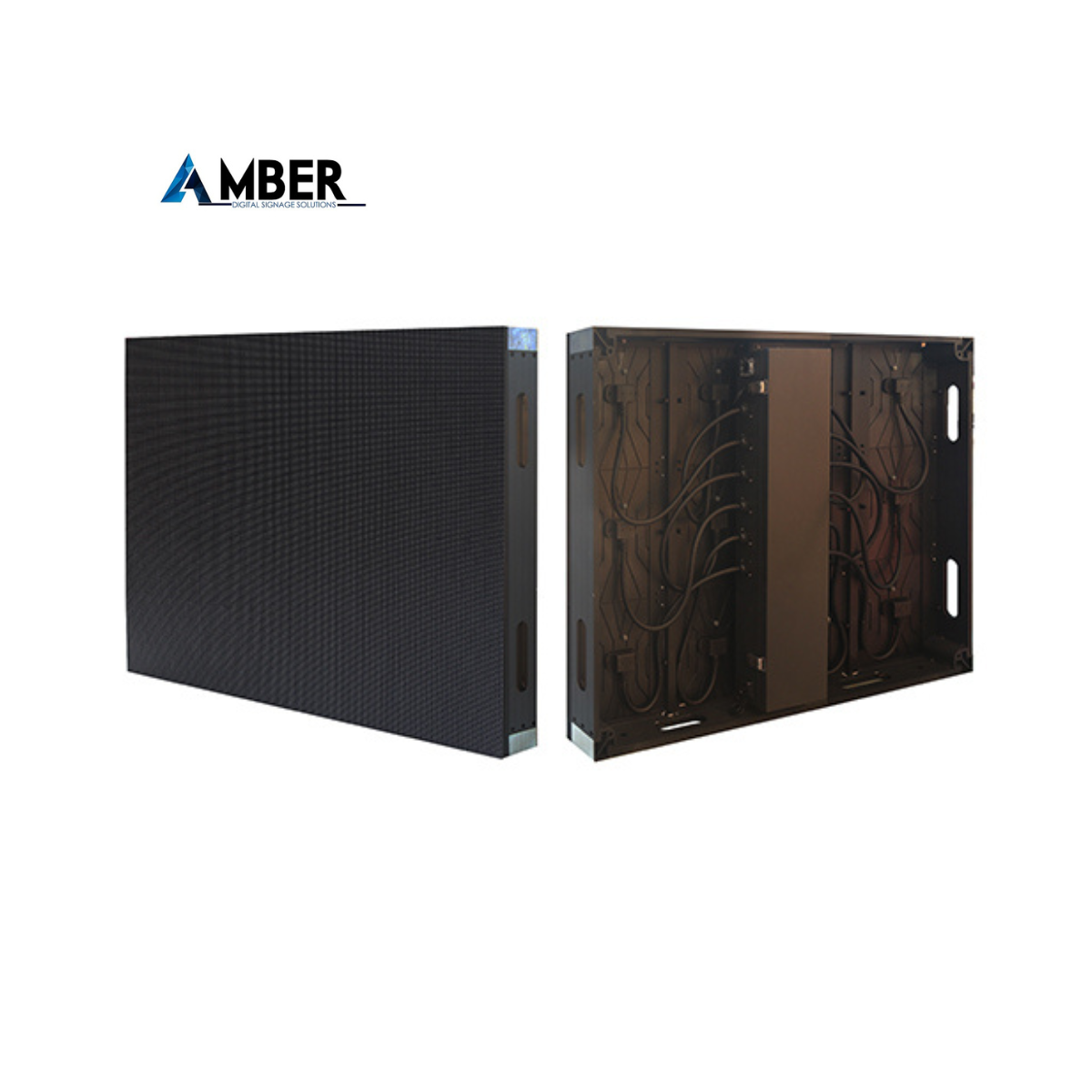

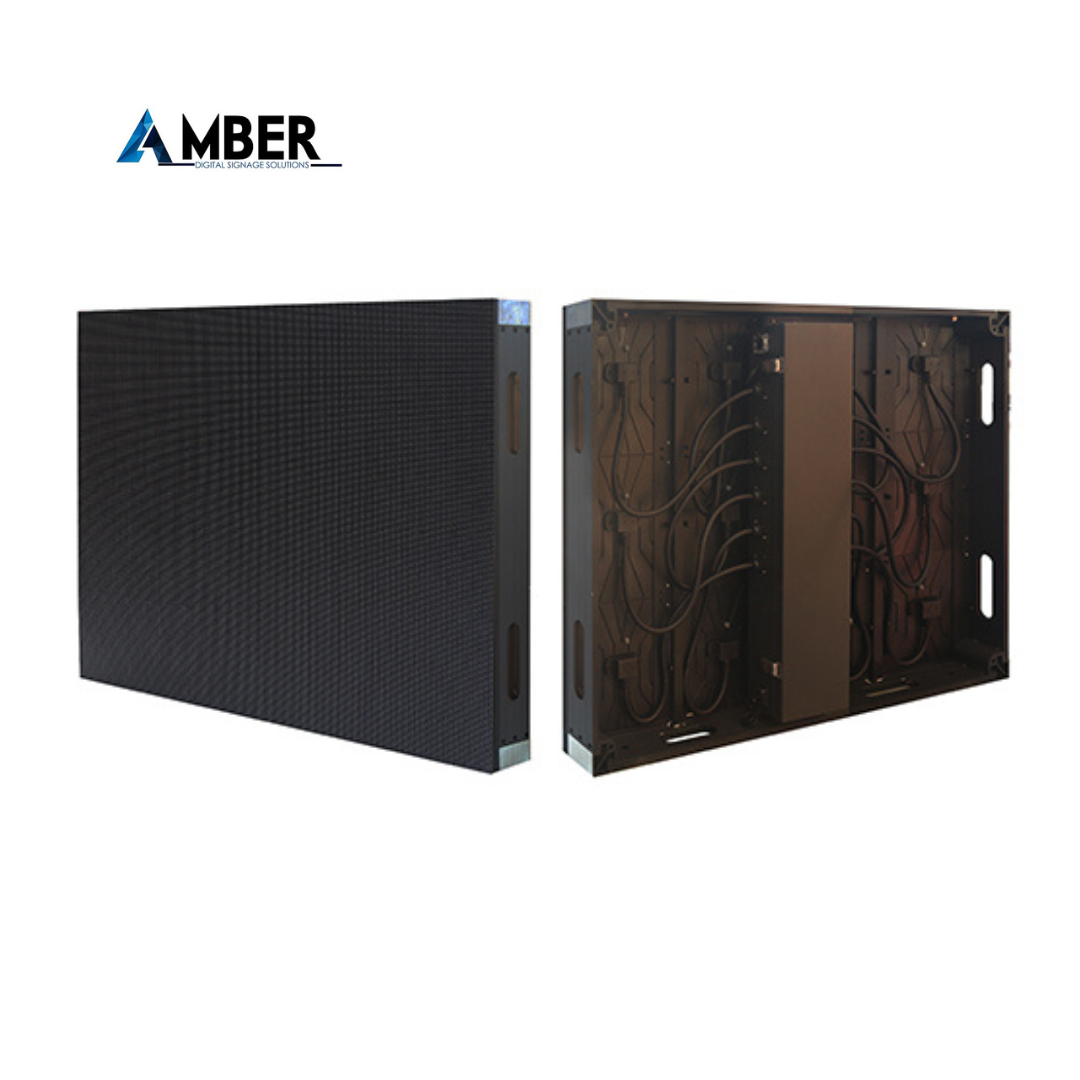

Amber BV-OF Fine Pitch Outdoor LED Wall Fixed Install Series
Product code:● Fine Pitch DOOH Display
● IP68 Rated Module
● Mechanical Front Access
● Easy 90° Corner Sha
SEND AN ENQUIRYDescription

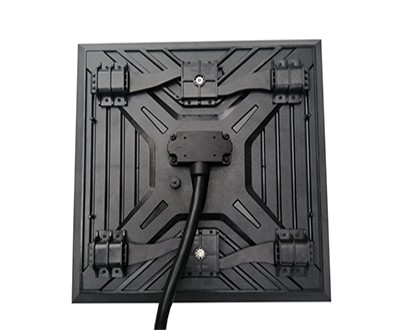

Multifunctional Module Buckle
● Special multifunctional module buckle designed for
adjusting gaps between module and cabinet to
ensure the smoothness and alignment

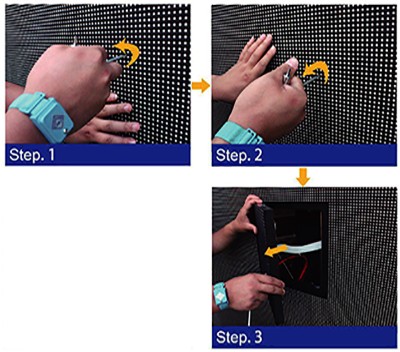

Fast Installation and Easy Maintenance
● Extruded aluminum cabinet, only 25KG/㎡
● Easy for 90° Corner Shape
● Mechanical front access, suitable for wall mount

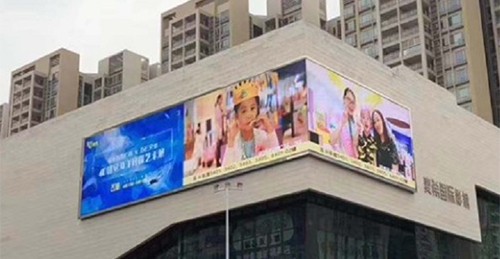

Outdoor Rated
● IP68 module and IP65 cabinet
● Adjustable brightness for outdoor day and night
● Strong and high bright LED
Intelligent Software System
● Intelligent control and player system by cloud technology
● Time management and real time monitoring
Additional information
BV-OF-Fine Pitch-3.9 | BV-OF-Fine Pitch-4.8 |
Physical Pitch | 3.9mm | 4.8mm |
Pixel Configuration | SMD | SMD |
Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
Module Dimensions (W× H) (mm) | 250 x 250 | 250 x 250 |
Panel Dimensions (mm) | 500 x 1000 | 500 x 1000 |
NO .of Modules Per Panel (W × H) | 2 x 4 | 2 x 4 |
Physical Resolution of Module (W× H) | 64 x 64 | 52 x 52 |
Physical Resolution of Panel (W× H) | 128 x 256 | 104 x 208 |
Single Cabinet Weight | 25 kg | 25 kg |
Panel Material | Extruded Aluminum | Extruded Aluminum |
Gray Scale | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion |
Contrast Ratio | 2000:1 / 4000:1 | 2000:1 / 4000:1 |
Average Power Consumption | 360W/m² | 360W/m² |
Max Power Consumption | 900W/m² | 900W/m² |
Refresh Rate | >3,840 Hz | >3840 Hz |
Brightness | ≥5,000 nits | ≥5000 nits |
Horizontal Viewing Angle | 160° | 160° |
Vertical Viewing angle | 140° | 140° |
Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
Servicing | Front | Front |
IP Rating (Front/Rear) | IP65 | IP65 |
Operating Temperature | -20~50℃ 10%~90% | -20~50℃ 10%~90% |
Storage Temperature | -20~50℃ 10%~90% | -20~50℃ 10%~90% |
