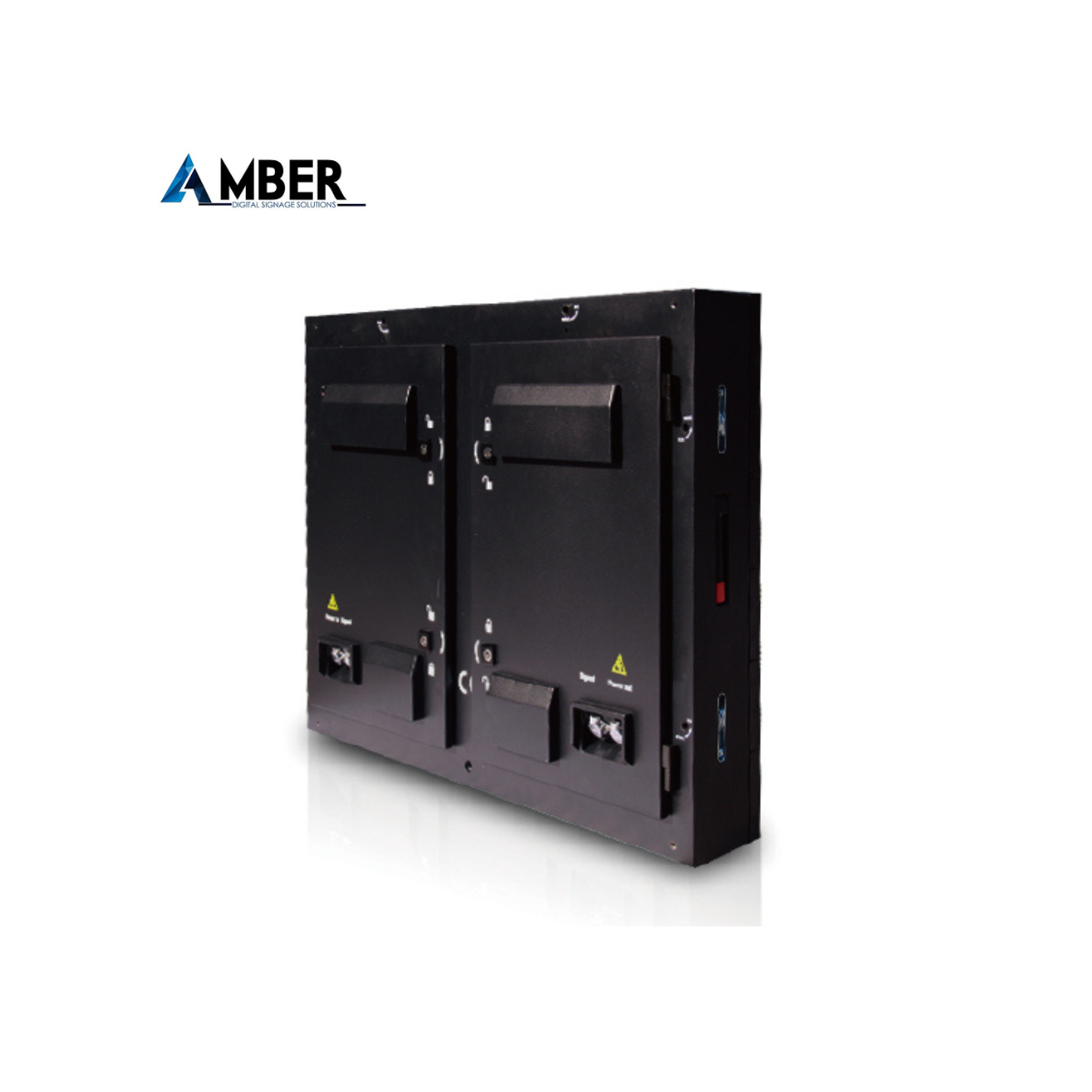

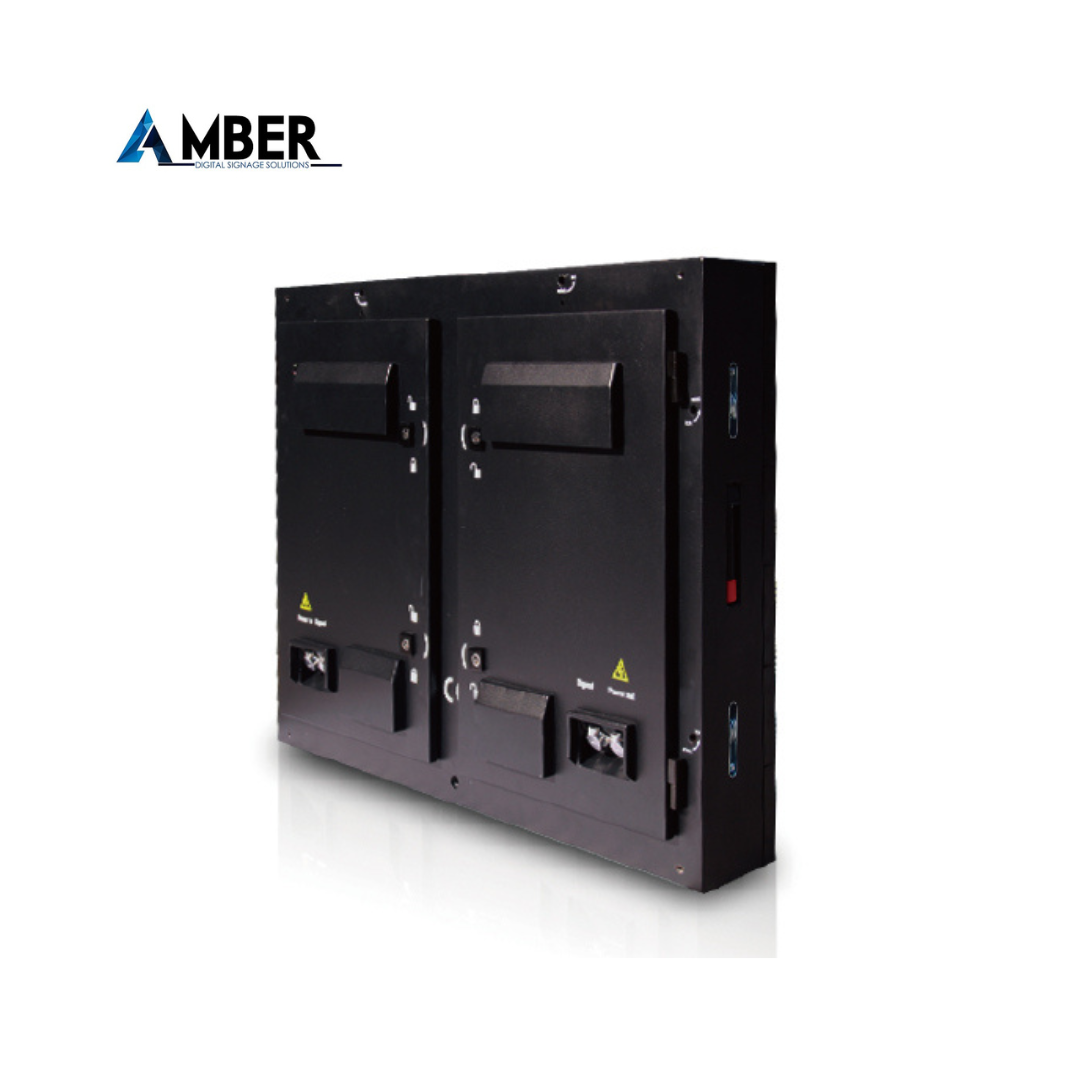

Amber BV-OF-B Outdoor LED Wall Fixed Install Series
Product code:Back Service
● Energy-saving Ready
● Conventional Back Service
● Stable and Durable
● Concave, Convex with Curvilinear Angles
SEND AN ENQUIRYDescription
Durable and Qualified Components
● The most durable and qualified components are selected
● Deliberate designs on waterproof and ventilation system
Fast Installation and Easy Maintenance
● Fast lock system design guarantees a quick and easy installation
● Conventional rear access
Energy-Saving Technology
● Cutting dege"cold display" technology
● 60% power lower than normal
● 50% temperature less than normal
Outdoor Rated
● IP65 rating
● Brightness adjustable for day and night
● Selected LED for 7/24 work mode
Additional information
BV-OF-B-3 | BV-OF-B-4 | BV-OF-B-5 | BV-OF-B-6 | BV-OF-B-8 |
Physical Pitch | 3.2 mm | 4 mm | 5 mm | 6.67 mm | 8 mm |
Pixel Configuration | SMD 1921 | SMD 1818 | SMD 2727 | SMD 2727 | SMD 3535 |
Pixel Density | 97,656 pixels/m² | 62,500 pixels/m² | 40,000 pixels/m² | 22,376 pixels/m² | 15,625 pixels/m² |
Module Dimensions (W × H) (mm) | 192 × 192 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
Panel Dimensions (mm) | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 |
NO .of Modules Per Panel (W × H) | 5 × 5 | 3 × 6 | 3 × 6 | 3 × 6 | 3 × 6 |
Physical Resolution of Module (W × H) | 60 × 60 | 80 × 40 | 64 × 32 | 48 × 24 | 40 × 20 |
Physical Resolution of Panel (W × H) | 300 × 300 | 240 × 240 | 192 × 192 | 144 × 144 | 120 × 120 |
Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
Weight(m²) | 65/45 | 65/45 | 65/45 | 65/45 | 65/45 |
Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Contrast Ratio | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 |
Average Power Consumption | 360 W/m² | 360 W/m² | 36 W/m² | 360 W/m² | 360 W/m² |
Max Power Consumption | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² |
Average Power After Energy Saving | - | - | - | 90 W/ m² | 90 W/ m² |
Max Power After Energy Saving | - | - | - | 230 W/ m² | 230 W/ m² |
Brightness | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits |
Refresh Rate | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz |
Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
Vertical Viewing angle | 140° | 140° | 140° | 140° | 140° |
Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
Servicing | Rear | Rear | Rear | Rear | Rear |
IP Rating | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
Operating Temp/Humidity | -20℃-50℃ 10%-90% | -20℃-50℃ 10%-90% | -20℃- 50℃ 10%-90% | -20℃-50℃ 10%-90% | -20℃-50℃ 10%-90% |
Storage Temp/Humidity | -20℃-50℃ 10%-90% | -20℃-50℃ 10%-90% | -20℃-50℃ 10%-90% | -20℃-50℃ 10%-90% | -20℃-50℃ 10%-90% |
Scan Method | 1/16 Scan | 1/8 Scan | 1/8 Scan | 1/10 Scan | 1/4 Scan |
