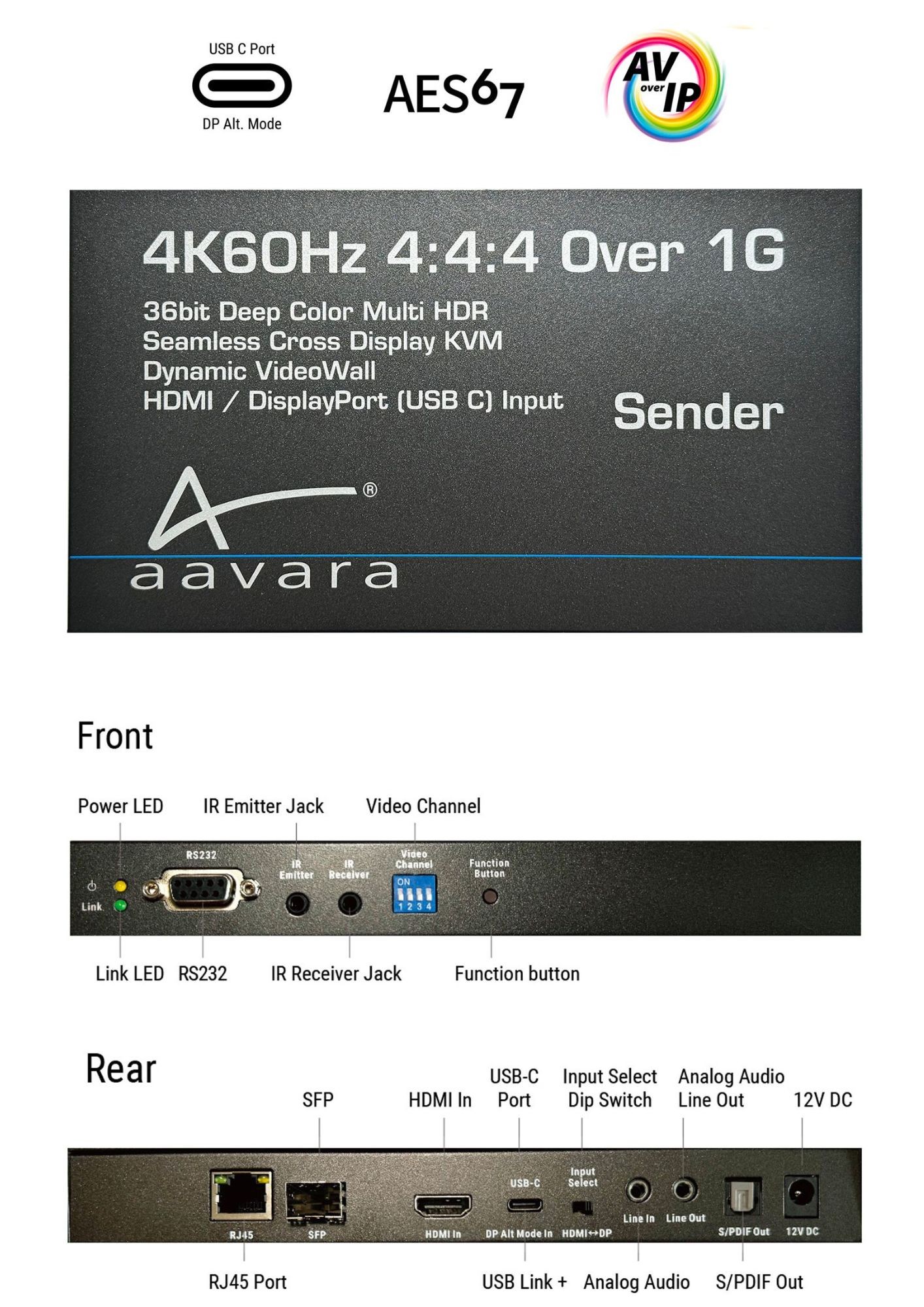

Aavara PB9700-SE 4K60Hz 4:4:4 Over IP Sender with HDMI/DisplayPort(USB-C DP Alt. Mode)
Product code:PB9700-SE 4K/KVM over IP Sender is a great 4K video distribution solution for Residential, KVM and Signage deployment, integrating Web-based Aavara AV Master Control Software and 3rd Party Control drivers for centralizing control.
- 4K 60Hz YUV 4:4:4 Video Pass-Thru Over 1 Gbps Ethernet Network
- 36bit Deep Color Video Engine for Dolby Vision, HDR 10+, HDR10, HLG multi HDR format support
- HDMI/DisplayPort (USB C DP Alt. Mode) Daul Input
- AES67 2x2 LPCM Audio AoIP In or Out
- Loseless Audio Pass-Thru for up to 7.1 ch LPCM, Dolby ATMOS and DTS X digital audio.
- HDMI eARC, ARC and S/PDIF Fiber Toslink for Audio Return Channel Support
- S/PDIF Toslink Opticsl ARC Audio Output for up to 5.1 ch Dolby Digital/AC3 and DTS digital audio output AV receiver/amplifer.
- Sub-stream Video for live video snapshot
- Aavara AV Master Web Control interface
- Major Controller Integration: SAVANT, Control4, AMX, RTI, Crestron, Extron, Elan g!, Neets and more.
- Independent Matrix Routing for Video, Audio, IR, RS232, USB
- Seamless Cross Display KVM Switching
- CEC/IR/RS232 Comnand Pass-Thru & IP Command
- USB 2.0 Pass-Thru
- VideoWall Easy Setup & Flexibile Operate by Easy Web Interface configuration
- Asymmtric VideoWall Support
- Keyboard Hotkeys Control
- Message On Screen
PB9700 fully meets the high demand of Residential application as Home AV matrix w/ 4K HDR, Dolby Atmos/DTS X and 3D support. And ideal for DOOH in Commercial Installation which demand Higher Video Quality, Analog Audio Line out to support Active Speaker for public area, IR, CEC and RS-232 to control the Displays. In addition, 4K Ultra HD & KVM w/ HighSpeed USB connection available.
Description
4K60 4:4:4 over IP Distribution Solution features:
Aavara® 4K/ HDMI Distribution Solution features USB-C/ DP Alt. mode, HDMI/USB-C auto detect, AES67 Audio standard, CEC Over IP, Independent Matrix Routing, KVM Keyboard/Mouse Roaming, Centralization of 3rd Party Controller integration, Asymmetic Video Wall and more... ideal for best AV Matrix switching in commercial and residential application.
FEATURES
• 4K60Hz 4:4:4 Video and Audio Over Inexpensive 1 Gbps Ethernet Network
• 36-bit color video engine support all HDR formats including Dolby Vision
• AES67 Audio Bridge In/Out interoperability with other audio equipment
• ★HDMI/USB-C auto detect/manual switch dual inputs on Sender. USB-C supports DP Alt. mode (4K Video/Audio) & USB 2.0 data link
• USB-C/A ports on Receiver supports keyboard, mouse, USB drive, webcam
• Upscale/Downscale Video to fit display requirement• HDMI eARC, ARC & S/PDIF Audio Return support
• Great Video Wall, Matrix and KVM Versatility• Seamless Cross Multiple Displays KVM Switching
• Video Sub-Stream for viewing video snapshot on connected iPad/Tablet/Notebook
• Powerful Centralized Web Interface Management
• Easy Large Matrix/VideoWall Configuration with CSV File managed by MS Excel
4K/ HDMI AV MatrixPB9700 fully meets the high demand of Residential application as Home AV matrix w/ 4K HDR, Dolby Atmos/DTS X and 3D support. 60 fps video is running very smoothly in Sports program video.  |
AES67 Audio over IPAavara now provides AES67 Audio Bridge In/Out interoperability between Aavara PB9700 Nebula networked AV and 3rd party AES67 AoIP Tx/Rx devices. Both PB9700 Sender & PB9700 Receiver can output AES67 AoIP streams, or take AES67 AoIP stream from others AES67 Tx devices into Aavara Nebula Networked AV. *For Dante support, please select model PB9700DNT
|
3rd Party Controller IntegrationMajor Controller Integration: Control4, AMX, RTI, Crestron, Elan g!, Neets and more. Aavara provides controller driver and API which allows SI to easily integrate Aavara 4K Over IP solution with entire residential / commercial system.  |
Video WallPB9700 provides very scalable and flexible videowall setup and control. If any videowall layout change required, just add more sender or receiver without replacing entire system.  |
Asymmetric Video WallPB9700 supports artistic and eye balls catching asymmetric videowall setup and control. It supports display 90, 180 and 270 degree rotation to meet the design high demand.  |
Aavara AV Master Web ControlFull function Aavara AV Master Web Control interface built-in in every box without extra cost. Just log on One Web page, it can setup & control entire 4K Over IP network.  |
Independent Matrix Routing for Each ServicePB9700 provide Video/Audio/RS232/IR and USB pass-thru stream services, each service can be an independent matrix routing and control by Aavara AV Master web interface or 3rd party controller.  |
CEC/IR/RS232 Over IPTotal control of every device and TV/Display with CEC/IR/RS232 Over IP. It can by Pass-Thru w/ independent matrix rounting, or issue IP commands from Aavara AV Master Web interface or 3 party controller to ask target box output CEC, IR or RS232 control signal to external device/TV.  |
KVM Keyboard / Mouse RoamingKVM Keyboard/Mouse Roaming across different PC/Server(channel) without switching video channel, which made KVM user operate multiple PC/Servers like on same Server/PC.  |
USB/ IP/ KVMGreat KVM solution provides USB 2.0 Pass-Thru, Keyboard Hotkeys Control & Latest KVM Keyboard/Mouse Roaming across different PC/Server/channel.  |
Additional information
SPECS
• HDMI Spec.: v2.0 Compatible
• DVI Spec.:v1.0 Compliant
• HDCP Spec.:v2.2 Compliant
• 4K Video Resolution: Up to 4K @ 60Hz 4:4:4 pass-thru
• PC DVI Input Resolution:Up to1920x1200@60Hz
• AES67 2x2 LPCM Audio AoIP In or Out
• HDMI Audio In/ Out:Up to 7.1ch LPCM, DTS® X, Dolby Digital ,Dolby® Atmos
• S/PDIF Toslink Optical Digital ARC Audio Out:Up to 5.1ch LPCM, DTS®, Dolby Digital/AC3
• Distance:Point to Point 120M by Cat6 cable, KMs by Fiber, unlimited within LAN
• USB Extension: USB 2.0 Type C port x 1 (USB Link + DP Alt. Mode)
• RS-232 Baudrate:300~230, 400bps, Default 115,200bps
• IR Control Pass Thru:20~60KHz, Two-way IR Pass- Thru
• Operating Temperature:0-40ºC
• Storage Temperature:-20~50ºC
• Humidity Range:5%~90%RH
• Power Consumption:10W
• Power Adapter: DC 12V/1A
• Material: Metal
• Dimension (L x W x H): 213x120x28mm
• Weight:650g
• Optional Accessory: Wall Mounting Kit, Rack Mount Kit, IR Emitter/ Receiver
