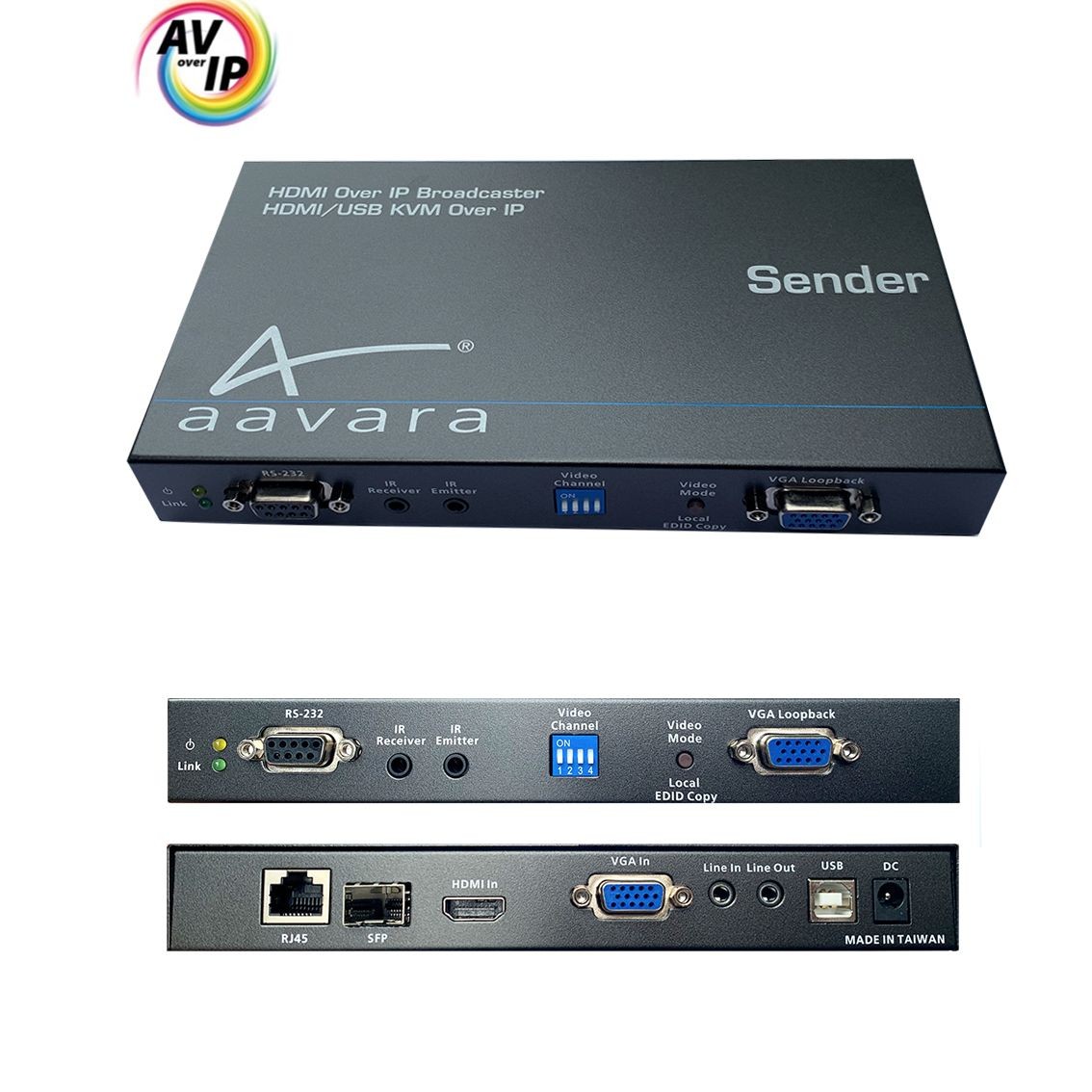

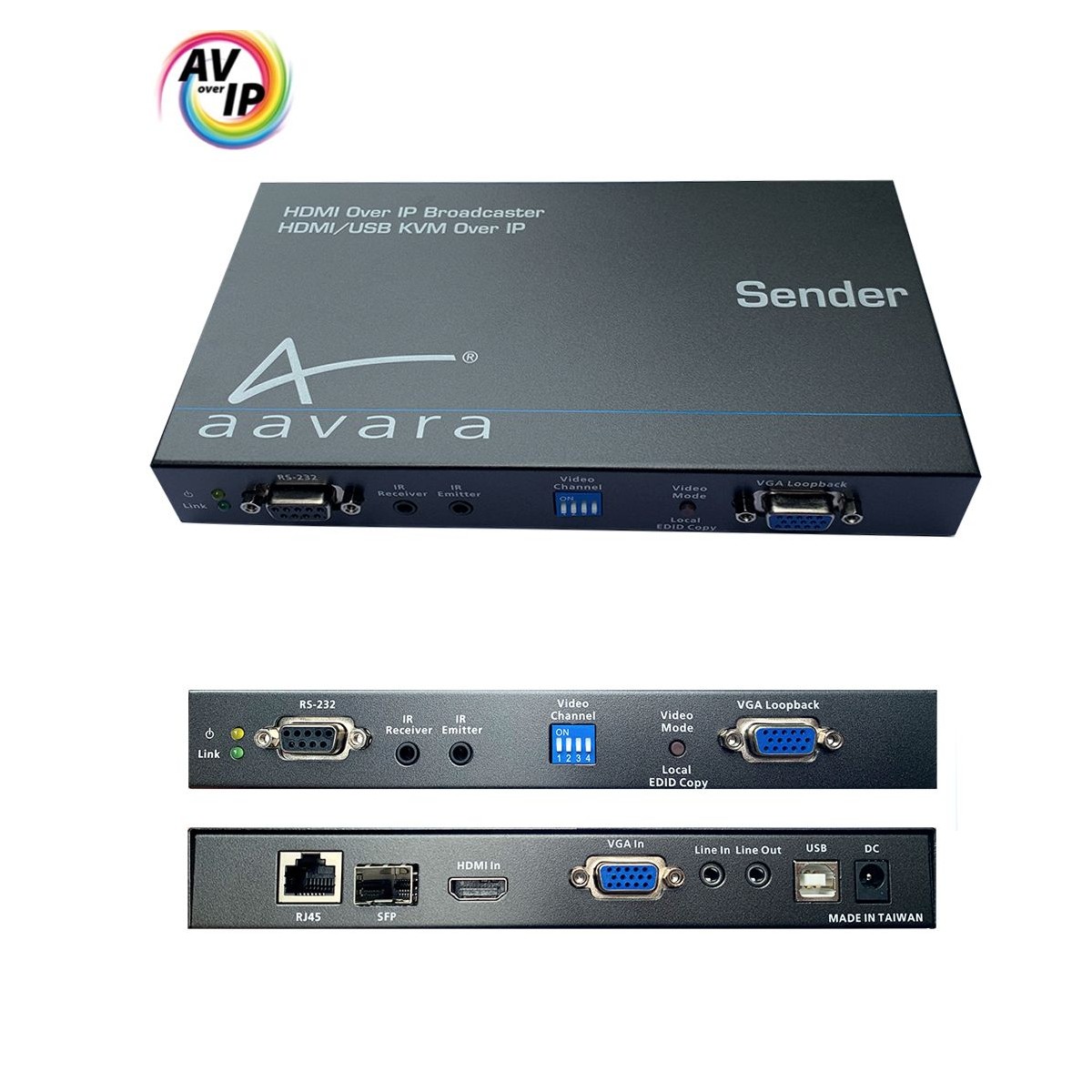

Aavara PB9000HD-SE 1080p Over IP Sender that work with PB9000 4K Over IP solution
Product code:PB9000HD-SE 1080p over IP is a great 1080p video source input sender solution that offer lower cost for converting 1080p video source input into video streaming within a PB9000 4K Over IP installation. With full functions of PB9000-RE Receiver, PB9000HD-SE has bult-in Web-based Aavara AV Master Control Software and providing 3rd Party Control drivers for AV integration.
- Up to 1080p60Hz 4:4:4 video HDMI input
- Up to 7.1 ch LPCM/Dolby Atmos/DTS X Audio Lossless Pass-Thru
- Work with PB9000-RE receiver to Upscale 1080p video input to 4K video output
- Aavara AV Master Web Control interface
- Major Controller Integration: SAVANT,Control4, AMX, RTI, Crestron, Elan g!, Neets and more.
- Independent Matrix Routing for Video, Audio, IR, RS232, USB
- Seamless Cross Display KVM Switching
- IR Remote Signal Pass-Thru & IP Command
- CEC Pass-Thru & IP Command Control
- USB 2.0 Pass-Thru
- VideoWall Easy Setup & Flexibile Operate by Easy Web Interface configuration
- Asymmtric VideoWall Support
- Keyboard Hotkeys Control
- Message On Screen
- Video Snapshot
PB9000HD-SE Sender is ideal for lower total cost on Residential AV and Commercial AV Installation which mix 1080p and 4K video source inputs.
Description
FEATURES
• Featuring 1080p resolution and able to upscale to 4K video output (w/ PB9000-RE receiver) Broadcasting, Multicasting & VideoWall solution
• Built-in Aavara AV Master Web Interface for easy central AV Switching Control
• Integrate 3rd Party Control System: SAVANT, Control4, AMX, RTI, Crestron and Elan g!
• Excellent Solution for HDMI USB KVM & Residential/Commercial over Ethernet Network
• Unicast, Broadcast & Multicast HDMI, USB, RS-232 & IR Over Gigabit Ethernet
• VGA Out on Receiver for Non-HDCP Video Pass-Thru
• Video Input Resolutions Up to 1080p60Hz 4:4:4 and 1920 x 1200 (WUXGA)
• Up to 7.1 ch Lossless LPCM, DTS® & Dolby® Atmos ch Audio Pass-Thru
• Analog Audio In/Out for Extenal Active Speaker & Microphone
• 1 x USB 2.0 type B ports for USB Pass-Thru
• Flexible VideoWall & Asymmtric VideoWall by Easy Web Interface configuration
• Power Over Ethernet 802.3af
• Message On Screen & Video Snapshot function
Mix 4K/1080p HDMI Distribution Solution features:Aavara® 4K HDMI Distribution Solution features CEC Over IP, Independent Matrix Routing, KVM Keyboard/Mouse Roaming, Centraliztion of 3rd Party Controller integration, Asymmetic Video Wall and more... ideal for best AV Matrix switching for commercial and residential application. |
 |
Independent Matrix Routing for Each ServicePB9000 provide Video/Audio/RS232/IR and USB pass-thru stream services, each service can be an independent matrix routing and control by Aavara AV Master web interface or 3rd party controller. |  |
CEC/IR/RS232 Over IPTotal control of every device and TV/Display with CEC/IR/RS232 Over IP. It can by Pass-Thru w/ independent matrix rounting, or issue IP commands from Aavara AV Master Web interface or 3 party controller to ask target box output CEC, IR or RS232 control signal to external device/TV. |  |
KVM Keyboard / Mouse RoamingKVM Keyboard/Mouse Roaming across different PC/Server(channel) without switching video channel, which made KVM user operate multiple PC/Servers like on same Server/PC. |  |
3rd Party Controller IntegrationMajor Controller Integration: Control4, AMX, RTI, Crestron, Elan g!, Neets and more. Aavara provide controller driver and API allow SI easy integrate Aavara 4K Over IP solution into entire residential / commercial system. |  |
Aavara AV Master Web ControlFull function Aavara AV Master Web Control interface built-in in every box without extra cost. Just log on One Web page, it can setup & control entire 4K Over IP network. |  |
Video WallPB9000 provides very scalable and flexible videowall setup and control. If any videowall layout change required, just add more sender or receiver without replacing entire system. |  |
Asymmetric Video WallPB9000 supports artistic and eye balls catching asymmetric videowall setup and control. It supports display 90, 180 and 270 degree rotation to meet the design high demand. |  |
4K/ HDMI AV MatrixPB9000 fully meets the high demand of Residential application as Home AV matrix w/ 4K HDR, Dolby Atmos/DTS X and 3D support. 60 fps video is running very smoothly in Sports program video. |  |
USB/ IP/ KVMGreat KVM solution provides USB 2.0 Pass-Thru, Keyboard Hotkeys Control & Latest KVM Keyboard/Mouse Roaming across different PC/Server/channel. |  |
Additional information
SPECS
• HDMI Spec.:v1.4 Compatible
• DVI Spec.:v1.0 Compliant
• HDCP Spec.:v2.2 Compliant
• Up to 1080p60Hz 4:4:4 video HDMI input
• UP to 1920x1080@60Hz VGA input/output(VGA Loopback)
• PC DVI Input Resolution:Up to1920x1200@60Hz
• HDMI Audio In/ Out:Up to 7.1ch LPCM, DTS® X, Dolby Digital ,Dolby® Atmos
• Distance:Point to Point 120M by Cat6 cable, KMs by Fiber, unlimited within LAN
• USB Extension: USB 2.0 Type B ports x 1 Sender
• RS-232 Baudrate:300~230,400bps, Default 115,200bps
• IR Control Pass Thru:20~60KHz, Two-way IR Pass- Thru
• Operating Temperature:0-40ºC
• Storage Temperature:-20~50ºC
• Humidity Range:5%~90%RH
• Power Consumption:5W
• Power Adapter:DC 12V/1A
• Material:Metal
• Dimension (LxWxH):257x115x28mm
• Weight:550g
• Optional Accessory: Wall Mounting Kit (MK-100), 1U Rack Mount Kit(MK-1U), IR Emitter/ Receiver
