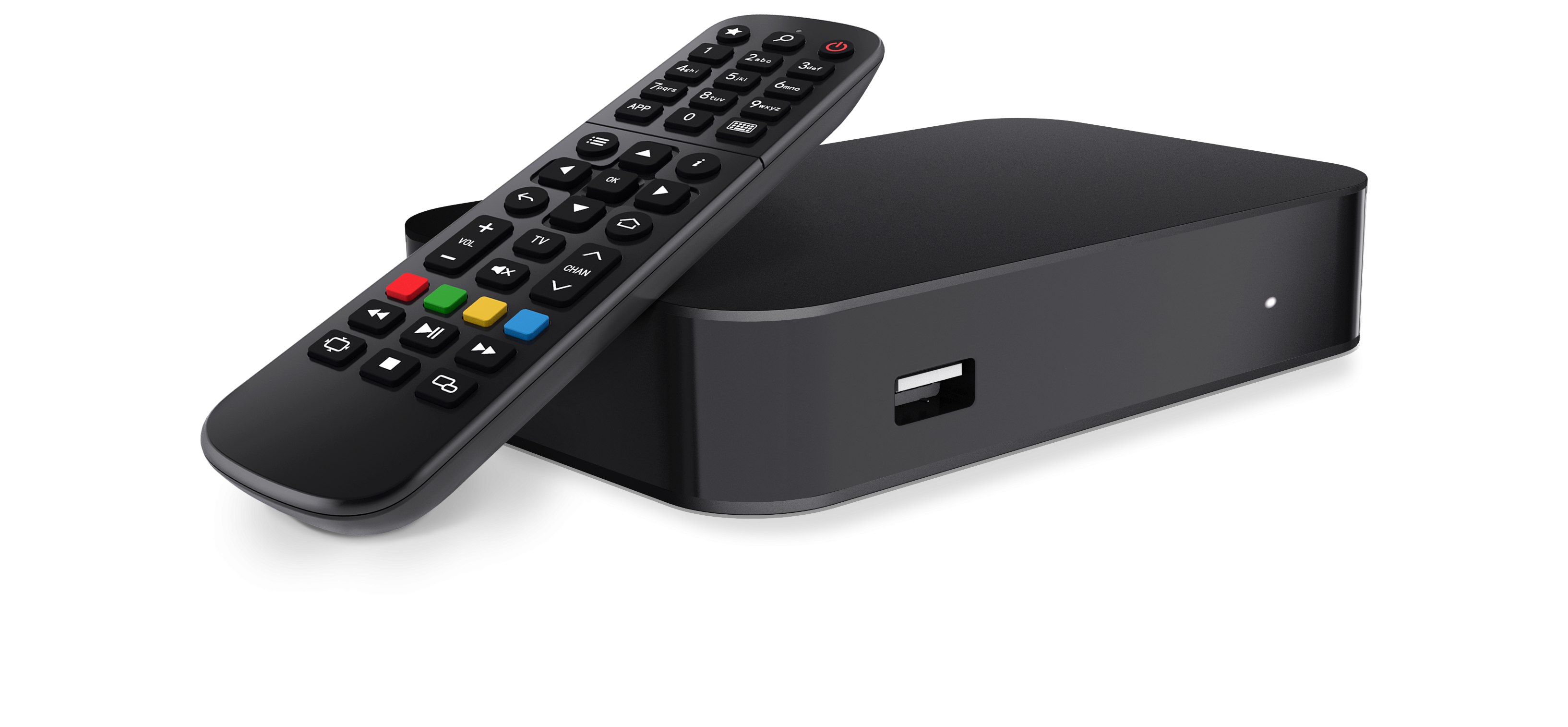

Infomir MAG522 Multimedia Player Set-Top Box
Product code:MAG522 allows watching TV programs, other videos on demand, content from IPTV/OTT providers, and playing files from external media or over a local network. With MAG522, operators provide a unique UI/UX on their services, offer high-quality content, and support customers.
SEND AN ENQUIRYDescription
Audio & video
| Video modes | PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p (4K) |
| Audio codecs | MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™ |
| Video codecs | MPEG1/2 MP@HL, MPEG4 part 2 (ASP), H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support |
| Video containers | TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext, WebVTT, closed captions |
| Playlist formats | M3U, M3U8, PLS, CUE |
Additional information
Hardware
| Chipset | Amlogic S905X2 |
| Performance | 18 400 DMIPS |
| Processor | Quad-core ARM Cortex-A53, 1,900 MHz |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Firmware and CAS/DRM
| Operating system | Linux 4.9 |
| CAS/DRM | Upon request |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available. |

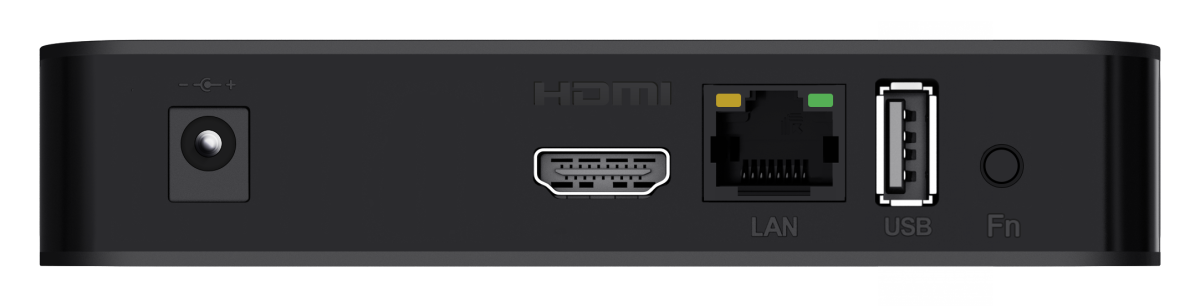

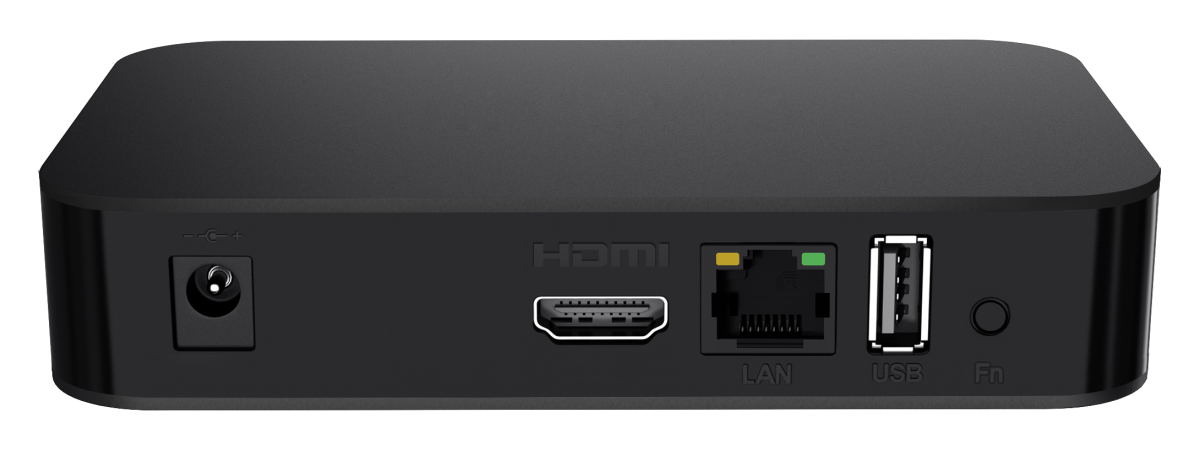

Interfaces
| Digital ports | HDMI 2.1 |
| Ethernet | 100 Mbps |
| USB | USB 2.0 × 1, USB 3.0 × 1 |
Power input
| Power adapter | DC 5V, 2A (DC 12V, 1А optional) |
Physical properties
| W/D/H | 132 × 87 × 26 mm |
| Weight | 125 g |
