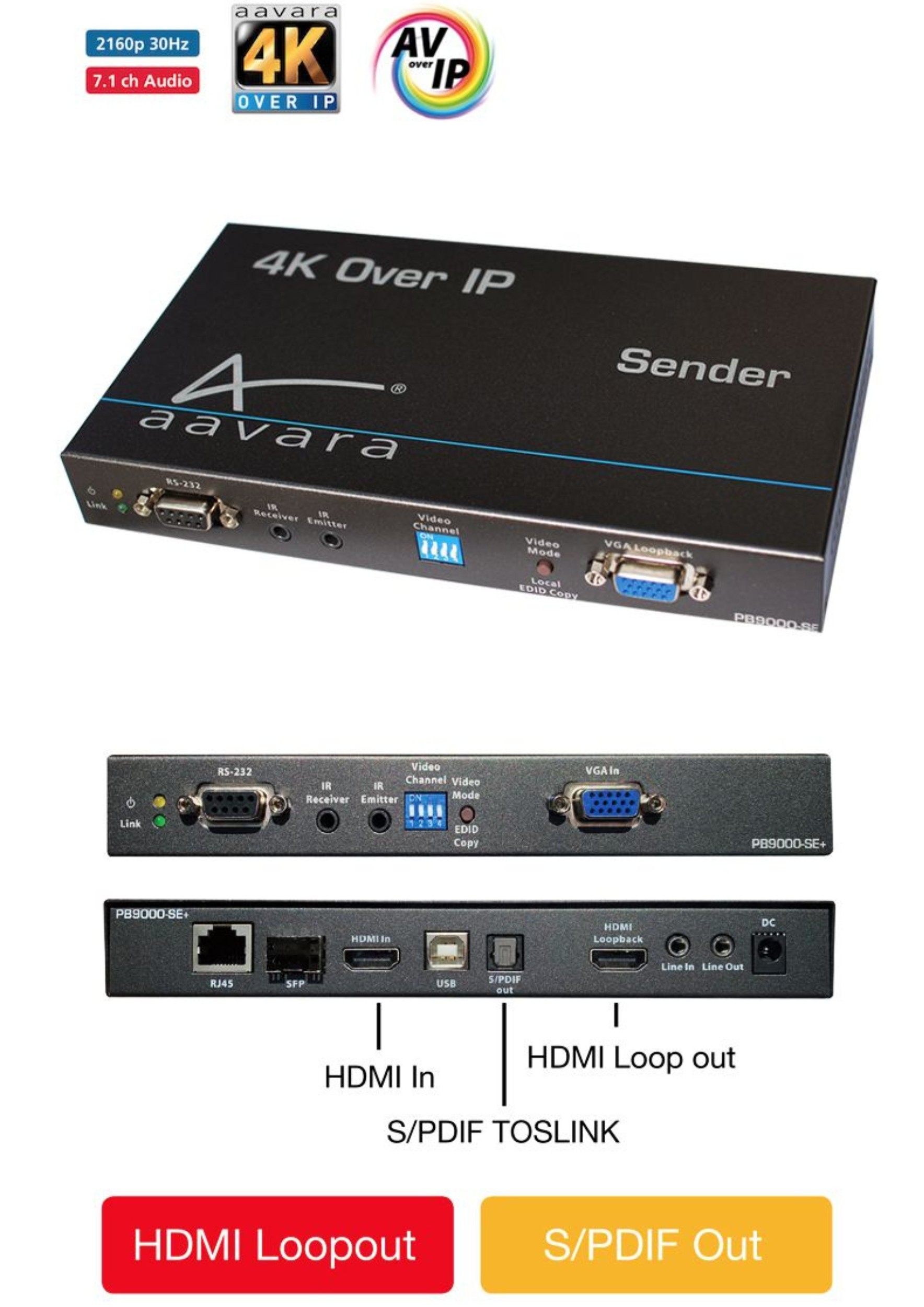

Aavara PB9000-SE+ 4K Over IP Sender with HDMI Loopout & S/ PDIF Toslink Output
Product code:PB9000-SE+ 4K/KVM over IP Sender is a great 4K video distribution solution for Residential, KVM and Signage deployment, integrating Web-based Aavara AV Master Control Software and 3rd Party Control drivers for centralizing control.
- HDMI Input & HDMI loopout Port
- S/PDIF Toslink Opticsl Audio Output for up to 5.1 ch LPCM, Dolby Digital/AC3 and DTS digital audio output AV receiver/amplifer.
- Aavara AV Master Web Control interface
- Major Controller Integration: SAVANT, Control4, AMX, RTI, Crestron, Extron, Elan g!, Neets and more.
- Independent Matrix Routing for Video, Audio, IR, RS232, USB
- Seamless Cross Display KVM Switching
- IR Remote Signal Pass-Thru & IP Command
- CEC Pass-Thru & IP Command Control
- USB 2.0 Pass-Thru
- VideoWall Easy Setup & Flexibile Operate by Easy Web Interface configuration
- Asymmtric VideoWall Support
- Keyboard Hotkeys Control
- Message On Screen
- Video Snapshot
PB9000 fully meets the high demand of Residential application as Home AV matrix w/ 4K HDR, Dolby Atmos/DTS X and 3D support. 60 fps video which is running very smoothly in Sports program video. And ideal for DOOH in Commercial Installation which demand Higher Video Quality, Analog Audio Line out to support Active Speaker for public area, IR, CEC and RS-232 to control the Displays. In addition, 4K Ultra HD & KVM w/ HighSpeed USB connection available.
Description
FEATURES
• New PB9000-SE+ Sender w/ independent S/PDIF Toslink Optical Digital Audio Output for Public/Home Audio System.
• New PB9000-SE+ Sender w/ HDMI Loop Out for local TV, Monitor or AV Receiver (Dolby Atmos/DTS X) connection.
• Featuring 4K resolution Broadcasting, Multicasting & VideoWall solution
• Built-in Aavara AV Master Web Interface for easy central AV Switching Control
• Integrate 3rd Party Control System: Control4, AMX, RTI, Crestron and Elan g!
• Excellent Solution for HDMI USB KVM & Residential/Commercial over Ethernet Network
• Unicast, Broadcast & Multicast HDMI, USB, RS-232 & IR Over Gigabit Ethernet
• VGA Out on Receiver for Non-HDCP Video Pass-Thru
• Video Resolutions Up to 4K Ultra HD, 1080p 3D and 1920 x 1200 (WUXGA)
• Lossless LPCM, DTS® & Dolby® Atmos ch Audio Pass-Thru
• Analog Audio In/Out for Extenal Active Speaker & Microphone
• USB Type B Port for USB Pass-Thru.
• Flexible VideoWall & Asymmtric VideoWall by Easy Web Interface configuration
• Easy to Use IR Remote Control Video Channel Switching
• Power Over Ethernet 802.3af
• Message On Screen & Video Snapshot function
4K/ HDMI Distribution Solution features:Aavara® 4K/ HDMI Distribution Solution features CEC Over IP, Independent Matrix Routing, KVM Keyboard/Mouse Roaming, Centralization of 3rd Party Controller integration, Asymmetic Video Wall and more... ideal for best AV Matrix switching for commercial and residential application. |
 |
Independent Matrix Routing for Each ServicePB9000 provide Video/Audio/RS232/IR and USB pass-thru stream services, each service can be an independent matrix routing and control by Aavara AV Master web interface or 3rd party controller. |  |
CEC/IR/RS232 Over IPTotal control of every device and TV/Display with CEC/IR/RS232 Over IP. It can by Pass-Thru w/ independent matrix rounting, or issue IP commands from Aavara AV Master Web interface or 3 party controller to ask target box output CEC, IR or RS232 control signal to external device/TV. |  |

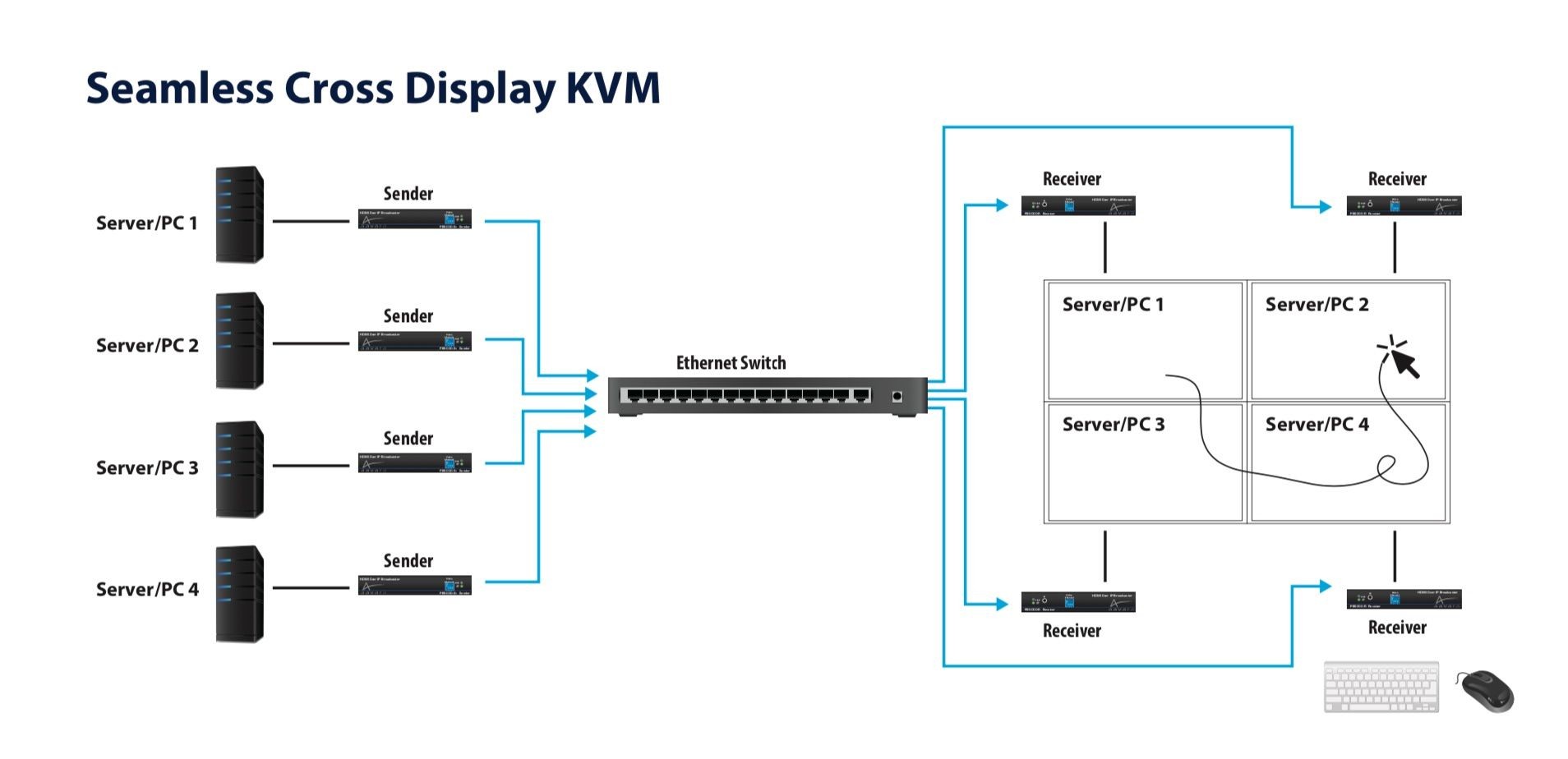

KVM Keyboard / Mouse RoamingKVM Keyboard/Mouse Roaming across different PC/Server(channel) without switching video channel, which made KVM user operate multiple PC/Servers like on same Server/PC. |  |

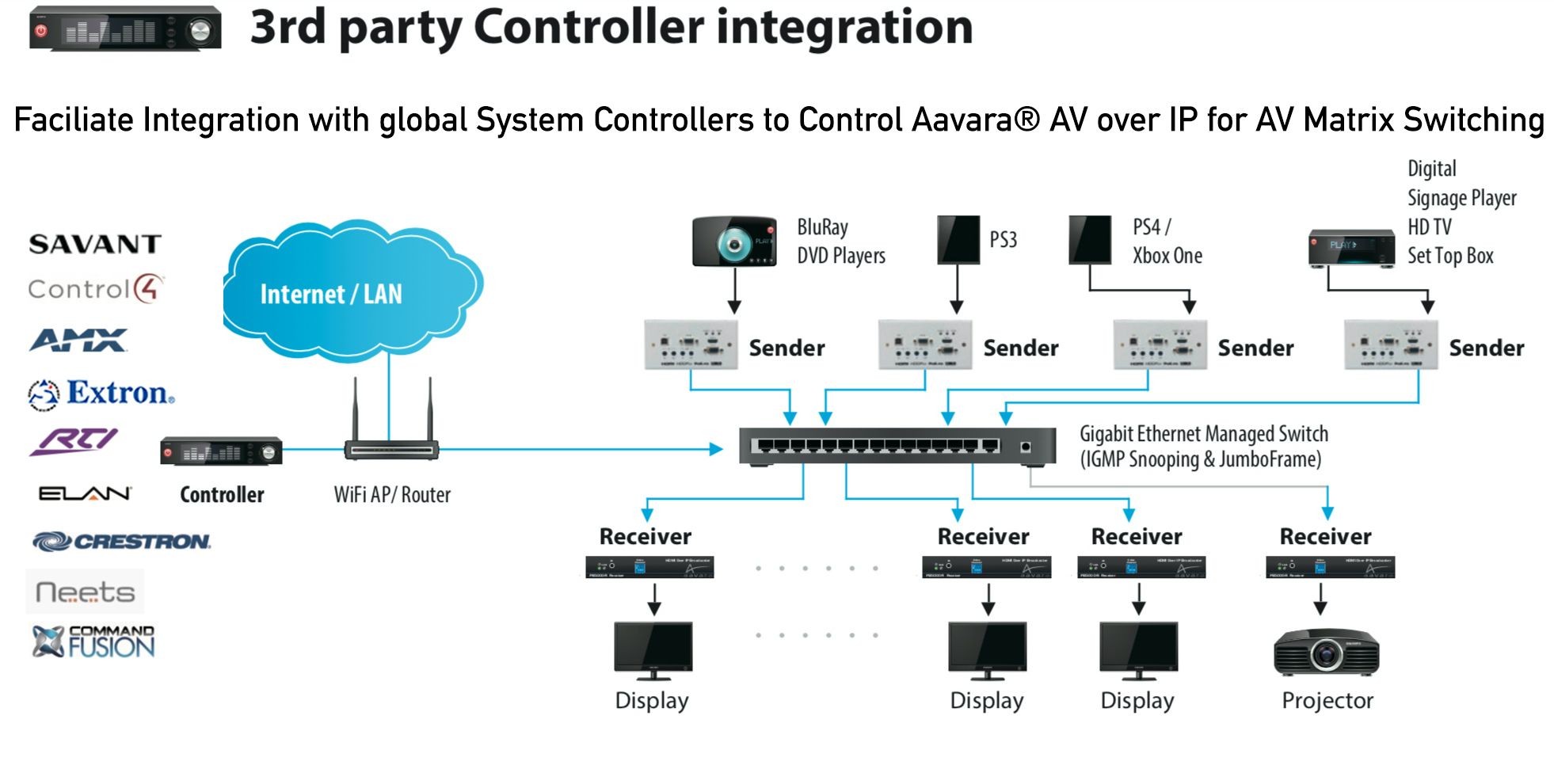

3rd Party Controller IntegrationMajor Controller Integration: Control4, AMX, RTI, Crestron, Elan g!, Neets and more. Aavara provides controller driver and API which allows SI to easily integrate Aavara 4K Over IP solution with entire residential / commercial system. |  |

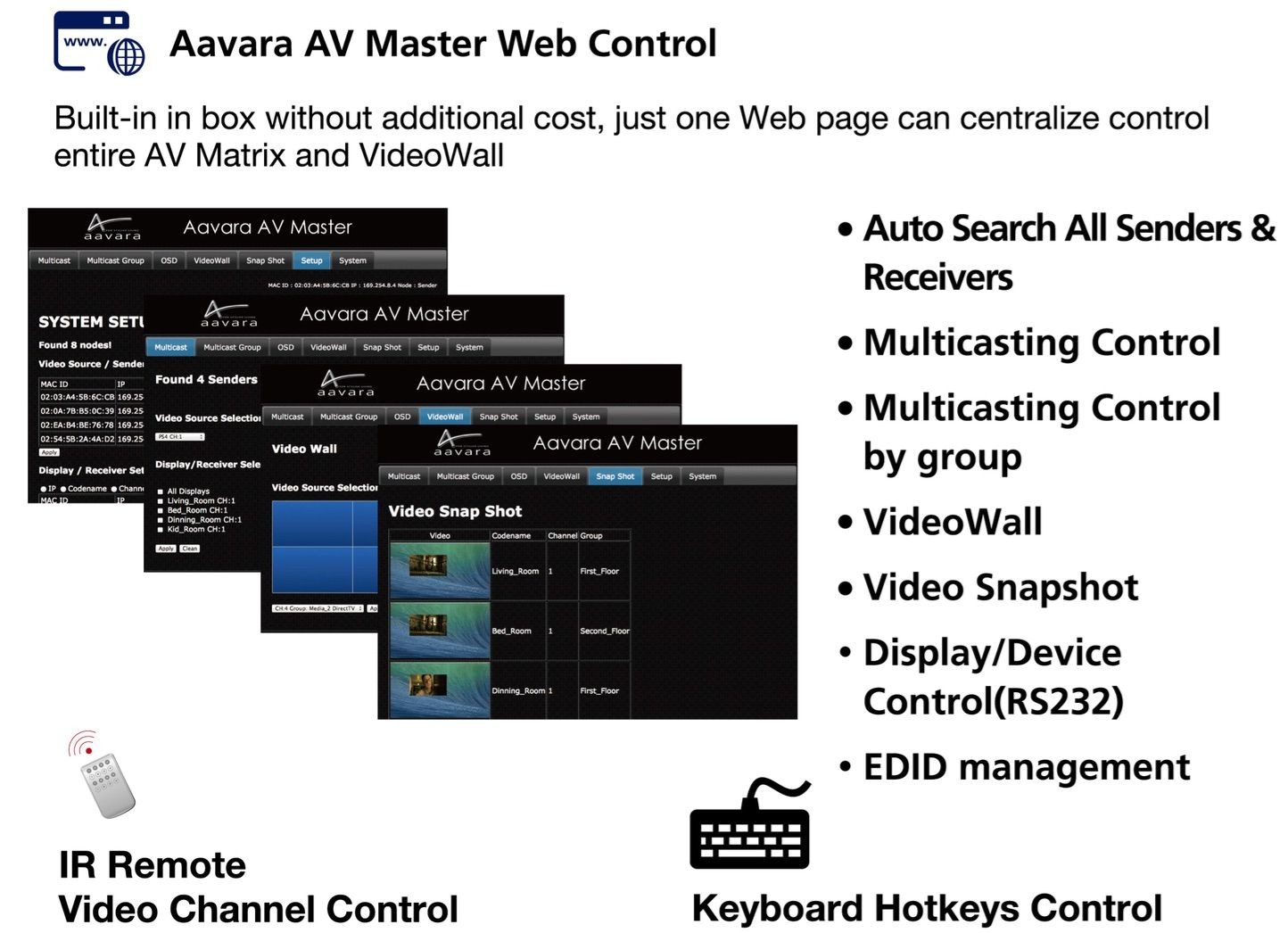

Aavara AV Master Web ControlFull function Aavara AV Master Web Control interface built-in in every box without extra cost. Just log on One Web page, it can setup & control entire 4K Over IP network. |  |

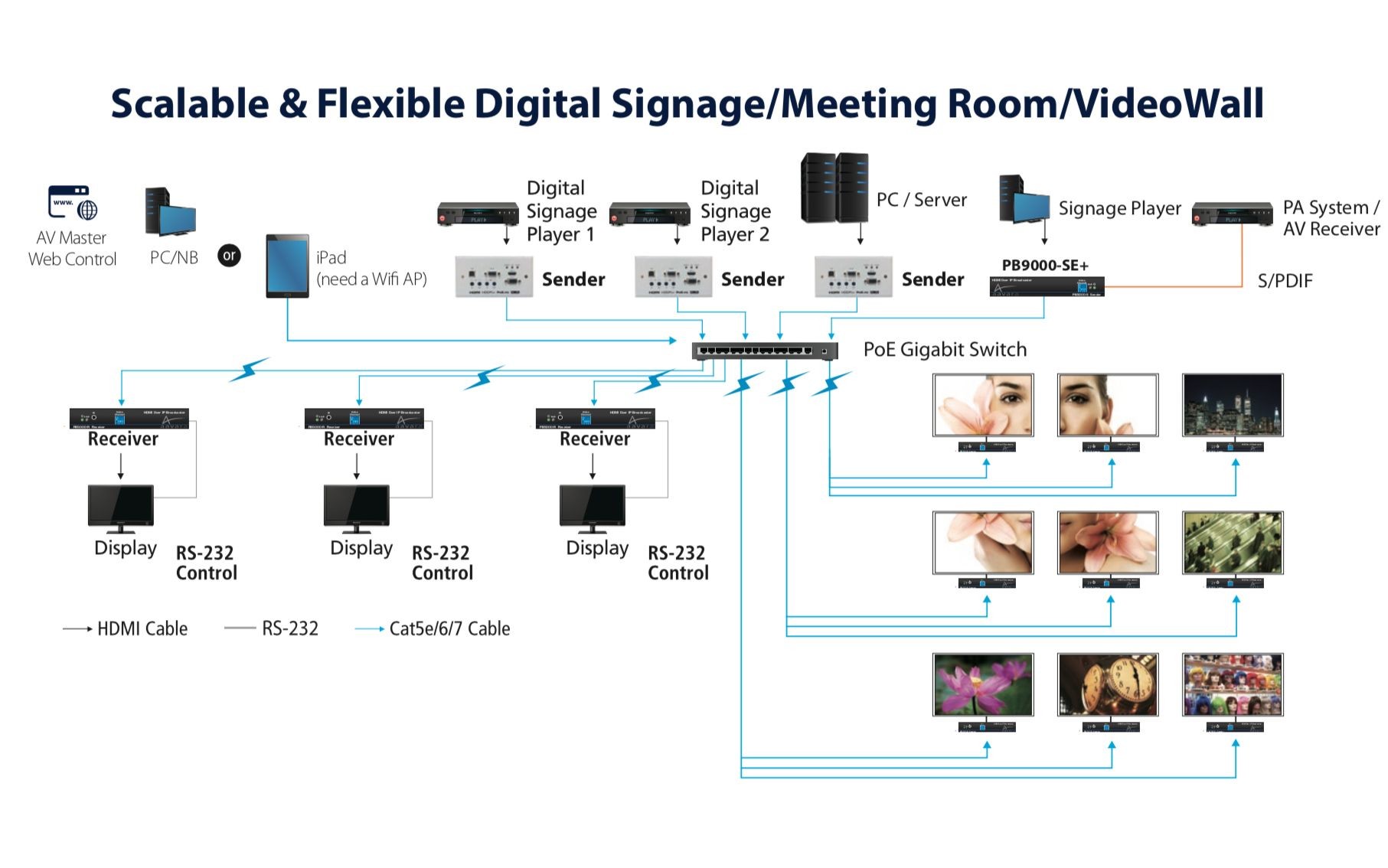

Video WallPB9000 provides very scalable and flexible videowall setup and control. If any videowall layout change required, just add more sender or receiver without replacing entire system. |  |

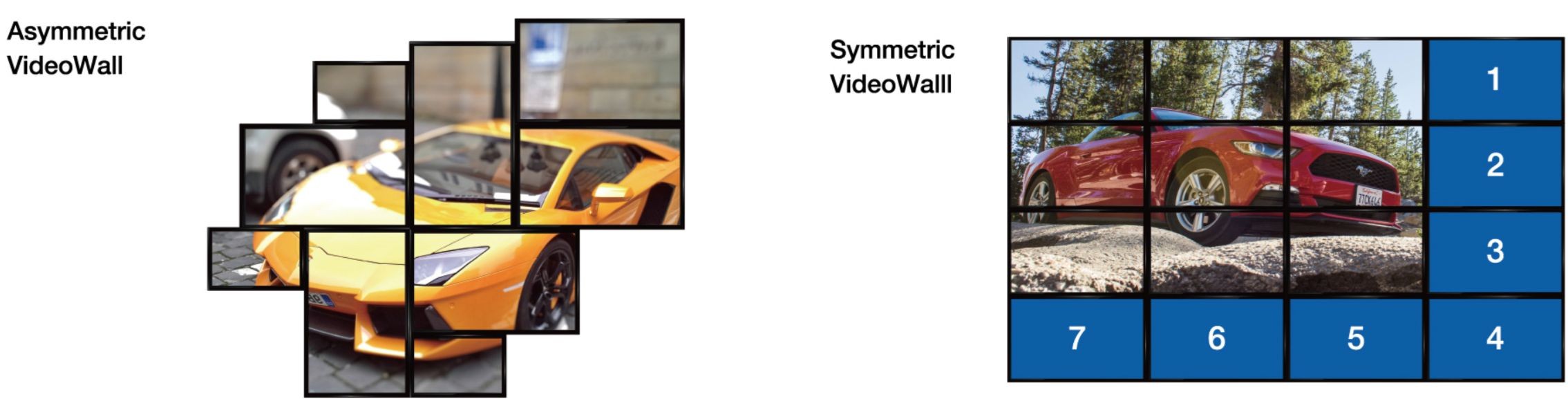

Asymmetric Video WallPB9000 supports artistic and eye balls catching asymmetric videowall setup and control. It supports display 90, 180 and 270 degree rotation to meet the design high demand. |  |

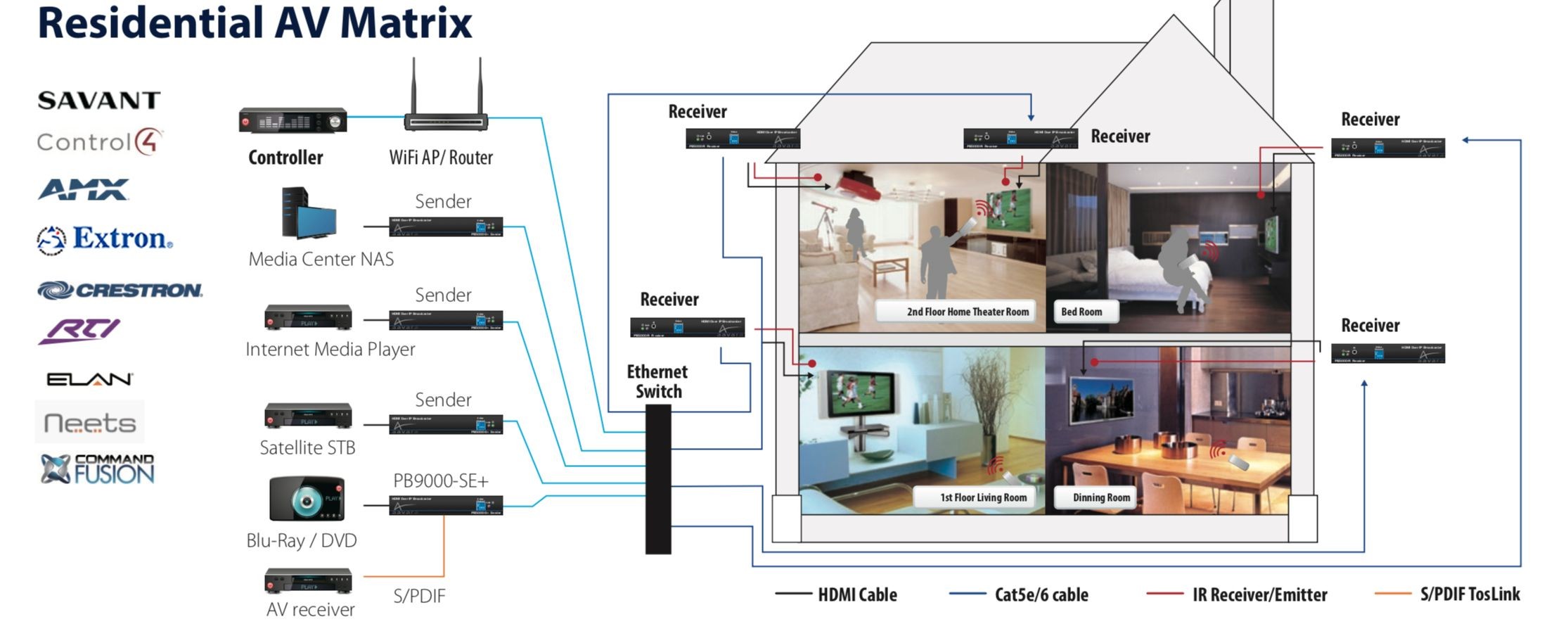

4K/ HDMI AV MatrixPB9000 fully meets the high demand of Residential application as Home AV matrix w/ 4K HDR, Dolby Atmos/DTS X and 3D support. 60 fps video is running very smoothly in Sports program video. |  |
USB/ IP/ KVMGreat KVM solution provides USB 2.0 Pass-Thru, Keyboard Hotkeys Control & Latest KVM Keyboard/Mouse Roaming across different PC/Server/channel. |  |
Additional information
SPECS
• HDMI Spec.:v1.4 Compatible
• DVI Spec.:v1.0 Compliant
• HDCP Spec.:v2.2 Compliant
• 4K Video Resolution: Up to 4K @ 60Hz 4:2:0 input, 4K@30Hz 4:2:0 output
• PC DVI Input Resolution:Up to1920x1200@60Hz
• PC VGA Input Resolution:Up to1920x1080@60Hz
• HDMI Audio In/ Out:Up to 7.1ch LPCM, DTS® X, Dolby Digital ,Dolby® Atmos
• S/PDIF Toslink Optical Digital Audio Out (on PB9000-SE+ Sender):Up to 5.1ch LPCM, DTS®, Dolby Digital/AC3
• Distance:Point to Point 120M by Cat6 cable, KMs by Fiber, unlimited within LAN
• USB Extension:USB 2.0 Type A ports x 4 Receiver, USB 2.0 Type B ports x 1 Sender
• RS-232 Baudrate:300~230, 400bps, Default 115,200bps
• IR Control Pass Thru:20~60KHz, Two-way IR Pass- Thru
• Operating Temperature:0-40ºC
• Storage Temperature:-20~50ºC
• Humidity Range:5%~90%RH
• Power Consumption:5W
• Power Adapter:DC 5V/2A
• Material:Metal
• Dimension (LxWxH):257x115x28mm
• Weight:550g
• Optional Accessory: Wall Mounting Kit (MK-100), 1U Rack Mount Kit(MK-1U, IR Emitter/ Receiver
