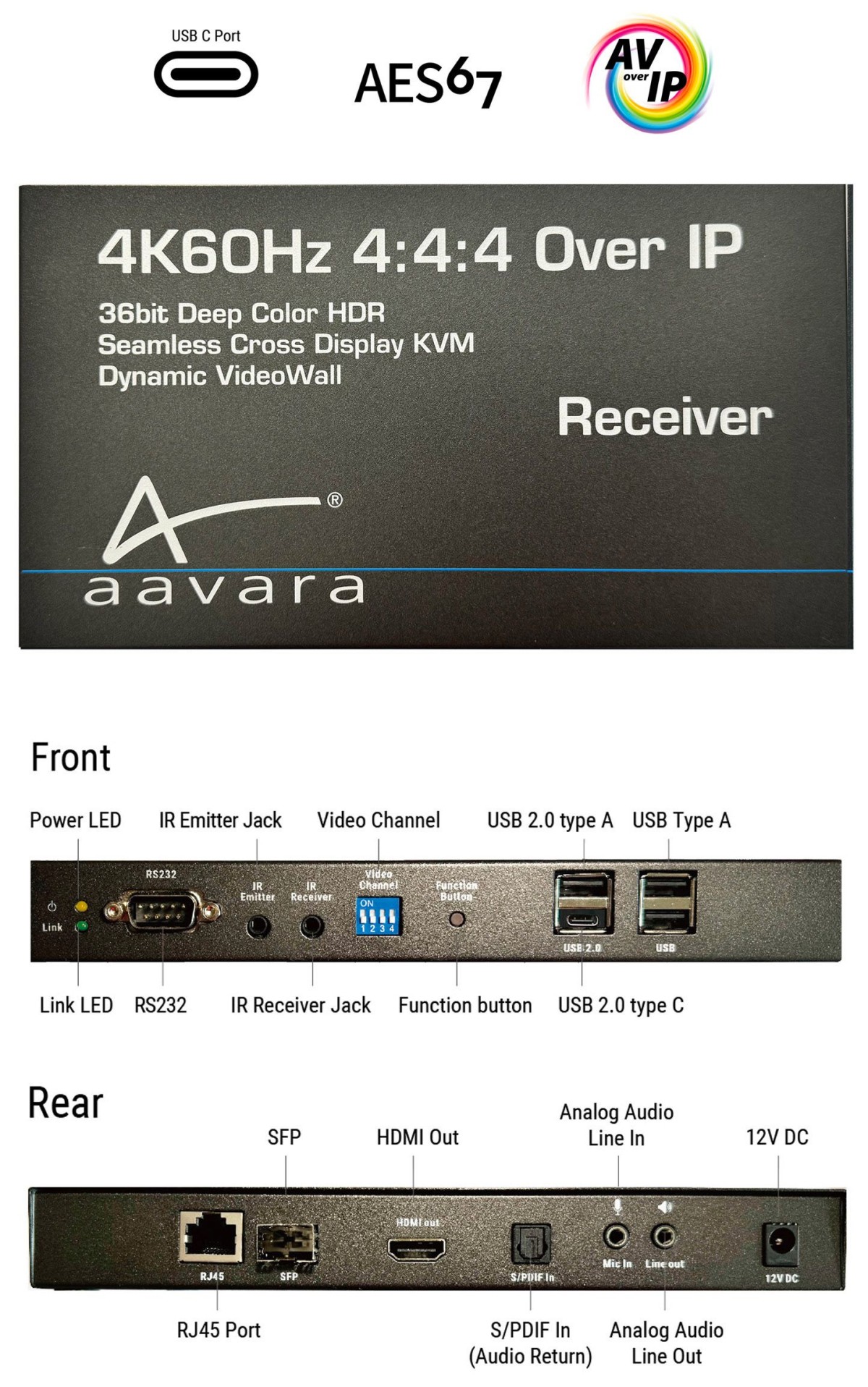

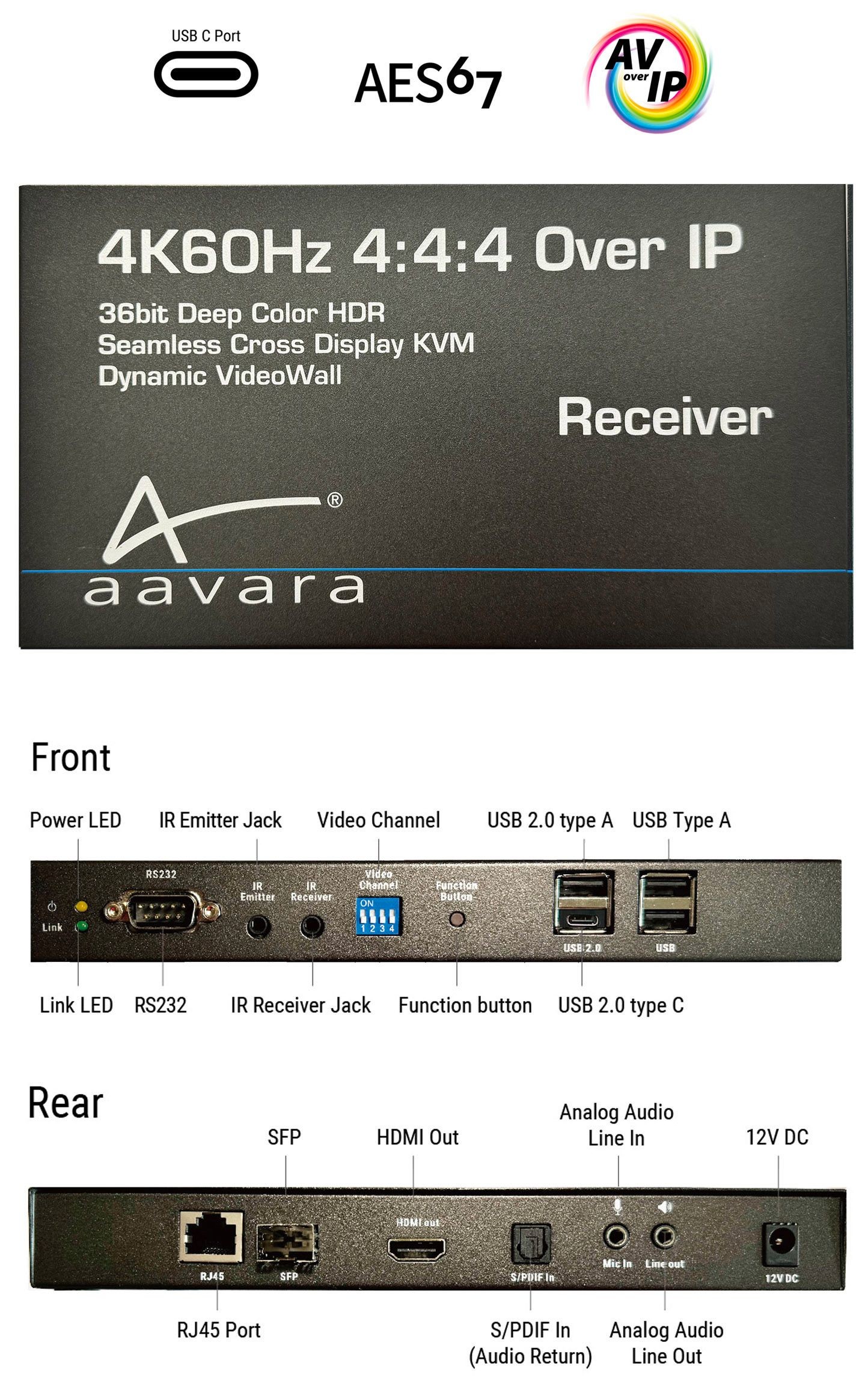

Aavara PB9700-RE 4K60Hz 4:4:4 Over IP Receiver with Video Scaler and USB KVM
Product code:PB9000-RE 4K60Hz 4:4:4 Over IP Receiver is a great 4K video distribution solution for Residential, KVM and Signage deploy, integrating Web-based Aavara AV Master Control Software and 3rd Party Control drivers for centralizing control.
- 4K 60Hz YUV 4:4:4 Video Pass-Thru Over 1 Gbps Ethernet Network
- 36bit Deep Color Video Engine for more Color Space
- Dolby Vision, HDR 10+, HDR10, HLG multi HDR format support
- AES67 2x2 LPCM Audio AoIP In or Out
- Sub-stream Video for live video snapshot
- Bulit-in Video Scaler can Upscale/DownScale video output format
- Loseless Audio Pass-Thru for up to 7.1 ch LPCM, Dolby ATMOSl/AC3 and DTS X digital audio.
- HDMI eARC up to 7.1 ch LPCM, Dolby ATMOSl/AC3 and DTS X digital audio,
HDMI ARC up to 5.1 ch Dolby Digital/AC3
- Major Controller Integration: SAVANT, Control4, AMX, RTI, Crestron, Extron, Elan g!, Neets and more.
- Independent Matrix Routing for Video, Audio, IR, RS232, USB
- Seamless Cross Display KVM Switching
- Aavara AV Master Web Control interface
- CEC/IR/RS232 Command Pass-Thru & IP Commands
- USB 2.0 (Type A & C) Pass-Thru with USB Webcam support
- VideoWall Easy Setup & Flexibile Operate by Easy Web Interface configuration
- Asymmtric VideoWall Support
- Keyboard Hotkeys Control
- Message On Screen
PB9700 fully meets the high demand of Residential application as Home AV matrix w/ 4K HDR, Dolby Atmos/DTS X and 3D support. 60 fps video which is running very smoothly in Sports program video. And ideal for DOOH in Commercial Installation which demand Higher Video Quality, Analog Audio Line out to support Active Speaker for public area, IR, CEC and RS-232 to control the Displays. In addition, 4K Ultra HD & KVM w/ HighSpeed USB connection available.
Description
4K60 4:4:4 over IP Distribution Solution features:
Aavara® 4K/ HDMI Distribution Solution features USB-C/ DP Alt. mode, HDMI/USB-C input, AES67 Audio standard, CEC Over IP, Independent Matrix Routing, KVM Keyboard/Mouse Roaming, Centralization of 3rd Party Controller integration, Asymmetic Video Wall and more... ideal for best AV Matrix switching in commercial and residential application.
FEATURES
• 4K60Hz 4:4:4 Dolby Vision/HDR 10+/HLG Broadcasting, Multicasting & VideoWall solution
• AES67 Audio Bridge In/Out interoperability with other audio equipment
• Built-in Aavara AV Master Web Interface for easy central AV Switching Control
• Integrate 3rd Party Control System: Control4, AMX, RTI, Crestron and Elan g!
• Excellent Solution for HDMI USB KVM & Residential/Commercial over Ethernet Network
• Unicast, Broadcast & Multicast HDMI, USB, RS-232 & IR Over Gigabit Ethernet
• Video Resolutions Up to 4K Ultra HD, 1080p 3D and 1920 x 1200 (WUXGA)
• Lossless LPCM, DTS® & Dolby® Atmos ch Audio Pass-Thru
• Analog Audio In/Out for Extenal Active Speaker & Microphone
• 2 x USB 2.0 & 2 x USB 1.1 ports on receiver w/ Keyboard/Mouse Emulation
• Flexible VideoWall & Asymmtric VideoWall by Easy Web Interface configuration
• Easy to Use IR Remote Control Video Channel Switching(Optional)
• Power Over Ethernet 802.3af
• Message On Screen & Video Snapshot function
4K/ HDMI AV MatrixPB9700 fully meets the high demand of Residential application as Home AV matrix w/ 4K HDR, Dolby Atmos/DTS X and 3D support. 60 fps video is running very smoothly in Sports program video.  |
AES67 Audio over IPAavara now provides AES67 Audio Bridge In/Out interoperability between Aavara PB9700 Nebula networked AV and 3rd party AES67 AoIP Tx/Rx devices. Both PB9700 Sender & PB9700 Receiver can output AES67 AoIP streams, or take AES67 AoIP stream from others AES67 Tx devices into Aavara Nebula Networked AV. *For Dante support, please select model PB9700DNT
|
3rd Party Controller IntegrationMajor Controller Integration: Control4, AMX, RTI, Crestron, Elan g!, Neets and more. Aavara provides controller driver and API which allows SI to easily integrate Aavara 4K Over IP solution with entire residential / commercial system.  |
Video WallPB9700 provides very scalable and flexible videowall setup and control. If any videowall layout change required, just add more sender or receiver without replacing entire system.  |
Asymmetric Video WallPB9700 supports artistic and eye balls catching asymmetric videowall setup and control. It supports display 90, 180 and 270 degree rotation to meet the design high demand.  |
Aavara AV Master Web ControlFull function Aavara AV Master Web Control interface built-in in every box without extra cost. Just log on One Web page, it can setup & control entire 4K Over IP network.  |
Independent Matrix Routing for Each ServicePB9700 provide Video/Audio/RS232/IR and USB pass-thru stream services, each service can be an independent matrix routing and control by Aavara AV Master web interface or 3rd party controller.  |
CEC/IR/RS232 Over IPTotal control of every device and TV/Display with CEC/IR/RS232 Over IP. It can by Pass-Thru w/ independent matrix rounting, or issue IP commands from Aavara AV Master Web interface or 3 party controller to ask target box output CEC, IR or RS232 control signal to external device/TV.  |
KVM Keyboard / Mouse RoamingKVM Keyboard/Mouse Roaming across different PC/Server(channel) without switching video channel, which made KVM user operate multiple PC/Servers like on same Server/PC.  |
USB/ IP/ KVMGreat KVM solution provides USB 2.0 Pass-Thru, Keyboard Hotkeys Control & Latest KVM Keyboard/Mouse Roaming across different PC/Server/channel.  |
Additional information
SPECS
• HDMI Spec.:v2.0 Compatible
• DVI Spec.:v1.0 Compliant
• HDCP Spec.:v2.2 Compliant
• 4K Video Resolution: Up to 4K @ 60Hz 4:4:4 HDR output
• PC DVI Resolution: Up to1920x1200 @ 60Hz
• AES67 2x2 LPCM Audio AoIP In or Out
• HDMI Audio Out: Up to 7.1ch LPCM, DTS® X, Dolby Digital ,Dolby® Atmos
• HDMI eARC: Up to 7.1ch LPCM, DTS® X, Dolby Digital ,Dolby® Atmos
• HDMI ARC / S/PDIF Toslink Optical Digital Audio In: Up to 5.1ch DTS®, Dolby Digital/AC3
• Distance: Point to Point 120M by Cat6 cable, KMs by Fiber, unlimited within LAN
• USB Extension: USB 2.0 Type C x 1, Type A x 1. USB 1.1 Type A x 2
• RS-232 Baudrate: 300~230,400bps, Default 115,200bps
• IR Control Pass Thru:20~60KHz, Two-way IR Pass- Thru
• Operating Temperature:0-40ºC
• Storage Temperature:-20~50ºC
• Humidity Range:5%~90%RH
• Power Consumption:10W
• Power Adapter:DC 12V/1A
• Material:Metal
• Dimension (LxWxH):213x120x28mm
• Weight:650g
• Optional Accessory:Wall Mounting Kit, Rack Mount Kit, IR Emitter/ Receiver
