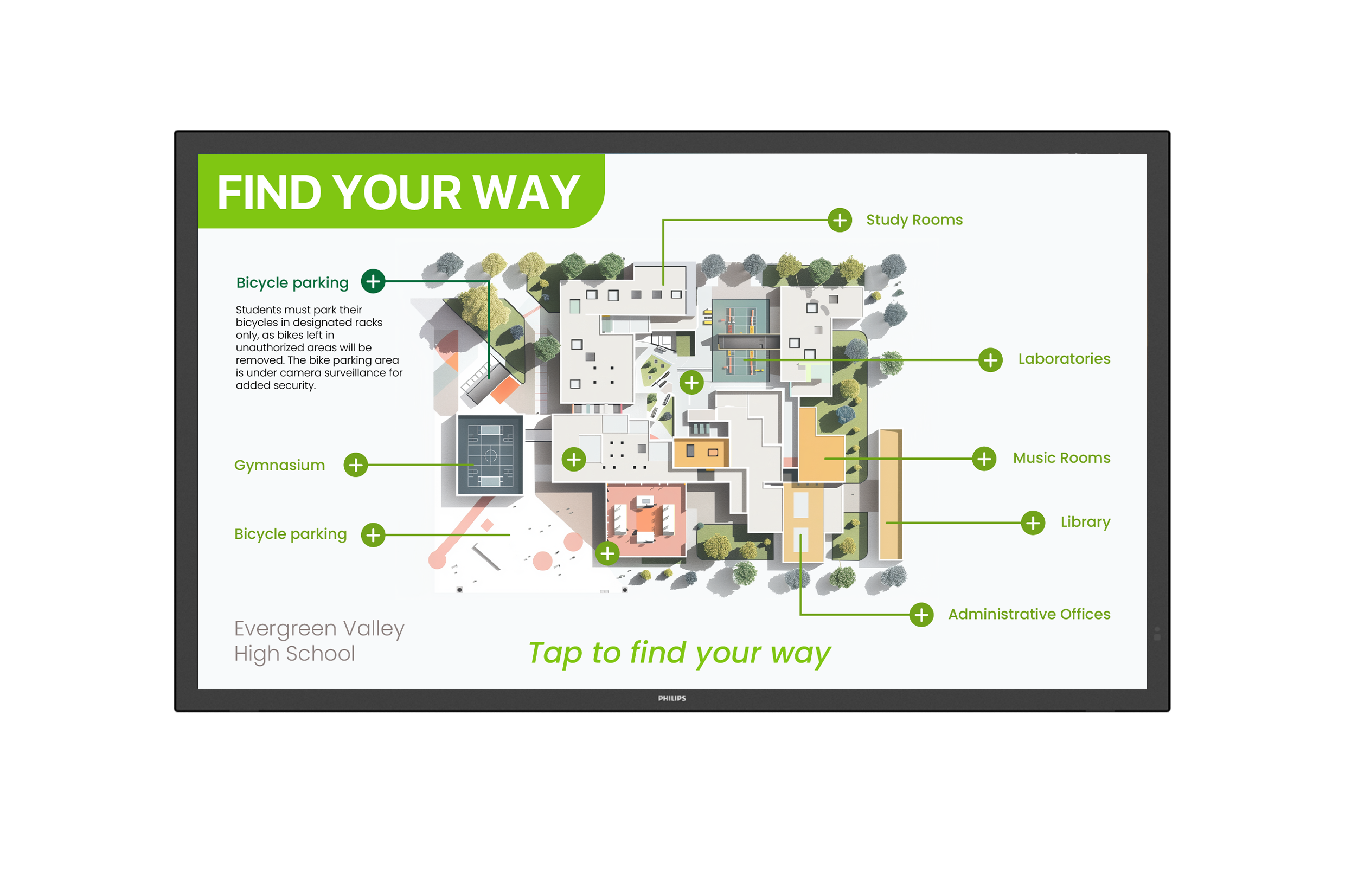

Philips T-Line 55BDL3751T/00 Interactive Signage Display
Product code:Delivering 24/7 operation with 450 nits of brightness, this versatile PCAP display is also designed to reduce energy consumption across the range. Engage. Inspire. Connect. With Android 13, Wave ready and no need for an external media player.
SEND AN ENQUIRY
Description
Picture/Display
| Panel resolution | 3840 x 2160 |
|---|---|
| Brightness max. (after glass) | 450 cd/m² |
| Diagonal screen size (metric) | 138.4 cm |
| Pixel pitch | 0.315 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Display colours | 1.07 B |
| OS UI resolution | UHD |
| Picture enhancement | 3/2 - 2/2 motion pull down |
| 3D Combfilter | |
| Motion compens. deinterlacing | |
| Progressive scan | |
| 3D MA deinterlacing | |
| Dynamic contrast enhancement | |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 degree |
| Brightness max. (before glass) | 500 cd/m² |
| Surface treatments | Anti-Glare coating |
| Anti-Fingerprint coating | |
| Panel technology | VA |
| Contrast ratio (typical) | 5000:1 |
| Diagonal screen size (inch) | 54.5" inch |
| Viewing angle (vertical) | 178 degree |
| Response time (typical) | 8 ms |
| Operating system | Android 13 |
Additional information
| Weight | |
| Product without packaging (kg) | 24.96 kg |
| Product with packaging (lb) | 70.94 lb |
| Product with packaging (kg) | 32.18 kg |
| Product without packaging (lb) | 55.03 lb |
| Operating conditions | |
| Temperature range (storage) | -20 ~ 60 °C |
| Temperature range (operation) | 0 ~ 40 °C |
| Humidity range (storage) [RH] | 5–95% (without condensation) |
| Humidity range (operation)[RH] | 20–80% (without condensation) |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 hour(s) |
| Miscellaneous | |
| On-Screen Display Languages | Arabic, English, French, German, Italian, Japanese, Polish, Spanish, Turkish, Russian, Simplified Chinese, Traditional Chinese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish |
| Regulatory approvals | CE |
| CB | |
| BSMI | |
| FCC, Class A | |
| CU | |
| ETL | |
| IMDA | |
| PSB | |
| RoHS | |
| Energy Star 8.0 | |
| Warranty | 3 year warranty |
| Supported Display Resolution | |
| Video formats | 480i, 60 Hz |
| 480p, 60 Hz | |
| 576p, 50 Hz | |
| 576i, 50 Hz | |
| 720p, 50, 60 Hz | |
| 1080i, 50, 60 Hz | |
| 1080p, 50, 60 Hz | |
| 3840 x 2160, 30, 60 Hz | |
| Computer formats | 720 x 400, 70 Hz |
| 640 x 480, 60, 67, 75 Hz | |
| 800 x 600, 60 Hz | |
| 832 x 624, 75 Hz | |
| 1024 x 768, 60 Hz | |
| 1152 x 870, 75 Hz | |
| 1280 x 720, 60 Hz | |
| 1920 x 1080, 60 Hz | |
| 1680 x 1050, 60 Hz | |
| 3840 x 2160, 30, 60 Hz | |
| 800 x 600, 60, 72, 75 Hz | |
| 3840 x 2160, 60 Hz, 50 Hz | |
| Interactivity | |
| Protection glass | 3 mm tempered safety glass |
| Multi-touch technology | Projected capacitive |
| Plug and play | HID compliant |
| Touchpoints | 10 simultaneous touch points |
| Connectivity | |
| Audio output | 3.5 mm jack |
| Video input | HDMI 2.0 (x 2) |
| Display Port1.3 (x 1) | |
| USB-C (with 15 W power delivery) | |
| External control | Gigabit LAN RJ45 |
| IR (in/out) 3.5 mm jack | |
| RS232 (in/out) 2.5 mm jack | |
| Other connections | Micro USB (x 1) (OTG) |
| USB 3.0 A (x 2) | |
| USB 3.0 B (x 1) | |
| Wi-Fi: 2 T/2 R 2.4/5/6 GHz | |
| Bluetooth 5.2 | |
| OPS | |
| Convenience | |
| Remote control signal | Lockable |

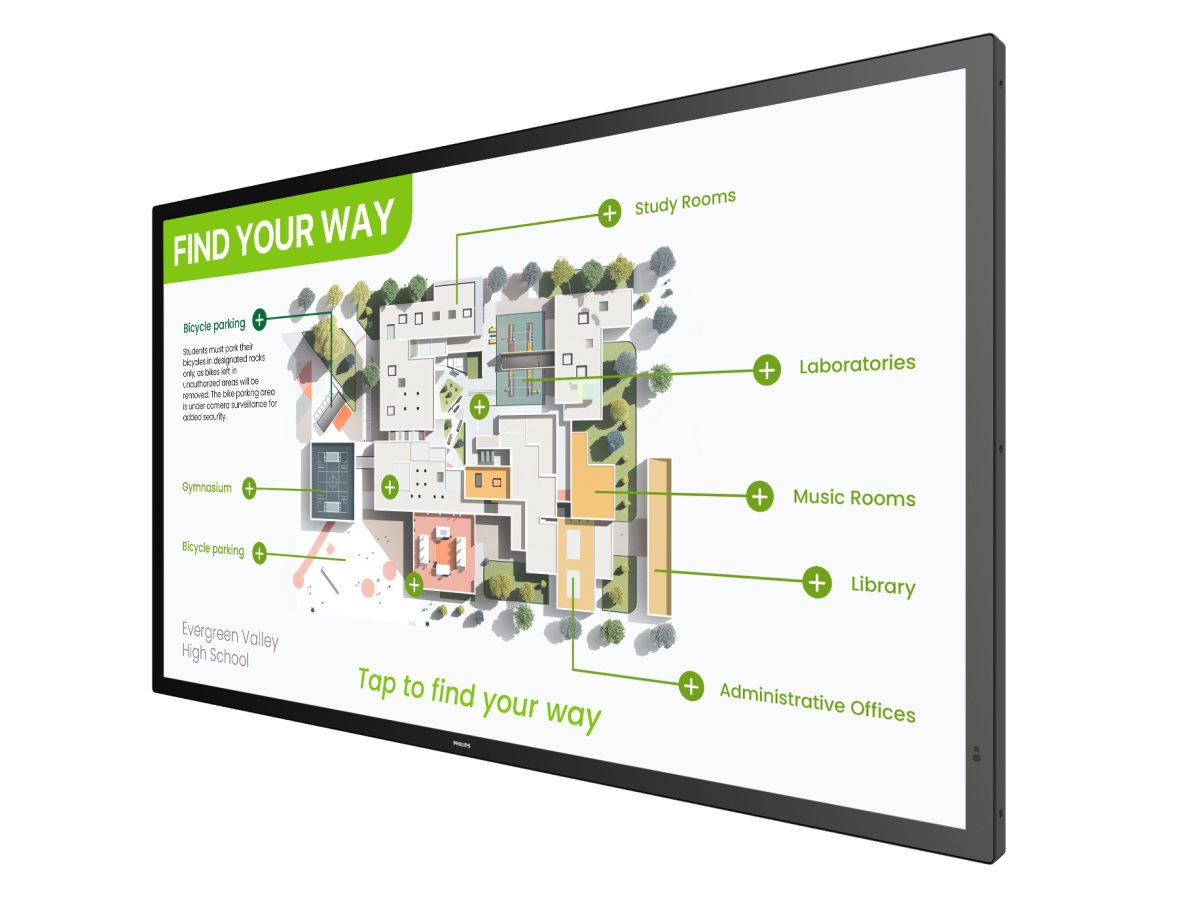

| Placement | Landscape (24/7) |

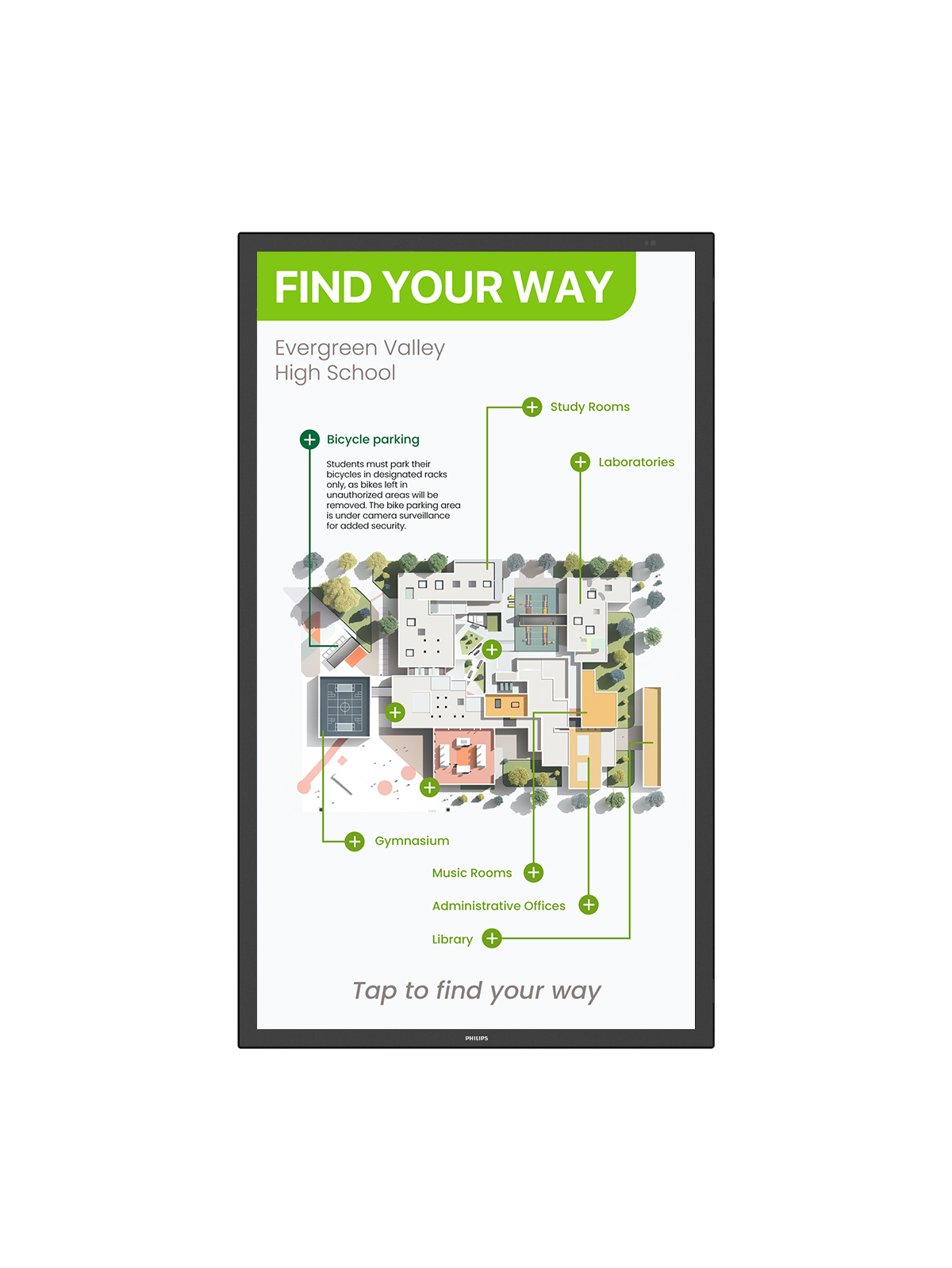

| Portrait (24/7) | |
| Tilted installation up to 30° backwards | |
| Screen-saving functions | Pixel Shift, Low Brightness |
| Network controllable | RS232 |
| RJ45 | |

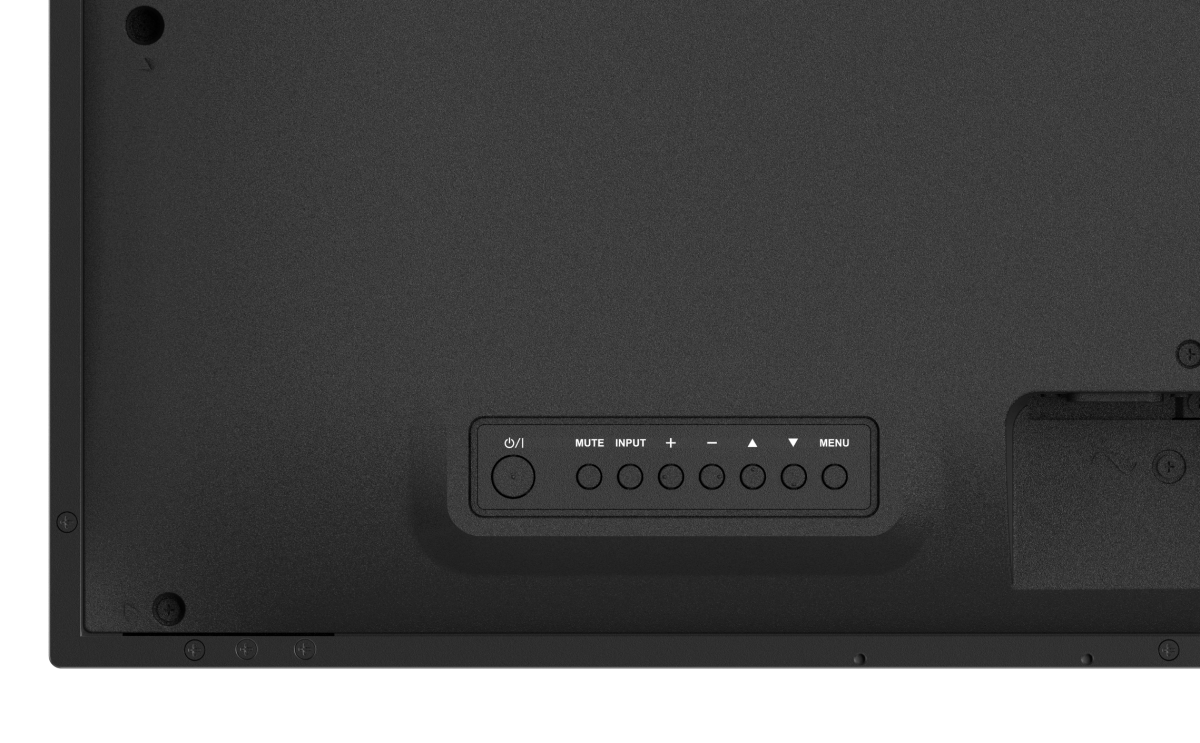

| Keyboard control | Hidden |
| Lockable | |
| Signal loop through | IR Loop through |
| RS232 | |
| Accessories | |
| Optional accessories | Open frame kit (BM03751) |
| Included Accessories | Philips logo (x 1) |
| Power supply cable (3 m) | |
| Quick start guide (x 1) | |
| Remote control and AAA batteries | |
| AC Switch Cover | |
| RS232 cable (3 m) (x 1) | |
| USB A to B cable (3 m) (x 1) | |
| Wi-Fi Antennas (2 pcs) | |
| CRD32 Wi-Fi module | |
| Stand | BM05922 (Optional) |
| Internal Player | |
| Storage | 32 GB eMMc |
| Memory | 4 GB DDR3 |
| GPU | Multi-Core Mali-G52 |
| CPU | Quad-Core Cortex A55 |
| Dimensions | |
| Wall Mount | 400 mm x 400 mm, M6 |
| Set Height | 736.4 mm |
| Set Width | 1265.6 mm |
| Set Width (inch) | 49.83" inch |
| Set Depth | 69.8 mm (Wall mount)/76.0 mm (OPS box) mm |
| Set Depth (inch) | 2.75" (Wall mount) / 2.99" (AC connector) inch |
| Bezel width | 27.0 mm touch black border (T/R/L/B) |
| Set Height (inch) | 28.99" inch |
| Sound | |
| Built-in speakers | 2 x 10 W |
| Power | |
| Energy Label Class | G |
| Consumption (Typical) | 100 W |
| Consumption (Max) | 179 W |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50/60 Hz |
| Multimedia Applications | |
| USB Playback Picture | JPEG |
| PNG | |
| BMP | |
| WEBP | |
| USB Playback Video | MPEG 1/2 (1080p 60 Hz) |
| MPEG 4 (1080p 60 Hz) | |
| H.263 (1080p 60 Hz) | |
| H.264 (4K2K 120 Hz) | |
| H.265 (4K2K 120 Hz) | |
| VP8 (1080p 60 Hz) | |
| VP9 (4K2K 120 Hz) | |
| USB Playback Audio | AAC |
| HEAAC | |
| MPEG 1/2/2.5 Layer 3 | |
| MPEG 1/2 Layer 1 | |
| MPEG 1/2 Layer 2 |
