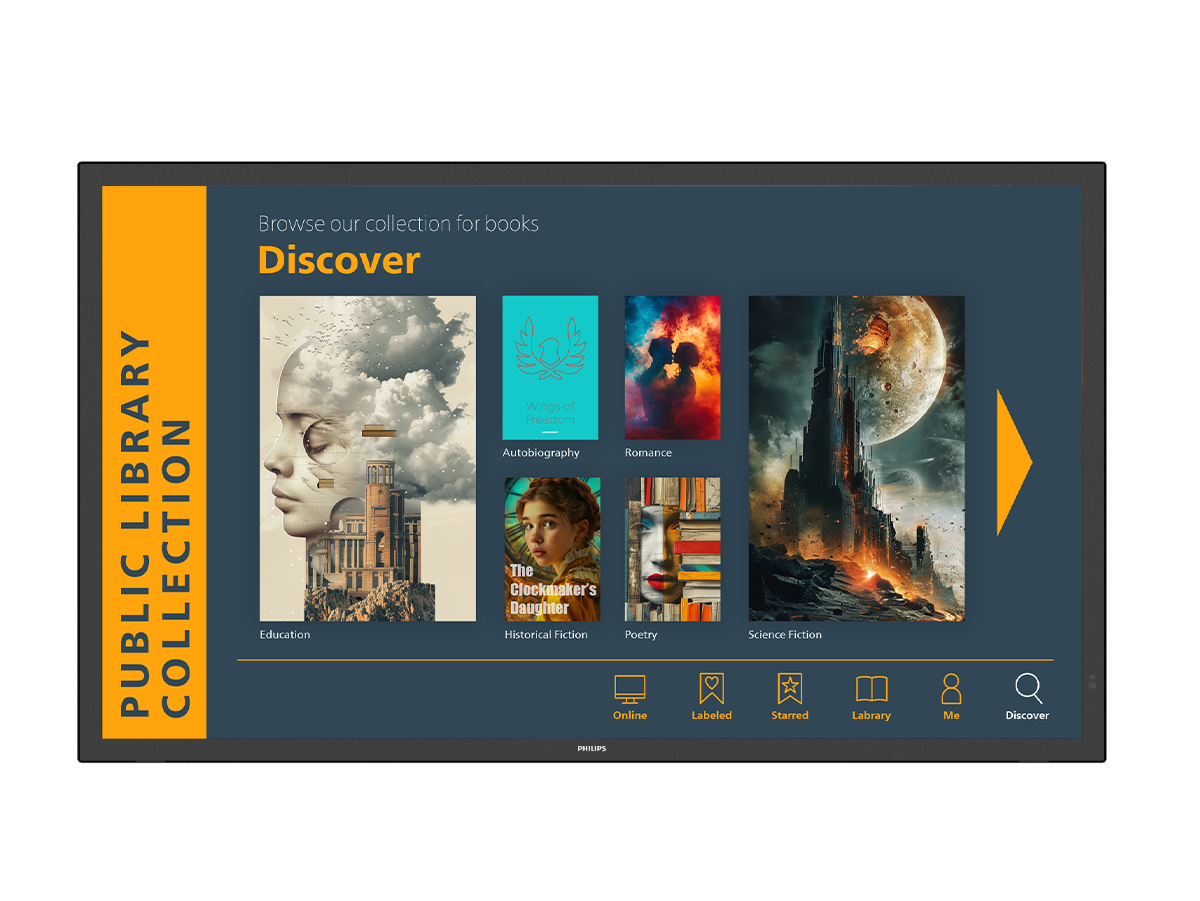

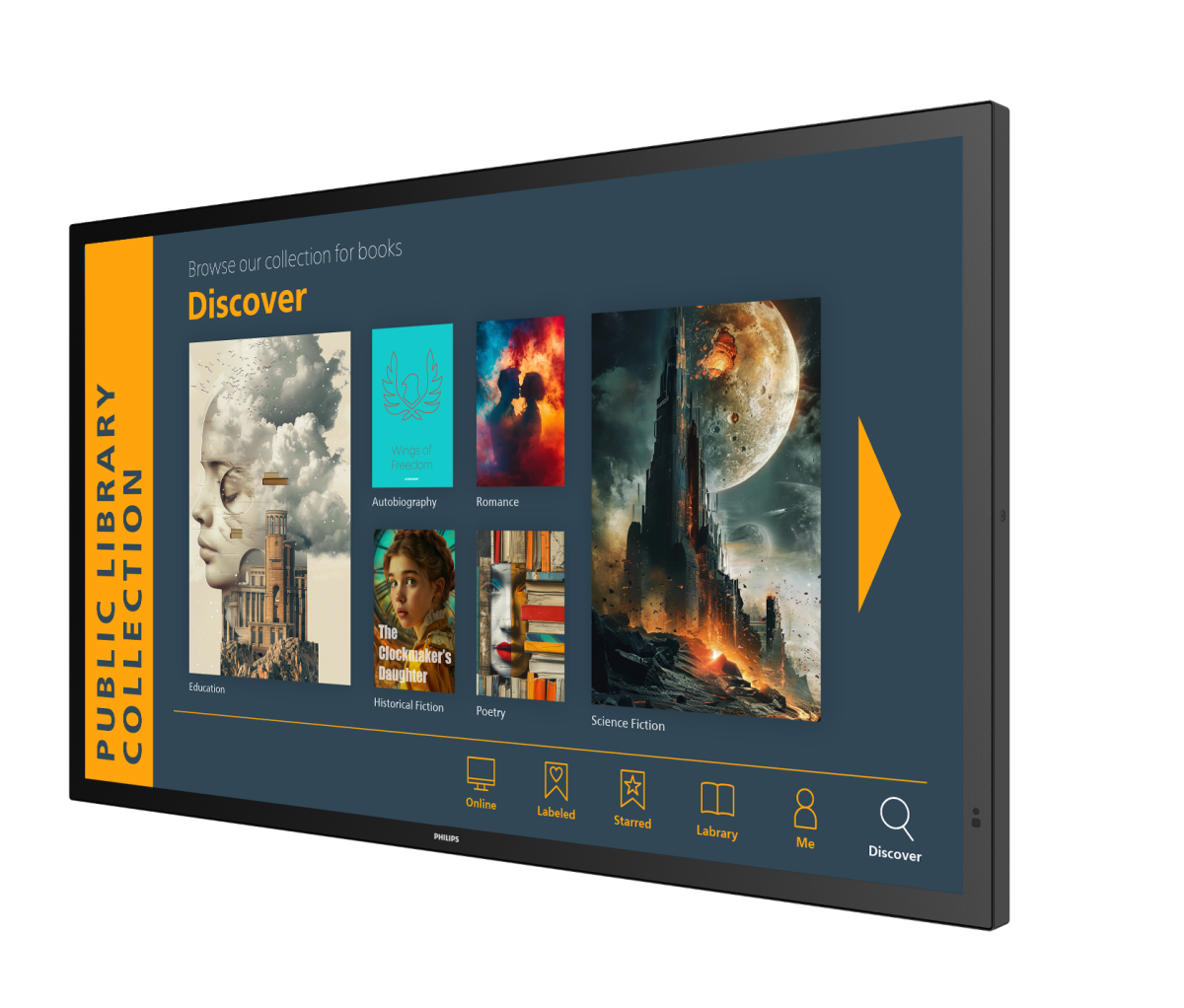

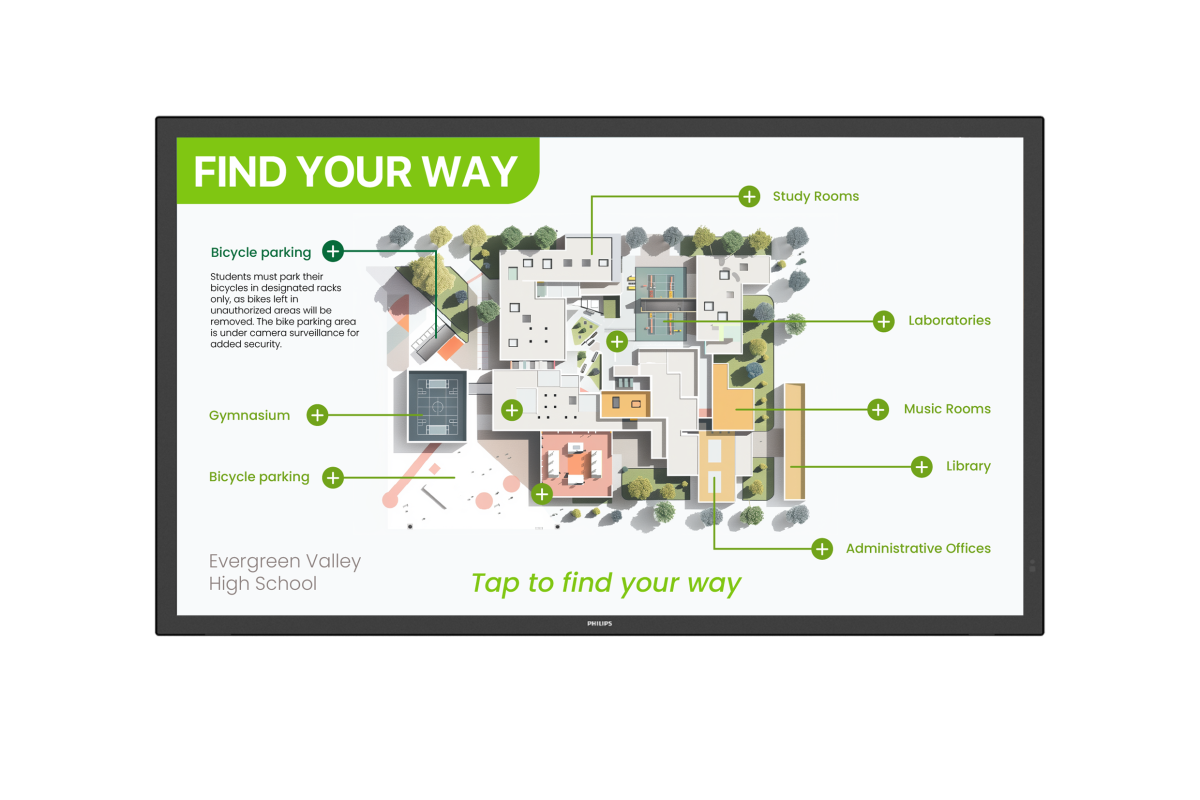

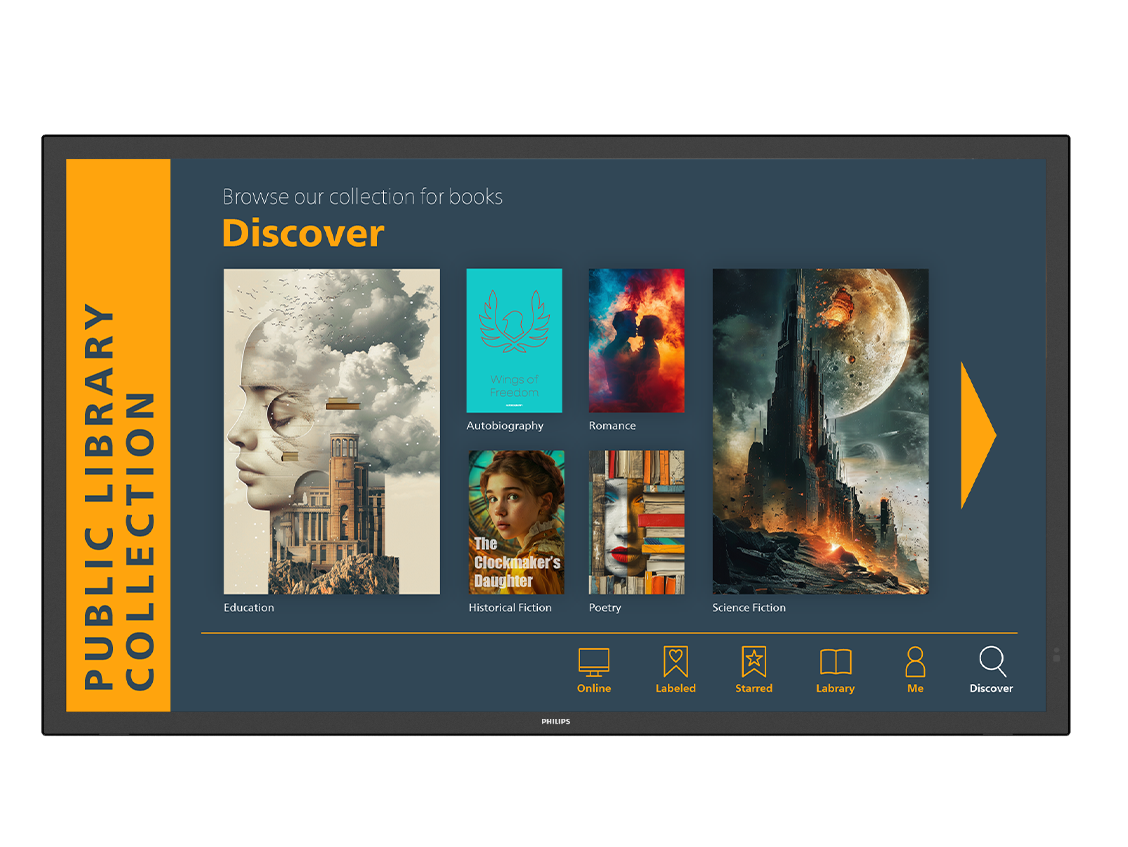

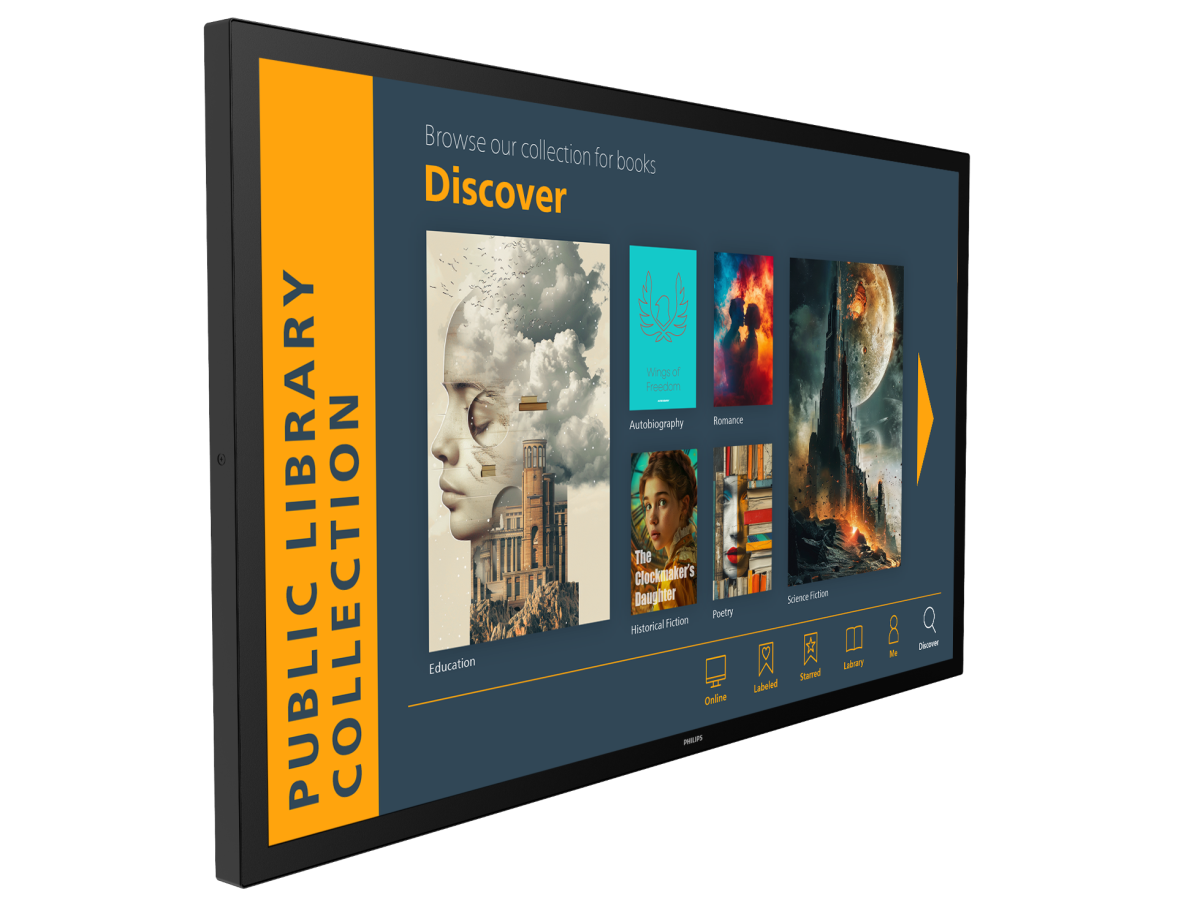

Philips T-Line 43BDL3751T/00 Interactive Signage Display
Product code:
Delivering 24/7 operation with 450 nits of brightness, this versatile PCAP display is also designed to reduce energy consumption across the range. Engage. Inspire. Connect. With Android 13, Wave ready and no need for an external media player.
SEND AN ENQUIRYDescription
| Picture/Display | |
| Brightness max. (after glass) | 450 cd/m² |
| Diagonal screen size (metric) | 108.0 cm |
| Pixel pitch | 0.245 mm |
| Panel resolution | 3840 x 2160 |
| Display colours | 1.07 B |
| Picture enhancement | 3/2 - 2/2 motion pull down |
| 3D Combfilter | |
| 3D MA deinterlacing | |
| Dynamic contrast enhancement | |
| Motion compens. deinterlacing | |
| Progressive scan | |
| OS UI resolution | UHD |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Viewing angle (horizontal) | 178 degree |
| Brightness max. (before glass) | 500 cd/m² |
| Aspect ratio | 0,672916667 |
| Diagonal screen size (inch) | 42.5" inch |
| Contrast ratio (typical) | 50,00069444 |
| Operating system | Android 13 |
| Viewing angle (vertical) | 178 degree |
| Surface treatments | Anti-Glare coating |
| Anti-Fingerprint coating | |
| Response time (typical) | 8 ms |
| Panel technology | ADS |
Additional information
| Weight | |
| Product without packaging (kg) | 17.05 kg |
| Product with packaging (lb) | 45.48 lb |
| Product with packaging (kg) | 20.63 kg |
| Product without packaging (lb) | 37.59 lb |
| Operating conditions | |
| Temperature range (storage) | -20 ~ 60 °C |
| Temperature range (operation) | 0 ~ 40 °C |
| Humidity range (storage) [RH] | 5–95% (without condensation) |
| Humidity range (operation)[RH] | 20–80% (without condensation) |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 hour(s) |
| Miscellaneous | |
| On-Screen Display Languages | English, French, German, Italian, Japanese, Polish, Spanish, Turkish, Russian, Simplified Chinese,Traditional Chinese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish |
| Regulatory approvals | CE, CB, BSMI, FCC, Class A, CU, ETL, IMDA, PSB, RoHS, Energy Star 8.0 |
| Warranty | 3 year warranty |
| Supported Display Resolution | |
| Video formats | 480i, 60 Hz |
| 480p, 60 Hz | |
| 576p, 50 Hz | |
| 576i, 50 Hz | |
| 720p, 50, 60 Hz | |
| 1080i, 50, 60 Hz | |
| 1080p, 50, 60 Hz | |
| 3840 x 2160, 30, 60 Hz | |
| Computer formats | 720 x 400, 70 Hz |
| 640 x 480, 60, 67, 75 Hz | |
| 800 x 600, 60 Hz | |
| 832 x 624, 75 Hz | |
| 1024 x 768, 60 Hz | |
| 1152 x 870, 75 Hz | |
| 1280 x 720, 60 Hz | |
| 1920 x 1080, 60 Hz | |
| 1680 x 1050, 60 Hz | |
| 3840 x 2160, 30, 60 Hz | |
| 1920 x 1200, 60 Hz | |
| 3840 x 2160, 60 Hz, 50 Hz | |
| Interactivity | |
| Protection glass | 3 mm tempered safety glass |
| Multi-touch technology | Projected capacitive |
| Plug and play | HID compliant |
| Touchpoints | 10 simultaneous touch points |
| Connectivity | |
| Audio output | 3.5 mm jack |
| Video input | HDMI 2.0 (x 2) |
| Display Port1.3 (x 1) | |
| USB-C (with 15 W power delivery) | |
| External control | Gigabit LAN RJ45 |
| IR (in/out) 3.5 mm jack | |
| RS232 (in/out) 2.5 mm jack | |
| Other connections | Micro USB (x 1) (OTG) |
| USB 3.0 A (x 2) | |
| USB 3.0 B (x 1) | |
| Wi-Fi: 2 T/2 R 2.4/5/6 GHz | |
| Bluetooth 5.2 | |

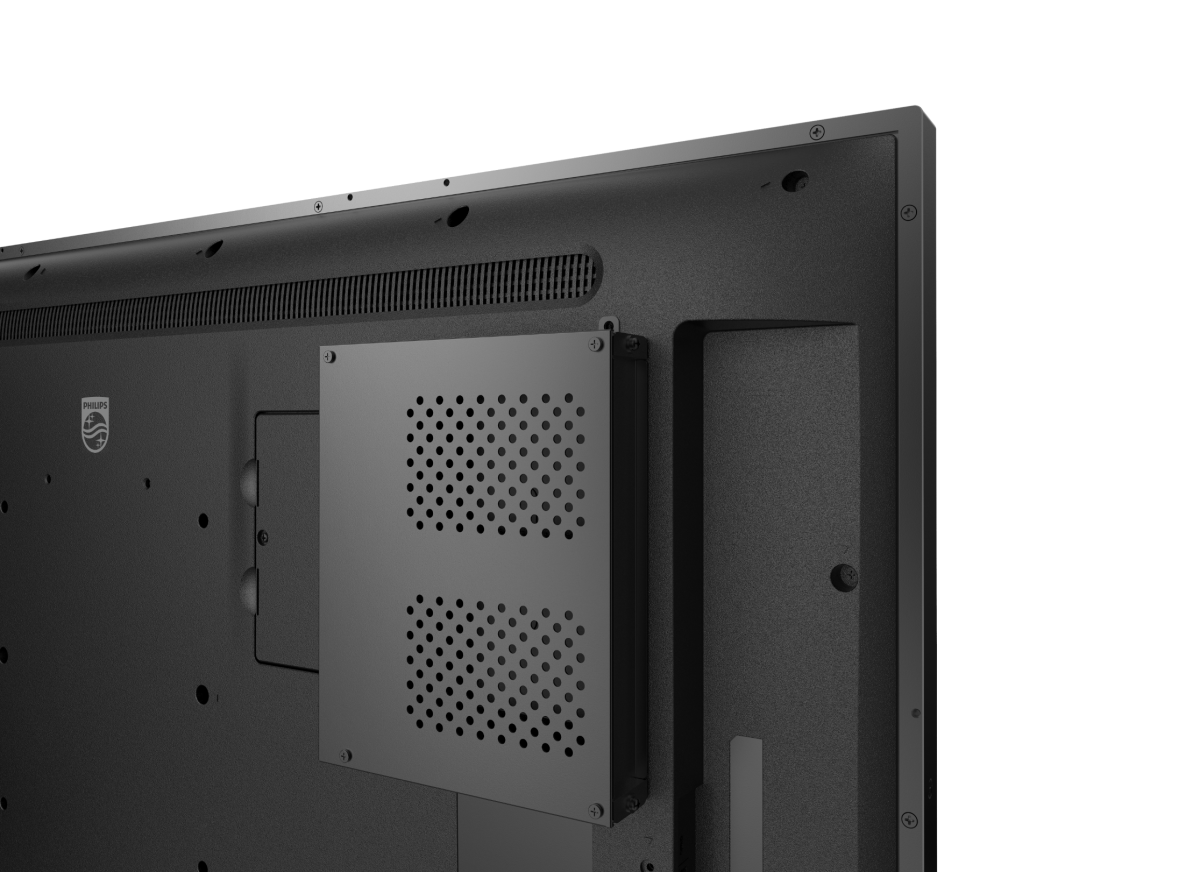

| OPS (external, removable) | |
| Convenience | |
| Remote control signal | Lockable |
| Placement | Landscape (24/7) |

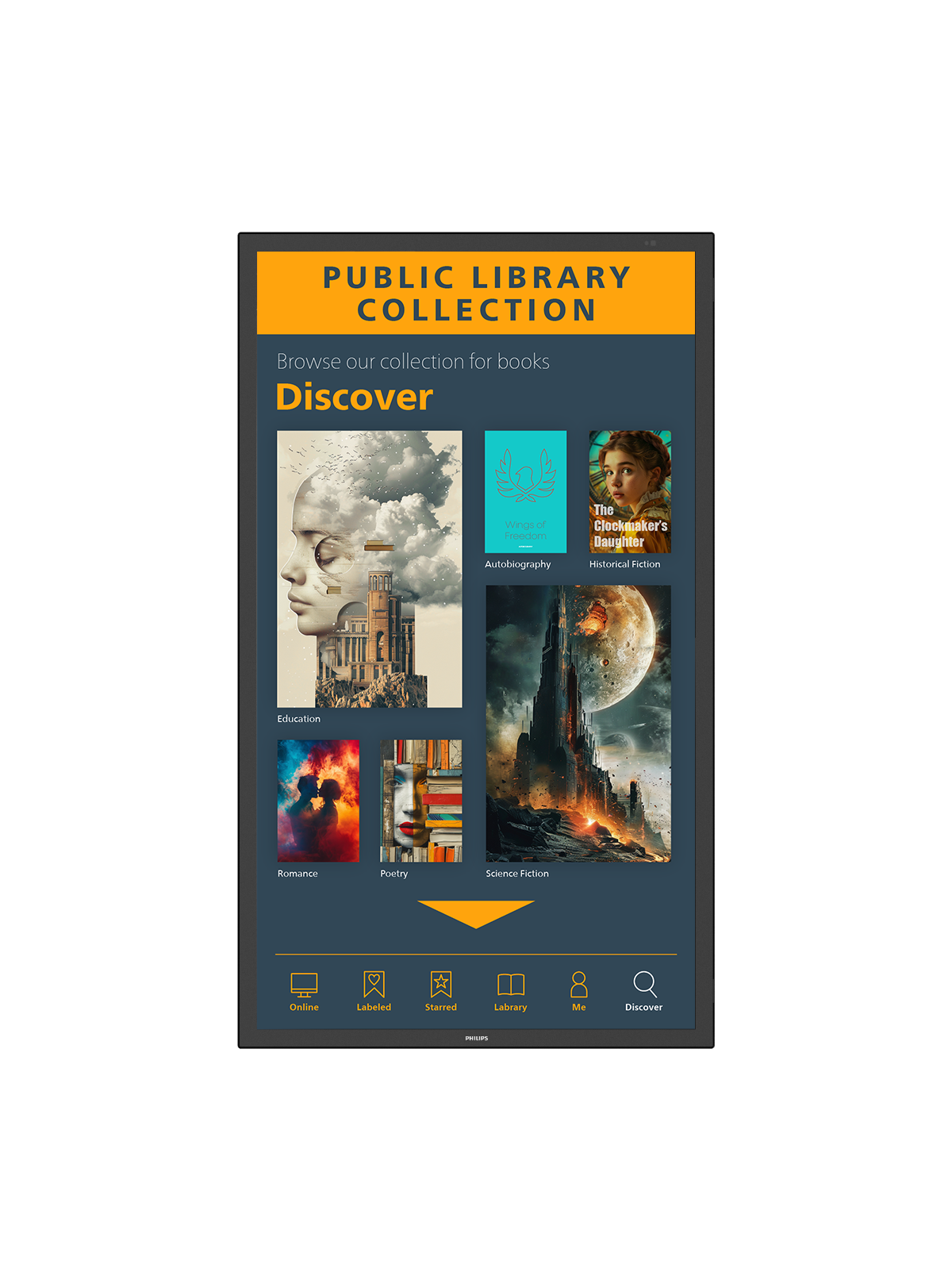

| Portrait (24/7) | |
| Tilted installation up to 30° backwards | |
| Screen-saving functions | Pixel Shift, Low Brightness |
| Network controllable | RS232 |
| RJ45 | |
| Keyboard control | Hidden |
| Lockable | |
| Signal loop through | IR Loop through |
| RS232 | |
| Accessories | |
| Optional accessories | Open frame kit (BM03751) |
| Included Accessories | Philips logo (x 1) |
| Power supply cable (3 m) | |
| Quick start guide (x 1) | |
| Remote control and AAA batteries | |
| AC Switch Cover | |
| RS232 cable (3 m) (x 1) | |
| USB A to B cable (3 m) (x 1) | |
| Wi-Fi Antennas (2 pcs) | |
| CRD32 Wi-Fi module | |
| Stand | BM05922 (Optional) |
| Internal Player | |
| Storage | 32 GB eMMc |
| Memory | 4 GB DDR3 |
| GPU | Multi-Core Mali-G52 |
| CPU | Quad-Core Cortex A55 |
| Dimensions | |
| Set Height | 578.2 mm |
| Wall Mount | 200mm x 200mm, M6 |
| Set Width | 990.0 mm |
| Set Width (inch) | 38.98" inch |
| Set Depth | 69.3 mm (Wall mount)/103.9 mm (external OPS box) mm |
| Set Height (inch) | 22.76" inch |
| Bezel width | 23.4 mm touch black border (T/R/L/B) |
| Set Depth (inch) | 2.73" (Wall mount) / 4.09" (external OPS box) inch |
| Sound | |
| Built-in speakers | 2 x 10 W |
| Power | |
| Energy Label Class | G |
| Consumption (Typical) | 65 W |
| Consumption (Max) | 145 W |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50/60 Hz |
| Multimedia Applications | |
| USB Playback Picture | JPEG |
| PNG | |
| BMP | |
| WEBP | |
| USB Playback Video | MPEG 1/2 (1080p 60 Hz) |
| MPEG 4 (1080p 60 Hz) | |
| H.263 (1080p 60 Hz) | |
| H.264 (4K2K 120 Hz) | |
| H.265 (4K2K 120 Hz) | |
| VP8 (1080p 60 Hz) | |
| VP9 (4K2K 120 Hz) | |
| USB Playback Audio | AAC |
| HEAAC | |
| MPEG 1/2/2.5 Layer 3 | |
| MPEG 1/2 Layer 1 | |
| MPEG 1/2 Layer 2 |
