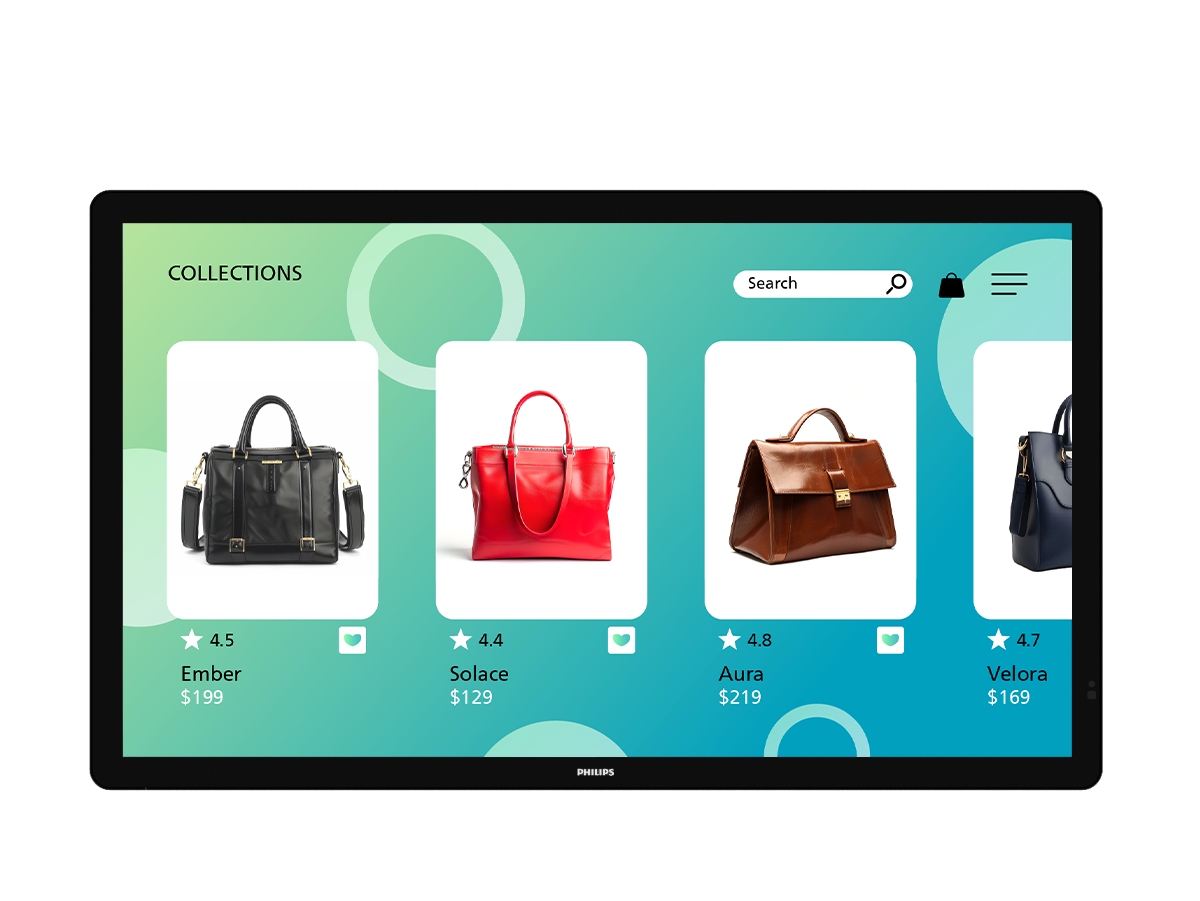

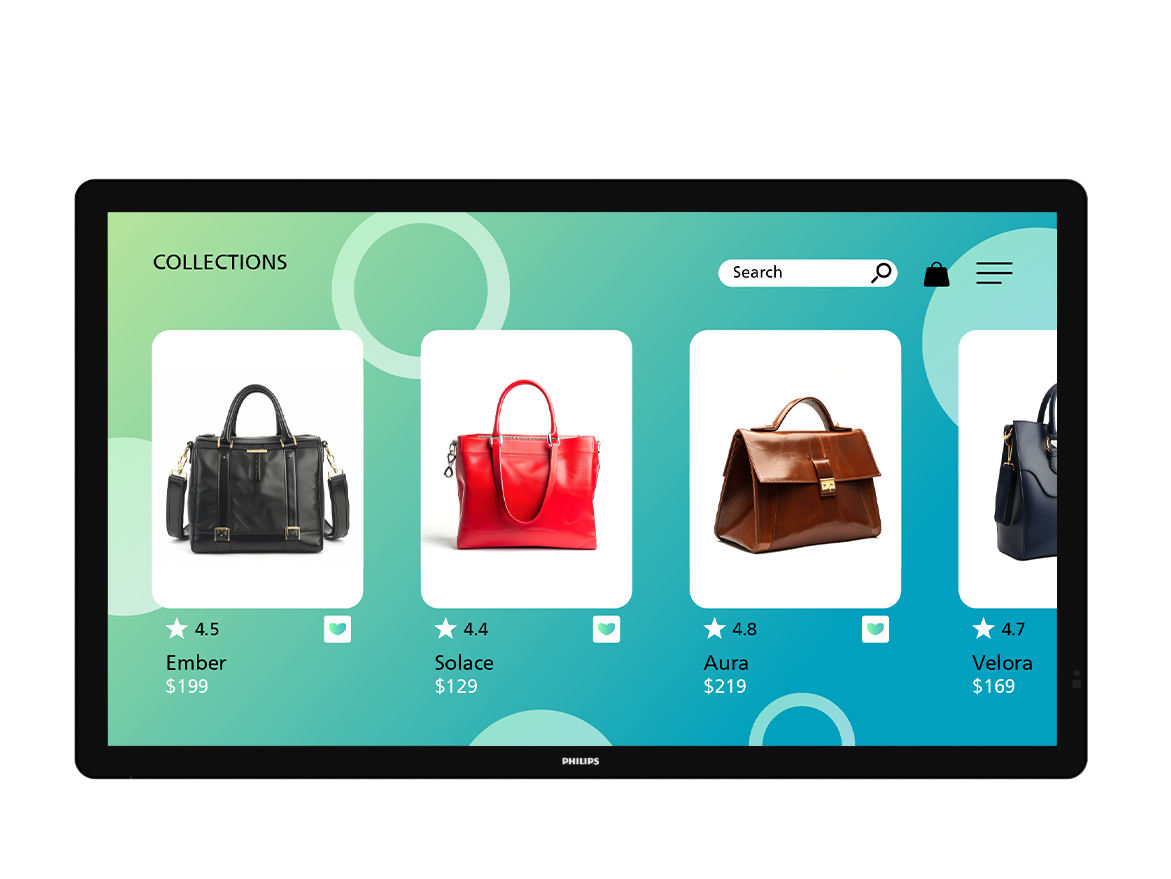

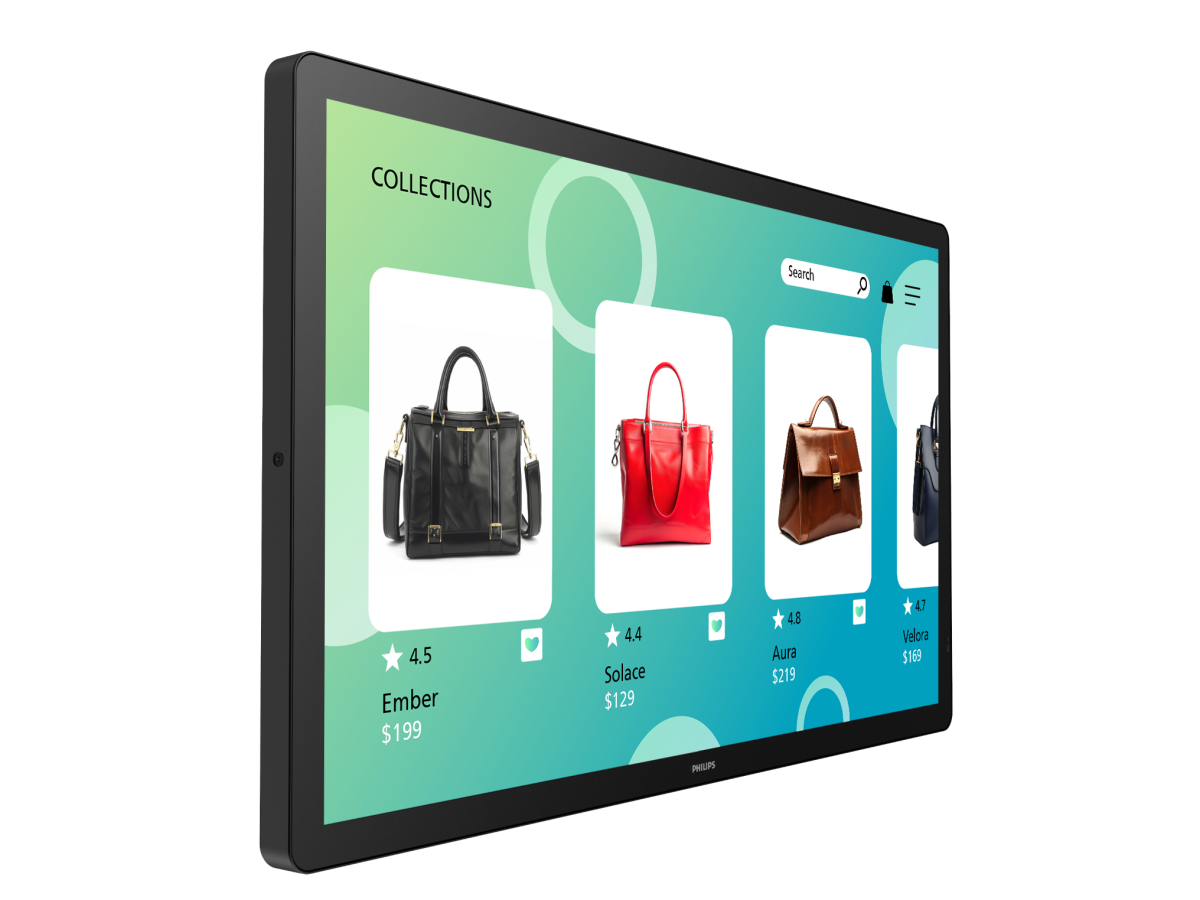

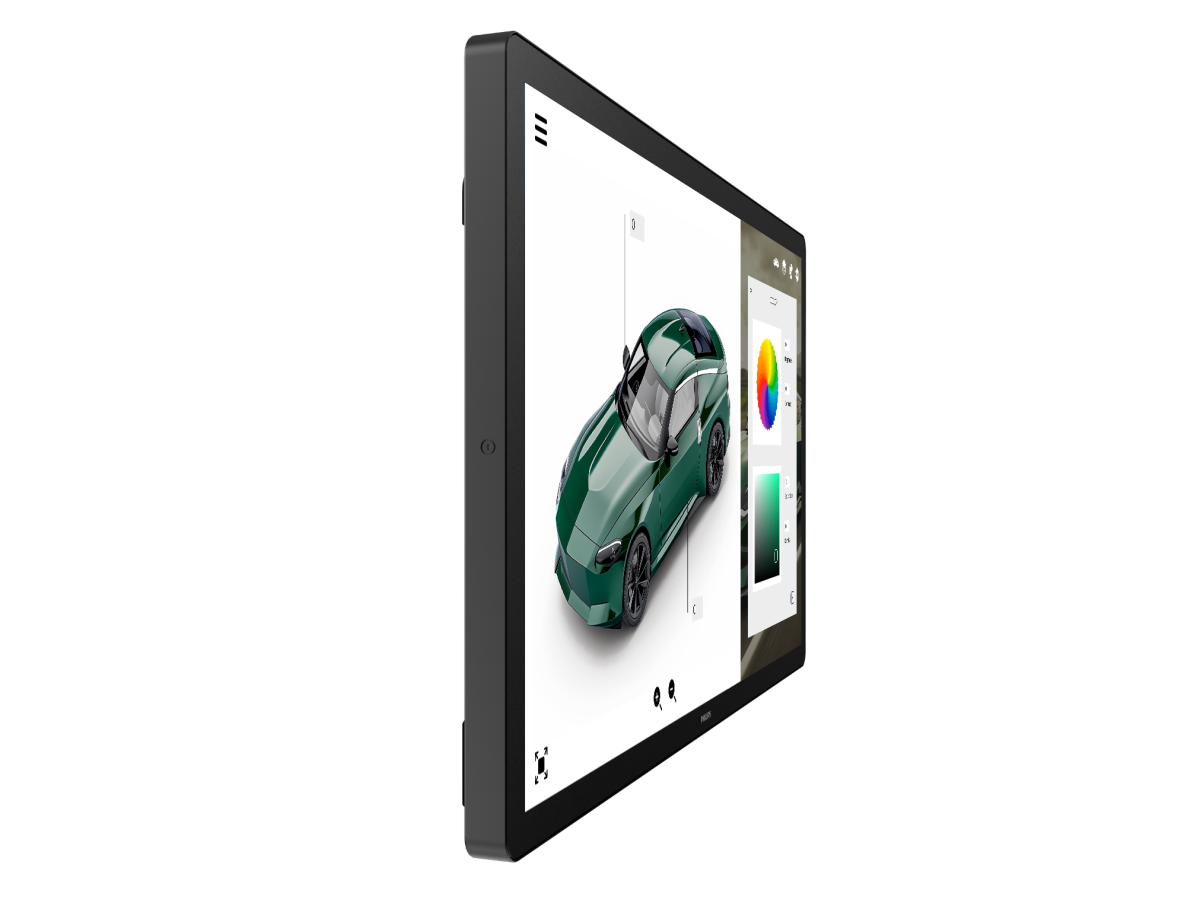

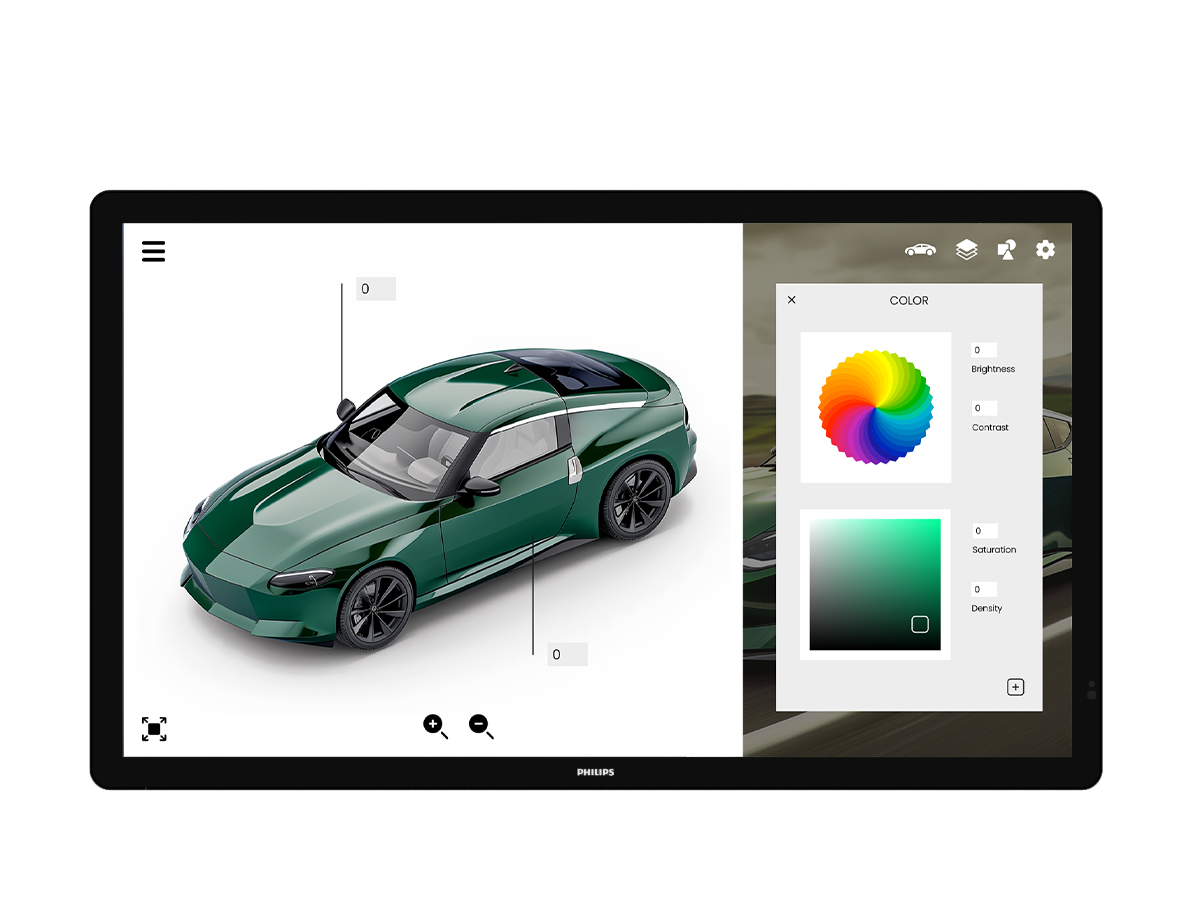

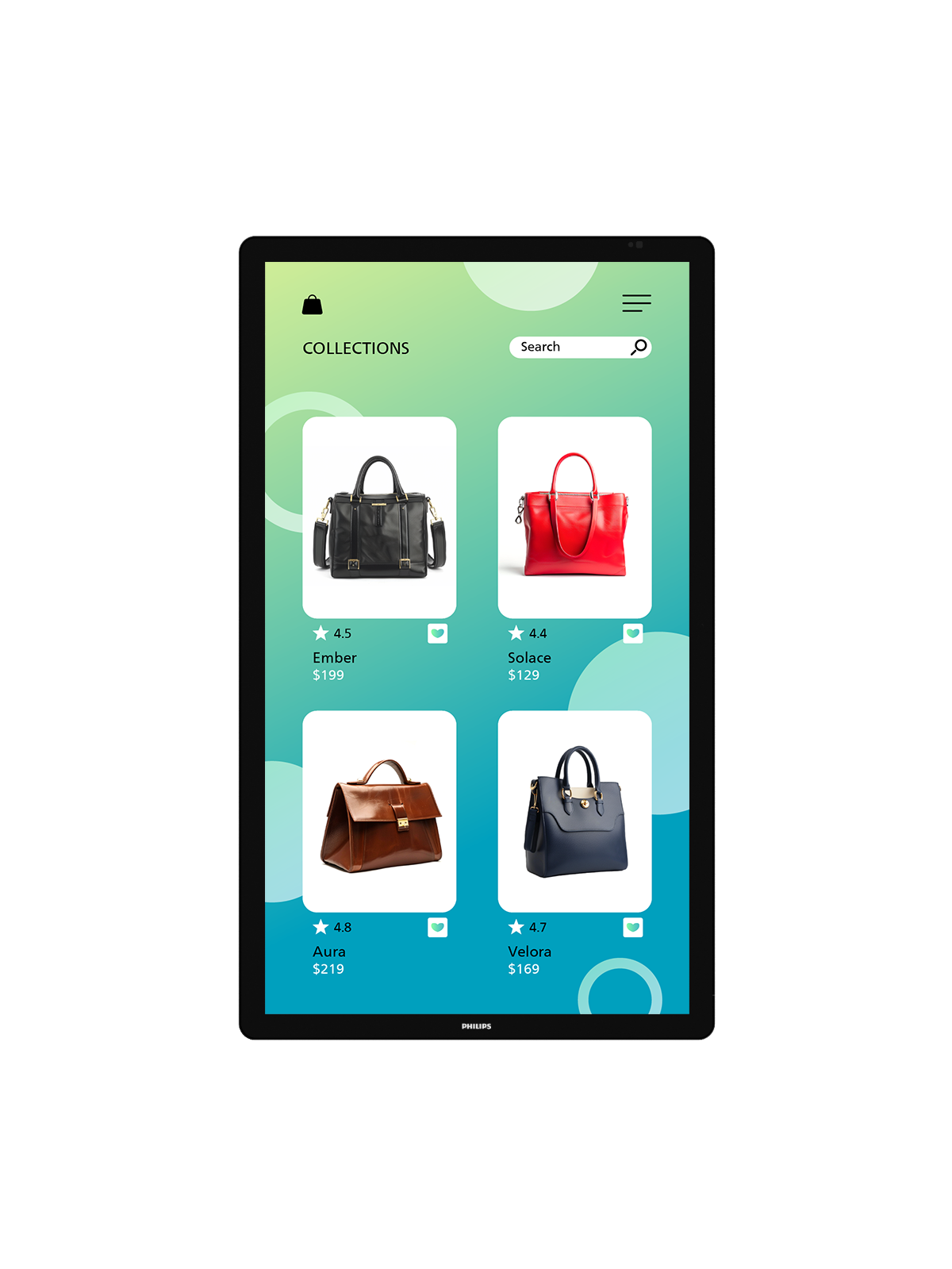

Philips T-Line 32BDL3751T/00 Interactive Signage Display
Product code:
Delivering 24/7 operation with 350 nits of brightness, this versatile PCAP display is also designed to reduce energy consumption across the range. Engage. Inspire. Connect. With Android 13, Wave ready and no need for an external media player.
SEND AN ENQUIRYDescription
| Picture/Display | |
| Diagonal screen size (metric) | 80 cm |
| Pixel pitch | 0.364 mm |
| Panel resolution | 1920 x 1080p |
| Display colours | 16.7 M |
| Brightness (before glass) | 400 cd/m² |
| Picture enhancement | 3/2 - 2/2 motion pull down |
| 3D Combfilter | |
| 3D MA deinterlacing | |
| Dynamic contrast enhancement | |
| Motion compens. deinterlacing | |
| Progressive scan | |
| OS UI resolution | FHD |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| Brightness (after glass) | 350 cd/m² |
| Aspect ratio | 0,672916667 |
| Viewing angle (horizontal) | 178 degree |
| Contrast ratio (typical) | 50,00069444 |
| Surface treatments | Anti-Glare coating |
| Anti-Fingerprint coating | |
| Viewing angle (vertical) | 178 degree |
| Operating system | Android 13 |
| Diagonal screen size (inch) | 31.5" inch |
| Panel technology | IPS |
| Response time (typical) | 8 ms |
Additional information
| Connectivity | |
| Audio output | 3.5 mm jack |
| Video input | HDMI 2.0 (x2), Display Port1.3 (x1), USB-C (with 15W power delivery) |
| Other connections | Micro USB (x1) (OTG), USB 3.0 A (x2), USB 3.0 B (x1), Wifi: 2T/2R 2.4/5/6 GHz, Bluetooth 5.2 |
| Audio input | 3.5 mm jack |
| External control | Gigabit LAN RJ45, IR (in/out) 3.5 mm jack, RS232 (in/out) 2.5 mm jack |
| Convenience | |
| Screen saving functions | Pixel Shift, Low Brightness |
| Placement | Landscape (24/7) |

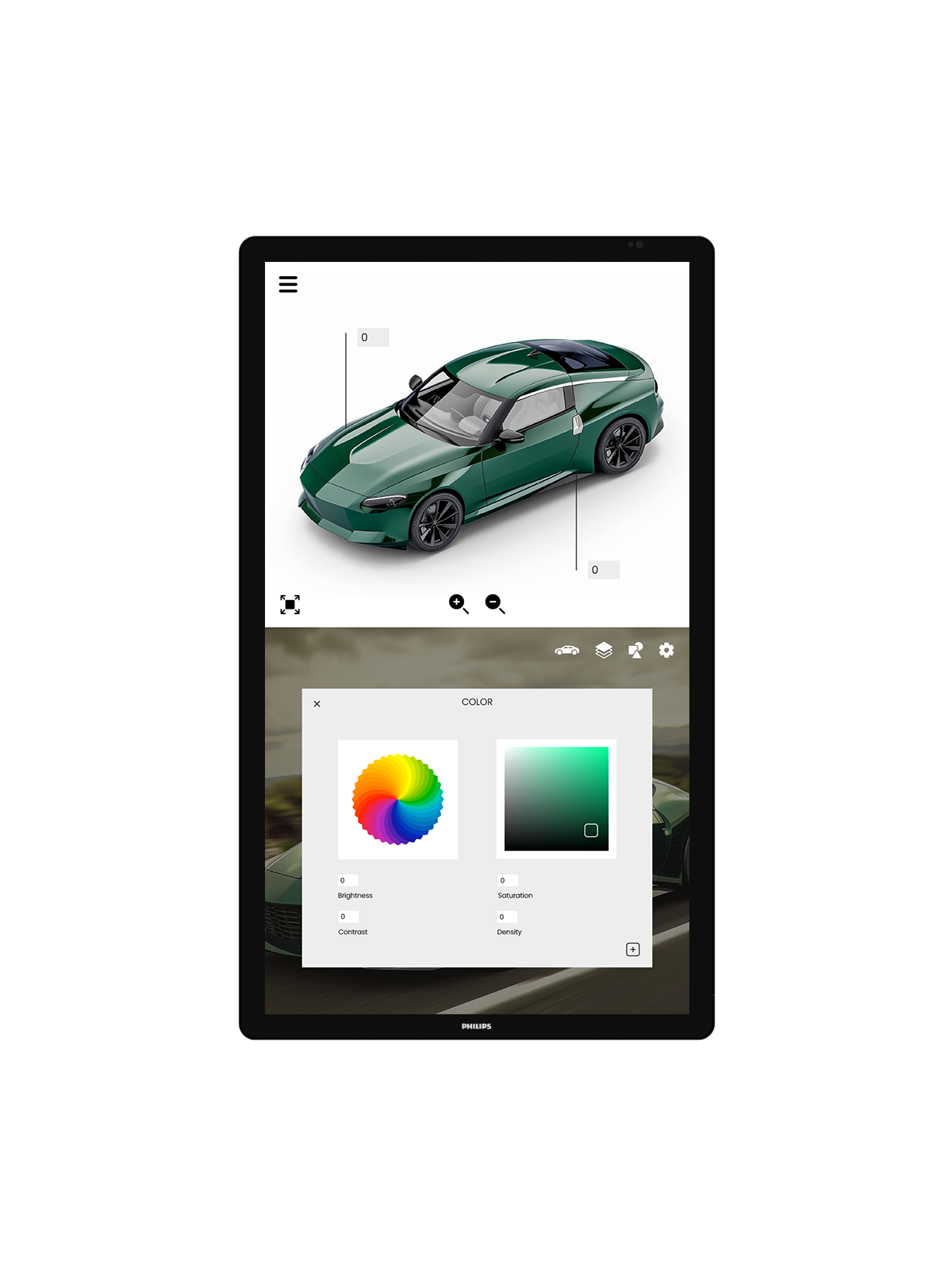

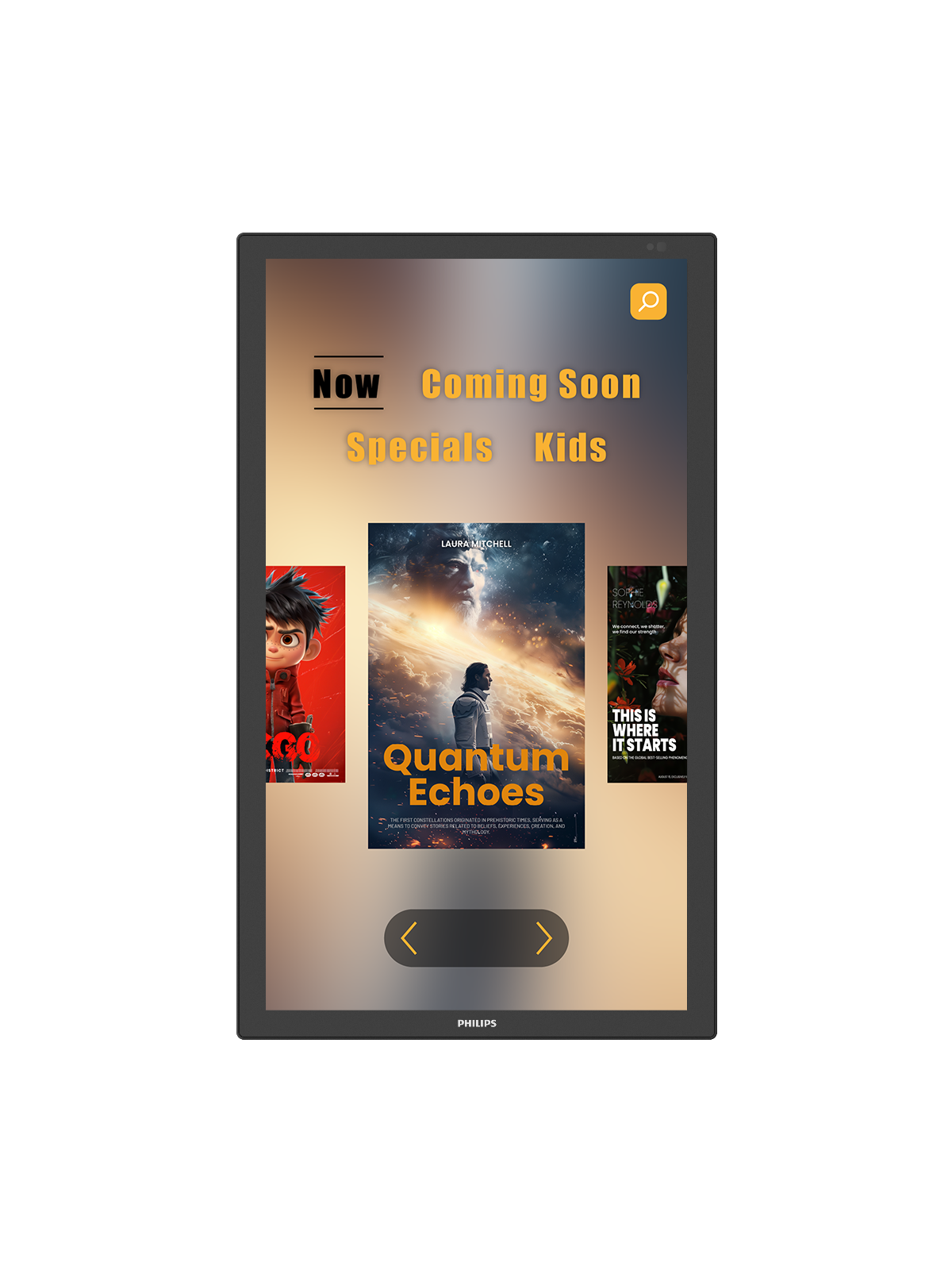

| Portrait (24/7) | |
| Tilted installation up to 30° backwards | |
| Remote control signal | Lockable |
| Network controllable | RS232, RJ45 |
| Keyboard control | Hidden, Lockable |
| Signal loop through | IR Loop through, RS232 |
| Internal Player | |
| Memory | 4GB DDR3 |
| GPU | Multi-Core Mali-G52 |
| CPU | Quad-Core Cortex A55 |
| Storage | 32 GB eMMc |
| Sound | |
| Built-in speakers | 2 x 10 W |
| Power | |
| Energy Label Class | G |
| Consumption (Typical) | 35 W |
| Mains power | 100–240 VAC, 50/60 Hz |
| Standby power consumption | <0.5 W |
| Consumption (Max) | 87 W |
| Accessories | |
| Included Accessories | Power supply cable (3 m) |
| Philips logo (x 1) | |
| Quick start guide (x1) | |
| Remote control & AAA batteries | |
| RS232 cable (3 m) (x1) | |
| USB A to B cable (3m) (x1) | |
| Optional accessories | Open frame kit (BM03752) |
| Stand | BM05911 (optional) |
| Dimensions | |
| Set Height | 443.6 mm |
| Wall Mount | 100 mm x 100 mm, 200 mm x 200 mm, M4 |
| Set Width | 749.1 mm |
| Set Depth | 69.5 mm (Wall mount)/73.5 mm (AC connector) mm |
| Set Width (inch) | 29.49" inch |
| Bezel width | 24.4 mm touch black border (T/R/L/B) |
| Set Height (inch) | 17.46" inch |
| Set Depth (inch) | 2.74" (Wall mount) / 2.89" (AC connector) inch |
| Multimedia Applications | |
| USB Playback Picture | JPEG, BMP, PNG, WEBP |
| USB Playback Video | MPEG 1/2 (1080p 60Hz), MPEG 4 (1080p 60Hz), H.263 (1080p 60Hz), H.264 (4K2K 120Hz), H.265 (4K2K 120Hz), VP8 (1080p 60Hz), VP9 (4K2K 120Hz) |
| USB Playback Audio | AAC, HEAAC, MPEG 1/2/2.5 Layer 3, MPEG 1/2 Layer 1, MPEG 1/2 Layer 2 |
| Miscellaneous | |
| On-Screen Display Languages | English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish |
| Regulatory approvals | CE, CB, BSMI, FCC, Class A, ETL, RoHS, CU, IMDA, PSB, Energy Star 8.0 |
| Warranty | 3 year warranty |
| Operating conditions | |
| Temperature range (storage) | -20 ~ 60 °C |
| Altitude | 0 ~ 3000 m |
| Humidity range (operation)[RH] | 20~80% RH (No condensation) |
| Temperature range (operation) | 0 ~ 40 °C |
| Humidity range (storage) [RH] | 5~95% RH (No condensation) |
| MTBF | 50,000 hour(s) |
| Supported Display Resolution | |
| Video formats | 480i, 60Hz 480p, 60Hz 576p, 50Hz 576i, 50Hz 720p, 50, 60Hz 1080i, 50, 60Hz 1080p, 50, 60Hz 3840 x 2160, 30, 60Hz |
| Computer formats | 720 x 400, 70Hz 640 x 480, 60,67,75Hz 800 x 600, 60Hz 832 x 624, 75Hz 1024 x 768, 60Hz 1152 x 870, 75Hz 1280 x 720, 60Hz 1920 x 1080, 60Hz 1680 x 1050, 60Hz 3840 x 2160, 30, 60Hz |
| Interactivity | |
| Touch points | 10 simultaneous touch points |
| Protection glass | 2 mm tempered safety glass |
| Multi-touch technology | Projected capacitive |
| Plug and play | HID compliant |
