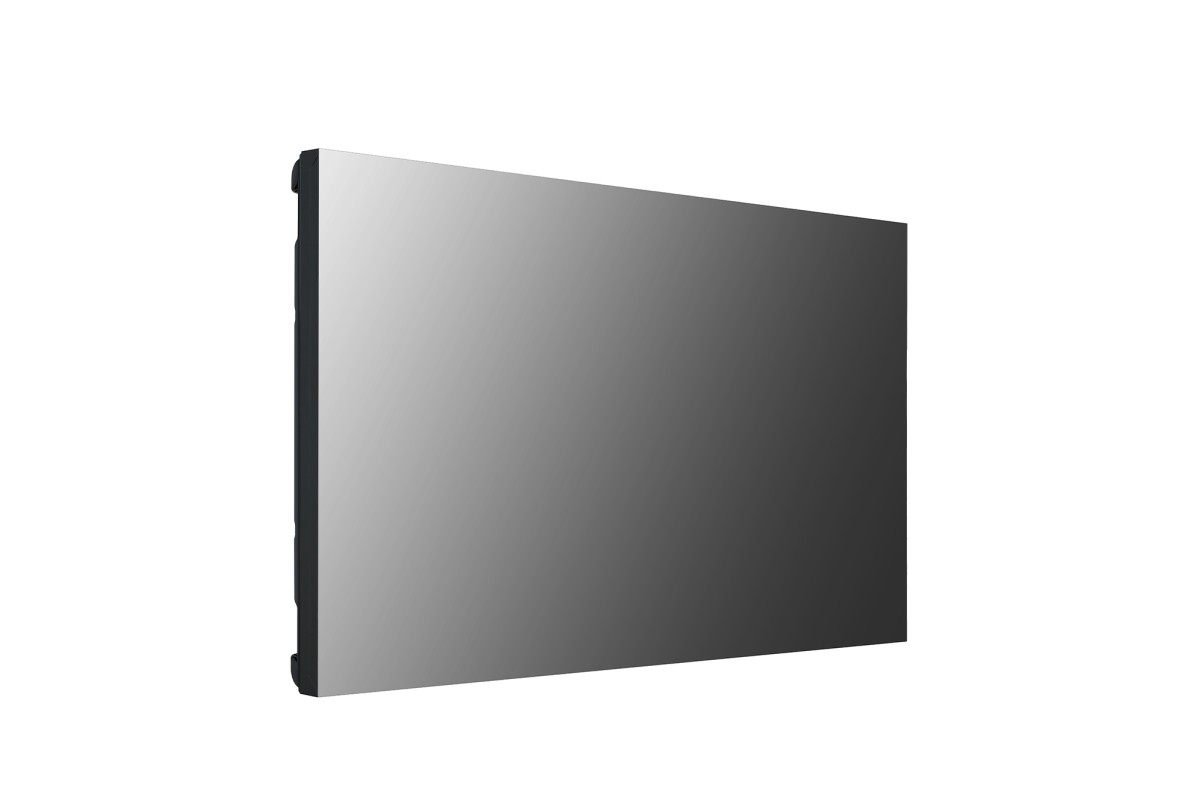

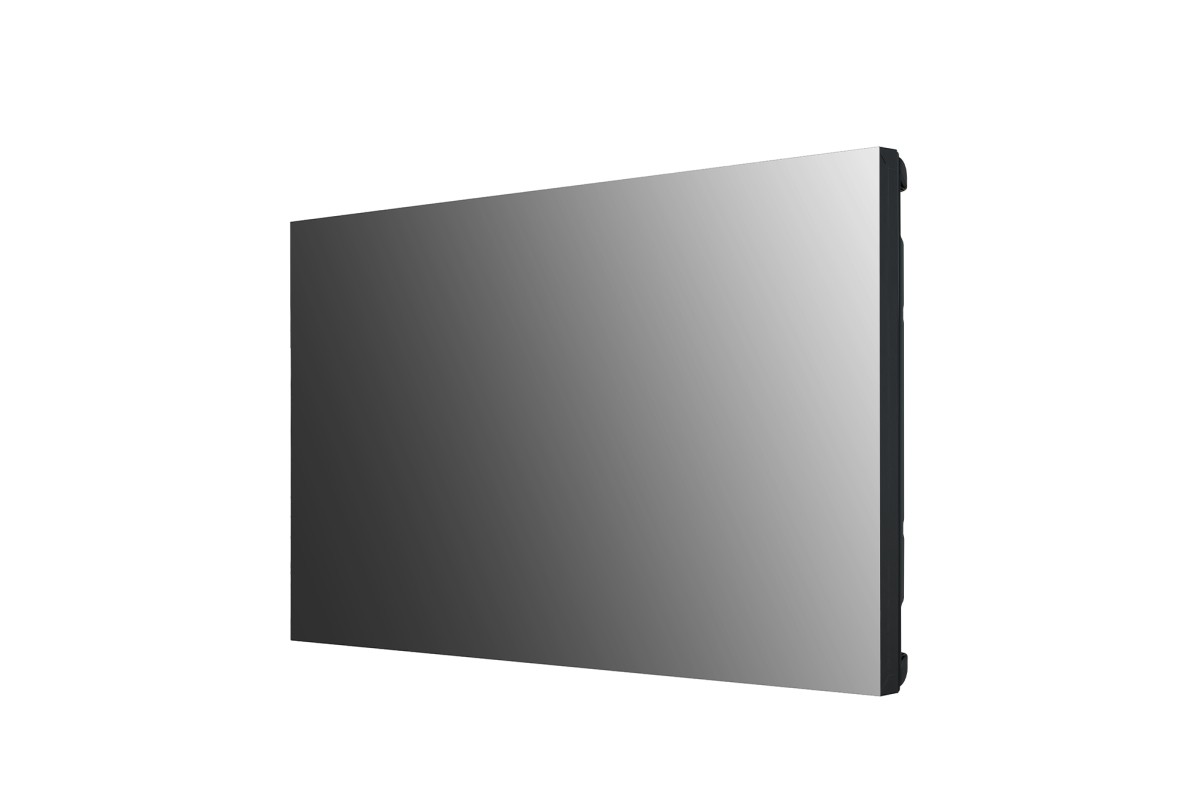

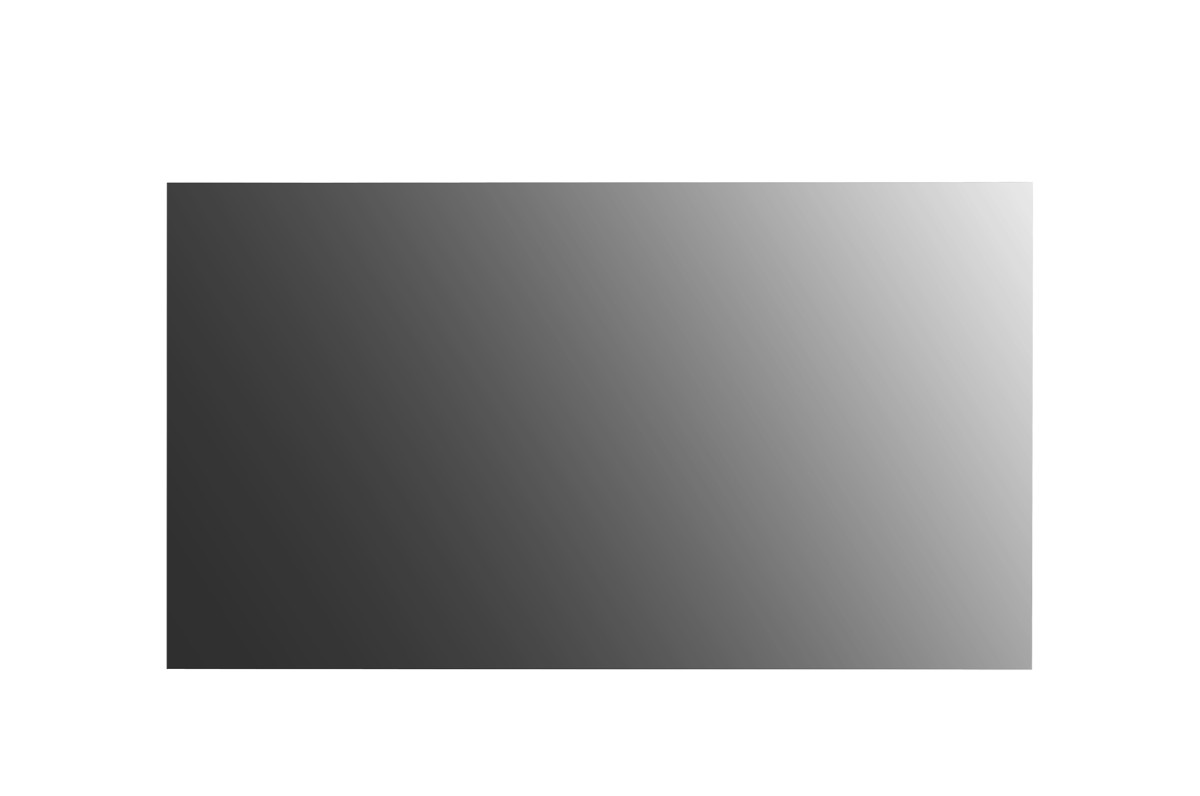

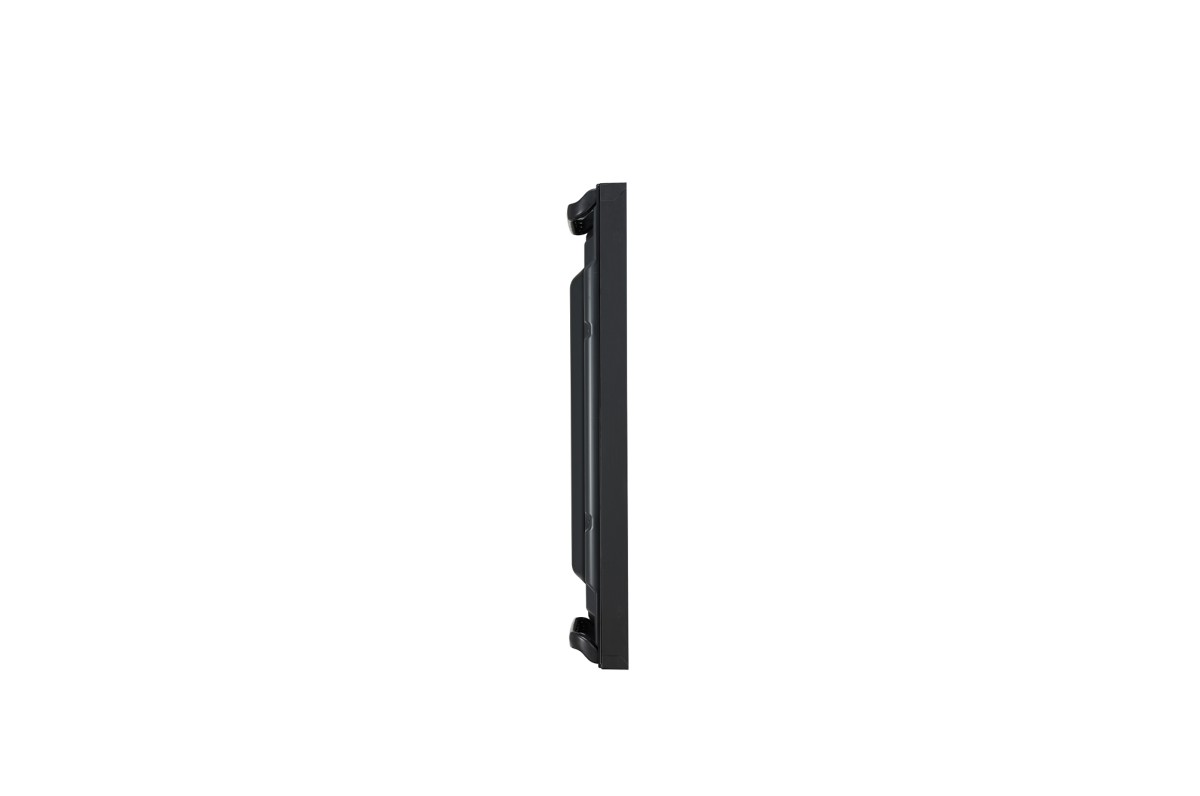

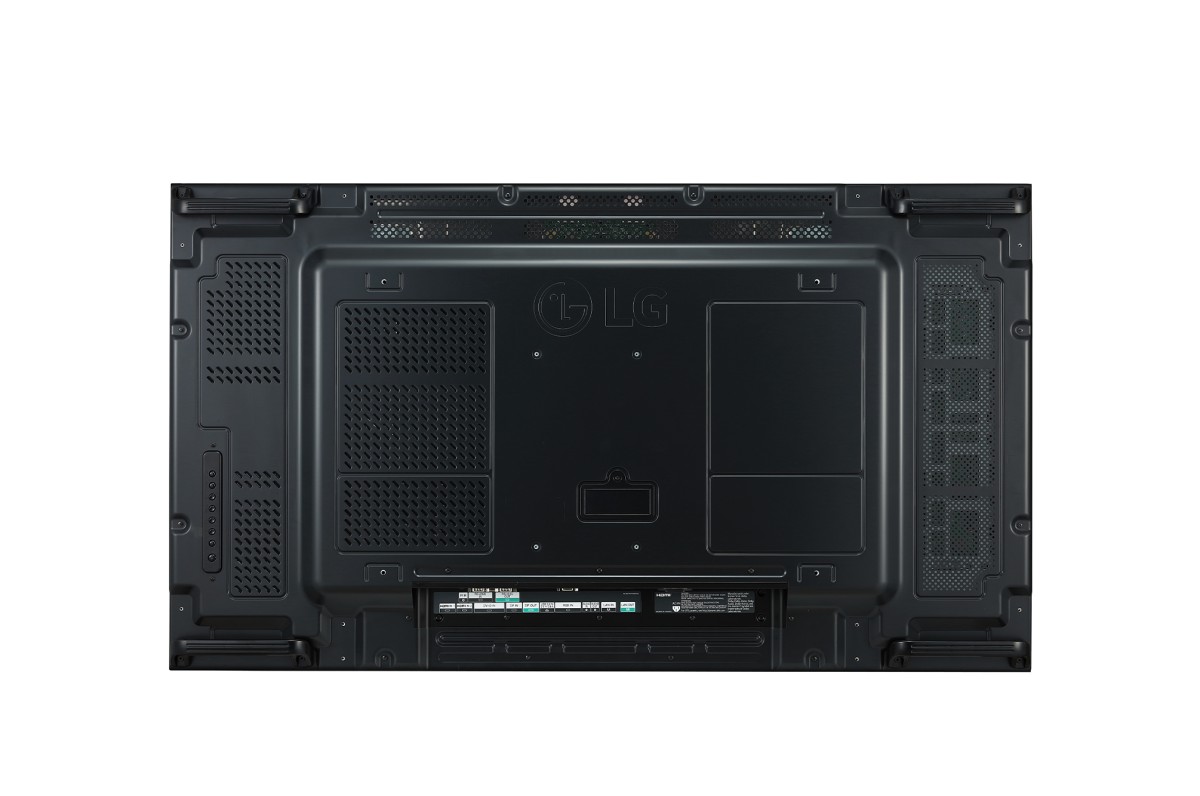

LG 55VSH7J Full HD 0.44mm Even Bezel Video Wall

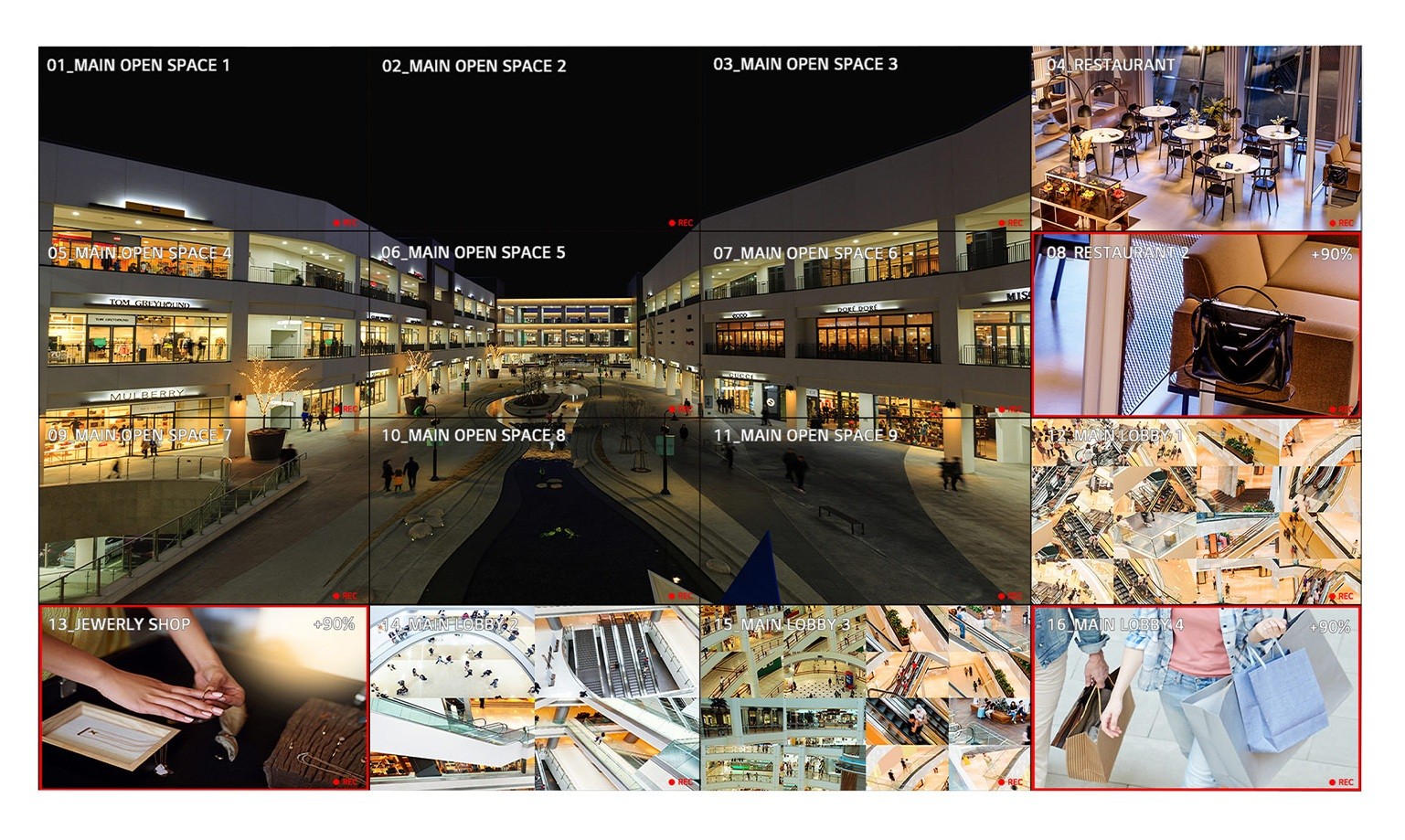

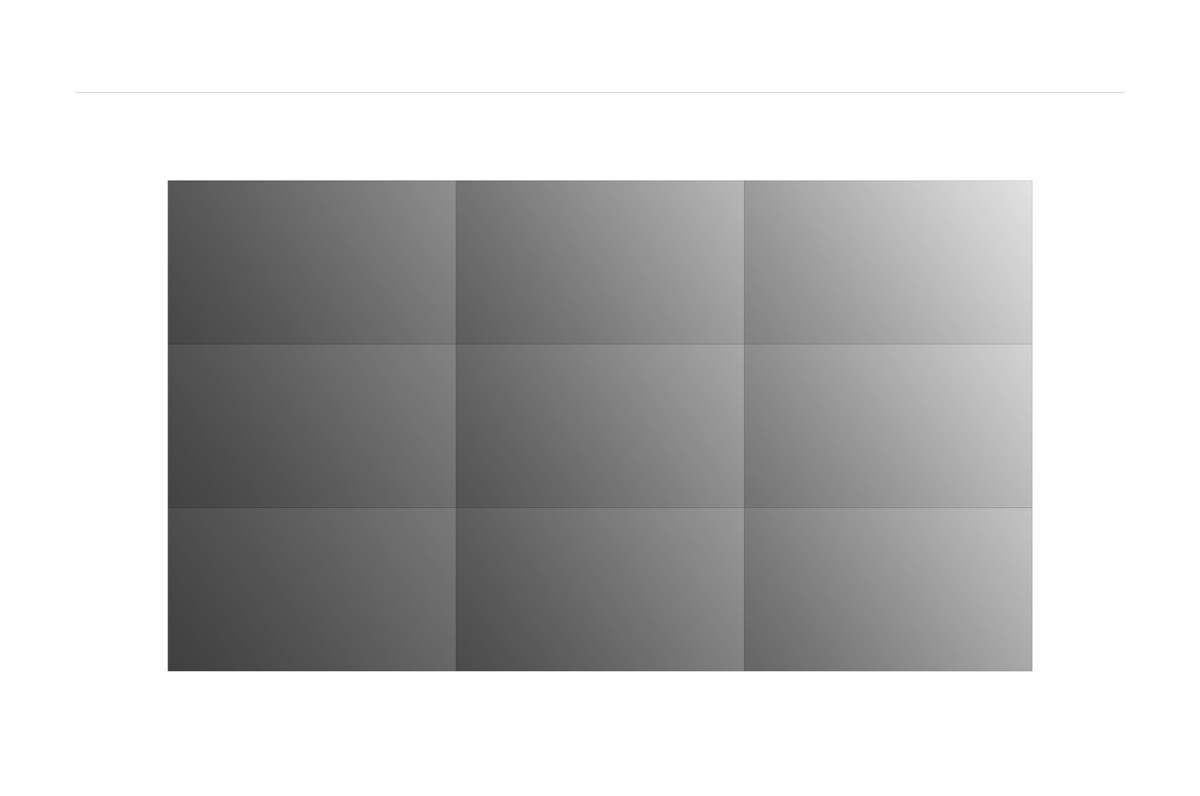

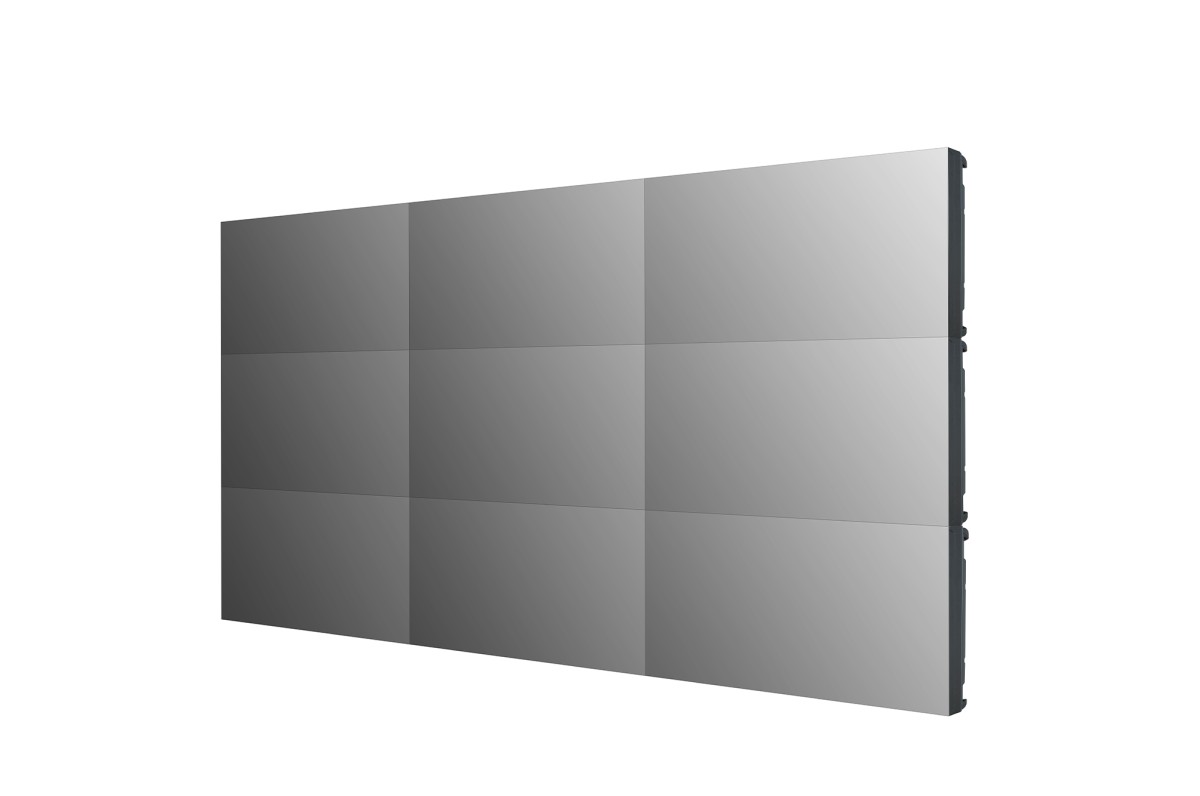

Product code:The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSH7J series will provide an even more immersive experience to viewers.
SEND AN ENQUIRYDescription
Panel
| Screen Size | 55" |
|---|---|
| Panel Technology | IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | 1,920 X 1,080 (FHD) |
| Brightness (Typ.) | 700nit |
| Contrast Ratio | 1,100:1 |
| Viewing Angle (H x V) | 178 X 178 |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | 28% |
| Operation Hours (Hours / Days) | 24/7 |
| Portrait / Landscape | Yes / Yes |
| OS | Web OS |
Additional information
Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width | Even bezel : 0.44mm |
| Weight (Head) | 16.8Kg |
| Packed Weight | 23.6Kg |
| Monitor Dimensions (W × H × D) | 1,210.51 x 681.22 x 86.5mm |
| Carton Dimensions (W × H × D) | 1,353 x 855 x 263mm (Box outer size) |
| Handle | Yes |
| VESA™ Standard Mount Interface | 600 x 400 |

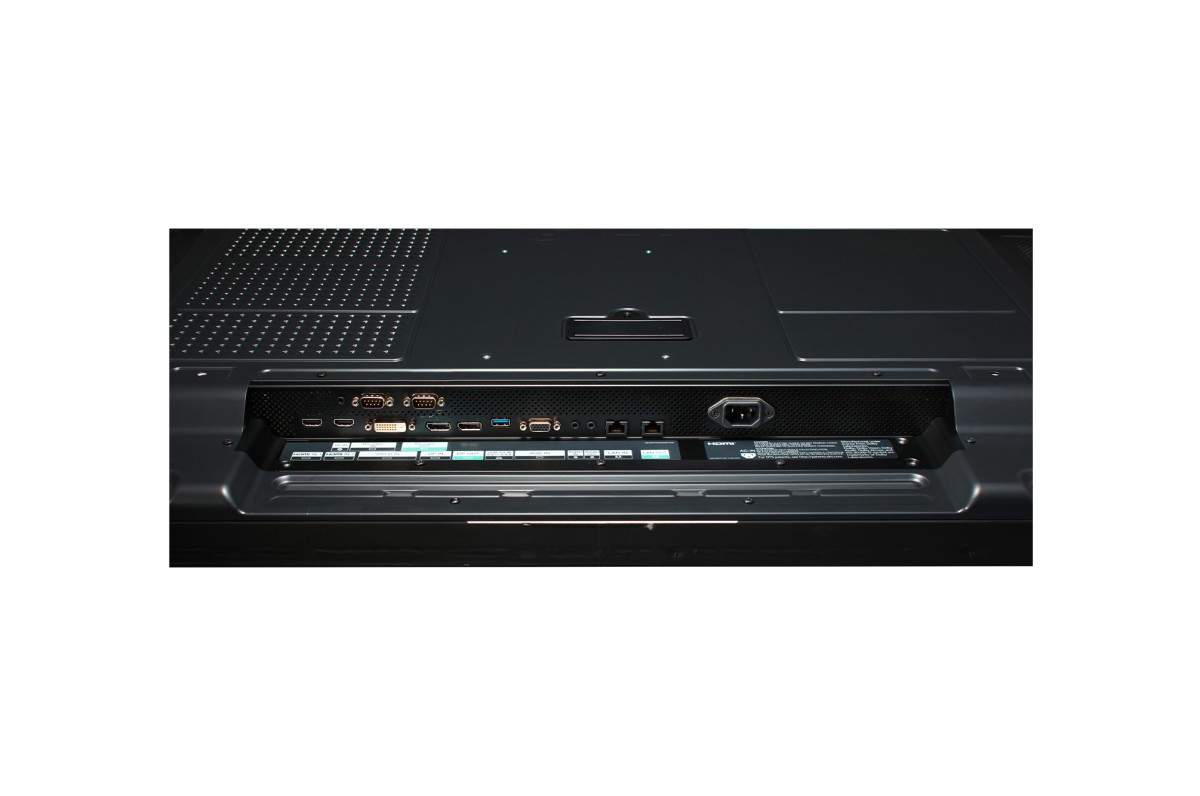

Connectivity
| Input | HDMI (2, HDCP2.2), DP (HDCP2.2), DVI-D (HDCP1.4), Audio, USB2.0 Type A(1) |
|---|---|
| Output | DP (Input : HDMI / DVI / DP), Audio |
| External Control | RS232C In/Out, RJ45 In/Out, IR In |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 220W / 260W |
|---|---|
| Smart Energy Saving | 110W |
| BTU (British Thermal Unit) | 751BTU(Typ), 887BTU(MAX) |
Standard (Certification)
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "B" / CE / KC |
| ErP | Yes (EU Only) |
Software Compatibility
| SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, LG ConnectedCare |
Accessory
| Basic | Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual |
|---|---|
| Optional | OPS Kit(KT-OPSF) |
