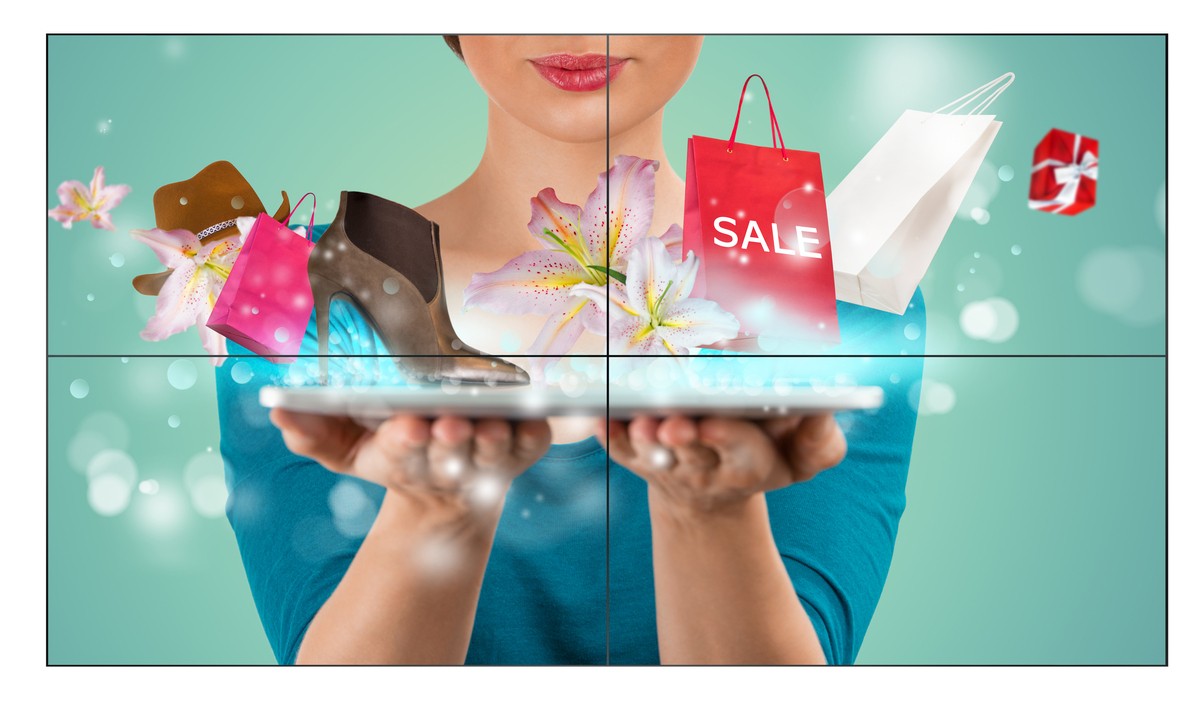

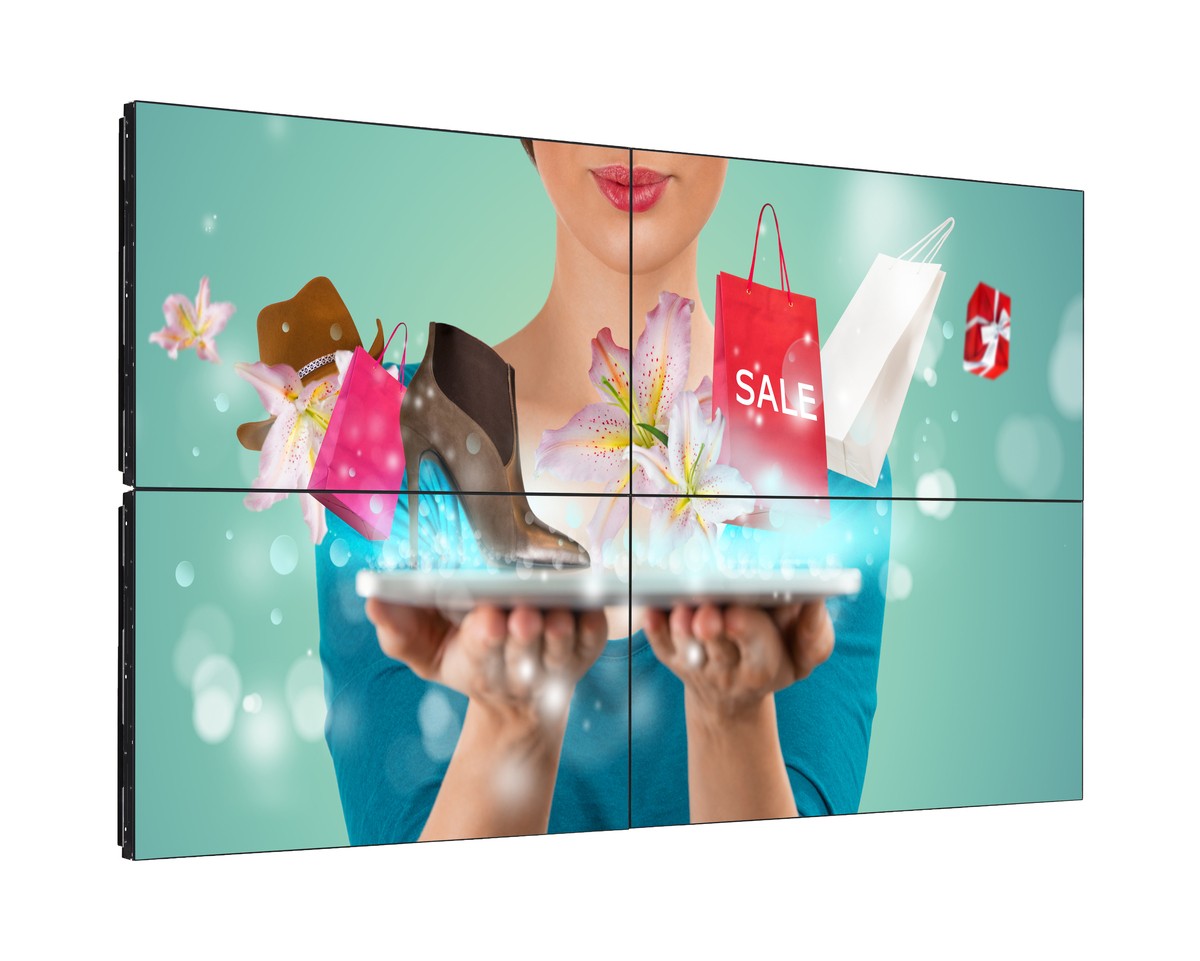

Philips X-Line 49BDL2105X/00 Videowall
Product code:Designed for 24/7 operation, the Philips X-Line Videowall display captivates customer attention with its immersive moving content. CMND makes managing your promotions and retail content easy, whilst FailOver adds greater peace of mind.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (metric) | 123 |
|---|---|
| Diagonal screen size (inch) | 48.5 |
| Panel resolution | 1920 x 1080p |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| Brightness | 500 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 8 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.55926 x 0.55926 mm |
| Display colours | 1.07 B |
| Contrast ratio (typical) | 1100:1 |
| Haze | 3% |
Additional information
Supported Display Resolution
| Computer formats | 720 x 400, 70 Hz / 800 x 600, 60, 75 Hz / 1024 x 768, 60, 75 Hz / 1280 x 768, 60 Hz / 1280 x 800, 60 Hz / 1280 x 960, 60 Hz / 1280 x 1024, 60 Hz / 1360 x 768, 60 Hz / 1366 x 768, 60 Hz / 1600 x 1200, 60 Hz / 1920 x 1080, 60 Hz / 640 x 480, 60, 72, 75 Hz |
|---|---|
| Video formats | 720p, 50, 60 Hz / 1080i, 25, 30 Hz / 1080p, 50, 60 Hz |
Connectivity
| Video input | Display Port1.2 (x 1), DVI-D (x 1), HDMI 2.0 (x 2), VGA (Analogue D-Sub) (x 1) |
|---|---|
| Audio input | 3.5 mm mini jack (x 1) |
| Video output | DisplayPort 1.2 (x 1) |
| Audio output | 3.5 mm Mini Jack (x 1) |
| External control | IR (in) 3.5 mm jack, LAN RJ45 (x2), RS232 (in/out) RJ45 |
| Other connections | OPS, USB 2.0 (x 1), Thermal sensor |
Convenience
| Placement | Landscape (24/7), Portrait (24/7) |
|---|---|
| Tiled Matrix | Up to 15 x 15 |
| Screen-saving functions | Pixel Shift, Low Bright |
| Signal loop through | DisplayPort, RJ45 |
| Ease of installation | Carrying Handles, Smart Insert |
| Energy-saving functions | Smart Power |
| Network controllable | LAN (RJ45) |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20 - 80% (without condensation) |
| Humidity range (storage) [RH] | 5 - 95% (without condensation) |
Power
| Consumption (Typical) | 100 |
|---|---|
| Consumption (Max) | 230 W |
| Consumption (On mode) | 64 W |
| Standby power consumption | 0.5 W |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 10 W (RMS) |
|---|
Accessories
| Included Accessories | Gap pad x 3, IR sensor cable (1.8 m) (x 1), Quick start guide (x 1), Remote control and AAA batteries, RJ45/RS232 converter, Wire Clamper (x 3), Power cord, DP cable (x1), RJ45 cable (x1), Edge alignment pin (x2), Kit-1 (x1), Kit-2 (x2) |
|---|
Miscellaneous
| On-Screen Display Languages | Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese |
|---|---|
| Regulatory approvals | CE, FCC Class A, RoHS, CB, ETL, BSMI |
| Warranty | 3 year warranty |
Dimensions
| Smart Insert mount | 100 mm x 100 mm, 6xM4xL6 |
|---|---|
| Set Width | 1077.6 |
| Set Height | 607.8 |
| Set Depth | 93.3 mm(D@WallMount)/103.3 mm(D@Handle) |
| Set Width (inch) | 42.44 |
| Set Height (inch) | 23.94 |
| Set Depth (inch) | 3.68 (D@WallMount)/4.1 (D@Handle) |
| Bezel width | 2.3 mm + 1.2 mm |
| Wall Mount | 400 mm x 400 mm, M6 |
| Product weight | 21.7 |
