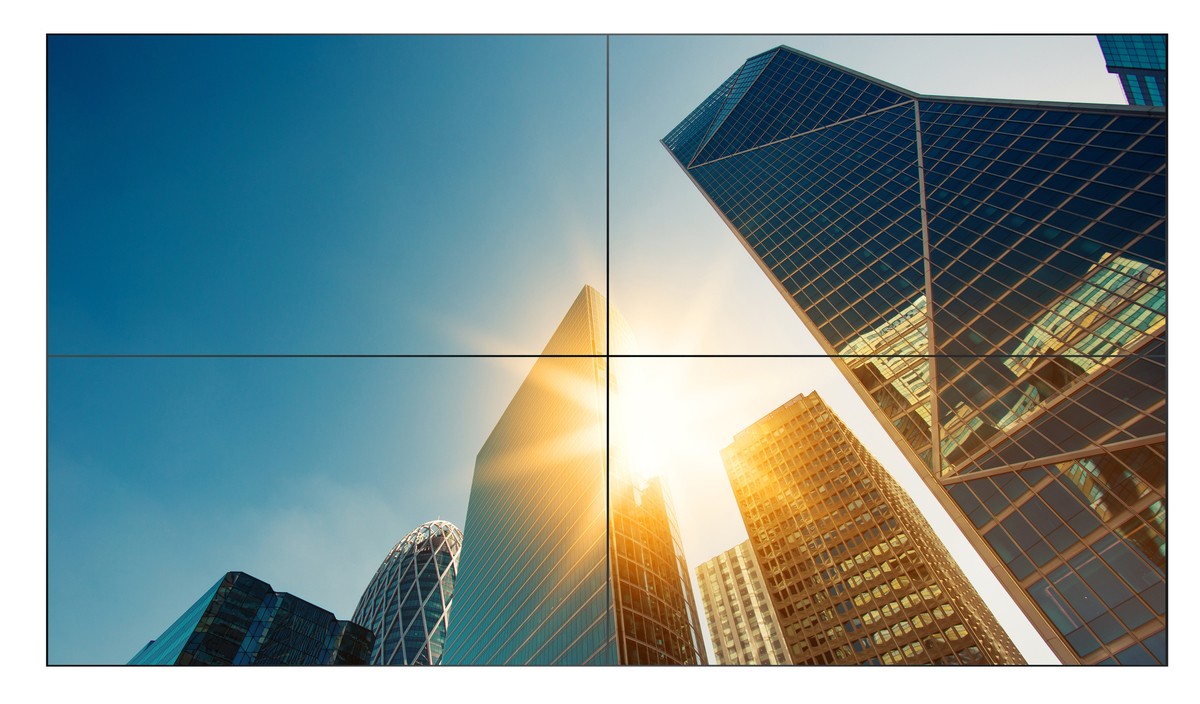

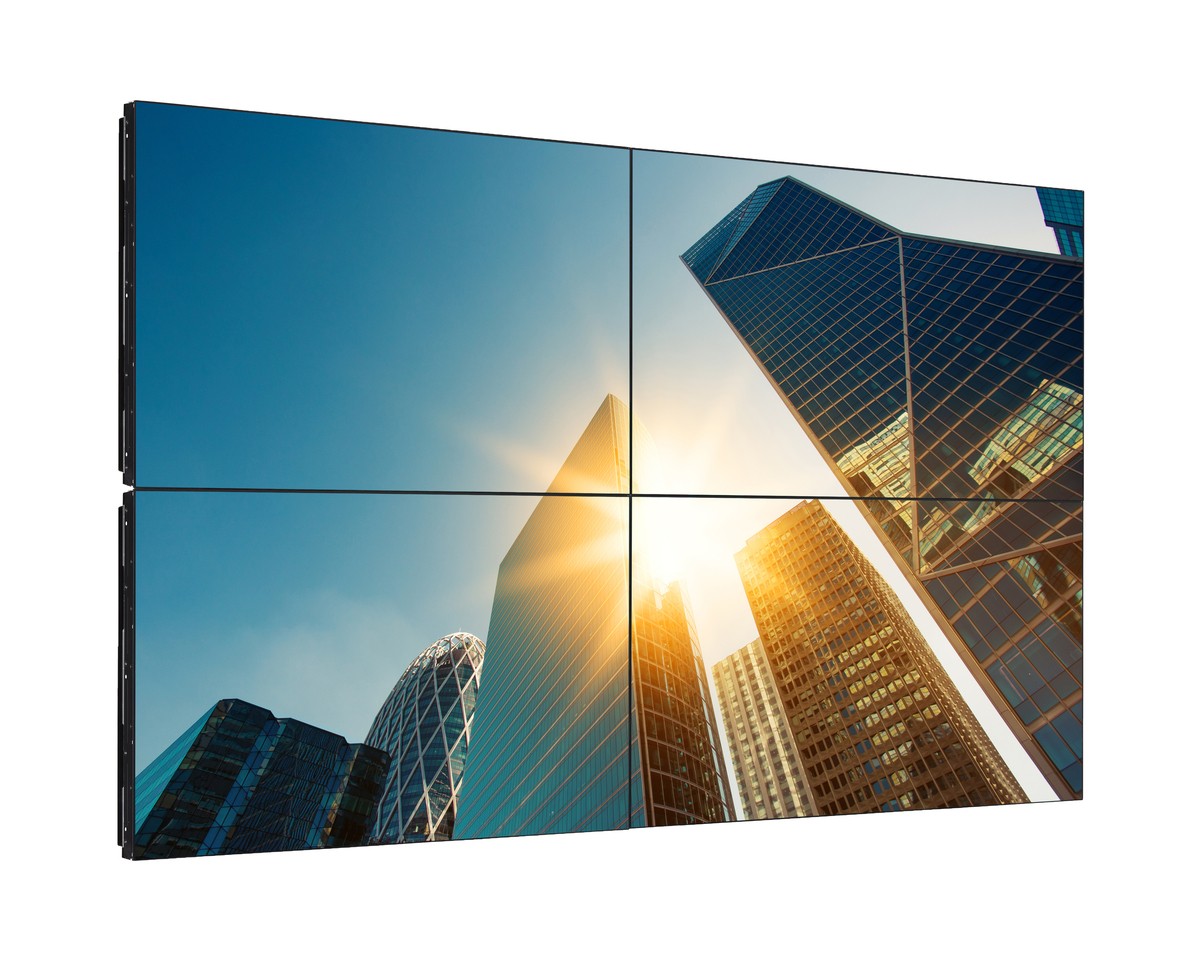

Philips X-Line 55BDL3207X/00 Videowall
Product code:Take presentations and corporate branding to the next level. The Philips X-Line Videowall display brings your content to life to ensure absolute audience engagement in every setting with Pure Colour Pro.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (metric) | 138.7 |
|---|---|
| Diagonal screen size (inch) | 54.6 |
| Panel resolution | 1920 x 1080p |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| Brightness | 700 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 8 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.63 x 0.63 mm |
| Display colours | 1.07 B |
| Contrast ratio (typical) | 1100:1 |
| Haze | 28% |
Additional information
Supported Display Resolution
| Computer formats | 1024 x 768, 60, 75 Hz / 1280 x 1024, 60 Hz / 1280 x 768, 60 Hz / 1280 x 800, 60 Hz / 1280 x 960, 60 Hz / 1360 x 768, 60 Hz / 1366 x 768, 60 Hz / 1600 x 1200, 60 Hz / 1920 x 1080, 60 Hz / 640 x 480, 60, 72, 75 Hz / 720 x 400, 70 Hz / 800 x 600, 60, 75 Hz |
|---|---|
| Video formats | 720p, 50, 60 Hz / 1080i, 25, 30 Hz / 1080p, 50, 60 Hz |
Connectivity
| Video input | DVI-D (x 1), HDMI 2.0 (x 2), VGA (Analogue D-Sub) (x 1), Display Port1.3 (x 1) |
|---|---|
| Audio input | 3.5 mm mini jack (x 1) |
| Video output | Display Port 1.3 (x 1) |
| Audio output | 3.5 mm Mini Jack (x 1) |
| External control | IR (in) 3.5 mm jack, LAN RJ45 (x2), Signal loopthrough RJ45 (x 2) |
| Other connections | OPS, USB 2.0 (x 1), Thermal sensor |
Convenience
| Placement | Landscape (24/7), Portrait (24/7) |
|---|---|
| Tiled Matrix | Up to 15 x 15 |
| Screen-saving functions | Pixel Shift, Low Bright |
| Signal loop through | DisplayPort, RJ45 |
| Ease of installation | Carrying Handles, Smart Insert |
| Energy-saving functions | Smart Power |
| Network controllable | LAN (RJ45) |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20 - 80% (without condensation) |
| Humidity range (storage) [RH] | 5 - 95% (without condensation) |
Power
| Consumption (Typical) | 170 |
|---|---|
| Consumption (Max) | 340 W |
| Consumption (On mode) | 115 W |
| Standby power consumption | <0.50 W |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 10 W (RMS) |
|---|
Accessories
| Included Accessories | Gap pad x 3, IR sensor cable (1.8 m) (x 1), Quick start guide (x 1), Remote control and AAA batteries, RJ45/RS232 converter, Wire Clamper (x 3), Power cord, DP cable (x1), RJ45 cable (x1), Edge alignment pin (x2), Kit-1 (x1), Kit-2 (x2) |
|---|
Miscellaneous
| On-Screen Display Languages | Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese |
|---|---|
| Regulatory approvals | CE, FCC Class A, RoHS, CB, ETL, BSMI, PSE |
| Warranty | 3 year warranty |
Dimensions
| Smart Insert mount | 100 mm x 100 mm, 6xM4xL6 |
|---|---|
| Set Width | 1213.4 |
| Set Height | 684.2 |
| Set Depth | 98.2 mm(D@WallMount)/99.35 mm(D@Handle) |
| Set Width (inch) | 47.77 |
| Set Height (inch) | 26.94 |
| Set Depth (inch) | 3.87 (D@WallMount)/3.91 (D@Handle) |
| Bezel width | 3.5 mm |
| Wall Mount | 400 mm x 400 mm, M6 |
| Product weight | 26.17 |
