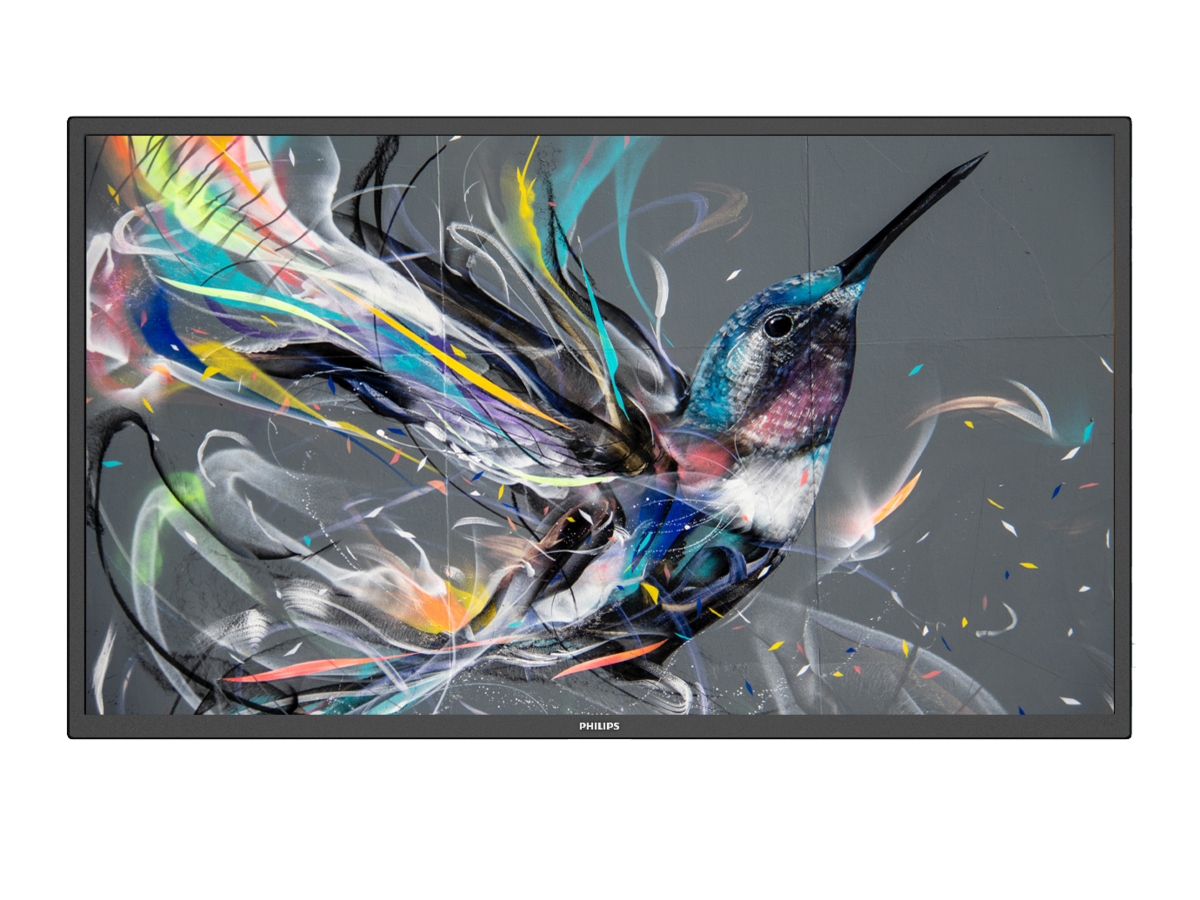

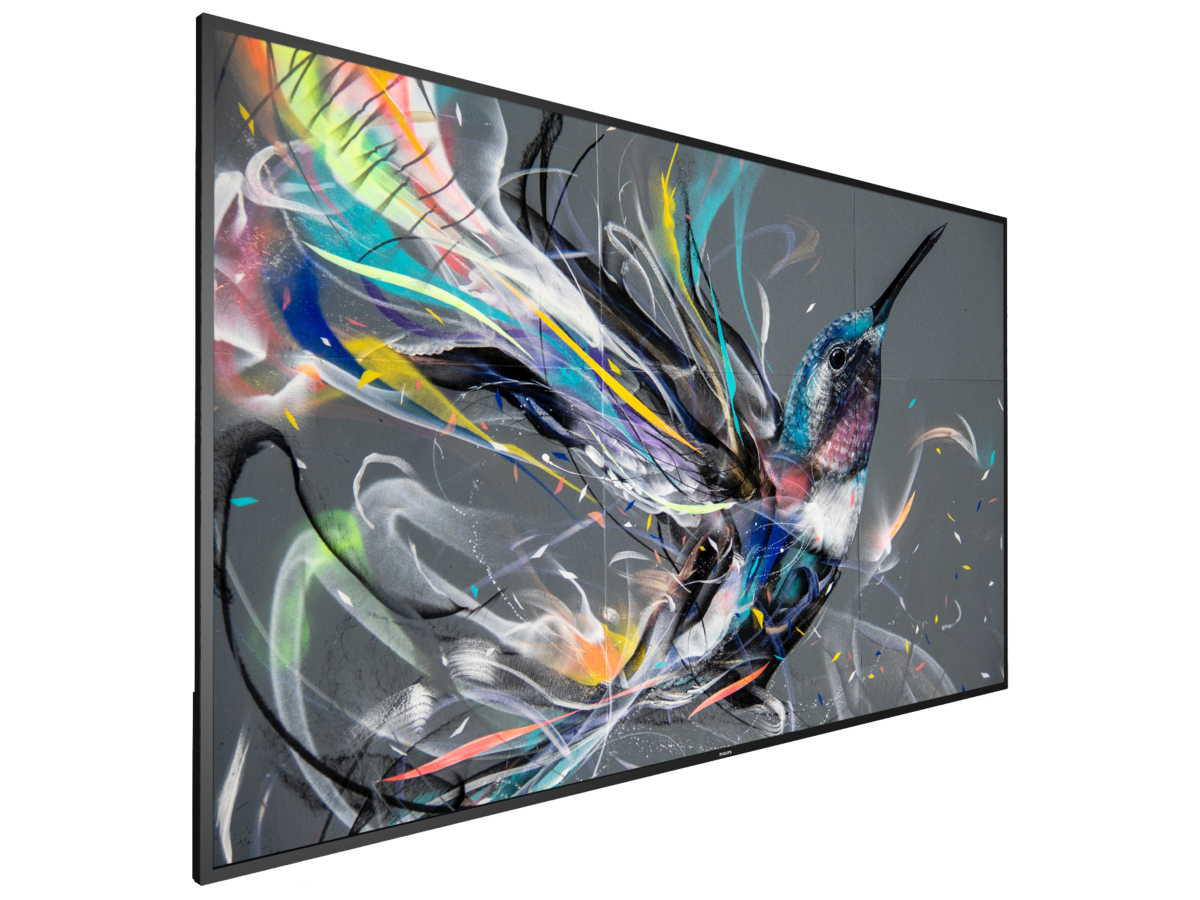

Philips Q-Line 86BDL3550Q/00 Digital Signage

Philips Q-Line 86BDL3550Q/00 Digital Signage

Philips Q-Line 86BDL3550Q/00 Digital Signage

Philips Q-Line 86BDL3550Q/00 Digital Signage

Philips Q-Line 86BDL3550Q/00 Digital Signage

Product code: 86BDL3550Q/00

Inform and enthral with a Philips Q-Line Professional Ultra HD Display. This reliable solution can be up and running as quickly as you need.

SEND AN ENQUIRY

Description

Picture/Display

Diagonal screen size (inch)	85.6
Diagonal screen size (metric)	217.4
Panel resolution	3840 x 2160
Optimum resolution	3840 x 2160 @ 60 Hz
Brightness	400
Contrast ratio (typical)	1200:1
Dynamic contrast ratio	500,000:1
Response time (typical)	8
Aspect ratio	16:9
Viewing angle (horizontal)	178
Viewing angle (vertical)	178
Pixel pitch	0.4935 x 0.4935 mm
Display colours	1.07 Billion
Picture enhancement	3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement
Panel technology	IPS
Clinical image	D-Image preset (dicom part 14 compatible)
Operating system	Android 8.0

Additional information

Supported Display Resolution

Computer formats	1920 x 1080, 60 Hz / 1680 x 1050, 60 Hz / 1600 x 1200, 60 Hz / 1440 x 900, 60 Hz / 1280 x 1024, 60 Hz / 1280 x 800, 60 Hz / 1280 x 720, 60 Hz / 1152 x 870, 75 Hz / 1024 x 768, 60, 70, 75 Hz / 800 x 600, 56, 60, 72, 75 Hz / 720 x 400, 70 Hz / 640 x 480, 60, 67, 72, 75 Hz / 1152 x 864, 75 Hz / 832 x 624, 75 Hz
Video formats	3840 x 2160, 60 Hz / 3840 x 2160, 30Hz / 576p, 50 Hz / 576i, 50 Hz / 480p, 60 Hz / 480i, 60 Hz / 1080p, 50, 60 Hz / 1080i, 50, 60 Hz / 720p, 50,60 Hz

Connectivity

Video input	DVI-D (x 1), HDMI 2.0 (x 3), USB 2.0 (x 2), VGA (Analogue D-Sub) (x 1)
Audio input	3.5 mm jack
Audio output	3.5 mm jack
External control	RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack, RJ45
Other connections	OPS

Convenience

Keyboard control	Hidden, Lockable
Network controllable	RS232/RJ45
Signal loop through	RS232, IR Loop through
Energy-saving functions	Smart Power
Remote control signal	Lockable
Tiled Matrix	Up to 15 x 15
Placement	Landscape (18/7), Portrait (18/7)
Start-up	Switch on delay, Switch on status, Boot on source
Start-up window	enable/disable Philips logo
Ease of installation	Smart Insert

Dimensions

Bezel width	15.5 mm (Even bezel)
Set Width	1929.0
Set Height	1100.0
Set Depth	69.5 mm(D@wall mount)/91.8 mm(D@handle)
Set Width (inch)	75.94
Set Height (inch)	43.31
Set Depth (inch)	2.74(@ wall mount)/3.61(@ handle)
Product weight	49.5
Product weight (lb)	109.13
Wall Mount	600 x 400 mm, M8

Operating conditions

Altitude	0 ~ 3000 m
Temperature range (operation)	0 ~ 40
Temperature range (storage)	-20 ~ 60
MTBF	50,000
Humidity range (operation)[RH]	20~80% RH (No condensation)
Humidity range (storage) [RH]	5~95% RH (No condensation)

Power

Mains power	100–240 V~, 50/60 Hz
Standby power consumption	<0.5 W
Power Saving Features	Smart Power
Consumption (Max)	480 W
Consumption (Typical)	320
Energy Label Class	G

Sound

Built-in speakers	2 x 10 W RMS

Accessories

Included accessories	AC Power Cord, RS232 cable, Remote Control, Batteries for remote control, Quick start guide
Included Accessories	IR sensor cable (1.8 m) (x 1), RS232 daisy-chain cable, M3 screw (X 1), M4 Screw (x 1), Philips logo (x 1), USB Cover (x 1)

Multimedia Applications

USB Playback Video	MPEG/H.264/H.263/H.265
USB Playback Picture	BMP/JPEG/PNG
USB Playback Audio	AAC/HEAAC/MPEG

Miscellaneous

Warranty	3 year warranty
On-Screen Display Languages	Simplified Chinese, Traditional Chinese, English, French, German, Italian, Polish, Russian, Spanish, Turkish, Japanese, Arabic
Regulatory approvals	CE/CB/BSMI/CU/ETL/FCC Class A/PSB/VCCI

Internal Player

CPU	Dual core cortex A53 1.1 GHz/Dual core cortex A73 1.15 GHz
GPU	ARM Mali G51
Memory	2 GB DDR3/8 GB
