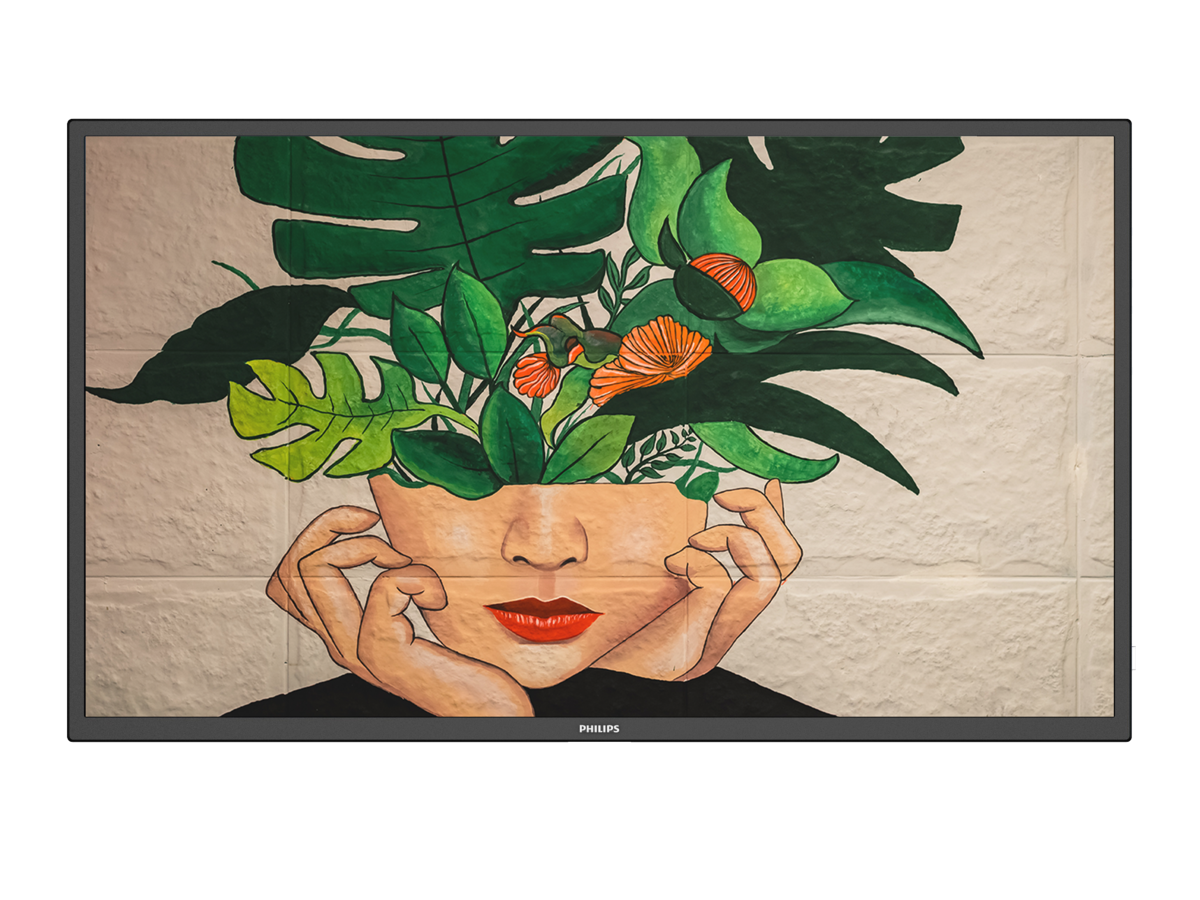

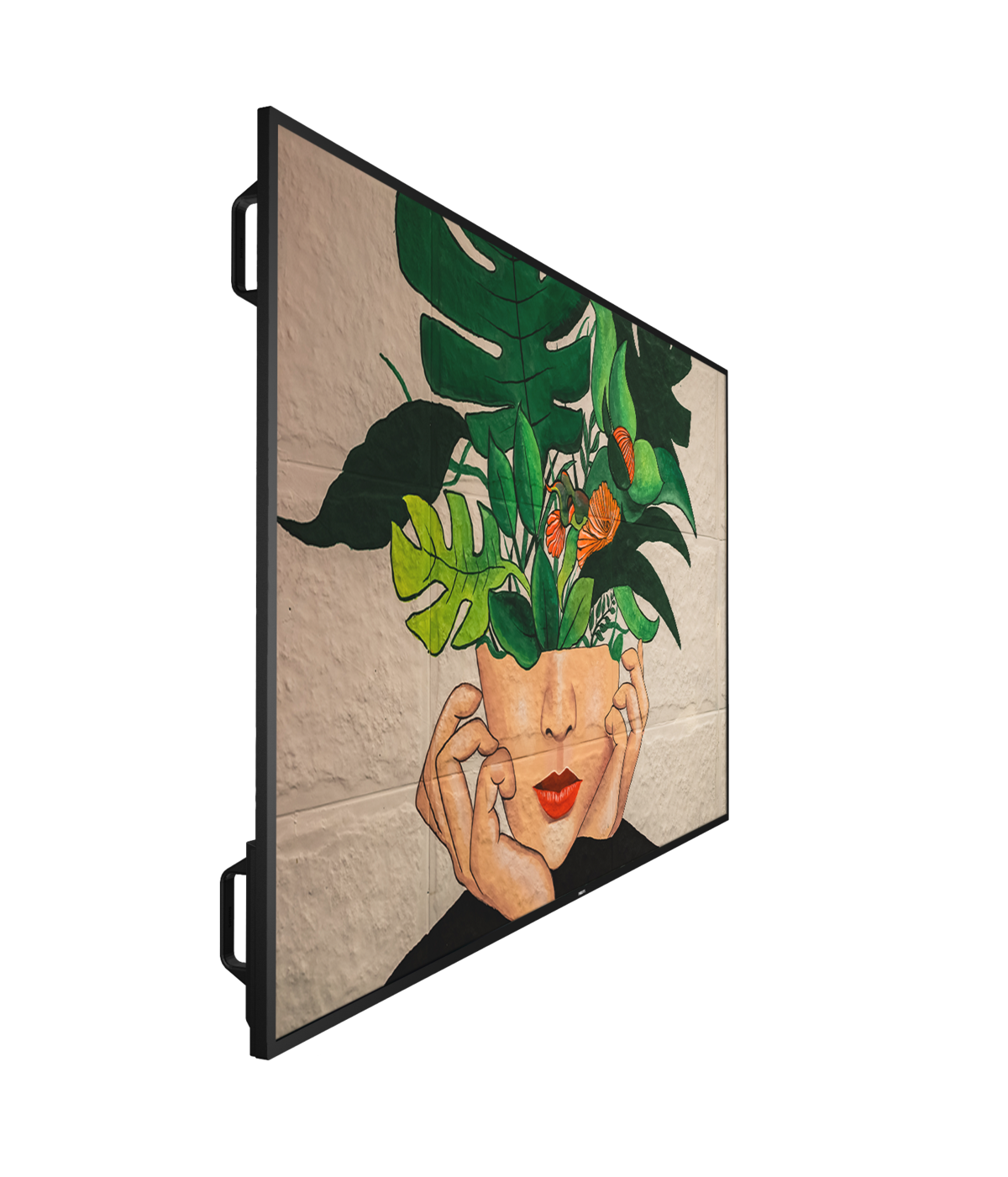

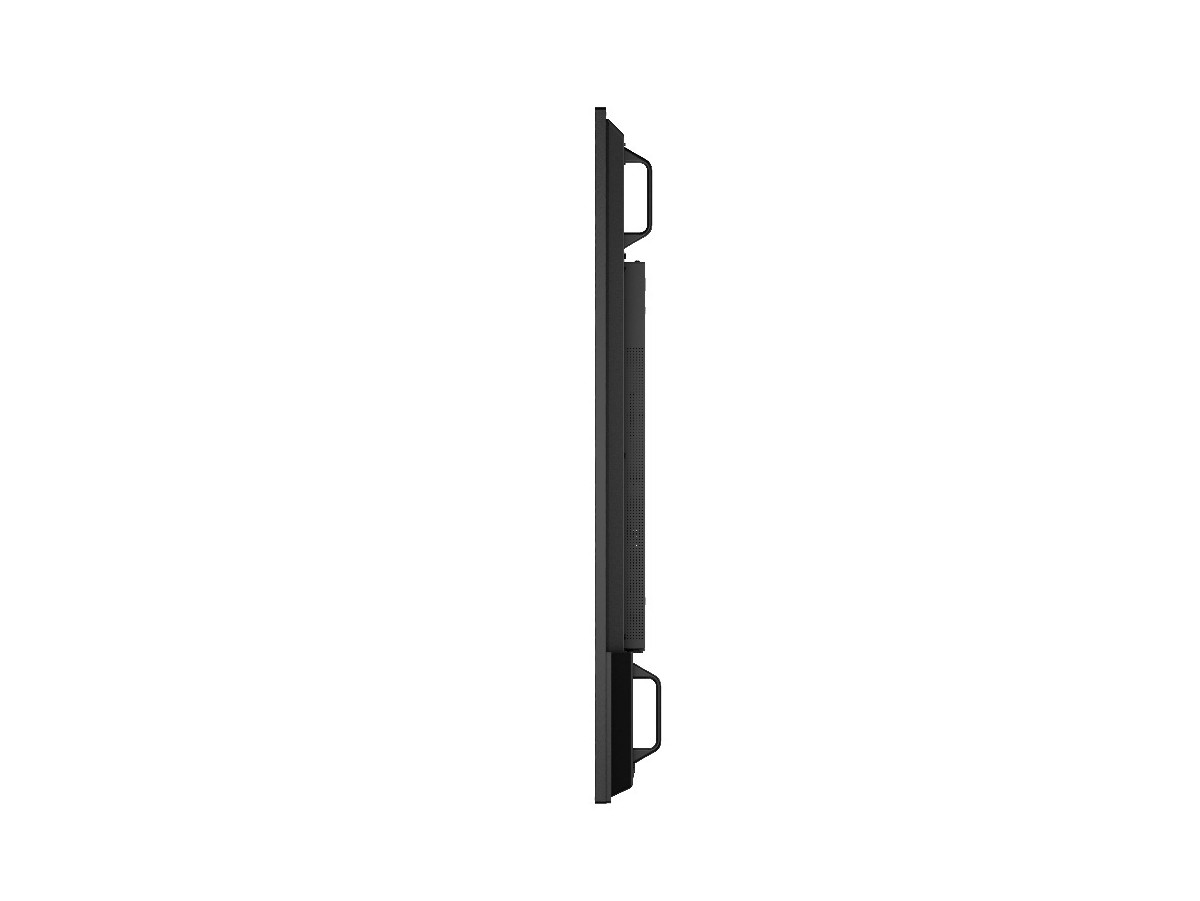

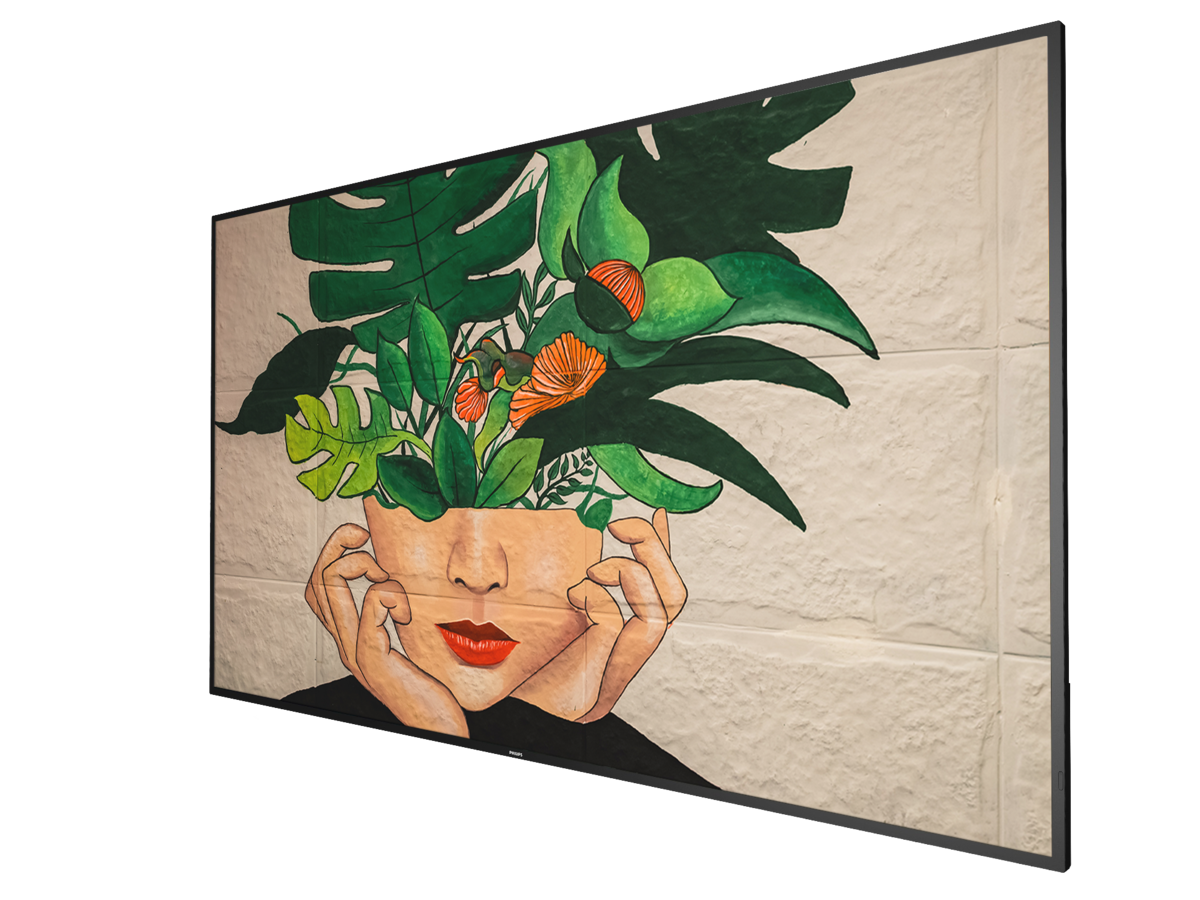

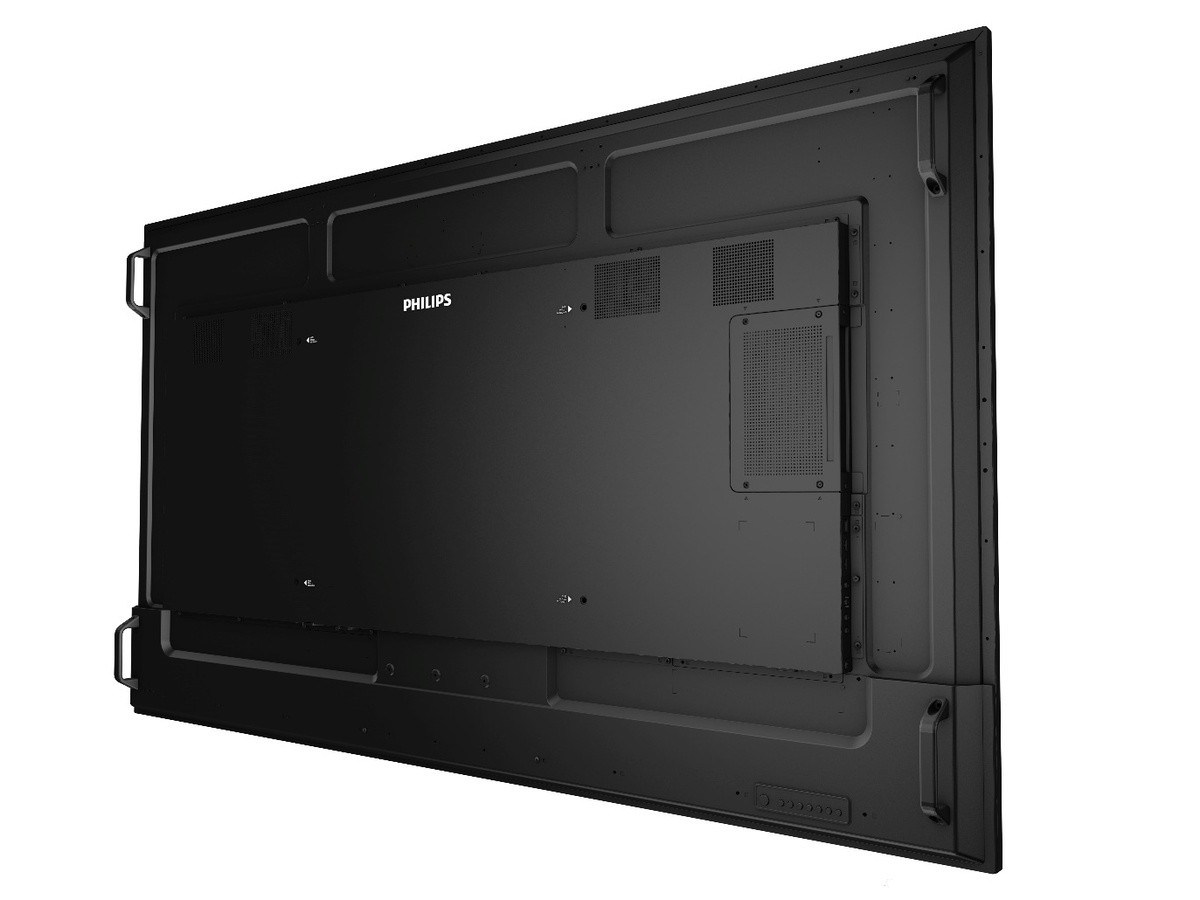

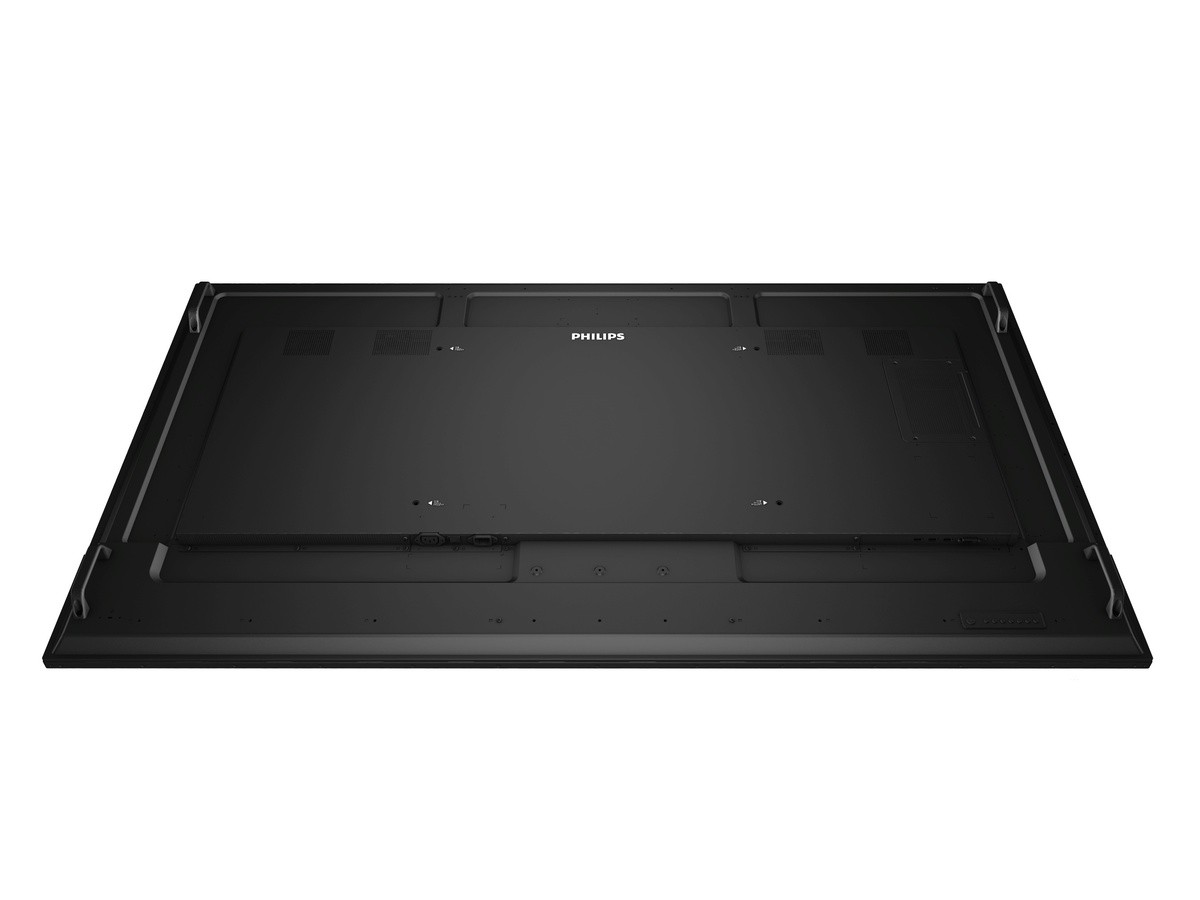

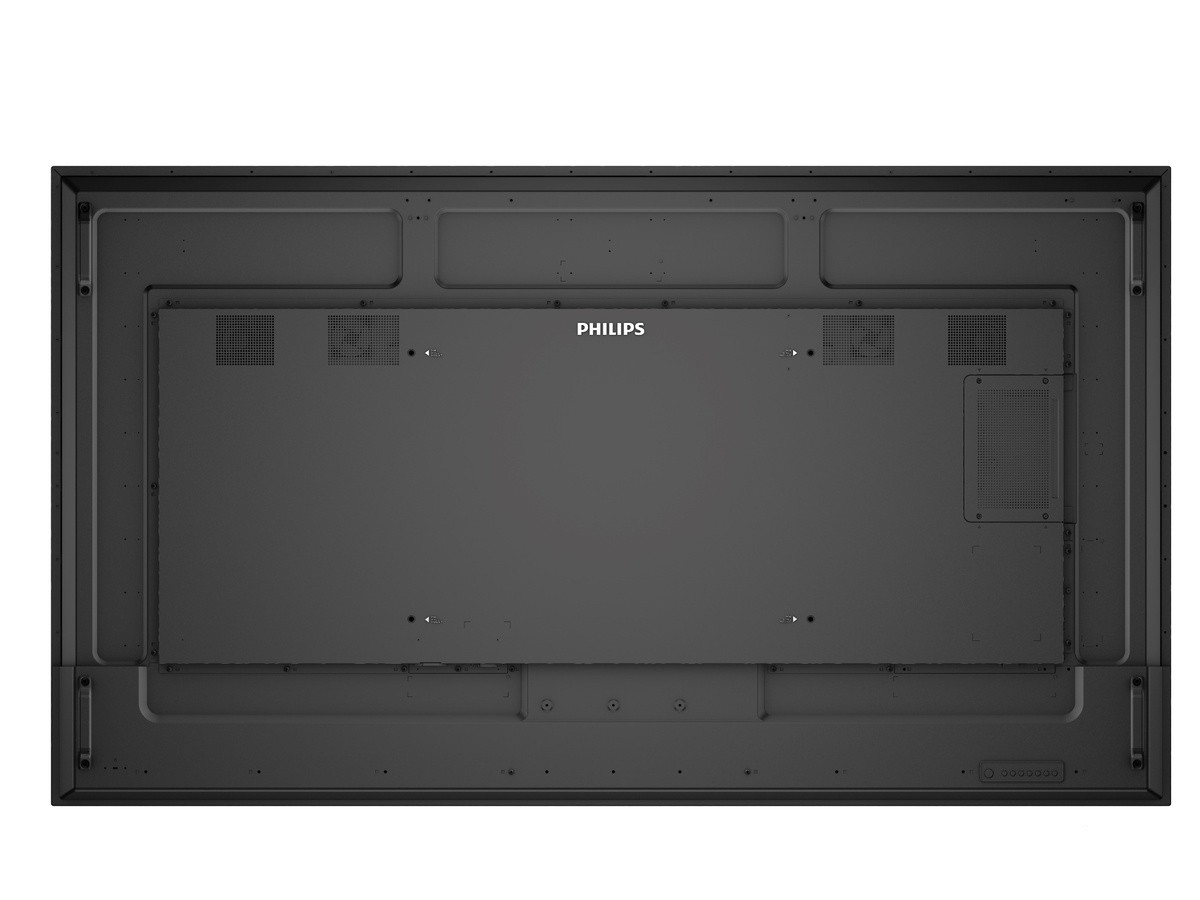

Philips D-Line 75BDL4511D/00 Digital Signage
Product code:Make it stand out with a fast Philips D-Line Professional 4K UHD display. Philips superb picture quality ensures true colours and intense contrast. You can effortlessly display content from multiple sources on a single screen.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (metric) | 189.3 |
|---|---|
| Diagonal screen size (inch) | 74.5 |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 500 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 8 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.4296 x 0.429 6 mm |
| Display colours | 1.07 Billion |
| Panel technology | ADS |
| Contrast ratio (typical) | 1200:1 |
| Haze | 25% |
Additional information
Supported Display Resolution
| Computer formats | 640 x 480, 60 Hz / 800 x 600, 60 Hz / 1024 x 768, 60 Hz / 1280 x 720, 60 Hz / 1280 x 1024, 60 Hz / 1440 x 900, 60 Hz / 1600 x 900, 60 Hz / 1680 x 1050, 60 Hz / 1920 x 1080, 60 Hz / 3840 x 2160, 30, 60 Hz |
|---|---|
| Video formats | 480i, 60 Hz / 480p, 60 Hz / 576p, 50 Hz / 576i, 50 Hz / 720p, 50,60 Hz / 1080i, 50, 60 Hz / 1080p, 50, 60 Hz / 2160p, 24, 30, 60 Hz |
Connectivity
| Video input | Display Port1.2 (x 1), DVI-I (x 1), HDMI 2.0 (x 3), USB 2.0 (x 2) |
|---|---|
| Audio input | 3.5 mm jack |
| Video output | DisplayPort 1.2 (x 1), HDMI 2.0 (x 1) |
| Audio output | 3.5 mm jack |
| External control | IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack |
| Other connections | OPS |
Convenience
| Placement | Landscape (24/7), Portrait (24/7) |
|---|---|
| Screen-saving functions | Pixel Shift, Low Bright |
| Signal loop through | DisplayPort, RS232, HDMI, IR Loop through |
| Energy-saving functions | Smart Power |
| Network controllable | RS232/RJ45 |
| Keyboard control | Hidden, Lockable |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20–80% RH (No condensation) |
| Humidity range (storage) [RH] | 5–95% RH (No condensation) |
Power
| Consumption (Typical) | 185 |
|---|---|
| Consumption (Max) | 345 W |
| Standby power consumption | <0.5 W |
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Accessories
| Included Accessories | AC Switch Cover, Philips logo (x 1), RS232 daisy-chain cable, AC power cord, IR sensor cable (1.8 m) (x 1), Quick start guide (x 1), Remote control and AAA batteries, RS232 cable, USB Cover and screw x 1, Wire Clamper (x 3) |
|---|
Miscellaneous
| On-Screen Display Languages | Arabic, Dutch, Danish, English, French,Finnish, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Simplified Chinese, Turkish, Traditional Chinese |
|---|---|
| Regulatory approvals | CE/FCC Class A/CCC/RoHS/CB/BSMI/EMF/PSB/EnergyStar 8.0/ETL/CECP/EAC |
| Warranty | 3 year warranty |
Multimedia Applications
| USB Playback Video | H.263/H.264/H.265/MPEG |
|---|---|
| USB Playback Picture | BMP/JPEG/PNG |
| USB Playback Audio | AAC/MPEG/HEAAC |
Dimensions
| Set Width | 1683.5 |
|---|---|
| Set Height | 961.7 |
| Set Depth | 69.5 (@Wall mount)/ 91.8 (@Handle) |
| Set Width (inch) | 66.28 |
| Set Height (inch) | 37.86 |
| Set Depth (inch) | 2.74 inch (wall mount)/ 3.61 (@Handle) |
| Bezel width | 14.9 mm (Even bezel) |
| Wall Mount | 400 (H) x 400 (V) mm, M8 |
| Product weight | 35.9 |
| Product weight (lb) | 79.15 |
