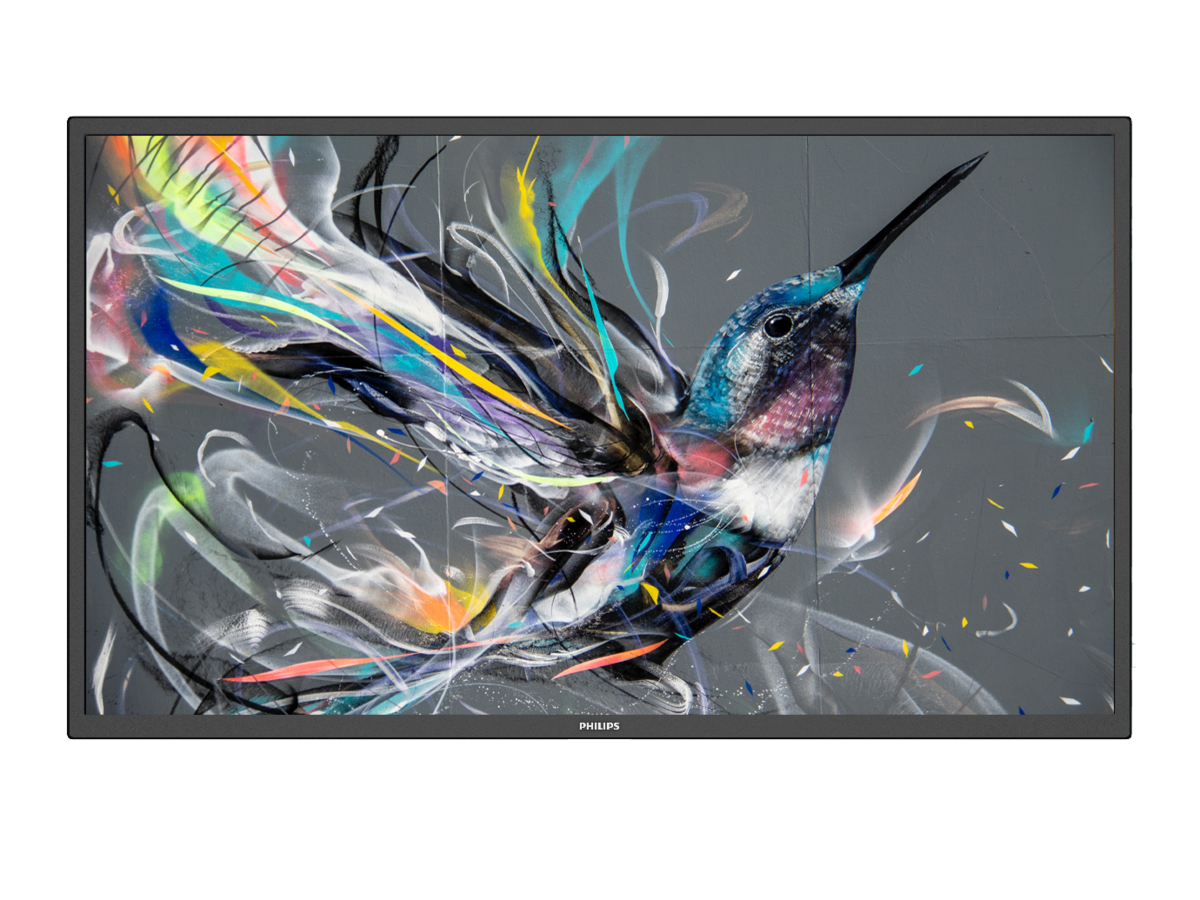

Philips Q-Line 86BDL3511Q/00 Digital Signage
Product code:Inform and enthral with a Philips Q-Line Professional Ultra HD Display. This reliable solution can be up and running as quickly as you need.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (metric) | 217.4 |
|---|---|
| Diagonal screen size (inch) | 85.6 |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 400 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 8 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.4935 x 0.4935 mm |
| Display colours | 1.07 Billion |
| Panel technology | IPS |
| Contrast ratio (typical) | 1200:1 |
| Clinical image | D-Image preset (dicom part 14 compatible) |
| Haze | 25% |
Additional information
Supported Display Resolution
| Computer formats | 640 x 480, 60, 67, 72, 75 Hz / 720 x 400, 70 Hz / 800 x 600, 56, 60, 72, 75 Hz / 832 x 624, 75 Hz / 1024 x 768, 60, 70, 75 Hz / 1152 x 864, 75 Hz / 1152 x 870, 75 Hz / 1280 x 720, 60 Hz / 1280 x 800, 60 Hz / 1280 x 1024, 60 Hz / 1440 x 900, 60 Hz / 1600 x 1200, 60 Hz / 1680 x 1050, 60 Hz / 1920 x 1080, 60 Hz |
|---|---|
| Video formats | 480i, 60 Hz / 480p, 60 Hz / 576p, 50 Hz / 576i, 50 Hz / 720p, 60 Hz / 1080i, 50, 60 Hz / 1080p, 50, 60 Hz / 3840 x 2160, 30Hz / 3840 x 2160, 60 Hz |
Connectivity
| Video input | DVI-I (x 1), HDMI 2.0 (x 3), USB 2.0 (x 2) |
|---|---|
| Audio input | 3.5 mm jack |
| Audio output | 3.5 mm jack |
| External control | IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack |
| Other connections | OPS |
Convenience
| Placement | Landscape (18/7), Portrait (18/7) |
|---|---|
| Tiled Matrix | Up to 10 x 15 |
| Signal loop through | RS232, IR Loop through |
| Ease of installation | Smart Insert |
| Energy-saving functions | Smart Power |
| Network controllable | RS232/RJ45 |
| Keyboard control | Hidden, Lockable |
| Remote control signal | Lockable |
| Start-up | Switch on delay, Switch on status, Boot on source |
| Start-up window | enable/disable Philips logo |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20~80% RH (No condensation) |
| Humidity range (storage) [RH] | 5~95% RH (No condensation) |
Power
| Consumption (Typical) | 360 |
|---|---|
| Consumption (Max) | 500 W |
| Standby power consumption | <0.5 W |
| Mains power | 100–240 V~, 50/60 Hz |
| Power Saving Features | Smart Power |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Accessories
| Included Accessories | IR sensor cable (1.8 m) (x 1), Philips logo (x 1), AC power cord, AC Switch Cover, Quick start guide (x 1), Remote control and AAA batteries, RS232 daisy chain cable (x 1), USB Cover and screw x 1, Wire Clamper (x 3) |
|---|
Miscellaneous
| On-Screen Display Languages | Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese |
|---|---|
| Regulatory approvals | CE/FCC Class A/CB/BSMI/VCCI/CU/ETL/EMF/PSB |
| Warranty | 3 year warranty |
Multimedia Applications
| USB Playback Video | H.264/JPEG/MPEG/WMV3 |
|---|---|
| USB Playback Picture | BMP/JPEG/PNG |
| USB Playback Audio | AAC/WMA/MPEG/HEAAC |
Dimensions
| Set Width | 1929.0 |
|---|---|
| Set Height | 1100.0 |
| Set Depth | 69.5 mm(D@wall mount)/91.8 mm(D@handle) |
| Set Width (inch) | 75.94 |
| Set Height (inch) | 43.31 |
| Set Depth (inch) | 2.74(@ wall mount)/3.61(@ handle) |
| Bezel width | 15.5 mm (Even bezel) |
| Wall Mount | 600 x 400 mm, M8 |
| Product weight | 49.5 |
| Product weight (lb) | 109.13 |
