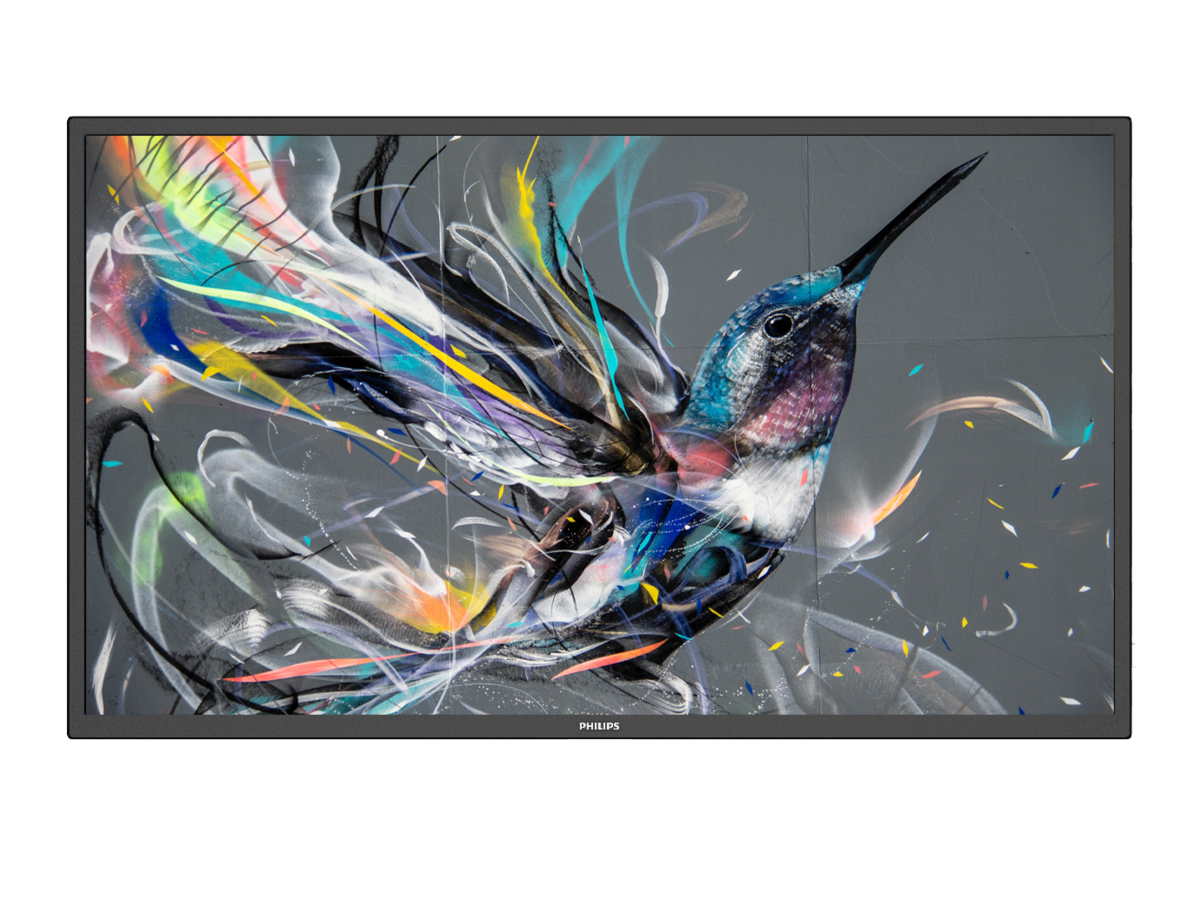

Philips Q-Line 65BDL3550Q/00 Digital Signage
Product code:Inform and enthral with a Philips Q-Line Professional Ultra HD Display. This reliable solution can be up and running as quickly as you need.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (inch) | 64.5 |
|---|---|
| Diagonal screen size (metric) | 163.9 |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 400 |
| Contrast ratio (typical) | 1300:1 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 9 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.372 x 0.372 mm |
| Display colours | 1.07 Billion |
| Picture enhancement | 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement |
| Panel technology | IPS |
| Clinical image | D-Image preset (dicom part 14 compatible) |
| Operating system | Android 8.0 |
Additional information
Supported Display Resolution
| Computer formats | 1920 x 1080, 60 Hz / 1680 x 1050, 60 Hz / 1600 x 1200, 60 Hz / 1440 x 900, 60 Hz / 1280 x 1024, 60 Hz / 1280 x 800, 60 Hz / 1280 x 720, 60 Hz / 1152 x 870, 75 Hz / 1024 x 768, 60, 70, 75 Hz / 800 x 600, 56, 60, 72, 75 Hz / 720 x 400, 70 Hz / 640 x 480, 60, 67, 72, 75 Hz / 1152 x 864, 75 Hz / 832 x 624, 75 Hz / |
|---|---|
| Video formats | 3840 x 2160, 60 Hz / 3840 x 2160, 30Hz / 576p, 50 Hz / 576i, 50 Hz / 480p, 60 Hz / 480i, 60 Hz / 1080p, 50, 60 Hz / 1080i, 50, 60 Hz / 720p, 50,60 Hz |
Connectivity
| Video input | DVI-D (x 1), HDMI 2.0 (x 3), USB 2.0 (x 2), VGA (Analogue D-Sub) (x 1) |
|---|---|
| Audio input | 3.5 mm jack |
| Audio output | 3.5 mm jack |
| External control | RS232C (in/out) 2.5 mm jack, IR (in/out) 3.5 mm jack, RJ45 |
Convenience
| Keyboard control | Hidden, Lockable |
|---|---|
| Network controllable | RS232/RJ45 |
| Signal loop through | RS232, IR Loop through |
| Energy-saving functions | Smart Power |
| Remote control signal | Lockable |
| Tiled Matrix | Up to 15 x 15 |
| Placement | Landscape (18/7), Portrait (18/7) |
| Start-up | Switch on delay, Switch on status, Boot on source |
| Start-up window | enable/disable Philips logo |
| Ease of installation | Smart Insert |
Dimensions
| Bezel width | 14.9 mm (Even bezel) |
|---|---|
| Set Width | 1462.3 |
| Set Height | 837.3 |
| Set Depth | 68.9 mm(D@wall mount)/89.9 mm(D@handle) |
| Set Width (inch) | 57.57 |
| Set Height (inch) | 32.96 |
| Set Depth (inch) | 2.71(@ wall mount)/3.54(@ handle) |
| Product weight | 27.80 |
| Product weight (lb) | 61.29 |
| Wall Mount | 400 x 400 mm, M8 |
Operating conditions
| Altitude | 0 ~ 3000 m |
|---|---|
| Temperature range (operation) | 0 ~ 40 |
| Temperature range (storage) | -20 ~ 60 |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20~80% RH (No condensation) |
| Humidity range (storage) [RH] | 5~95% RH (No condensation) |
Power
| Mains power | 100–240 V~, 50/60 Hz |
|---|---|
| Standby power consumption | <0.5 W |
| Power Saving Features | Smart Power |
| Consumption (Max) | 210 W |
| Consumption (Typical) | 155 |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Accessories
| Included accessories | AC Power Cord, RS232 cable, Remote Control, Batteries for remote control, Quick start guide |
|---|---|
| Included Accessories | IR sensor cable (1.8 m) (x 1), RS232 daisy-chain cable, M3 screw (x 2), Philips logo (x 1), USB Cover (x 1) |
Multimedia Applications
| USB Playback Video | MPEG/H.264/H.263/H.265 |
|---|---|
| USB Playback Picture | BMP/JPEG/PNG |
| USB Playback Audio | AAC/HEAAC/MPEG |
Miscellaneous
| Warranty | 3 year warranty |
|---|---|
| On-Screen Display Languages | Simplified Chinese, Traditional Chinese, English, French, German, Italian, Polish, Russian, Spanish, Turkish, Japanese, Arabic |
| Regulatory approvals | CE/CB/BSMI/CU/EPA/ETL/FCC Class A/PSB/VCCI/J-Moss |
Internal Player
| CPU | Dual core cortex A53 1.1 GHz/Dual core cortex A73 1.15 GHz |
|---|---|
| GPU | ARM Mali G51 |
| Memory | 2 GB DDR3/8 GB |
