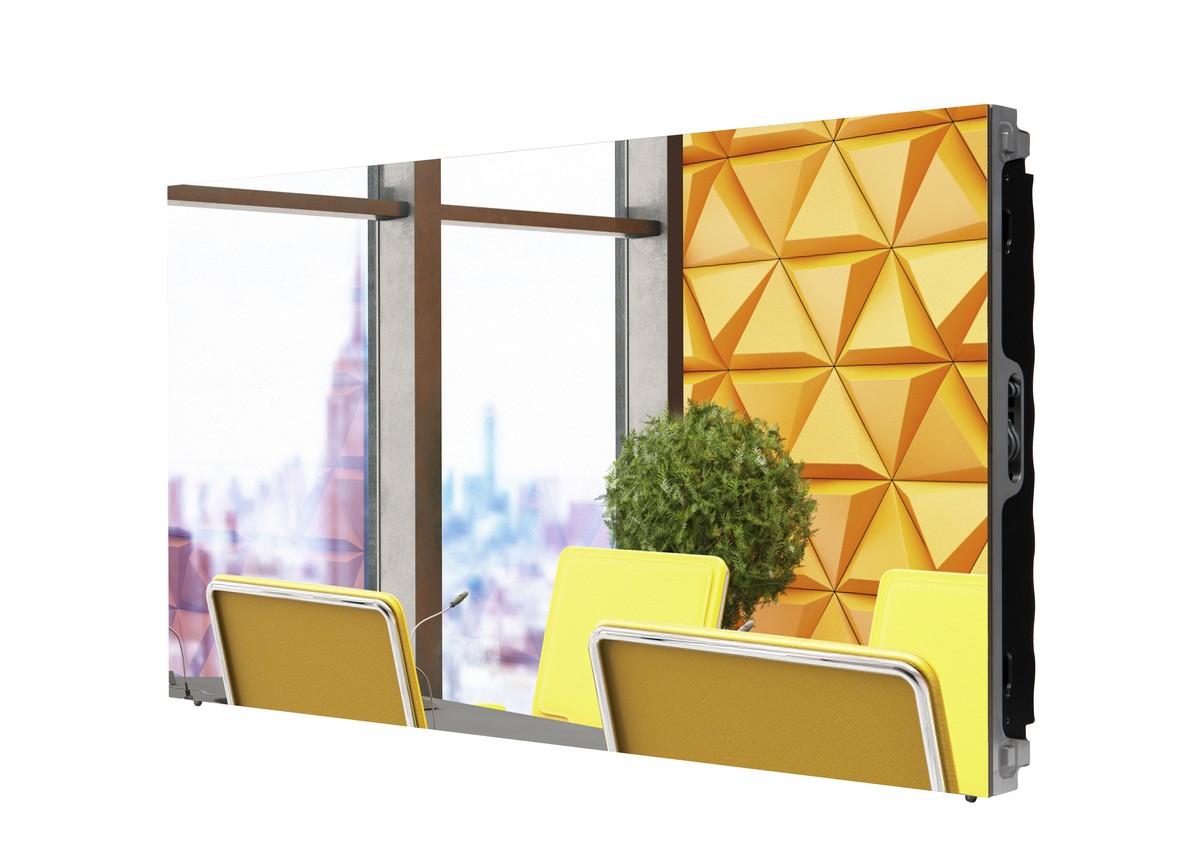

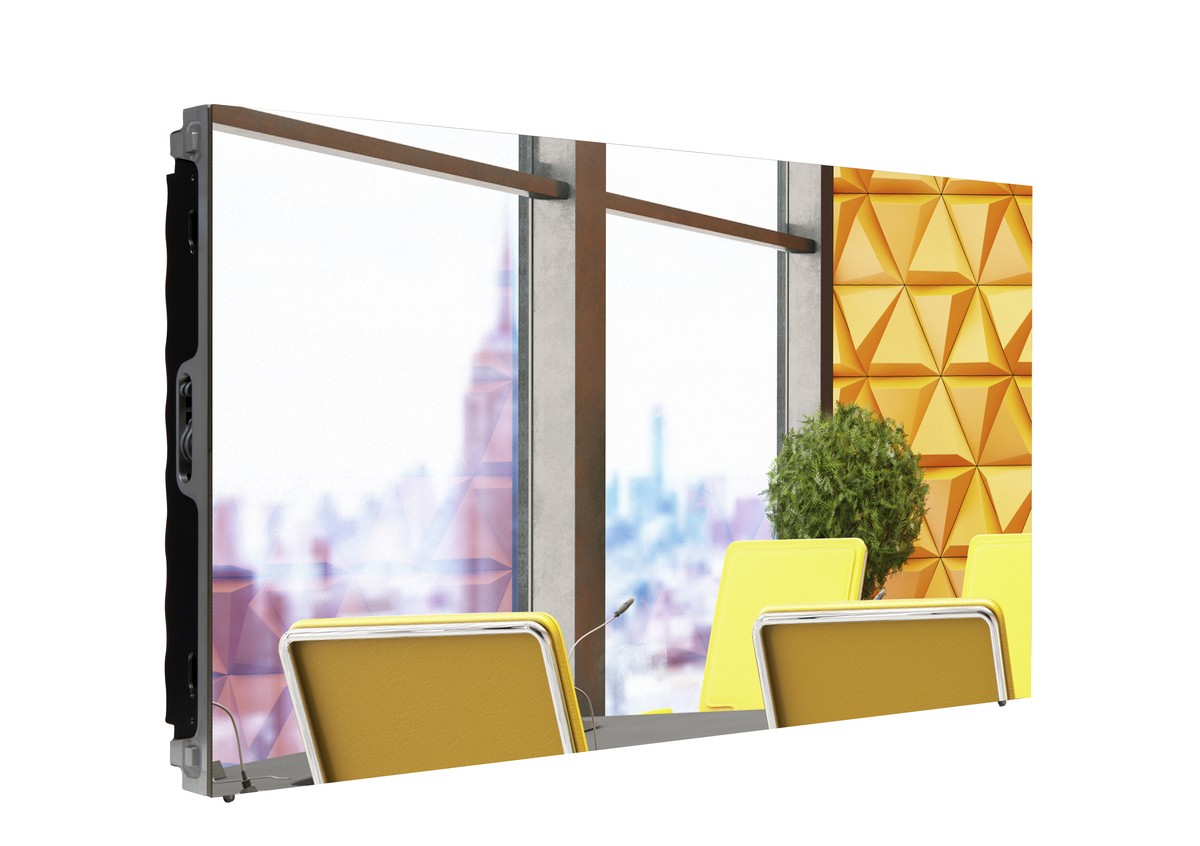

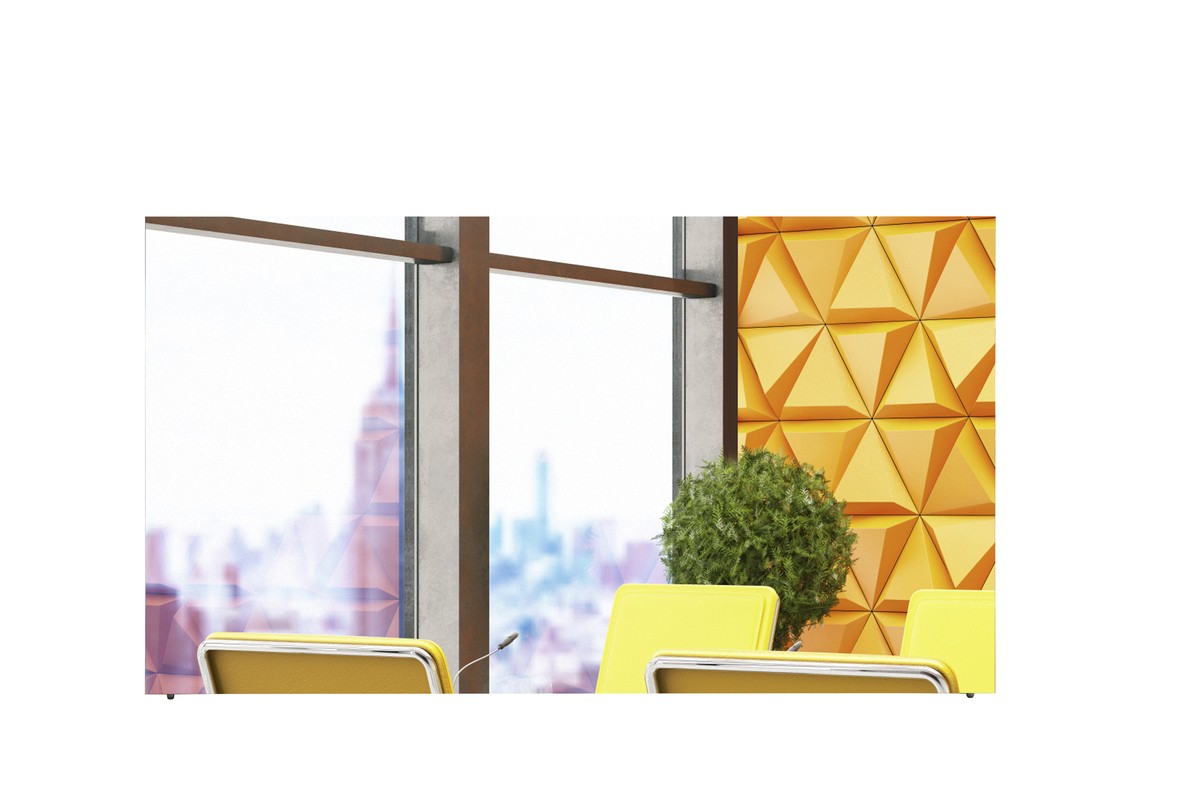

Philips L-Line 9000 Series 27BDL9115L/00 LED
Product code:Fill their imagination. Create seamless displays. With an L-Line Professional LED Display Wall, the possibilities are endless. The bezel-free design, wide viewing angle and breathtaking brightness ensure authoritative imaging. At any size.
SEND AN ENQUIRYDescription
Picture/Display
| Brightness before calibration | 900 nits |
|---|---|
| Brightness after calibration | 800 nits |
| Colour temperature default | 6500±500 K |
| Colour temperature adjust range | 4000~9500 K (by software) |
| Viewing angle (horizontal) | 160 |
| Viewing angle (vertical) | 160 |
| Brightness Uniformity | >=97% |
| Contrast ratio (typical) | >=3000:1 |
| Calibration (brightness/colour) | Supported |
| Refresh rate (Hz) | 1920~3840 |
| Frame frequency (Hz) | 50 & 60 |
| Aspect ratio | 16:9 |
| Picture enhancement | Dynamic contrast enhancement, Wide colour gamut display |
| Placement | Landscape |
| Usage | 24/7 hrs, Indoor |
Additional information
Convenience
| Signal control loop through | RJ45 |
|---|---|
| Ease of installation | Guide pins, Light weight, Locking mechanism for cabinet |
| Power loop through | For 230 V environments: 8 cabinets or less, for 110 V environments: 4 cabinets or less |
Operating conditions
| Temperature range (operation) | -20~45 |
|---|---|
| Temperature range (storage) | -20~50 |
| Humidity range (operation)[RH] | 10~80% |
| Humidity range (storage) [RH] | 10~85% |
Power
| Max Power consumption (W) | <=160 W |
|---|---|
| Consumption (Typical) | <=53 |
| Input voltage | AC100~240 V (50 and 60 Hz) |
| BTU Value m2 | 2624 BTU/m2 |
Miscellaneous
| Warranty | 3 years |
|---|---|
| Regulatory approvals | FCC SDOC (Part 15), EMC Class B, EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, RoHS |

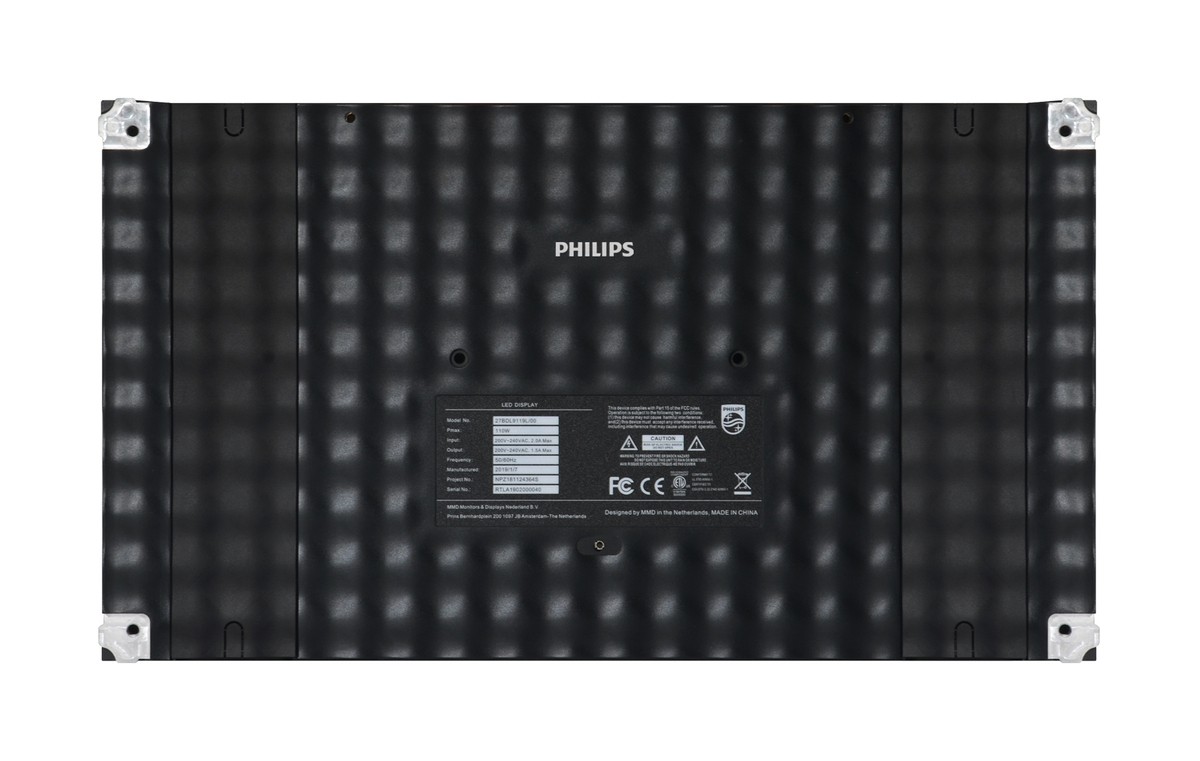

Cabinet
| Cabinet size (mm) | 608 x 342 x 55 |
|---|---|
| Cabinet diagonal (inch) | 27.5 |
| Cabinet resolution (W x H) | 384 × 216 |
| Weight (kg) | 8(+/-0.4 Kg) |
| Cabinet pixels (Dot) | 82,944 |
| Cabinet area (m2) | 0.2079 |
| Data connector | RJ45 |
| Power connector | In/Out(C14/C13) |
| Cabinet construction | Die-Casting Aluminium |
| Receiving card quantity | 2 pcs |
| Receiving card spec. | A5S/A5S Plus |
| Receiving card brand | Novastar |
Module
| LED type | SMD 1010 Gold wire |
|---|---|
| Pixel constitution | 1R1G1B |
| LED lifetime(Hrs) | 100 000 |
| Module size (WxHxD in mm) | 152 x 171 x 10 |
| Pixel pitch (mm) | 1.583 |
| Module resolution (WxH pixels) | 96 x 108 |
Accessories
| Power loop through cable | 1 pcs |
|---|---|
| LAN cable (RJ45, CAT-5) | 1 pcs |
| Common connecting piece | 4 pcs |
| Screw bolt | 4 pcs (M8*20) (Inner Hexagon Screw) |
| QSG | 1 pcs |
