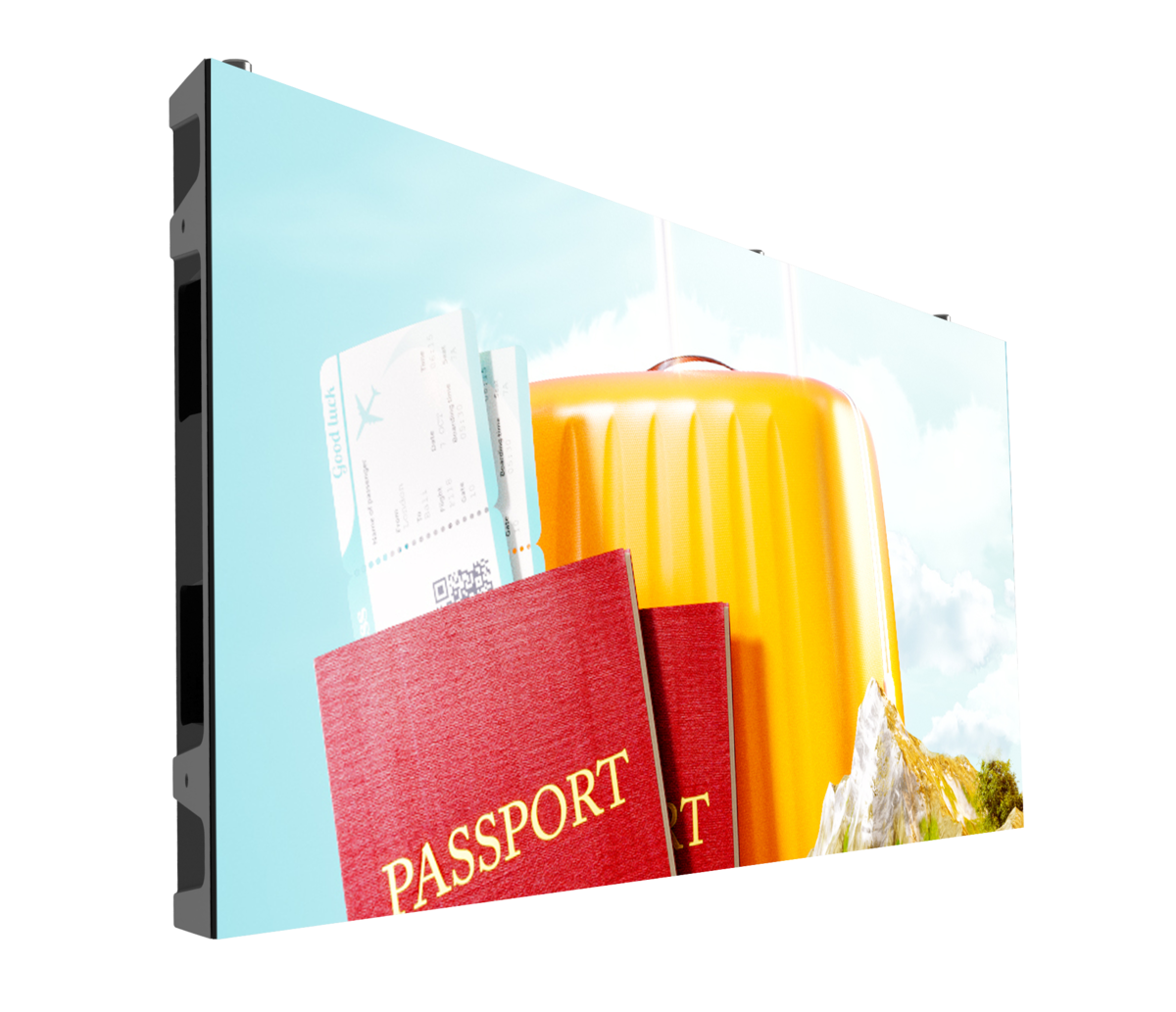

Philips L-Line 7000 Series 31BDL7524L/00 High Brightness
Product code:No limits. No boundaries. The Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.
SEND AN ENQUIRYDescription
Picture/Display
| Colour temperature default | 6500±500 K |
|---|---|
| Colour temperature adjust range | 4000~9500 K (by software) |
| Viewing angle (horizontal) | 160 degree |
| Viewing angle (vertical) | 155 degree |
| Calibration (brightness/colour) | Supported |
| Refresh rate (Hz) | 2100~3900 (14 bits: 3900 Hz) |
| Frame frequency (Hz) | 50 & 60 |
| Aspect ratio | 3:1 |
| Picture enhancement | Wide colour gamut display |
| Placement | Landscape |
| Usage | Indoor |
| Brightness uniformity | >=97% |
| Contrast ratio (typical) | 11000:1 |
| Brightness before calibration | 3500 nits |
| Brightness after calibration | 2750 nits |
Additional information
Convenience
| Signal control loop through | RJ45 |
|---|---|
| Ease of installation | Guide pins, Light weight |
| Power loop through | For 230 V environments: 12 cabinets or less, for 110 V environments: 6 cabinets or less, 10 A max |
Operating conditions
| Temperature range (operation) | -20~45 |
|---|---|
| Temperature range (storage) | -20~50 |
| Humidity range (operation)[RH] | 10~80% |
| Humidity range (storage) [RH] | 10~85% |
Power
| Input voltage | AC100~240 V (50 and 60 Hz) |
|---|---|
| Black screen power cons. (W) | <10 |
| Max. power cons. BC (W) | <153.6 |
| Typical power cons. (W) | <39.5 |
| Max. power cons. AC (W) | <118.4 |
Miscellaneous
| Warranty | 2 years |
|---|---|
| Regulatory approvals | EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, RoHS, FCC SDOC (Part 15, Class A), EAC |
| Fire retardancy certification | BS 476 Part7:1997, UL94 |
| Conformal coating | hub board, backside LED module |
Cabinet
| Cabinet size (mm) | 750 x 250 x 40 |
|---|---|
| Side angle (degree) | 45 |
| Cabinet diagonal (inch) | 31.1" |
| Cabinet resolution (W x H) | 312 x 104 |
| Weight (kg) | 4.57 |
| Cabinet pixels (Dot) | 32.448 |
| Cabinet area (m2) | 0.1875 |
| Power connector | 3 core socket (C14 in, C13 out) |
| Data connector | RJ45 |
| Cabinet construction | Die-Casting Aluminium |
| Receiving card quantity | 1 pcs |
| Receiving card spec. | A5S plus |
| Receiving card brand | NovaStar |
Module
| LED type | SMD 1515 Gold wire |
|---|---|
| Pixel constitution | 1R1G1B |
| LED lifetime(Hrs) | 100,000 at half brightness |
| Pixel pitch (mm) | 2.4 |
| Module resolution (WxH pixels) | 104 x 104 |
| Module size (W x H in mm) | 249.9*249.9 |
Accessories
| Power cable | 2 pcs |
|---|---|
| LAN cable (RJ45, CAT-5) | 1 pcs |
| QSG | 1 pcs |
Packaging Data
| Dimension of packaging (mm) | 950x421x224 |
|---|---|
| Gross weight (KG) | 9.36 |
