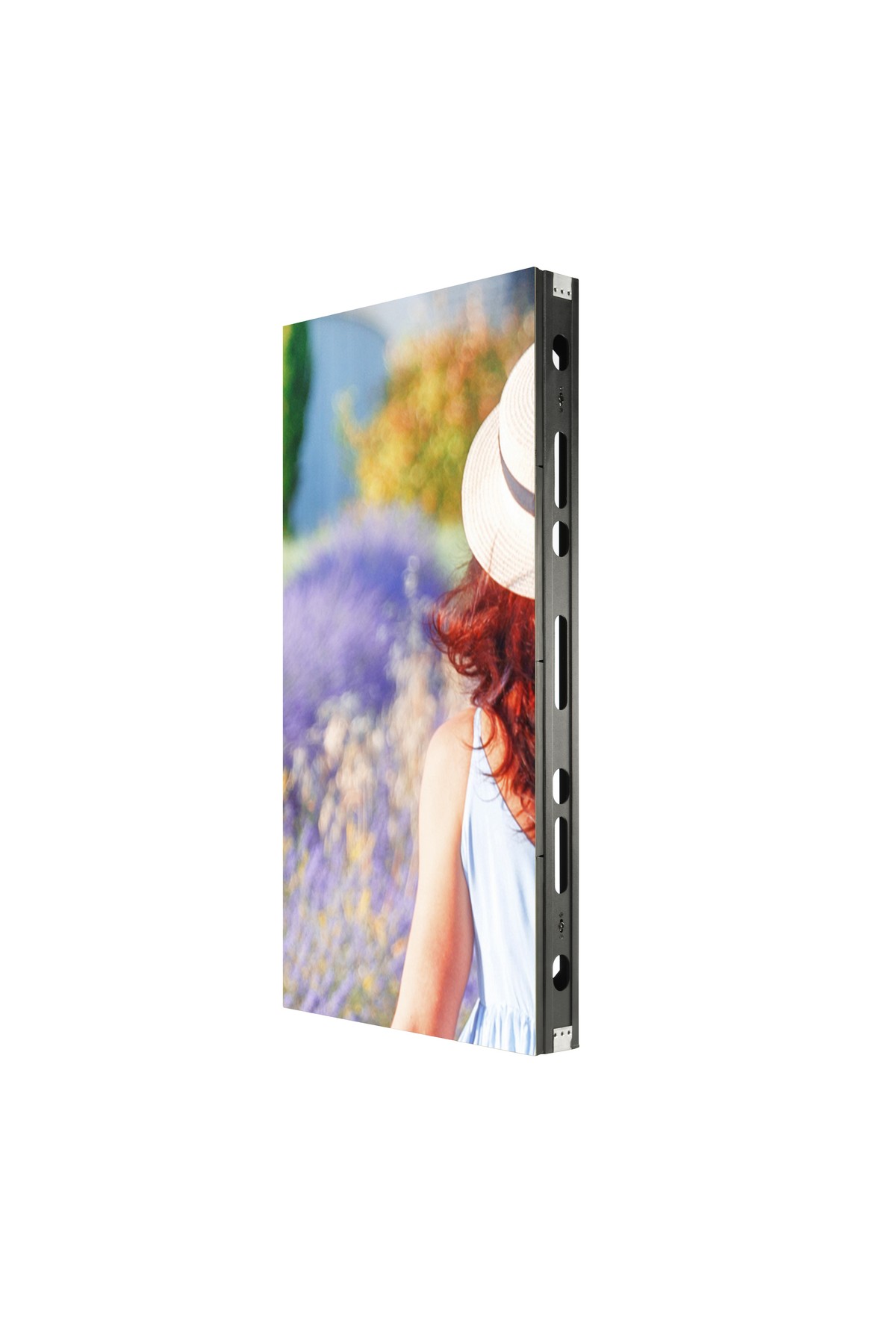

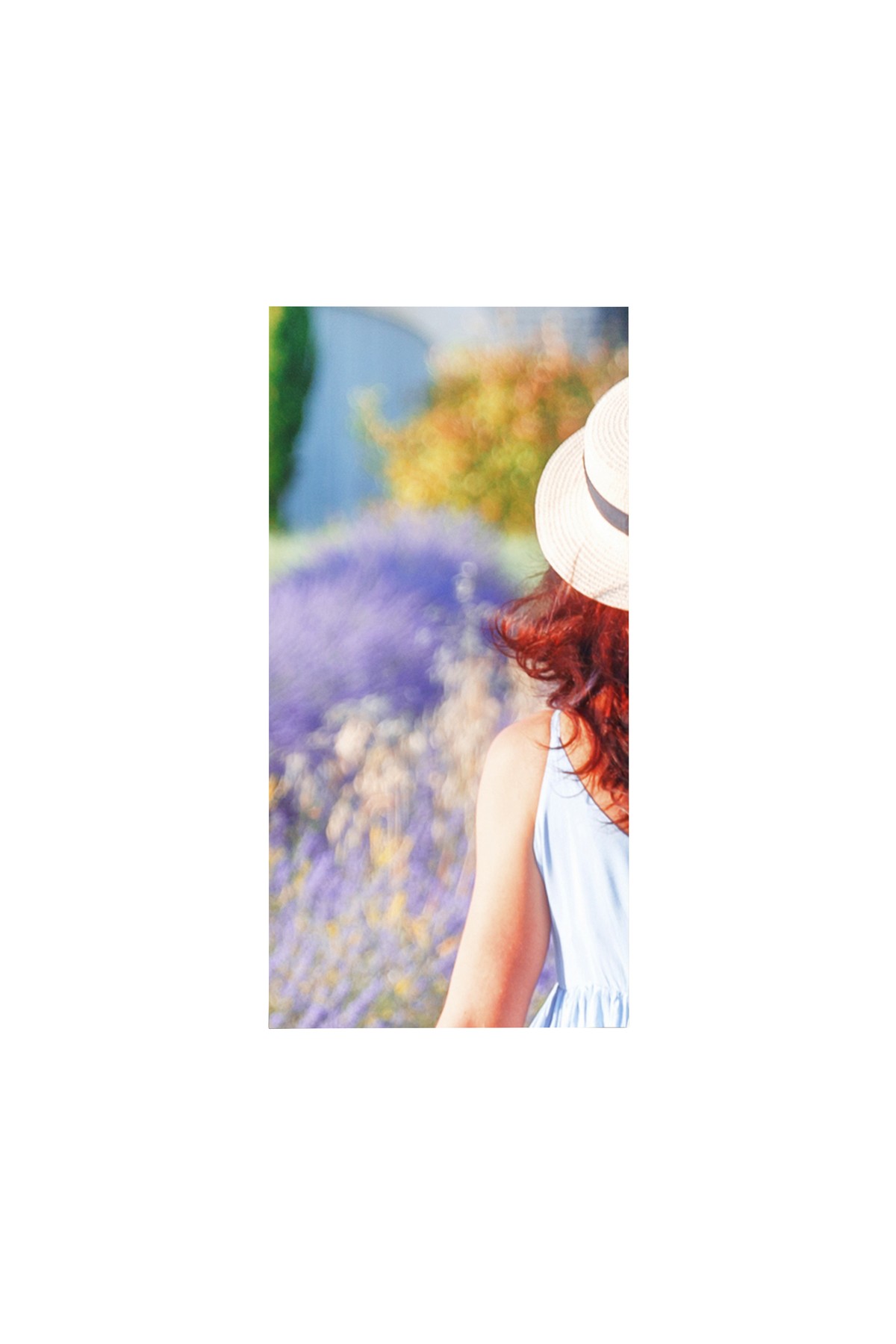

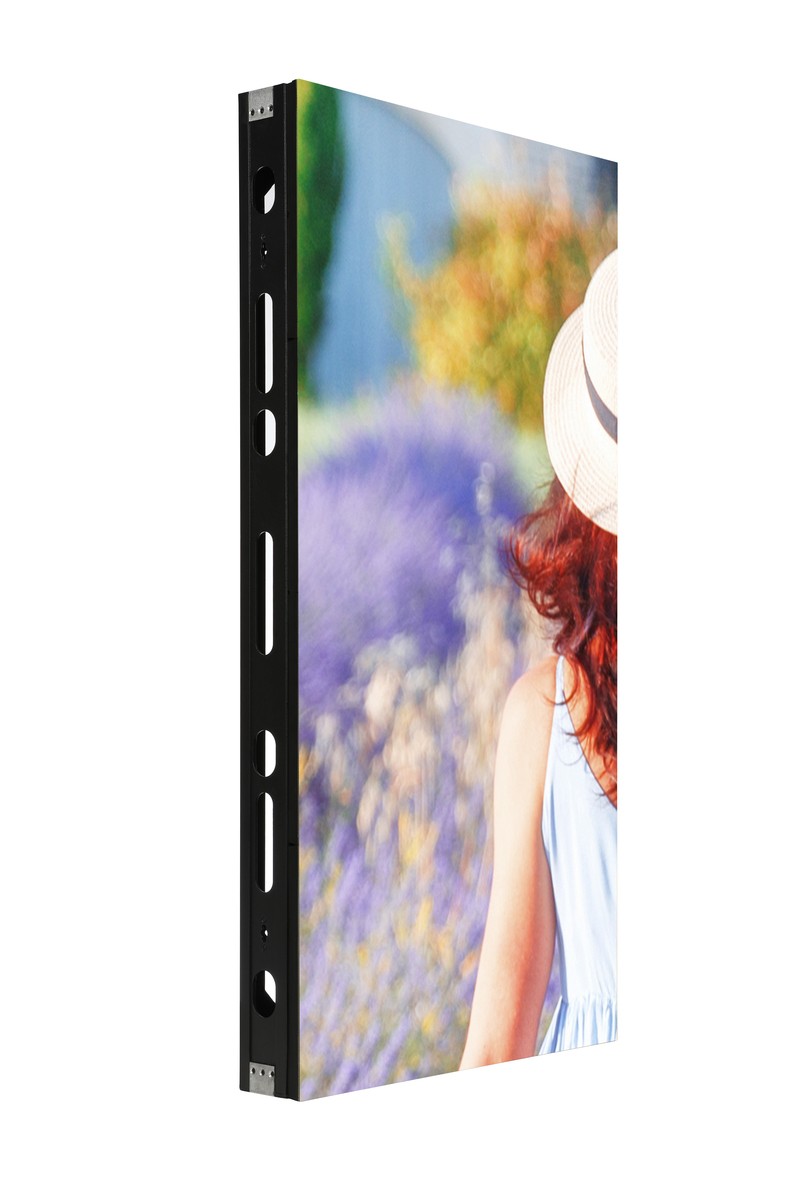

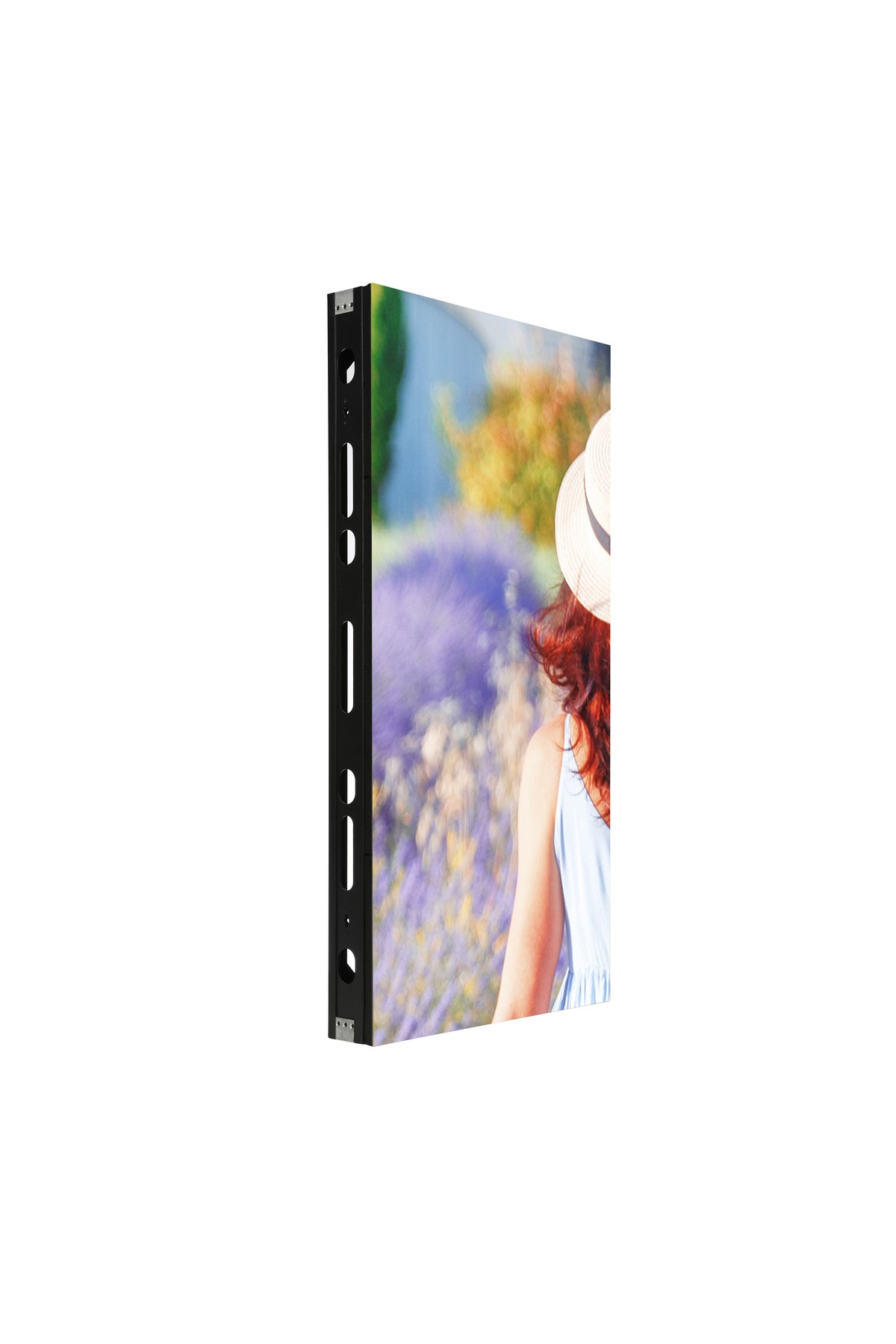

Philips L-Line 8000 Series 44BDL8148L/00 LED
Product code:Fill their imagination. Create seamless displays. With an L-Line Professional LED Display Wall, the possibilities are endless. The bezel-free design, wide viewing angle and breathtaking brightness ensure authoritative imaging. At any size.
SEND AN ENQUIRYDescription
Picture/Display
| Brightness before calibration | 1000 nits |
|---|---|
| Brightness after calibration | 800 nits |
| Colour temperature default | 6500±500 K |
| Viewing angle (horizontal) | 140 |
| Viewing angle (vertical) | 140 |
| Brightness Uniformity | >=97% |
| Contrast ratio (typical) | >=3000:1 |
| Calibration (brightness/colour) | Supported |
| Refresh rate (Hz) | 1200~1920 |
| Frame frequency (Hz) | 50 & 60 |
| Colour temperature adjust range | 4000~9500 K (by software) |
| Aspect ratio | 1:2 |
| Picture enhancement | Dynamic contrast enhancement, Wide colour gamut display |
| Placement | Portrait |
| Usage | 24/7 hrs, Indoor |
Additional information
Convenience
| Signal control loop through | RJ45 |
|---|---|
| Ease of installation | Guide pins, Light weight, Locking mechanism for cabinet |
| Power loop through | For 230 V environments: 6 cabinets or less, for 110 V environments: 3 cabinets or less |
Operating conditions
| Temperature range (operation) | -20~45 |
|---|---|
| Temperature range (storage) | -20~50 |
| Humidity range (operation)[RH] | 10~80% |
| Humidity range (storage) [RH] | 10~85% |
Power
| Cabinet Max Power consumption | 220 |
|---|---|
| Consumption (Typical) | <=73 |
| Input voltage | AC200~240V/AC100-120V (50-60 Hz) |
| BTU Value m2 | 1500 BTU/m2 |
Miscellaneous
| Warranty | 3 year |
|---|---|
| Regulatory approvals | FCC SDOC (Part 15), EMC Class A, EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, RoHS |

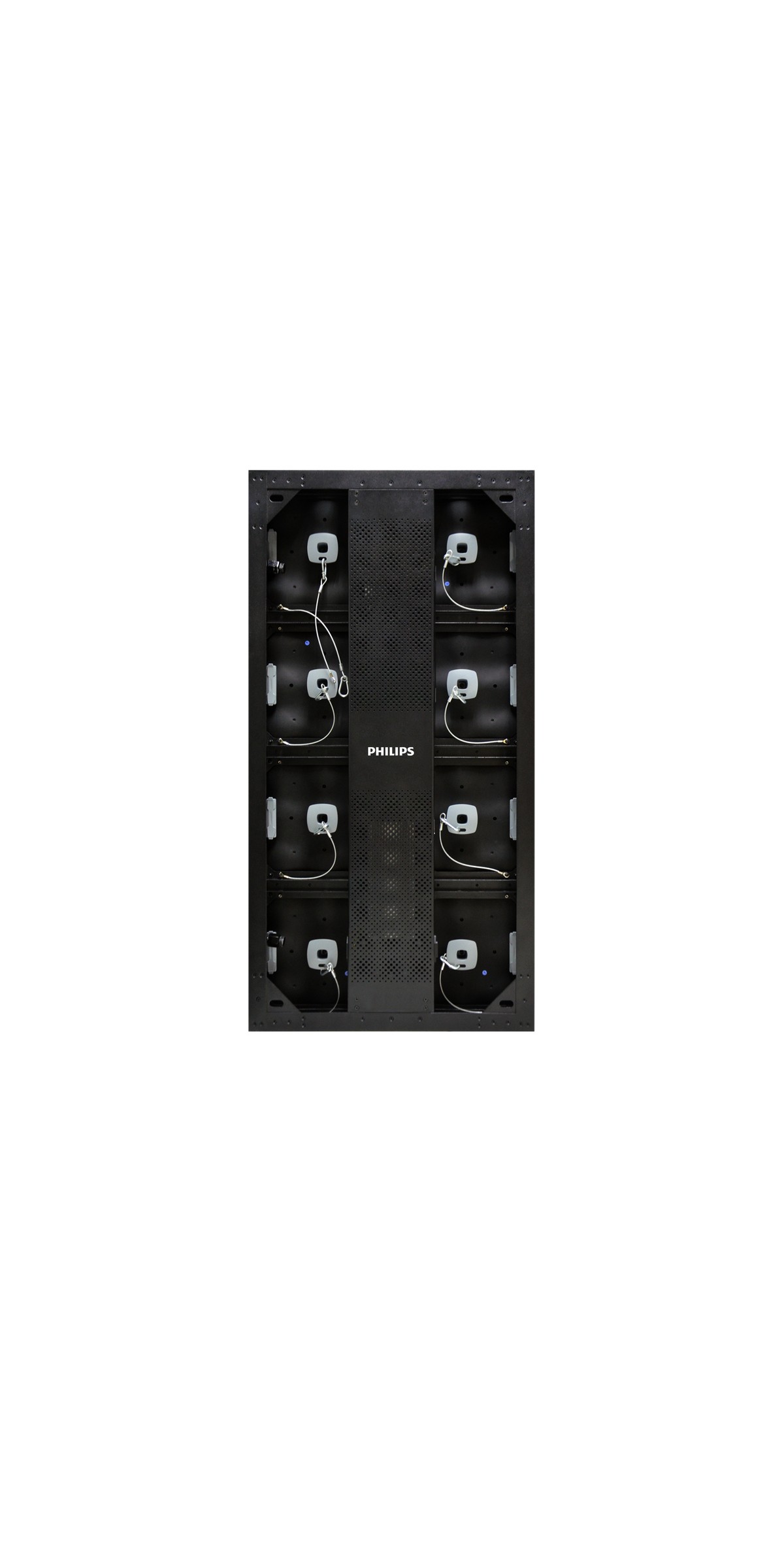

Cabinet
| Cabinet size (mm) | 500 x 1000 x 86 |
|---|---|
| Cabinet diagonal (inch) | 44 |
| Cabinet resolution (W x H) | 104 × 208 |
| Weight (kg) | 15.6 kg |
| Cabinet pixels (Dot) | 21,632 |
| Cabinet area (m2) | 0.5 |
| Data connector | RJ45 |
| Power connector | In/Out(C14/C13) |
| Cabinet construction | Aluminium and Steel |
| Receiving card quantity | 1 pcs |
| Receiving card spec. | A5S |
| Receiving card brand | Novastar |
Module
| LED type | SMD 2121 Gold wire |
|---|---|
| Pixel constitution | 1R1G1B |
| LED lifetime(Hrs) | 100 000 |
| Pixel pitch (mm) | 4.81 mm |
| Module size (WxHxD in mm) | 250 x 250 x 19.1 |
| Module resolution (WxH pixels) | 52 x 52 |
Accessories
| Power loop through cable | 1 pcs |
|---|---|
| LAN cable (RJ45, CAT-5) | 1 pcs (130 cm) |
| Common connecting piece | 3 pcs |
| Screw bolt | 4 pcs (M10*70) (Inner Hexagon Screw) |
| QSG | 1 pcs |
