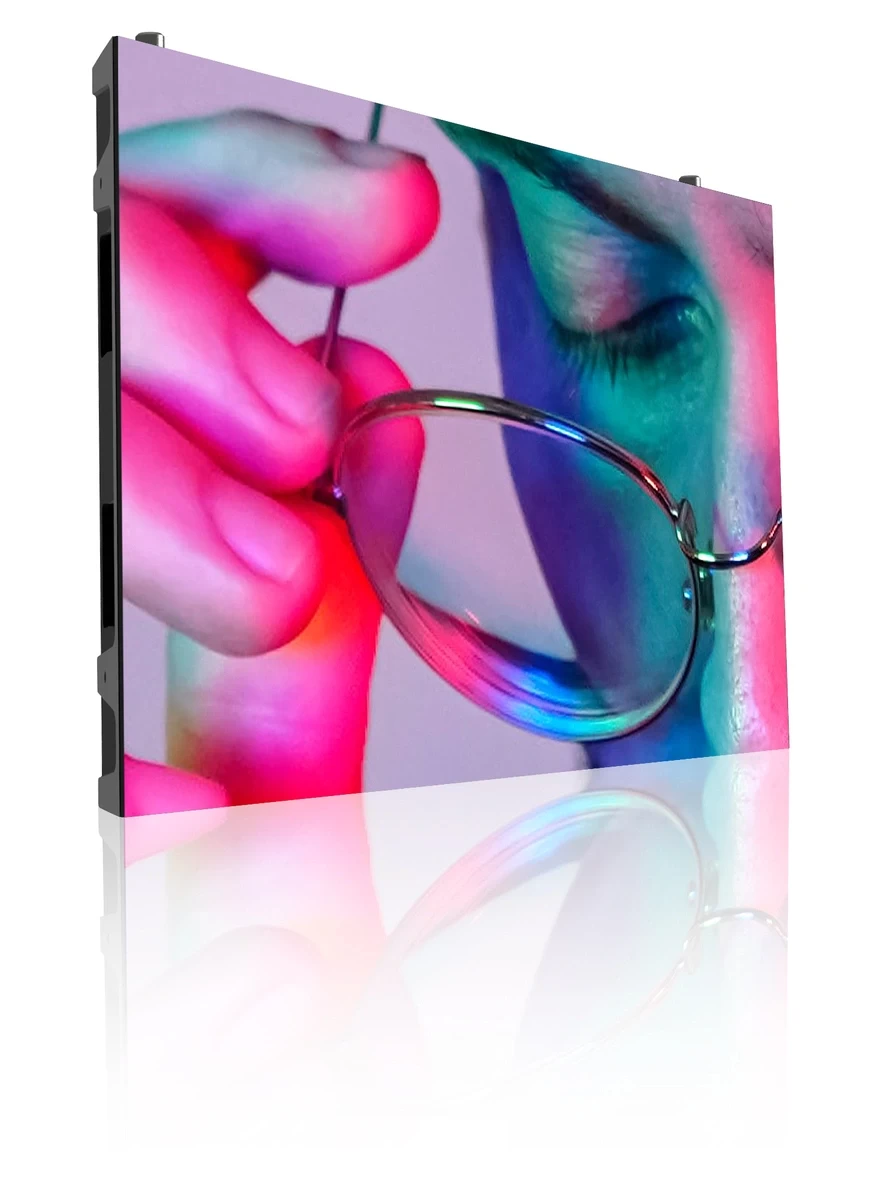

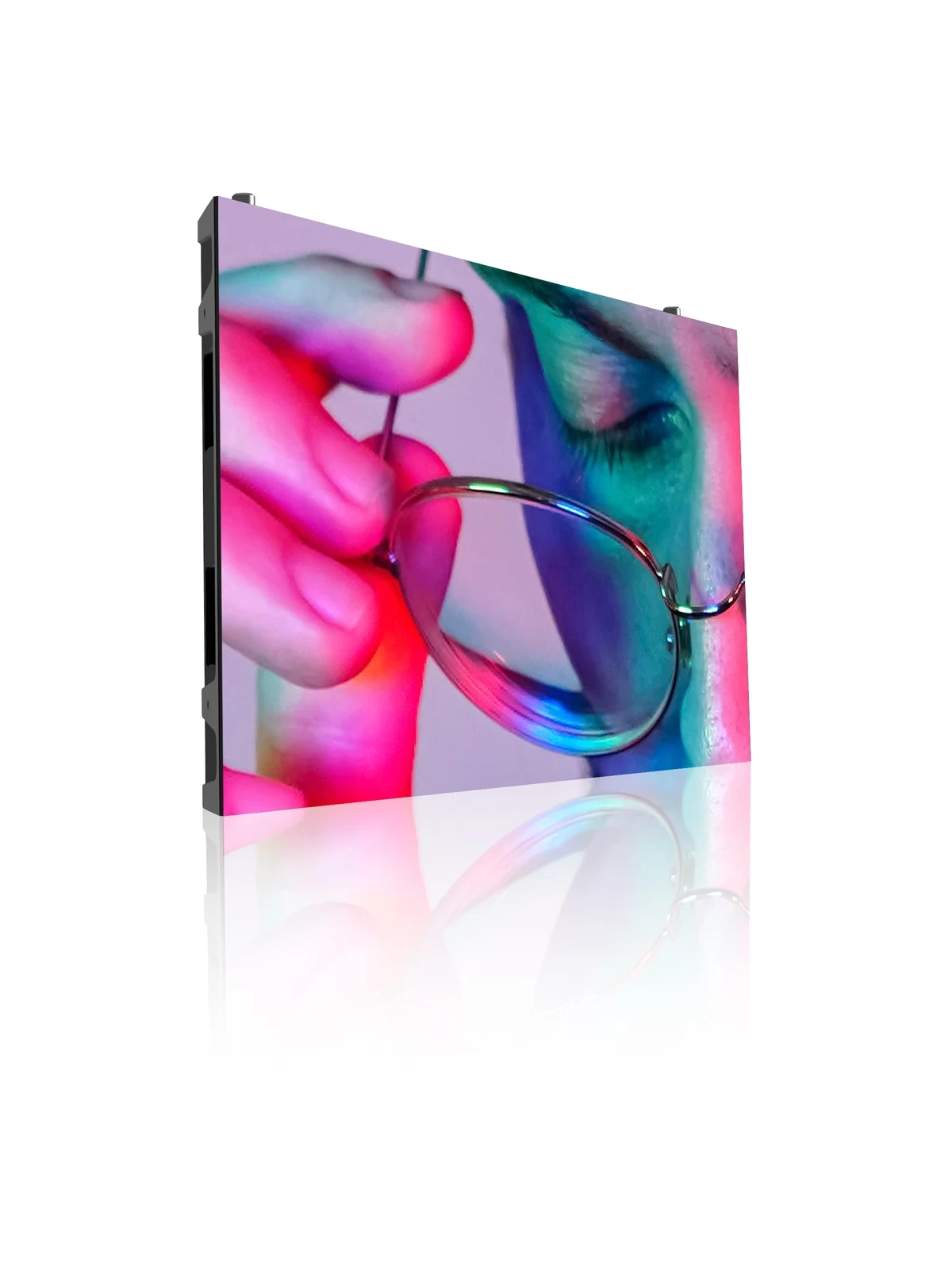

Philips L-Line 7000 Series 22BDL7319L/00 LED
Product code:No limits. No boundaries. Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.
Description
Picture/Display
| Color temperature default | 6500±500 K |
|---|---|
| Color temperature adjust range | 4000~9500 K (by software) |
| Viewing angle (horizontal) | 160 |
| Viewing angle (vertical) | 160 |
| Calibration(brightness/color) | Supported |
| Refresh rate(Hz) | 2100~3900 (14 bits:3900Hz) |
| Frame frequency (Hz) | 50 & 60 |
| Aspect ratio | 2:1 |
| Picture enhancement | Wide color gamut display |
| Placement | Landscape |
| Usage | Indoor |
| Brightness uniformity | >=97% |
| Brightness before calibration | 1200 nits |
| Brightness after calibration | 900 nits |
| Contrast ratio (typical) | 3500:1 |
Additional information
Convenience
| Signal control loop through | RJ45 |
|---|---|
| Ease of installation | Guide pins, Light weight |
| Power loop through | For 230V environments: 16 cabinets or less, for 110V environments: 8 cabinets or less |
Operating conditions
| Temperature range (operation) | -20~45 |
|---|---|
| Temperature range (storage) | -20~50 |
| Humidity range (operation)[RH] | 10~80% |
| Humidity range (storage) [RH] | 10~85% |
Power
| Input voltage | AC100~240V (50 & 60Hz) |
|---|---|
| Black screen power cons. (W) | <9 |
| Max. power cons. BC (W) | <85 |
| Typical power cons. (W) | <21.67 |
| Max. power cons. AC (W) | <65 |
Miscellaneous
| Warranty | 2 years |
|---|---|
| Regulatory approvals | EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, RoHS, FCC SDOC (Part 15, Class A), EAC |
| Conformal coating | Yes (LED Module Bottom side and HUB board) |
| Fire retardancy certification | BS 476 Part7:1997, DIN4102-1, UL94 |
Cabinet
| Cabinet size (mm) | 500x250x40 |
|---|---|
| Side angle (degree) | 45 |
| Cabinet diagonal (inch) | 22" |
| Cabinet resolution (W x H) | 256 x 128 |
| Weight (KG) | 3.26Kg (±163g) |
| Cabinet pixels ( Dot ) | 32768 |
| Cabinet area (m2) | 0.125 |
| Power connector | 3 core socket (C14 in, C13 out) |
| Data connector | RJ45 |
| Cabinet construction | Die-Casting Aluminum |
| Receiving card quantity | 1 pcs |
| Receiving card spec. | A5S Plus |
| Receving card brand | Novastar |
| IP rating | IP30 |
Module
| LED type | SMD 1515 Copper wire |
|---|---|
| Pixel constitution | 1R1G1B |
| LED lifetime(Hrs) | 100,000 at half brightness |
| Pixel pitch (mm) | 1.9 |
| Module resolution (WxH pixels) | 128x128 |
| Module size (WxH in mm) | 249.9x249.9 (tolerance: +0.05 / -0.1) |
Accessories
| Power cable, LAN cable (RJ45, CAT-5), QSG | 1 pcs |
|---|
