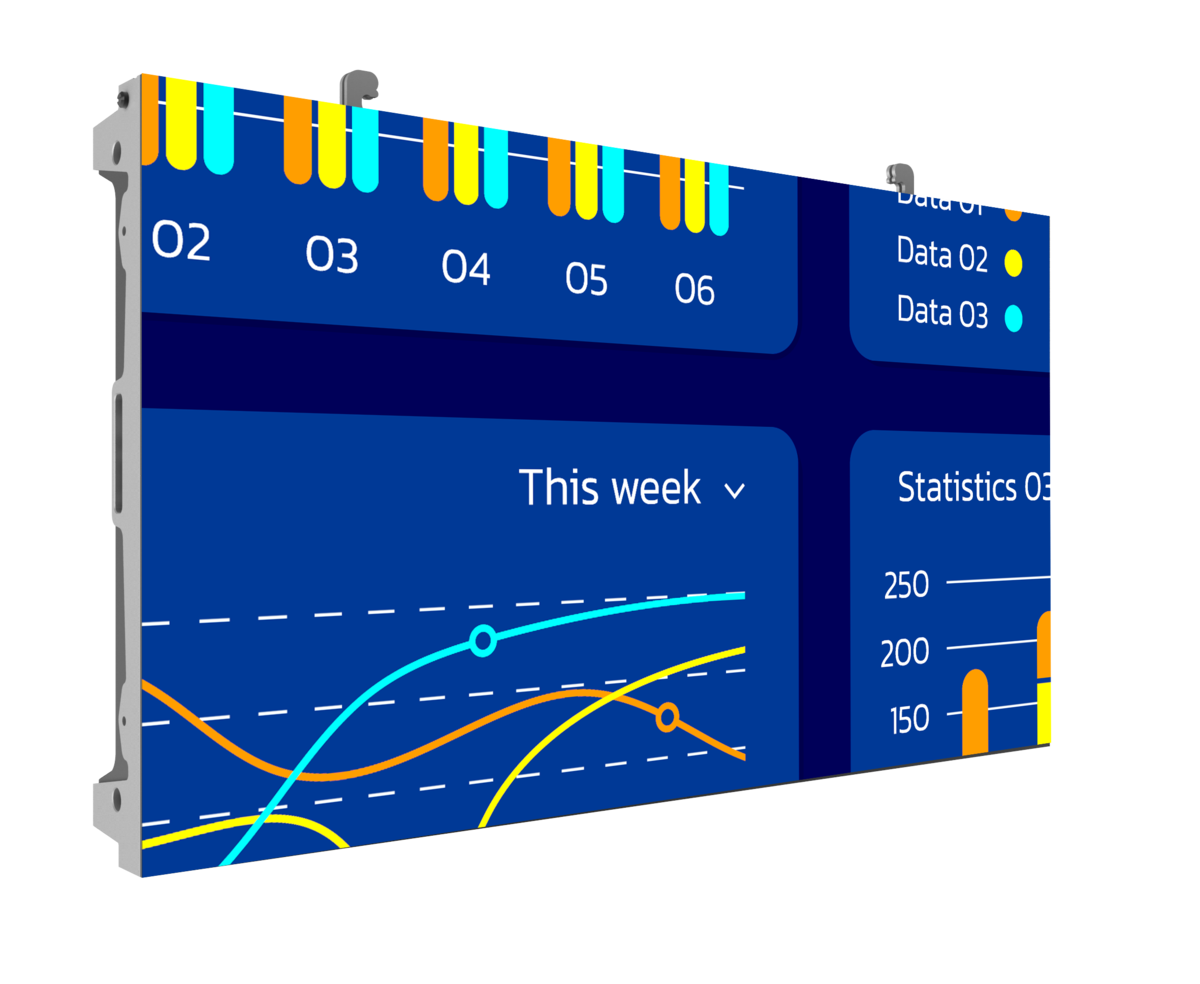

Philips L-Line 6000 Series 27BDL6119L/00 LED
Product code:Create any size 16:9 unique display or even a crisp 32:9 panoramic view, which defies traditional conformation by assembling an intriguing modular pattern. Perfect viewing experience for presentations and corporate branding content.
SEND AN ENQUIRYDescription
Picture/Display
| Brightness before calibration | 750 nits |
|---|---|
| Brightness after calibration | 650 nits |
| Colour temperature default | 6500±500 K |
| Colour temperature adjust range | 4000~9500 K (by software) |
| Viewing angle (horizontal) | 160 |
| Viewing angle (vertical) | 160 |
| Contrast ratio (typical) | 3200:1 |
| Calibration (brightness/colour) | Supported |
| Refresh rate (Hz) | 1920~3840 |
| Frame frequency (Hz) | 50 & 60 |
| Aspect ratio | 16:9 |
| Picture enhancement | Dynamic contrast enhancement, Wide colour gamut display |
| Placement | Landscape |
| Usage | 24/7 hrs, Indoor |
| Brightness uniformity | >=97% |
Additional information
Convenience
| Signal control loop through | RJ45 |
|---|---|
| Ease of installation | Guide pins, Light weight |
| Power loop through | For 230 V environments: 8 cabinets or less, for 110 V environments: 4 cabinets or less |
Operating conditions
| Temperature range (operation) | -20~45 |
|---|---|
| Temperature range (storage) | -20~50 |
| Humidity range (operation)[RH] | 10~80% |
| Humidity range (storage) [RH] | 10~85% |
Power
| Input voltage | AC100~240 V (50 and 60 Hz) |
|---|---|
| Black screen power cons. (W) | <12 |
| Max. power cons. AC (W) | <65 |
| Max. power cons. BC (W) | <76 |
| Typical power cons. (W) | <21.7 |
Miscellaneous
| Warranty | 2 years |
|---|---|
| Regulatory approvals | RoHS, EN61000-3-2, EN61000-3-3, IEC/UL60950, IEC/UL62368, IEC62471, EN55032, EN55035, EMC, FCC SDOC (Part 15, Class A) |
| Fire retardancy certification | BS 476 Part7:1997 |

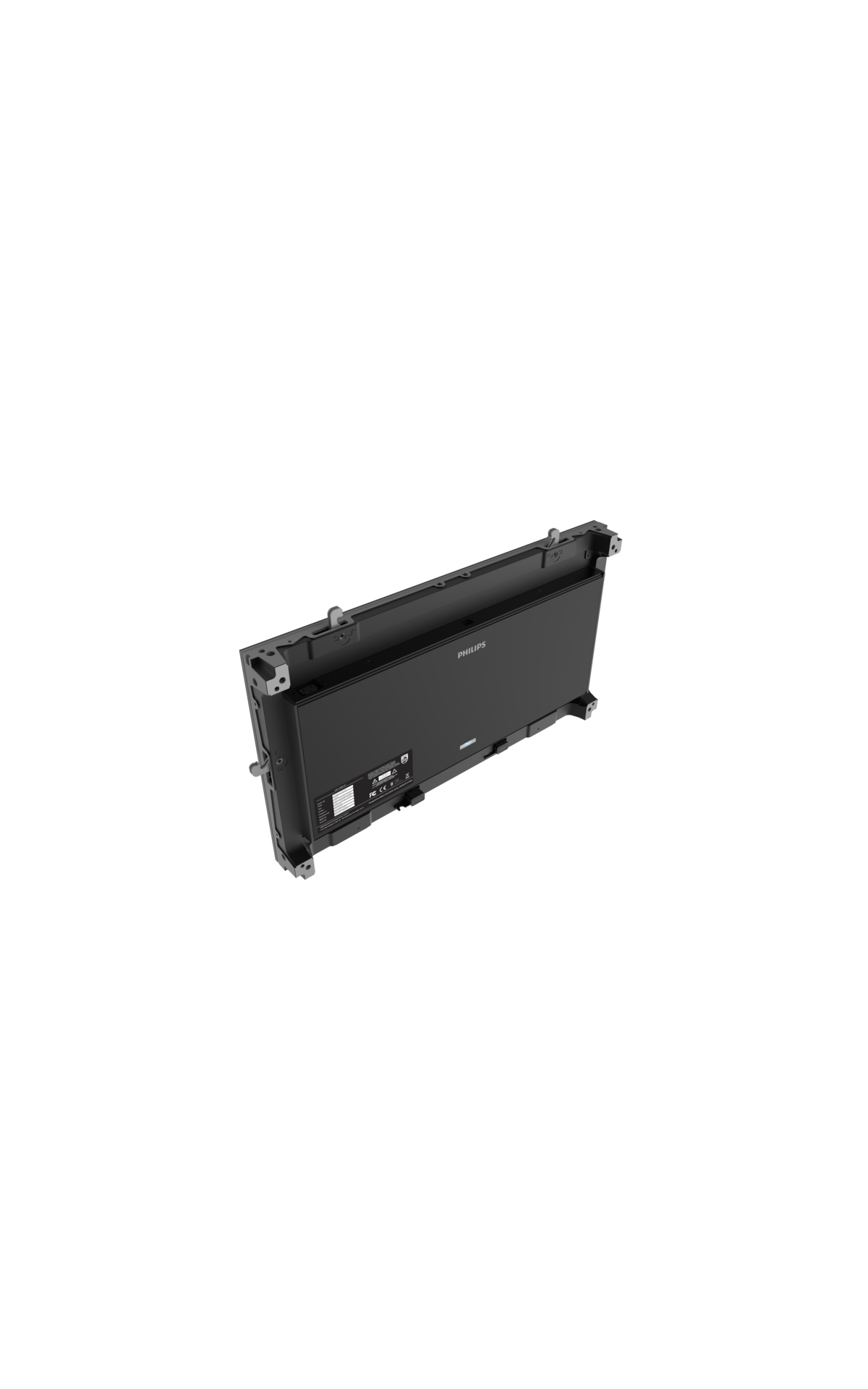

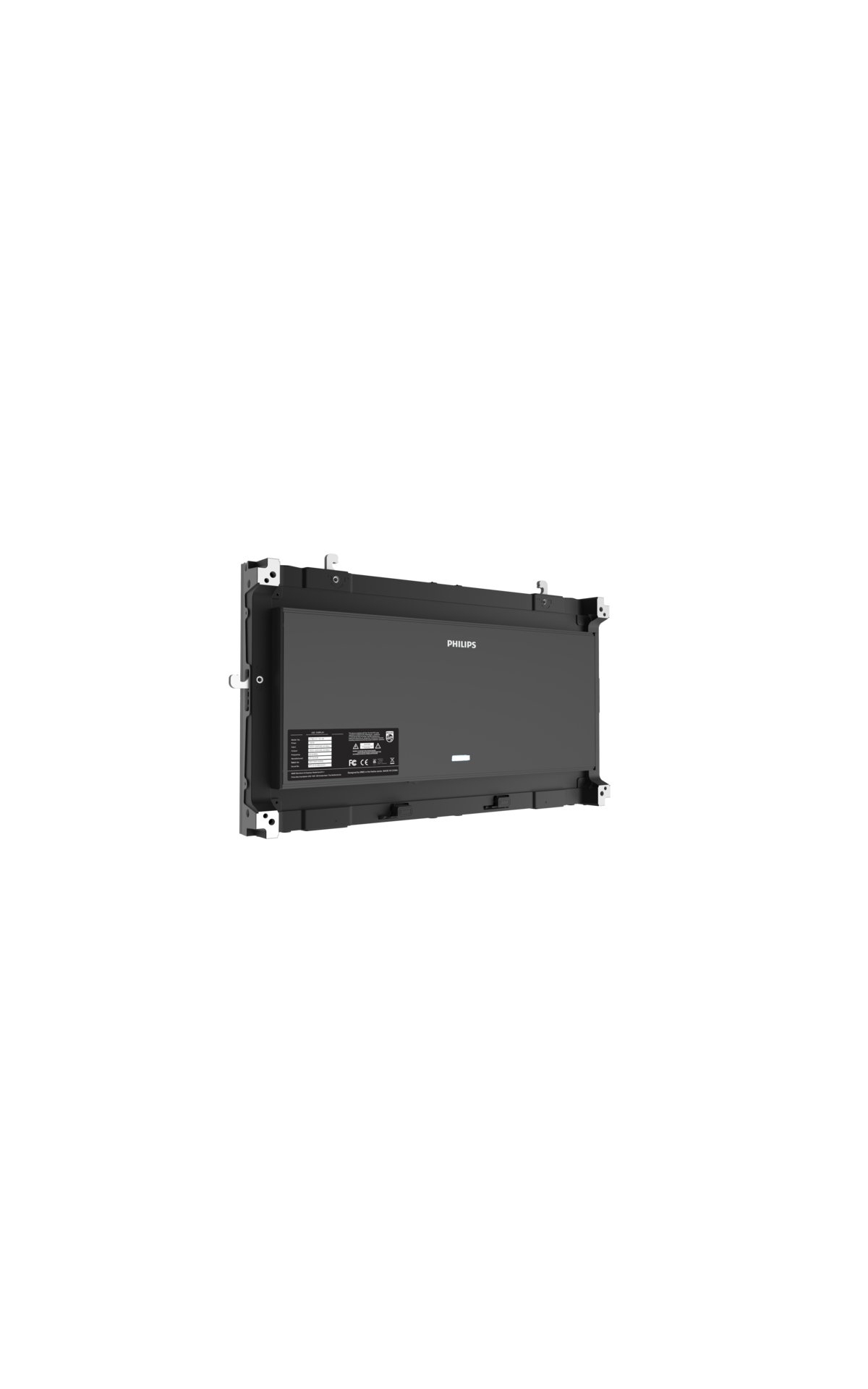

Cabinet
| Cabinet size (mm) | 608x342x59 |
|---|---|
| Cabinet diagonal (inch) | 27.5 |
| Cabinet resolution (W x H) | 320x180 |
| Weight (kg) | 5.81 |
| Cabinet pixels (Dot) | 57,600 |
| Cabinet area (m2) | 0.208 |
| Data connector | RJ45 |
| Power connector | In/Out(C14/C13) |
| Cabinet construction | Die-Casting Aluminium |
| Receiving card quantity | 1 pcs |
| Receiving card spec. | A5S plus |
| Receiving card brand | Novastar |
Module
| LED type | SMD 1015 Copper wire |
|---|---|
| Pixel constitution | 1R1G1B |
| LED lifetime(Hrs) | 100 000 |
| Pixel pitch (mm) | 1.9 |
| Module resolution (WxH pixels) | 160x90 |
| Module size (W x H in mm) | 303.9x170.9 |
Accessories
| LAN cable (RJ45, CAT-5) | 1 piece |
|---|---|
| QSG | 1 piece |
| Power cable | 1 piece |
Packaging Data
| Dimension of packaging (mm) | 780x471x224 |
|---|---|
| Gross weight (KG) | 8.52 |
