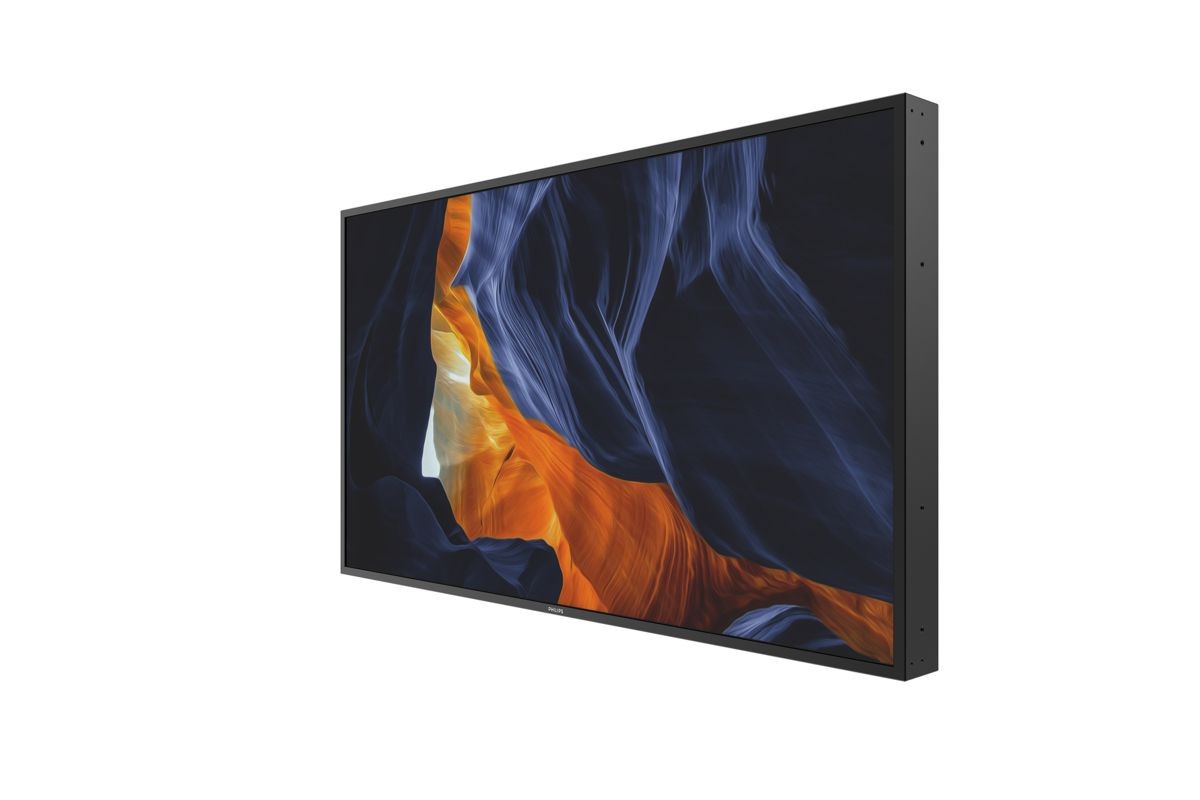

Philips H-Line 55BDL6002H/00 Digital Signage
Product code:Stay visible day and night with Philips H Line Full HD Panel. Astonishing clarity and contrast make this a perfect solution for busy areas that are subject to high ambient light. From airports to shopping centres.
SEND AN ENQUIRYDescription
Picture/Display
| Diagonal screen size (inch) | 54.6 |
|---|---|
| Diagonal screen size (metric) | 138.7 |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| Brightness | 2500 |
| Contrast ratio (typical) | 4000:1 |
| Dynamic contrast ratio | 500,000:1 |
| Aspect ratio | 16:9 |
| Response time (typical) | 8 |
| Pixel pitch | 0.63 x 0.63 mm |
| Display colours | 1.07 B |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Panel resolution | 1920 x 1080p |
Additional information
Connectivity
| Video input | Composite (Share component Y), Display Port1.2 (x 1), DVI-D (x 1), HDMI 1.4 (x 2), VGA (Analogue D-Sub) (x 1), Component (BNC x 3) |
|---|---|
| Video output | DisplayPort 1.2 (x 1), DVI-I (x 1) |
| Audio input | 3.5 mm jack, Audio Left/Right (RCA) |
| Audio output | 3.5 mm jack, External speaker connector |
| External control | RS232C (in/out) 2.5 mm jack, RJ45, IR (in/out) 3.5 mm jack |
| Other connections | OPS, USB 2.0 (x 1) |
Dimensions
| Bezel width | 13.6 mm (Even bezel) |
|---|---|
| Set Width | 1243.2 |
| Set Height | 714 |
| Set Depth | 137.7 |
| Set Width (inch) | 48.9 |
| Set Height (inch) | 28.1 |
| Set Depth (inch) | 5.42 |
| VESA Mount | 400 x 400 mm, M6 |
| Product weight | 31.84 |
| Product weight (lb) | 70.20 |
| Smart insert height | 200 |
| Smart Insert mount | 100 mm x 100 mm pitch, 6 x M4L6 |
Convenience
| Placement | Landscape, Portrait |
|---|---|
| Network controllable | RS232/RJ45 |
| Signal loop through | RS232/IR Loop through/DisplayPort/IR/RJ45 |
| Energy-saving functions | Smart Power |
| Remote control signal | Lockable |
| Keyboard control | Hidden, Lockable |
| Ease of installation | Carrying Handles, Smart Insert |
| Other convenience | Carrying handles |
| Screen-saving functions | Pixel Shift, Low Brightness |
| Picture performance | Advanced colour control |
Power
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
|---|---|
| Consumption (Typical) | 295 |
| Standby power consumption | <0.5 W |
| Consumption (Max) | 420 W |
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| MTBF | 50,000 |
| Altitude | 0 ~ 3000 m |
| Humidity range (operation)[RH] | 20~80% RH (No condensation) |
| Humidity range (storage) [RH] | 5~95% RH (No condensation) |
Accessories
| Included accessories | AC Power Cord, Quick start guide, RS232 cable, Remote Control and AAA Batteries |
|---|---|
| Included Accessories | RS232 daisy-chain cable, Edge Alignment Kit (1) - 1 pcs, Edge Alignment Kit (2) - 2 pcs, Philips logo (x 1), Thumbscrew (8 pcs) |
Miscellaneous
| On-Screen Display Languages | English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Portuguese, Dutch |
|---|---|
| Regulatory approvals | CB, CE, UL/cUL, EAC, EMF, FCC Class A, PSB, PSE, VCCI |
| Warranty | 3 year warranty |
Multimedia Applications
| USB Playback Audio | AAC/AIF/AIFF/ASF/M3U/M4A/MP3/MP4/PLS/WAV/WMA |
|---|---|
| USB Playback Picture | BMP/GIF/JPEG/JPG/PNG |
| USB Playback Video | ISM/M2TS/M4V/Manifest/MK3D/MKV/MP4/MPD/MPEG/MPG/MT2/MTS/TS/VOB |
Supported Display Resolution
| Computer formats | 1024 x 768, 60, 75 Hz / 1280 x 1024, 60 Hz / 1280 x 768, 60 Hz / 1280 x 800, 60 Hz / 1280 x 960, 60 Hz / 1360 x 768, 60 Hz / 1366 x 768, 60 Hz / 1600 x 1200, 60 Hz / 1920 x 1080, 60 Hz / 640 x 480, 60, 72, 75 Hz / 720 x 400, 70 Hz / 800 x 600, 60, 75 Hz |
|---|---|
| Video formats | 1080i, 25, 30 Hz / 1080p, 50, 60 Hz / 720p, 50, 60 Hz |
