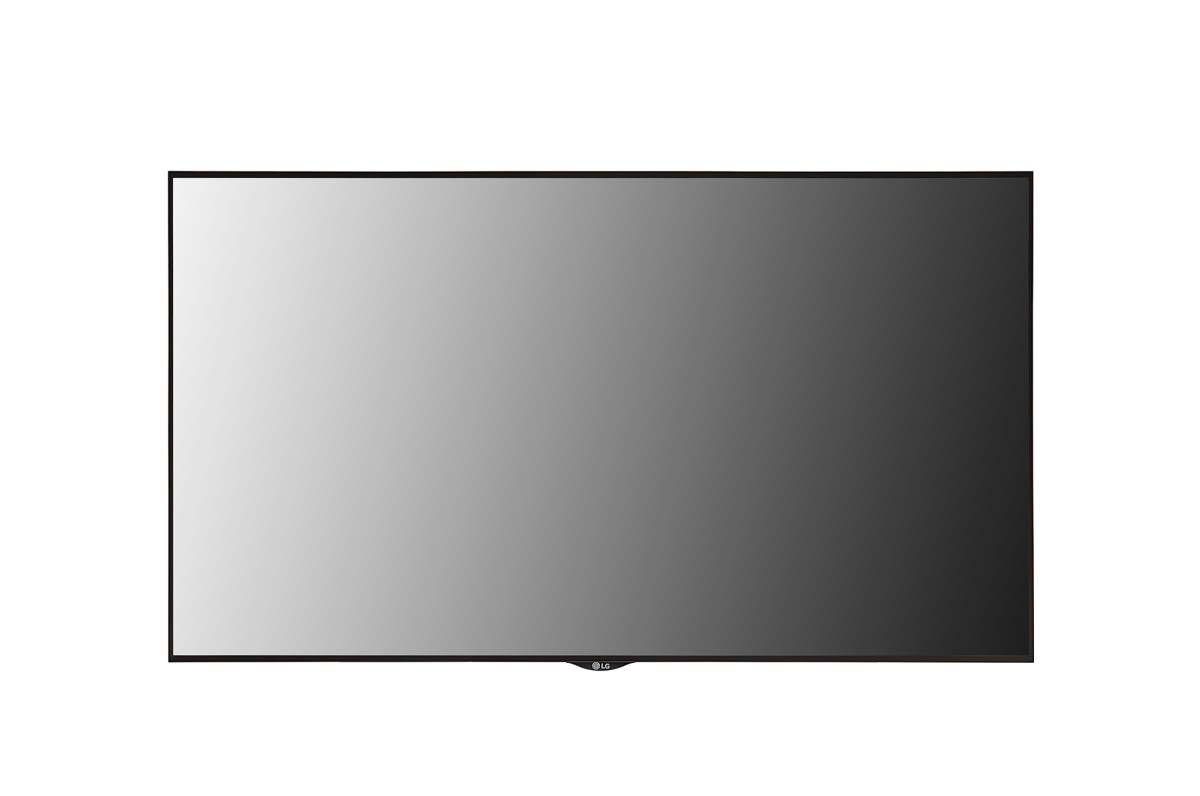

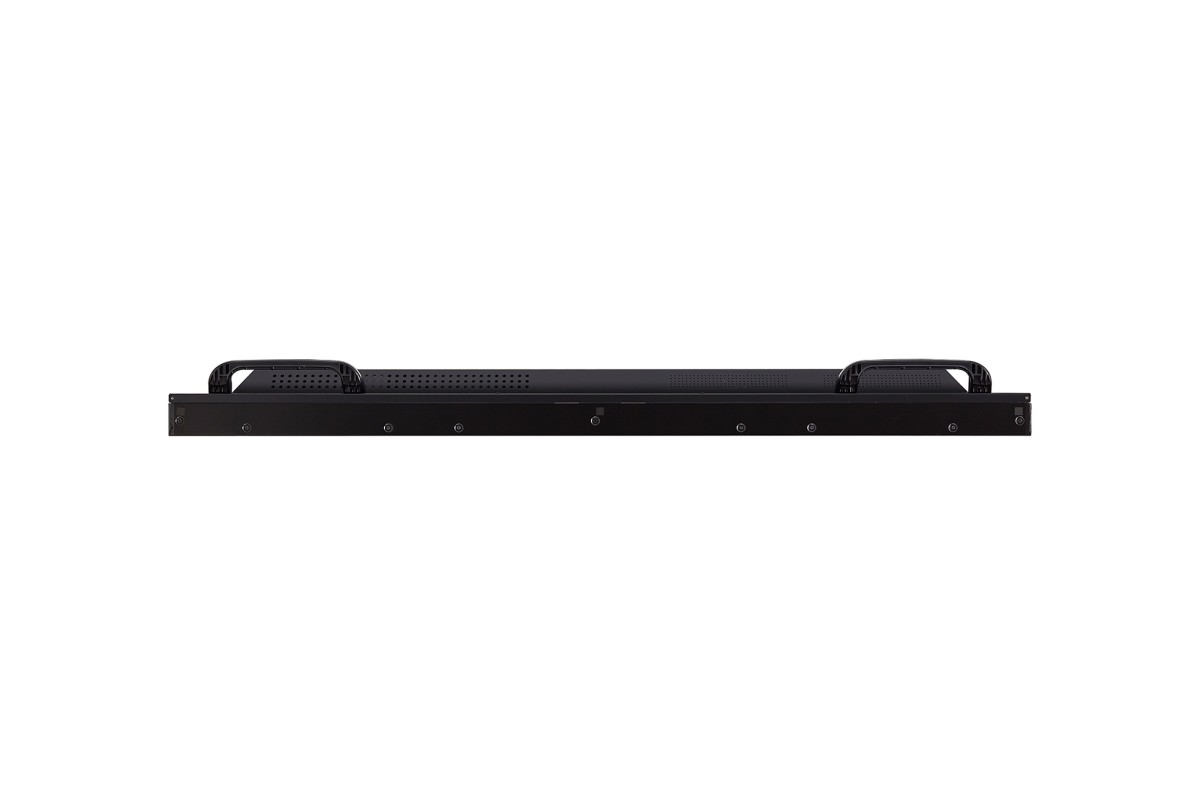

LG 49XS4J-B High Brightness Window Facing Display
Product code:With a great brightness of 4,000 nits*, XS4J clearly delivers contents and attract public attention, which is the ultimate display for outdoor visibility. QWP** enables clear visibility even when the viewer is wearing polarized sunglasses.
SEND AN ENQUIRYDescription
Panel
| Screen Size | 49" |
|---|---|
| Panel Technology | IPS, M+ (WRGB) |
| Native Resolution | 1,920 x 1,080 (FHD) |
| Brightness | 4,000nit (Typ.), 3,200nit (Min.) |
| Contrast Ratio | 1,300:1 |
| Dynamic CR | 500,000:1 |
| Color gamut | NTSC 67% |
| Viewing Angle (H x V) | 178 x 178 |
| Color Depth | 10bit, 1.07Billion colors |
| Response Time | 8ms (G to G) |
| Surface Treatment (Haze) | 3% |
| OS | webOS4.1 |
| Operation Hours (Hours / Days) | 24/7 |

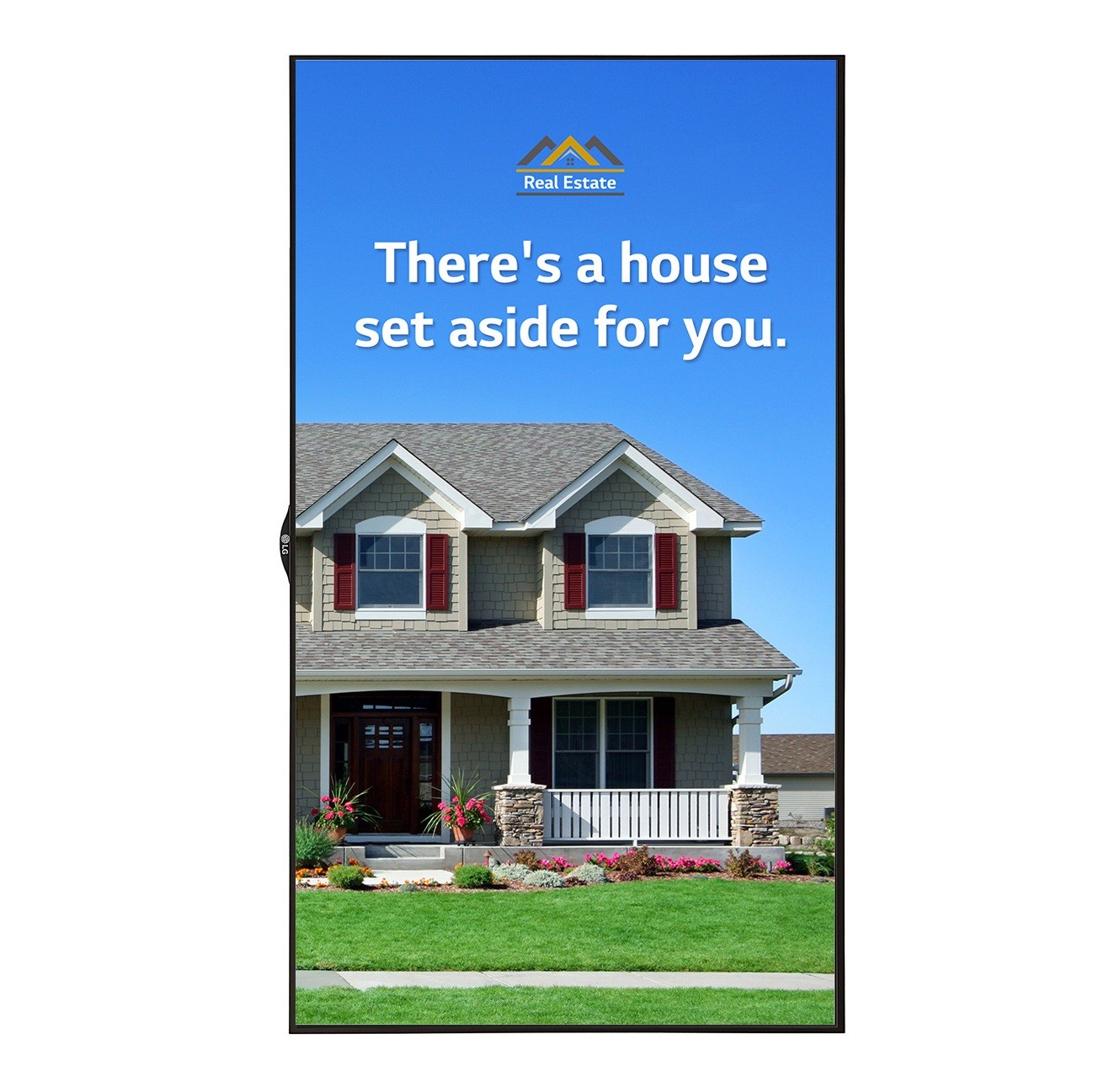

| Portrait / Landscape | Yes / Yes |
Additional information
Mechanical Specification
| Bezel Width (T / R / L / B) | 9/6.5/6.5/9 mm |
|---|---|
| Weight (Head) | 20.8Kg |
| Packed Weight | 25.3Kg |
| Monitor Dimensions (W × H × D) | 1,092.7 x 626.4 x 83.5 mm |
| VESA™ Standard Mount Interface | 600 x 400 |

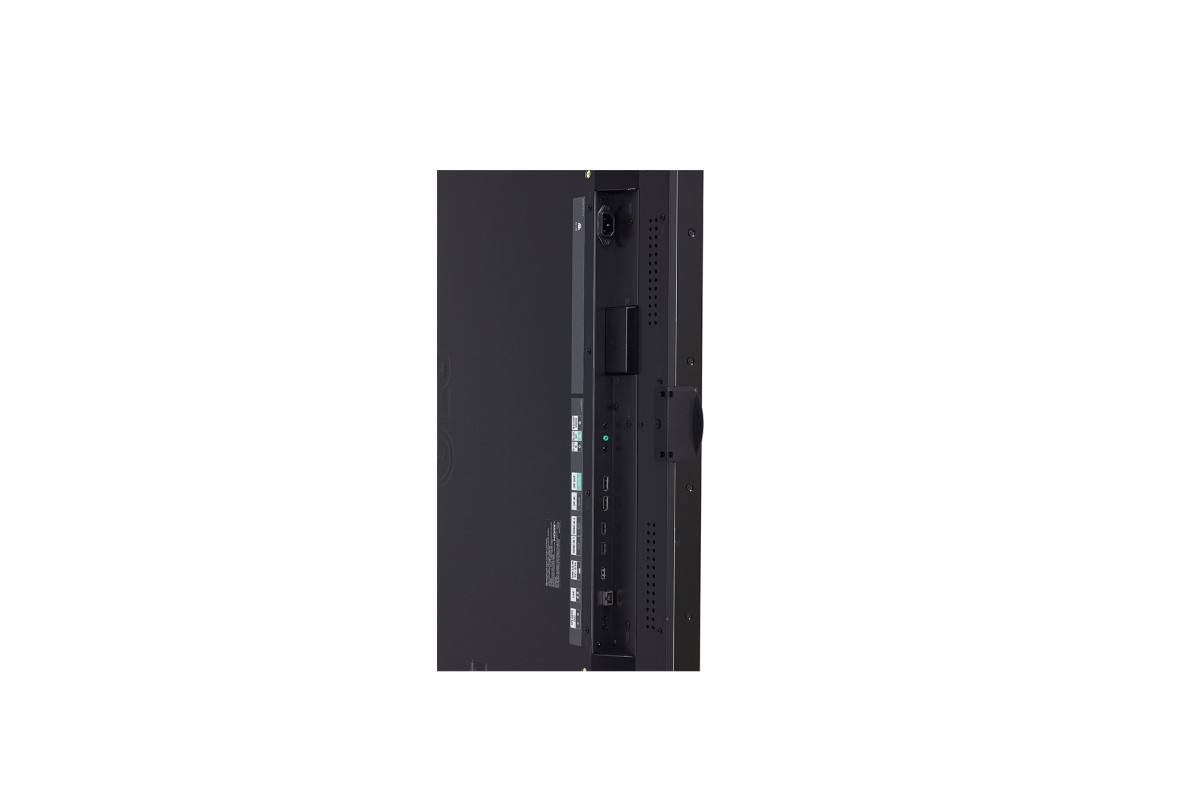

Connectivity
| Input | HDMI (2), DP (1), USB2.0 Type A (1) |
|---|---|
| Output | DP (1), Externel Speaker (1, L/R, 10W+10W) |
| External Control | RS232C In/out, IR IN, RJ45(LAN) In |
Key Feature
| HW | Internal Memory 16GB, Wi-Fi Built-in, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, FAN |
| SW | webOS (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image(Booting Logo Image, No Signal Image), Sync Mode(RS-232C Sync, Local Network Sync, Backlight Sync), Multi-screen(PIP, PBP(2)), Screen Share, Video Tag(4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting(Max. 15x15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI(CEC), SI Server Setting, webRTC, Pro:Idiom |
Environment Conditions
| Operation Temperature | 0 °C to 40°C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30°C (Direct Sunlight) |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 345W / 370W |
|---|---|
| BTU (British Thermal Unit) | 1,177 BTU/Hr (Typ.), 1,262 BTU/Hr (Max.) |
Software Compatibility
| SuperSign CMS, SuperSign Control / Control+, Signage 365 Care(LG Connectedcare) |
Accessory
| Basic | Remote Controller (including battery 2ea), Power Cord, HDMI Cable,Manual (EIG, IG), IR Receiver (w/ Ambient Light Sensor), RS-232C Gender |
|---|---|
| Optional | WM-L640V (Landscape wall mount), WM-P640V (Portrait wall mount) ** Stand is not available |
Standard (Certification)
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE / KC / VCCI |
| ErP | Yes |
