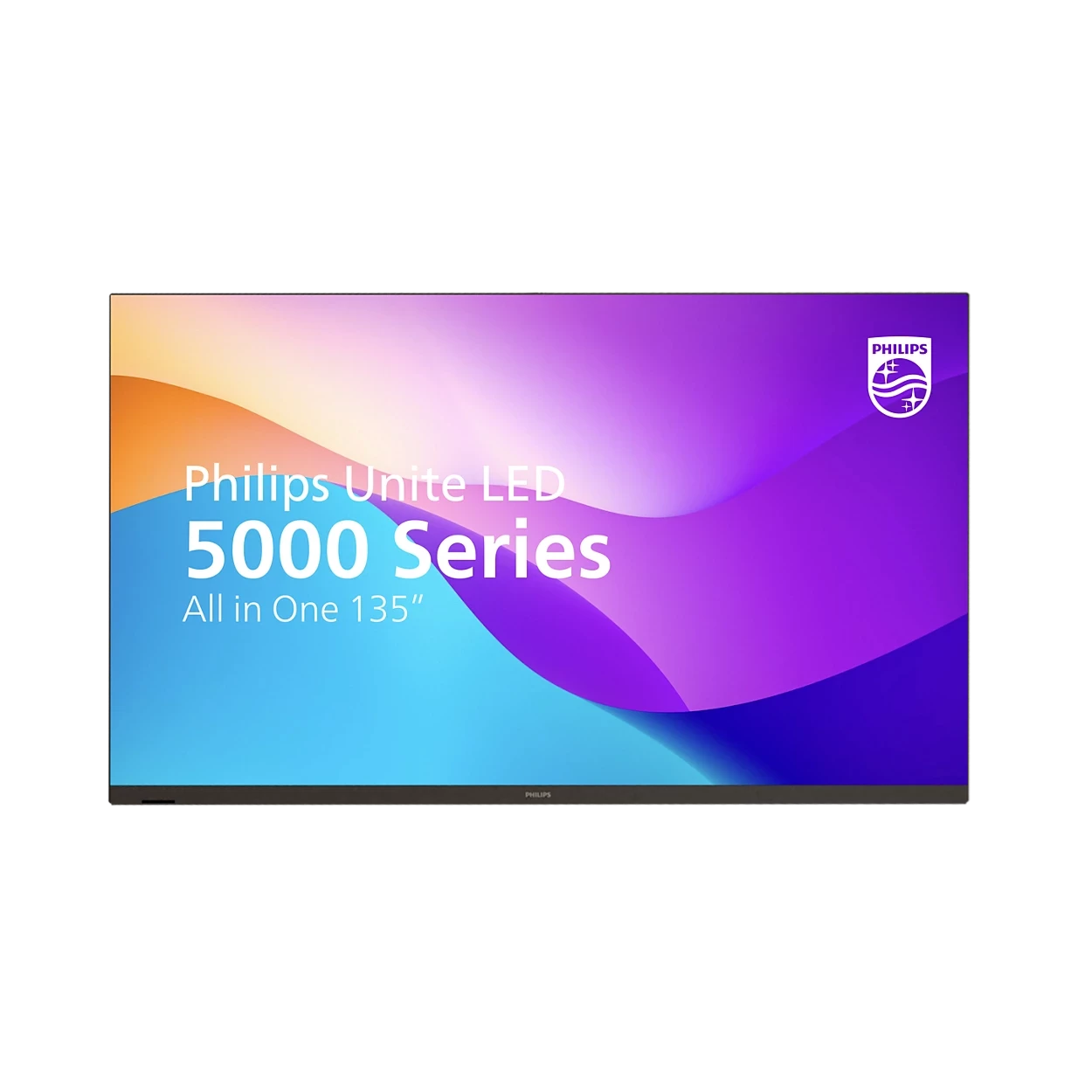

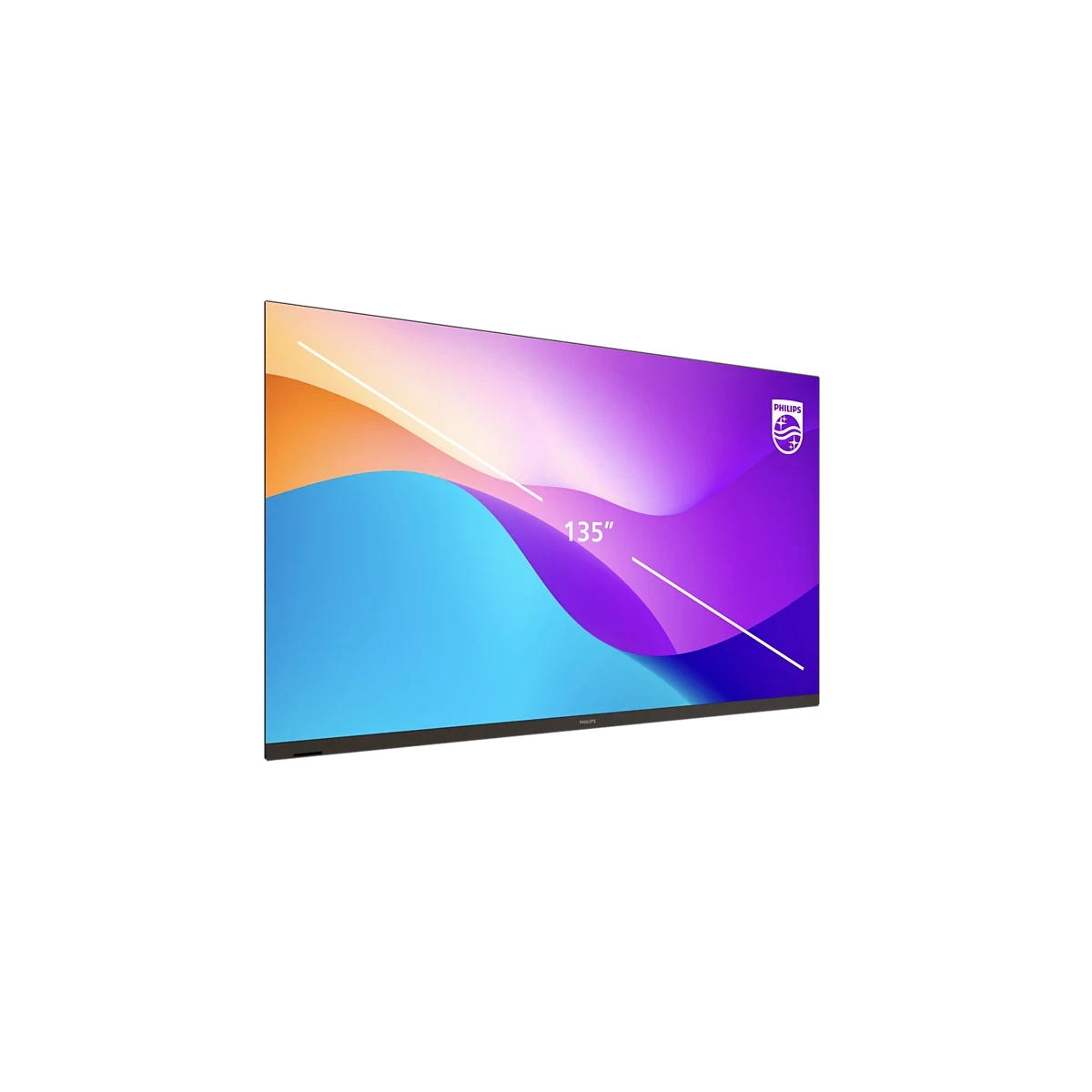

Philips 135HDL5015IA/00 135'' Unite LED 5000 Display All-in-One

Product code: 135HDL5015IA/00

Perfect viewing experience

Install in as little as four hours

SEND AN ENQUIRY

Description

Highlights

Crystal clear and connected display

  • Full HD resolution (1920x1080) delivers crisp and detailed image, enhancing the visual experience across various content types. The display ensures sharp and immersive viewing for any professional application.

Simplified installation

  • Simplified for fast setup, it has never been easier to install a display to wall mount or on optional trolley within one and half hours with 2 people. Just mount the 5 brackets to the wall and hang the 5 columns on it. Then fix the bottom bar with stereo audio built in and preset cabling.

Everything in one

  • The display comes in one box including wall mount brackets. Everything has been pre-configured; columns are pre-wired and MMR back box and bottom bar are fast to connect to the columns. No hassle with complex wiring or configuration. Edge finishing trim, control system, stereo audio, built in wiring Simple.

SMD-LED with nano coating

  • Enhanced durability and image quality, thanks to advanced protection against moisture and dust.

Powered by Android

  • The user interface can be controlled with a normal remote control as your TV at home. Input source selection, volume- brightness- or contrast are easy to control from your hands. Reliable Android 11 system built in to run apps on a fast integrated SoC (System on chip) platform. Optimised for native Android apps, it enables you to install web apps and software directly onto the display,eliminating the need for an external media player.

Pixel Pitch P1.5mm

  • P1.5 mm pixel pitch offers incredibly sharp and detailed visuals, ensuring stunning clarity even at close viewing distances. Ideal for applications demanding high resolution and precision.

PPDS Wave

  • Unlock the power, versatility and intelligence inside Philips Unite LED All-in-One LED display remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and setup, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saves you time, energy and environmental impact.

Energy efficient

  • The display is energy efficient and able to perform up to 600 nit brightness after calibration. Switch the screen easily to stand by mode and power consumption will be lowered to less than 0.5 Watt. With this low power consumption, the display is still able to start up fast when it is switched on with the included remote control.

Wifi and Bluetooth dongle for easy connectivity

  • Included Wifi/Bluetooth dongle for seamless connectivity, ensuring easy access to wireless networks and peripheral devices.

Additional information

Specifications

Connectivity
•Video input: DVI-I (x 1), DisplayPort 1.4 (x1), HDMI 2.0 (x2), USB 3.0 ( x2), USB-C (up to 65W)
•Audio input: 3.5 mm mini jack (x1)
•Audio out: 3.5mm headphone/line-out jack
•Video output: DisplayPort 1.4 (x1)
•External control: RS232C (in/out) 2.5 mm jack, RJ45, RJ45 to LED screen (8x), IR (in/out) 3.5 mm jack

Picture/Display
•Aspect ratio: 16:9
•Brightness uniformity: ≥95%
•Brightness after calibration: 700cd/m²
•Brightness before calibration: 900cd/m²
•Color temperature adjust range: 2000~10000
•Color temperature default: 6500 adjustable
•Contrast ratio (typical): 8000:1
•Viewing angle (horizontal): 160° degree
•Viewing angle (vertical): 160° degree
•Frame frequency (Hz): 50/60
•Scan rate (lines): 1/48
•Refresh rate(Hz): 3840

Power
•Mains power: AC 100~240
•Max Power consumption (W): 2.260 W W
•Typical power cons. (W): 816
Operating conditions
•Temperature range (operation): 0~40 °C
•Temperature range (storage): -40~60 °C
•Humidity range (operation)[RH]: ≤90%
•Humidity range (storage) [RH]: ≤93%

Cabinet
•Cabinet area (m2): 1.0125
•Cabinet pixels ( Dot ): 414,720
•Cabinet resolution (W x H): 384x1080
•Cabinet size (mm): 70.5
•Data connector: RJ45
•Power connector: C40
•Receiving card spec.: A5s plus
•Receving card brand: Novastar
•Weight (KG): 29
•Cabinet construction: Extruded Aluminum

Module
•LED package brand: DSBJ
•LED type: SMD 1212
•Pixel constitution: 1R1G1B
•LED lifetime(Hrs): 100.000
•Module resolution (WxH pixels): 192x108
•Pixel pitch (mm): 1.5625
•Module size (WxH in mm): 300x168.75

Internal Player
•CPU: 2x A72 + 4x A53
•GPU: ARM Mali-T860 MP4
•Memory: 4GB RAM
•Storage: 32 GB eMMc

Accessories
•Included accessories: Remote Control & AAA Batteries, RS232 cable, Power cord, Quick start guide, RS232 daisy cable, IR sensor cable (1.8M), USB cover and screws, Cable clips, Key pad & IR receiver board, Cable for key pad & Ir receiver board, Speaker set
•Wifi module: CRD22 Wifi & Bluetooth USB module, incl 2 antennas

Miscellaneous
•Warranty: 2 Years
•Regulatory approvals: CE, FCC SDOC, Part 15, Class A, EMC, EN55032, EN55035, EN61000-3-2, EN61000-3-3, IEC/UL62368, ETL

Packaging Data
•Dimension of packaging (mm): 1830x1050x780
•Gross weight (KG): 277
