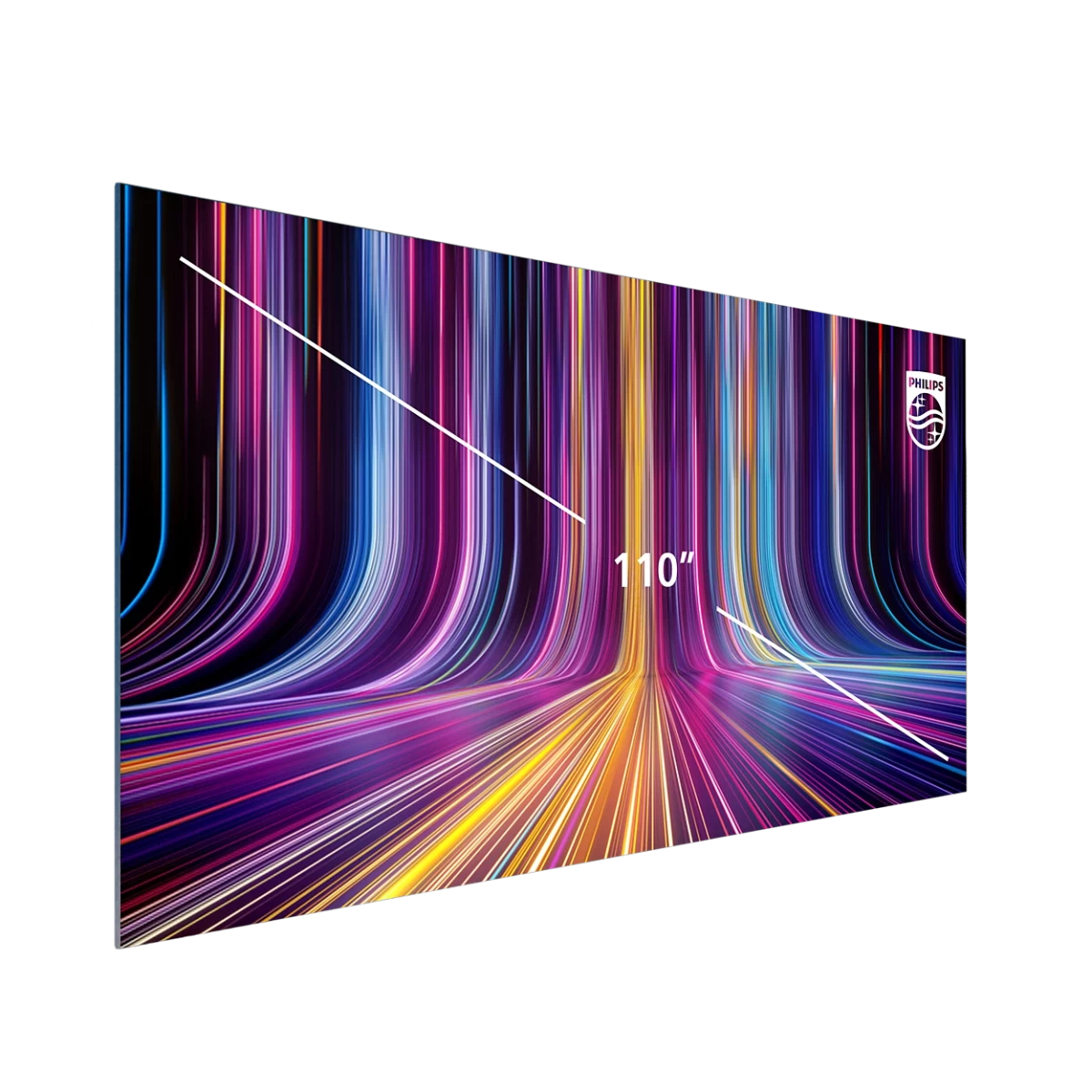

Philips 110HDL7012IA/00 110'' Unite LED 7000 Display All-in-One
Product code:110" videowall replacement – install under 1 hour
Νo long cables required
SEND AN ENQUIRYDescription
Highlights
Preconfigured easy mount display
- Out of the box installation with HDMI modular interface for instant input transmission.
Preconfigured easy mount display
- Simple installation and no cabling complexity.
Instant plug and play
- Out of the box installation with HDMI modular interface for instant input transmission.
Common cathodes – lower cost of ownership
- New generation cool common cathode technology delivers greater energy efficiency with lowerheat emissions. Screen brightness can be adjusted automatically.
Greater viewing experience
- A viewing angle of 160° brings optimum experience to a greater audience, while full HD picture quality brings vibrant colours and deep contrasts, allows optimal brightness and colour calibration.
- Enhanced brightness and colour uniformity. The technology also increases durability and heat dissipation, making the LED displays more reliable and long lasting.
Superbly smooth surface
- Adjustable connectors deliver on conductivity and transmission efficiency while facilitating a smooth surface easier to clean and dust and moisture protected.
Additional information
Specifications
Picture/Display
• Brightness uniformity: ≥97%
• Brightness after calibration: 600
• Brightness before calibration: 700
• Calibration(brightness/color): Colour and brightness
• Color temperature adjust range: 3000-10000
• Color temperature default: 6500K ±500
• Contrast ratio (typical): 7000:1
• Bit-depth(bit): 16
• Frame frequency (Hz): 50-60 Hz
• Scan rate (lines): 34
• Refresh rate(Hz): 3840 Hz
• Colour uniformity: ±0.012Cx,Cy
• Colour coordinates: 0.313, 0.325 (±0.012Cx,Cy)
• Viewing angle (°) H/V: 160° degree
Power
• Input voltage: AC100~240V (50 & 60Hz)
• Black screen power cons. (W): <45W
• BTU/M2 (BC): 635
• BTU/M2 (AC): 625
• Cabinet Max Power consumption (W) (BC): <340
• Cabinet Max Power consumption (W) (AC):: <310
• Cabinet Typical Power consumption (W) (AC): <154.7
• Power consumption/M2 (W)(BC): <190
• Power consumption/M2 (W)(AC): <187.2
Operating conditions
• Temperature range (operation): -10-45 °C
• Temperature range (storage): -20-60 °C
• Humidity range (operation)[RH]: 10%-90%
• Humidity range (storage) [RH]: 10%-90%
• Working environment (indoor/outdoor): Indoor
Cabinet
• Cabinet area (m2): 0.8226
• Cabinet pixels ( Dot ): 518,400
• Cabinet resolution (W x H): 960x540 pixels
• Cabinet size (mm): 1209.6x680.4x28
• Data connector: HDMI
• Power connector: C14 connector
• Receiving card spec.: 3 in 1
• Weight (KG): <=18.5kg
• Cabinet diagonal (inch): 55"
• Cabinet construction: die cast aluminum
Module
• LED type: SMD1010 Common Cathode
• Pixel constitution: 1R1G1B(3 in 1)
• LED lifetime(Hrs): 100.000
• Module resolution (WxH pixels): 240x135
• Pixel pitch (mm): 1.26
• Module size (WxH in mm): 302.4x170.1
• Weight(KG): 0.35
• Black screen power saving
Accessories
• Included accessories: 2x spare LED display modules, 2x AAA battery, Quick start guide
• Power cable: length 300cm, 4pcs
• Data cable: HDMI 200cm 3x /300cm 1x /USB 300cm 1x
• Wall mount: 400 x 400 VESA mount (connected 2 cabinet in vertical)
• Tools: anti-static gloves 2x, manual suction tool 1x
• Remote control: IR receiver 1x, IR remote control (max distance 10m)
110” Display
• Diagonal Screen Size: 110 inch
• Input Voltage: AC100-240V (50 & 60 Hz)
• Max. Power Cons.(W): <1.240W
• Avg. Power Cons.(W): < 614,8W
• BTU/M2 (BC): 1136
• BTU/M2 (AC): 625
• Dimension (WxH mm): 2.433,2 x 1.374,8
• Weight (kg): 74
