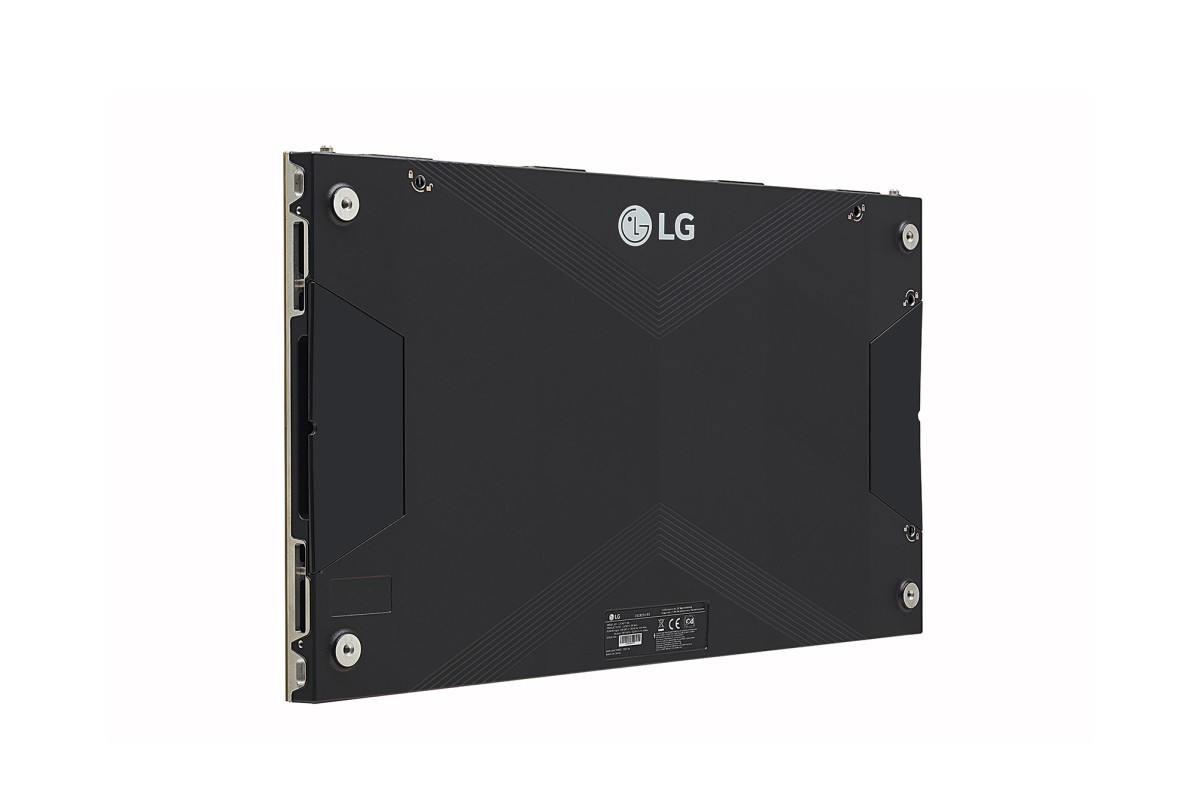

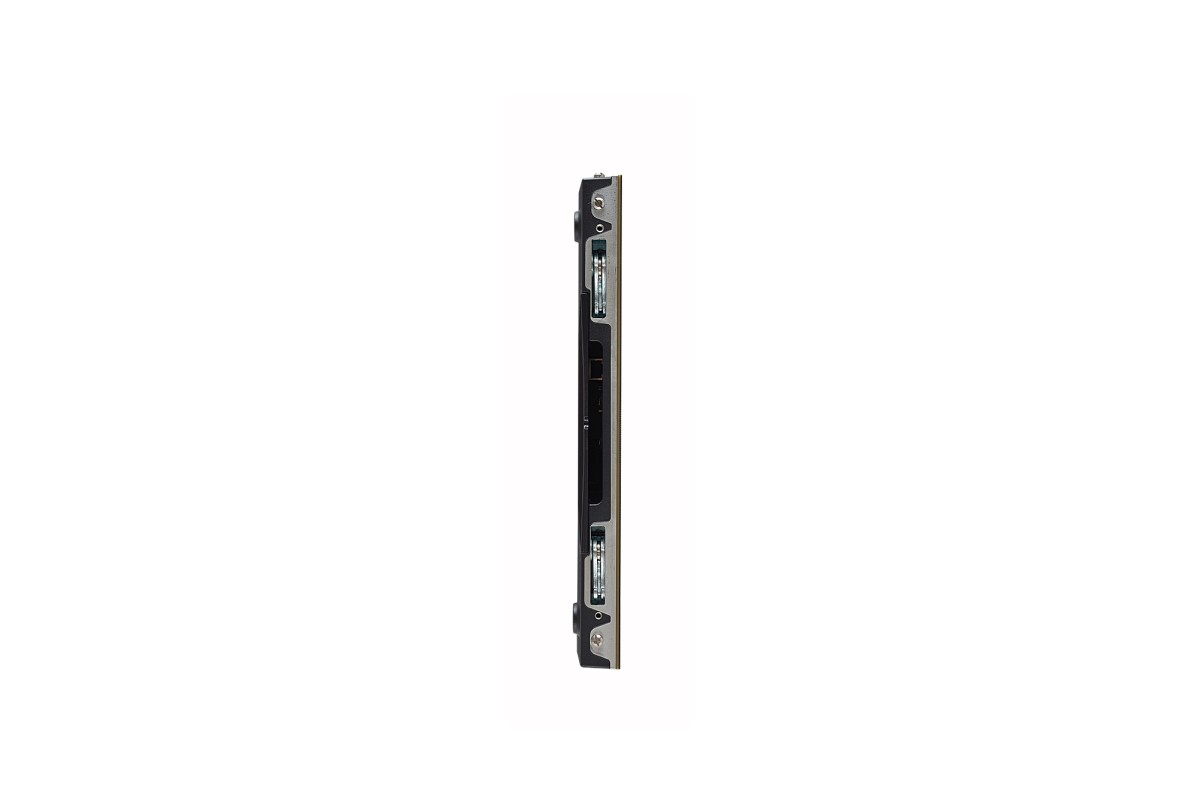

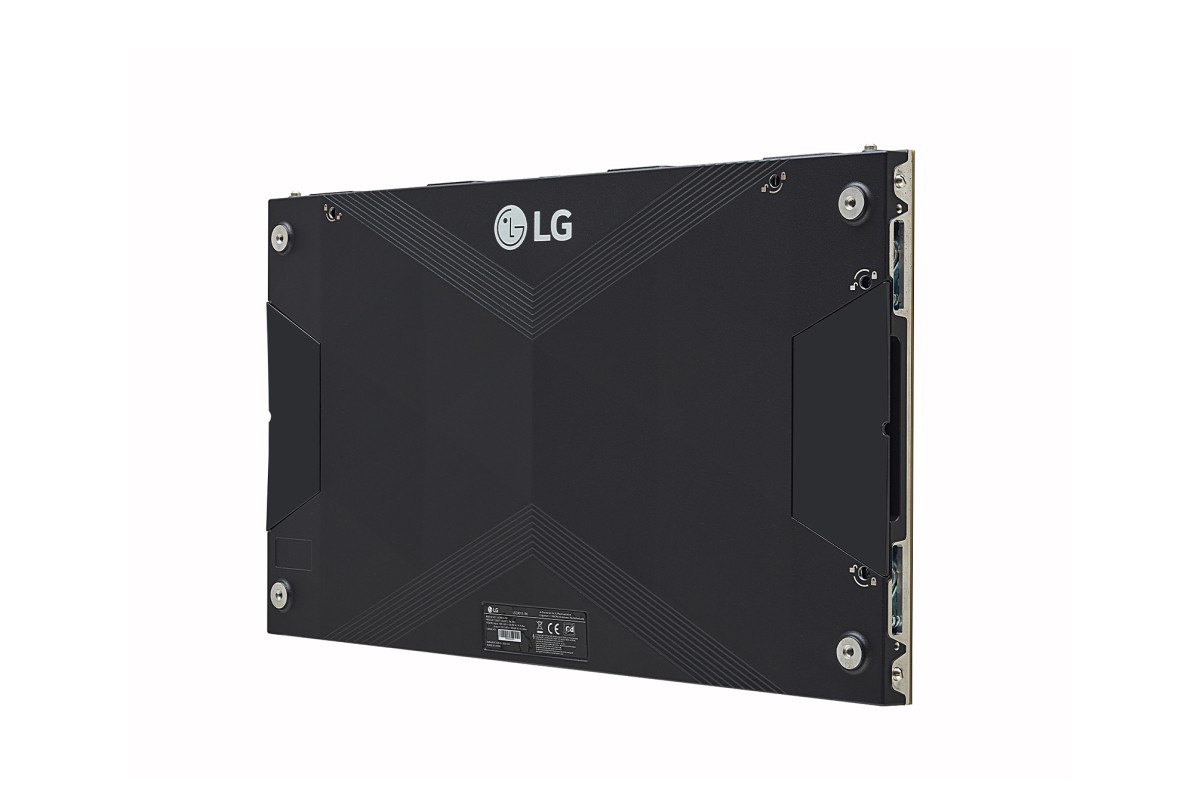

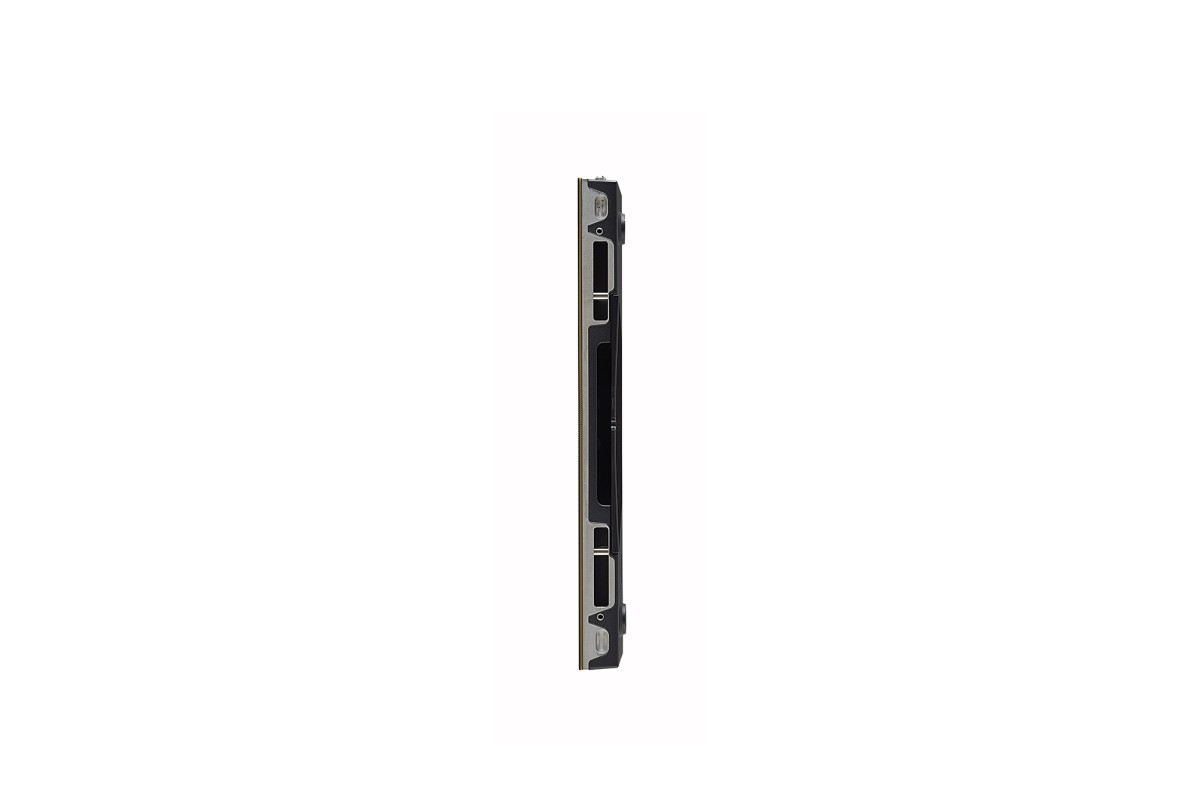

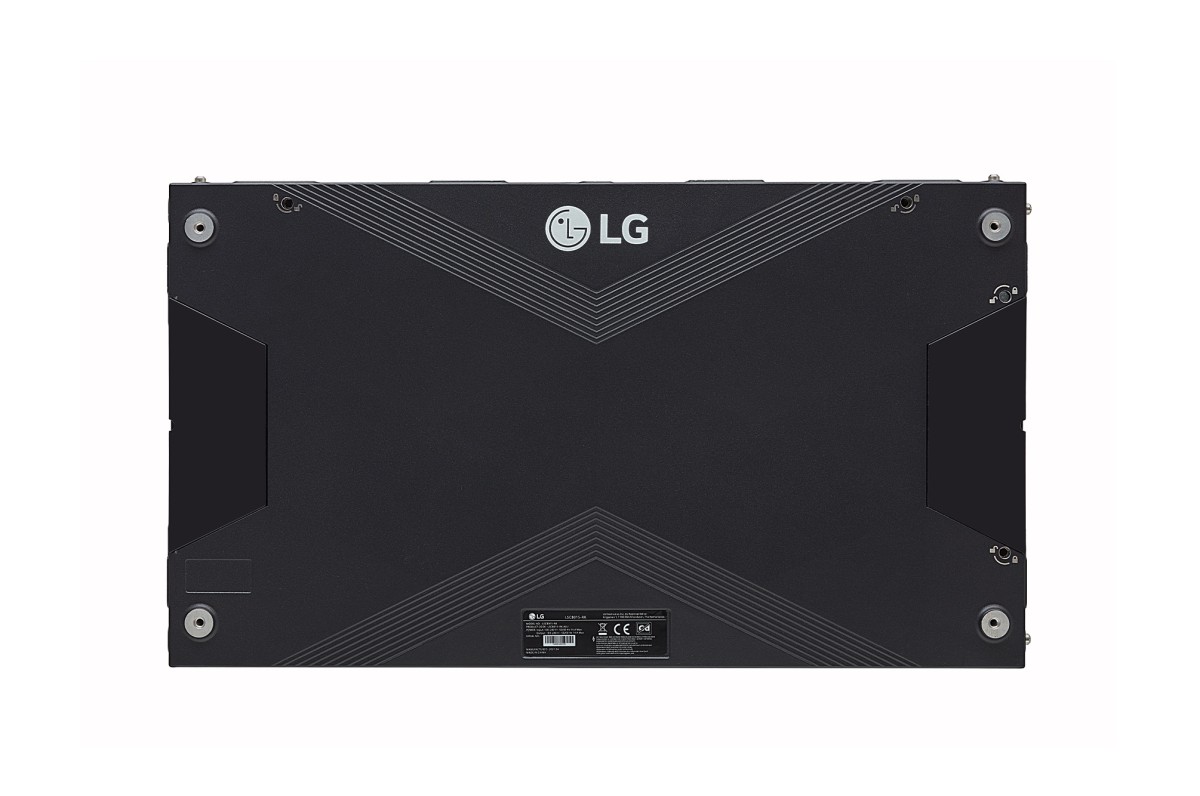

LG LSCB025 LED 2.50 Pixel Pitch Ultra Slim Series
Product code:- Pixel Pitch: 2.50mm
- Brightness: 800cd/m²
- Ultra Slim Depth
- EMC Class B, BS 476 Part7 Class 1
Description
Physical Parameter
| Pixel Configuration | 3 in 1 |
|---|---|
| Pixel Pitch (mm) | 2.500 |
| Module Resolution (W x H) | 120 × 135 |
| Module Dimensions (W x H, mm) | 300 × 337.5 |
| Weight per Module (kg) | 0.64 (-RK,-CK)/ 1.40 (-CKF) |
| No. of Modules per Cabinet (W × H) | 2x2 (-RK)/ 1x2 (-CK,-CKF) |
| Cabinet Resolution (W × H) | 240x135 (-RK)/ 120x135 (-CK, -CKF) |
| Cabinet Dimensions (W × H × D, mm) | 600x337.5x34 (-RK) / 300x337.5x29.7 (-CK) / 300x337.5x35.6 (-CKF, Cabinet Mounting Depth) |
| Cabinet Surface Area (m²) | 0.203 (-RK)/ 0.101 (-CK, -CKF) |
| Weight per Square Meter (kg/m²) | 26.2 (-RK)/ 39.0 (-CK)/ 30.6 (-CKF) |
| Weight per Cabinet (kg/cabinet) | 5.3 (-RK)/ 4.0 (-CK) / 3.1 (-CKF, Weight Changes for Different Curves) |
| Physical Pixel Density (pixels/m²) | 160,000 |
| Flatness of Cabinet | ± 0.1 mm |
| Cabinet Material | Die-casting Aluminum (-RK) / Aluminum Machine (-CK, CKF) |
| Service Access | Front |
Additional information
Optical Parameter
| Max. Brightness (After Calibration) | 800 |
|---|---|
| Color Temperature | 3,200-9,300 (K) |
| Visual Viewing Angle (Horizontal/Vertical) | 160 × 160 |
| Brightness Uniformity | 97 % |
| Color Uniformity | ± 0.003 Cx,Cy |
| Contrast Ratio | 5,000:1 |
| Processing Depth (bit) | 14 (HDR10, HDR10 Pro) |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 100 (-RK)/ 55 (-CK, -CKF) |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 34 (-RK)/ 18 (-CK, CKF) |
| Power Consumption (W/m², Max.) | 494 (-RK)/ 543 (-CK, -CKF) |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | -10 °C to +45 °C |
| Operating Humidity | 0~80%RH |
| IP rating Front / Rear | IP30 / IP30 |
Controller
| Controller | CVCA, LCIN006, LCIN008 (4K) |
|---|
90 Degree Corner Cut
| 90 Degree Corner Cut | Yes |
|---|
