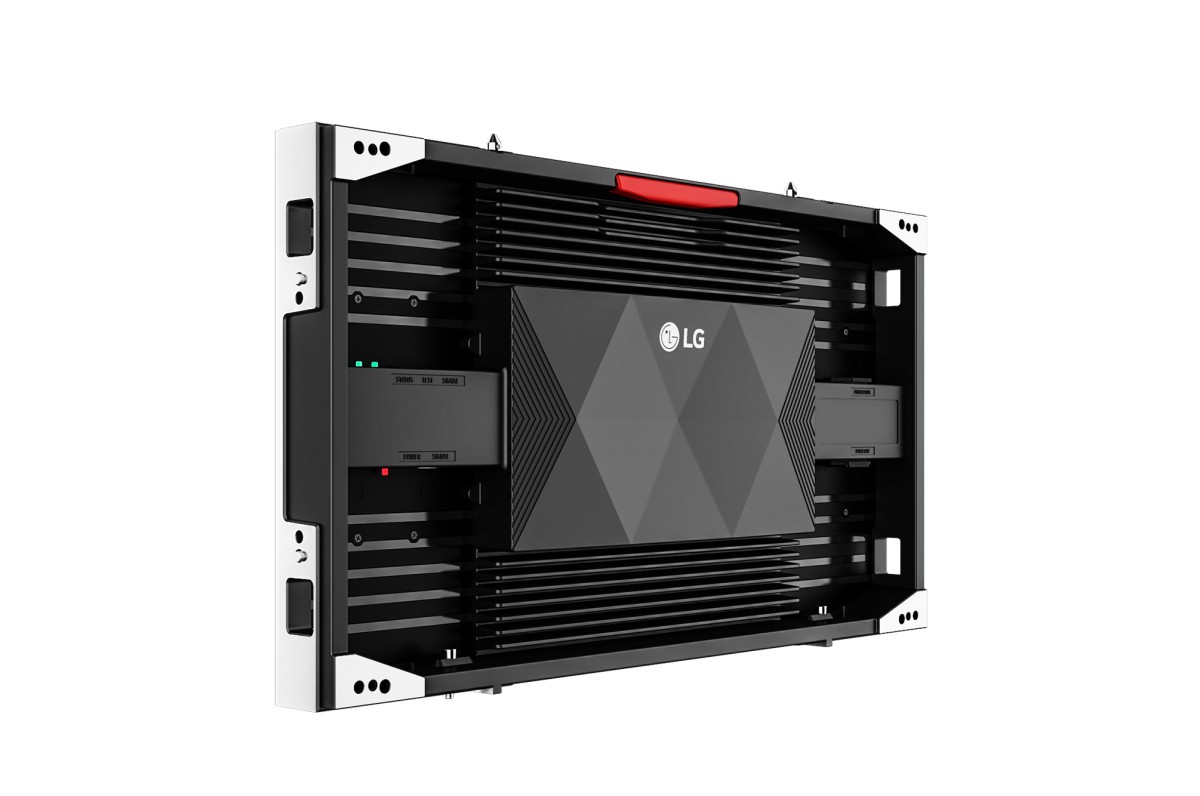

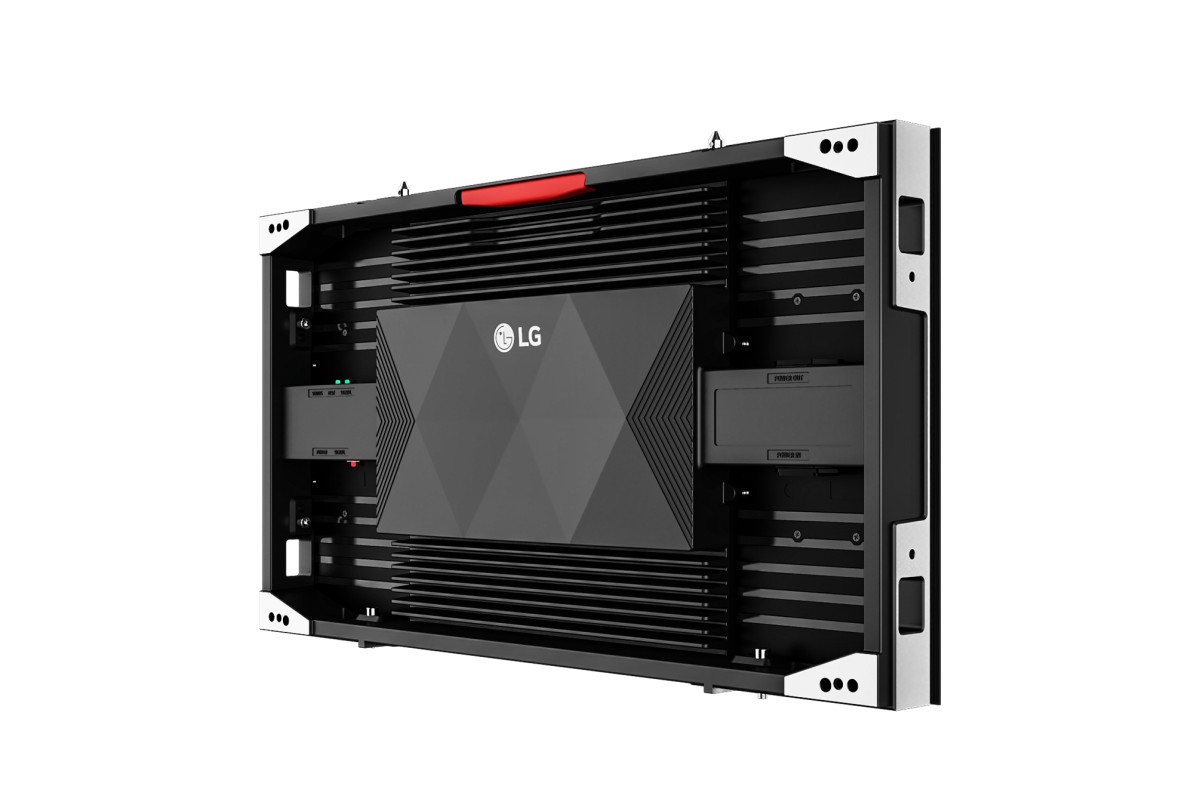

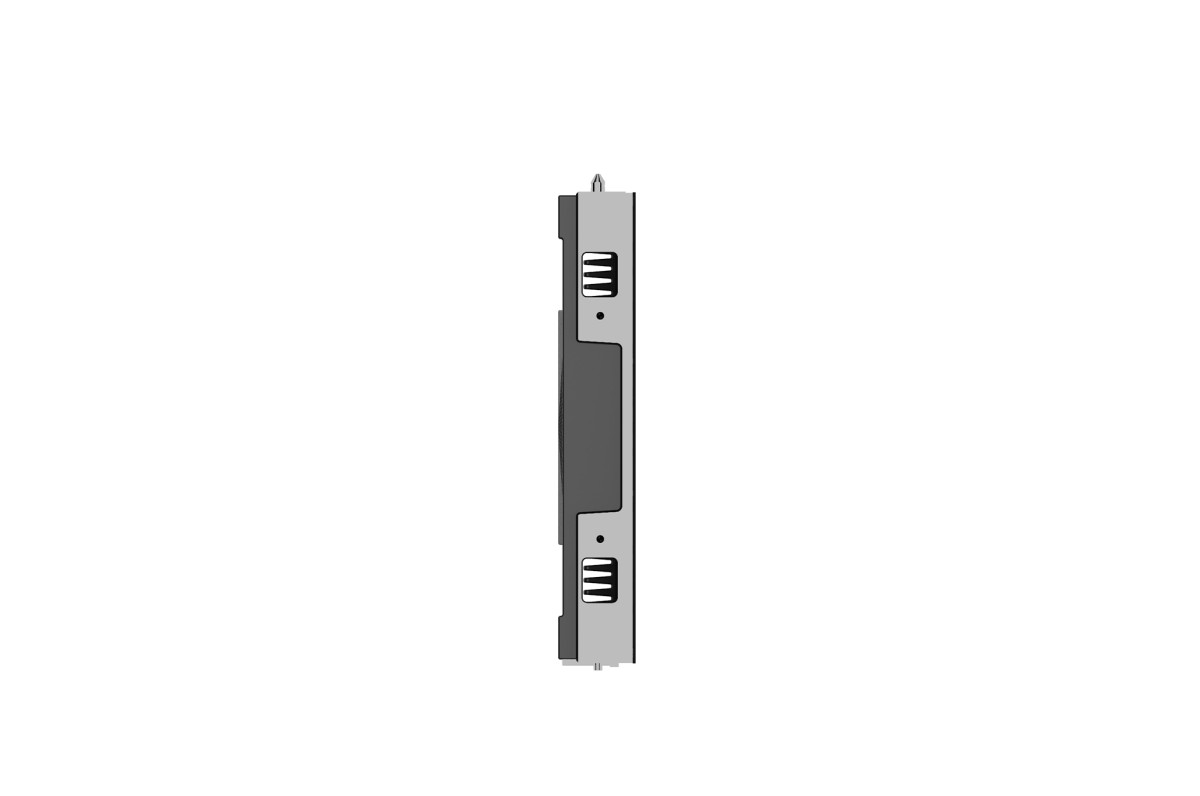

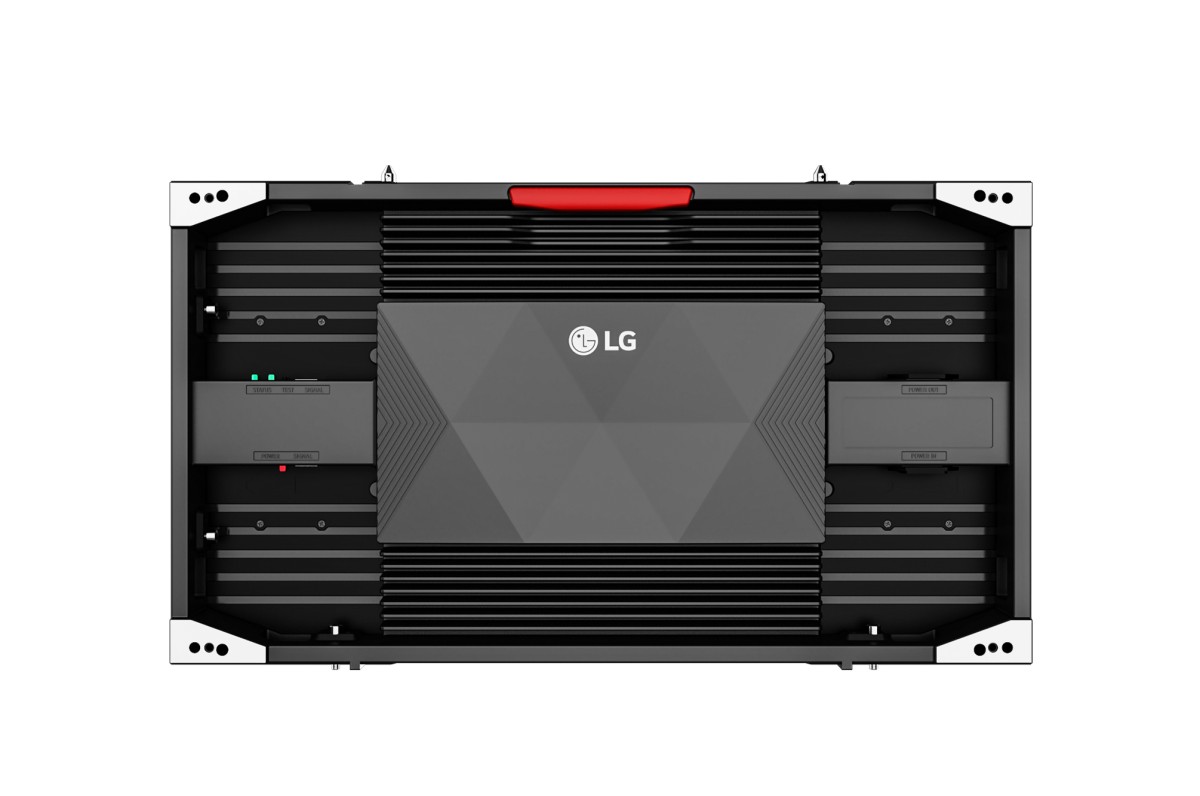

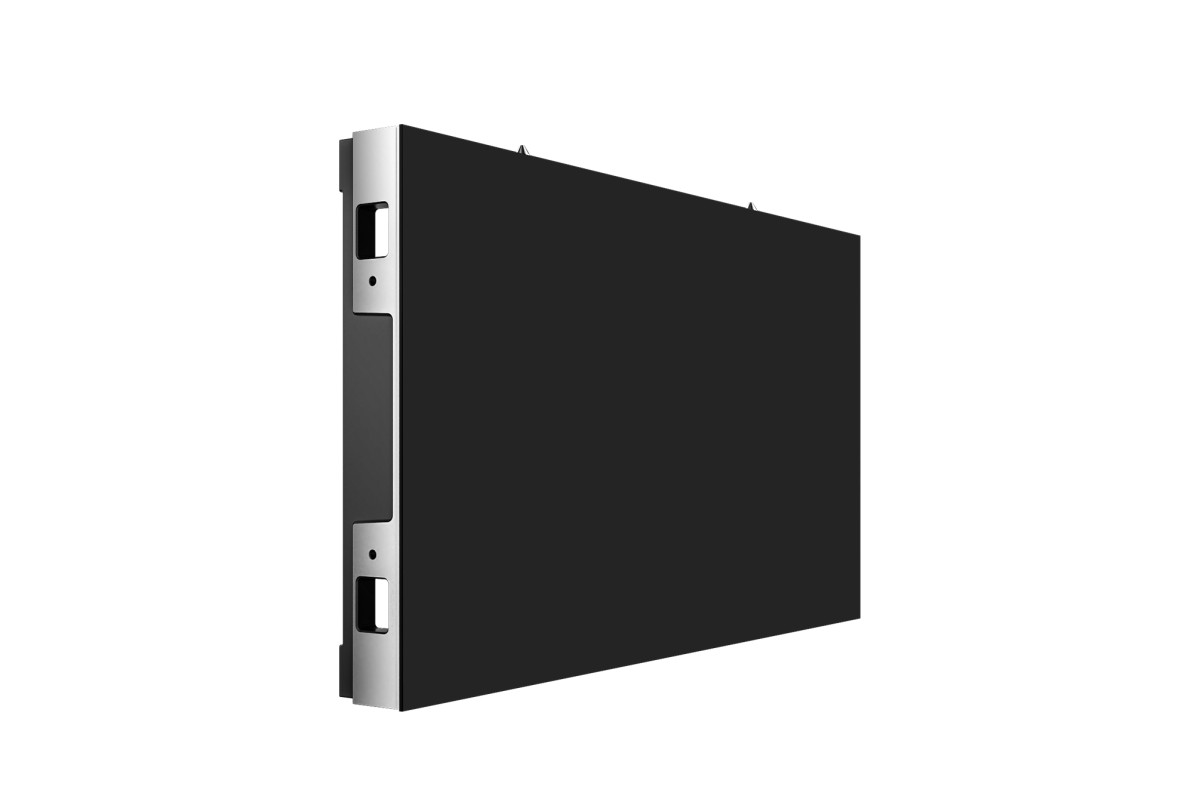

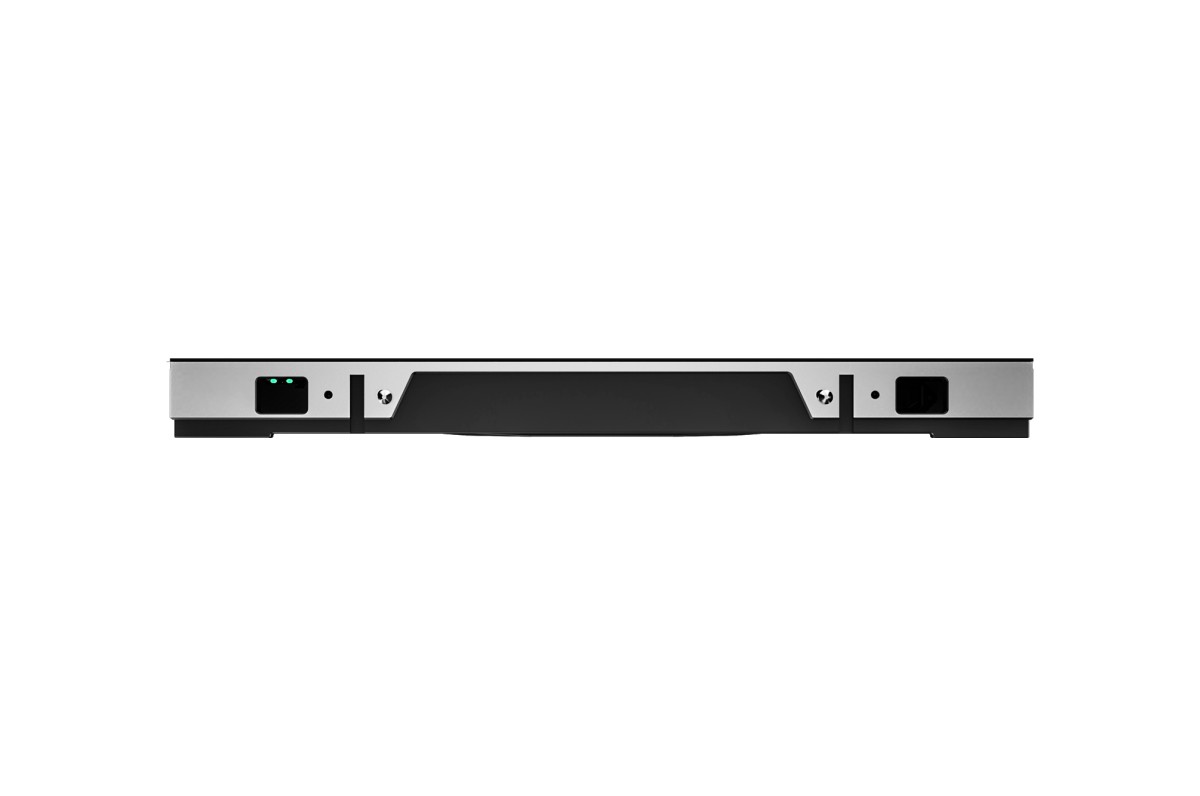

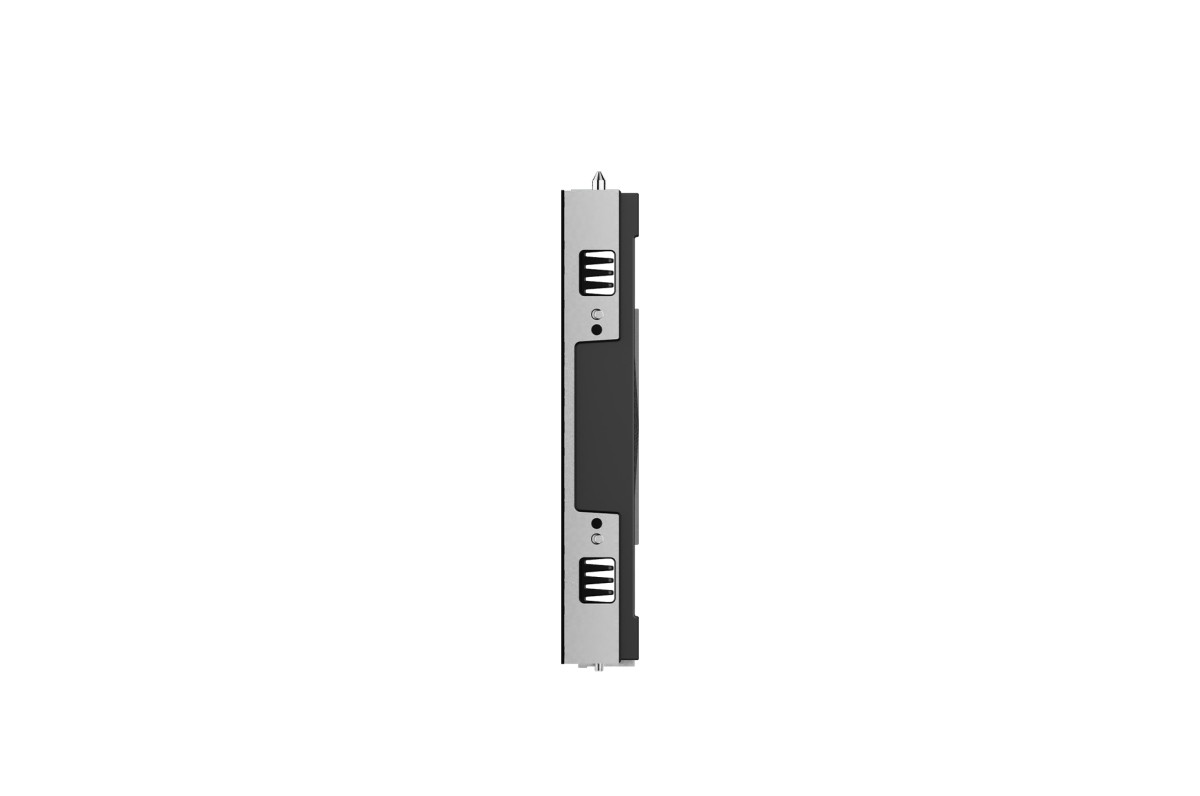

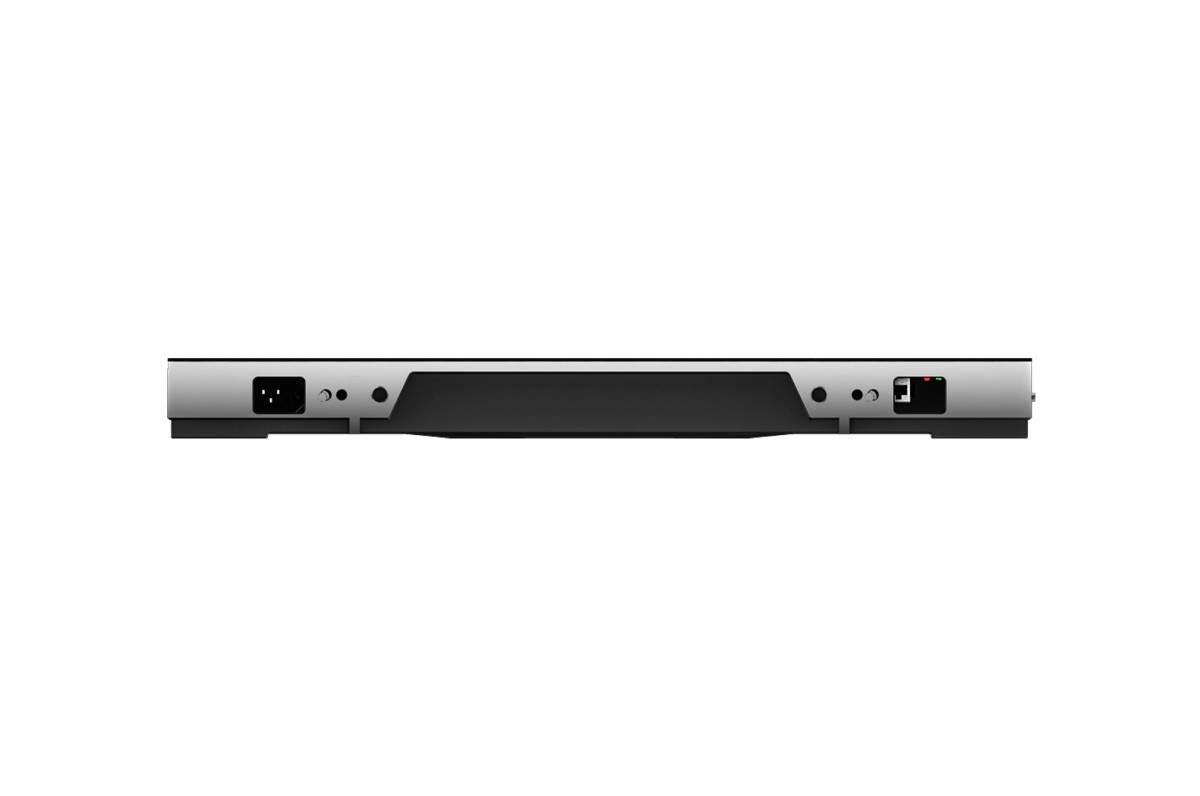

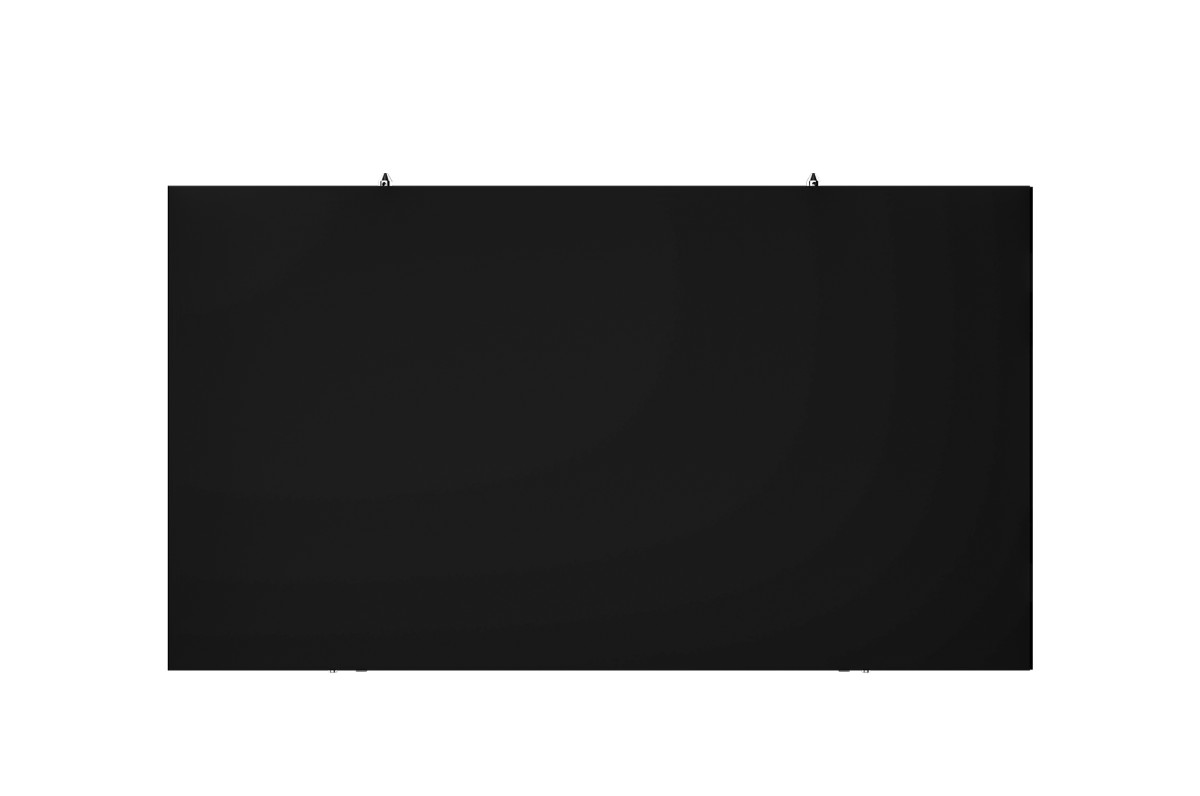

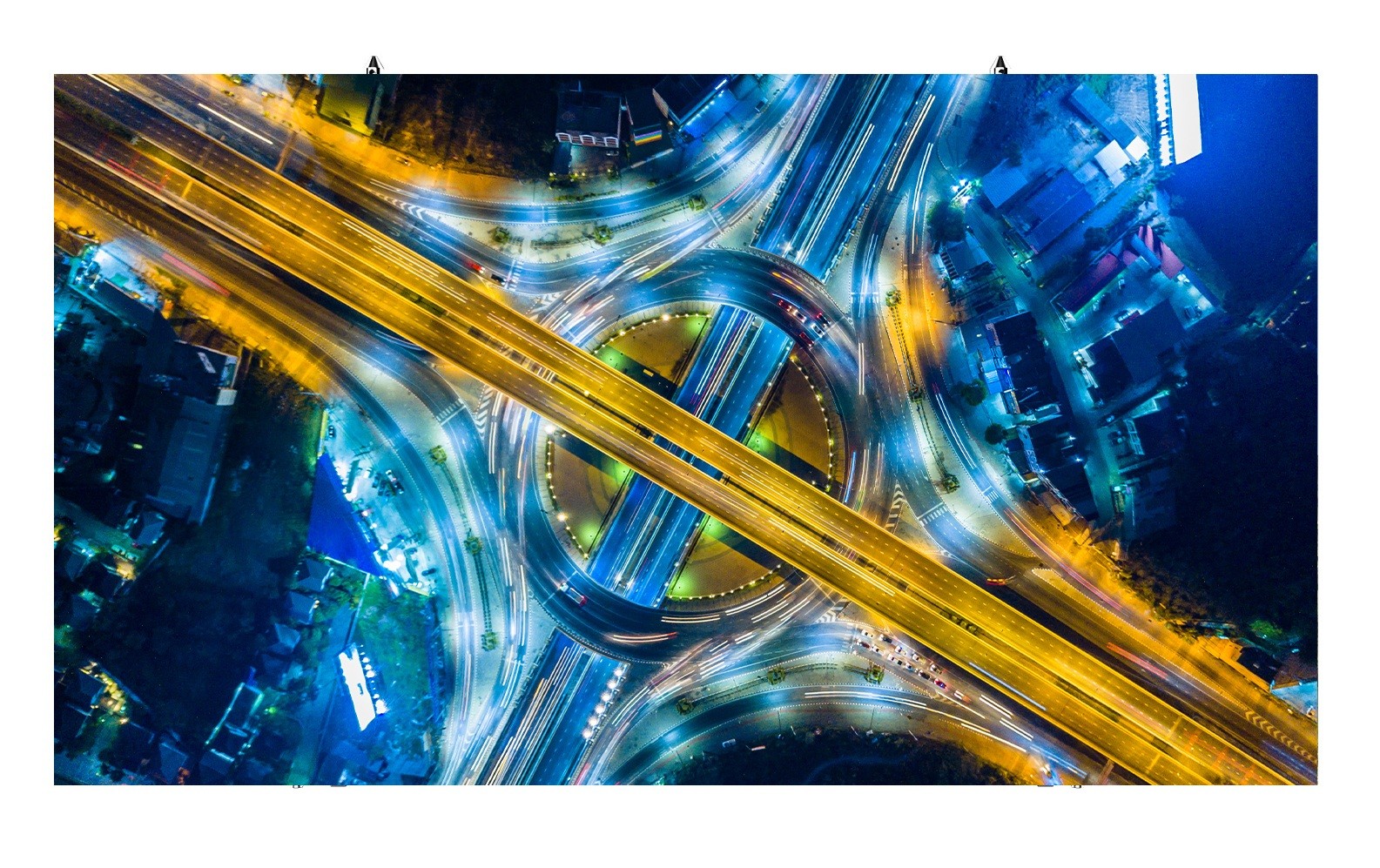

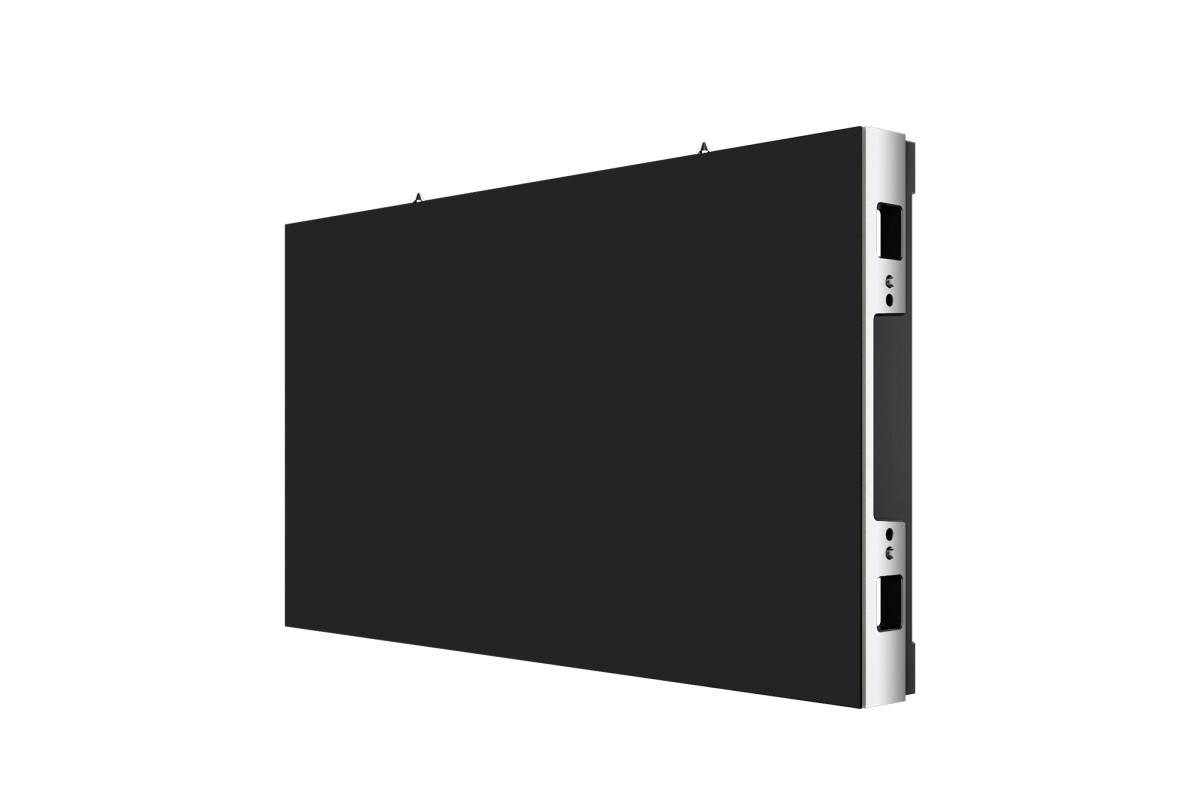

LG LSBB009 LED 0.94 Pixel Pitch Fine-pitch Essential Series
Product code:- Pixel Pitch: 0.94 mm
- Brightness: 600 nit

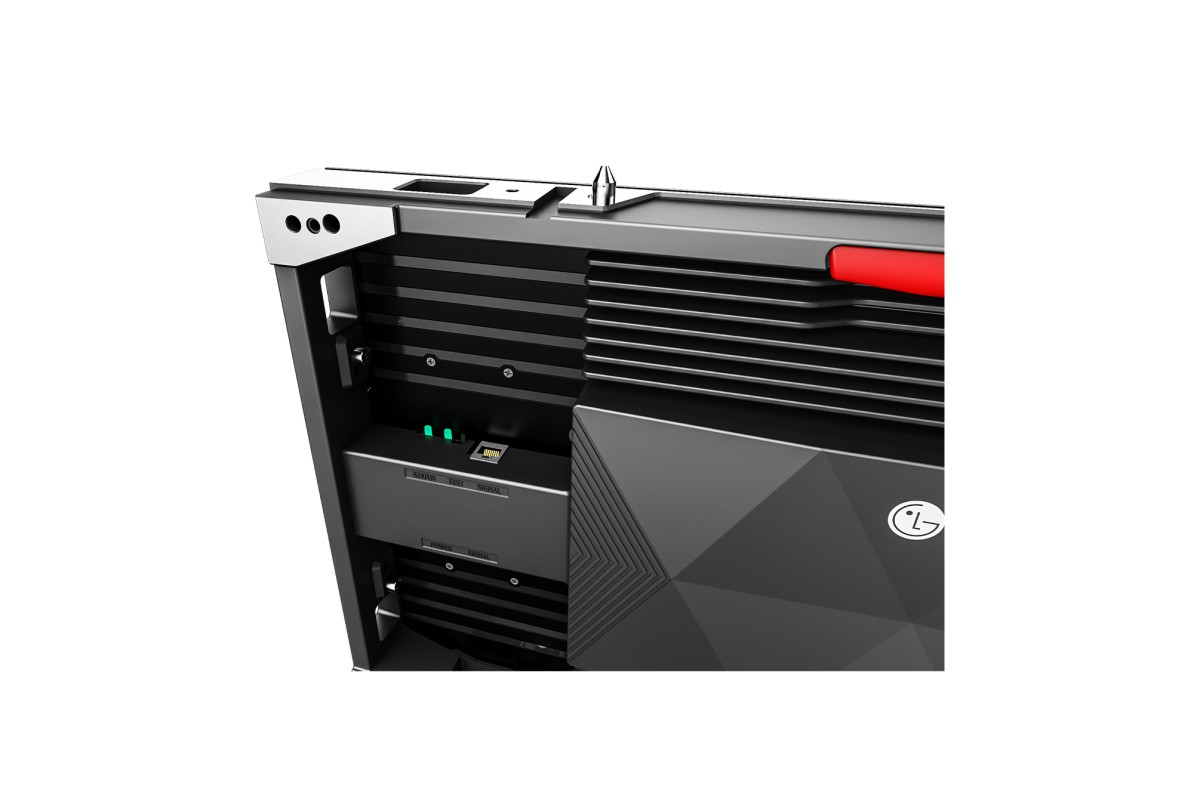

- Status Indicator of Signal Detection

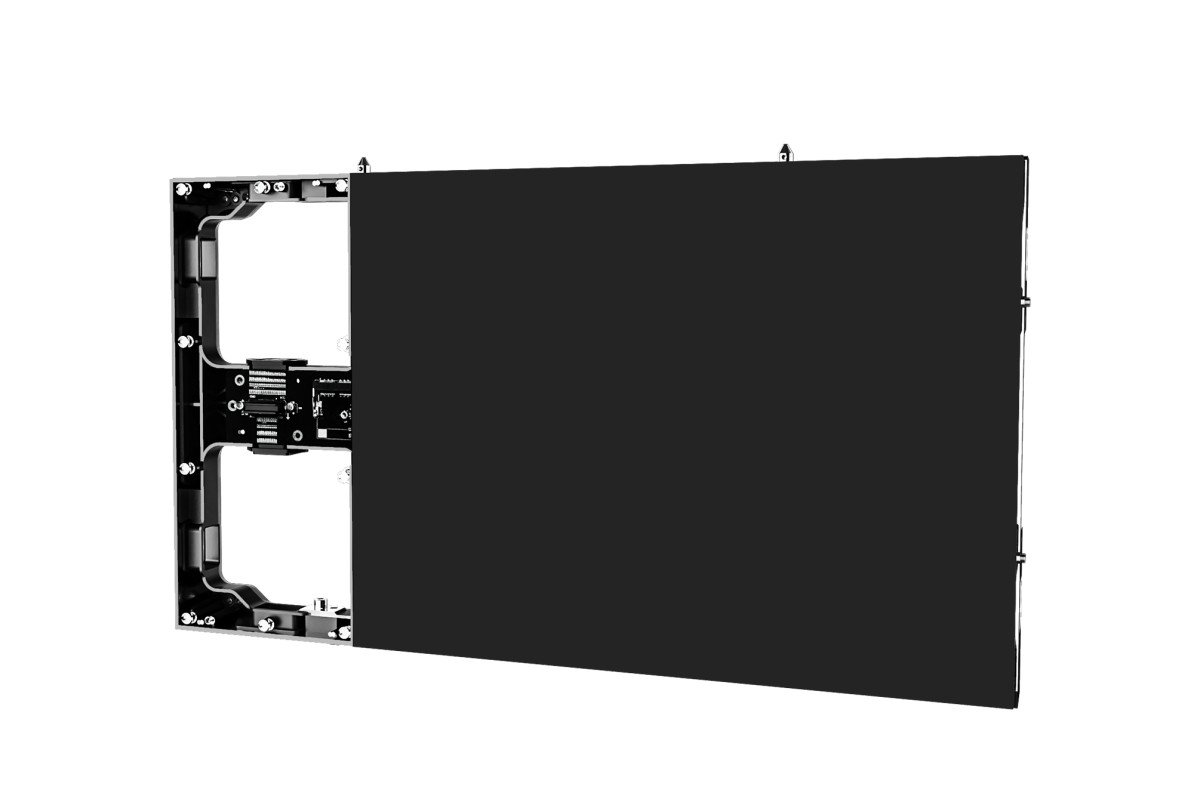

- Front Serviceability
- Easy-handling Lightweight Cabinet
- Compatibility with LG Software Solutions
Description
Physical Parameter
| Pixel Configuration | 3 in 1 SMD |
|---|---|
| Pixel Pitch (mm) | 0.938 |
| Module Resolution (W x H) | 160 × 360 |
| Module Dimensions (W x H, mm) | 150 × 337.5 |
| Weight per Module (kg) | 0.50 |
| No. of Modules per Cabinet (W × H) | 4 × 1 |
| Cabinet Resolution (W × H) | 640 × 360 |
| Cabinet Dimensions (W × H × D, mm) | 600 × 337.5 × 56 |
| Cabinet Surface Area (m²) | 0.203 |
| Weight per Square Meter (kg/m²) | 30.0 |
| Weight per Cabinet (kg/cabinet) | 6.0 |
| Physical Pixel Density (pixels/m²) | 1,137,777 |
| Flatness of Cabinet | 0.5 |
| Cabinet Material | Die Casting Aluminum |
| Service Access | Front |
Additional information
Optical Parameter
| Max. Brightness (After Calibration) | 600 |
|---|---|
| Color Temperature | 3,200-9,300 |
| Visual Viewing Angle (Horizontal/Vertical) | 160 × 140 |
| Brightness Uniformity | 97% |
| Color Uniformity | ±0.003 Cx,Cy |
| Contrast Ratio | 5,000 : 1 (Typ.) |
| Processing Depth (bit) | 16 (HDR10, HDR10 Pro) |
Electrical Parameter
| Power Consumption (W/Cabinet, Max.) | 120 |
|---|---|
| Power Consumption (W/Cabinet, Avg.) | 40 |
| Power Consumption (W/m², Max.) | 600 |
| Power Consumption (BTU/Cabinet, Max.) | 409 |
| Power Consumption (BTU/Cabinet, Avg.) | 136 |
| Power Consumption (BTU/㎡, Max.) | 2,047 |
| Power Supply (V) | AC 100-240 V (50-60 Hz) |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | -20 to +40 |
| Operating Humidity | 10-80% RH |
| IP rating Front / Rear | IP5X / IP5X |
