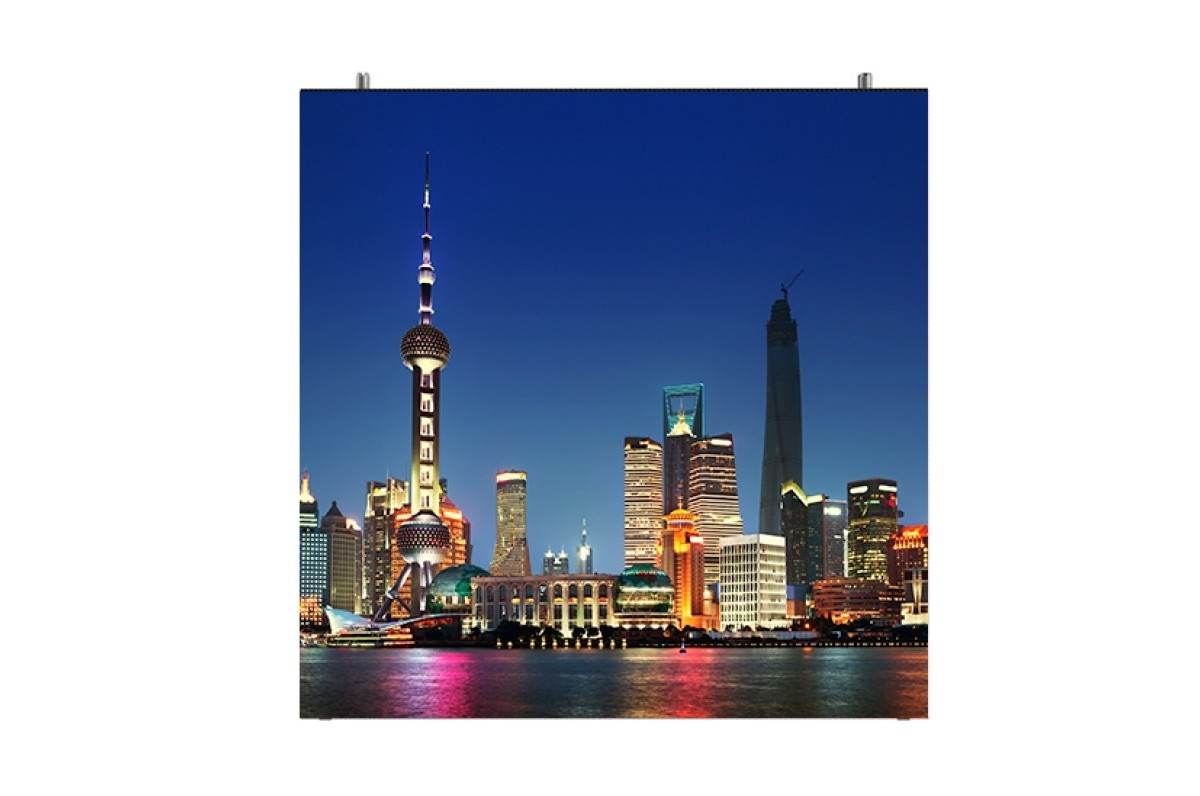

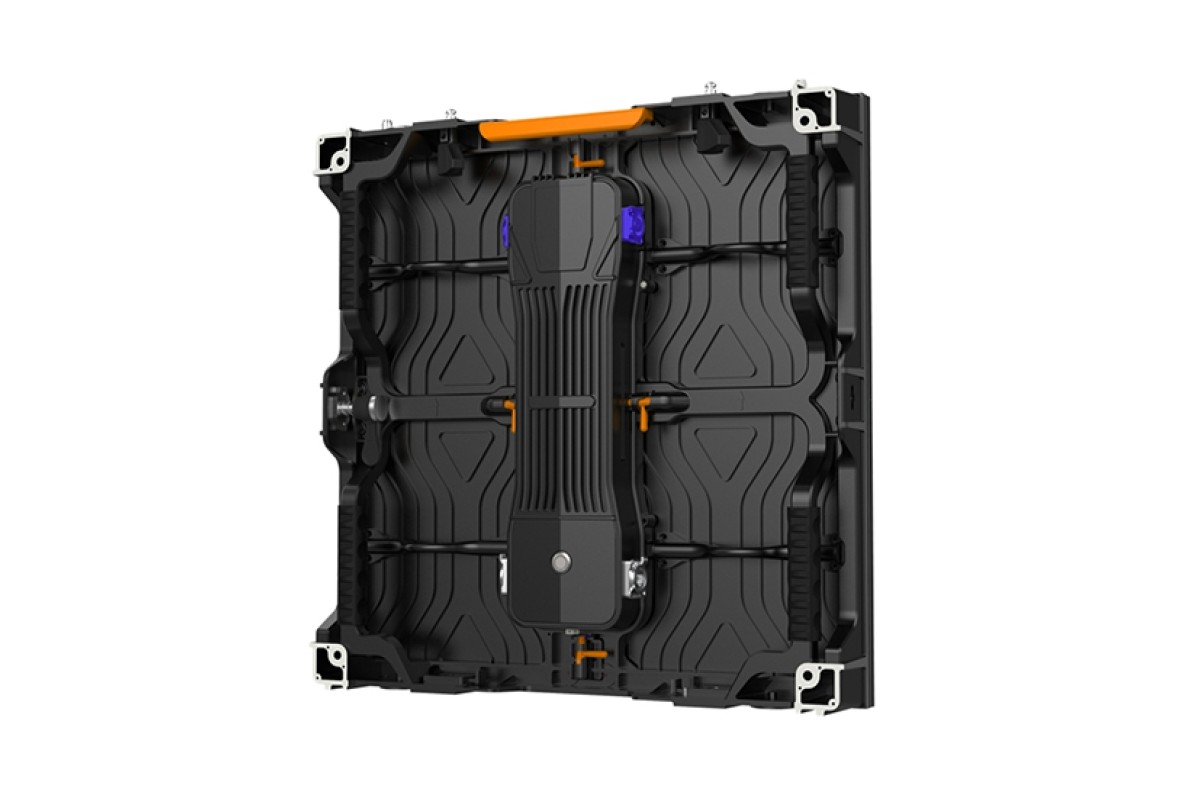

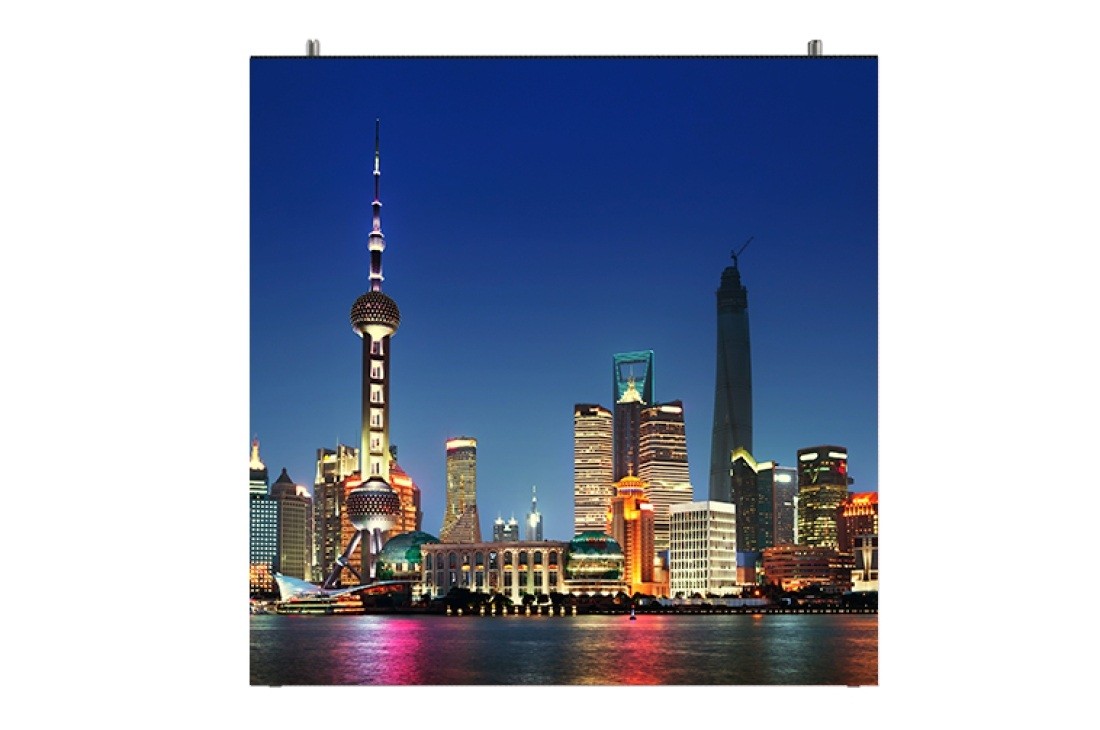

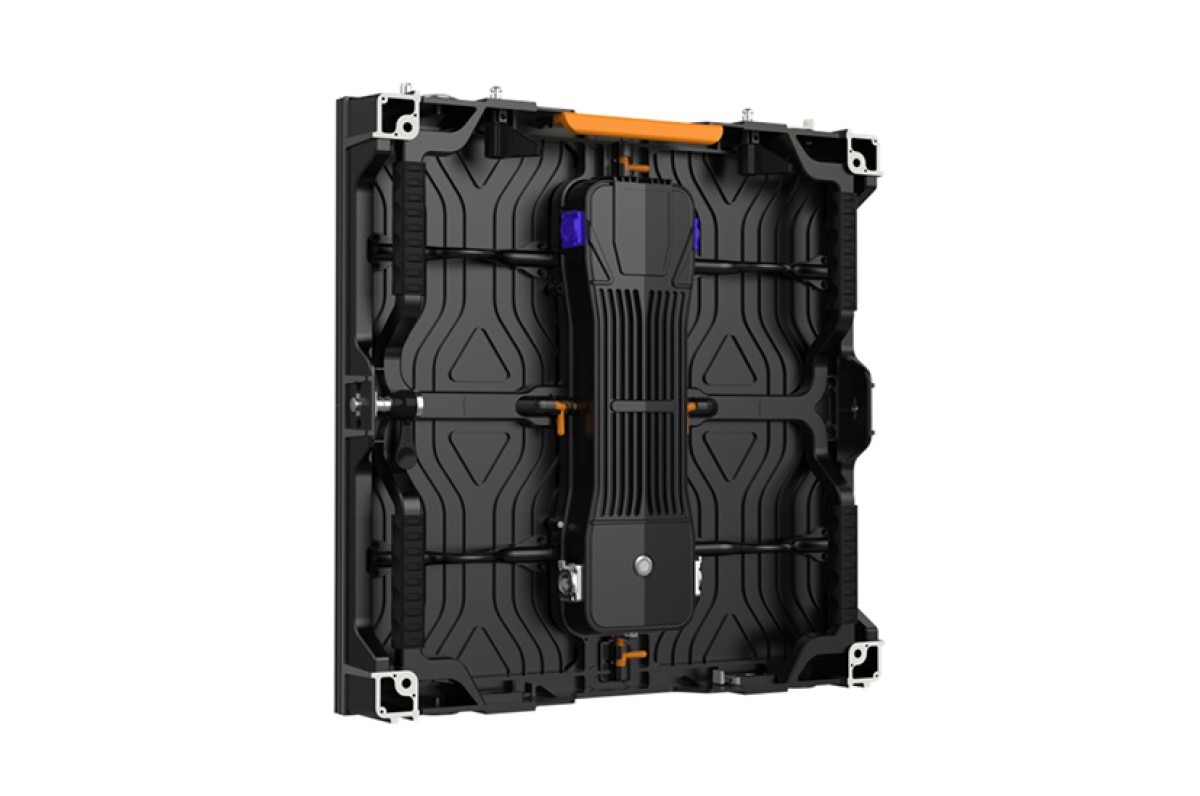

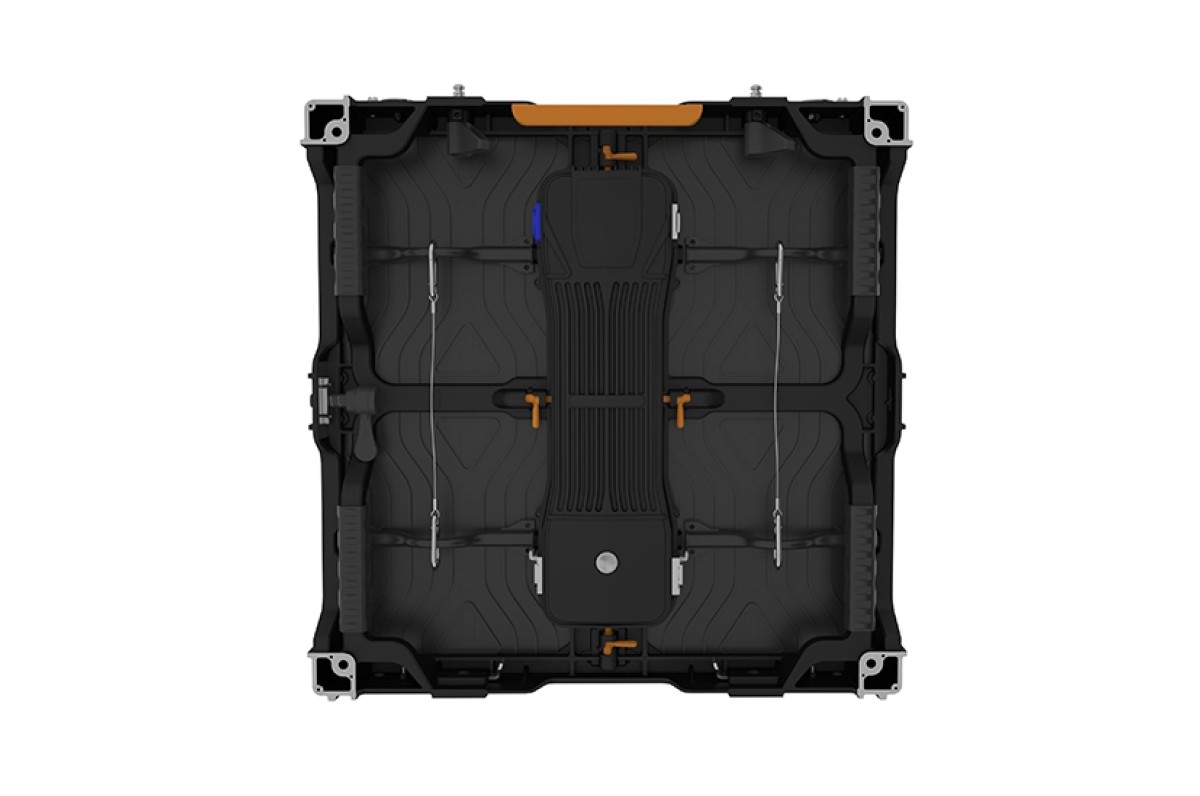

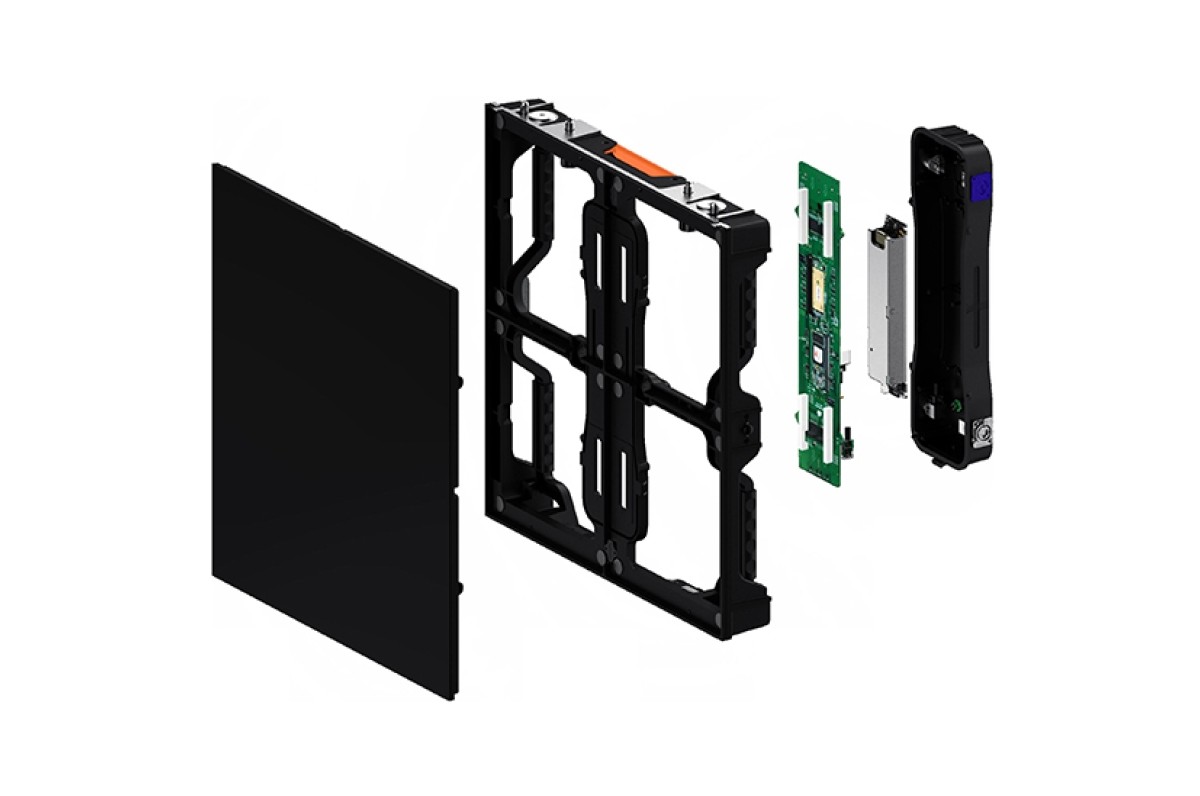

LG LSBA039 LED 3.9 Pixel Pitch Compact Series
Product code:- Pixel Pitch: 3.9mm
- Brightness: 1,000 cd/m²
- Contrast Ratio: 8,000 : 1
- Easy Installation and Maintenance
- Compatibility with LG Software Solutions
Description
PHYSICAL PARAMETERS
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch (mm) | 3.90 |
| Module Resolution (W x H) | 64 x 64 |
| Module Dimensions (W x H, mm) | 250 x 250 |
| Weight per Module (kg) | 0.54 |
| No. of Modules per Cabinet (W × H) | 2 × 2 |
| Cabinet Resolution (W × H) | 128 x 128 |
| Cabinet Dimensions (W × H × D) | 500 x 500 x 74 |
| Cabinet Surface Area (m²) | 0.250 |
| Weight per Cabinet (kg/cabinet) | 7.5 |
| Weight per Square Meter (kg/m²) | 30.0 |
| Physical Pixel Density (pixels/m²) | 65,536 |
| Flatness of Cabinet | ±0.5 |
| Cabinet Material | Die Casting Aluminum |
| Service Access | Front or Rear (One Option Only) |
Additional information
OPTICAL PARAMETER
| Min. Brightness (After Calibration) | 1,000 |
| Color Temperature | 3,000 - 10,000 |
| Visual Viewing Angle (H×V) | 160 × 140 |
| Brightness Uniformity | 97% |
| Color Uniformity | ± 0.003 Cx,Cy |
| Contrast Ratio | 8,000 |
| Processing Depth (bit) | 16 |
ELECTRICAL PARAMETER
| Power Consumption (W/Cabinet, Max.) | 135 |
| Power Consumption (W/Cabinet, Avg.) | 56 |
| Power Consumption (W/m², Max.) | 540 |
| Heat Dissipation (BTU/h/Cabinet, Max.) | 461 |
| Heat Dissipation (BTU/h/Cabinet, Avg.) | 191 |
| Heat Dissipation (BTU/h/m², Max.) | 1,842 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
OPERATION CONDITIONS
| Lifetime (Hours to Half Brightness) | 100,000 |
| Operating Temperature (°C) | -20∘to +40∘ |
| Operating Humidity | 10-80% RH |
| IP rating Front / Rear | IP5X / IP5X |
CERTIFICATION
| Certification | CE/FCC/cTUVus/CB |
ENVIRONMENT
| Environment | RoHS/REACH |
CONTROLLER
| Controller | LCLG006 |
