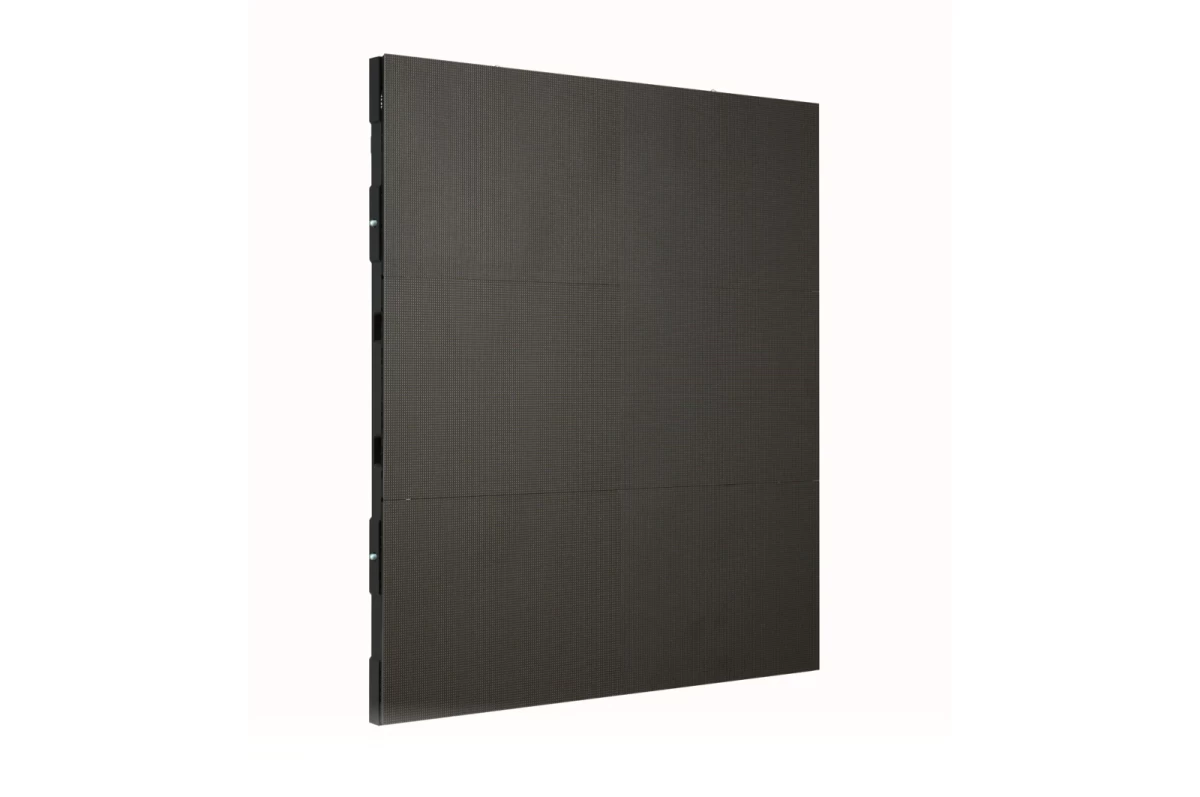

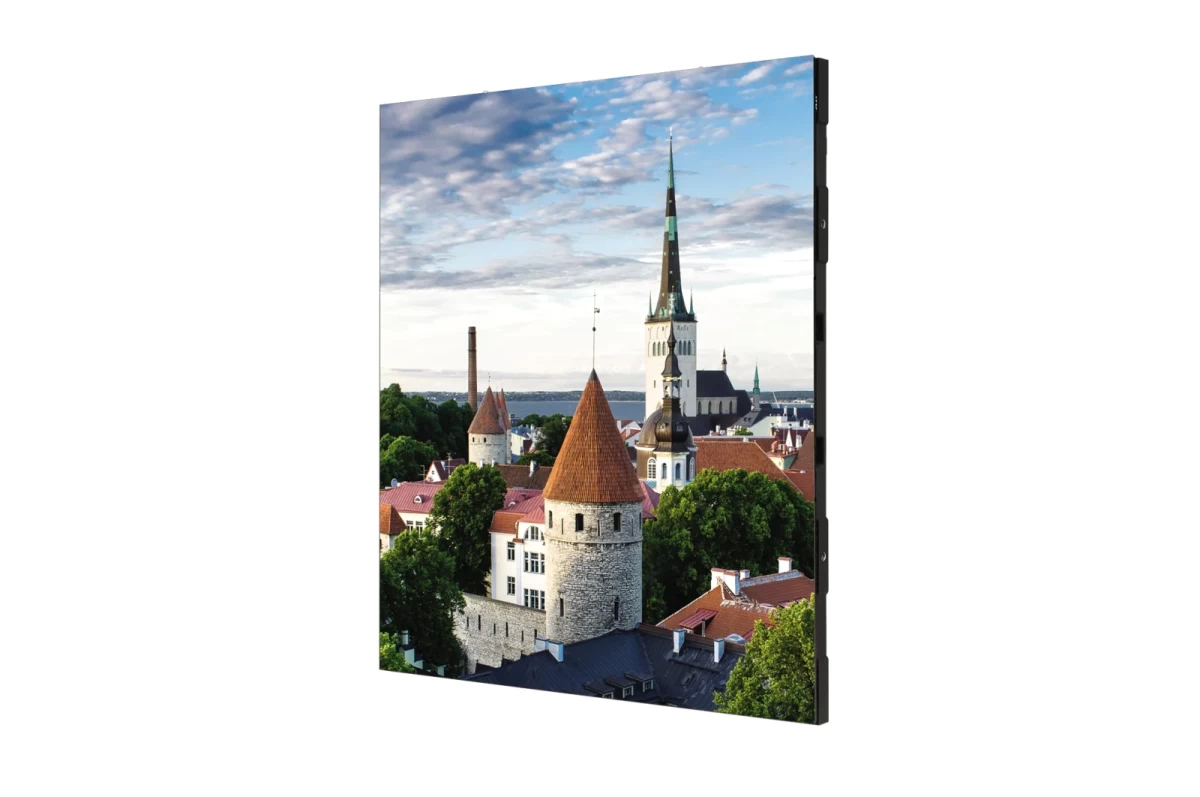

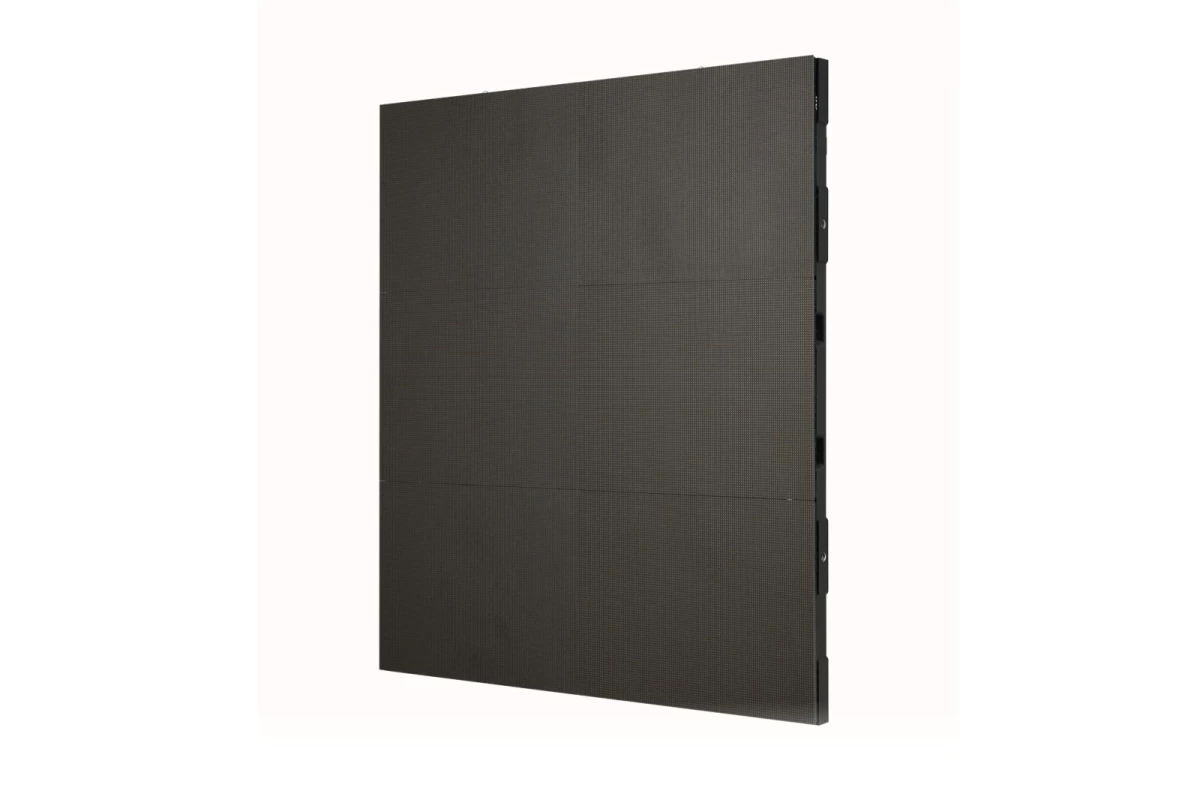

LG LAP020E LED 2.0 Pixel Pitch Curve Series for Indoor
Product code:- Pixel Pitch: 2.0 mm
- Brightness: 1,000 cd/m²
- Modular design
- Curvature(Concave/convex): Up to 1,000R
- High performance system controller
- Front and rear serviceability
Description
PHYSICAL PARAMETERS
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch (mm) | 2.00 |

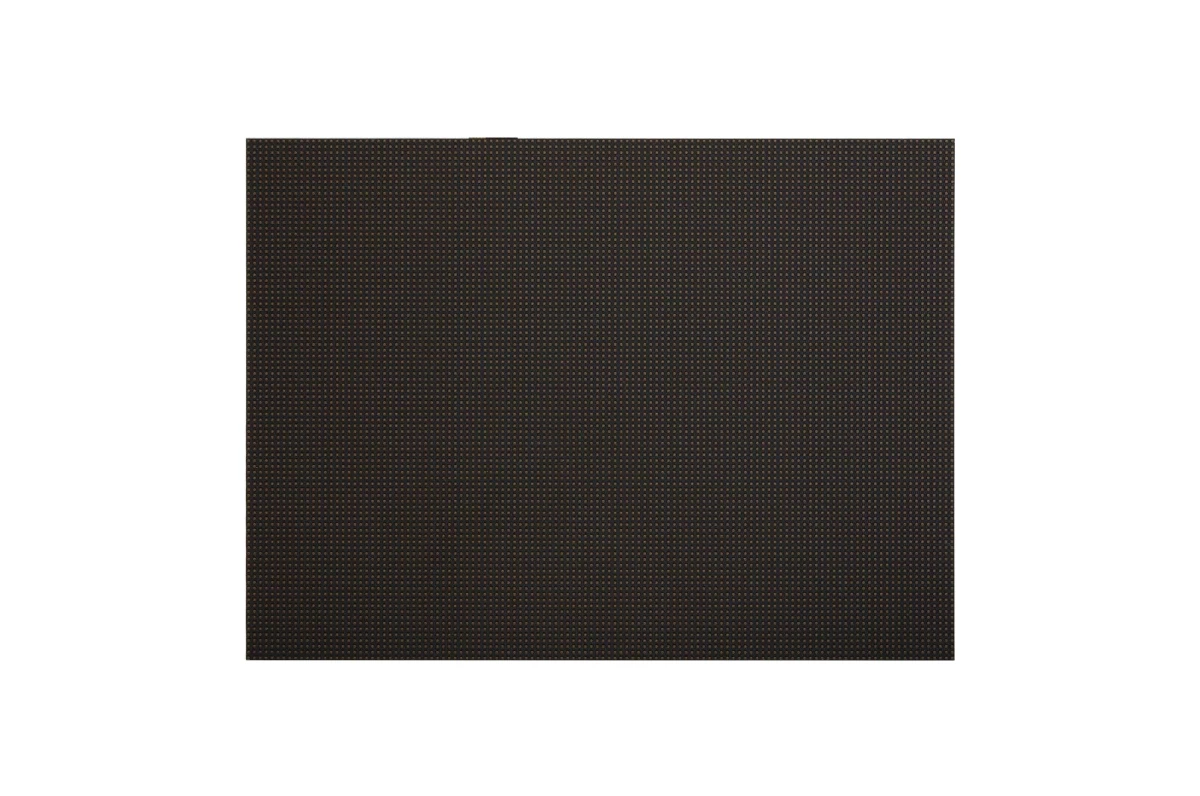

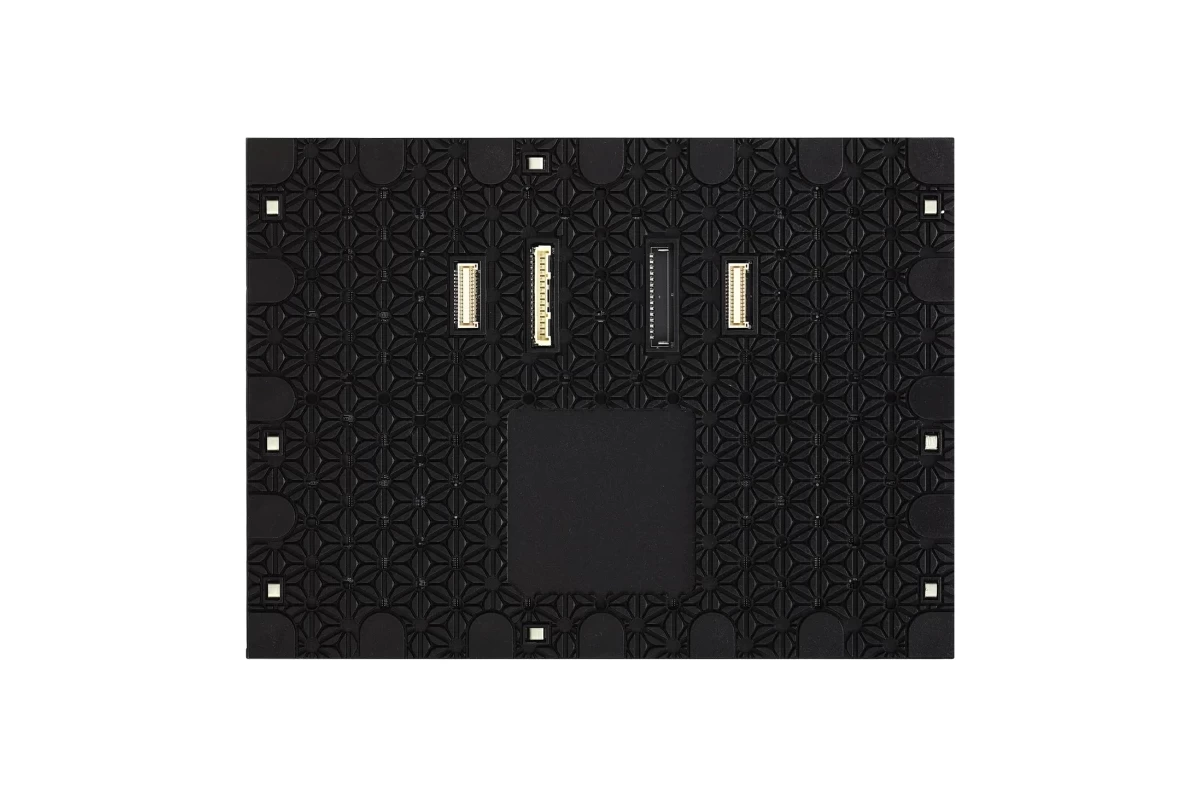

| Module Resolution (W x H) | 120 x 90 |
| Module Dimensions (W x H, mm) | 240 x 180 |
| Unit Case Resolution (W x H) | 240 x 270 |

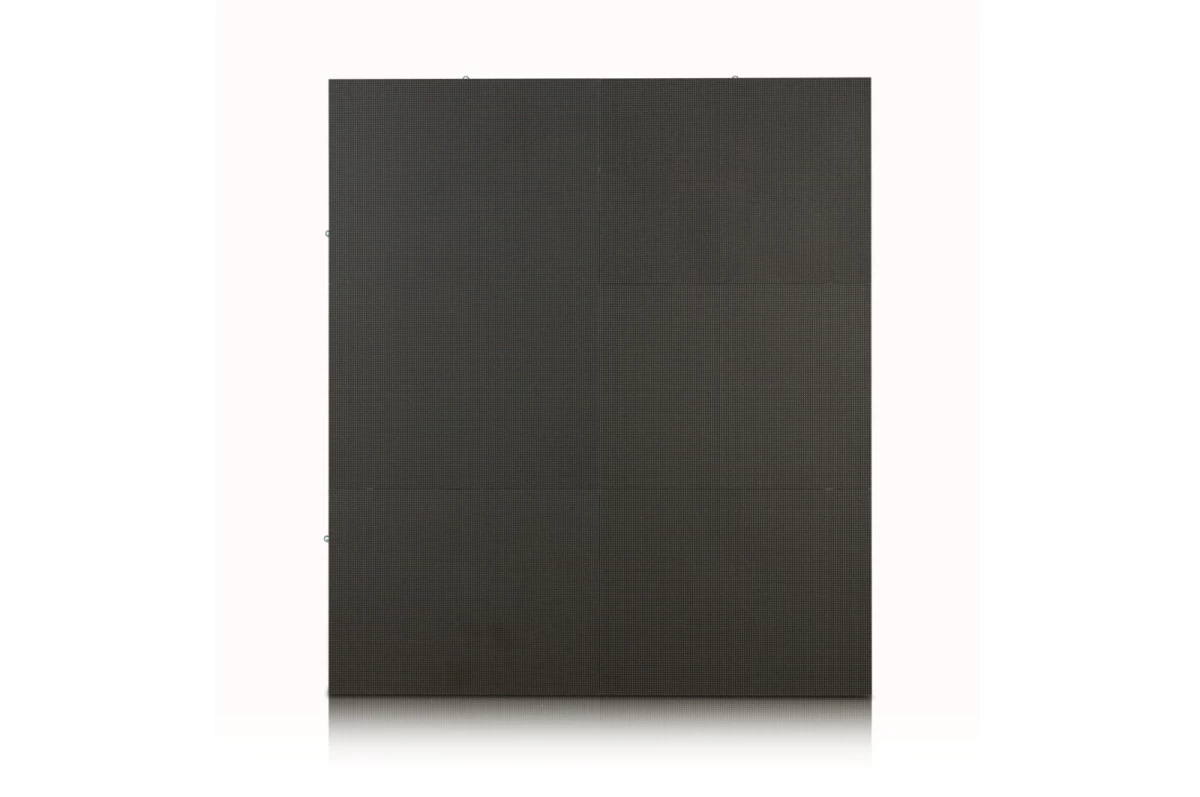

| Unit Case Dimensions (W x H x D, mm) | 480 x 540 x 53 |

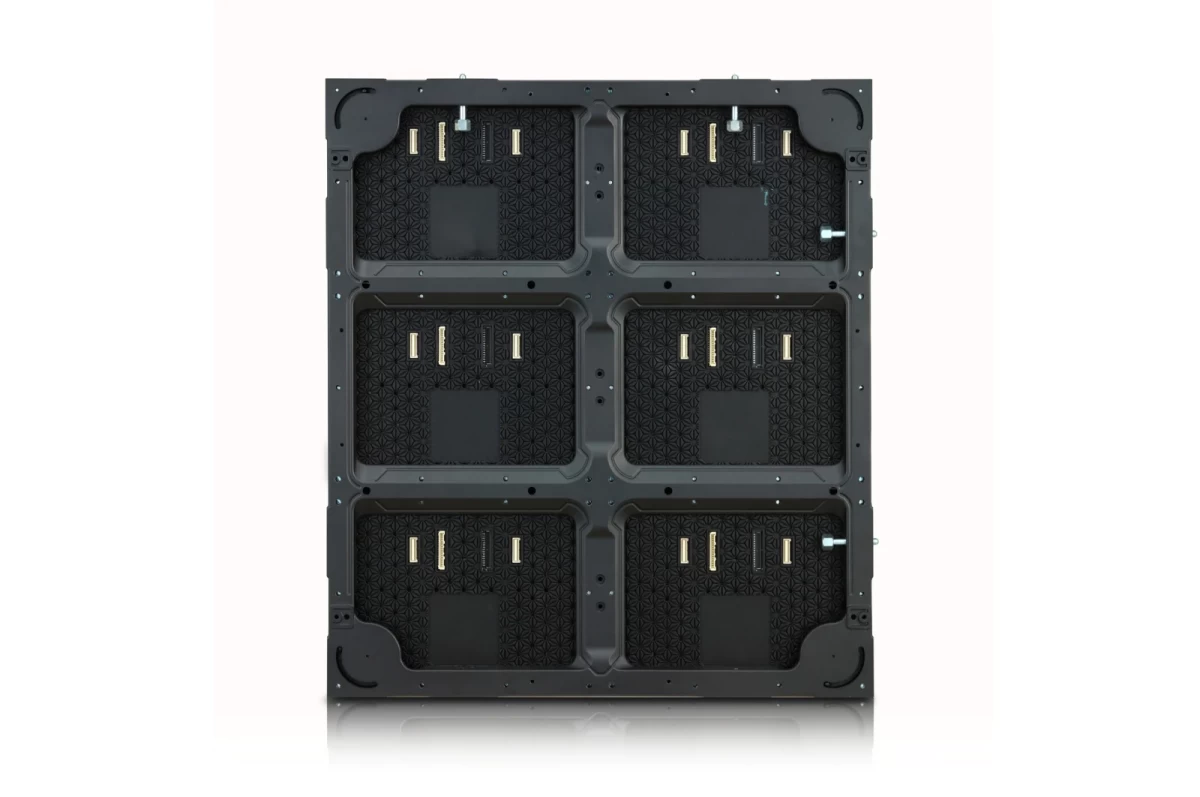

| No. of Modules per Unit Case (W x H) | 2 x 3 |
| Unit Case Surface Area (m²) | 0.260 |
| Physical Pixel Density (pixels/m²) | 250,000 |
| Flatness of Cabinet | ±0.2 |
| Unit Case Material | Die Casting Aluminum |
| Service Access | Front and Rear |
Additional information
OPTICAL PARAMETER
| Min. Brightness (After Calibration) | 1,0001) cd/m² Brightness can be reduced (up to 300nit) by the number of PSU modules, thereby decreasing power consumption. |
| Visual Viewing Angle (Horizontal) | 160 |
| Brightness Uniformity | 95% |
| Contrast Ratio | 6,000 |
| Color Temperature | 3,200 ~ 9,300 |
| Visual Viewing Angle (Vertical) | 140 |
| Color Uniformity | ±0.015Cx, Cy |
| Processing Depth (bit) | 16 (HDR10) |
ELECTRICAL PARAMETER
| Power Consumption (W/Unit, Max.) | 285 |
| Power Consumption (W/Unit, Avg.) | 104 |
| Power Consumption (W/m², Max.) | 1,100 |
| Heat Dissipation (BTU/h/Cabinet, Max.) | 972 |
| Heat Dissipation (BTU/h/Cabinet, Avg.) | 355 |
| Heat Dissipation (BTU/h/m², Max.) | 3,751 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
OPERATION CONDITIONS
| Lifetime (Hours to Half Brightness) | 100,000 |
| Operating Temperature (°C) | 0°C to + 40°C |
| Operating Humidity | 10-80% RH |
CERTIFICATION
| EMC | FCC Class A / CE / KC |
| Environment | RoHS |
CONTROLLER
| Controller | LCLG003-D |
CONNECTIVITY
| Video Inputs | HDMI In, DP In, OPS In, USB |
| Control | RJ45 In, RS232C In/out |
| Special Features | HDR10, Temperature Sensor, Power Detection, ADA Compliant, PSU Hot Swappable |
