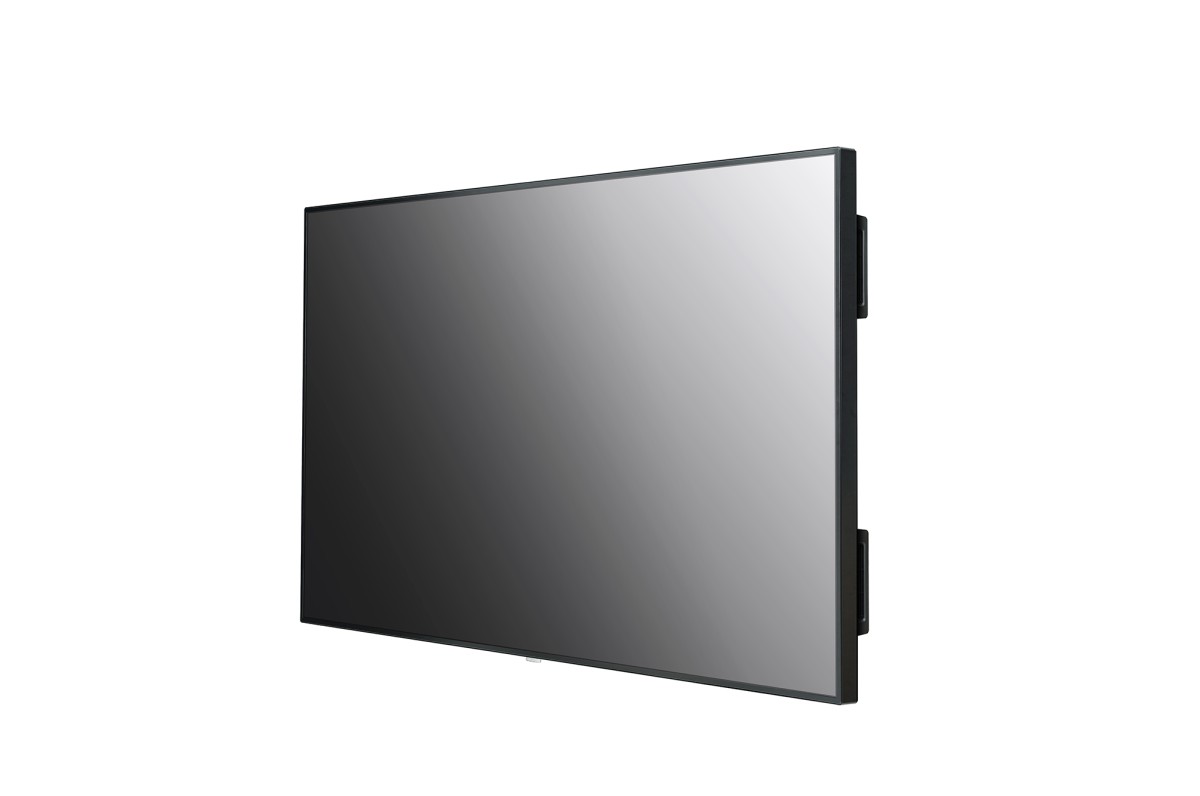

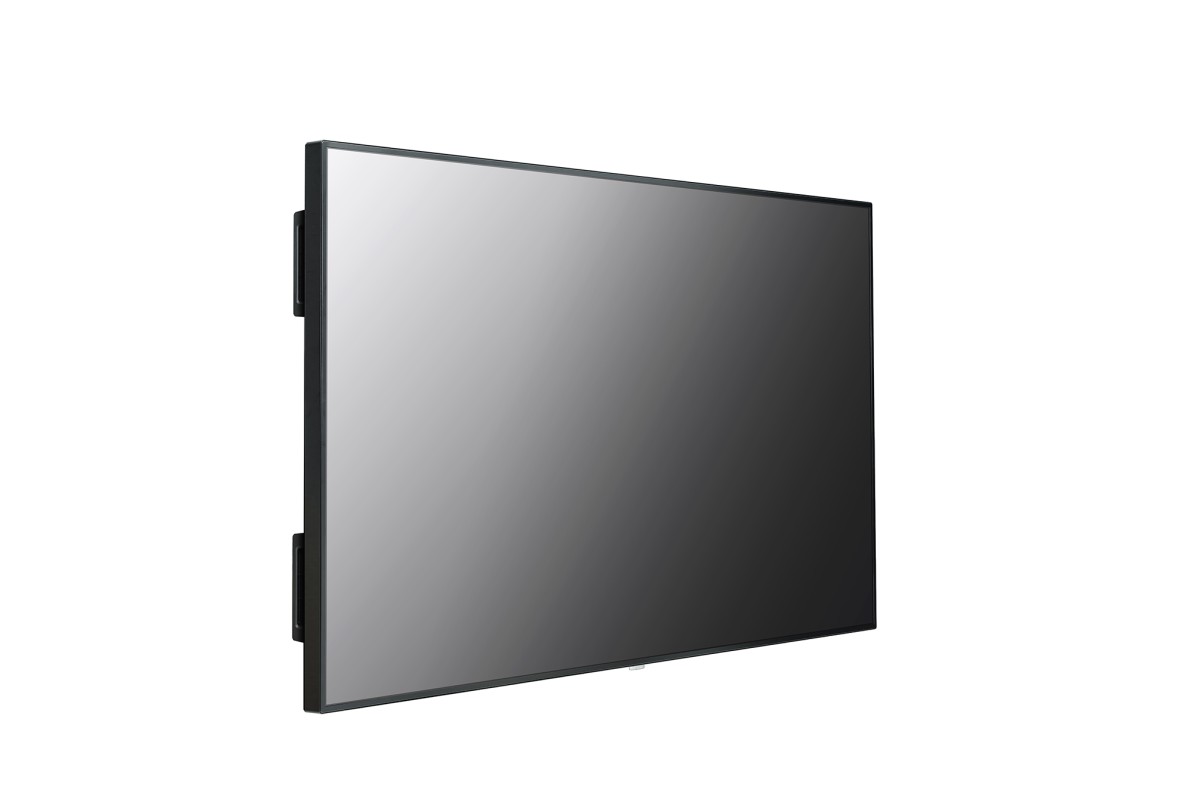

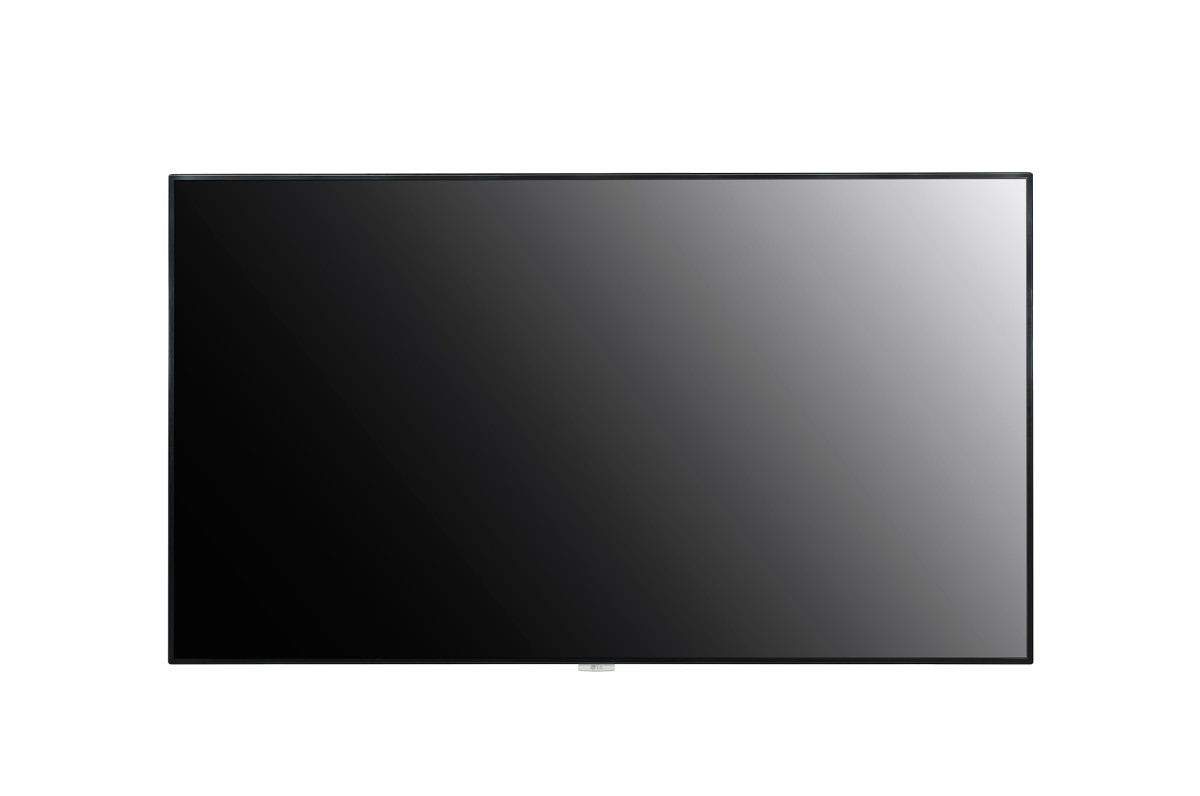

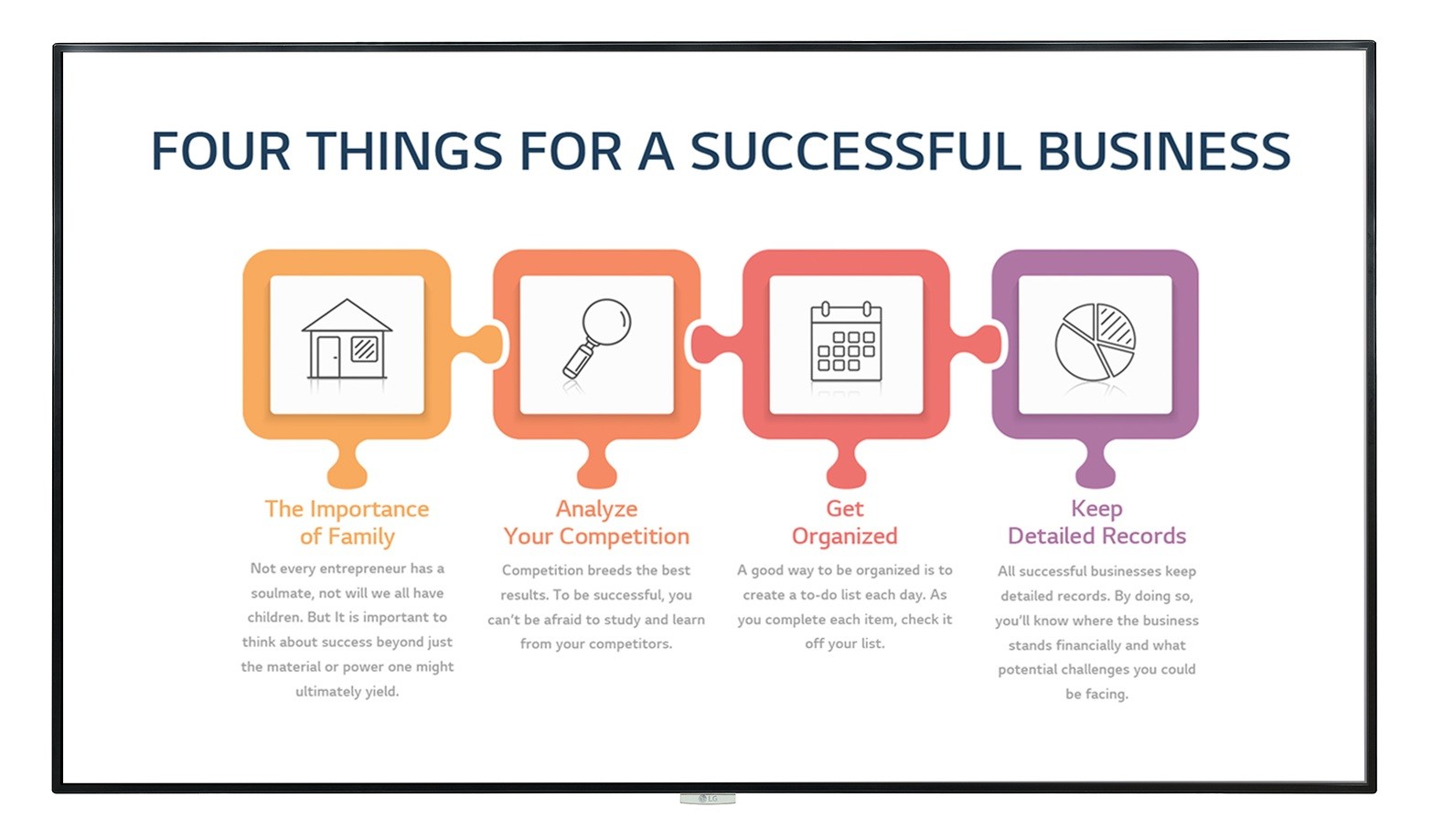

LG 98UM3DG-H UHD Digital Signage Display
Product code:Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UM3DG-H series has reduced such inconveniences by increasing the level of haze, which enhances visibility and text readability.
Description
Panel
| Screen Size | 98" |
|---|---|
| Panel Technology | IPS |
| Native Resolution | 3,840 X 2,160 (UHD) |
| Brightness | 350 nit (Typ.) |
| Contrast Ratio | 1,200 : 1 |
| Dynamic CR | 1,000,000 : 1 * The luminosity ratio of Full Black / Full White color on video input condition. |
| Viewing Angle (H x V) | 178 × 178 |
| Color Depth | 1.06 Billion Colors (10 bit) |
| Response Time | 8 ms (G to G) |
| Surface Treatment | Haze 28% |
| Operation Hours (Hours / Days) | 24 / 7 |
| Portrait / Landscape | Yes / Yes |
| OS | webOS |
Additional information
Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width | 14.9 mm (Even Bezel) |
| Weight (Head) | 81.1 kg |
| Monitor Dimensions (W × H × D) | 2,191.8 × 1,246.8 × 83.8 mm (Without Handle and LG Logo) |
| VESA™ Standard Mount Interface | 800 × 400 mm |

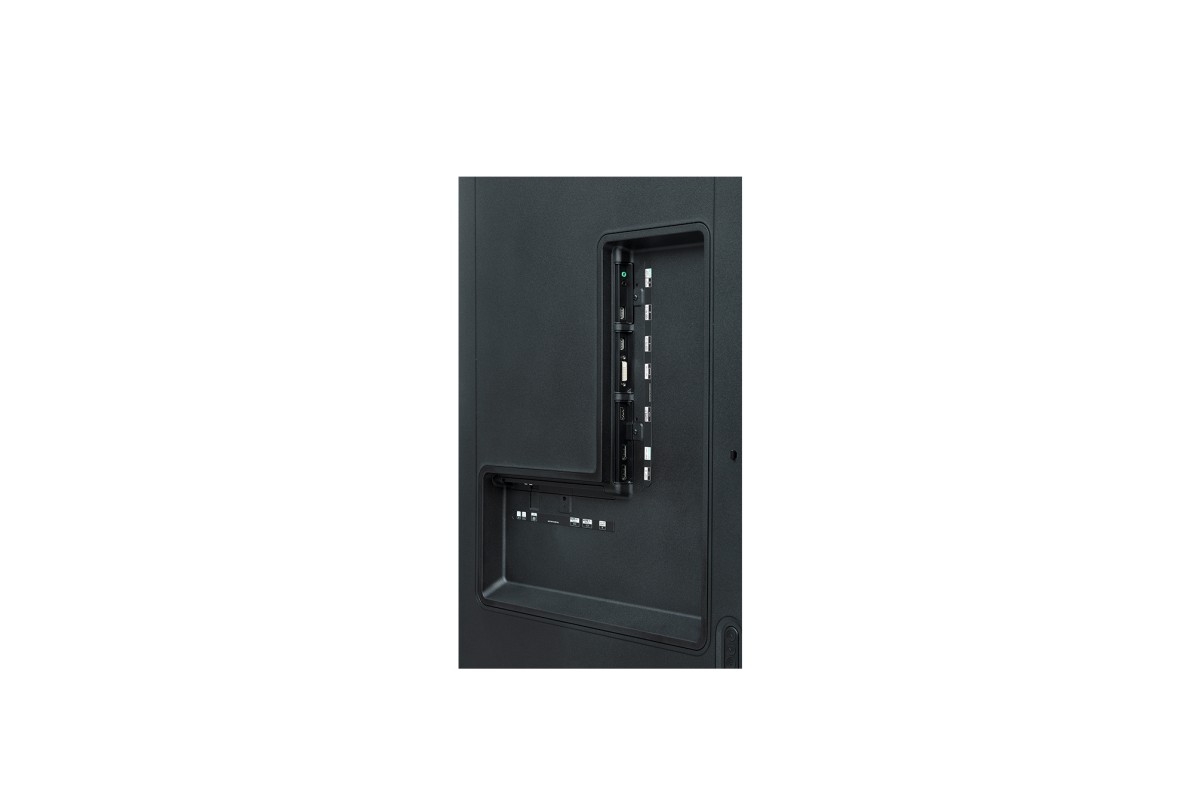

Connectivity
| Input | HDMI (3, HDCP2.2/1.4), USB 2.0 Type A (1) |
|---|---|
| Output | Audio |
| External Control | RS232C (4 Pin Phone Jack) In / Out, RJ45(LAN) In, IR In |
Environment Conditions
| Operation Temperature | 0°C to 40°C |
|---|---|
| Operation Humidity | 10% to 80% |
Power
| Power Supply | AC 100–240 V ~, 50/60 Hz |
|---|---|
| Power Type | Built-in Power |
Power Consumption
| Typ./Max. | 355 W / 435 W |
|---|---|
| BTU (British Thermal Unit) | 1,211.44 BTU/Hr (Typ.), 1,484.44 BTU/Hr (Max.) |
Certification
| Safety | CB, NRTL |
|---|---|
| EMC | FCC Class "A" / CE / KC |
| ErP | Yes |
Software Compatibility
| SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, LG ConnectedCare |
Sound
| Speaker | Yes |
|---|
Accessory
| Basic | Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS232C Gender |
|---|
