LG 86TR3BF-B Interactive Digital Board Createboard

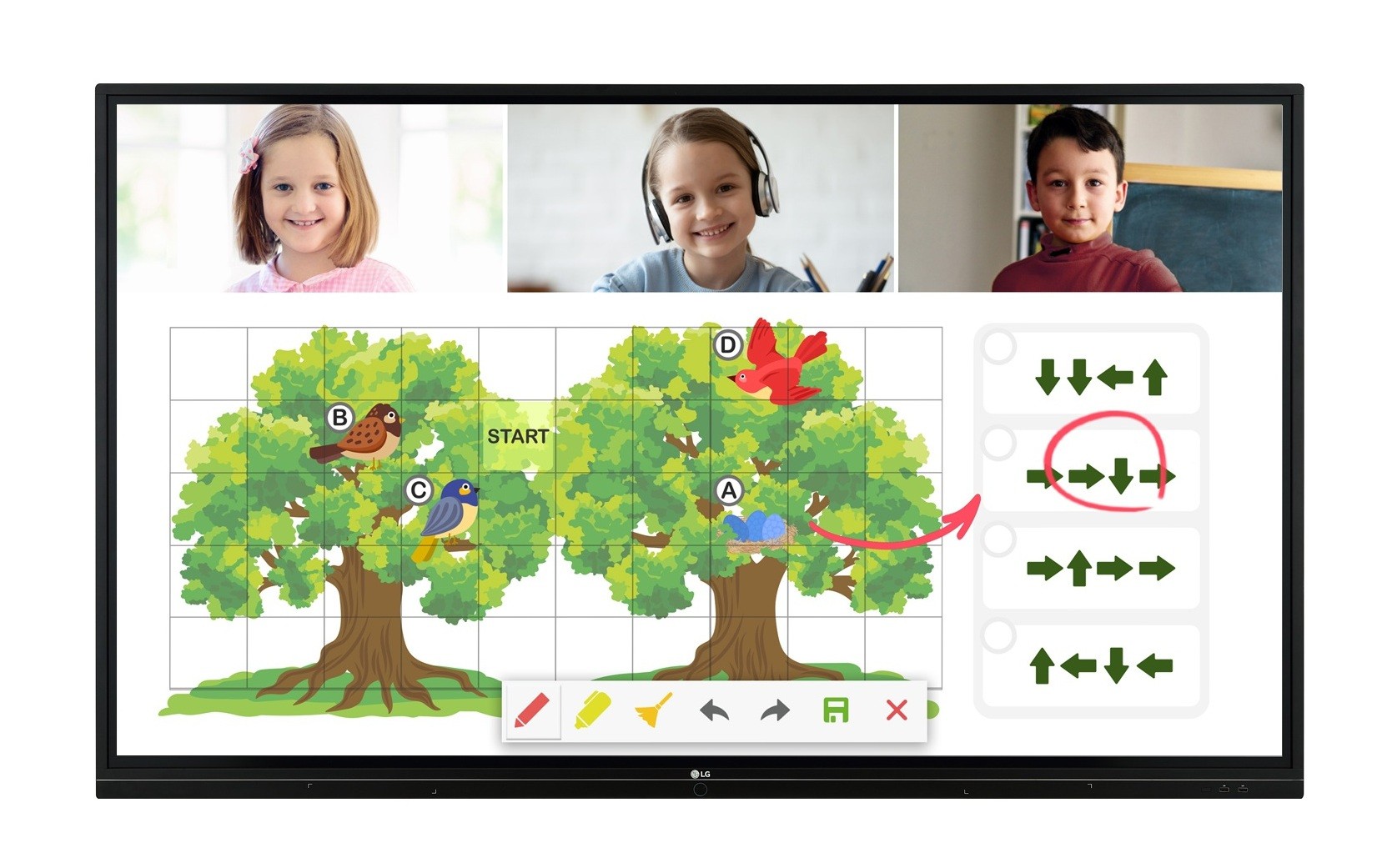

Product code:The TR3BF Series can simultaneously use up to 20 points of multitouch and 10 points of writing, as well as 2 types of stylus pens. This function offers a lifelike board writing experience and makes collaboration much easier.
SEND AN ENQUIRYDescription
Panel
| Screen Size | 86" |
|---|---|
| Panel Technology | IPS |
| Back Light Type | Direct |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | w/o Glass : 470 nit (Max.), 370 nit (Typ.) w/ Glass : 430 nit (Max.), 330 nit (Typ.) |
| Contrast Ratio | 1,100:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8ms (G to G) |
| Life Time (Min.) | 30,000 Hrs (Min.) |
| Operation Hours (Hours / Days) | 16 / 7 |
| Orientation | Landscape |
| OS | Android 8.0 |
Additional information
Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width(Off Bezel) | Top/Right/Left:17.7mm, Bottom:45.7mm |
| Weight (Head) | 67kg |
| Packed Weight | 109kg |
| Monitor Dimensions (W × H × D) | 1,957×1,160×86mm |
| Carton Dimensions (W × H × D) with pallet | 2,230×1,499×285mm |

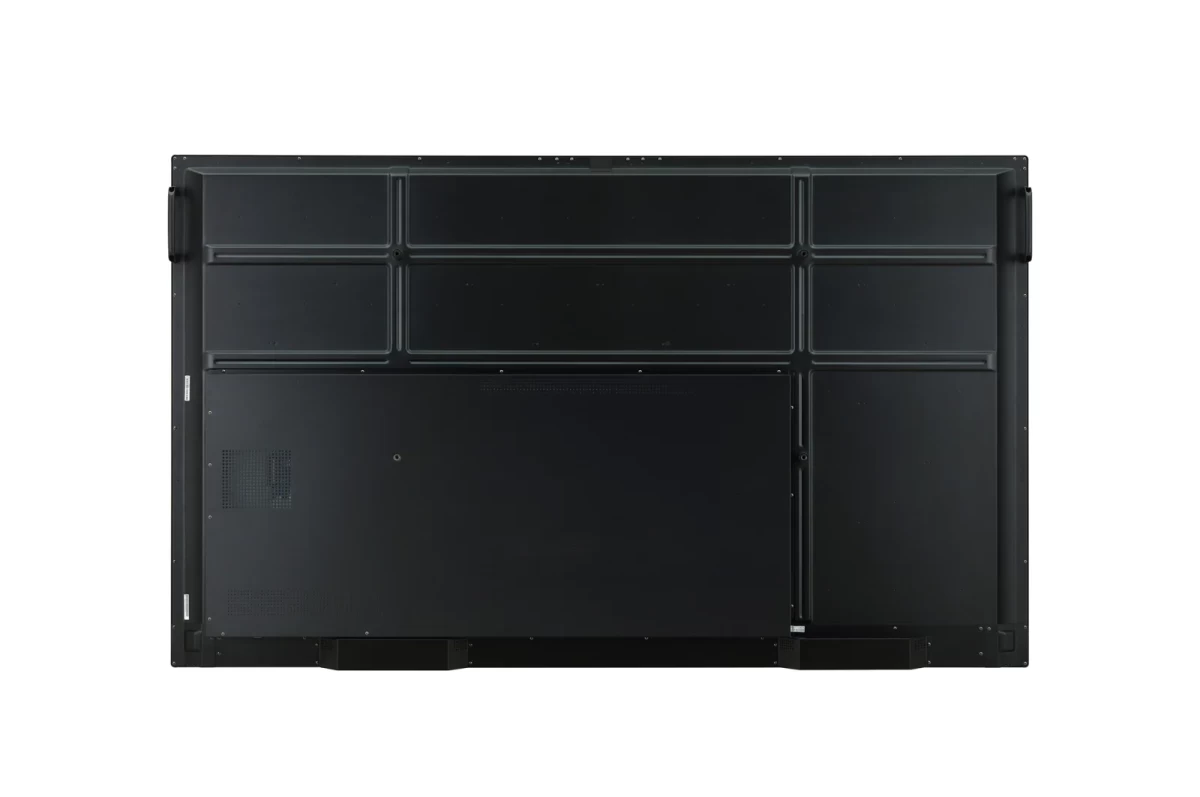

| VESA™ Standard Mount Interface | 800 x 600 |

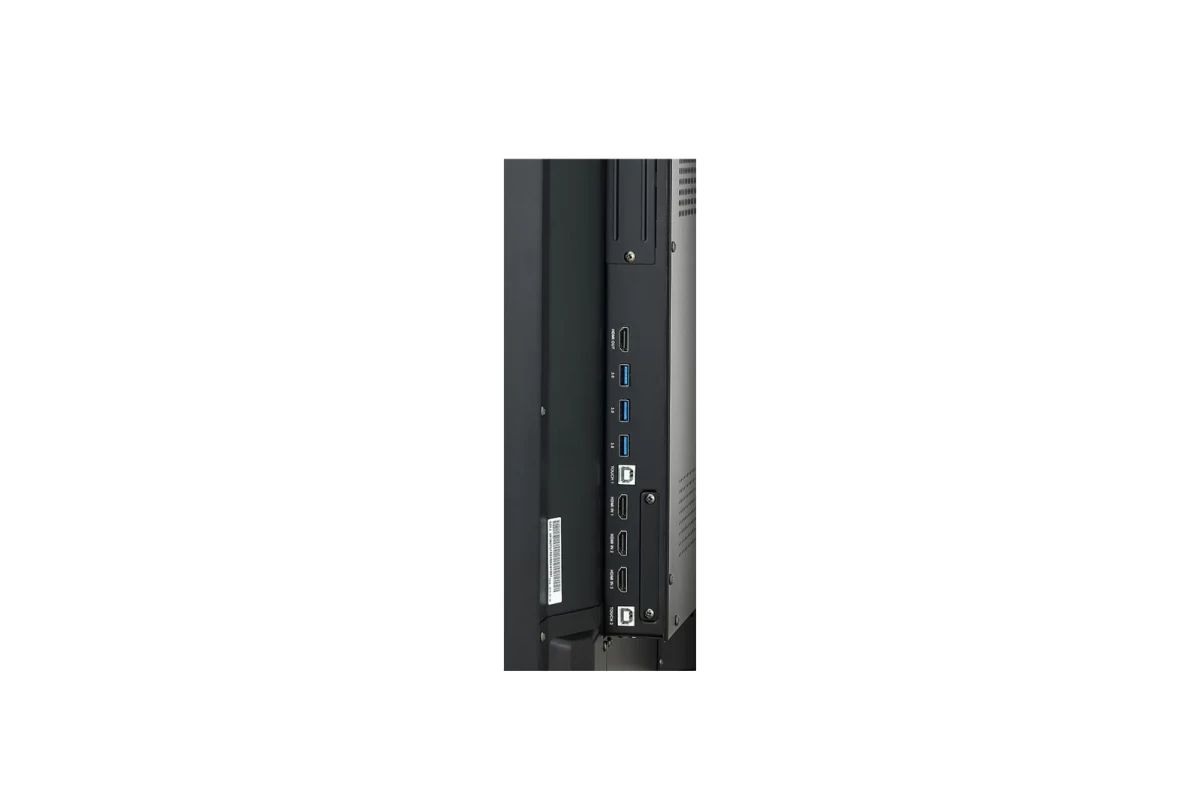

Connectivity
| Input | HDMI (3), RGB, Audio In, RS232C In, USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2) |
|---|---|
| Output | HDMI Out (1), Audio Out / Optical Output |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ. | 365 W |
|---|---|
| Max. | 419 W |
Standard (Certification)
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE |
| ErP | Yes(EU Only) |
Sound
| Speaker | Yes |
|---|
Accessory
| Basic | Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control |
|---|
Touch
| Touch type | IR |
| Available Object Size for Touch | Ø3 mm ↑ |
|---|---|
| Reponse Time (Based on 'Paint' app on Windows 10 PC) | 60ms ↓ (Android) / 100ms ↓ (Windows) |
| Accuracy | 1.5 mm |
| Interface | USB 2.0 |
| Protection Glass Thickness | 4T (Anti-Glare) |
| Protection Glass Transmission | 87 % |
| Operating System Support | Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch) |
| Multi Touch Point | Max 20 Points / Max 10 Writing |
