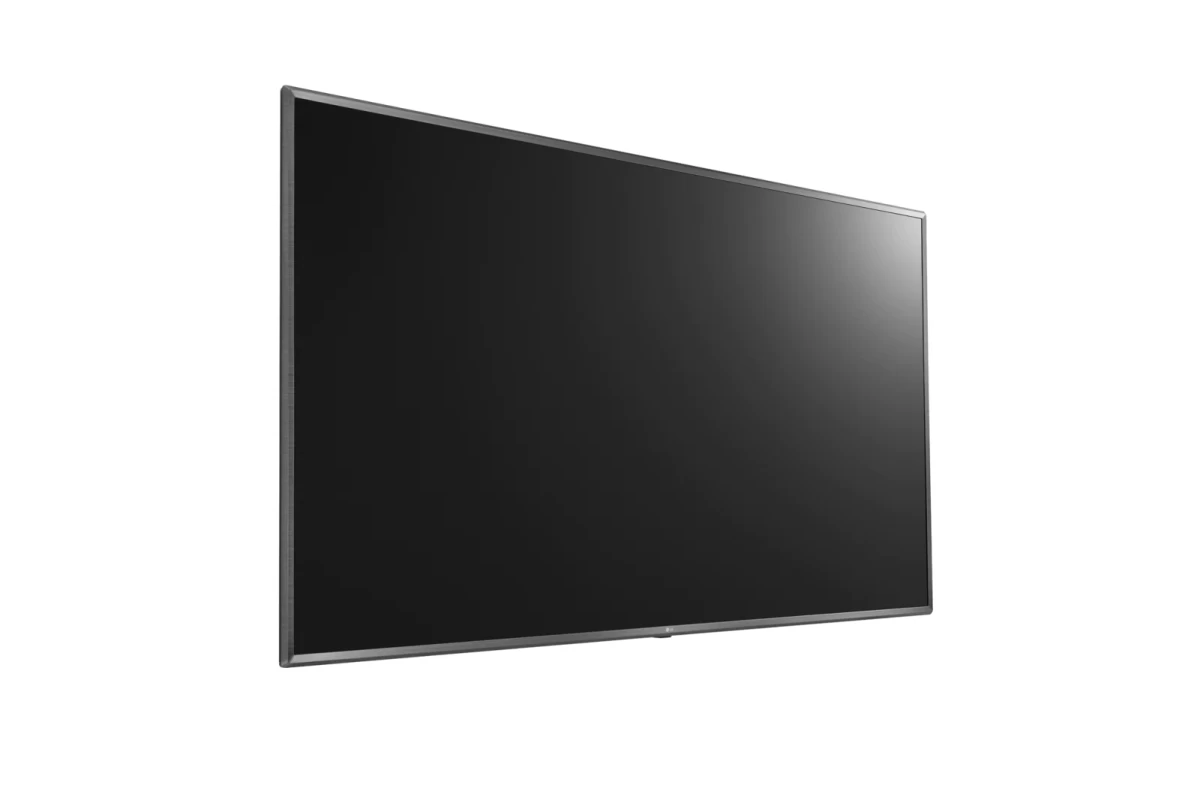

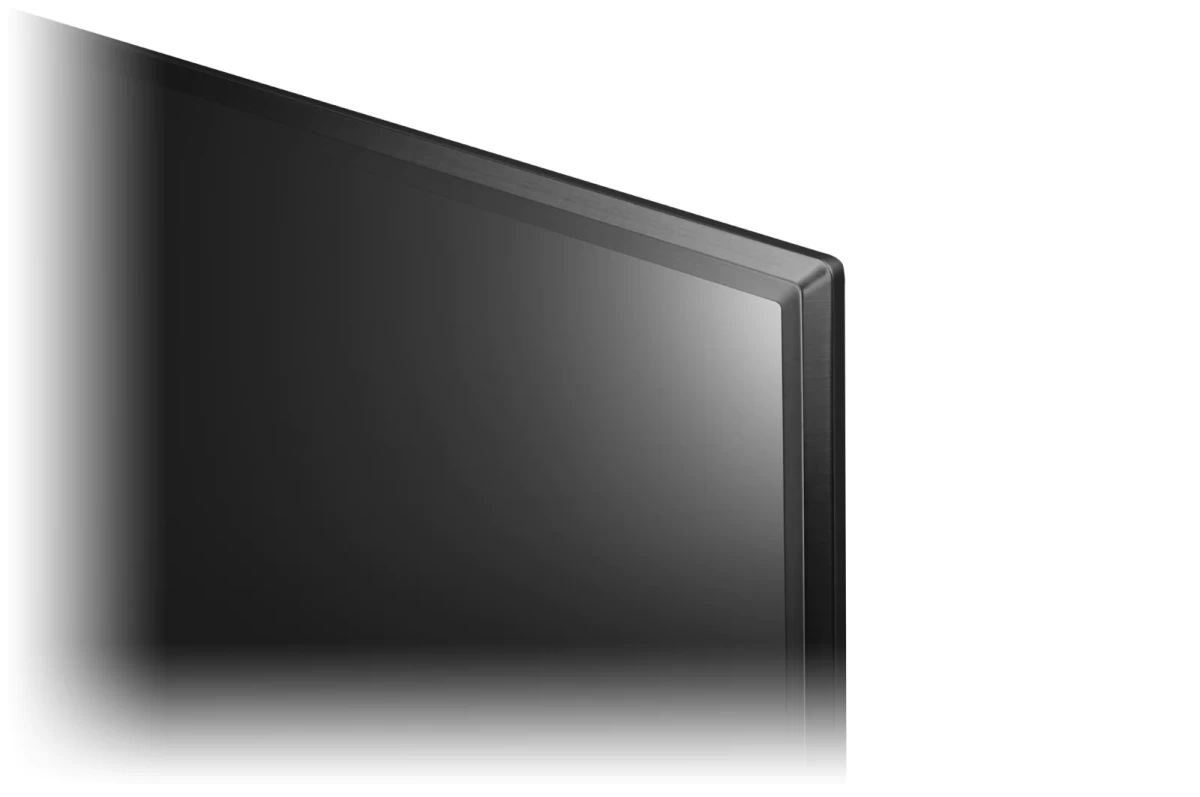

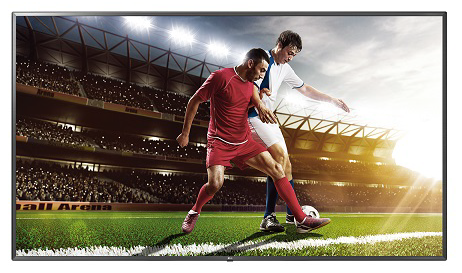

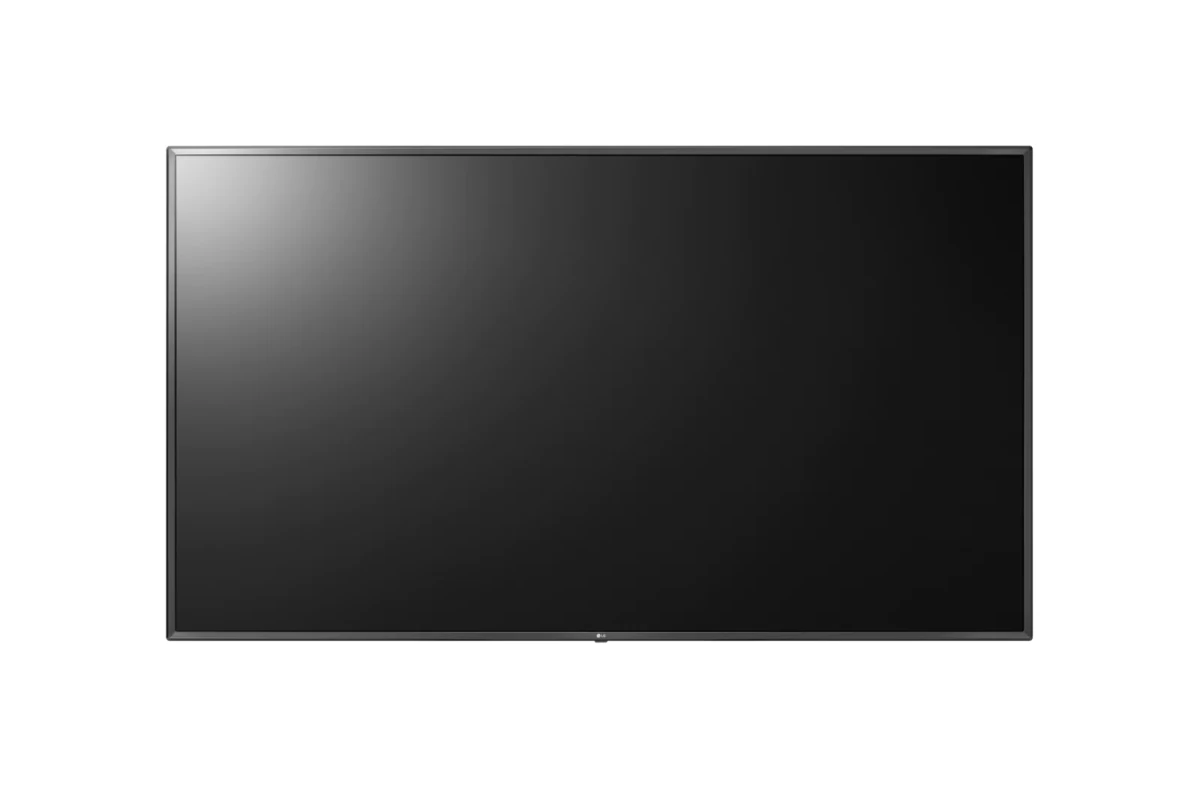

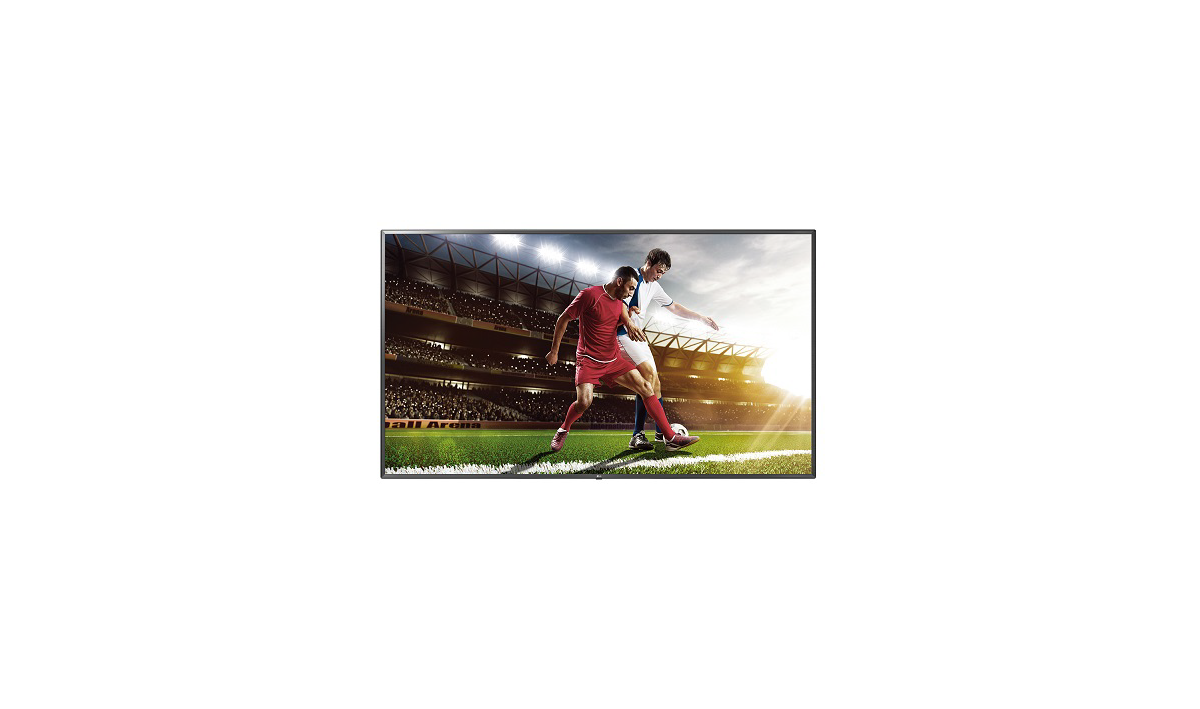

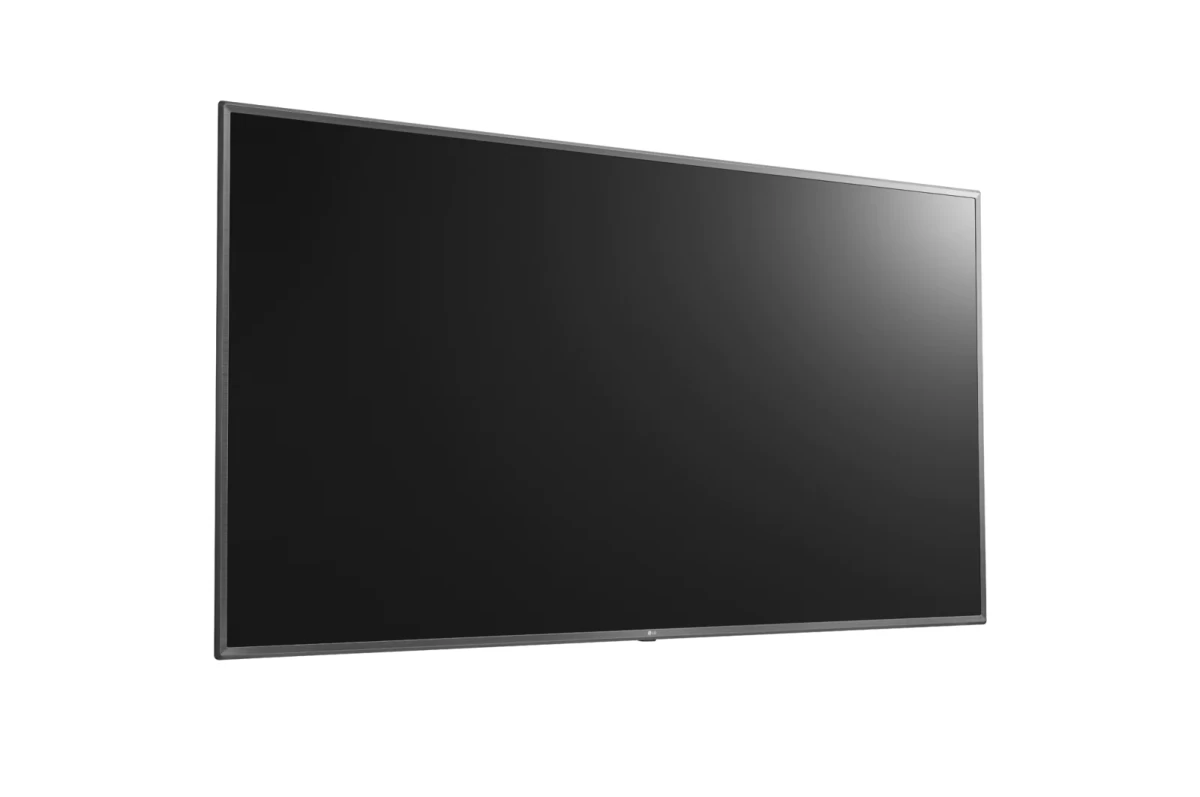

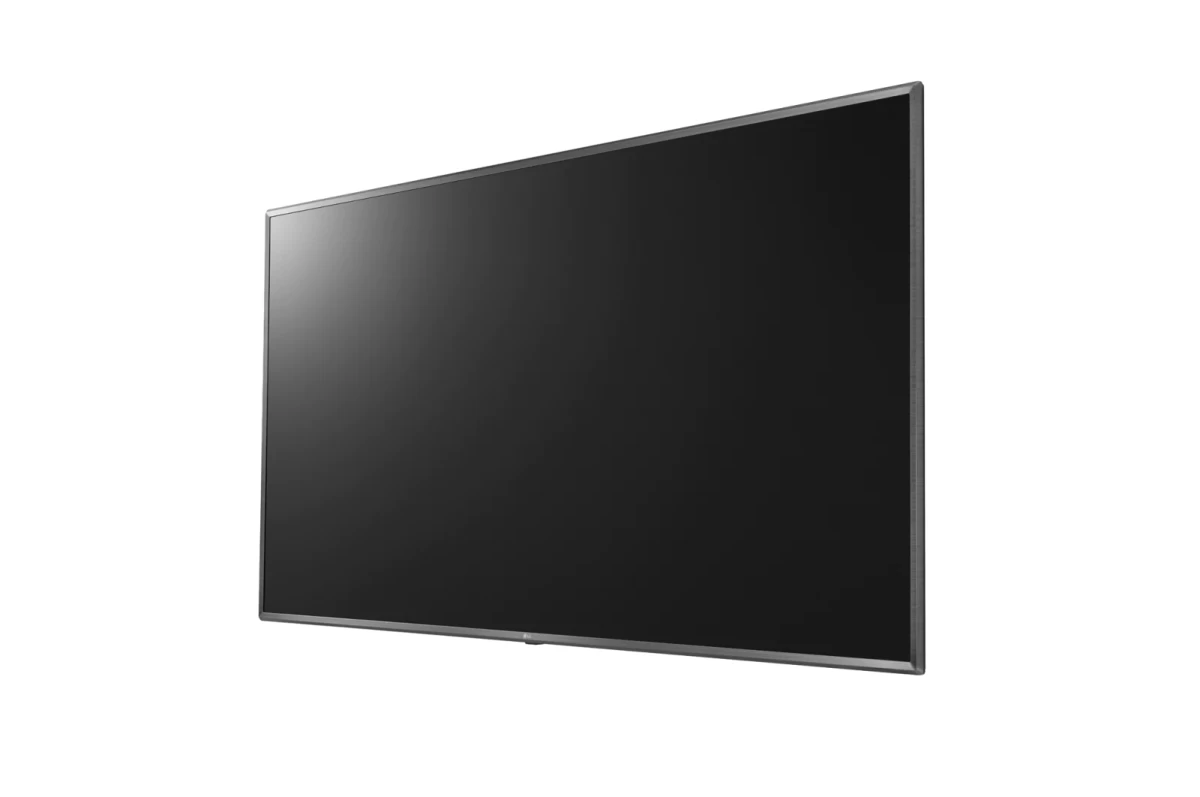

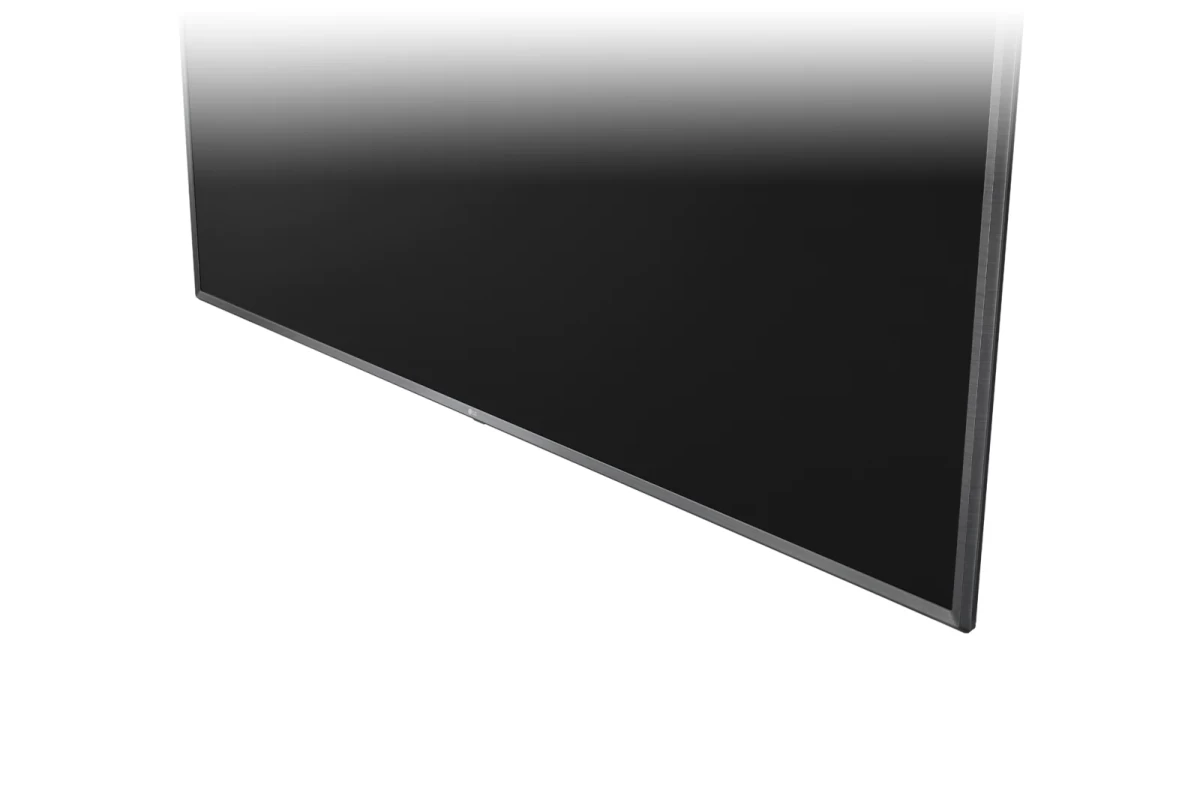

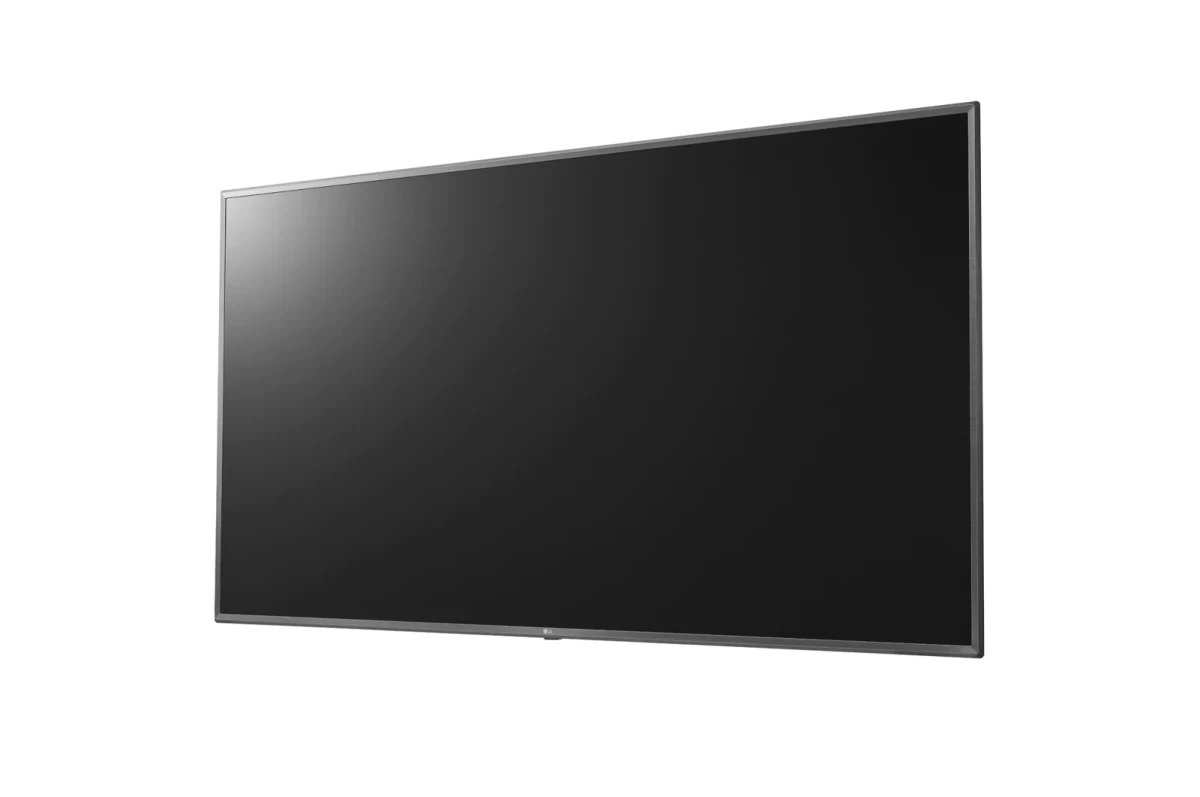

LG 75UT640S (NA) UHD TV Digital Signage Display
Product code:The UT640S Series is specifically designed for diverse business environments. By providing compatibility with AV Control systems and DPM (Display Power Management) as well as its smart connectivity, simple user-friendly interface, and UHD picture quality, the UT640S series enhances ease of use while facilitating communications between businesses and their target audiences.
SEND AN ENQUIRYDescription
DISPLAY
| Inch | 75" |
| Resolution | 3840 X 2160 (UHD) |
| Brightness (cd/m²) | 350 |
| OS | webOS 4.5 |
Additional information
BROADCASTING SYSTEM
| TV Reception | NTSC / ATSC / Clear QAM |
VIDEO
| HDR (10 Pro / HLG) | Yes / Yes |
AUDIO
| Audio Output | 10W + 10W |
| Speaker System | 2.0 ch |
| LG Sound Sync | Bluetooth required |
COMPABILITY
| Supersign SW | Content Management Software (SuperSign CMS), Control and Monitoring Software (Control/Control+), Simple Editor |
FEATURES
| Signage | Crestron Connected® (Network Based Control), DPM (Digital Power Management), Time Scheduler, RTC (Real Time Clock), NTP sync timer, BEACON, Embedded CM (Contents Manager), Embedded GM (Group Manager) |
| Smart | webOS 4.5, Smart Home (Launcher Bar), Web Browser, Pre-loaded App (YouTube only), Soft AP, Wi-Fi (802.11ac, Built-in type), Screen Share (Miracast), DIAL, Bluetooth Audio Playback, LG Sound Sync/bluetooth, Mobile Connection Overlay |
| Hospitality | Public Display Mode, Lock Mode (Limited), Welcome Screen (Splash Image), Insert Image, IP Channel Manager, External Speaker Out (Int/Fixed, 3.5mm, Stereo, Single ended Type (GND, L+, R+), 1W with 8Ω), V-Lan Tag, RJP (Remote Jack Pack) Compatibility (Teleadapt/Guestlink (HDMI CEC)), Moving Picture Playback (SD/HD/Plus HD), Auto Off/Sleep Timer, Smart Energy Saving, Motion Eye Care |
| Maintenance | USB Cloning, WOL, SNMP, Diagnostics (USB), Simplink (HDMI-CEC (1.4)), IR Out (RS-232C), Multi IR Code |
JACK INTERFACE
| Set Side | HDMI In 2(2.0), USB (2.0) |
| Set Rear | HDMI In (HDCP (2.0)), RF In (tuner), AV In (Phone Jack Type), Digital Audio Out (Optical), RS-232C (D-Sub 9pin (Control & Service)), RJ45 (Usage Purpose 2 (Ethernet, SNMP)), External Speaker Out (3.5mm phone jack (Spk-out fixed 0.01~1.00W and line out)), Debug (Phone Jack Type) |
DIMENSION(UNIT: MM/KG)
| Vesa | 600 x 400 |
| W x H x D / Weight (with stand) | 66.7” x 41.3” x 13.6” / 78 lbs 1,693 x 1,048 x 345 / 35.4 kg |
| W x H x D / Weight (without stand) | 66.7” x 38.5” x 3.5” / 76.3 lbs 1,693 x 978 x 88.8 / 34.6 kg |
POWER(UNIT : WATTS)
| Voltage, Hz | AC 120 V ~ 50 / 60 Hz |
| Power Consumption(Typ.) | 221W |
| Stand-by | Under 0.5W |
