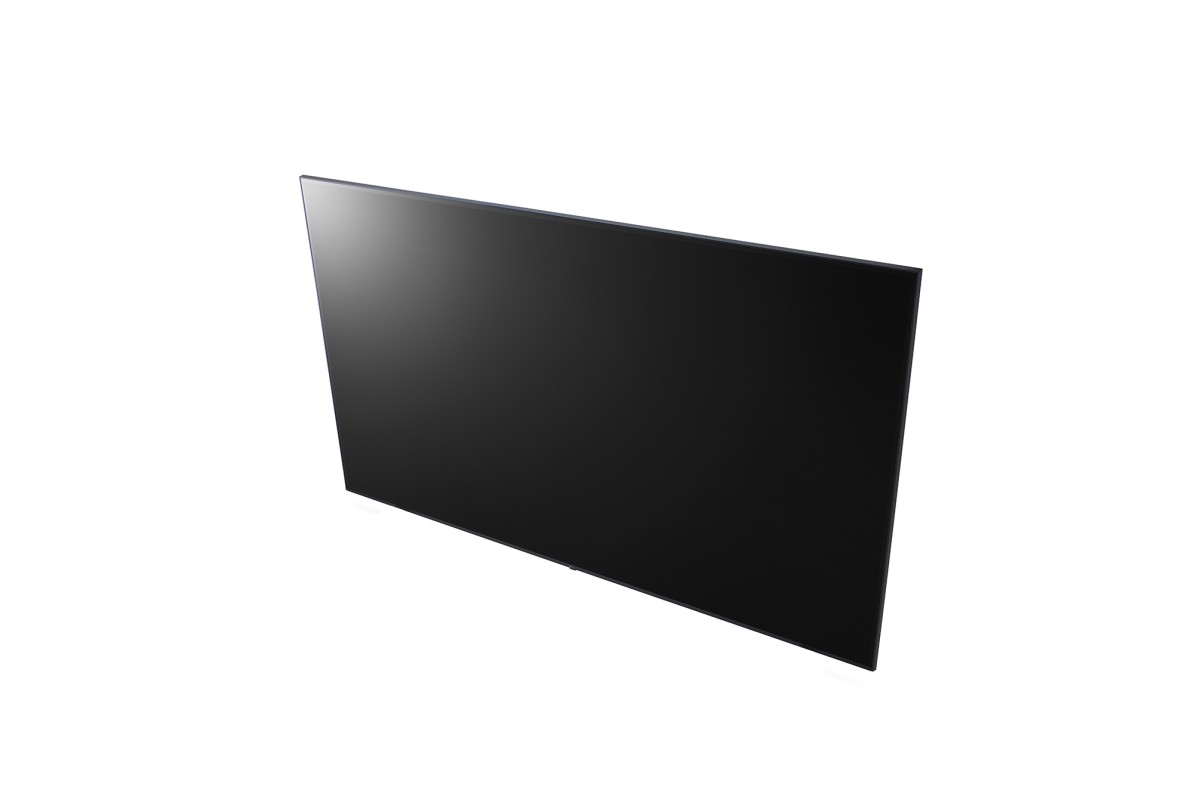

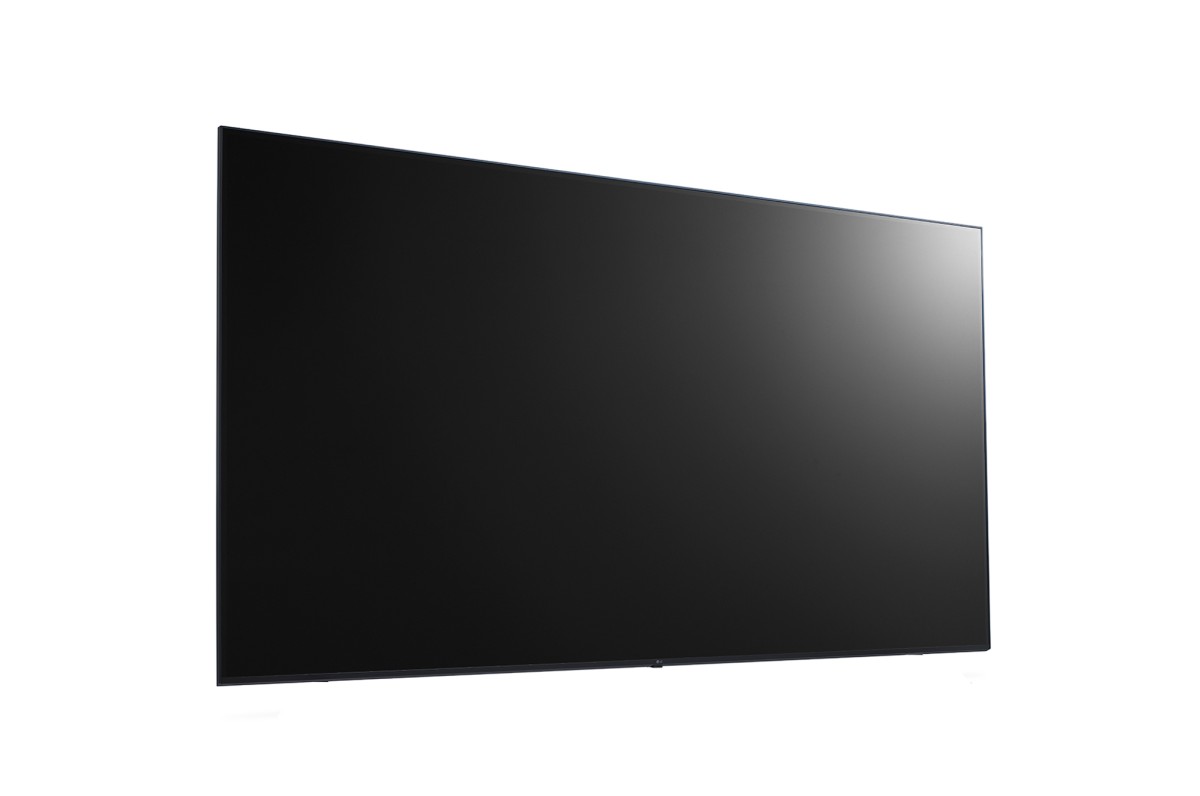

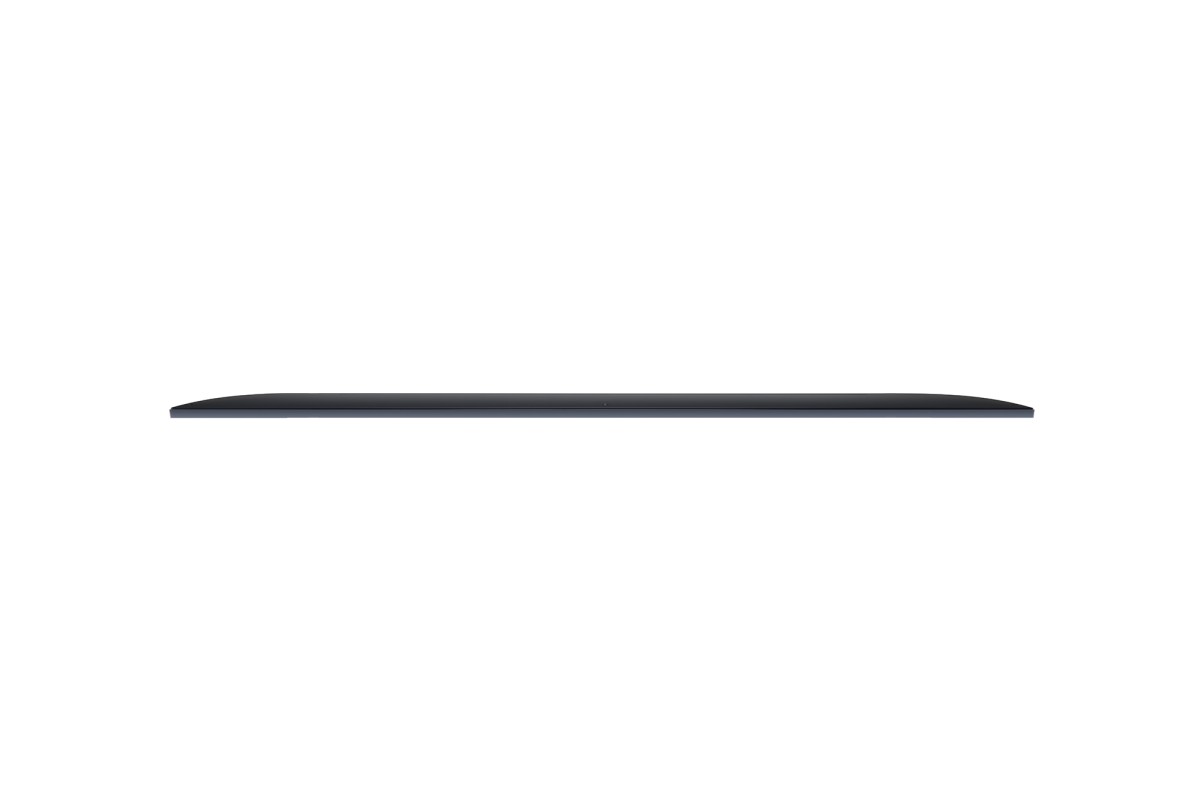

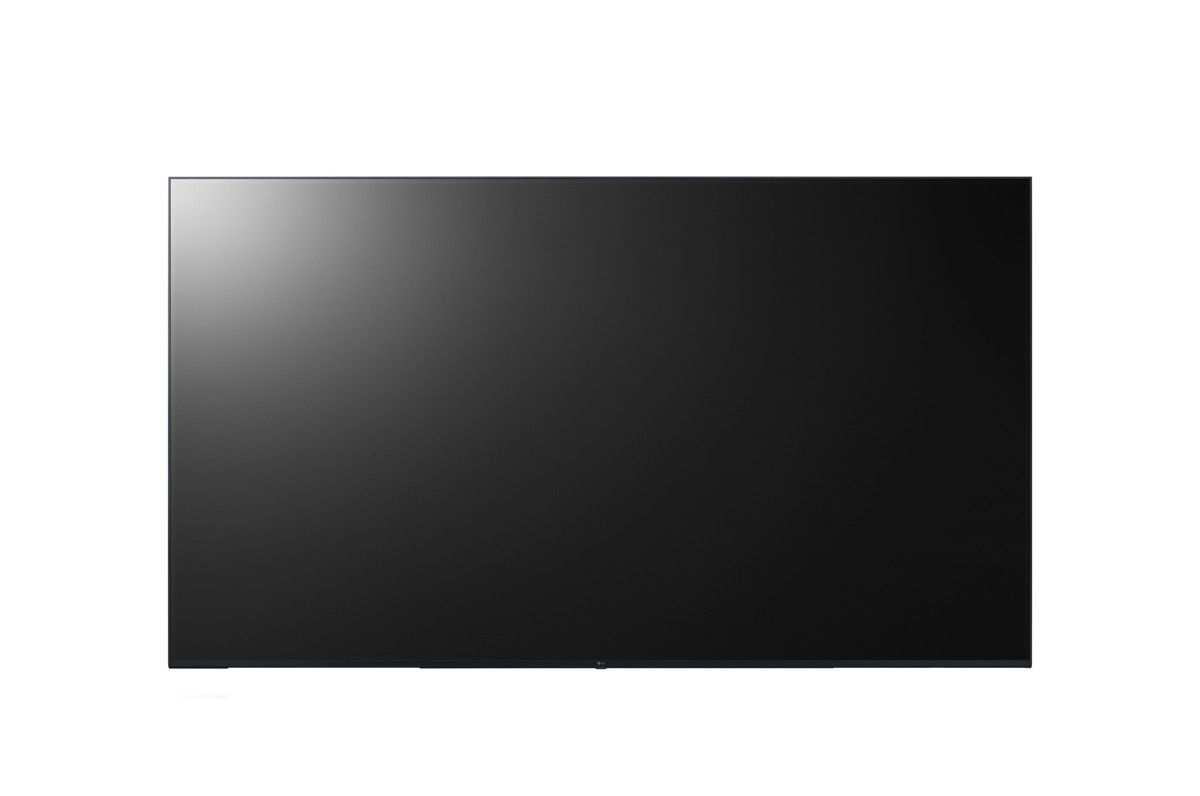

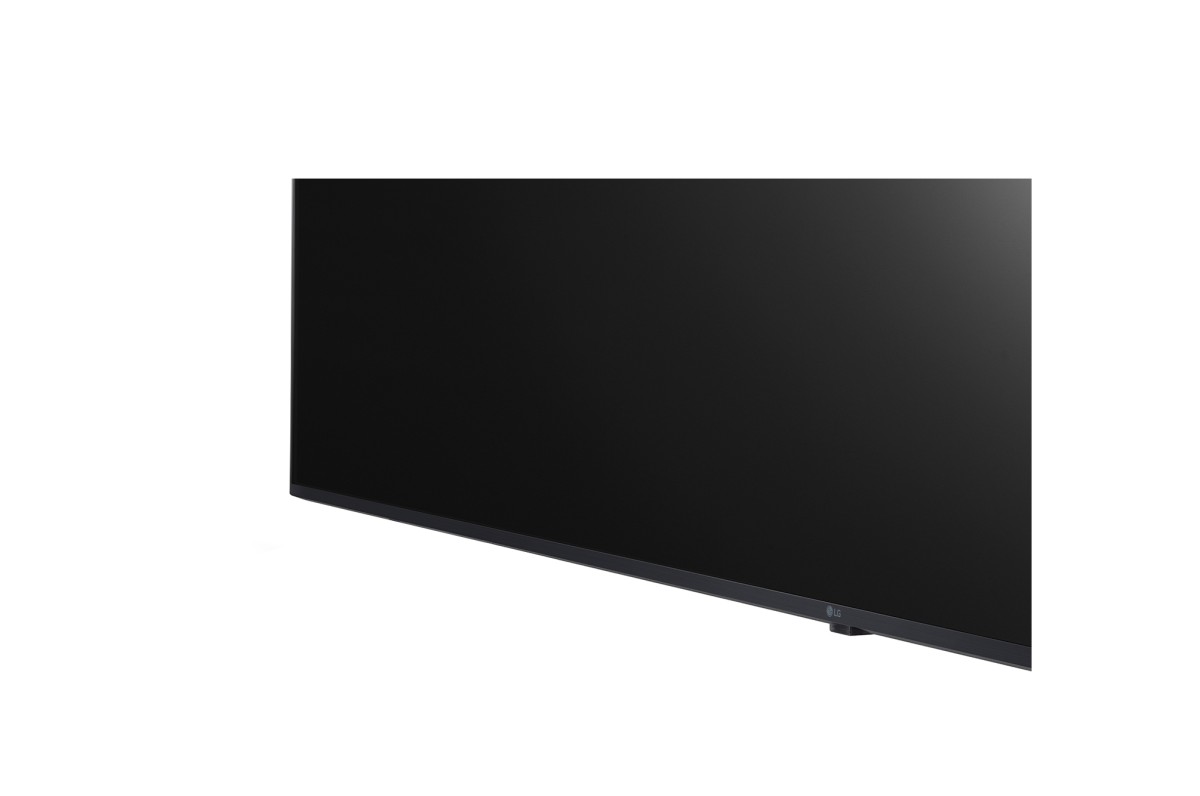

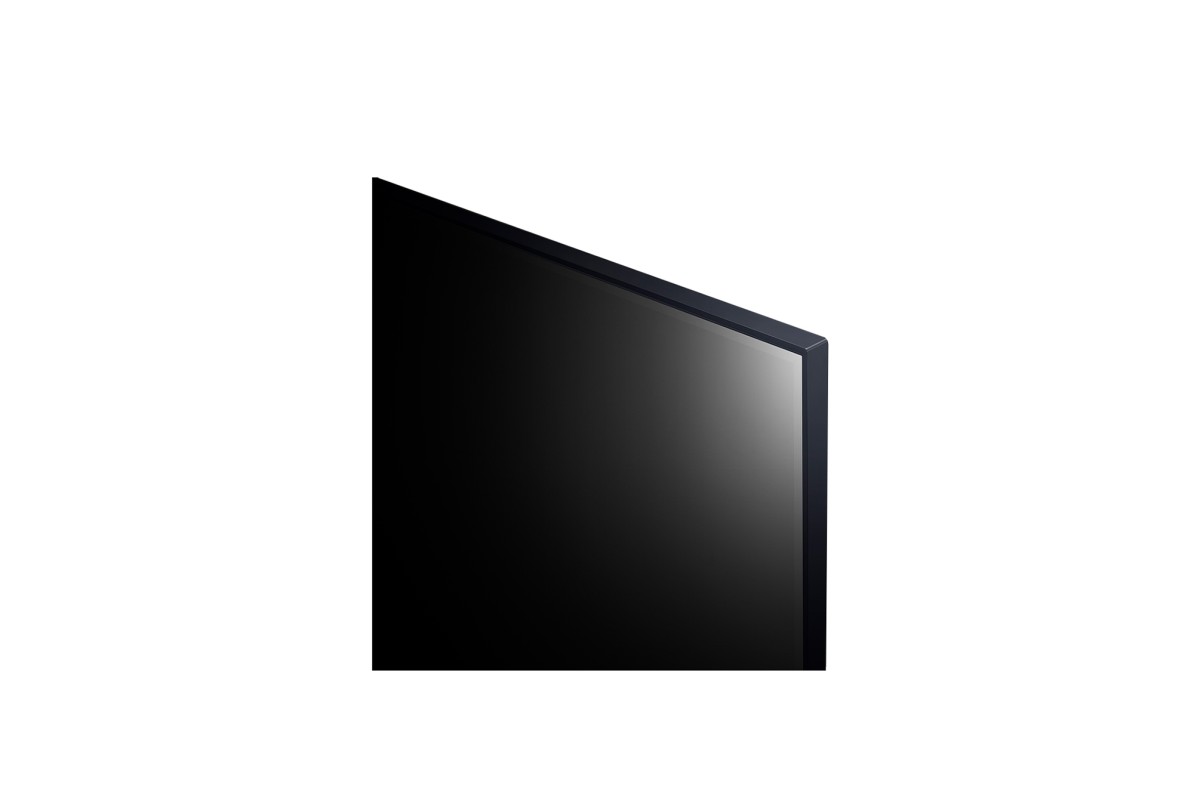

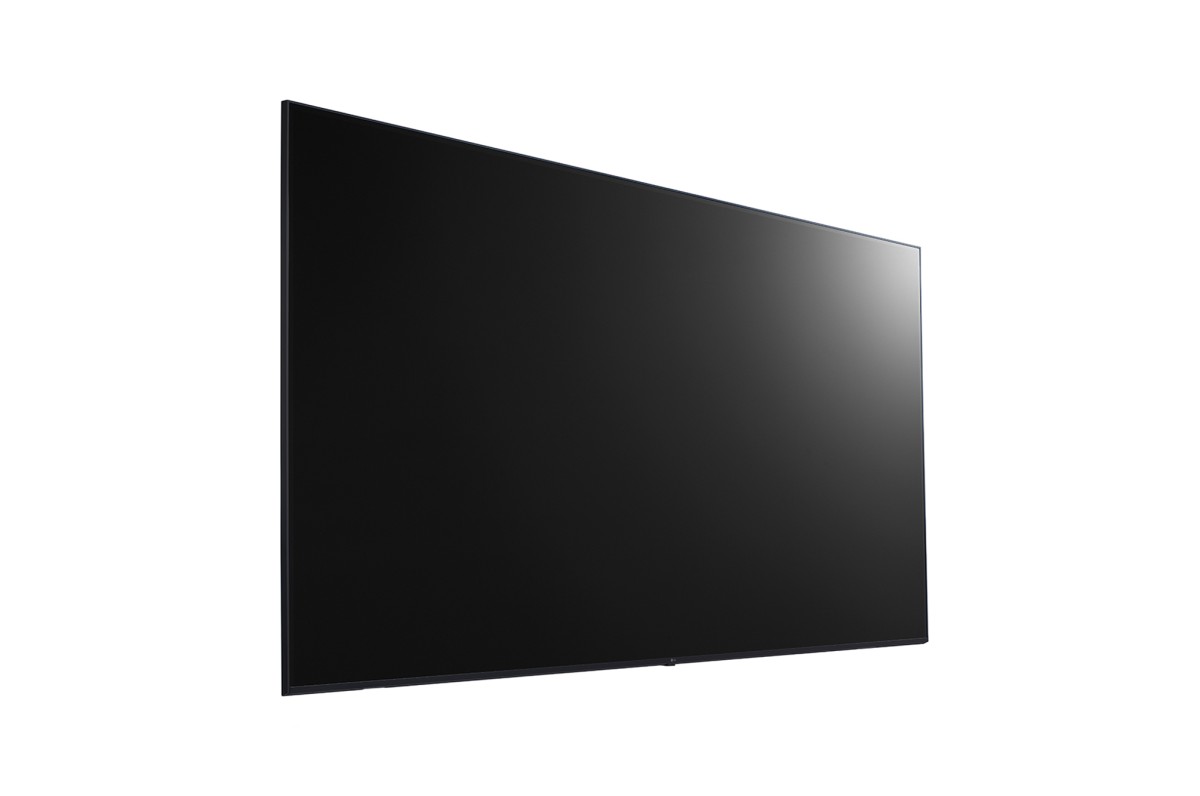

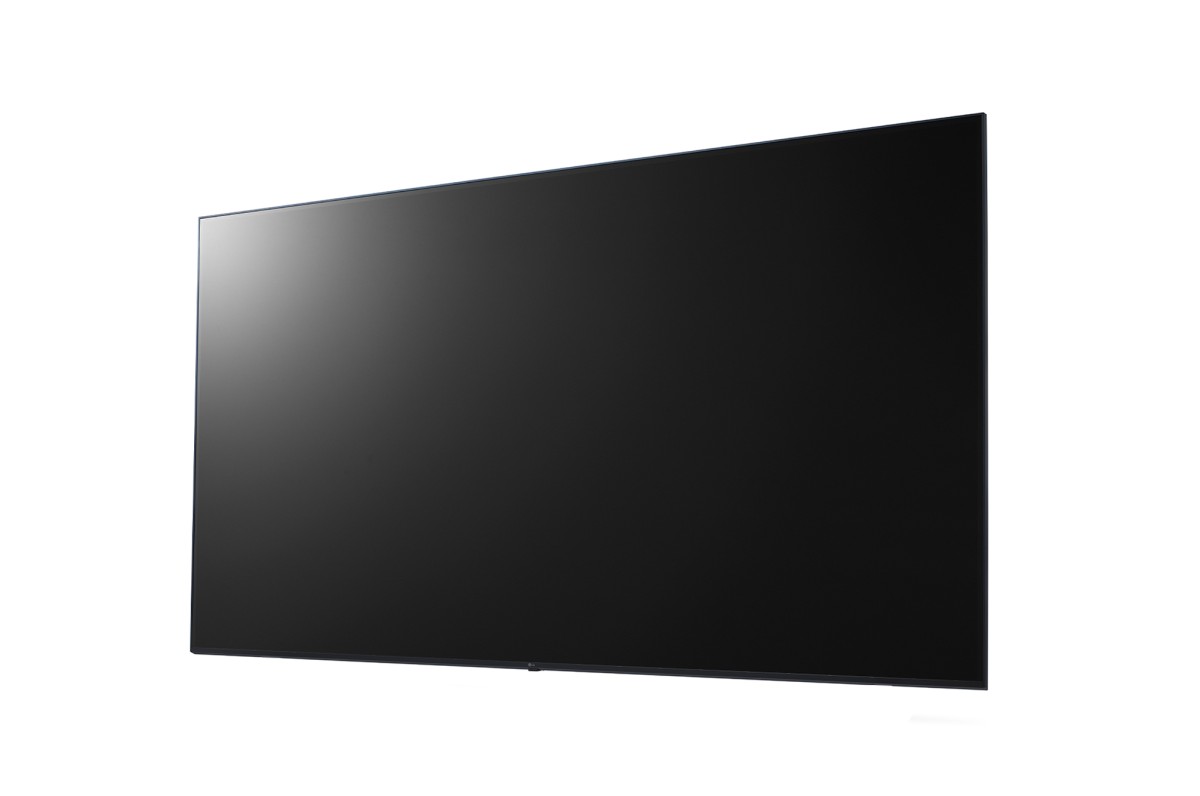

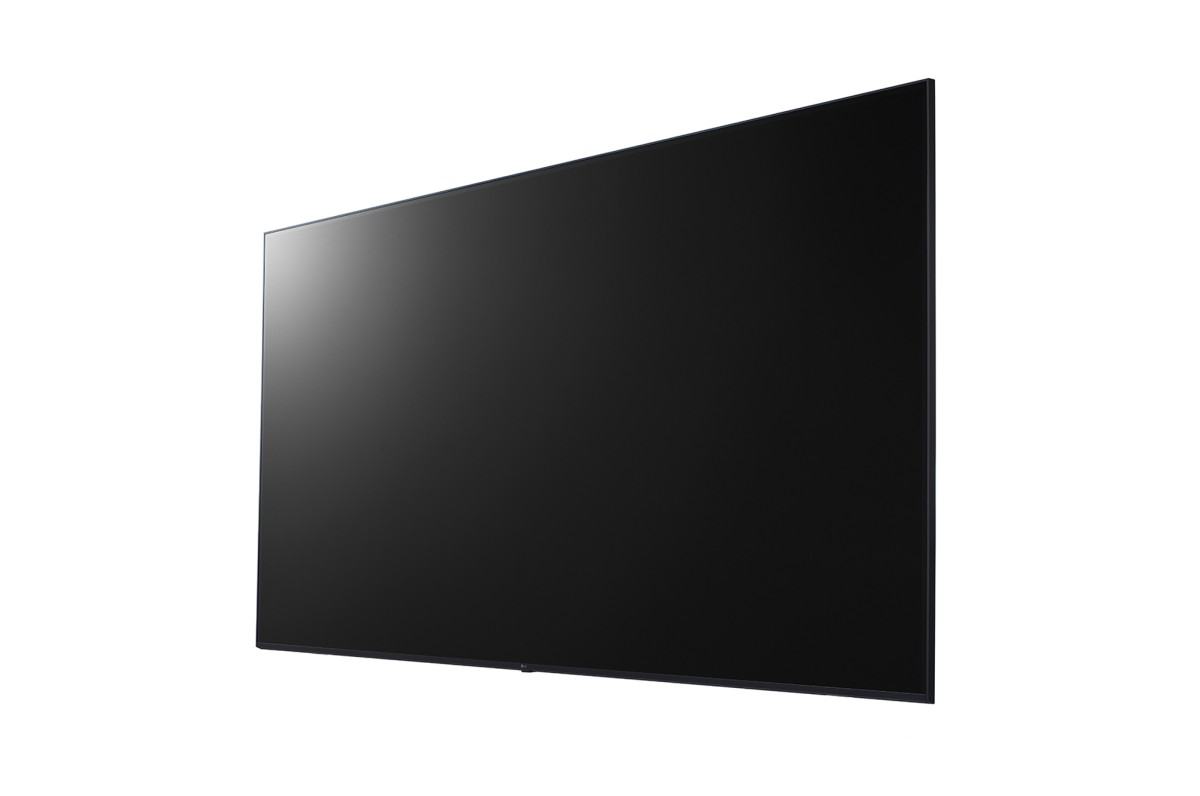

LG 75UL3J-E webOS UHD Digital Signage Display

Product code: 75UL3J-E

LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

SEND AN ENQUIRY

Description

Panel

Screen Size75"
Panel TechnologyIPS
Native Resolution3,840 X 2,160 (UHD)
Brightness (Typ.)330 nit
Contrast Ratio1,200 : 1
Dynamic CR1,000,000 : 1
Color gamutDCI 80 %
Viewing Angle (H x V)178 × 178
Color Depth1.07Billon colors(8bit + FRC)
Response Time8ms (G to G)
Surface Treatment1%
Operation Hours (Hours / Days)  16 / 7
Portrait / LandscapeYes / Yes
OSwebOS 6.0

Additional information

Mechanical Specification

Bezel Color  Ashed Blue
Bezel Width  Off : 7.9/7.9/7.9/18.4
On : 13.9/13.9/13.9/19.9
Weight (Head)  31.4 kg
Monitor Dimensions (W × H × D)  1,678 x 964 x 59.9 mm
VESA™ Standard Mount Interface  400 × 400 mm

Connectivity

Input  HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2)
Output  Audio
External Control  RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In

Environment Conditions

Operation Temperature  0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
Operation Humidity  10 % to 80 %

Power

Power Supply  AC 100-240V~, 50/60Hz
Power Type  Built-In Power

Power Consumption

Typ./Max.  155 W / 220 W
BTU (British Thermal Unit)  528.882BTU/Hr(Typ.), 750.671BTU/Hr(Max.)

Certification

Safety  CB / NRTL
EMC  FCC Class "A" / CE
ErP  Yes (NewErP)

Software Compatibility

SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, LG ConnectedCare, Promota (Not available for EU/CIS)

Sound

Speaker  Yes

Accessory

Basic  Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder
