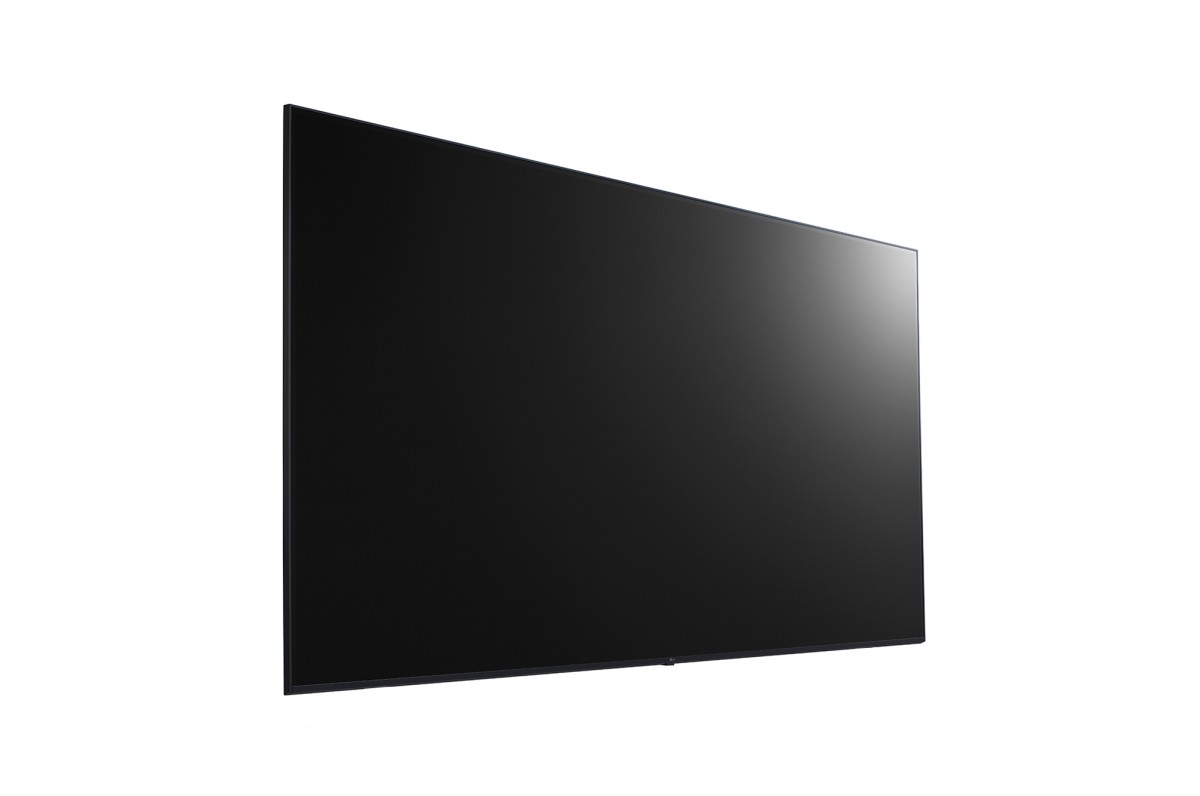

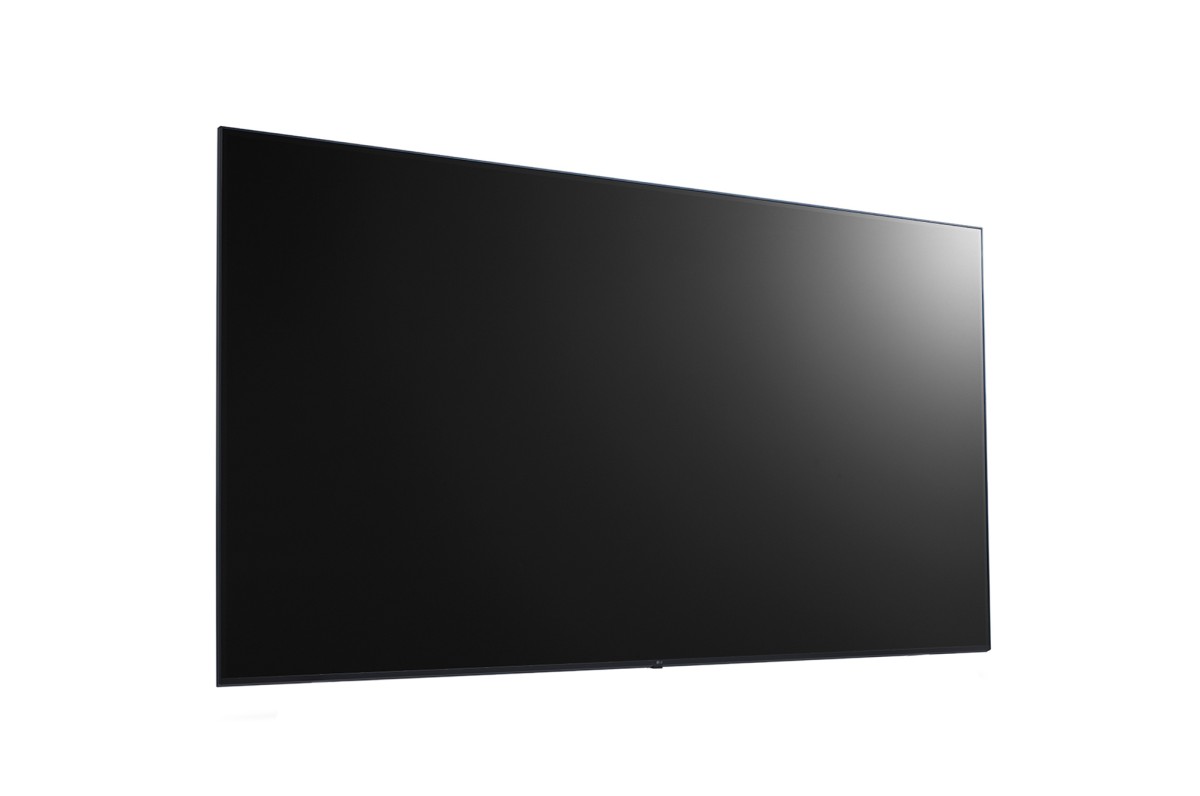

LG 75UL3J-B webOS UHD Digital Signage Display
Product code:LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.
Description
Panel
| Screen Size | 75” |
|---|---|
| Panel Technology | IPS |
| Native Resolution | 3,840 X 2,160 (UHD) |
| Brightness (Typ.) | 330 nit |
| Contrast Ratio | 1,200 : 1 |
| Dynamic CR | 1,000,000 : 1 |
| Color gamut | DCI 80 % |
| Viewing Angle (H x V) | 178 × 178 |
| Color Depth | 1.07Billon colors(8bit + FRC) |
| Response Time | 8ms (G to G) |
| Surface Treatment | 1% |
| Operation Hours (Hours / Days) | 16 / 7 |
| Portrait / Landscape | Yes / Yes |
| OS | webOS 6.0 |
Additional information
Mechanical Specification
| Bezel Color | Ashed Blue |
|---|---|
| Bezel Width | Off : 7.9/7.9/7.9/18.4 On : 13.9/13.9/13.9/19.9 |
| Weight (Head) | 31.4 kg |
| Monitor Dimensions (W × H × D) | 1,678 x 964 x 59.9 mm |
| VESA™ Standard Mount Interface | 400 × 400 mm |
Connectivity
| Input | HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2) |
|---|---|
| Output | Audio |
| External Control | RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) |
|---|---|
| Operation Humidity | 10 % to 80 % |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
Power Consumption
| Typ./Max. | 155 W / 220 W |
|---|---|
| BTU (British Thermal Unit) | 529 BTU/Hr(Typ.), 751 BTU/Hr(Max.) |
Certification
| Safety | CB |
|---|---|
| EMC | FCC Class "A" / CE |
| ErP | Yes (OldErP for Jordan) |
Software Compatibility
| SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, LG ConnectedCare, Promota |
Sound
| Speaker | Yes |
|---|
Accessory
| Basic | Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder |
|---|
