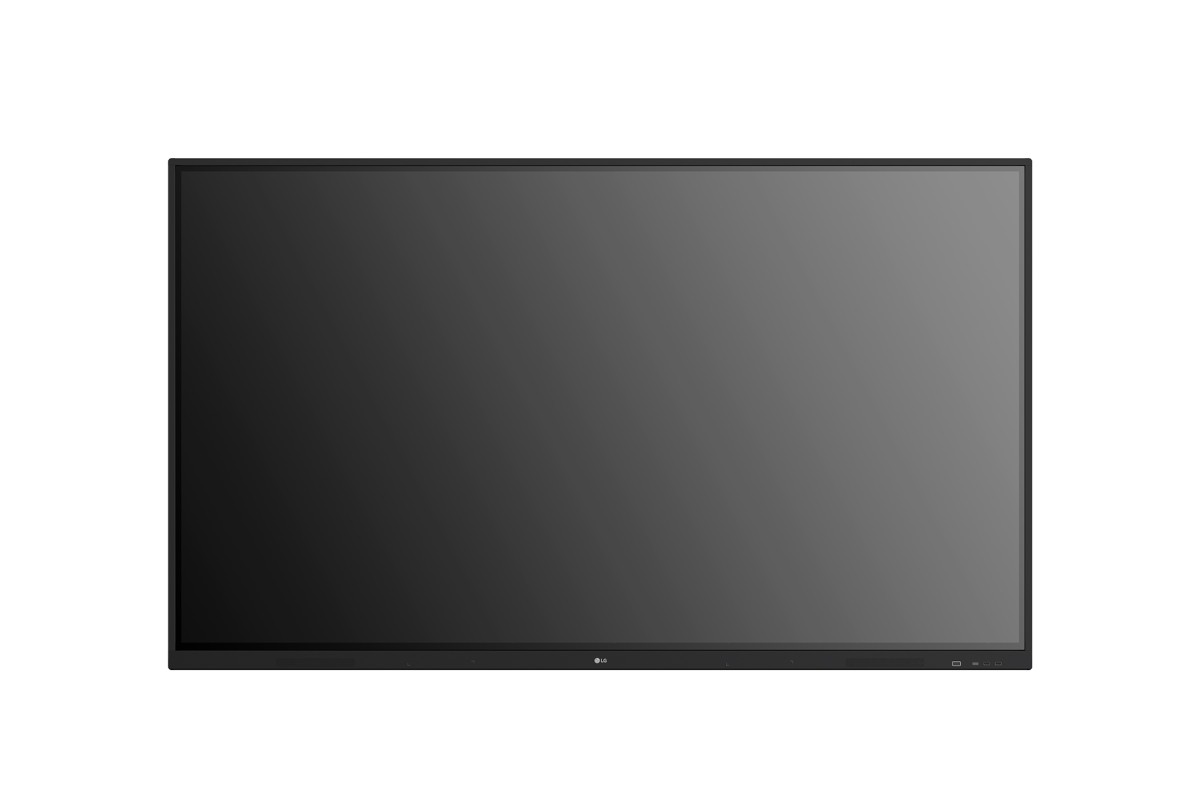

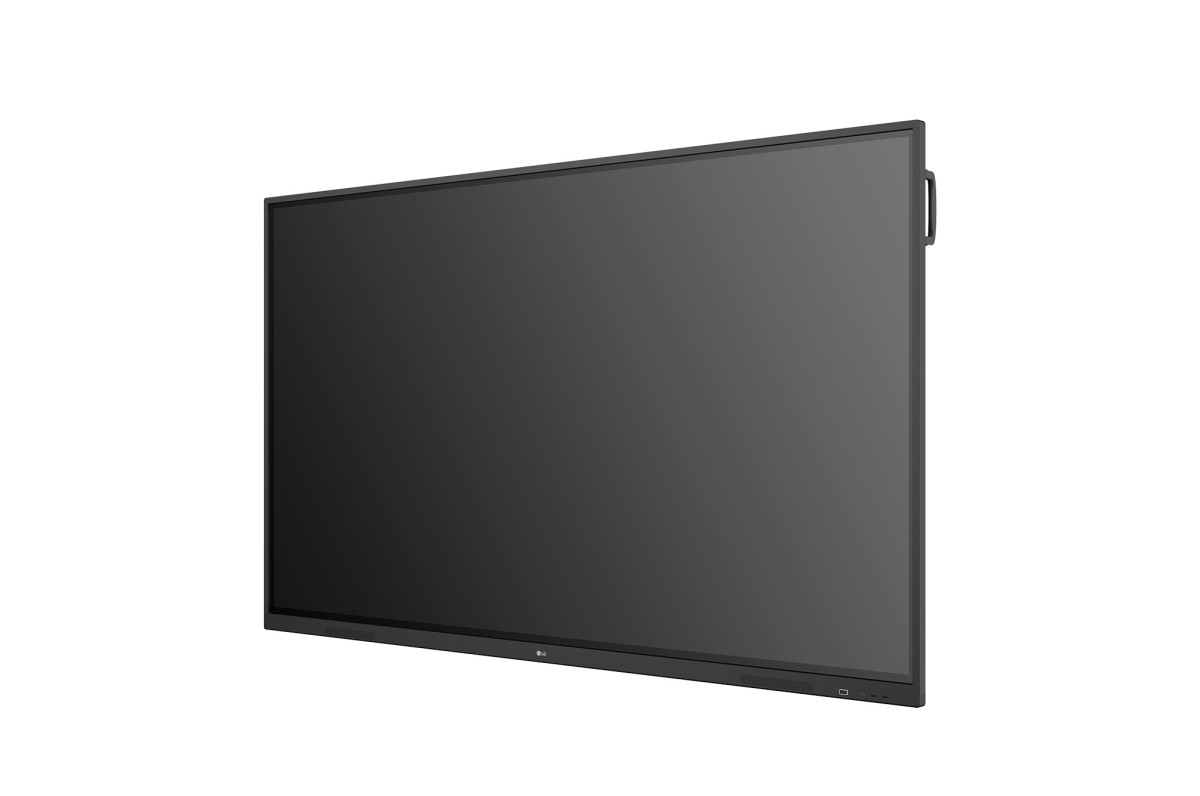

LG 75TR3DJ Interactive Digital Board Createboard

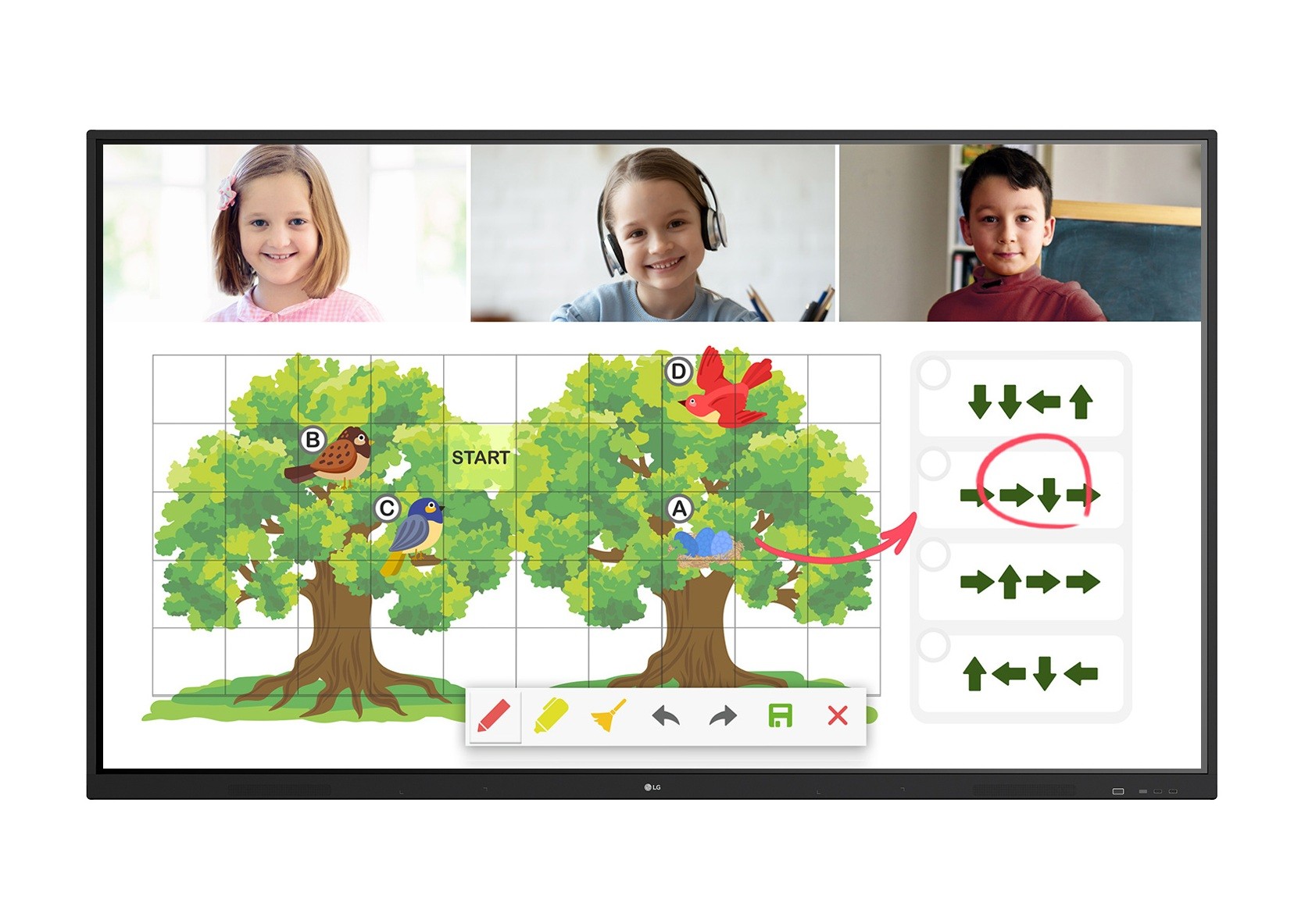

Product code:The TR3DJ series can simultaneously use up to 20 points of multi touch. This function offers a lifelike board touch experience and makes collaboration much easier.
Description
Panel
| Screen Size | 75" |
|---|---|
| Panel Technology | IPS |
| Aspect Ratio | 16 : 9 |
| Native Resolution | 3,840 x 2,160 (UHD) |
| Brightness | w/o Glass : 490 nit (Max.), 390 nit (Typ.) w/ Glass : 450 nit (Max.), 350 nit (Typ.) |
| Contrast Ratio | 1,200:1 |
| Viewing Angle (H x V) | 178 x 178 |
| Response Time | 8ms (G to G) |
| Life Time (Typ.) | 30,000 Hrs (Min.) |
| Operation Hours (Hours / Days) | 16/7 |
| Portrait / Landscape | Landscape |
| OS | Android 8.0 |
Additional information
Mechanical Specification
| Bezel Color | Black |
|---|---|
| Bezel Width | 18.9/18.9/18.9/45.7 mm (T/R/L/B) |
| Weight (Head) | 53.1Kg |
| Packed Weight | 69.85Kg |
| Monitor Dimensions (W × H × D) | 1,710 × 1,020 × 87 mm |
| Handle | Yes |
| VESA™ Standard Mount Interface | 800 x 400 |
Connectivity
| (Input) Video / Audio | HDMI (3), HDCP2.2/1.4 |
|---|---|
| (Input) External Control | RS-232C In (1) |
| (Input) USB | USB 3.0 Type A (3), USB 2.0 Type A (3) |
| (Output) Video / Audio | Audio Out / Optical Output |
Environment Conditions
| Operation Temperature | 0 °C to 40 °C |
|---|---|
| Operation Humidity | 10% to 80% |
Power
| Power Supply | AC 100-240V~, 50/60Hz |
|---|---|
| Power Type | Built-In Power |
| Power Consumption (Typ. / Max.) | 260W / 350W |
Standard (Certification)
| Safety | CB / NRTL |
|---|---|
| EMC | FCC Class "A" / CE |
| ErP | Yes |
Media Player Compatibility
| OPS type compatible | Yes (Slot) |
|---|---|
| OPS Power Built In | Yes |
Sound
| Speaker | Yes (10W x 2) |
|---|
Accessory
| Basic | Power Cord 3m, USB Cable (Type A-Type B) 5m, HDMI Cable 3m, Writing Pen (2pcs), User Manual, Quick Start Guide, Carton Box, Remote Controller (include battery 2ea), WiFi module |
|---|
Touch
| Available Object Size for Touch | Ø3 mm ↑ |
|---|---|
| Response Time | 60ms ↓ (Android) 100ms ↓ (Windows) |
| Accuracy | ±2mm |
| Interface | USB 2.0 |
| Protection Glass Thickness | 4T (Anti-Glare) |
| Protection Glass Transmission | 87% |
| Operating System Support | Windows 7/8/10 / Windows XP / Linux / Mac / Android (Supports one point touch on Windows XP / Linux / Mac) |
| Multi Touch Point | 20 Points (Max.) |
Datasheet
