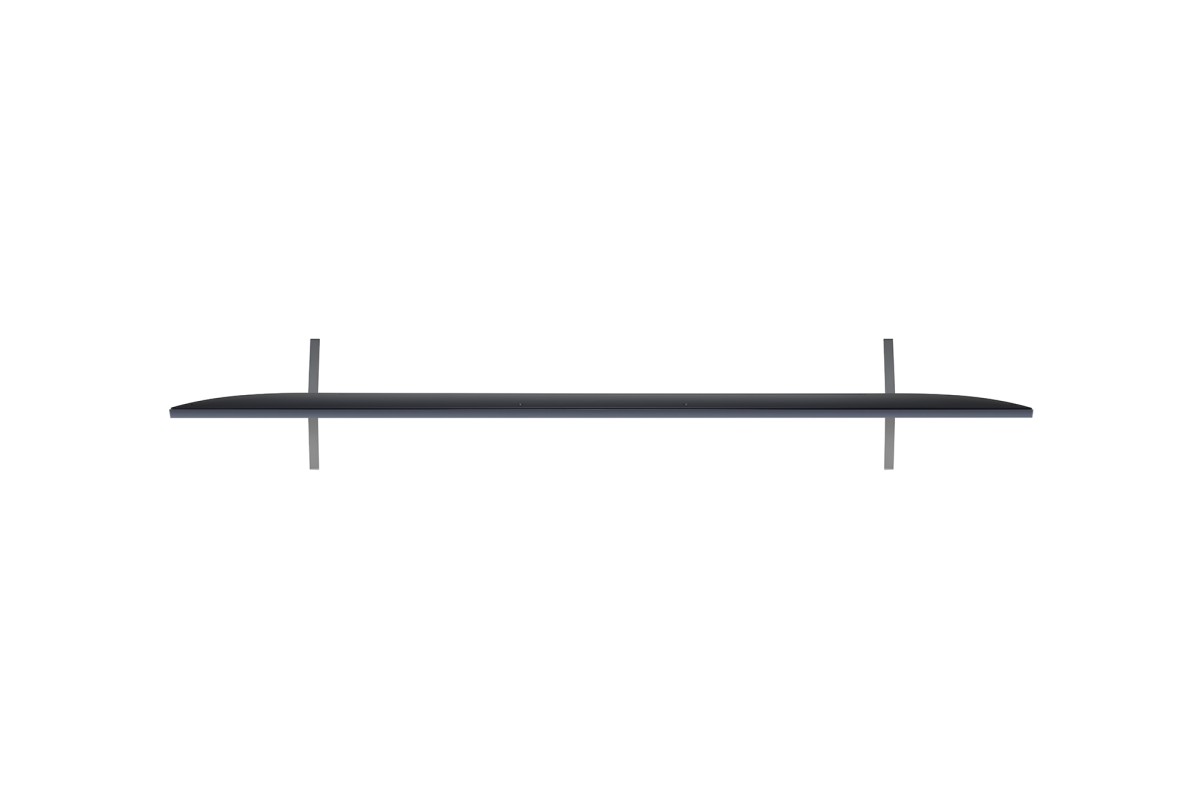

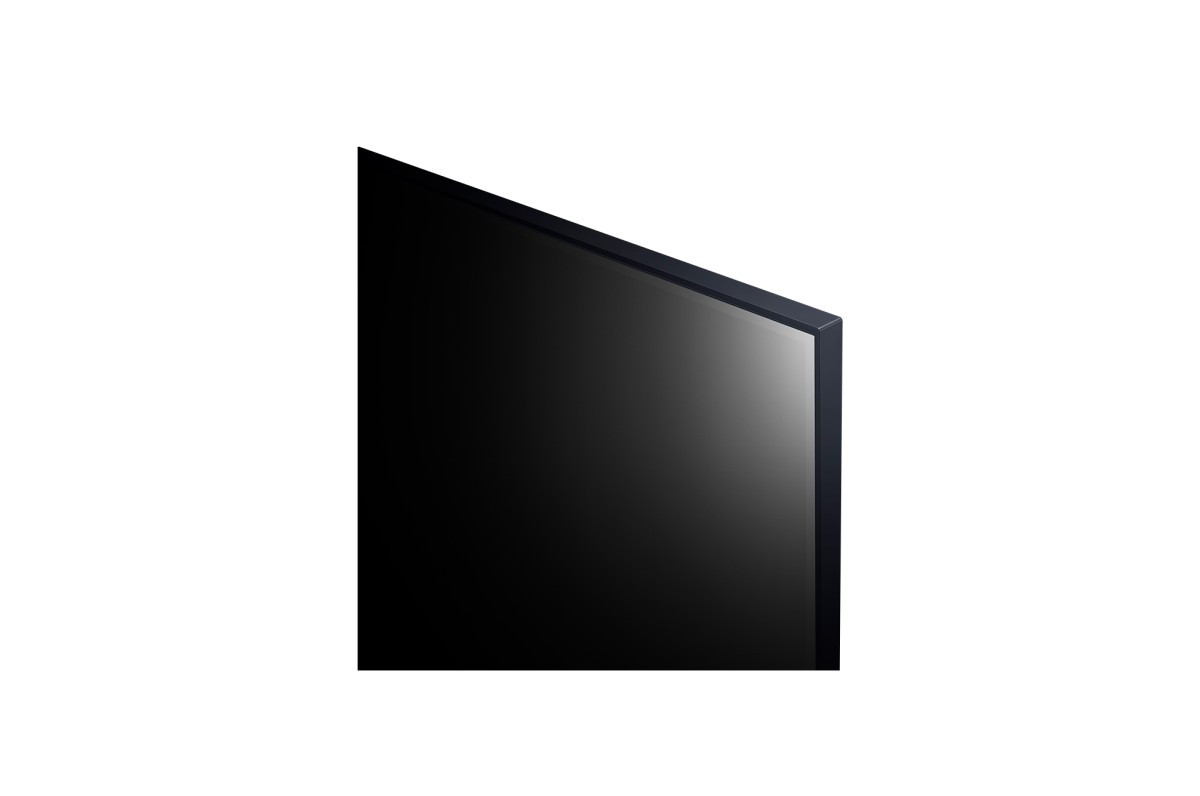

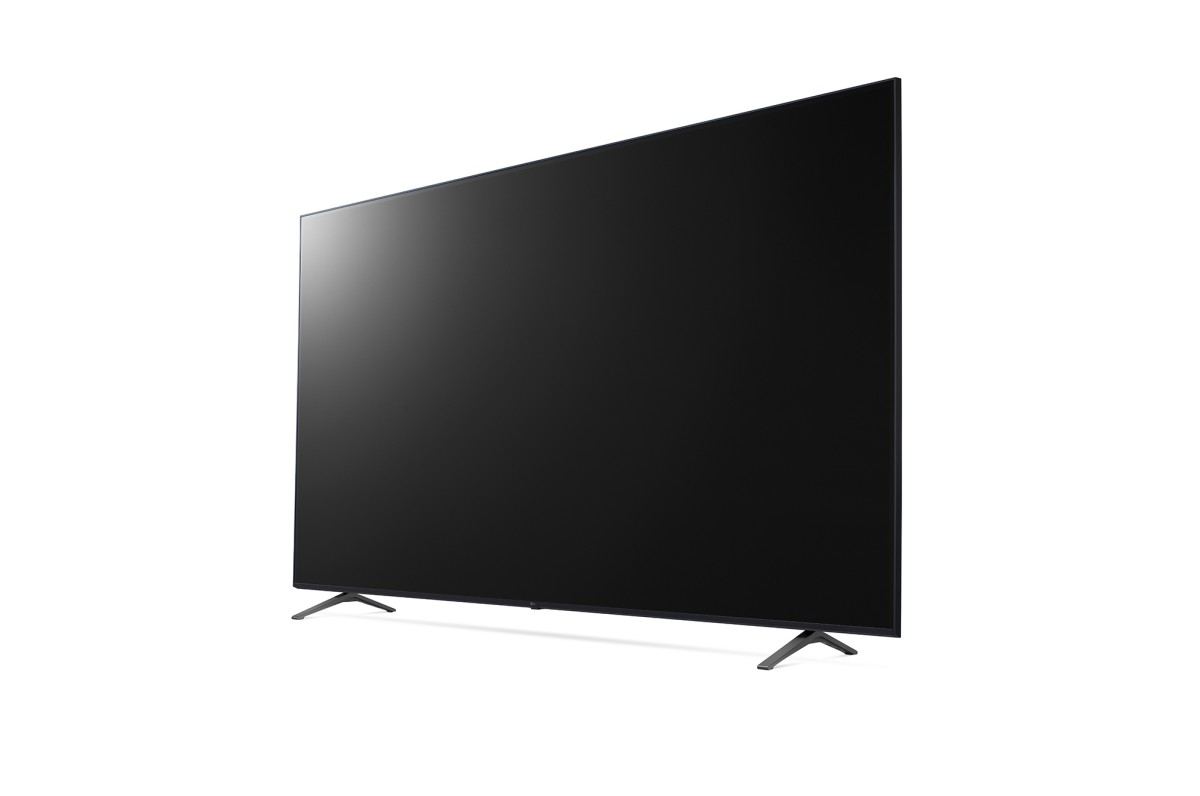

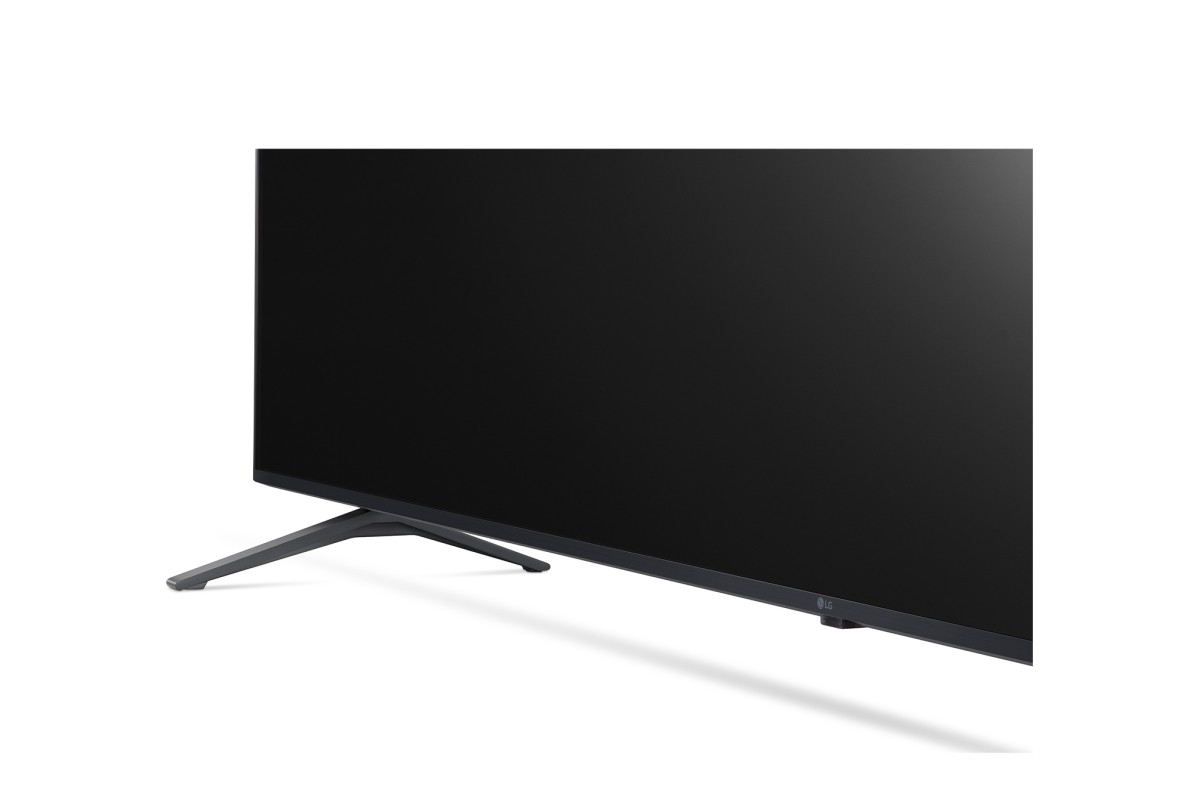

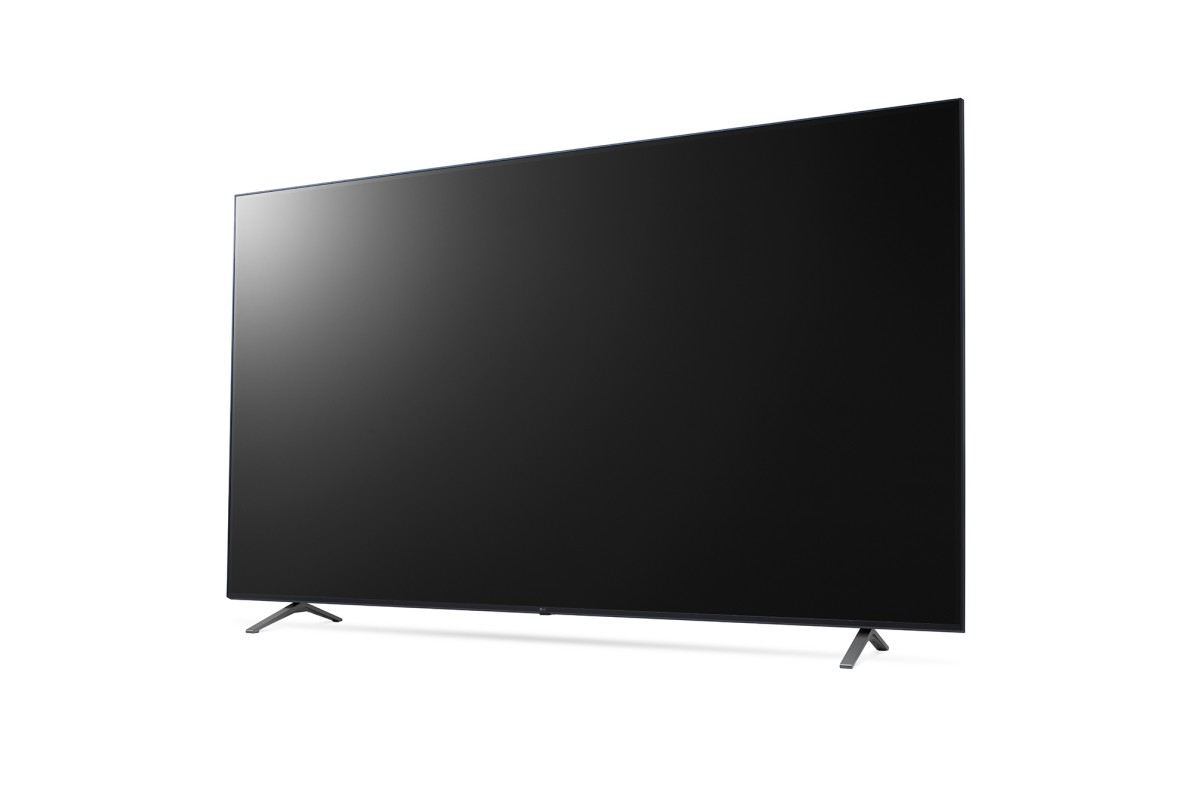

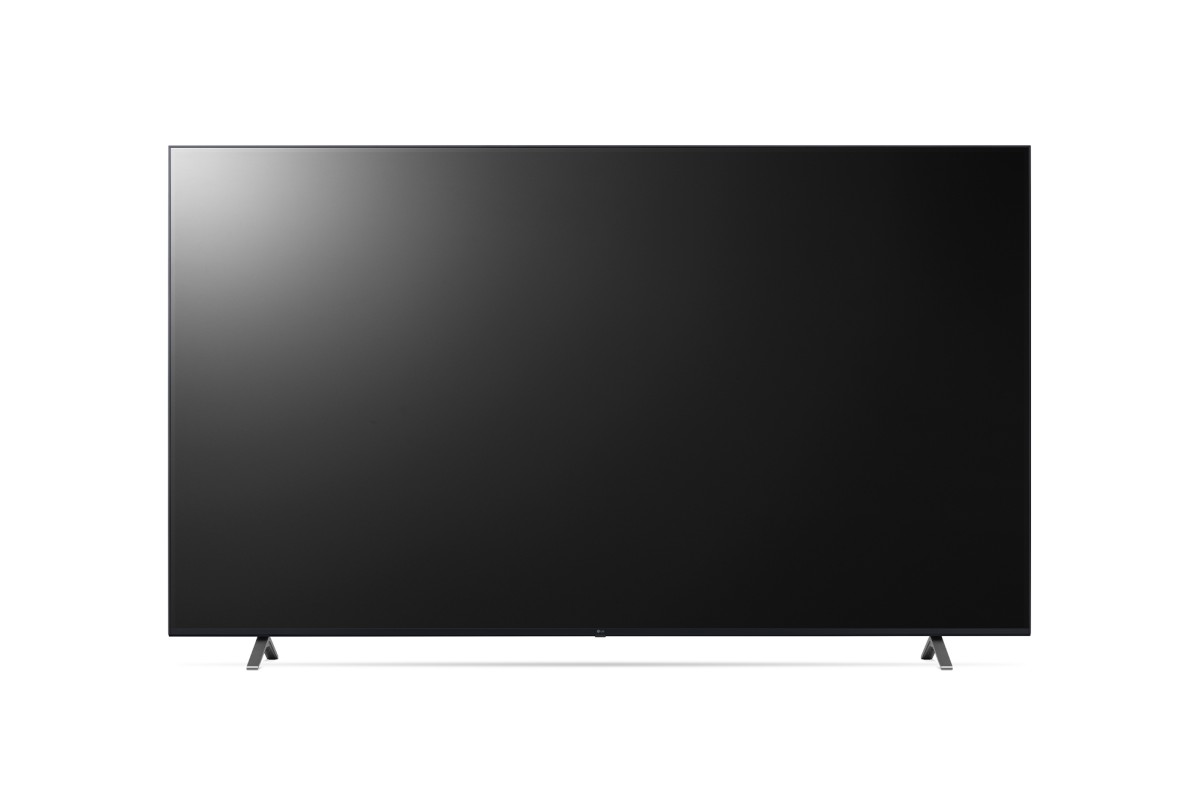

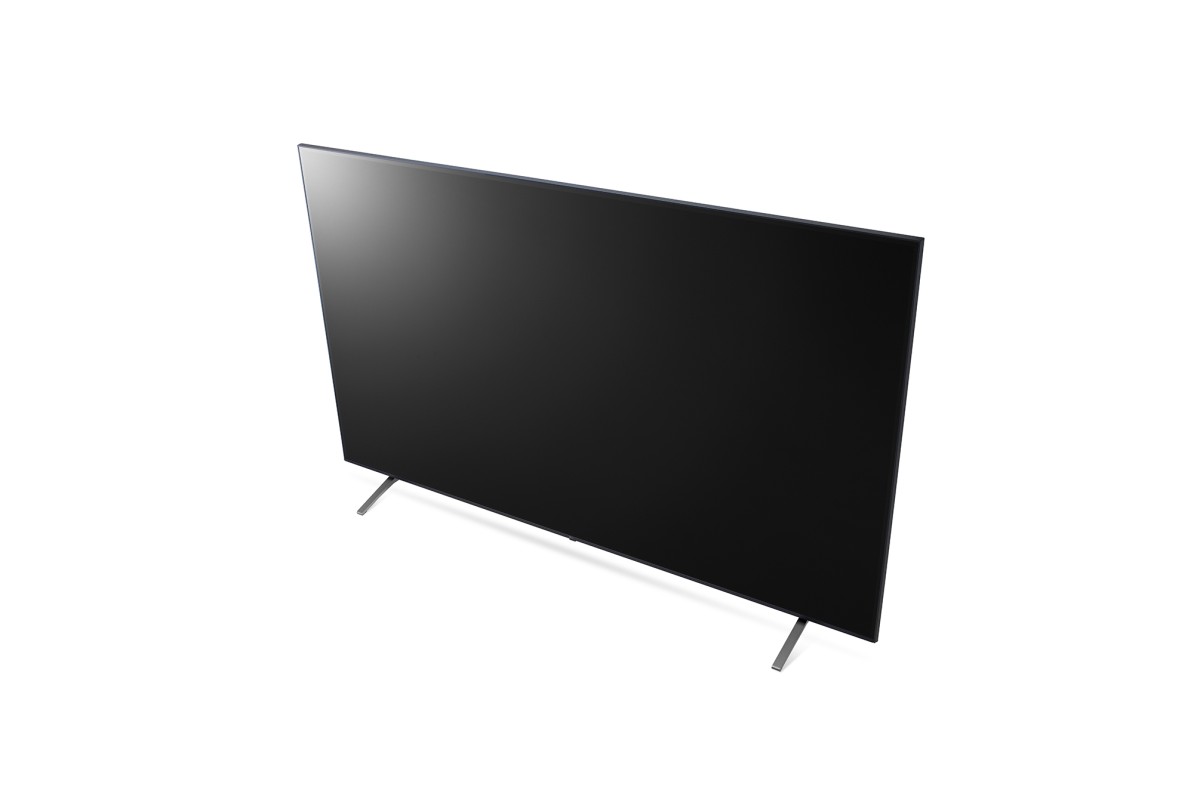

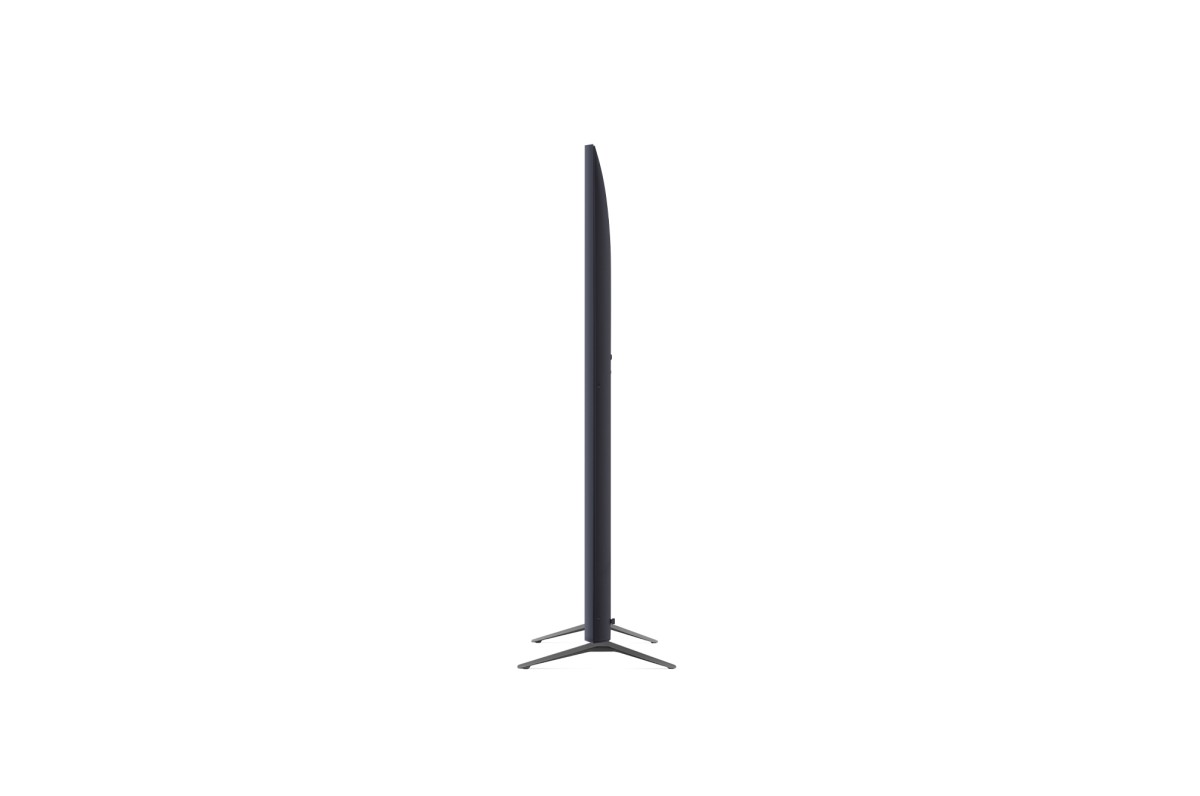

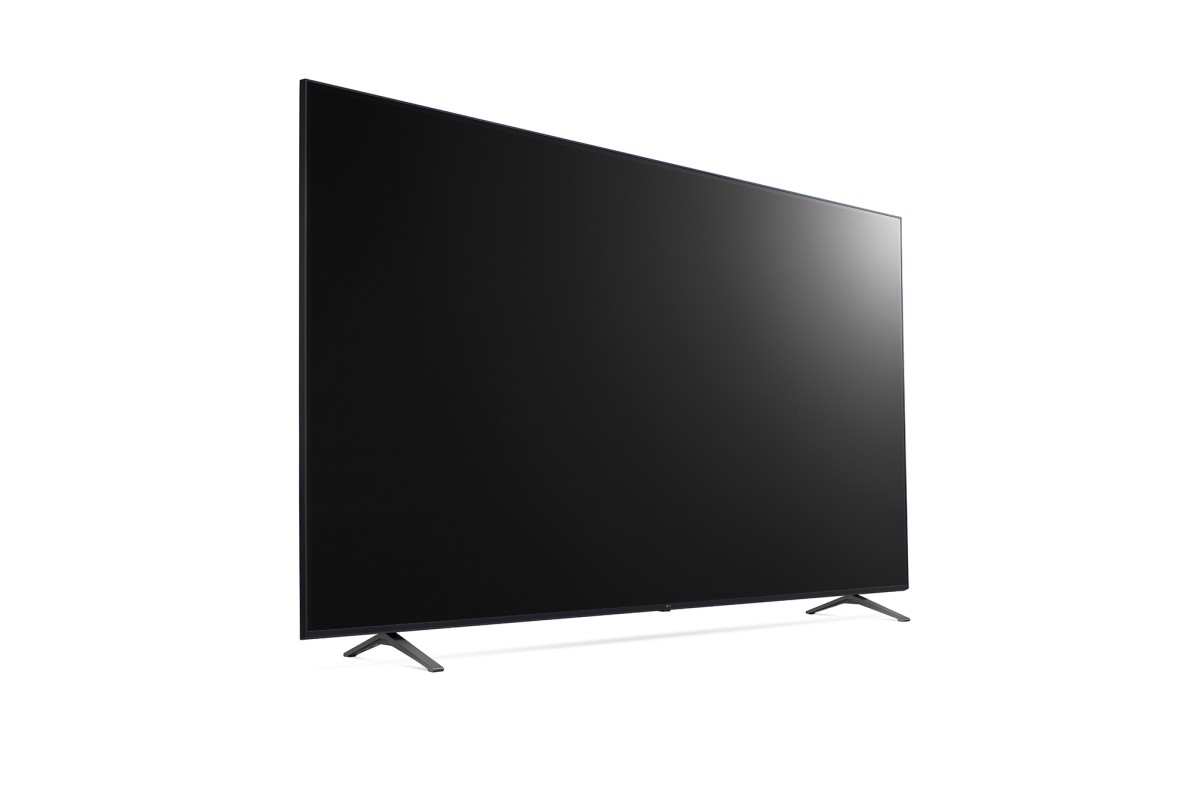

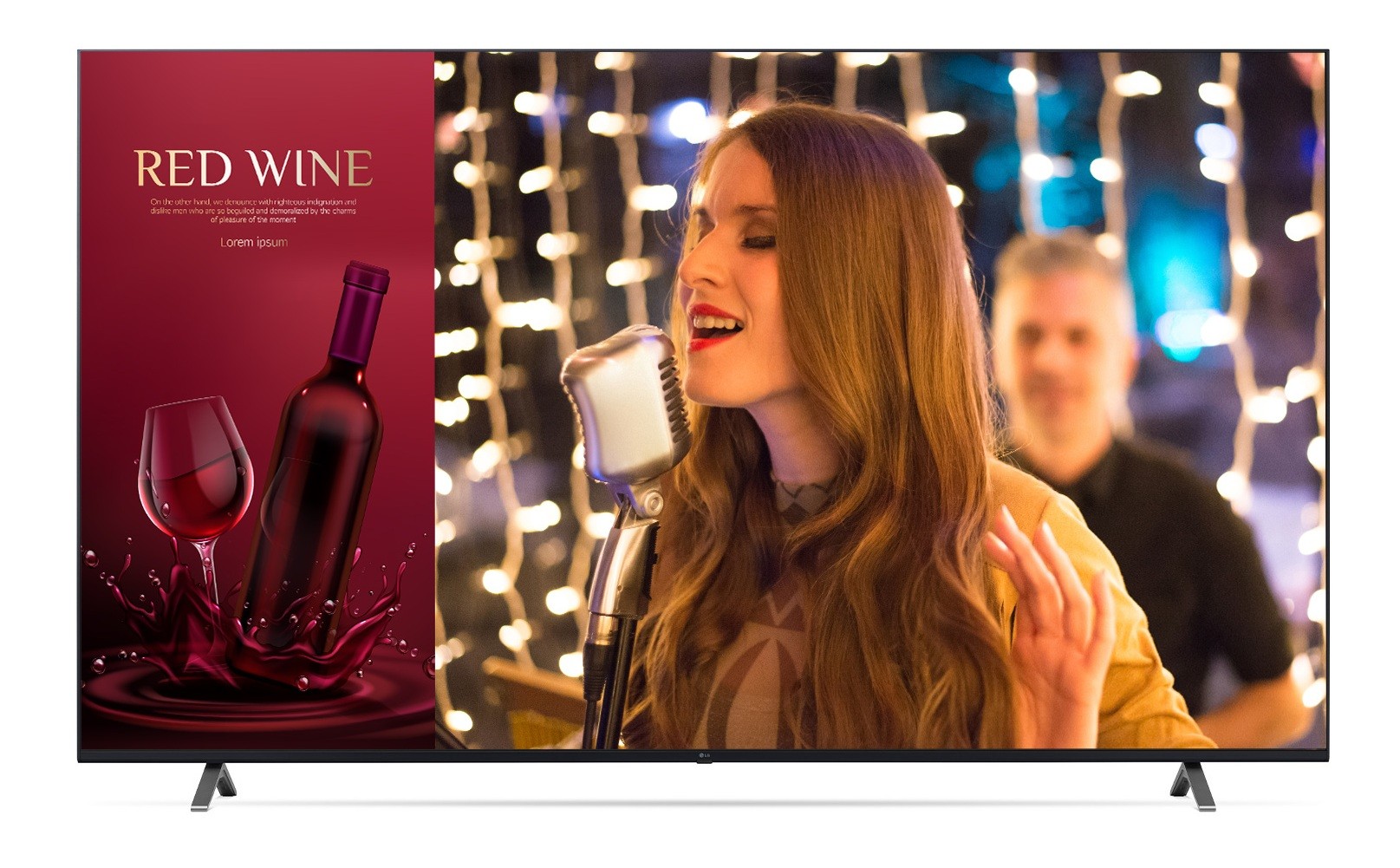

LG 55UR640S (NA) UHD TV Digital Signage Display
Product code:LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices.
Description
Display
| Inch | 55" |
|---|---|
| Resolution | 3,840 X 2,160 (UHD) |
| Backlight Unit Type | Direct |
| Brightness (nit) | 400 |
| Orientation | Lanscape |
| Hours of Operation | 16/7 |
| OS | webOS 6.0 |
Additional information
Audio
| Audio Output | 10W + 10W |
|---|---|
| Speaker System | 2.0 ch |
Broadcasting System
| Digital (Terrestrial, Cable, Satellite) | ATSC, Clear QAM |
|---|
Dimension
| Vesa (mm) | 300 x 300 |
|---|---|
| W x H x D / weight (with stand) | 1,235 x 772 x 232 mm / 14.2 kg |
| W x H x D / weight (without stand) | 1,235 x 715 x 57.5 mm / 14.0 kg |
Power
| Voltage, Hz | AC 120 V~, 50 / 60 Hz |
|---|---|
| Stand-by | Under 0.5W |
| Power Consumption (Max.) | 166.3 |
| Power Consumption (Typ.) | 140.1 |
Interface
| Side | HDMI In (3 (2.0)), RS-232C(D-Sub 9pin / Phone jack) (Phone Jack, 4pin), LG SVC only (Phone jack type) (Phone Jack Type) |
|---|---|
| Rear | USB (2.0), RF In, Digital Audio Out (Optical), External Speaker Out(3.5mm phone jack), RJ45 (Usage Purpose) (LAN) |
