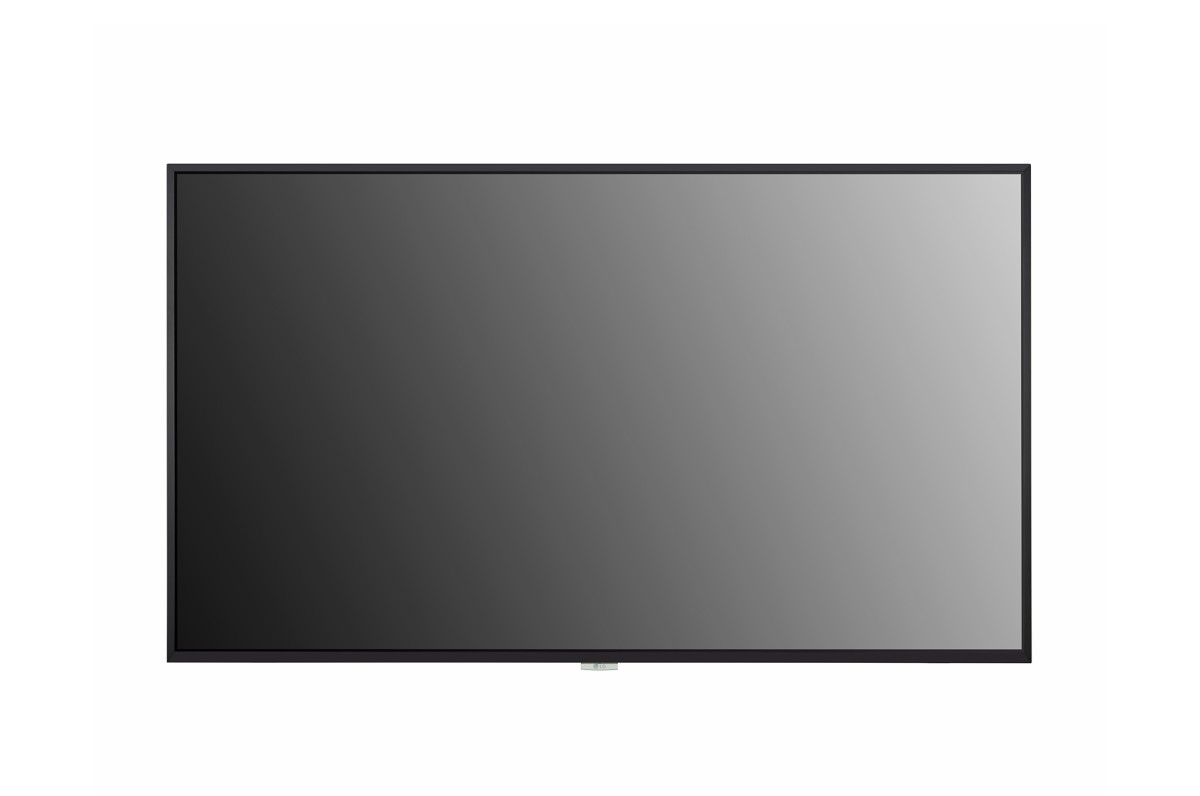

LG 55UH7J-H UHD Digital Signage Display

Product code: 55UH7J-H

With a great brightness of 700 cd/m², the UH7J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in airports, retail, shopping malls etc

SEND AN ENQUIRY

Description

Panel

Screen Size	55"
Panel Technology	IPS
Back Light Type	Edge
Aspect Ratio	16:9
Resolution	3,840 X 2,160 (UHD)
Refresh Rate	60 Hz
Brightness (Typ.)	700 nit
Contrast Ratio	1,100:1
Dynamic CR	1,000,000:1
Color gamut	BT709 95%
Viewing Angle (H x V)	178 × 178
Color Depth	10 bit (D), 1.07 Billion colors
Response Time	8 ms (G to G)
Surface Treatment (Haze)	28 %
Life Time (Min.)	50,000 Hrs
Operation Hours (Hours / Days)	24 / 7
Portrait / Landscape	Yes / Yes
OS	webOS 6.0

Additional information

Mechanical Specification

Bezel Color	Black
Bezel Width	T/R/L: 9.9mm, B: 14.4mm
Weight (Head)	19.0 Kg
Weight (Head+Stand)	19.6 Kg
Monitor Dimensions (W × H × D)	1,234.4 x 720.9 x 39.9 mm (with LG Logo)
Monitor Dimensions with Stand (W × H × D)	1,234.4 x 770.7 x 290.0 mm
VESA™ Standard Mount Interface	300 × 300 mm

Special Feature

Tilt (Facedown)	Yes (Max 30º degree, 30ºC temperature, humidity 50%)
IP Rating	IP5X

Key Feature (Hardware)

Internal Memory	16 GB
Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Acceleration(Gyro) Sensor, Local Key Operation	Yes

Key Feature (Software)

webOS ver.	webOS 6.0
Embedded CMS	Local Contents Scheduling, Group Manager
USB Plug & Play, Fail over	Yes
Multi-screen	PIP, PBP (4)
Screen Share	Yes
Background Image	Booting Logo Image, No Signal Image
Sync Mode	RS-232C Sync, Local Network Sync
Video Tag	Yes (4)
Play via URL	Yes
Rotation	Screen Rotation, External Input Rotation
Gapless Playback	Yes
Tile Mode Setting	Yes (Max. 15x15)
Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Beacon	Yes
3rd Party Compatibility	Crestron Connected
Power	Smart Energy Saving, PM mode, Wake on LAN, Network Ready

Connectivity

Input	HDMI (2, HDMI1/HDMI2 : HDCP 2.2/1.4), DP (1, USB-C(DP Alternate mode) shared), DVI-D, Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion)
Output	DP Out (1, Input : HDMI1/2/DVI/DP/USB-C/OPS), Audio Out, RS232C OUT (1, 4pin Phone-jack)

Environment Conditions

Operation Temperature	0 °C to 40 °C
Operation Humidity	10 % to 80 %

Power

Power Supply	AC 100-240V~, 50/60Hz
Power Type	Built-In Power

Power Consumption

Typ./Max.	110W / 150W
Smart Energy Saving	77W
DPM	0.5W
Power off	0.5W
BTU (British Thermal Unit)	376 BTU/Hr(Typ.), 512 BTU/Hr(Max.)

OPS Compatibility

OPS Type Compatible	Yes

Software Compatibility

SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, LG ConnectedCare, Promota (Not available for EU/CIS), Mobile CMS

Sound

Speaker	Yes

Certification

Safety	CB / NRTL
EMC	FCC Class "A" / CE / KC
ErP	Yes (NewErP)

Language

OSD	English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic
