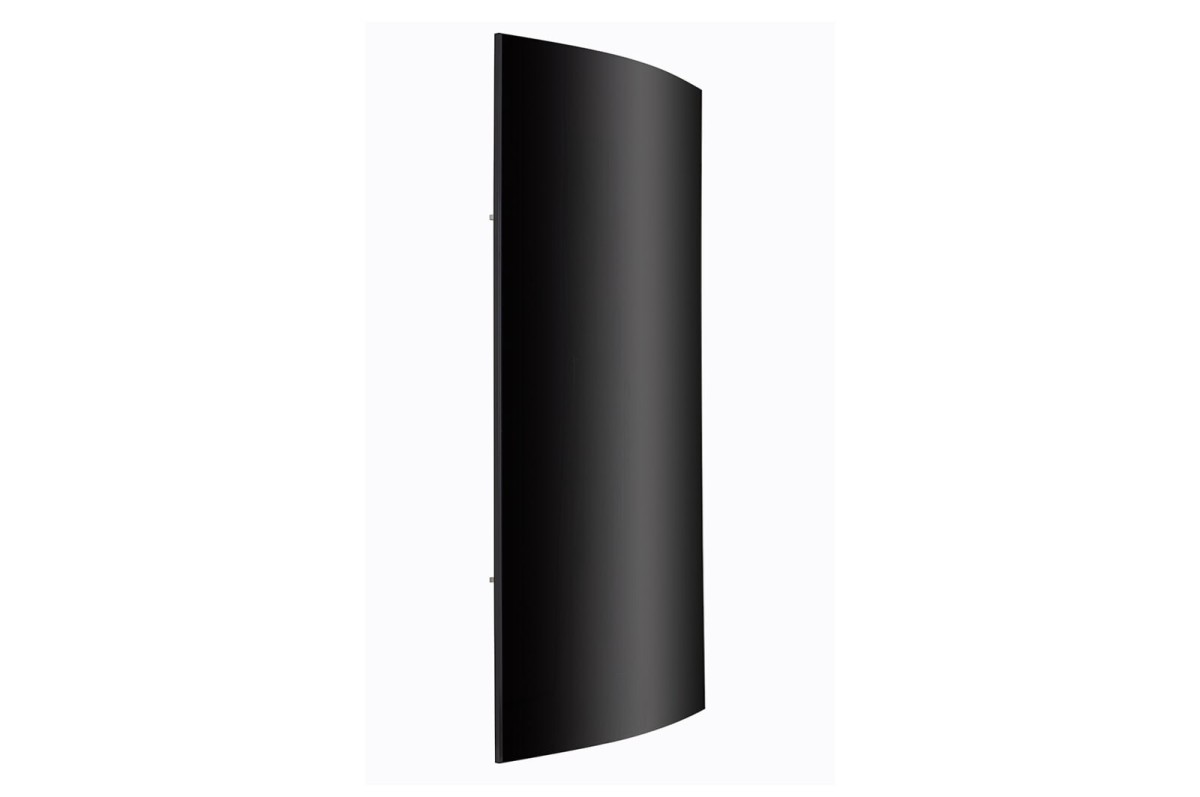

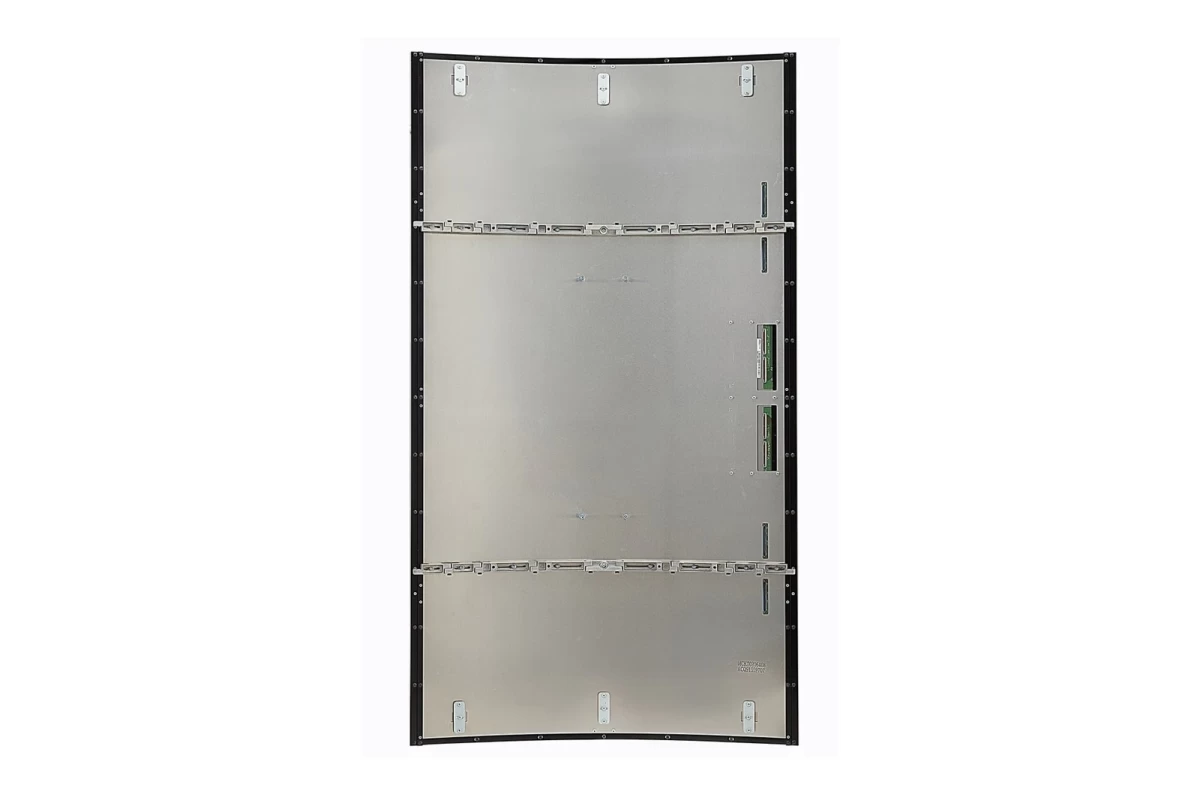

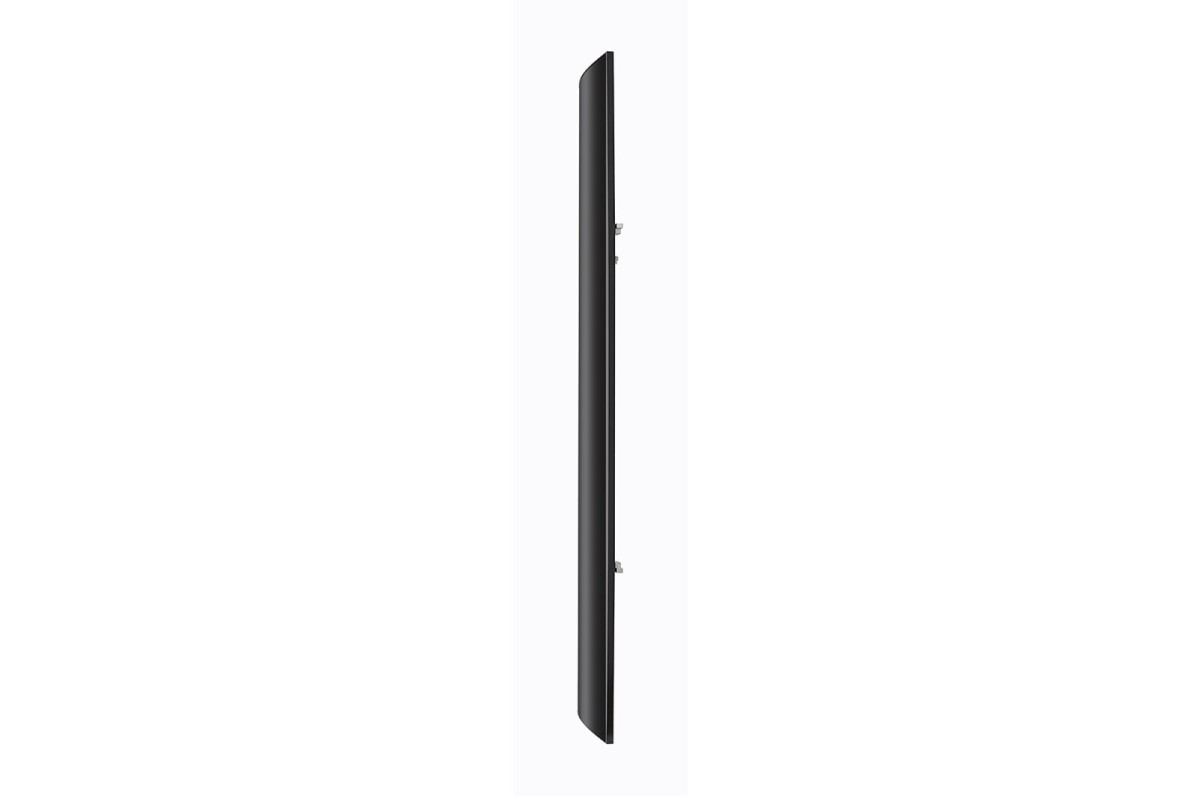

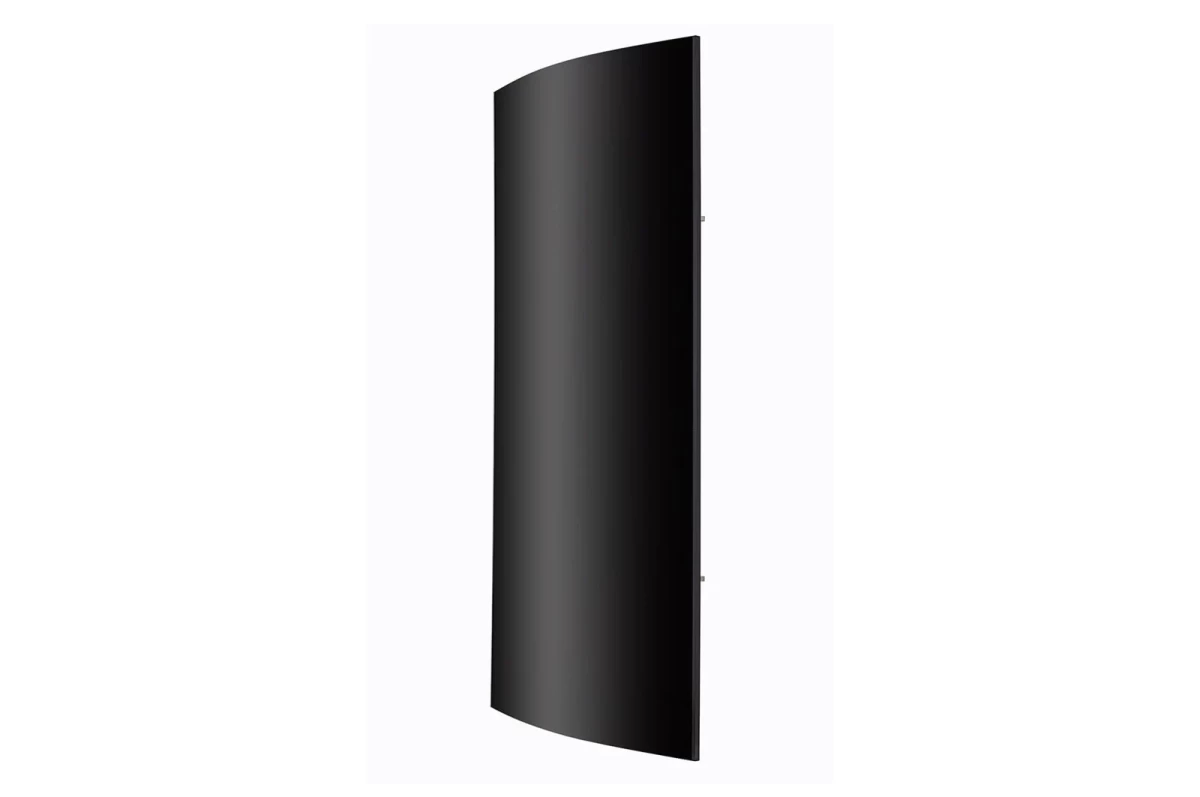

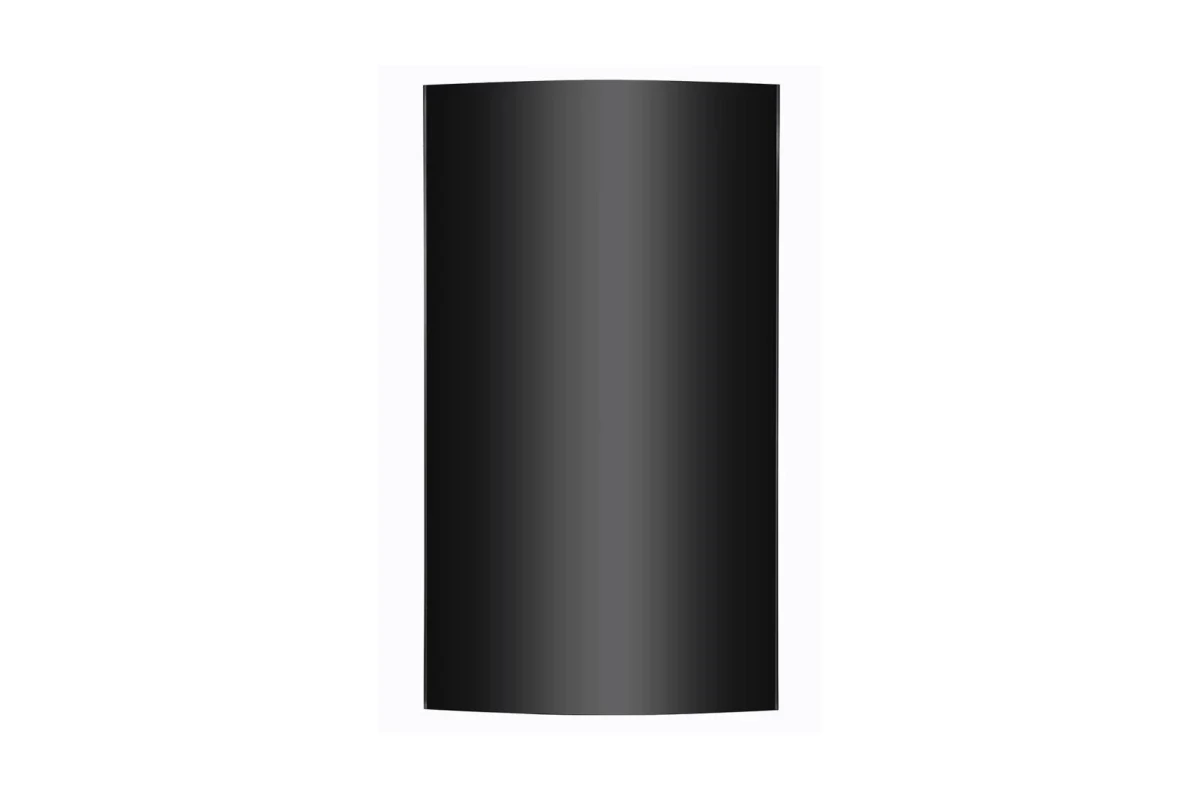

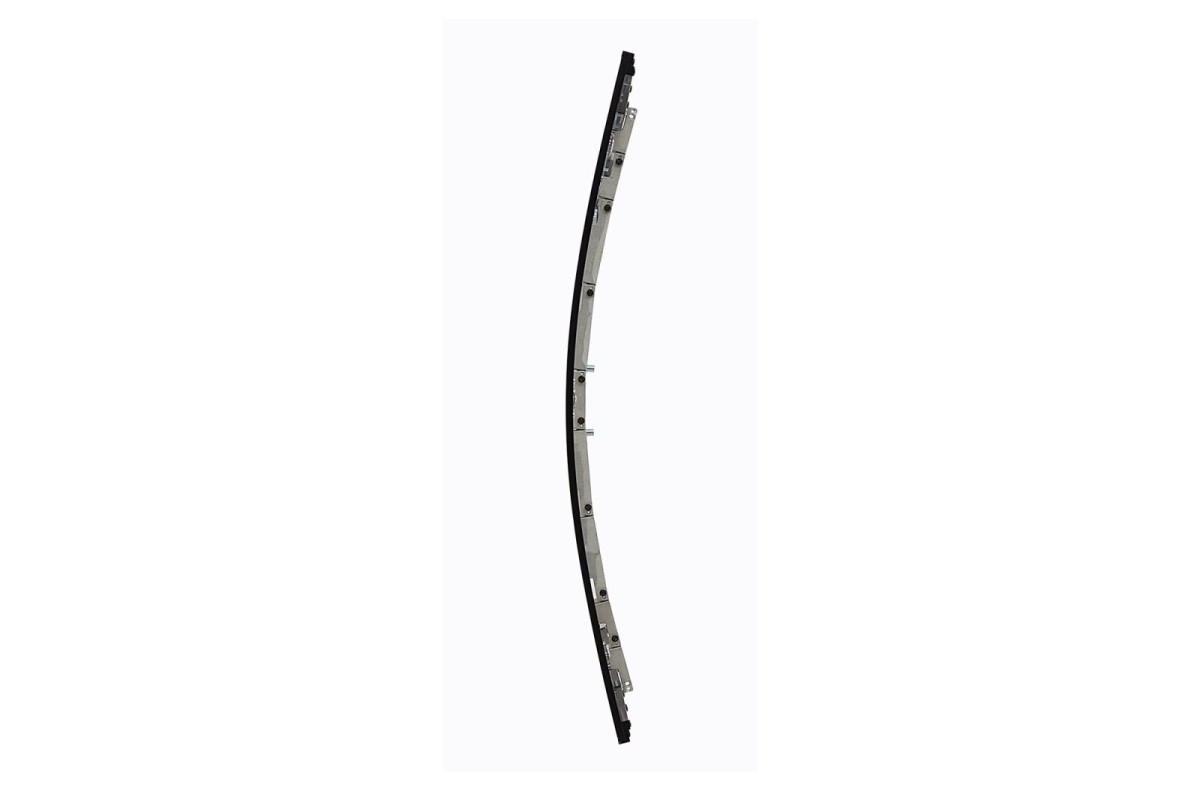

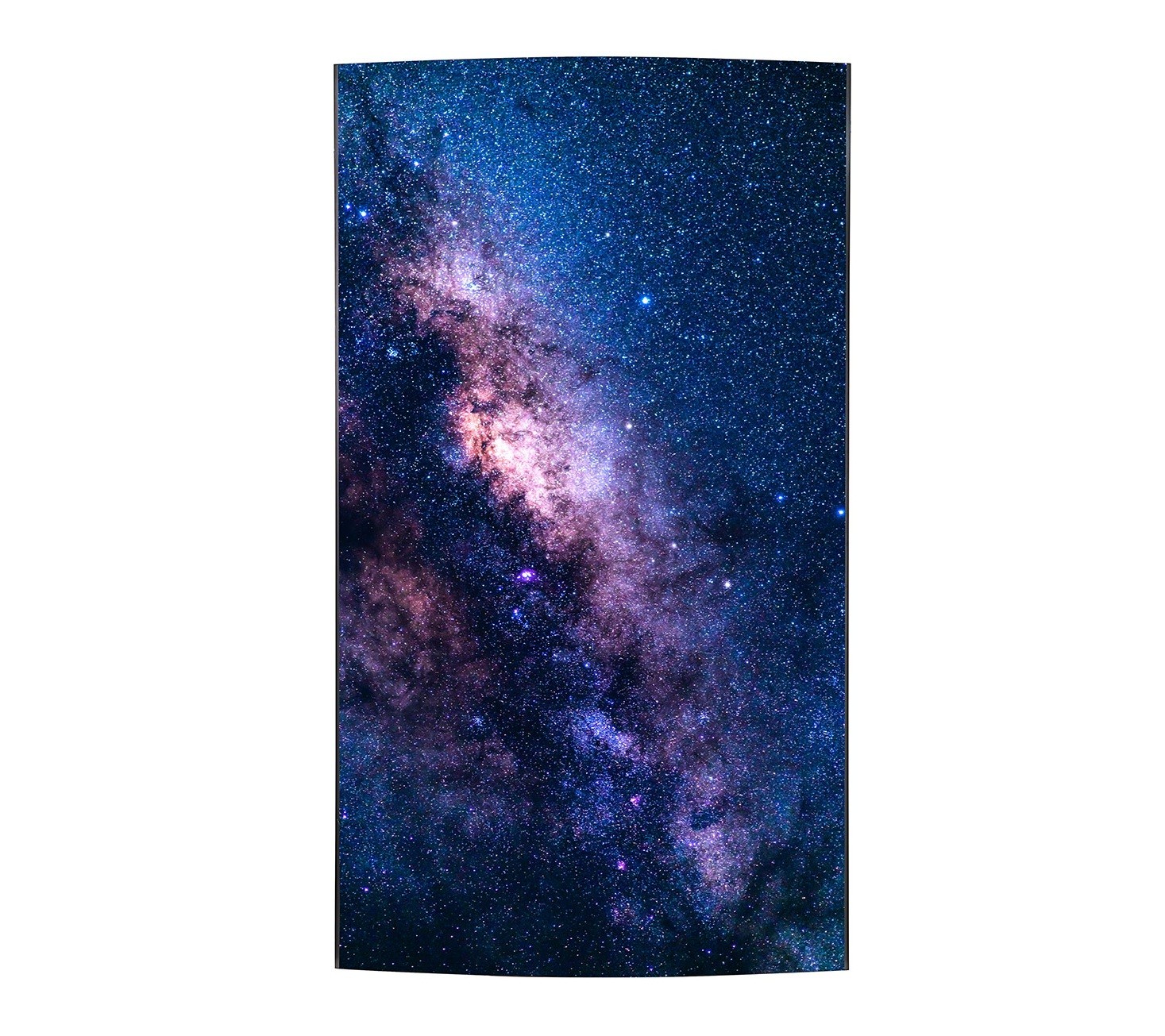

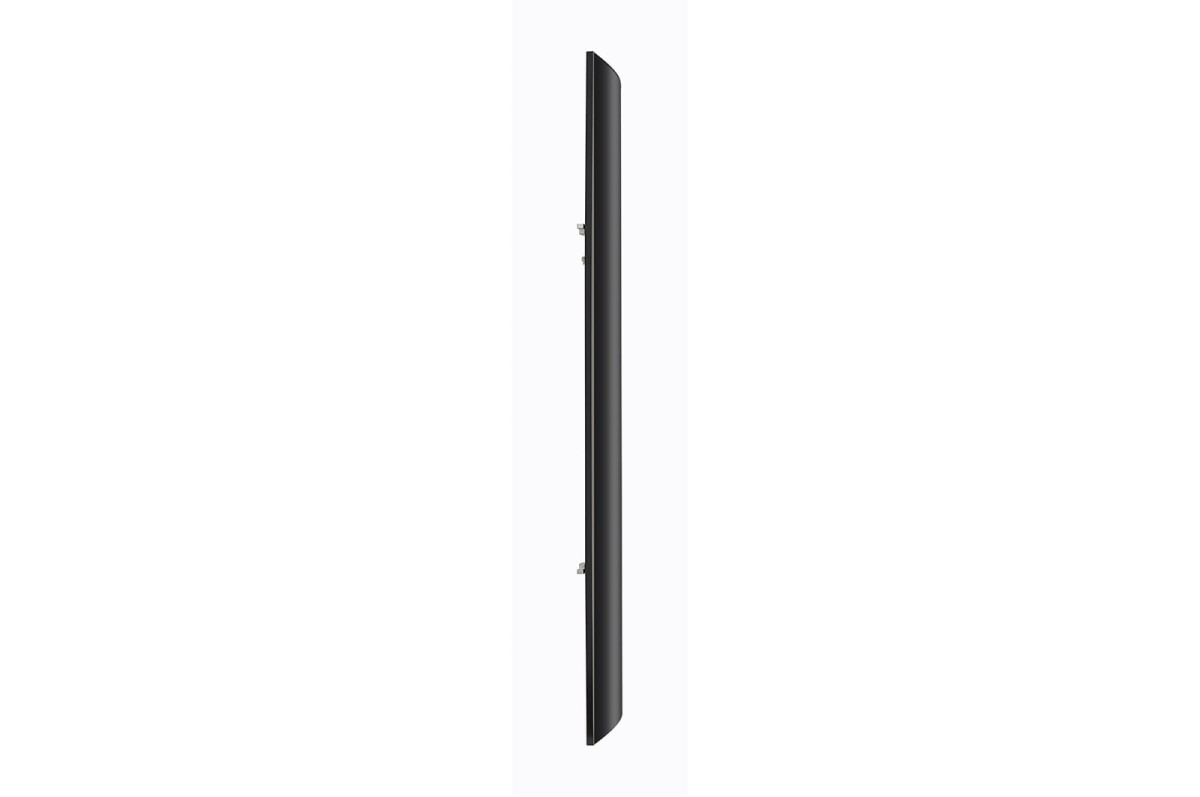

LG 55EF5G-P OLED Digital Signage with Flexible Curved Open Frame

Product code: 55EF5G-P

Blending in with the space while captivating everyone’s mind. LG OLED signage offers unprecedentedly flexible design. Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige-enhancing landmark with perfect colors and innovative forms.

SEND AN ENQUIRY

Description

Panel

Screen Size55"
Panel TechnologyOLED
Native Resolution1,920 x 1,080 (FHD)
Brightness150/400nit (APL 100%/25%)
Contrast Ratio150,000 : 1
Color gamutBT709 120 %
Viewing Angle (H x V)178 × 178
Color Depth10 bit (R), 1.07 Billion Colors
OSwebOS4.0
Operation Hours (Hours / Days)18/7 (Moving Content Only)
Portrait / LandscapeYes / Yes

Additional information

Mechanical Specification

Bezel ColorBlack
Bezel Width T/R/L/B : 0.6/6.7/6.7/0.6mm (LandScape, Off Bezel)
T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel)
T/R/L/B : 5.0/7.6/7.6/10.6mm (LandScape, On Bezel)
T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel)
Weight (Head) 5.8Kg (LandScape, Head)
7.0Kg (Portrait, Head)
3.5Kg (Signage Box)
Monitor Dimensions (W × H × D) 1224.9 x 696.2 x 38.0mm (LandScape, Head, w/Pemnut)
701.4 x 1219.7 x 38.0mm (Portrait, Head, w/Pemnut)
1224.9 x 696.2 x 12.4mm (Landscape, Head, w/o Pemnut)
701.4 x 1219.7 x 12.4mm (Landscape, Head, w/o Pemnut)
413 x 353 x 57.3mm (Signage Box

Key Feature

HW - Internal Memory (16GB), HW - Sensor - Temperature Sensor, HW - FAN, SW - webOS ver.(webOS4.0), SW - Embedded CMS - Local Contents Scheduling, SW - Embedded CMS - Group Manager, SW - USB Plug & Play, SW - Fail over, SW - Sync Mode - RS-232C Sync, SW - Sync Mode - Local Network Sync, SW - Video Tag, SW - Rotation - Screen Rotation, SW - Rotation - External Input Rotation, SW - Gapless Playback, SW - Tile Mode Setting, SW - Setting Data Cloning, SW - SNMP, SW - ISM Method, SW - Auto Set ID, SW - Status Mailing, SW - Control Manager, SW - 3rd Party Compatibility - Crestron Inside, SW - Power - PM mode, SW - Power - Wake on LAN, SW - HDMI-CEC, SW - SI Server Setting, SW - Pro:Idiom


Connectivity

Input HDMI (HDCP 1.4), DP (HDCP 1.3), USB 2.0 Type A (2)
Output DP, Audio
External Control RS232C In / Out (w/ IR Out), RJ45 (LAN) In / Out, IR In (External IR Receiver)

Environment Conditions

Operation Temperature 0°C to 40°C
Operation Humidity 10 % to 80 %

Power

Power Supply AC 100-240 V ~, 50/60 Hz

Power Consumption

Typ./Max. 309 W / 318 W
BTU (British Thermal Unit) 1,054 BTU/Hr (Typ.), 1,085 BTU/Hr (Max.)
